THOMSON DR-N14 User manual

1080p Car Camera with Night Vision
Model No.: DR-N14
Read this instruction manual carefully before use and keep
for future reference.
Instruction Manual

Product Introduction

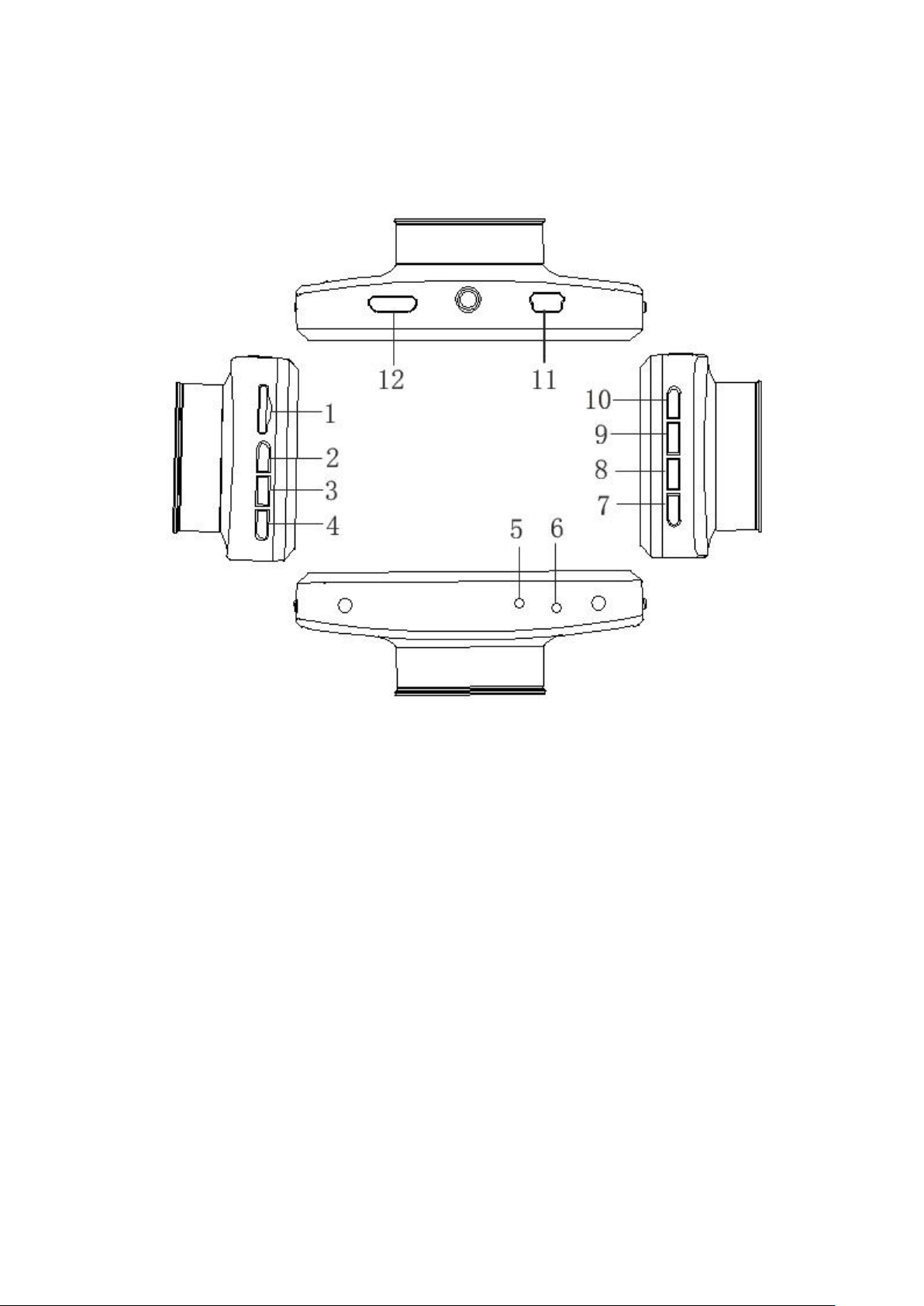

⚫Product structure
1）Micro SD Card Slot 2）UP 3）MENU
4）DOWN 5）MIC 6）Reset
7）Power 8）HOLD 9）Mode
10）OK 11）USB 12)HDMI-OUT
Description of Function Keys:
⚫1) Micro SD Card Slot
⚫2) UP
Select the menu to enter setting and playback mode.
⚫3) Menu button
Short-Press to bring up the feature set menu;

4) Down
Standby or short video process, click to adjust zoom; Down to select the function key menu
options;
5) MIC
MIC-IN
6）RESET
Select to reset
7) Power
Long press toturn device on/off. Short press toturn on/off the night vision led lights
8) HOLD button
Press this button, the video will be saved separately and the video will not be overwritten
9) MODE
Short press the mode key to switch between video, photo, playback mode
10) OK
OK key function: Short press OK key to release the lock function
11) USB
USB data interface, (1) for connecting a PC to transfer data; (2) for connecting an external
power supplyto charge the battery or supplies powerto operate
12) HDMI-OUT
Function Description：
G-sensor
If a collision occurs, the video will be automatically be saved without being overwritten.
Automatically turn on/off switch
When connected with a car charger, the device will turn on when the car starts. It will auto save the
video file in the memory card and turn off when your car engine is turned off.
REC/photo operation specifications
Power on/off
Press the power button, the blue indicator will light up.
To turn off press the power button, the blue indication will go out.

Note: A prompt will be given to indicate low battery when there is insufficient battery, the device
will power off.
⚫REC mode
Short press key, switch to camera mode, the upper left corner of the screen displays a
camera icon;
Short press button to start the camera, the camera icon will appear with a flashing red dot,
indicating the recording is in process.
⚫Photo mode
Short press key, switch to camera mode, the upper-left corner of the screen displays the
camera icon;
Short press key camera to take pictures.
⚫Video / photo playback
Short press key, switch to enter playback mode, the upper-left corner of the screen will
display the playback icon
Short press UP button to select a file;
Short press DOWN button to select a file;
Short press button to play the selected video file;
⚫Menu setting
Short press key to enter the video settings , the "video icon" field will display a yellow
background；Again press key to switch to settingsmode, navigate with the up and down button,
short press key to confirm selection.
⚫Short press to quit menu setting.
⚫Time setting
Short press key to enter settings mode，short press key to set up menu，press the
button to select the date and time option, short press key enter, short press key，key in
Year / Month / Day / minutes / seconds using the up and down buttons to adjust the required

value，press confirm the modification
USB mode
Connect the device with a computer by USB Cable, press “power on” button, the device will
automatically show USB menu, there is 1 mode available:
USB-Disk: In this mode you can access video files and photo files
Battery instruction
⚫Battery indication image：
Full battery slightly low battery low battery battery empty
⚫There are three methods to charge, the red indicator will light up when charging, the charging
time is approximately 180 minutes, the red indicator light will turn off when charging is
completed.
1. Use power adapter to charge
2. Use PC-USB to charge
3. Use vehicle power to charge
Remark: In the event that the device freezes, try to restart the device.

View angle
140 degree
LCD screen size
3.0LTPS (16:9)
Video Resolution
1080FHD(1920*1080)
1080P(1440*1080)
720P(1280*720)
WVGA(848*480）
VGA (640*480)
IMAGE RESOLUTION
12M,10M,8M,5M,3M,2M,1.3M, VGA
Video Files format
AVI
Photo format
JPEG
Image Pixel
3 Mega Pixels
Color
BLACK
Language
English,French,Spanish,German,Italian,Portuguese,Arabic,
Chinese(Traditional),Chinese(Simplified),Japanese,Korean,Russian
Loop recording
support
Motion Detection
Support
G-sensor
Support
night vision
Support
Memory card
Micro SD card (max 32GB)
HDMI
Support
CONNECTOR
USB 2.0
Current frequency
50HZ/60HZ
Power interface
5V 1A
Battery
Built-in 200mAh (Real 150mah capacity)
⚫Products specifications

⚫Can’t take photos or recording
Check that if the micro SD card has enough space or is locked.
⚫Automatically stops when recording
Make sure you are using a compatible high-speed Micro SD card with SDHC for large HD video
data.
⚫The words “files error” appear when replaying a photo or video
Uncompleted files because of micro SD card storage error, please use the formatting function to
format your Micro SD card.
⚫Unclear video
Checks if there is any dirt or fingerprints; and use lens paper to clear the camera lens.
⚫Black image when recording sky or water scene
Scenes with big contrast will influence the automatic exposure function of the camera; you can
adjust “EV in setting mode to correct.
⚫Color is not perfect on a cloudy day.
Set the “white balance” function to automatic
⚫Cross stripe interference in image
Please set the light frequency to 50Hz or 60Hz according to the local power supply.
⚫The device has crashed
Restart by short pressing on” RESET” button after crash.
WARRANTY AGAINST DEFECTS
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
compensation for any other reasonably foreseeable loss or damage. You are entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. IFI AU Pty Ltd will repair or replace such
defective goods for up to 1 year from the date of purchase. This warranty is against
defects in the goods purchased and does not cover damage caused by the incorrect use
or installation of the goods or by modifications or by accident. To claim under the
warranty you need to return the product to the place of purchase ( at your expense ) with
a valid receipt or other proof of purchase.
If you are not able to return the product to the place of purchase, please contact:
[email protected] or
call customer service hotline: [phone] Mon. - Fri. 9am - 5pm AEST
Trouble shooting:
