Cansonic UltraDuo Z2 User manual

INSTRUCTION MANUAL
2 x 1080P FULL HD DUO DASHCAM

Congratulations on your purchase of your new Cansonic UltraDuo Z2
camera! We’d like to thank you for your purchase. We strive to bring you
the highest quality products, allowing you to capture every memory.
We know you’ll love using your Cansonic UltraDuo!
The following instructions are written for optimized use of your Cansonic
UltraDuo Z2 camera. Each of the default settings have been designed to
achieve the highest quality video while maintaining peace of mind when
the camera is on. It is not recommended you adjust the default settings.
With new technology readily available, the creators of Cansonic have
developed an easy to use camera for everyday use. The Cansonic UltraDuo
Z2 allows its user to record files in 1, 3, or 5 minute lengths. These files are
easy to download to your home desktop or personal laptop. In most instances,
the video files are easily played on your mobile device. While most cameras
traditionally use the entire capacity of the Micro SD card until it is removed,
CANSONIC automatically deletes the oldest file to create space for the new
video.
Cansonic UltraDuo Z2 offers three modes:
1. Video Mode: Video mode will set to default when camera is active.
2. Photo Mode: The UltraDuo Z2 setting takes still photographs.
3. Playback Mode: Users can view all previously recorded videos and
photos taken.
EASY TO USE
The Cansonic UltraDuo Z2 lets users adjust camera settings to get the perfect
shot. For a great photo every time, here are a few tips from the designers:
FEATURES:
Automatic Start/Stop Technology:
Maintain full focus on the road! The vehicles ignition will let the camera
turn on while connected to your vehicles cigarette lighter socket. When
the vehicle is turned off, the camera will automatically shut down,
preserving camera power for those moments you are not connected to a
direct line of power.
1. Reduce the amount of sky in the picture. By adjusting the camera
towards the road, the automatic exposure compensation will be
focused on the road and not the light from the sky.
2. Position the camera in the center of the dash. If you place the camera
behind the rearview mirror, you will avoid all distractions from the road.
3. Remove any objects that will obstruct your shot such as the protective
lens cover. Clear vision will allow you to record everything in one shot.
Ⅰ

ADDITIONAL TIPS
Full optimization of memory card:
1. Before removal of the memory card from the UltraDuo Z2, be sure to
turn off the camera. Leaving the camera on while removing its memory
card may lead to eased or corrupt files.
2. Format memory card to UltraDuo Z2 settings by clicking MENU button
twice, then choosing the format option. You will now be able to fully use
all the memory power your Micro SD card is set to hold.
3. By reformatting your memory card every 2-3 weeks, your memory card
will continue to be fully utilized. Only do this AFTER you've downloaded
any files from the card to your computer, as formatting the card will
remove all content.
Ⅱ

The Cansonic UltraDuo Z2.....................................................................
Precautions...........................................................................................02
Product Specs.......................................................................................04
Package Contents..................................................................................05
Product Features...................................................................................05
Suction Mount.......................................................................................06
Camera Parts & Controls........................................................................07
In-Vehicle Installation............................................................................10
Video Mode...........................................................................................13
Video Menu...........................................................................................15
Photo Mode...........................................................................................17
Photo Menu...........................................................................................18
Playback Mode......................................................................................19
Setup Menu...........................................................................................24
USB Storage.........................................................................................26
Video & Audio Output.............................................................................27
Troubleshooting.....................................................................................28
TABLE OF CONTENTS
1
Ⅰ

DO NOT expose UltraDuo Z2 to moisture under any circumstance. The
camera is NOT WATERPROOF and will become defective and may put
the user at risk of electric shock or fire exposure.
DO NOT use UltraDuo Z2 for any illegal purpose or to infringe on another
individual’s rights.
When audio is being recorded, we recommend you allow any and all
persons near the UltraDuo Z2 know that they are being recorded. You can
disable the microphone on the camera.
PRECAUTIONS
Please read the following instructions carefully. Proper Use of the Cansonic
UltraDuo Z2 is necessary in order to avoid operational problems that may
occur.
WARNING:
CAUTION:
Do not perform any activities or services with the device unless you are
qualified to control the object. Misuse of the Cansonic UltraDuo Z2 may
result in electric shock or fire exposure. AVOID ANY uses of the camera
that are not listed in the manual. If your UltraDuo Z2 needs service
repairs, please visit a qualified technician to perform the necessary
repairs:
Cansonic UltraDuo Z2 has had exposure to water (rain, all forms of
water, ETC.)
Cansonic UltraDuo Z2 operating system is not functioning properly
Cansonic UltraDuo Z2 does not turn on properly
Cansonic UltraDuo Z2 is equipped with an LCD screen for easy viewing. The
screen has a multi-layer complex component that contains nearly 600,000
pixels. The pixels the screen projects may fail as a result of: Defective
Problems or Prolonged Exposure to the sun. Product life may also be a cause
for screen failure. One pixel is equivalent to 0.0001% of total screen exposure.
One-pixel failure per year during the operational life of the UltraDuo Z2 is
standard and should not be cause for concern.
LIQUID CRYSTAL DISPLAY (LCD)
Cansonic UltraDuo Z2 contains a lithium-ion battery. Battery must be recycled
or disposed of properly according to state and federal laws.
RECYCLE
PROPER USE OF CANSONIC ULTRADUO Z2
The following instructions are listed for exclusive use of the UltraDuo Z2.
Please read all instructions to prolong camera use and effectiveness.
2

• Remove packaging and ensure the windshield is clear of dirt and debris
before you install your dash camera mount.
• Avoid any and all distractions in regards to technology, IT’S THE LAW. Any
obstruction of drivers’ view of the road may result in fines. Ensure the
Cansonic UltraDuo Z2 is placed clear of your view of the road, as well as out
of the way of airbags in the event of an accident.
• Disconnect the Cansonic UltraDuo Z2 adaptor when vehicle is not in use.
By doing so, you will avoid camera damage as well as hazards such as fires
and electrocution.
• Avoid viewing the camera playback feature while operating a vehicle. It is
illegal and may result in a fine or even death.
• Avoid adjusting the camera settings while driving. It is dangerous and illegal.
OBEY THE LAW!
CLEANING
Proper maintenance of the UltraDuo Z2 is essential to allow for full
optimization of the camera. Maintenance suggestions are:
• Clean the device with a soft dry cloth. For tough dirt, please use a small
quantity of water and a neutral detergent. Clean with a soft cloth.
• Avoid contact with the UltraDuo Z2 lens as damage may be caused.
• When necessary, clean the lens carefully by using lens cleaning fluid and
a soft cloth.
3

PRODUCT SPECS
Power Requirements
Power Supply
Recording Resolution
Screen Size
Screen Resolution
Screen Ratio
SD Card
(Recommended Type)
SD Card Recorded File
Capacity
(based on default settings)
Recording Format
Video / Audio Out
Internal Battery
Unit Dimensions
Unit Weight
Model Number / Name UltraDash Z2
1920 x 1080 @ 30fps (default)
2.0”
960 (W) X 240 (H) pixels x RGB
4:3
MOV
2.5mm Jack (Video / Audio)
Lithium-ion 3.7V /700mAh (up to 60mins recording time)
Battery design allows the 'Auto Power Off' feature to
function in event of power loss within the vehicle.
It is not intended as an alternative power source to
replace the supplied car adaptor.
0.2 pounds ( 95 g )
5V/1.5A, 12-24V DC
Input: 12-24V DC;
Output: 5V DC;
Fuse Type: 32mm/1.5A
Sensor Resolution 4M Pixel (4,000,000 Pixel)
6G/160°/F1.8
Wide-Angle Lens
Type/Angle/Aperture
Card Reader Micro SD, Class 6-10, up to 128GB
64-128GB SDHC, Class 10 (48mb/s),
for best results use a recognized brand
8GB Micro SD = 45 mins of recording (45x 1 minute recordings)
16GB Micro SD = 90 mins of recording (90x 1 minute recordings)
32GB Micro SD = 135 mins of recording (135x 1 minute recordings)
64GB Micro SD = 180 mins of recording (180x 1 minute recordings)
128GB Micro SD = 225 mins of recording (225x 1 minute recordings)
5.3 x 2 x 0.9 inches (13.5 x 5.2 x 2.4 cm )
4
Telephoto Lens
Type/Distance/Aperture 6G/164 ft/F2.0
(Car Power Cable)

PACKAGE CONTENTS
Please check the contents of your UltraDuo product to ensure all pieces are included.
UltraDuo Z2 Suction mount Car Power Cable USB Cable
* Product appearance may differ slightly from images shown above.
- 2” LCD Color Screen
We developed a screen that perfectly fits your camera, without any loss of
resolution. This design allows you to use the playback feature, instantly letting
you view the shot you just captured.
- SUCTION MOUNT
We know how difficult it is to maintain focus with movement. We developed a
mount that is uniquely designed to maintain the focus you need to capture the
perfect shot.
- G SENSOR/FILE PROTECTION
The UltraDuo Z2’s built-in sensor detects an outside force, forcing the camera
to save what is has just shot. The file can also be manually saved. By pressing
our easy to access button around the screen, you are able to save an
individual file.
- PARKING MODE
The Cansonic UltraDuo Z2 has a sleep mode, but a unique feature enables the
camera to automatically record 30 seconds of video if there is any physical
movement of the vehicle.
- Automatic Start/Stop Tech
Cansonic UltraDuo Z2 comes with built-in sensors that automatically turn the
camera on and off with the vehicle.
- Built-In Microphone & Speaker
A built-in microphone and speaker come standard. The feature also works
with the camera’s playback feature.
- GPS DATA (OPTIONAL)
UltraDuo Z2 is able to record your location and speed while filming with a GPS
logger (sold separately, please see Cansonic website for more detail).
PRODUCT FEATURES
5

1
2
4
3
6
1. Suction Release Tab
The suction release tab allows you to release the cup from the window to
readjust your camera placement. Remember to have a clean surface,
and place it where it will not be a distraction to the drivers view.
2. Suction Cup
Clean the surface of the window, and add a small amount of moisture on
the suction cup to allow for a stronger bond between the glass and the
suction cup. Do not place where there is paint.
3. Locking Ring
Loosen the locking ring so you are able to adjust the Cansonic UltraDuo
Z2 to the perfect angle. Remember to tighten the lock before you use it.
4. Locking Lever
Choose a location to place the camera where it won’t distract you.
Pull down the lever, firmly press down the mount, and lock the lever to
place it securely.
SUCTION MOUNT

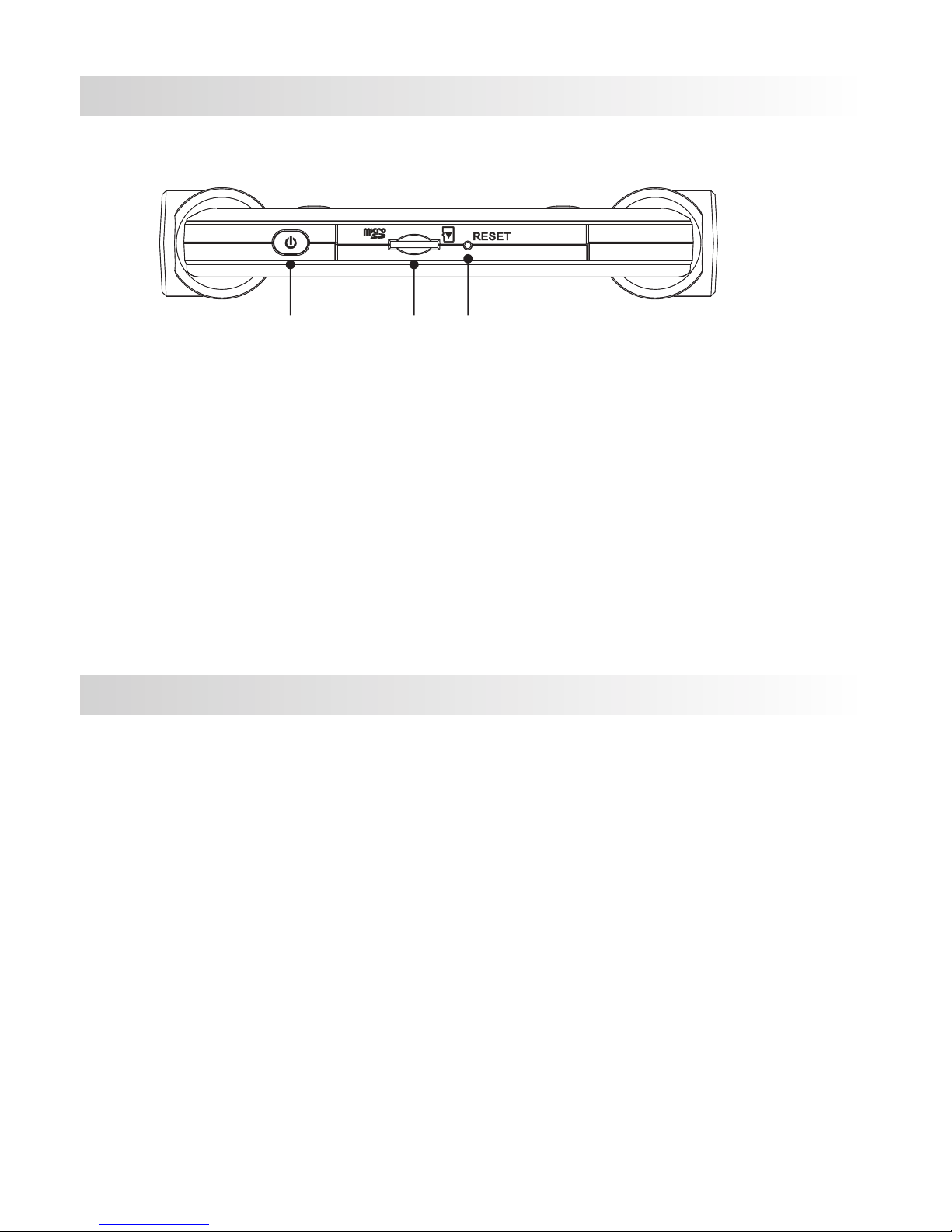

CAMERA PARTS & CONTROL
BACK
1. GPS LED Indicator
The LED will flash while UltraDuo Z2 locates satellites.
- Once a stable signal is received, the LED light will be constant.
2. Mode/EV Button
Mode
This button allows you to navigate between video, photo and playback
modes.
EV
When the camera is recording, press EV to change the exposure level.
3. Up/Mute Button
Up
Navigate up within menus or go to the previous file in playback mode.
Mute
Turn on or off the audio recording function while in video mode.
4. Status LED Indicator
Red: Power On
Red (Flashing): Recording
Blue: Battery charging
5. Left Lens
Left lens is a wide-angle lens designed to record everything through the
front windshield.
1 2 3 4
56
78 9 10 11 12
7

BACK (CONT.)
7. File Protect/Left Button
File Protect
Simply press the button and to protect the current video file from
overwriting.
Note:
- If the button is pressed within the first third of a video clip, the previous
clip will also be protected.
- If the button is pressed within the final third of a video clip, the next clip
will also be protected (if recording continues).
Left
Adjust the sound/time and date menu settings.
8. Menu/Screen Shot Button
Menu
Press this button to open the menu of current mode. Press this button
twice to enter the general setting menu.
Screen Shot
While you are recording in video mode, press down on the button and
you will be able to take a screenshot of the current frame.
9. Screen
UltraDuo Z2 is equipped with a standard 2.0” LCD color screen to let you
view your files with its playback feature.
6. Right Lens
Standard
Right lens is a telephoto lens designed to capture all the details for you,
or you can record the rear traffic by point this lens backward.
Commercial
Right lens is another wide-angle lens which is designed for a
professional driver to record driver-passenger interaction.
11. Screen Select/Right Button
Screen Select
Switch the main camera to display on PIP screen.
Right
Adjust the setting in sound/time and date menu.
12. Microphone
Built-in microphone for audio recording.
10. Down/Screen Off Button
Down
Navigate down within menus or go to the next file in playback mode.
Screen Off
Turn on/off the LCD screen.
8

CAMERA PARTS & CONTROL (CONT.)
TOP
13. AV Outlet
This feature is available to connect your Cansonic UltraDuo Z2 to your
television by using the AV Cable (sold separately)
14. DC-IN/Data transfer Port
By connecting the UltraDuo Z2 with the supplied car power cable you are
able to charge the camera. This will also be utilized to let you connect the
USB cord to your PC.
15. Mounting Socket
Attach your suction mount here.
16. GPS Port
Connect GPS logger (sold separately) here.
17. Record/OK Button
Record
In Video mode, press to start or stop recording.
In Photo mode, press to take a photo.
OK
The confirm button used to select options in menus.
13 14 15 16 17
9

CAMERA PARTS & CONTROL (CONT.)
18. Power Button
Press and hold the button for 2 seconds to turn the camera on/off.
19. Micro SD Card Slot
Insert you micro SD card here. Push your memory card into the slot until
you hear a click.
20. Reset Button
On the rare occasions the camera has a problem, use the reset button to
shut down the camera.
Simply press the reset until the camera turn offs and press power button
to turn on.
18 19 20
Follow the instructions below for the first time installation.
• INSERT YOUR Micro SD CARD IN THE UltraDuo Z2
The UltraDuo Z2 is fitted to allow a standard Micro SD card to record your
footage. Before installing, make sure the gold end of the card is facing the
LCD screen. Once it’s aligned with the slot, push the card in and wait for the
CLICK to make sure it is secure.
TIP:
- If you cannot hear the CLICK, take a small coin by the edge and push on the
outside end of the card until the sound is made.
- Remember: DO NOT REMOVE OR INSERT THE MEMORY CARD WHILE
THE ULTRADUO Z2 IS TURNED ON.
• PLACE THE UltraDuo Z2 ON THE SUCTION MOUNT
When you attach the UltraDuo Z2 onto the mount, make sure you align the
camera within the mount clips for proper installation.
10
BOTTOM
IN-VEHICLE INSTALLATION

• ATTACH THE MOUNT TO THE WINDSHIELD & START RECORDING
Remove the protective plastic film and select a location on the windshield to
put the suction cup in place.
Release the locking lever from the mount by pulling down on it. Hold the
suction cup in place with the mount and press against the window.
While holding it in place, put the release lever back to lock the mount.
TIP:
- When selecting a location for the suction cup, make sure it’s on smooth
glass free of paint.
- Before mounting, clean the area with a dry/clean cloth to allow a stronger
bond between the glass and the suction cup.
- Remember to place the mount within the area of the vehicle’s windshield
wipers.
• ADJUST THE ANGLE
Loose the locking ring and adjust the camera to the angle you want.
When you find the perfect angle, remember to tighten the ring again.
• CONNECT CAR POWER OUTLET
- Connect the power cable that is in the package to your vehicle’s cigarette
outlet.
- Plug the power cable into the camera to allow the camera to charge.
- The Cansonic UltraDuo Z2 will automatically turn on and start recording
once power has been made available from the cigarette outlet. Just start
the vehicle and start driving!
- If there is no cigarette outlet for your vehicle, use the included USB power
cord.
11

TIP:
- Remember to plug the car power cord to the camera in the power socket
located on the top left corner.
- DO NOT wire the UltraDuo Z2 directly to the car cigarette outlet or any 12 V
outlet. Doing so will result in permanent damage to the camera.
- The Cansonic UltraDuo Z2 has a hardwire kit available from the Cansonic
official website that will directly connect to your vehicle’s fuse box. This will
allow you to have your cigarette outlet available for other use.
Please read carefully and follow the instructions below to help you operate
UltraDuo Z2 safely.
WARNING:
ALWAYS pay attention to the road ahead of you. Driving with distractions on
the road may result in penalties, accidents, or even death.
PLEASE DRIVE CAREFULLY.
Always place the mount in a location that will not obstruct the driver’s view of
the road. We recommend you place the mount behind the rearview mirror on
the passenger side, within the windshield wiping area.
CAM clearly needs to view through
DO NOT place the camera in front of the driver’s side.
DO NOT place the mount within the airbag deployment area or near any
mirrors.
DO NOT operate the UltraDuo Z2 while driving. Remember, the camera will
automatically record when the vehicle engine has started.
PLEASE place the camera where the power cable is easily concealed and
will not distract the driver. Avoid areas such as the steering wheel, pedals,
or gear shifter.
PLEASE remember to clean the area where the mount’s suction cup will be
placed.
PLEASE adjust your camera settings before you begin driving.
12

VIDEO MODE
The following information will help you better understand the icons in VIDEO
MODE and their relative functions. Some icons show up only when
corresponding functions are activated.
2017/01/10 12:12:12
AWB
WDR
00:30:59
1
1080P
1 2 3 4 5
7
8
91011
12
13
14
15
16
17
1. Mode: Indicates the UltraDuo Z2 is in video mode.
2. Camera Select: This will indicate which camera is recording: left, right
or both.
3. G Sensor: The current sensitivity level of G-Sensor.
4. GPS: If this icon flashes, it indicates UltraDuo Z2 is locating GPS signal.
When the GPS signal is found, the icon will stop flashing and remain stable
on the screen.
5. Recording Duration: This will indicate the length of the current recording.
6. Parking Mode Sensor: Indicates the current sensitivity level for parking
mode function.
7. File Protection: Indicates the current video clip is protected.
6
13

8. PIP: UltraDuo Z2 will display the image from both cameras at the same
time. Use screen select hot key to choose the main camera to display on
PIP screen.
9. Time: Displays current time.
10. Date: Displays current date.
11. Microphone: When the audio recording function is off, there will be a red
line across the icon.
12. Battery: Indicates if the camera is charging or not. If it is not charging,
the current battery power level is displayed.
13. Image Stabilizer: The built-in image stabilizer will help capture the video
with great quality.
14. WDR: The wide dynamic range function will enhance the camera’s
performance in a low light environment.
15. White Balance: Indicates current white balance setting.
16. Exposure: Indicates the current exposure level settings.
17. Video Length: The duration of each video clip.
Cansonic UltraDuo Z2’s default settings have been set for you to use the
camera without needing to change the settings.
If you need to make adjustments to the settings, the following instructions
will help you.
14

VIDEO MENU
Access the VIDEO MENU by pressing the MENU button while in VIDEO MODE.
Video Quality
Video Length
White Balance
Exposure
Camera Select
OK Enter MENU Back
Use the UP and DOWN buttons to select setting options and press the OK
button to enter the sub-menu.
Once you access the sub-menu, highlight the desired setting and press the
OK button to confirm your selection and to return to the VIDEO MENU.
Press the MENU button twice to return to video mode.
TIP:
- You are not able to access the UltraDuo Z2 menu while the camera is
recording.
• Camera Select: Choose which camera to record.
OPTIONS: Duo (1080P, 30 fps) (default)/Left (1080P, 60 fps)/
Right (1080P, 60 fps)
• Video Quality: Choose the video quality.
OPTIONS: High (default)/Medium/Low
• Video Length: Set the length for each individual video clip. The video
recorded by UltraDuo Z2 will be split and stored as individual video clips.
The loop recording function will automatically overwrite the oldest and
non-protected video clip when the memory card is full.
OPTIONS: 1 Minute (default)/3 Minutes/5 Minutes
• White Balance: Select the white balance setting for different weather
conditions.
OPTIONS: Auto (default)/Daylight/Cloudy
• Exposure: Adjust exposure levels settings.
OPTIONS: +2/+1/0(default)/-1/-2
15

Time & Date Stamp
OK Enter MENU Back
•
recorded files.
OPTIONS: On (default)/Off
NOTE: When you are in the SETUP -> System MENU, you will be able to
restore all the settings to UltraDuo Z2’s default settings.
Time & Date Stamp: Turn ON or OFF the date stamp mark on the
16
VIDEO MENU (CONT.)
