THOMSON 42WS90E3 User manual

SERVICE MANUAL
DOCUMENTATION TECHNIQUE
TECHNISCHE DOKUMENTATION
DOCUMENTAZIONE TECNICA
DOCUMENTACION TECNICA
No copying, translation, modification on other use authorized. All rights reserved worldwide. • Tous droits de reproduction, de traduction, d'adaptation et d'exécution réservés pour tous les pays. • Sämtliche Urheberrechte an diesen Texten und Zeichnungen stehen uns zu. Nachdrucke,
Vervielfältigungen-auchauszugsweise-nurmitunserervorherigenZustimmungzulässig.AlleRechtevorbehalten.•Idirittidiriproduzione,ditraduzione,eesecuzionesonoriservatiper tutti i paesi. • Derechos de reproduccion, de traduccion, de adaptacion y de ejecucionreservadospara todoslos paises.
WARNING : Before servicing this chassis please read the safety recommendations.
ATTENTION : Avant toute intervention sur ce châssis, lire les recommandations de sécurité.
ACHTUNG : Vor jedem Eingriff auf diesem Chassis, die Sicherheitsvorschriften lesen.
ATTENZIONE : Prima di intervenire sullo chassis, leggere le norme di sicurezza.
IMPORTANTE : Antes de cualquier intervención, leer las recomendaciones de seguridad.
Code : 351 477 60 - 0401 / 00M - Print.
42WS90E3
TV
Plasma
WYSIUS3.XPR 19/04/01 15:37 Page 1

MAIN
FRANÇAIS ESPAÑOLDEUTSCHENGLISH ITALIANO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
NC
NC
21
17
19
15
13
20
18
16
14
12
11
910
8
7
5
3
1
6
4
2
NC
AUDIO "R"
AUDIO "R"
AUDIO "L"
NOTE : ... etc. identifies each
pcb module.
AUDIO "D"
AUDIO "D"
AUDIO "G"
AUDIO
"BLEU"
AUDIO "G" MONO
"BLEU"
COMMUT. LENTE
"VERT"
"VERT"
"ROUGE"
COMMUT. RAPIDE
COMMUT. RAPIDE
VIDEO
VIDEO SYNCHRO
BLINDAGE PRISE
AUDIO "R"
AUDIO "R"
AUDIO "L"
AUDIO
"BLAU"
AUDIO "L" MONO
"BLAU"
AV
UMSCHALTUNG
"GRÜN"
"GRÜN"
"ROT"
AUSTASTUNG
AUSTASTUNG
VIDEO
VIDEO ODER
SYNCHRO
ABSCHIRMUNG
DES STECKERS
AUDIO "D"
AUDIO "D"
AUDIO "I"
AUDIO
"AZUL"
AUDIO "I" MONO
AZUL
"CONMUTACION
LENTA"
"VERDE"
"VERDE"
"ROJA"
"CONMUTACION
RAPIDA"
"CONMUTACION
RAPIDA"
VIDEO
VIDEO O SINCRO
BLINDAJE
DEL ENCHUFE
AUDIO "D"
AUDIO "D"
AUDIO "S"
AUDIO
"BLU"
AUDIO "S" MONO
BLU
"COMMUTAZIONE
LENTA"
"VERDE"
"VERDE"
"ROSSO"
"COMMUTAZIONE
RAPIDA"
"COMMUTAZIONE
RAPIDA"
VIDEO
VIDEO O SINCRO
INVOLUCRO METAL-
LICO DELLA PRESA
AUDIO "L" MONO
"BLUE"
"GREEN"
"GREEN"
"RED"
"ROUGE" "ROT" "ROJA""ROSSO""RED"
SLOW SWITCH
FAST SWITCH
VIDEO
VIDEO VIDEO VIDEOVIDEOVIDEO
PLUG SCREEN
BOX
VIDEO OR "SYNC"
FAST SWITCH
AUDIO
"BLUE"
: OUTPUT - SORTIE - AUSGANG - USCITA - SALIDA • : EARTH - MASSE - MASSE - MASSA - MASA
MAIN
NOTE : ... etc. repères des
platines constituant l'appareil.
MAIN
NOTA : ... etc. marcas de las
placas que constituyen el
aparato.
MAIN
NOTA : ... ecc. sigla delle
piastre dell' apparecchio.
MAIN
HINWEIS : ... usw. Kennzeichnung
der Platinen, aus denen das
Gerät zusammengesetzt ist.
: INPUT - ENTRÉE - EINGANG - ENTRATA - ENTRADA •
Indicates critical safety components, and identical components should be used for replacement. Only then can the
operational safety be garanteed.
Le remplacement des éléments de sécurité (repérés avec le symbole ) par des composants non homologués selon la
Norme CEI 65 entraine la non-conformité de l'appareil. Dans ce cas, la responsabilité du fabricant n'est plus engagée.
Wenn Sicherheitsteile (mit dem Symbol gekennzeichnet) nicht durch Original - Ersatzteile ersetzt werden, erlischt die
Haftung des Herstellers.
La sostituzione dei componenti di sicurezza (evidenziati con il segno ) con componenti non omologati secondo la
norma CEI 65 comporta la non conformitá dell'apparecchio. In tal caso è "esclusa la responsabilità " del costruttore.
La sustitución de elementos de seguridad (marcados con el simbolo ) por componentes no homologados segun la
norma CEI 65, provoca la no conformidad del aparato. En ese caso, el fabricante cesa de ser responsable.

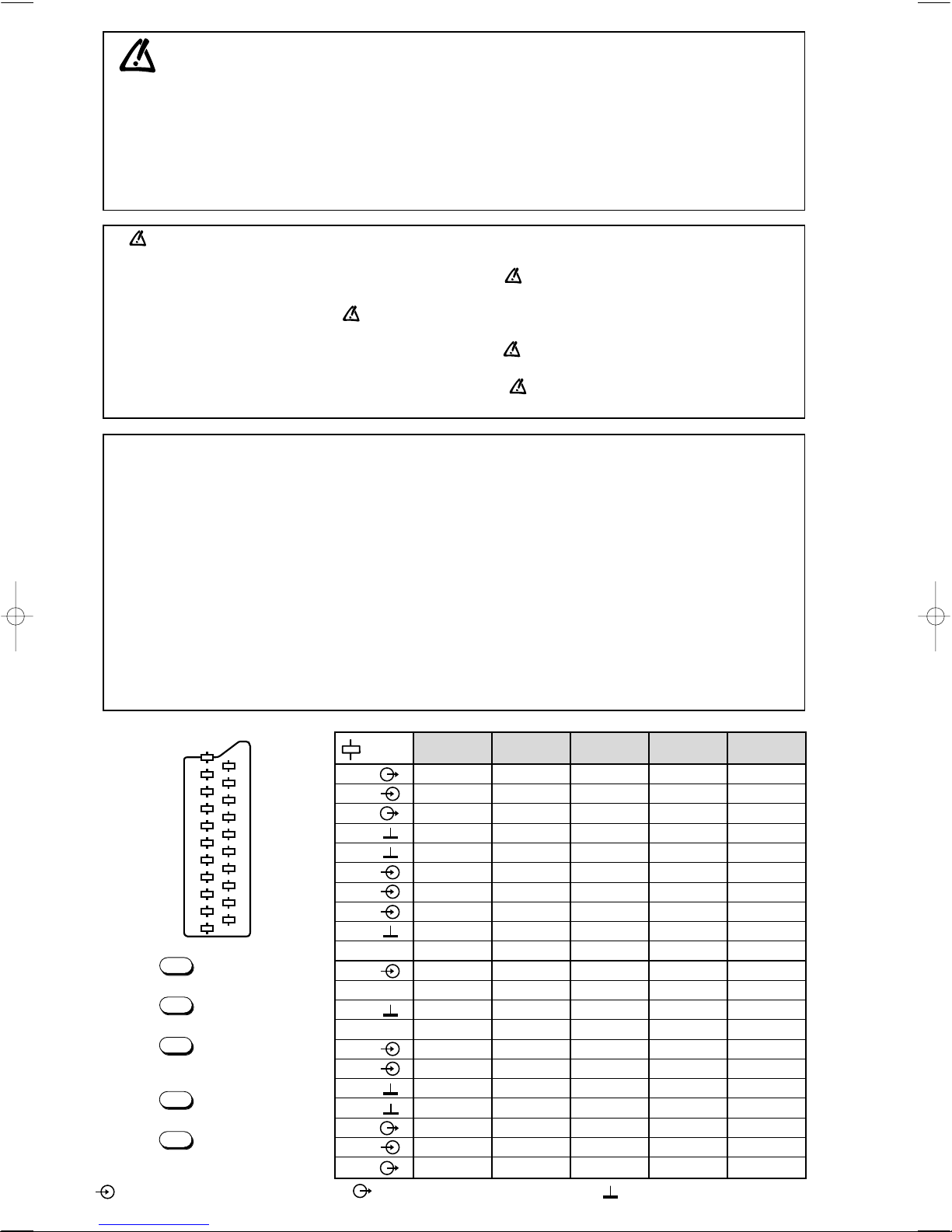

MEASUREMENT CONDITIONS - CONDITIONS DE MESURES - MESSBEDINGUNGEN
CONDIZIONI DI MISURA - CONDICIONES DE MEDIDAS
RICEVITORE :
In UHF, livello d'entrata 1 mV, monoscopio barre :
- PAL, norma G. bianco 100%.
Via SCART, livello d'entrata 1 Vpp, monoscopio barre :
Colore, Contrasto, Luminositá media, Suono minimo.
Programma selezionato PR 01.
Tensioni continue rilevate rispetto alla massa con un voltmetro digitale.
RECEIVER :
On UHF,input level : 1 mV, bar test pattern :
- PAL, I standard, 100% white.
Via the scart socket, input level : 1 Vpp, bar test pattern :
Colour, contrast and brightness at mid-position, sound at minimum.
Programme selected : PR 01.
DC voltages measured between the point and earth using a digital
voltmeter.
EMPFÄNGER :
Bei UHF Eingangspegel 1 mV, Farbbalken :
- PAL, Norm G, Weiss 100%.
Über die Scartbuchse : Eingangspegel 1 Vss, Farbbalken :
Farbe, Kontrast, Helligkeit in der Mitte des Bereichs, Ton auf Minimum.
Zugeordnetes Programm PR 01.
Gleichspannungen mit einem digitalen Voltmeter zur Masse gemessen.
RECEPTEUR :
En UHF, niveau d'entrée 1 mV mire de barres
- SECAM, Norm L, Blanc 100%.
Par la prise Péritélévision, niveau d'entrée 1 Vcc, mire de barres .
Couleur, contraste, lumière à mi-course, son minimum.
Programme affecté PR 01.
Tensions continues relevées par rapport à la masse avec un
voltmètre numérique.
RECEPTOR :
En UHF, nivel de entrada 1 mV, mira de barras :
- PAL, norma G, blanco 100%.
Por la toma Peritelevision, nivel de entrada 1 Vpp mira de barra.
Color, Contraste, luz a mitad de carrera, Sonido minimo.
Programa afectado PR 01.
Tensiones continuas marcadas en relacion a la masa con un voltimetro digital.
Do not disconnect modules when they are energized!
Repairs on power supply section are to be carried out only with isolating transformer.
Ne pas retirer les modules lorsqu' ils sont sous tension. N'effectuer les travaux de maintenance sur la partie reliée
au secteur (Switch Mode) qu'au travers d'un transformateur d'isolement.
Module nicht bei eingeschaltetem Gerät entfernen!
Servicearbeiten am Netzteil nur unter Verwendung eines Regeltrenntrafos durchführen.
Non scollegare le piastre quando sono alimentate!
Per le riparazioni sulla sezione alimentatore, utilizzare un trasformatore isolatore.
No desconectar los módulos cuando están activados. Las reparaciones en la sección de alimentación de energía
deben ser ejecutadas solamente con un transformador de separación.
WYSIUS3.XPR 19/04/01 15:37 Page 2

First issue 04 / 01 3
Page Page
DISASSEMBLY
Removing the back panel . . . . . . . . . . . . . . . . . . . 4
Removing the connectors . . . . . . . . . . . . . . . . . . . 4
Removing the MAIN modules . . . . . . . . . . . . . . . . 5
Removing the POWER module . . . . . . . . . . . . . . . 5
Removing the left terminal panel . . . . . . . . . . . . . 6
Removing the right terminal panel . . . . . . . . . . . . 6
WIRE LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
DIAGNOSTIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
VIDEO TROUBLESHOOTING
No image, picture error . . . . . . . . . . . . . . . . . . . .12
No PC picture . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
No HD/DVD picture . . . . . . . . . . . . . . . . . . . . . . . .13
No RGB signal . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Synchonisation trouble . . . . . . . . . . . . . . . . . . . . .15
AUDIO TROUBLESHOOTING
No audio signal from SP output . . . . . . . . . . . . . .16
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Video screen position . . . . . . . . . . . . . . . . . . . . . 18
DVD/HD/DTV screen position . . . . . . . . . . . . . . . 18
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
ADJUSTMENT LOCATION
MAIN module . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
VIDEO module . . . . . . . . . . . . . . . . . . . . . . . . . . 20
POWER module . . . . . . . . . . . . . . . . . . . . . . . . . 21
BLOCK DIAGRAMS
AUDIO module . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
MAIN module . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
VIDEO module . . . . . . . . . . . . . . . . . . . . . . . . . . 23
CONTENTS
WYSIUS3.XPR 19/04/01 15:37 Page 3

DISASSEMBLY

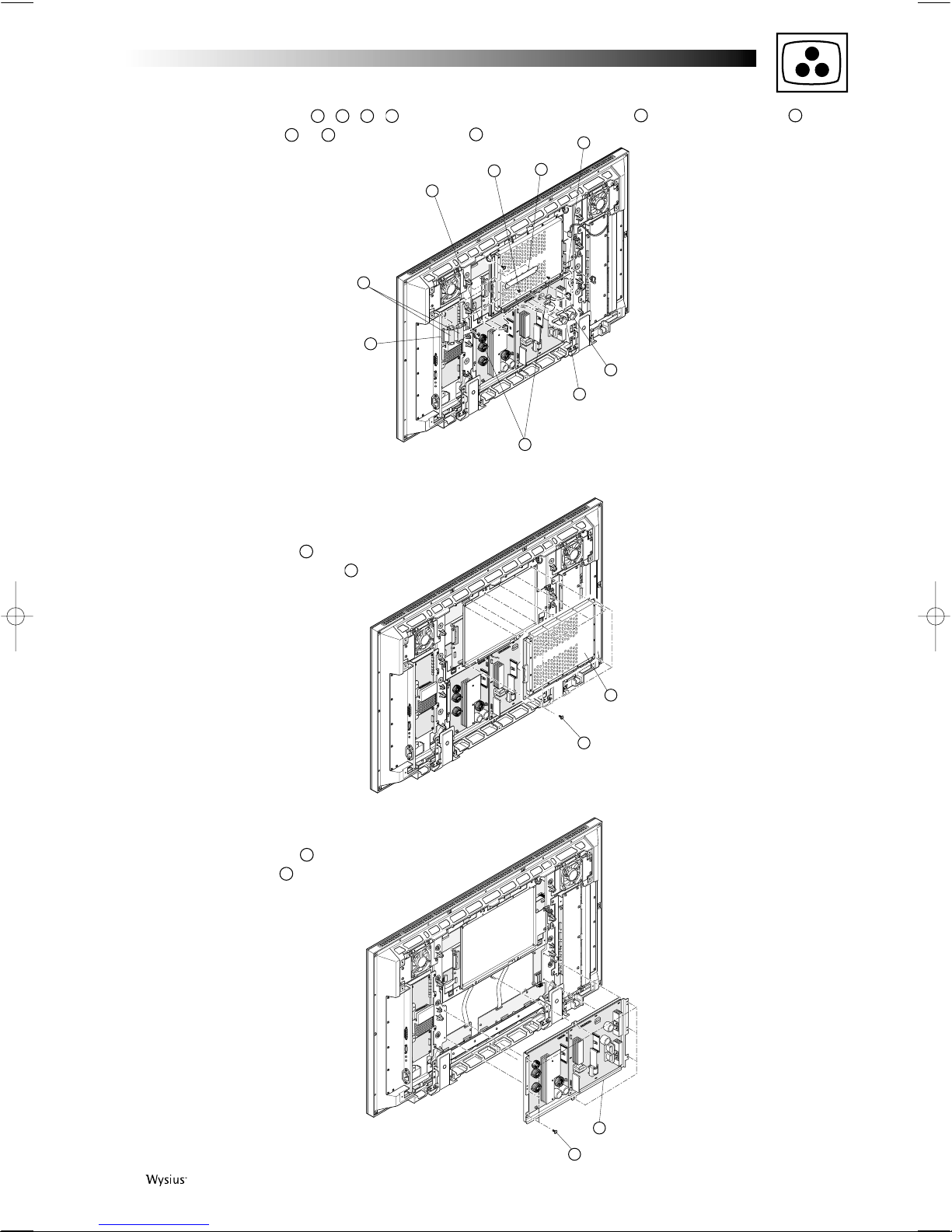

1. Removing the back panel assembly
- Remove the 27 screws and take out the back panel
assembly.
2. Removing the connectors
- Remove the connectors , , , , , ,
- Remove the button and the screw pull the part ,
- Remove the connectors , , , , ,
- Remove the connectors et ,
- Remove the connector ,
18
17
16
15
14
13
12
11
10
09
08
07
06
05
04
03
02
01
4First issue 04 /01
Back panel assembly
01
F1
SY
PQ
PV
PV
RS
RS
MN
HD
HD
MN
SY
PQ
02
06
04
05
03
07
08
09
10
PA
AE
AE
PA
F2
F2
F1
F1
AB
LD
PW
AB
LD
PW
11
12
13
14
15
16
17
18
WYSIUS3.XPR 19/04/01 15:37 Page 4

First issue 04 / 01 5
- Remove the connectors , , , ,
- Remove the screws and , and disconnect the cable ,
3. Removing the main module assembly
- Remove the 8 screws ,
- Lift the main module assembly up.
4. Removing the power unit
- Remove the 8 screws ,
- Lift the power unit up.
- Remove the parts and the earth plate (pulse) .
27
26
31
30
29
28
25
24
23
22
21
20
19
PH
PH
PD
PD
PN PM
19
27
23
20
25
26
21
22
24
28
29
30
31
WYSIUS3.XPR 19/04/01 15:37 Page 5

5. Removing the left terminal panel assembly
- Remove the 6 screws and the 7 screws ,
- Remove the terminal panel (MMP-L) assembly.
5.1 Removing the audio amplifier module
- Remove the 3 screws ,
- Remove the 2 screws ,
- Take out the audio amplifier module.
5.2 Removing the RS232C module
- Remove the 3 screws ,
- Remove the 2 screws ,
- Take out the RS232C module.
5.3 Removing the speaker sockets
- Unscrew the 2 screws ,
- Remove the speaker sockets.
6. Removing the right terminal panel assembly
- Remove the 6 screws and the 7 screws ,
- Take out the terminal panel(MMP-R) assembly,
- Remove the 7 screws and lift the part up.
42
41
40
39
38
37
36
35
34
33
32
6First issue 04 /01
TERMINAL PANEL (MMP-L) ASSY
32
33
AUDIO AMPLIFIER
MODULE
SP MODULE
RS232C
MODULE
34
35
36
38
37
M32
TERMINAL PANEL
(MMP-R) ASSEMBLY
39
42 41
40
WYSIUS3.XPR 19/04/01 15:38 Page 6

First issue 04 / 01 7
6.1 Removing the video module
- Unscrew the 5 screws and the 2 screws ,
- Take out the video module.
6.2 Removing the panel module
- Remove the 2 screws ,
- Disconnect the wire ,
- Take out the panel module.
WIRE LOCATION
After replacement of the modules refer to the below diagram
to mount ferrites and connect the modules again.
45
44
44
43
VIDEO MODULE
PANEL MODULE
43
45
44
ZCAT2032 930 (code 351 571 10)
WYSIUS3.XPR 19/04/01 15:38 Page 7

8First issue 04 /01
DIAGNOSTIC
The power LED located on the front of the display is a bicolour LED wich indicates the operating status including the normal, standby
and three error detections
No energization
of POWER unit
Is the power
LED lit ?
See page 9
Is the power LED
flashing green?
See page 10
Is the power LED
lighting green?
The power LED
is lighting red :
Stand-by mode
See page 11
Is the power LED
flashing red?
See page 9
Is the power
LED flashing green
and red?
See page 10
No
No
Yes
Yes
No
Yes
No
Yes
No
Yes
WYSIUS3.XPR 19/04/01 15:38 Page 8

First issue 04 / 01 9
Power LED
unlit
No
No
Yes
Yes
No
Yes
No
Yes
No
Yes
Is the power plug correctly
connected to the wall outlet?
Rearrange the power plug
connection correctly.
Is there AC 100V behind
the fuses F1 and F2?
Fuses F1 and F2 have blown
out. Replace the fuses. If they
blow out again, the POWER
unit is out of order
Are there M+14V output at
Pin 1 and M+7V output at
Pin 3 of the PM connector?
Is there +5V output at Pin 2
of IC9504 (MAIN module)?
Failure in the PWR module
Is there an output of +5V
at Pin 5 of the LD connector,
Pin 4 of the PW connector
and pin 5 of the RS
connector?
Failure in +5V line. Check the LED,
PWR and RS232C modules
Failure in the
MAIN module
Try to disconnect the PW, PQ,
and RS connectors from one
after another. If the outputs of
M+14V and M+7V are found
available, the circuits beyond
these connectors are out of
order. If no outputs are found,
the POWER unit is out of order.
The power LED
is flashing red
No
Yes
Failure in the
MAIN module
Is 0V observed at Pin 99
of IC9501 (MAIN module)?
Failure in the
POWER unit
WYSIUS3.XPR 19/04/01 15:38 Page 9

10 First issue 04 /01
The power LED
is flashing green
No
Yes
Failure in the
MAIN module
Is 12V available at Pin 1
of F1 and F2 connectors
(MAIN module)?
No
Yes
The fan is out of order on the
side where 5V is available
Connect a voltmeter to Pin
3
of F1 and F2 connectors
(MAIN module) and switch
the power ON
Is 5V available at Pin 3
of F1 and F2 connectors
(MAIN module)?
Failure in the
MAIN module
The power LED is fla-
shing red and green
No
Yes
Failure in the
MAIN module
Is 0V observed at Pin 45 of
IC9501 (MAIN module)?
Failure in the
PDP module
In the case of green and red flashing, the power supply
cannot be reset with the OFF/ON operation at the mains
power supply, remote control, and wall outlet.
For the alarm reset, keep pressing the input changeover key
of the main unit and move the mains power supply to the
"ON" position at the main unit. While doing so, it is
necessary to keep pressing the input changeover key of the
main unit for more than two seconds.In the case of green
and red flashing, the power supply cannot be reset with the
OFF/ON operation at the mains power supply, remote
control, and wall outlet.
WYSIUS3.XPR 19/04/01 15:38 Page 10

First issue 04 / 01 11
The power LED
is lighting green
No
Yes
Yes
Yes
No
Failure in the
MAIN module
Disconnect PM
connector
Failure in the POWER module
No Failure in the
MAIN module
Does the AC relay takes more
than 5 seconds to switch OFF,
after switching the power ON?
Failure in the PDP
module or the
POWER unit
Failure in the
POWER unit
Failure in the
MAIN module
Switch the power ON
and listen to the
AC relay
Is it possible to hear the
AC relay switching ON?
No
Yes
No
Yes
Is "H" maintained at Pins
79 and 80 of IC9501
(MAIN module)?
No
Yes
Is "H" maintained at Pins
4 and 5 of PM connector
(MAIN module)?
No
Yes
Is "H" maintained at Pins
4 and 5 of IC9501
(MAIN module)?
Failure in the
PDP module
Disconnect the PV, PQ, PN
and PA connectors one after
another (others kept connected)
and confirm that the power
supply is available. If it is not
available, the POWER unit is
out of order. Else, the circuit
of the disconnected connector
is out of order.
Is "H" maintained at Pins
4 and 5 of PM connector
(MAIN module)?
Is "H" maintained at Pin
21 of PD connector
(POWER module)?
No
Yes
Is the power supply built-up when
PD,PH and AD connectors are
disconnected (MAINmodule)?
WYSIUS3.XPR 19/04/01 15:38 Page 11

12 First issue 04 /01
VIDEO TROUBLESHOOTING
No image presenta-
tion, picture error
No
Yes
No
Yes
No
Yes
Failure in either cable
No
Yes
No
Yes
No
Yes
Failure in the AD connector
or MAIN module
Replace AD, PH and PD cable
Replace the
MAIN module
No
Yes
No No
Yes Yes
Are pulses of 3Vp-p (video
signal) normally generated at
Pins 35 ~166 of IC9004?
Is the display normal?
Failure in the MAIN module
Is the display normal?
No
Yes
Refer to No energization
of POWER circuit.
Failure in the PDP module
Are there normal outputs of
180V, 80V , and D+5V in
the POWER unit?
Are there video signals at Pins
11 , 17 and 24 of IC6502?
Failure in the
MAIN module
Failure in the
PDP module
Failure in the
MAIN module
Is there a clock signal at Pin
49 of the AD connector?
Is there a signal of 3Vp-p at Pins
1 ~ 47 of the AD connector
(odd-numbers only)?
Is there a signal of 3Vp-p at
Pin 51 (HSYNC), Pin 53
(VSYNC) and Pin 76 (V period)
of the AD connector?
Is 0V available at Pin 76
of the AD connector?
Is there a signal of 5Vp-p
at Pins 77 , 78 and 79
of the AD connector?
WYSIUS3.XPR 19/04/01 15:38 Page 12

First issue 04 / 01 13
No PC
pictures
No
Yes
Failure in the
MAIN module
No
Yes
Failure in the
VIDEO module
Failure in the
VIDEO module
Is RGB signal available at Pins
1 , 3 , 5 of the MN connector?
Are the H/V synchro. signals
available at Pins 7 , 8 , 9 and
10 of the MN connector?
No HD / DVD
pictures
No
Yes
Failure in the
MAIN module
No
Yes
Failure in the
VIDEO module
No
Failure in the
VIDEO module
Yes
Failure in the VIDEO
or MAIN module
Is RGB signal available at Pins
1 , 3 , 5 of the MN connector?
Is the clamp pulse present
at pin 2 of IC5602
?
Are the H/V synchro. signals
available at Pins 7 , 8 , 9 and
10 of the MN connector?
WYSIUS3.XPR 19/04/01 15:38 Page 13

14 First issue 04 /01
No RGB
signal
No
Yes
Failure in the
VIDEO module
Failure in the
MAIN module
Is RGB signal available at Pins
1 , 3 , 5 of the MN connector?
WYSIUS3.XPR 19/04/01 15:38 Page 14

First issue 04 / 01 15
Synchronisation
trouble
No
Yes
No
Yes
No
Yes
No
Yes
Yes NoNo
Yes
Failure in the PDP module
No
Yes
Is 5Vp-p available at Pins 77,
78 and 79 of AD connector?
No
Yes
No
Yes
No
Yes
No
Yes
Failure in the AD connector
or MAIN module
Replace AD connector
Replace MN connector
Replace HD connector
Replace the MAIN module
Replace the MAIN module
Replace the VIDEO module
Replace the VIDEO module
Failure in the
MAIN module
Failure in the
MAIN module
Is 3Vp-p available at Pins 115
(HSYNC) and 116 (VSYNC)
of IC8501 (MAIN module)?
Is 3Vp-p available at Pins 39,
213, 42 and 212 (VSYNC) and
215 (CLOCK)of AD connector?
Are horizontal and vertical syn-
chro. signals of 5Vp-p available at
Pins 9 and 10 of MN connector?
Are horizontal and vertical syn-
chro. signals of 5Vp-p available at
Pins 7 and 8 of MN connector?
End
End
EndEnd
End
End
Is the display normal?
Is the display normal?Is the display normal?
Is the display normal?Is the display normal?
Is the display normal?
WYSIUS3.XPR 19/04/01 15:38 Page 15

16 First issue 04 /01
AUDIO TROUBLESHOOTING
No audio signal
from SP output
Yes
Yes
No
No
Check various settings
Is the signal available at
M2801 of the SP module
?
Check the speakers
and speaker cables
Yes
No
Are signals available at LM and
RM connectors (AUDIO module)?
Disconnection in LM and
RM connector cables
Yes
No
Are the power voltages
available at PA connector?
Failure in the
POWER module
Yes
No
Is the rectangular wave signal
available at
pins 1 and 2 of
AE connector when the
sound volume is changed?
Failure in the
AUDIO module
Yes
No
Is the signal available at AB
connector (AUDIO module)
?
Yes
No Failure in the
VIDEO module
Failure in the
AUDIO module
Is the audio input
correctly selected
?
Yes
No
Is the mute function
cancelled?
Failure in the
MAIN module
Is the signal available at AB
connector (VIDEO module)
?
WYSIUS3.XPR 19/04/01 15:38 Page 16

First issue 04 / 01 17
It could be necessary to change the zoom mode in order to
carry out some alignments of the set. Press the "format"
button of the remote control. The mode switches as shown in
the margin.
4/3
16/9cinemarama
zoom
It is necessary to enter the Service Mode in order to carry out
alignment of the set. Most adjustments must be made with
the RCU.
•Using the remote control, press successively the zoom "-"
( -), exit, mute ( ) and zoom "-" ( -) buttons.
•The main service menu appears on the screen.
•Press the "menu" button to select the menu.
•Press the / buttons to select the menu line.
•Press the / buttons to make adjustments.
NB : the value of the adjustment is memorized automatically.
•To exit the service mode menu press successively, the
zoom "-" ( -), exit, mute ( ) and zoom "-" ( -) buttons
on the remote control.
•Enter the service mode and select the "usage time" menu,
•Using the remote control, press successively the mute
( ), , , and zoom "-" ( -) buttons.
ACCESSING SERVICE MODE
3EXITING FROM SERVICE MODE
4CLEARING THE USAGE TIME
2NAVIGATION INSIDE THE SERVICE MODE
VE011
D CONTROL
NTSC
CONT -18
BRIGHT +15
U-COL 74
COLOR + 4
TINT -22
SERVICE MODE
Before entering the service mode, it could be necessary to
configure the plasma monitor in the On Screen menu.
•Using the remote control, press "menu" button.
•The "main" menu appears on the screen.
•Press the / buttons to select the "setup" line.
•The "setup" menu appears on the screen.
•Select the "color system" line.
•The "color system" menu appears on the screen.
•Press the / buttons to select the color standard.
1
ACCESSING COLOR STANDARD
MAIN MENU
OK SELECT EXIT
EXIT
SOUND
SCREEN
PREFERENCES
OPTIONS
SETUP
SETUP
OK SELECT RETURN
MENU
FREQUENCY
MENU LANGUAGE
COLOR SYSTEM
COLOR SYSTEM
RETURN
EXIT
COLOR SYSTEM
: 3.58NTSC
OK SELECT
OSD CONTROLS
ZOOM SEQUENCE
ADJUSTMENTS
ADJUSTMENTS NECESSARY AFTER REPLACEMENT OF MODULES:
- After replacement of MAIN module, perform the adjusments of "video screen position" and "DVD/HD/DTV screen position".
- After replacement of POWER or PDP module , perform the adjusment of "+170V/+70V" and "+5V". When replacing PDP
module, the "usage time" should be reset (as shown below)
Replacing another module does not require further adjustment unless abnormal conditions are encountered.
WYSIUS3.XPR 19/04/01 15:38 Page 17

18 First issue 04 /01
SERVICE
MODE
"POSITION"
menu
SERVICE
MODE
"POSITION"
menu
Video screen
position
MAIN
DVD/HD/DTV
screen position
MAIN
RV4
RV3
RV6
POWER
+170V
+70V
POWER
+5V
NTSC test pattern :
DDTV test pattern :
Select VIDEO input with the
Remote Control or keyboard
Select "cinerama" with the
"format" key of the Remote
Control
Select RGB2 input with the
Remote Control or keyboard
Select "cinerama" with the
"format" key of the Remote
Control
Video input
DVD/HD/DTV
input
TP3
TP4
TP2
TP4

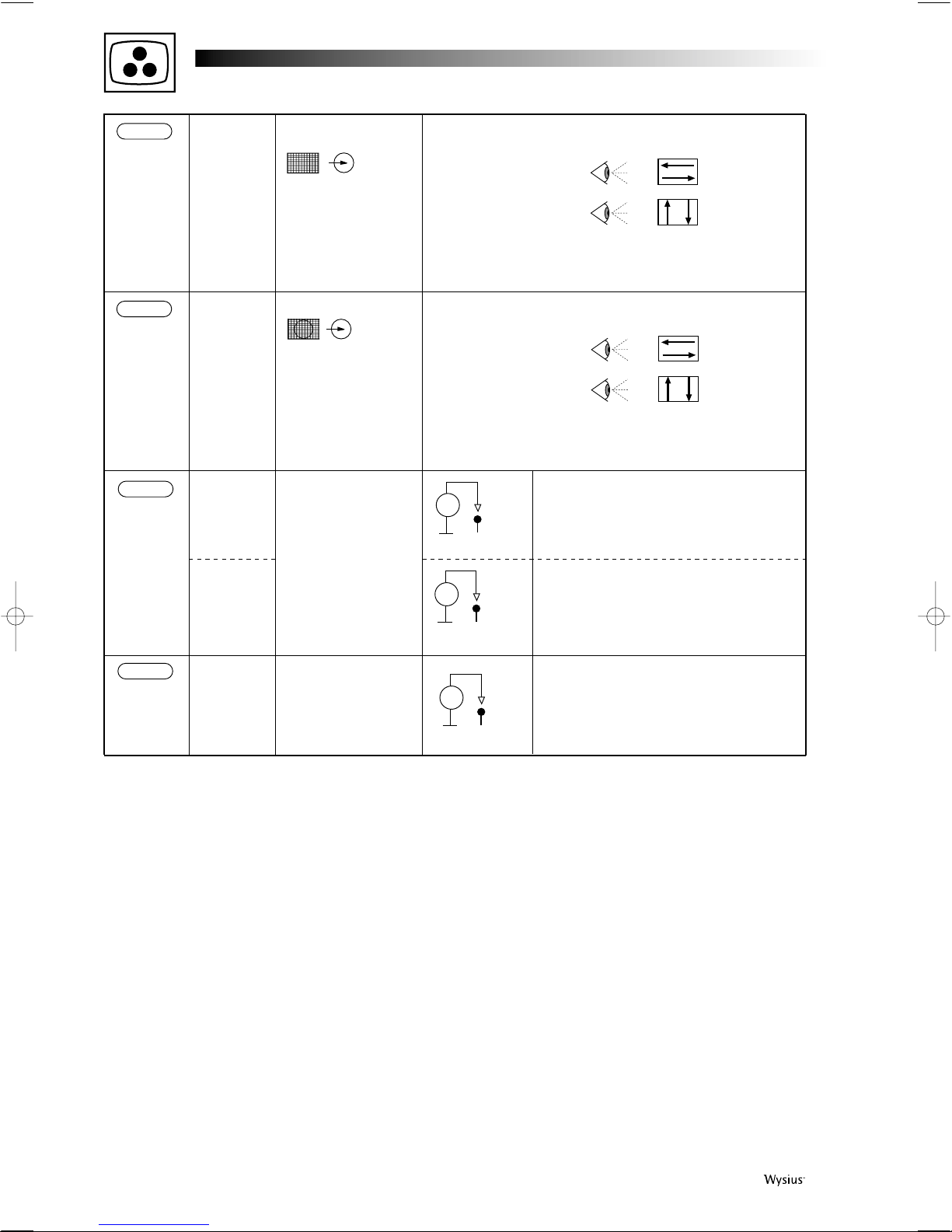

If there is any displacement of the display range in the PDP module, select
"MHPOS" and "MVPOS" lines, and adjust correctly.
If there is any displacement of the display range in the PDP module, select
"MHPOS" and "MVPOS" lines, and adjust correctly.
Select "H POS" line and adjust
Select "V POS" line and adjust
Check that "H PHA" = 0 and "H CLK" = 0
Adjust separate for zoom; 4/3; 16/9 and PAL; SECAM.
Select "H POS" line and adjust
Select "V POS" line and adjust
Check that "H PHA" = 0 and "H CLK" = 0
Adjust separate for zoom; 4/3; 16/9 and PAL; NTSC.
Adjust RV4 to obtain the specified PDP module voltage
value +/-1V at TP3 (+170V). This value is the Vs value
indicated on the label pasted on the back of PDP module
Adjust "RV6" :
V = 5.1 V +/- 0.1 V
Adjust RV3 to obtain the specified PDP module voltage
value +/-1V at TP2 (+70V). This value is the Vd value
indicated on the label pasted on the back of PDP module
V=
V=
TP1
TP4
V=
Apply colour bar test pattern
to either Video, HD/DVD or
VGA input
Apply colour bar test pattern
to either Video, HD/DVD or
VGA input
Power switched ON
WYSIUS3.XPR 19/04/01 15:38 Page 18

First issue 04 / 01 19
ADJUSTMENT LOCATION
MAIN module
5 AE 1
IC8503
IC7506
AMDP
NEC
PWC-4418A MAIN PWB
IC7505
9 RS 1
1 51 101 12
4 80
1 AD 77
IC7505
IC9004
TIRAMISU
IC8701
PALMIRA
IC6502
AD
IC7011
20 1
PANEL
NEC
PWC-4418B
PANEL PWB
IC8501
SCREEN3
IC8504
IC8505
IC7504
IC7503
IC9802
IC9501
∝-COM
WYSIUS3.XPR 19/04/01 15:38 Page 19

20 First issue 04 /01
AB PV SY PQ HD MN
DS
IC5815 IC5818 IC5817 IC5816
IC5813
IC5404
IC5407
IC5405
IC5618
IC5810
IC5814
IC5203
M1010
Audio 3
M1005
HD/DVD M1009
Audio 2 M1008
Audio 1 M1006
RGB D-SUB15
M1007
RGB 5-BNC
M1003
S-V M1001
RCA-V
M1002
BNC-V
IC5201IC5210
IC5205
IC5206
IC1001
IC5202IC5207
NEC PWC-4417 VIDEO PWB
IC5208
IC5209
IC5601
IC5404
IC5201
IC5627
IC5403 IC5408 IC5407
IC1012 IC5402
VIDEO module
WYSIUS3.XPR 19/04/01 15:38 Page 20
