THORLABS TXP5016 User manual

Thorlabs Instrumentation
TXP5016
Operation Manual
2017

Version:
Date:
Item No.:
3.1.5
31-Jan-2017
M0009-510-102
Copyright © 2017 Thorlabs GmbH

Foreword
Contents 2
1General Information 3
31.1 Safety
51.2 Ordering Codes and Accessories
51.3 Requirements
51.3.1 Hardware Requirements
51.3.2 Software Requirements
2Getting Started 6
62.1 Parts List
62.2 Installing Software
3Operating Elements TXP5016 10
4First Steps 11
114.1 Network Configuration
5Operating Instruction 15
155.1 Installing and Removing Modules
155.2 Global Interlock
6Maintenance and Service 18
196.1 Replacing the Line Fuse
196.2 Replacing the Internal Fuses
206.3 Troubleshooting
216.4 The TXP5000 Series Administrator
236.4.1 Connect the TXP5016 via RS232
256.4.2 Connect the TXP5016 via LAN
266.4.3 Device ID and Information
276.4.4 Network Configuration
296.4.5 Adjust Time and Date
306.4.6 Software Updates
336.4.7 Change Device Password
7 Appendix 34
347.1 Technical Data
357.2 Certifications and Compliances
367.3 Warranty
377.4 Copyright and Exclusion of Reliability
387.5 Thorlabs 'End of Life' Policy
397.6 Thorlabs Worldwide Contacts

© 2017 Thorlabs GmbH
We aim to develop and produce the best solution for your application
in the field of optical measurement technique. To help us to live up to
your expectations and improve our products permanently we need
your ideas and suggestions. Therefore, please let us know about
possible criticism or ideas. We and our international partners are
looking forward to hearing from you.
Thorlabs GmbH
Warning
Sections marked by this symbol explain dangers that might result in
personal injury or death. Always read the associated information
carefully, before performing the indicated procedure.
Please read these advices carefully!
This manual also contains "NOTES" and "HINTS" written in this form.
Attention
Paragraphs preceeded by this symbol explain hazards that could
damage the instrument and the connected equipment or may cause
loss of data.
Note
2

© 2017 Thorlabs GmbH
1 General Information
3
1 General Information
The TXP5016 16 channel Test an Measurement Platform chassis is designed to accommodate
up to 16 TXP modules. These modules are controlled by an external PC, connected via the
Ethernet interface of the TXP5016. It has a wide range power supply compatible with line
voltages between 100...240VAC, 50-60Hz.
·Small footprint with 16 module slots
·Hosts any TXP Series module
·Intelligent modules - memory / processor capacity where needed (real time apps)
·Configurable module pooling for complex measurement solutions
·Programming Interface
USB interface with LabVIEW®/ LabWindows/CVI® and C drivers
Enhanced macro function capabilities
·Remote control via Ethernet connection
·Mainframe configuration via RS232 or TCP/IP connection
1.1 Safety
Attention
All statements regarding safety of operation and technical data in this instruction manual
will only apply when the unit is operated correctly as it was designed for.
Prior to applying power to the TXP5016, make sure that the protective conductor of the 3
conductor mains power cord is correctly connected to the protective earth ground
contact of the socket outlet! Improper grounding can cause electric shock with damages
to your health or even death!
All modules must only be operated with proper shielded connection cables.
The TXP5016 must not be operated in explosion endangered environments!
Do not remove covers! Do not obstruct the air ventilation slots in the housing!
Do not open the cabinet, there are no parts serviceable by the operator inside!
Refer servicing to qualified personnel!
Only with written consent from Thorlabs GmbH may changes to single components be
made or components not supplied by Thorlabs GmbH be used.
This precision device is only serviceable if properly packed into the complete original
packaging. If necessary, ask for a replacement package prior to return.
Attention
The following statement applies to the products covered in this manual, unless
otherwise specified herein. The statement for other products will appear in the
accompanying documentation.
This equipment has been tested and found to comply with the limits for a Class Adigital
device, pursuant to part 15 of the FCC Rules and meets all requirements of the Canadian
Interference-Causing Equipment Standard ICES-003 for digital apparatus. These limits
are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.

© 2017 Thorlabs GmbH4
TXP5016
Thorlabs GmbH is not responsible for any radio television interference caused by
modifications of this equipment or the substitution or attachment of connecting cables
and equipment other than those specified by Thorlabs GmbH. The correction of
interference caused by such unauthorized modification, substitution or attachment will
be the responsibility of the user.
The use of shielded I/O cables is required when connecting this equipment to any and all
optional peripheral or host devices. Failure to do so may violate FCC and ICES rules.
Attention
Mobile telephones, cellular phones or other radio transmitters are not to be used within
the range of three meters of this unit since the electromagnetic field intensity may then
exceed the maximum allowed disturbance values according to IEC 61326-1.
This product has been tested and found to comply with the limits according to
IEC 61326-1 for using connection cables shorter than 3 meters (9.8 feet).

© 2017 Thorlabs GmbH
1 General Information
5
1.2 Ordering Codes and Accessories
Ordering code:
TXP5016 16 Channel Ethernet T&M Mainframe
Accessories:
TXP5000C Blind module to cover empty module slots (for TXP5004 and TXP5016)
1.3 Requirements
These are the requirements to the PC intended to be used for remote operation of the
TXP5016.
1.3.1 Hardware Requirements
CPU: 1 GHz or higher
RAM: 256 MB
Graphic card Min. 32 MB memory
Hard disc Min 100 MB free storage space
Interface Ethernet 10/100 Mbit/s, RJ45 port.
For the administration tool a serial RS232C port is required, this can be a USB-
to-Serial converter as well.
1.3.2 Software Requirements
The TXP5016 software is compatible with the following operating systems:
·Windows®7 (32-bit, 64-bit)
·Windows®8.x (32-bit, 64-bit)
For operation of the TXP5016, also an NI-VISA (version 5.4.1 or higher) is required. This NI-
VISA engines comes with the Thorlabs GmbH TXP5016 installation software package, but can
be downloaded also from National Instruments' website www.ni.com.

© 2017 Thorlabs GmbH6
TXP5016
2 Getting Started
2.1 Parts List
Inspect the shipping container for damage.
If the shipping container seems to be damaged, keep it until you have inspected the contents
and you have inspected the TXP5016 mechanically and electrically.
Verify that you have received the following items within the package:
TXP5016
1. 16 Slot Chassis with Ethernet Control
2. Front Cover Plates TXP5000C for all unused slots
3. Patch cable, 2.0 m, Cat. 5e, RJ45
4. Cross-over patch cable, 2.0 m, Cat. 5e, RJ45
5. TXP5016 interlock plug
6. Operation Manual
7. Power Cord
2.2 Installing Software
Attention
Exit all running applications on your PC as the installer may require a reboot of your PC
during installation!
The TXP software package contains:
·NI VISA Runtime 5.4.1
·USB Drivers for TXP5001AD and TXP5004 and module slots
·Control software for TXP modules
·TXP Administration Tools
Below the software installation to a Windows 7®64 bit operating system is described.
Download the ZIP archive from our website:
https://www.thorlabs.com/software_pages/ViewSoftwarePage.cfm?Code=TXP5000
and unpack the archive. Then execute the setup.exe:
A user account control warning comes up:

© 2017 Thorlabs GmbH
2 Getting Started
7
Allow the installation. Then follow the the screenshots below:

© 2017 Thorlabs GmbH8
TXP5016

© 2017 Thorlabs GmbH
2 Getting Started
9
This Windows Security message appears twice.
You may be requested to restart your computer upon finishing software installation.
Note
If you are requested to restart your computer, please do so. Otherwise, the TXP software won't
operate properly.

© 2017 Thorlabs GmbH10
TXP5016
3 Operating Elements TXP5016
Front panel
1
LED "READY".
Blinking: TXP5016 is booting
Constant: TXP5016 ready for operation
2
LED "Power ON"
3
Mains switch
4
LED "Ethernet Connected"
5
LED "Data Transfer"
6
RJ45 Ethernet connector
7
RS232C connector, 9 pin DSUB male, for mainframe configuration
Rear panel
8
Ground connector
9
AC power connector with line fuse
10
Interlock connector, 9 pin DSUB female

© 2017 Thorlabs GmbH
4 First Steps
11
4 First Steps
·Insert your TXP module(s) into the TXP5016. Please make sure, that the ejector handle is
pushed up against the stop - a click can be heard and the red locking lever is in full upper
position:
In this position the TXP module is disabled!
Correct position
·Connect the power cord to your TXP5016 and switch it on. The green LED "Power ON"
must light up.
4.1 Network Configuration
The TXP5016 has an internal web server that is accessible via the RJ45 jack on the front
panel. The IP address of the TXP5016 is factory set to
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
This is a commonly used in Local Area Networks address range. In order to establish a
connection between the TXP5016 and your control PC, the IP address range must match and
must not conflict with other network devices.
Attention
In order to prevent network conflicts, it is strongly recommended to contact your System
Administrator for a free IP address and the appropriate subnet mask.
Note
The TXP5016 can be connected
·to the local area network (LAN) using the supplied standard patch cable or
·directly to the RJ45 jack of your PC using the supplied cross-over patch cable.
Both connections require the correct network address match.
Change the Network Configuration
The TXP5000 Series Administrator that comes with installation package, should be used for
this purpose and is accessible via the serial port of the TXP5016.
Switch on the TXP5016.
Connect the RS232C serial port (male DB9 connector on the front panel) of your TXP5016 to a
serial port of your PC using a null-modem cable.
If your PC has no serial port, you can use any commercially available USB-to-Serial Converter.
Connect it to the PC, the operating system recognizes the device and installs the appropriate
drivers.

© 2017 Thorlabs GmbH12
TXP5016
Check the Windows Device Manager for the topic Ports (COM & LPT). Expand it and
remember the assigned COM port (here COM3):
Note
The TXP5016 serial interface works with a transfer rate from 9600 to 115200 bps, 8N1
protocol.
Make sure, the TXP5016 is switched on and the serial connection is made. Open from the Start
button the TXP Administrator:
Click Connect in the menu bar.
Select the connection type to Serial Line (RS232) and the Serial Port to COMx, as stated in
the device manager. Then click Connect. The TXP Administrator connects to the device and
reads out the device information.

© 2017 Thorlabs GmbH
4 First Steps
13

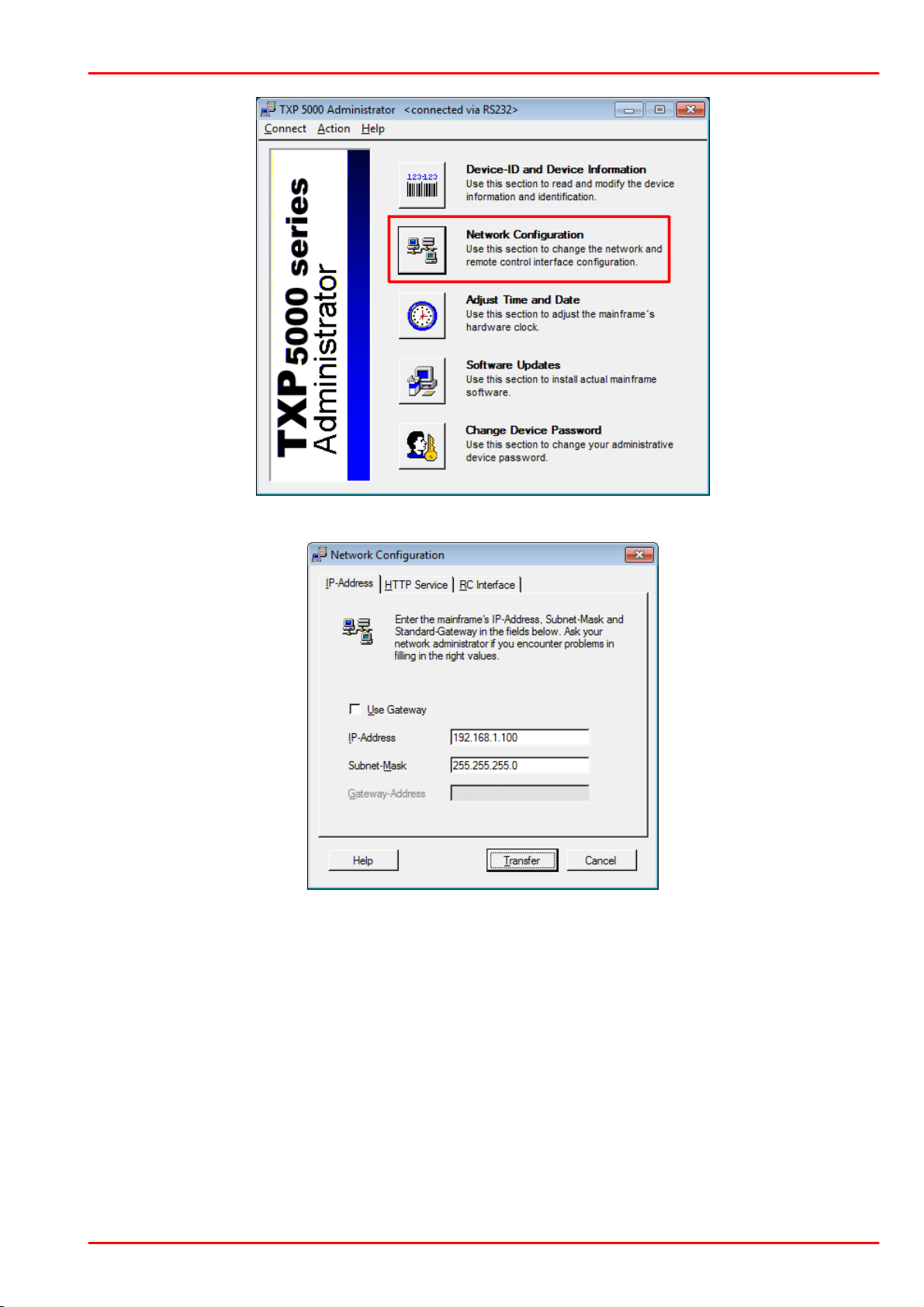

Click to Network Configuration.
Now enter the required IP Address and Subnet Mask. For gateway operation, check the Use
Gateway box and enter the gateway IP address in the bottom line. Then click Transfer. The
TXP5016 reboots to finalize the configuration.

© 2017 Thorlabs GmbH14
TXP5016
Verification of the network configuration
Connect the TXP5016 to you LAN (normal RJ45 patch cable) or to the RJ45 connector of you
PC (cross-over cable). Now you can verify the LAN connectivity. Just type in the assigned to
the TXP5016 IP address in your browser. If the configuration was done properly, the browser
connects to the TXP5016 internal web server:
The TXP5016 is ready for operation now.
Remark
If you got after the TXP Administrator connect a warning like
click OK. Please see the detailed description of the TXP Administrator functions in section
Maintenance and Service.

© 2017 Thorlabs GmbH
5 Operating Instruction
15
5 Operating Instruction
5.1 Installing and Removing Modules
The TXP5016 and TXP modules are 'Hot-Swappable'. This means that the modules can be
detached, exchanged or installed during normal operation of the TXP5016.
·Loosen the two to four mounting screws on top and below the ejector handle
·Push the red button of the ejector handle and flip down the black ejector handle. This
pulls out the module from its internal plug.
You can now remove the module. If you do not insert another module, please close the empty
slot with a blind module to maintain a proper cooling air flow inside the unit. Tighten the two to
four screws.
Detaching the module leads to an automatic disconnect, if the module was connected and
operated by the control PC.
Note
In order to maintain a proper air flow for internal cooling, unused TXP slots must be covered by
blind modules!
Make sure, that
-the TXP5016 with inserted electronics module is switched on and connected either to the
LAN, using a standard ethernet patch cable, or directly to the PC, using the supplied
cross-over patch cable.
-the ejector handle of the inserted module is in the very upright position:
Yes!
No!
Now, the modules can be operated. Please see the individual TXP module manuals for
operation details.
5.2 Global Interlock
The TXP5016 comes with a "global" interlock that provides a safety function to all installed TXP
modules simultaneously. This safety function is module-dependent:
·TXP laser sources: opening the interlock, the laser emission is switched off.
·TXP combined current and temperature controllers: the laser current output is switched off.
·All other TXP modules (polarimeters, polarization controllers): no function.
The TXP5016 is delivered with an interlock plug. Install this plug for normal operation.
Alternatively, the global interlock can be used to activate the described above safety functions
to protect a running setup against external events, such as opening a protective cover, a lab
door or for use with an emergency switch.

© 2017 Thorlabs GmbH16
TXP5016
Interlock connector (rear panel)
TXP5016 interlock connector
(9 pin DSUB, female)
Pin
Name
Description
1
REL_ON
Connected to pin 2 when interlock is closed
2
REL_SEL
Control Relay Switch
3
AUX_IN+
Auxiliary input +
4
ALARM-
Interlock opto-coupler input "-"
5
CC_OUT
Constant Current output (1.25 mA)
6
REL_OFF
Connected to pin 2 when interlock is open
7
AUX_IN-
Auxiliary input -
8
CHASSIS
Chassis Ground
9
ALARM+
Interlock opto-coupler input "+"
Interlock Relay
The interlock relay connection is shown to the left.
This state applies when the interlock circuit is closed (normal operation).
When the interlock circuit is interrupted, the relay switches off and contacts 2
and 6 are connected.
The contacts 1-2-6 can be used for external signalization (optic or acoustic
warnings).
Interlock circuit
This is the standard connection of a closed interlock, as it provided
with the interlock plug that comes with the TXP5016.
The Constant Current output is supplied to the opto-coupler inputs
ALARM+ (pin 9) and ALARM- (pin 4).
In order to use the interlock e.g. with an emergency switch, this switch
should have an opener contact (active open) and be connected between pin 5 and 9.

© 2017 Thorlabs GmbH
5 Operating Instruction
17
Cascading the interlock of multiple TXP5016 mainframes
Up to five TXP5016 mainframes can be cascaded in order to use a
common interlock.
The interlock opens and the safety function of all cascaded
mainframes is triggered as soon as the current is interrupted. In
other words, an active-open switch should be placed then between
contacts 5 and 9 of the first mainframe.
Note
When cascading two or more TXP5016 interlocks, only one constant
current source must be used!

© 2017 Thorlabs GmbH18
TXP5016
6 Maintenance and Service
Protect the TXP5016 from adverse weather conditions. The TXP5016 is not water resistant.
Attention
To avoid damage to the instrument, do not expose it to spray, liquids or solvents!
The unit does not need a regular maintenance by the user. It does not contain any modules
and/or components that could be repaired by the user himself. If a malfunction occurs, please
contact Thorlabs GmbH for return instructions.
Do not remove covers!
Protect the TXP5016 from adverse weather conditions. The TXP5016 is not water resistant.
Attention
To avoid damage to the instrument, do not expose it to spray, liquids or solvents!
The unit does not need a regular maintenance by the user. It does not contain any modules
and/or components that could be repaired by the user himself. If a malfunction occurs, please
contact Thorlabs for return instructions.
Do not remove covers!
Cleaning
The unit can be cleaned with a cloth dampened with water. You can use a mild 75% Isopropyl
Alcohol solution for more efficient cleaning.
Table of contents
Popular Chassis manuals by other brands

National Instruments
National Instruments PXI Express PXIe-1066DC user manual

Fujitsu
Fujitsu M10 Series Product notes

CommScope
CommScope Quareo 4000 installation instructions

Philips
Philips TE1.1E Service manual

CSN
CSN CS-RMCPS-14 Quick installation guide

OWC
OWC Mercury Helios 2 Assembly manual & user guide
