PRODUCT OVERVIEW
The miConverter 1.5U (2.5 inch) 18-Module Power Chassis is powered by an AC or DC
power supply and can accommodate up to eighteen miConverter media converters.
This compact chassis is ideal for consolidating individual media converters into a high-
density form factor utilizing a single reliable power supply. The chassis can be rack
mounted in a 19” or 23” equipment rack.
Figure 1: miConverter 18-Module Power Chassis
Model Number Description
1020-1 miConverter 18-Module AC Powered Chassis
1025-1 miConverter 18-Module 48VDC Powered Chassis
1026-1 miConverter 18-Module 24VDC Powered Chassis
8092-0 miConverter 23” rack mount brackets
INSTALLATION PROCEDURE
OVERVIEW
The following steps outline the installation procedures for the miConverter Power
Chassis.
• Install Power Chassis
• Install the Modules
• Verifying Operation
Page 3
EU, for electrical and electronic equipment sold in the EU after July 2019. Such
disposal must follow national legislation for IT and Telecommunication equipment
in accordance with the WEEE directive: (a) Do not dispose waste equipment with
unsorted municipal and household waste. (b) Collect equipment waste separately.
(c) Return equipment using collection method agreed with Omnitron.
The equipment is marked with the WEEE symbol shown to indicate that it must
be collected separately from other types of waste. In case of small items the symbol
may be printed only on the packaging or in the user manual. If you have questions
regarding the correct disposal of equipment go to www.omniton-systems.com/support
or e-mail to Omnitron at [email protected].
Safety Warnings and Cautions
ATTENTION: Observe precautions for handling electrostatic discharge
sensitive devices.
WARNING: Potential damage to equipment and personal injury.
WARNING: Risk of electrical shock.
CUSTOMER SUPPORT INFORMATION
Phone: [phone]
Fax: [phone]
Address: Omnitron Systems Technology, Inc.
38 Tesla
Irvine, CA 92618, USA
Email: [email protected]
URL: www.omnitron-systems.com
040-01020-001E 5/23

Page 5 Page 6
AC POWERED CHASSIS
Power source should be available within 5 ft. of the chassis and installed per the National
Electrical Code, ANSI/NFPA-70.
Model 1020-1 requires 100-240VAC, 0.4Amp, 50/60Hz. Appropriate overloading
protection should be provided on all AC power source outlets utilized.
The standard operating temperature of this equipment is 0 to 50 degrees C. If installed
in a closed or multi-chassis rack assembly, the operating ambient temperature of the rack
must not exceed the maximum rated 50 degrees C temperature. For wide temperature
models, the operating temperature must not exceed 60 degrees C.
Installation of the equipment should be such that the air ow in the front and back of
the chassis is not compromised or restricted.
Installing this equipment into a rack in such a way as to make it unstable may cause
injury or death. Always make sure that the rack is properly secured, stable, balanced
and designed to carry the weight and weight distribution of this equipment.
Never use this equipment to carry any weight except its own. Never use it as a shelf
to support the weight of other equipment.
Attach the AC power cord to the back of the chassis and plug into the AC outlets. The
Power LED on the front of the chassis will illuminate as well as the Power LED on any
installed modules.
NOTE: The fans will not operate until the internal ambient temperature reaches
appropriately 50° C. The fans will turn off once the internal ambient temperature
drops below appropriately 40° C.
Figure 5: AC Powered Chassis
WARNING!!!
NEVER ATTEMPT TO OPEN THE CHASSIS OR SERVICE THE
POWER SUPPLYORFAN MODULE. OPENING THE CHASSIS
MAY CAUSE SERIOUS INJURYOR DEATH.
THERE ARE NO USER REPLACEABLE OR SERVICEABLE
PARTS IN THIS UNIT.
INSTALL POWER CHASSIS
RACK MOUNTING
When rack mounting the chassis to a 19” standard rack, rst attach the two enclosed
“L” shaped rack mounting brackets to the chassis using the enclosed screws. The rack
mounting brackets can be attached to the chassis using two different hole patterns,
depending on the mounting requirement. The different hole patterns will allow two
chassis to be installed in a 3U rack space.
Figure 2: Lower Rack Mount Position Figure 3: Upper Rack Mount Position
Mount and attach the chassis (after the mounting brackets are installed) to the rack using
the appropriate rack mounting screws (not provided). For optional 23” rack mounting,
attach the mounting bracket in the same manner as shown above.
The chassis provides NEBS ground posts to secure a grounding lug and wire from the
chassis to the ground post.
Figure 4: NEBS Grounding Lugs
When rack-mounting this equipment, the rack should be appropriately earth-grounded.

Page 7 Page 8
Installing this equipment into a rack in such a way as to make it unstable may cause
injury or death. Always make sure that the rack is properly secured, stable, balanced
and designed to carry the weight and weight distribution of this equipment.
Never use this equipment to carry any weight except its own. Never use it as a shelf
to support the weight of other equipment.
Locate the DC circuit breaker and switch the circuit breaker to the OFF position.
Prepare a power cable using a three conductor insulated wire (not supplied) with 12AWG
to 14AWG thickness. Cut the power cable to the length required.
Strip approximately 3/8 of an inch of insulation from the power cable wires.
Connect the power cables to the chassis by fastening the stripped ends to the DC power
connector (see Figure 6 for details on terminal block polarity).
WARNING: Note the wire colors used in making the positive, negative and
ground connections. Use the same color assignment for the connection at the
circuit breaker.
Connect the power wires to the circuit breaker and switch the circuit breaker ON. The
Power LED on the front of the chassis will illuminate as well as the Power LED on any
installed modules.
NOTE: The fans will not operate until the internal ambient temperature reaches
appropriately 50° C. The fans will turn off once the internal ambient temperature
drops below appropriately 40° C.
Figure 6: DC Powered Chassis
WARNING!!!
NEVER ATTEMPT TO OPEN THE CHASSIS OR SERVICE THE
POWER SUPPLYORFAN MODULE. OPENING THE CHASSIS
MAY CAUSE SERIOUS INJURYOR DEATH.
THERE ARE NO USER REPLACEABLE OR SERVICEABLE
PARTS IN THIS UNIT.
DC POWERED CHASSIS
This chassis is intended for installation in restricted access areas. (“Les matériels
sont destinés à être installés dans des EMPLACEMENTS À ACCÈS RESTREINT”). A
restricted access area can be accessed only through the use of a special key, or other
means of security.
The over current protection for connection with centralized DC shall be provided in the
building installation, and shall be a UL listed circuit breaker rated 20 Amps, and installed
per the National Electrical Code, ANSI/NFPA-70.
Appropriate overloading protection should be provided on the DC power source outlets
utilized.
Power source should be available within 5 ft. of the chassis. The over current protection
for the connection with centralized DC shall be provided in the building installation and
shall be a UL listed breaker rated at 15 Amps, and installed per the National Electrical
Code, ANSI/NFPA-70.
Model 1025-1 requires 36-60VDC/1.0 Amps power. Model 1026-1 requires 18-36VDC/2.0
Amps power. Appropriate overloading protection should be provided on all DC power
source outlets utilized.
WARNING: OnlyaDC power source that complies with
safety extra low voltage (SELV) requirements can be
connected to the DC-input power supply.
WARNING REGARDING EARTHING GROUND:
o
o
o
o
This equipment shall be connected to the DC supply
system earthing electrode conductor or to a bonding
jumper from an earthing terminal bar or bus to which the
DC supply system earthing electrode is connected.
This equipment shall be located in the same immediate
area (such as adjacent cabinets) as any other equipment
that has a connection between the earthed conductor of
the same DC supply circuit and the earthing conductor,
and also the point of earthing of the DC system. The DC
system shall not be earthed elsewhere.
The DC supply source is to be located within the same
premises as this equipment.
There shall be no switching or disconnecting devices in
the earthed circuit conductor between the DC source and
the earthing electrode conductor.
The standard operating temperature of this equipment is 0 to 50 degrees C. If installed
in a closed or multi-chassis rack assembly, the operating ambient temperature of the rack
must not exceed the maximum rated 50 degrees C temperature. For wide temperature
models, the operating temperature must not exceed 60 degrees C.
Installation of the equipment should be such that the air ow in the front and back of
the chassis is not compromised or restricted.

Page 10
Figure 8: Module Insertion
To remove the miConverter module, remove the screw from the mounting bracket, tilt
up on the module and slide the module out of the chassis.
VERIFY OPERATION
The chassis provides a POWER LED located on the front left top corner of the chassis.
When the POWER LED is solid green, the chassis is powered.
Page 9
INSTALL THE MODULES
Eighteen mounting brackets are provided with each chassis to secure the miConverter
modules in the chassis. Attach the mounting bracket to the miConverter module using
the at head screw provided (see Figure 7 below).
Figure 7: Module with Mounting Bracket
The chassis provides guides/rails to assist with the insertion of a miConverter module.
Align the module with the barrel connector towards the chassis and facing up (mounting
bracket tab down). Slowly insert the module with a slight upward motion to allow the
mounting bracket to clear the button lip of the chassis. Continue inserting until the barrel
connector on the chassis inserts into the module and the mounting bracket is ush
with the bottom lip of the chassis. Secure the module to the chassis by attaching the
mounting bracket to the bottom lip of the chassis using the pan head screw provided.
NOTE: The chassis only supports miConverter modules powered through the
barrel connector. miConverter modules with terminal block connectors are not
supported.
NOTE: The miConverter S-Series is not compatible with the chassis.
NOTE: Remove any rubber feet from the module before installing it into the
chassis.

Page 11 Page 12
SPECIFICATIONS
Chassis Type AC
Powered Chassis
24VDC
Powered Chassis
48VDC
Powered Chassis
Module Capacity 18
Input Power
Requirements
(typical)
Connector
100 to 240VAC
50 to 60Hz
0.4A @ 120VAC
IEC320
+/- 18 to 36VDC
2.0A @ 24VDC
3-pin Terminal
+/- 36 to 60VDC
1.0A @ 48VDC
3-pin Terminal
Compliances
Safety: UL, cUL, CE, UKCA
EMI: FCC Class A
ACT: TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Temperature
Standard Operating: 0 to 50°C
Wide Operating: -40 to 60°C
Storage: -40 to 80°C
Dimensions
W x D x H 17.5” x 9.5” x 2.5” (444.5 mm x 241.3 mm x 63.5 mm)
Weight 7.20 lbs. (3.27 kg)
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4000m
MTBF (hrs) 526,000 486,000 1,081,000

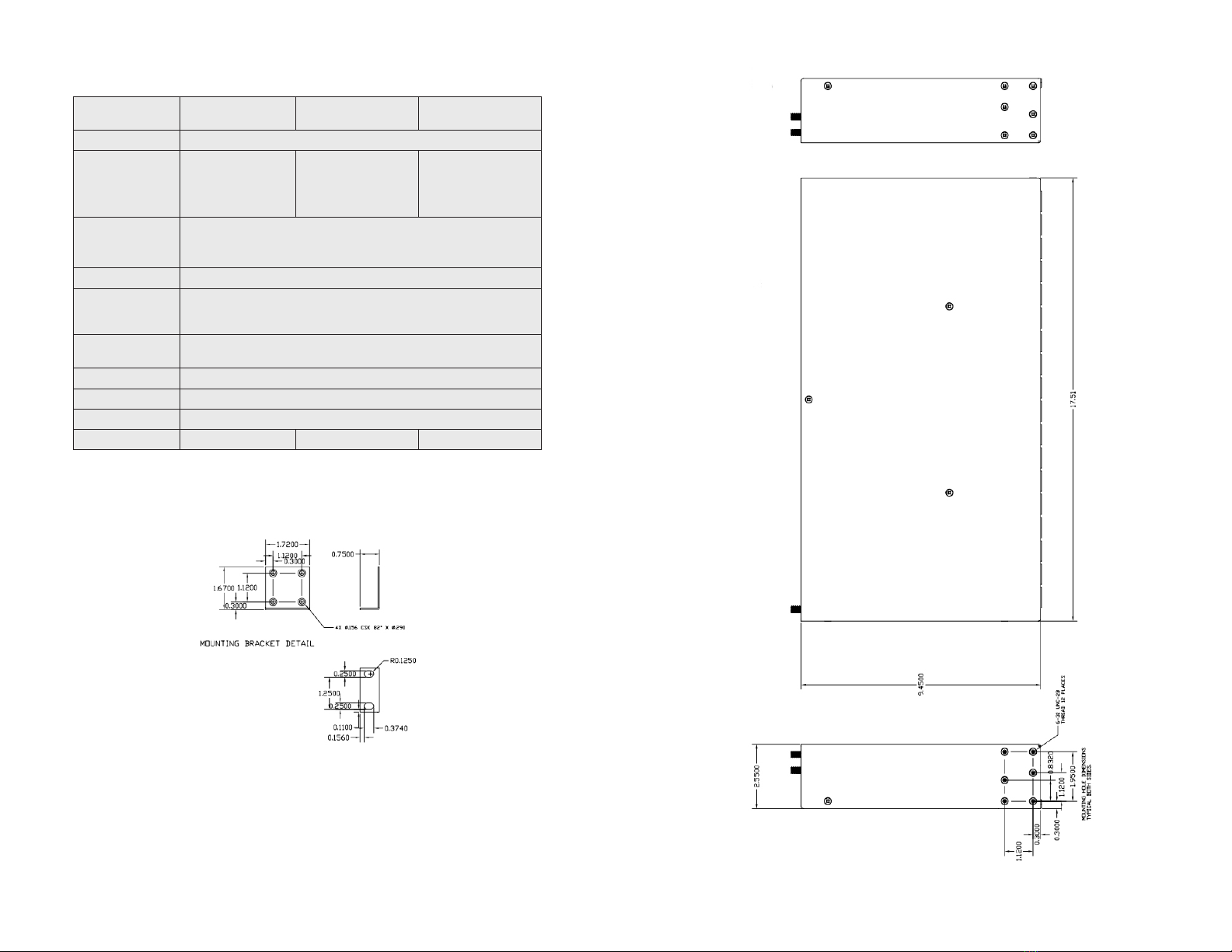

MECHANICAL
