TIC PB580 User manual

（4） （1）
3.Connections
Smartphone or
any analog source TV or Media system
Amplifier
Smartphone Charger
BLUETOOTH V5.0
Bluetooth 5.0 Receiver & Transmitter
WITH IR REMOTE
MODEL: PB580
QUICK START GUIDE
Contact Us:
15224 Stafford St
City of Industry, CA 91744
626-968-0211
626-839-9018
www.ticcorp.com/support
L R
AUX OUT
ANT
AUX
INPUT
OPTICAL DC 5V 1A
L R
AUX OUT
Zone A
Amplifier
Zone B
5V 1A

（2） （3）
+
1 2 3 4 5

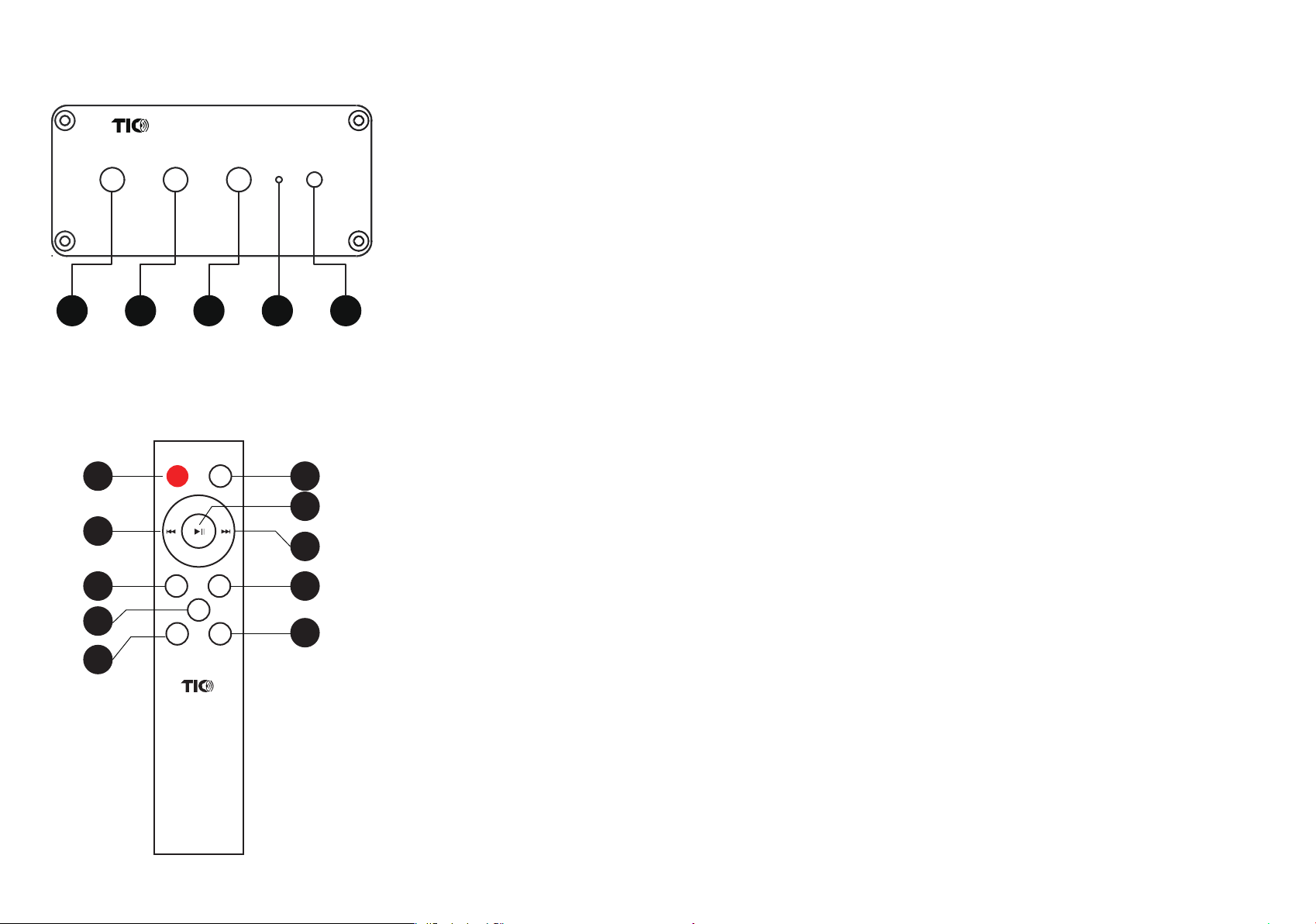

1.Functions
2.Remote Control
1. Power Button
2. Bluetooth Button
3. Previous Track
4. Next Track
5. Play/Pause
6. Decrease Volume
7. Increase Volume
8. Transmitter Mode
9. Receiver Mode
10. Reset Button
POWER BT
TX RX
VOL+VOL-
RESET
1
3
8
10
6
2
5
4
9
7
QUICK START GUIDE
Tic Pb580 Bluetooth 5.0 Receiver-Transmitter Adds Convenient
Wireless Bluetooth And Multi-Device Capability To Two Existing
Audio Amplifiers/receivers.
BASIC SETUP/CONNECTION
Screw in the provided antenna on the back panel. Connect up to
two existing audio amplifiers/receivers/devices via RCA cables (not
included) in the back panel. Depending on the input option on your
device, you may use RCA-to-RCA cable or RCA-to-3.5mm cable.
BLUETOOTH INPUT SETUP
Connect your smartphone/tablet/Bluetooth device to PB580 by
double-clicking BT button on the front panel. Upon seeing the blue
BT indicator flashing, choose “TIC BT SPEAKER” from your
device’s Bluetooth setting menu. Once connected, the blue BT
indicator will be solid.
OPTIONAL MULTI-ROOM SETUP
You can connect to other compatible TIC Bluetooth 5.0 devices to
create a Multi-Device network. Press TX button to initiate transmit-
ter mode. Within 30 seconds, press RX button on a compatible
device to initiate receiver mode. Compatible devices within range
will automatically connect.
1. Bluetooth Button Mode
2. Transmitter Mode
3. Receiver Mode
4. Bluetooth light
5. IR Remote Control
－
RX TX BT IR
PB580
