3
English
Quick Operation Guide
Network Adaptor
Model No. CZ‑TAW1
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before using this product, and save
this manual for future use.
These are quick version Operating Instructions.
For full version Operating Instructions, please refer to CD‑ROM.
Table of Contents
 ������������������������������������������������������ 4
��������������������������������������������������������� 5
Before Installing the Adaptor ������������������������������������� 5
 ������������������������������������������������������ 6
���������������������������������������������������� 7
Starting “AQUAREA Smart Cloud”���������������������������� 8

4
English

WARNING This indication shows the possibility of
causing death or serious injury.

This indication shows the possibility of
causing injury or damage to properties.

Symbol with white background denotes item that is PROHIBITED
from doing.
Symbol with dark background denotes item that must be carried out.
WARNING

– This can cause electric shock.

– This can cause electric shock or ignition.

– This can cause electric shock or ignition.
 Request any repairs from the place of purchase or the installer.
 

– Not doing so may cause smoke, ignition, electric shock, or burns.
Examples of problems and malfunctions
• There is a burning smell
• Water or a foreign object has gotten inside
Immediately request repair from the place of purchase or the
installer.
 Request installation from the place of purchase or an installer�
– Not doing so may cause electric shock or ignition.

5
English


checking the adaptor�
– This can cause injury from falls.

Indoor unit
Network
adaptor
CZ‑TAW1
Router Internet
CN‑CNT
cable
Ethernet (Wired)
or
Wireless LAN
Before Installing the Adaptor
• 
the Panasonic AQUAREA Smart Cloud. Panasonic AQUAREA Smart
Cloud cannot be accessed with any other adaptor.
• Do not attach the adaptor to metal as wireless performance will be
adversely affected. Use the wired connection if you have no alternative.
• We recommend you use Google Chrome as your Internet browser.
• Google Chrome is a registered trademark of Google Inc.

6
English

1
2
3
4 5 6
No. Item Description
1 Power LED Indicates that the adaptor is being supplied
with power.
2 Status LED Indicates the status of the adaptor.




3 Link LED Indicates the communication status of the
adaptor.
4 WPS switch Switches WPS ON.
5 Register/Reset switch Enables user registration and resetting.
6 Check switch Check the communication status of the
adaptor.
Switches between Ethernet and Wireless
modes each time it is pressed and held for
10 seconds.

7
English

You can establish a connection with the internet with either the Ethernet
mode (wired) or the Wireless mode (wireless).
1 
The Power LED lights.
2 The colour of the Status LED indicates the connection mode�
Power LED
Status LED
The colour of the Status LED changes each time the Check
switch is pressed and held for 10 seconds.


When connecting using the Ethernet mode (wired)
1 
Ethernet mode is on�
If the Ethernet mode is not on, press and hold the Check switch for
10 seconds to switch to the Ethernet mode.
2 
 The Link LED lights to indicate that the connection has been established.
Use a shielded LAN cable.
When connecting using the Wireless mode (wireless)
1 Check the Status LED is blue to

on�
If the Wireless mode is not on, press and
hold the Check switch for 10 seconds to
switch to the Wireless mode.
2 
3

The Status LED and Link LED light when communication is established.
WPS switch

8
English
Starting “AQUAREA Smart Cloud”
Use a smartphone to set up the AQUAREA Smart Cloud.
• 
1 Access the “AQUAREA Smart Cloud”�

 There is no charge for using this application.
Other charges may be incurred for connection and
operation, however.
Updates to the service may mean there are changes to
the design of the screen and display.
You will need a Panasonic ID in order to use the

register for a Panasonic ID (free) by either following the
link on the login page or at the following URL.


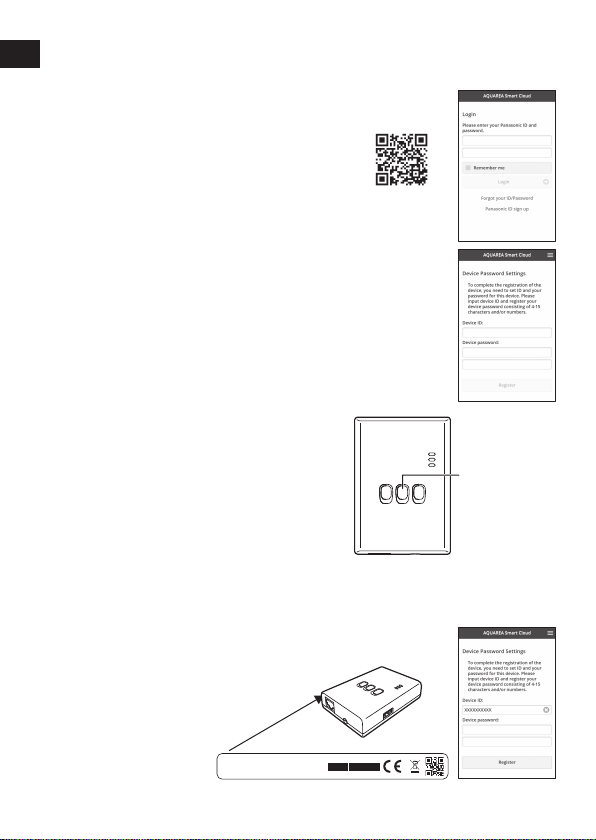

2 Register both the adaptor and
the indoor unit�
1) Press the Register/Reset switch on the
adaptor to enter the user registration mode.
(The mode remains active for 30 minutes.)
2) Log into the service using the Panasonic ID you have already obtained.
3) Enter the Device ID which is written on the side of the adaptor.
Skip the letter “‑” when entering the Device ID.
NETWORK ADAPTOR
CZ-TAW1
DEVICE ID:XXXXX-XXXXX
MADE IN CHINA
WLAN MAC:
XX:XX:XX:XX:XX:XX
LAN MAC:
XX:XX:XX:XX:XX:XX
S/N No:
X03YWWXXXXX
Register/Reset
switch

9
English
4) Enter a password for the device.
If you forget the password for the device, you can
reset the adaptor and then re‑register it.
You can give a name and zone name to the indoor
unit that helps you identify it.
3 Use the AQUAREA Smart Cloud�
To register an additional user on the indoor unit
Multiple users (family members, for example) with different Panasonic IDs
can access the same indoor unit.
1 Additional user operations
1) Log into the service using the Panasonic ID of the
additional user.
2)
Enter the Device ID and Device password that was
registered by the owner (the user that initially
registered).
3) Enter a message requesting approval from the owner.
Enter a message so that the owner can identify the
person making the request.
2 
1) Log into the service using the Panasonic ID of the owner (the user that
initially registered).
If there is a message requesting registration from an additional user,
 
2)  
The request message from the additional user is displayed.

10
English
3) Select the appropriate privileges for the user and approve their request.
After approving, the additional user will also be able to use the
AQUAREA Smart Cloud.

