tigerlight MAKO Series User manual

MAKO Series LED Area Light
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
IMPORTANT INSTALLATION INFORMATION
1.Before commencing installation or maintenance, ensure
electricity is switched off at the mains. Installation or
maintenance should be carried out by a qualified electrician.
2.The luminaire must not, under any circumstances, be
installed directly to flammable materials, and luminaires
must not be covered with any flammable materials.
3.Mounting height range of 3 meters to 6 meters, this model is
suitable for outdoor lighting.
4.Ensure there is adequate free air circulation of at least
50cm around the luminaire. All luminaires run hot. It is
the installer's responsibility to consider fire risk and take
appropriate precautions.
INSTALLATION INSTRUCTION
1
LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER
FOR FUTURE REFERENCE

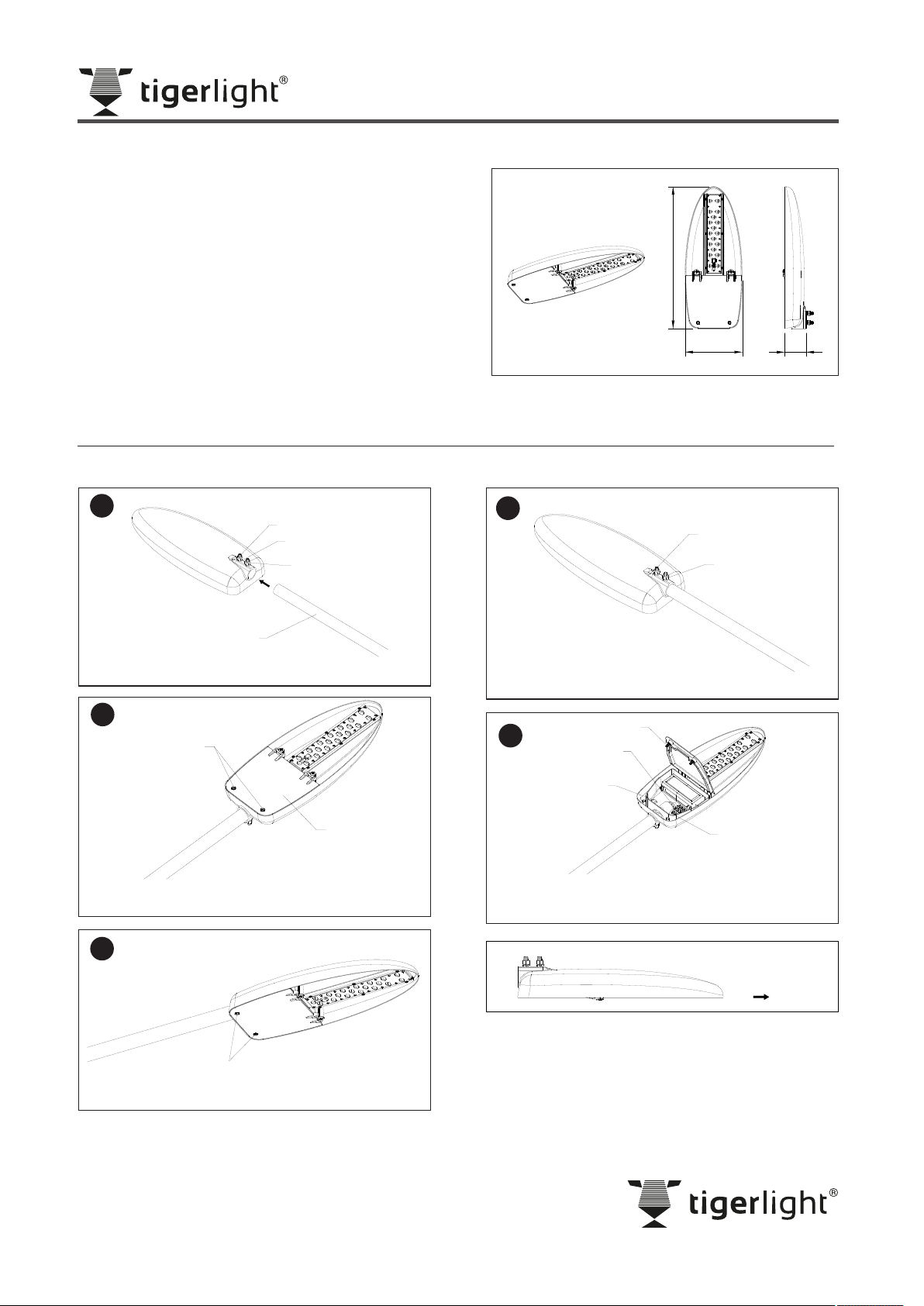

Installation Instruction & Installation Steps
STEP 1:
1.Loosen the M10 screws, nuts, spring washers on the spigot with a wrench.
2.Insert the pole into the middle hole of spigot till to the end.
3
STEP 2:
1. Loosen locking bolts and open the cover.
5
STEP 5:
1. Fasten the locking bolts on the cover tightly.
2
STEP 2:
When the pole is inside the spigot, fasten the screws, nuts and spring washers.
4
STEP 4:
1. Get mains power supply cord into led driver compartment via cable gland.
See Figure 6.
2. Lock the gland to mains power supply cord tightly.
L
WH
Screw
Nut
Pole
Spring washer Screw
Nut
Cover
Locking bolts Cable gland
Bubble level
Mains power supply cord
Locking bolts
Locking bolts
0°
www.tigerlight.com.au

IP67
System Wattage
Model No. Dimensions (L x W x H) Weight EPA* Ambient Temperature Ingress Protection
SA040MAKO 40W 495mm (19.49") x 200mm (7.87") x 75mm (2.95") 5.88kg (12.9Ibs) 0.076 ㎡-40℃ to +50℃
Input Voltage: 120 to 277V~ 50/60Hz
The ingress protection of the fixture is IP67 if the mains supply cable's specification is H07RN-F 3*1.5m㎡.
Main specifications:
This logo indicates that this product must not be disposed of with other waste.
Please recycle used lamps to prevent environmental hazard and threats to human
health resulting from improper disposal.
Safety Notice
WIRING INSTRUCTION Alternating Current
Terminal Block
LIVE
GROUND
NEGATIVE
LIVE - Black
NEGATIVE - White
GROUND-Housing
LED DrivER
Mains power supply
Electrical Connections
L
G
N
6
Input wire H07RN-F 3x1.5mm² (SJOW 3 * 18AWG) or rubber sheathed
cable (not supplied).Conductor must have a minimum cross-sectional
area of 1.0mm² (18AWG).
STEP I: Connect the LIVE wire in the mains power supply cord to the L
marked hole In the terminal block , and tighten the connection properly.
STEP II: Connect the NEGATIVE wire in the mains power supply cord to the N
marked hole in the terminal block , and tighten the connection properly.
STEP III: Connect the YELLOW/GREEN GROUNDING wire in the mains
power supply cord to the G marked hole in the terminal block ,
and tighten the connection properly.
STEP 6:
Refer to “Electrical Connections” for completing electrical connections.
STEP IV: Close Under the cover, and tighten the locking screws firmly.
www.tigerlight.com.au
