TIS TIS-PL-171000 User manual

INSTALLATION MANUAL
WIRELESS AUDIO PLAYER
This beautiful amplier is designed to deliver high-
quality sound with Wi-Fi streaming capability. You
can control it from your smart phone and stream
your favorite music and podcasts from various
sources such as Spotify, deezer, qobuz, etc.
directly on a local wireless network. Tracks and
playlists stored on a smart phone can also be
played in multiroom/multizone modes. Install this
device to create atmospheric moods with the right
tune.
Model: TIS-PL-171000
PRODUCT INFORMATION
BARCODE (UPC-A)
PRODUCT SPECIFICATIONS
Connectivity
Wireless Network IEEE802.11 b/g/n 2.4G
Ethernet Single 10/100M RJ45
Bluetooth 5.0, SBC/AAC (10 meter distance)
USB Host Play USB Music
Auxiliary in Analog 3.5mm Connector
Music
Format FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
Protocols AirPlay, DLNA, UPnP, Spotify Connect, Qplay
TIS Bus
Number of devices on 1 line Max. 64
Connection terminal Screw terminal 0.2…2 mm2
Protection
Bus connection Reverse polarity protection
Amplifier Reverse polarity protection
Mounting
Wall mount
By 2 screws installed anywhere.
Table Top
On table or any surface
Operating and display
elements
Link/Power button For Linking to network
Upgrading Micro USB or by Internet / LAN or RS485
Dimensions Width x length x height 200mm x 145mm x 40mm
Housing
Materials
Aluminum
Casing color
Black
IP rating
IP 20
6 58921 79880 5

INSTALLATION MANUAL
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
WIRELESS AUDIO PLAYER
2
Model: TIS-PL-171000
Data Cable
For Ethernet connection Use Cat5e or
Cat6 Cable
For TIS-BUS connection use screened
standard RS485 data cable with four
twisted pairs. Congure devices in a
“Daisy Chain.”
Do not cut or terminate live data cables.
Warranty
There is a Two-Year warranty provided
by law. The hologram warranty seal and
product serial number are available on
each device.
Read Instructions
We recommend that you read this
Instruction Manual before installation.
Safety instructions
Electrical equipment should only be
installed and tted by electrically skilled
persons.
Failure to observe the instructions may
cause damage to the device and other
hazards. These instructions are an integral
part of the product and must remain with
the end customer.
Programming
This device can be tested and
programmed manually. Advanced
programming requires knowledge of
the TIS Device Search software and
instruction in the TIS advanced training
courses.
Simple Installation
You can use either the wall mount
installation , or simply put it o table.
Mounting Location
Position the TIS-PL-17100 on a stable
surface within clear reception of the local
Wi-Fi signal and where controls and
connections are accessible.

INSTALLATION MANUAL
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
WIRELESS AUDIO PLAYER
3
Model: TIS-PL-171000
INSTALLATION STEPS
1Connect the speakers to the respecting
terminals.
2Link the Bus cable to TIS-BUS network
in case of operating the Matrix in 2-4
separated audio zones.

INSTALLATION MANUAL
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
WIRELESS AUDIO PLAYER
4
Model: TIS-PL-171000
4Plug the power supply to the power
3Connect the Ethernet cable to your
network if required.

INSTALLATION MANUAL
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
WIRELESS AUDIO PLAYER
5
Model: TIS-PL-171000
Hold the LINK button, then, press “On”
button on the rear side of the player.
1
once you power on the device , wait 3
seconds then release the button
2
PAIRING
3”

INSTALLATION MANUAL
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
WIRELESS AUDIO PLAYER
6
Model: TIS-PL-171000
1Turn on your phone’s GPS.
LINKING TO NETWORK VIA WI-FI
Location
on
2Go to your mobile Wi-Fi settings and
search for SoundSystem_xxxx WiFi and
connect.
Wi-Fi
SoundSystem_xxxx
on
Avaialble networks

INSTALLATION MANUAL
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
WIRELESS AUDIO PLAYER
7
Model: TIS-PL-171000
Go back to TIS App setting Rooms
manager select the room Audio
select TIS WiFi PLAYER press Add
1
APP CONFIGURATION
Select the router SSID you want your
player to be connected to (enter password
if required)
then select continue
2

INSTALLATION MANUAL
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
WIRELESS AUDIO PLAYER
8
Model: TIS-PL-171000
3Once connection is nished, it will
automatically check for new updates.
On TIS App, press on Add button and
select it the device to be added to the
room.
4
Wi-Fi
on
Avaialble networks
WiFi 1
WiFi 2
TIS SMART HOME

INSTALLATION MANUAL
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
WIRELESS AUDIO PLAYER
9
Model: TIS-PL-171000
After you add the device, it appears in the
devices section. You can start streaming
music.
5
NOTICE
▸
If you change to another router, or the password of the connected router is changed, long
press the POWER button for 5 secs in Wi-Fi mode to reset the connection.
▸
Holding the POWER button and plugging in the power can force the device to enter the Wi-
Fi mode. Device will automatically connect to the router that has been congured previously.

INSTALLATION MANUAL
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
WIRELESS AUDIO PLAYER
10
Model: TIS-PL-171000

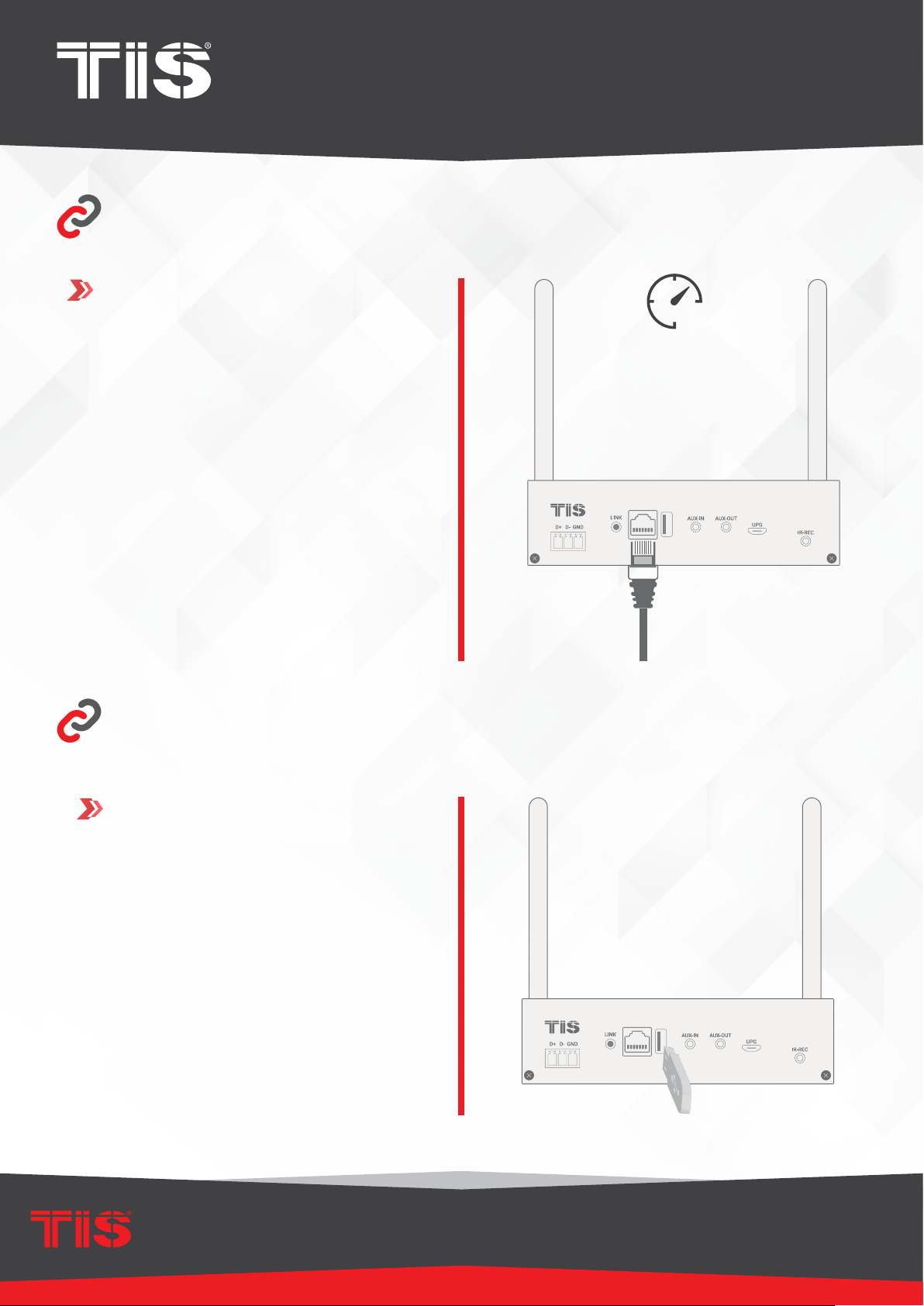

CONNECTION VIA LAN
▸
(Note: your smartphone and the
device must be connected to the
same network)
Plug in the wired cable to the RJ45
Ethernet, the device will show up on the
app in about 10 seconds. 10”
CONNECTION VIA USB
Connect the USB drive to the USB
port
1

INSTALLATION MANUAL
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
WIRELESS AUDIO PLAYER
11
Model: TIS-PL-171000
CONNECTION VIA BLUETOOTH
1
2
To use Bluetooth, please switch to
Bluetooth via app or use the remote
controller.
Then, nd Bluetooth device
SoundSystem_XXXX from your phone
Bluetooth setting and pair it.
Bluetooth
SoundSystem_xxxx
on
Avaialble devices
Bluetooth
on
