Tisira MB45T User manual

Washing Machine
OWNER’S MANUAL
Before using your washing machine, please read
this manual carefully and keep it for future reference.
Inside you will find many helpful hints on how
to use and maintain your washing machine properly.
Just a little preventative care on your part can
save you a great deal of time and money over
the life of your washing machine. You'll find many
answers to common problems in the chart of
troubleshooting tips. If you review the chart of
Troubleshooting Tips first, you may not need
to call for service.
Read This Manual
MODEL:MB45T

Notes
2
5
7
8
11
12
13
15
16
17
18
1

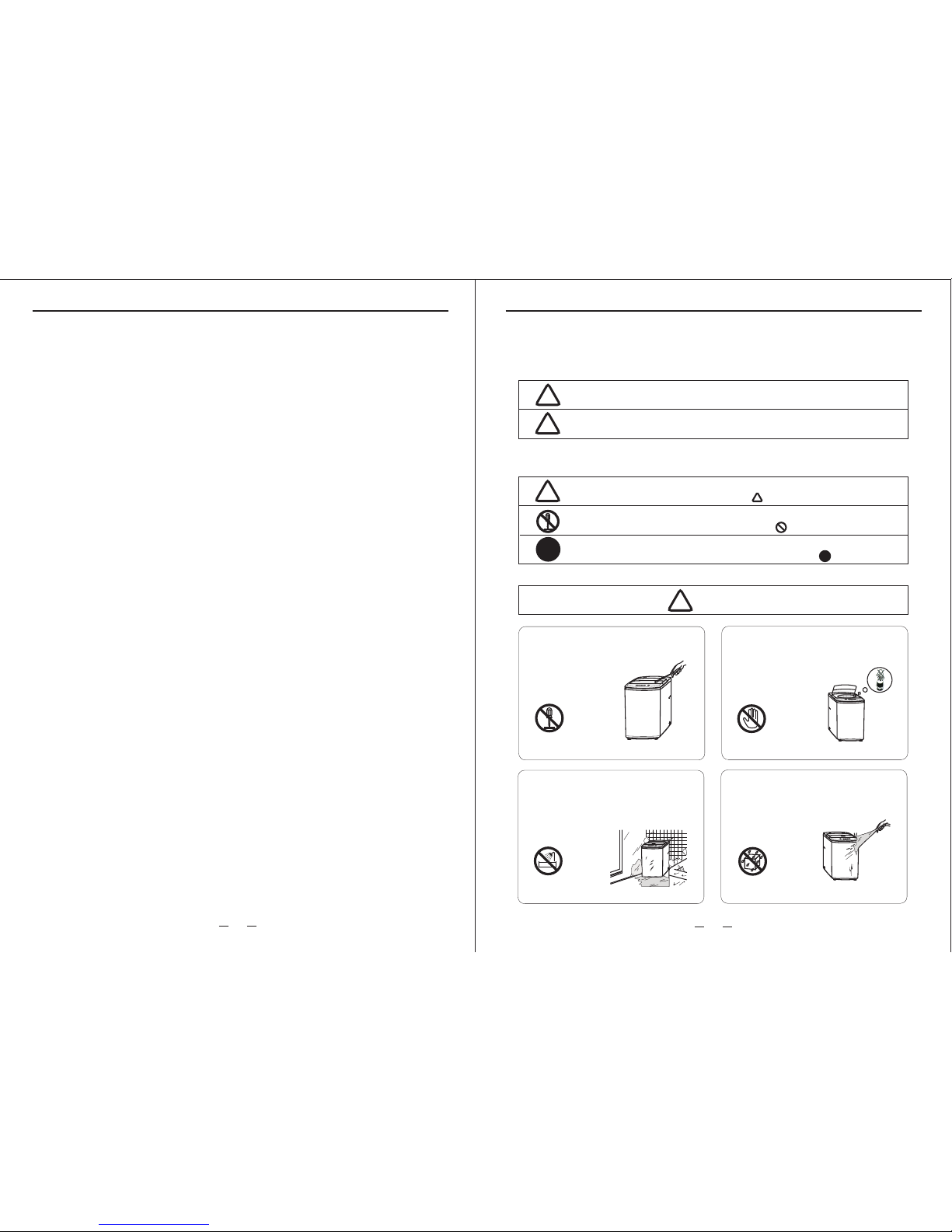

Contents Observe the following items in order to prevent from injuring yourself, others and the
damage of property:
Please observe following contents of graphics.
！！！
！
Warning
Warning
Caution
This indicates serious injury or death to human being
may be caused.
This will remind you that injury to people and damage
to property may occur.
Please do not directly rinse the
machine with water when
cleaning.
Please do not install the machine in
damp and raining environment to avoid
electric shocking, catching fire, faults
and distortion
accidents.
No dismantling No touching
No dampness No rinsing
!
This graphics represents［operation prohibited], and detailed prohibitive
items will be displayed inside the graphics.
This graphics represents［cause attention］,and detailed cautions
will be displayed inside the graphics.
This graphic represents [compulsory execution], and detailed forcible
execution items will be displayed inside the graphics.
Please do not disassembly
and assembly the
machine without
authorization.
Please do not insert your hand
and take out clothes inside the
spin barrel before
it is fully stopped.
2
Safety and precautions
Safety and precautions........................................................................
Installation of the washer......................................................................
Preparation before washing..................................................................
Parts identification of the washer...........................................................
Instruction of the washer operation panel...............................................
Quick start..........................................................................................
The main wash....................................................................................
Special features..................................................................................
About the procedure of full automatic wash program..................................
Cleaning and Maintenance of the washing machine..............................................
Identify usual trouble of washer..............................................................................
Malfunction display and solutions..........................................................
Technical specifications................................................................................
9
18

78

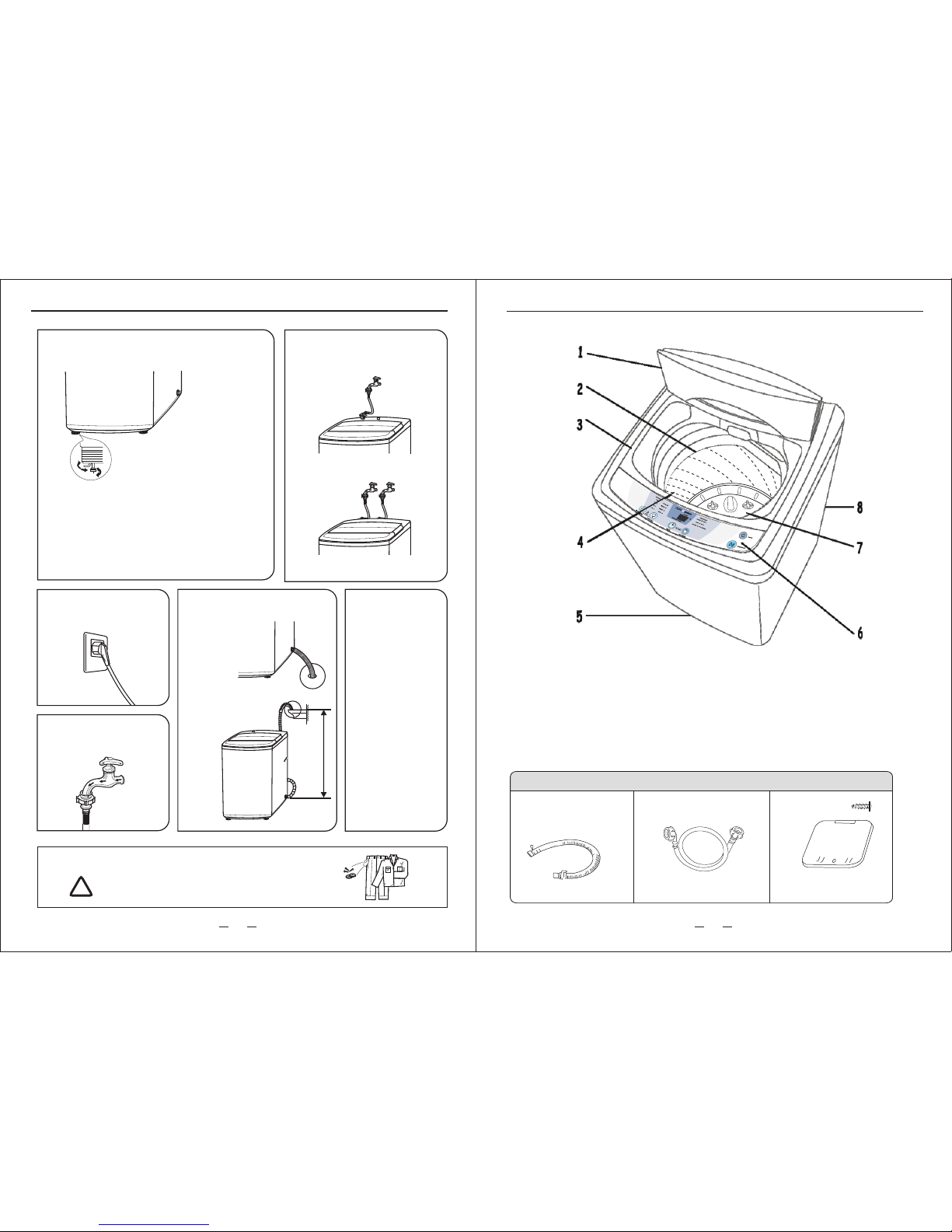

Parts identification of the washer
Before washing, please take out coins,
keys and other hard goods, and pull to close
the zip fastener to prevent clothes and
barrel from damage.
Preparation before washing
！
！
NOTICE
Adjust the adjustable foot to make
the washer be placed stable.
1
Adjustable foot (extend when
clockwise rotating and shorten
when counter clockwise rotating)
(Slightly incline the washer first and loosen the
adjustable foot knob. Adjust the adjustable foot so
as to ensure four corners of washer be steadily
contacted with the ground. Then tighten the
adjustable foot knob and lock it. If the ground is
obviously not flat, correction should be made on
the ground surface, otherwise the washer barrel
will incline and knock the cabinet)
Connect to
power source.
3
4Turn on water
supply
+
+
Put down the drain
house.
5
Lower drain
Upper drain
Note:
The water
will overflow
when the
height of
the drain
hose under
750mm.
>750mm
Put in
clothes
and
suitable
amount of
washing
powder.
6
Accessories
Water inlet hose assembly Base cover
Self-tapping screw
Lower drain hose
Fixing ring (1) is used
for the fixing in time of
the installation of the
lower drain hose.
Install the water
inlet hose.
2
+
+
For one inlet hose
For two inlet hoses
+
+
+
+
1.top lid 2.wash/spin tub 3.top frame 4.lint filter 5.base
6.control panel 7.pulsator 8.cabinet

LIGHT/FLASH
910
Instruction of the washer operation panel
On & off power
Power
Automatic power off
Start/Pause
After program selection,p
the button to start. ress
Press t
course of operation,press the
button again the program
continues till the program is
finished.
he button to pause in the
Press water level button,the user
can set water level freely.Each
press of the button,the light for
the water level will move in turn.
Water level
Press the button to select
“ ” “RINSE” “SPIN”
“SOAK” “WASH” “RINSE” “SPIN”
“WASH” “WASH” “RINSE”,
“RINSE” “SPIN”,“SPIN”
WASH + + ,
+ + + ,
, +
+
Press the button to preset delay
time.Less than 24 hours each press
the button,the delay-time is added
an hour.More than 24 hours each
press the button,the delay-time is
added 6 hours,after to 48 hours,the
preset indicator is come back origin
status.If always press the button,
the delay time will automatically
change.
Delay
By washing requirement you may
optional select the programs of
“NORMAL “BULKY
“RAPID” “WOOL”
“DELICATE “ANTI-WRINKLE
(light)” ”(flash),
(light)/ (flash)
”(light)/ ”(flash).
Program
Selection of function
Please read Additional explanation
Child Lock
If drawing is changed, no inform any more.
In order to protect controller, the interval of switching on and off power
should be more than 30 seconds.
*

13
Fuzzy control function
Standard procedures default implementation fuzzy control function. After startup,
such as water level before starting the keys will be cancelled automatically
according to the fuzzy control functions; In addition, the fuzzy measure before, if
there is no water, tub fuzzy measurement, the water level directly as the default
file namely 6 gear levels.
Fuzzy control function is at boot automatically after the determination of cloth is
measured, decide the water level. In fuzzy testing process, water circulation flashing
lights display, digital pipe display "--".
Power lost memory function
The machine will automatically drop from the operation stage of starting place, the machine
will automatically from drop while the operation stage of starting place operation.
14
Special features Special features
Delay time means the preset beginning
time of washing.
2.Open the tap and lay the drain hose.
3.Put in the laundry and detergent.
Delay time program
Confirmation of the delay and inspection
1. After the delay function is started, the corresponding delay light will flash, and other lights
are turned off.
2. After the delay function is started , press “ Delay” button continuously , you may inspect
the preset program and function . Loose the button , the program return to delay status.
Cancel the delay time, or alternate the delay time
2. To change the delay time , cancel the delay time first ,
and then press “Delay” button to reset.
1.Switch on the power .
4.Select the propre water level according
to the quantity of clothes.
5.Select the functions and programs.
6.Press “DELAY” button to select the
beginning time of washing.
7.close the lid and press “START/PAUSE”
button
1. Press “ Power” button to cancel the delay time.
Press the “ DELAY” button each time,
the n umber on the digital indication
adds by “1” ; After the number
reaches “24”,press the “ DELAY”button
each time ,the number adds by “6” ;
After the number reaches 48, the light
of delay time is turned off , and the
delay program return to original status.
Rapid
Wash time is short. Suitable to wash light stained clothes and clothes. summer
Anti-wrinkle
The wash time is short,rinses many time with high water level,thoroughly wash away the
garment.
“Bulky” program is a performance (energy consumption, wash ratio, etc.) testing program.
Bulky
Wool
Additional explanation
1. CHILD LOCK function: After starting, press the FUNCTION and WATER LEVEL button
at the same time, this “CHILD LOCK function can be set, then all buttons will be locked and not
to be selected (including the “POWER button), the indication is displayed “CL one second every
5 seconds,and press the “FUNCTION" and “WATER LEVEL button at the same time again to
unlock the function.
“ “ “” ” ”
”
” ”
”
2. In the course SOAK ,the washer does not stop completely, it will wash interval to let the
washing evenly mix with the detergent.
Delicate
Washing wool clothing. High water level of water level is optional, beat downy.
The washing ability is not so strong as normal washing program,fit for slight or eapensive clothes.

15 16
About the procedure of full automatic wash program
Cleaning and Maintenance of the washing machine
1
2.5 1 10
Rapid
2
Delicate 10
33
Contents Wash
Time
(minutes)
Spin
Time
Complete
Time
Washings
(recommended)
Rinsing
Times
Normal
Program (minutes) (minutes)
Note: The time required will also vary with water pressures of intake pipe, different clothes
textures and different water drain conditions.
Normal clothes
or
summer clothes
Thin underline
or
linsey-woolsey
30 10 56 1
Normal clothes
or
not so dirty clothes
Bulky 7 47 2
8 / 27 2
Normal clothes
or
dirty clothes
silk
or
anti wrinkle clothes
End of program
The washing machine will send off the sound
of dou-dou at the end of any program operation
to remind you to take out the laundry or operate
it again.
After the sound ,the washing machine returns
to its power-off state with no display and all lights off.
Please shut off the tap, pull out the plug when not
in use to avoid water leakage or the fire accidents.
" "
Maintenance
Use gentle clothing to wipe off the water and dirt on
the surface each time after using the washing machine.
Detergent , propellant and
other chemicals are not
allowed to use so as to avoid
any damage to the plastic
accessories.
Clean the water inlet
Clean the lint filter in the drain pump (only for having drain filter)
1. Drain the water from the
pump,and collect it with a
container.
2. Loosen the pump cover
anticlockwise.
3. Take out the lint filter.
4. Clean the filter. 5. Restore it and adjust the
convex place to align at
the pump hole.
6. Tighten the pump cover
clockwise.
If the drain filter is not cleaned at proper time (every 10 times of use),Drain problem could be caused.
Notes:
Clean Of the filter
Anti-wrinkle
Energy efficiency test procedures for bulky program.
！
2
2
Wool 15
34
Thin underline
or
linsey-woolsey
/
15

No
washing
Abnormal
draining
Abnormal
spin
Identify usual trouble of washer
List of faults and inspection
Faults Inspection Items
No water
flows in
! If the power is off or the fuse is burned out.
! If the water supply is cut off or the water pressure is too low.
! If the inlet hose is properly connected and the water tap is opened.
! If the filtering screen of inlet valve is blocked by dirt.
! If the coil of inlet valve is damaged. (The slight electromagnetic
sound is normal phenomenon when the inlet valve is switched on)
! If the "Start / Pause" button is pressed after the power
switch is pressed.
! If the door lid is closed.
! If all clothing piled largely at one side of barrel or the clothing
is excessively placed.
! If the washer is not placed in stable condition or it is placed in
inclination state. (The ground is not flat).
! If the motor belt is loosened.
Note: During the de spin process, if washing are piled at one side of the spin barrel,
it will cause unbalance of spin barrel resulting in striking. At this moment, the
computer inside the washer will feel this unbalance phenomenon and will automatically
correct it ( fill in water Washing ). However, if unbalance situation is not removed after
continuous three corrections, which means the computer auto-correction can not
resolve the problem. Then the user has to manually and evenly place the clothing
inside the barrel to solve the problem.
When the washer is in trouble, please contact local service office or the sales service
department of our company and the customer should not dismantle the machine without
permission.
If the washer can not work normally, or appear abnormity or alarms, please check and
correct as follows.
! If the water drain hose is placed very high.
! If the end of water drain hose is sealed in pond.
! If the internal rubber ring of drain valve is blocked by dirt.
! If the power is off or the fuse is burned out.
! If the power supply voltage is too low.
! If the water amount reaches to the required water level.
(The washer will not work if the water amount does not reach the
required water level)
! If it is set to "Delay" washing mode. (It will only start to work
until the reservation time reached)
17
Malfunction display and solutions
When the washer is in trouble, please contact local service office or the sales service
department of our company and the customer should not dismantle the machine
without permission.
If the washer can not work normally, and the abnormal indication is shown in the nixie
tube window or the machine alarms, please check and correct as follows.
18
Technical specifications
360W
50 Hz
526×536×915(mm)
240V~
31 kg
Size
Rated input
power
Rated
voltage
Rated
frequency
Net weight
Rated capacity of wash
and spinning
Minimum water pressure
permitted in the water inlet
Maximum water pressure
permitted in the water inlet
Gross weight 34 kg
4.5kg(dry clothes)
0.6Mpa
0.1Mpa
Indication of fault
Cause of fault
Phenomenon of fault
Alarm of the
buzzing sound
Solution of alarm
Alarm for
injection
water Entering water less than 16
minutes,reset water level.
Alarm for
opening lid
Open the lid after start the
delay time.Open the lid
when the washer is spinning.
Imbalance
alarm
Be examined imbalance
for the third time.
Drain alarm After draining for 4 minutes,
does not finished to drain.
The buzzer goes
on buzzing
sound for 10
seconds.
If the alarm does
not be solved ,
every 16
minutes re-
buzzs for 10
seconds.
Open the lid to
deal with faults,
then close the
lid to solve the
alarm.
E1
E2
E3
E4
the new hose-sets supplied with the appliance are to be used
should not be reused appliance with ventilation openings in the base, that a carpet
must not obstruct the openings.
The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacture, its service agent
or similarly qualified persons in order to avoid a hazard.
and that old hose-sets
