Titan TTB797CPR User manual

Original Instructions_TTB797CPR_GB_V01_201130
TTB797CPR
EAN: 5059340195100
24L 1.5HP Oil Free
Air Compressor
4/19/17 4:35 PM
WARNING! Read the instructions before using the appliance!
EN
BX220IM

02
EN
27
27
28
26
20
22
18
In more detail...
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Guarantee
EC declaration of conformity
17
02
03
13
14
Getting started...
Safety information
Your product
Before you start
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Let’s
get started...
4/19/17 4:35 PM
EN

03
Getting started...
Safety information
Safety warnings
>Children shall not play with the appliance.
>Cleaning and user maintenance shall not be made by
children without supervision.
General safety warnings
WARNING! When using electric tools basic
safety precautions should always be followed
personal injury including the following. Read all
these instructions before attempting to operate
this product and save these instructions.
Safe operation
>Keep work area clear
– Cluttered areas and benches invite injuries.
>Consider work area environment
– Do not expose the product to rain.
– Do not use the product in damp or wet locations.
There is a risk of electric shock!
– Keep work area well lit.
–
liquids or gases. There is a risk of explosion!
>Guard against electric shock
– Avoid body contact with earthed or grounded surfaces
(e.g. pipes, radiators, ranges, refrigerators).
>Keep other persons away
– Do not let persons, especially children, not involved
in the work touch the product or the extension cord
and keep them away from the work area.
4/19/17 4:35 PM
EN
TTB797CPR by TITAN

04
Safety information
Getting started...
Safety warnings
>Store idle product
––When not in use, the product should be stored in a
dry locked-up place, out of reach of children.
>Do not overload the product
––It will do the job better and safer in the role for which
it was designed.
>Use the right attachment tool
––Do not force small attachment tool to do the job of a
heavy duty attachment tool.
––Do not use attachment tools for purposes not intended.
>Dress properly
––Do not wear loose clothing or jewellery, they can be
caught in moving parts.
––Non-skid footwear is recommended when working
outdoors.
–– Wear protective hair covering to contain long hair.
>Use protective equipment
–– Use safety glasses.
––Use face or dust mask if working operations create dust.
>Connect dust extraction equipment
––If the attachment tool is provided for the connection
of dust extraction and collecting equipment, ensure
these are connected and properly used.
>Do not abuse the cord
––Never yank the cord to disconnect it from the socket.
Keep the cord away from heat, oil and sharp edges.
>Secure work
––Where possible use clamps or a vice to hold the work.
It is safer than using your hand.
>Do not overreach
–– Keep proper footing and balance at all times.
>Maintain attachment tools with care
––Keep cutting tools sharp and clean for better and
safer performance.
4/19/17 4:35 PM
EN TTB797CPR by TITAN

05
Getting started...
––Follow instruction for lubricating and changing
accessories.
––Inspect product cords periodically and if damaged
have them repaired by an authorised service facility.
––Inspect extension cords periodically and replace if
damaged.
––Keep handle dry, clean and free from oil and grease.
>Disconnect the product
––When not in use, before servicing and when changing
accessories for the attachment tool, disconnect the
product from the power supply.
>Remove adjusting keys and wrenches
––Form the habit of checking to see that keys and
adjusting wrenches are removed from the product
before turning it on.
>Avoid unintentional starting
–– Ensure switch is in “off’ position when plugging in.
>Use outdoor extension leads
––When the tool is used outdoors, use only extension
cords intended for outdoor use and so marked.
>Stay alert
––Watch what you are doing, use common sense and
do not operate the product when you are tired.
>Check damaged parts
––Before further use of the product, it should be carefully
checked to determine that it will operate properly and
perform its intended function.
––Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting and any
other conditions that may affect its operation.
––A guard or other part that is damaged should be properly
repaired or replaced by an authorised service centre
unless otherwise indicated in this instruction manual.
––Have defective switches replaced by an authorised
service centre.
––Do not use the product if the switch does not turn it
on and off.
4/19/17 4:35 PM
EN
TTB797CPR by TITAN
Safety information

06
Getting started...
Safety warnings
>Warning
––The use of any accessory or attachment other than
one recommended in this instruction manual may
present a risk of personal injury.
>Have your product repaired by a qualied person
––This electric product complies with the relevant safety
rules. Repairs should only be carried out by qualied
persons using original spare parts; otherwise this
may result in considerable danger to the user.
Air compressor safety warnings
>Make sure that all compressed air lines and ttings
are suitable for the maximum permissible operating
pressure of this product.
>Place this product securely on an even and stable
surface.
>The compressor pump and lines can become very hot
during operation. Avoid touching these parts during
operation.
>The air which is sucked in by the compressor pump
must be kept free of impurities that could cause res or
explosions in the compressor pump.
>When releasing the hose coupling, hold the connector
with your hand to protect yourself against injury from a
rebounding hose.
>It is recommended using an air line with a safety cable
for pressures above 7 bars.
>Keep the pressure vessel in good working condition.
Operate the vessel correctly, monitor it, carry out
necessary maintenance and repair work immediately
as well as meet the relevant safety precautions.
>A pressure vessel is not allowed to be used if it has
faults or deciencies that can endanger users.
4/19/17 4:35 PM
EN
Safety information TTB797CPR by TITAN

07
Getting started...
>Check the pressure vessel for signs of rust and damage
each time before operation. Do not use this product with
a damaged or rusty pressure vessel. If you discover any
damage, then please contact the customer service centre.
>Never leave the product unattended during use.
>The compressed air from your product is not safe for
breathing. Never inhale air from your product or from a
breathing product connected to the product.
>Do not modify or attempt to repair. Never drill into,
weld, or make any modications to the product or its
attachments.
>During operation, never point the product at yourself
or others, taking particular care to avoid the eyes and
ears. Risk of injury!
>Do not direct the nozzle or hose at animals or
bystanders.
>Warning! When spraying paint or cleaning agents the
ne mist produced could ignite. Do not smoke and
keep naked ames and other sources of ignition well
away from the work area. Make sure that the area in
which you are working has good ventilation and protect
your nose and mouth with a suitable face mask. Always
check the safety data sheets for substances being
sprayed and ensure manufacturers instructions are
followed.
>This air compressor must be used in a suitable
environment. There must be adequate ventilation, the
ambient temperature must be +5 / +40 °C. The working
area must be free from dust, acid vapour, explosive
gases and ammable materials.
>Do not direct compressed air at yourself, any other
person or animals. Do not direct any liquid or any other
material that is being sprayed by yourself towards any
other person or animals.
4/19/17 4:35 PM
EN
TTB797CPR by TITAN
Safety information

08
Getting started...
Safety warnings
>Only use hoses and connectors designed for use with
compressed air. The maximum working pressure of
hoses and connectors must be higher than the maximum
working pressure of the compressor. Do not attempt to
move the compressor by pulling on the air hose.
>This compressor is designed for tyre ination, the
operation of pneumatic tools, spray painting and
spraying non-corrosive cleaning agents. Do not use
this compressor for lling cylinders for breathing or
diving apparatus. Compressed air from this compressor
must not be used for pharmaceutical, food or health
applications.
>Always transport the compressor by lifting or pulling it
with the appropriate grips or handles.
>Do not insert your ngers or other objects inside the
motor to avoid physical damage or damage to the
compressor.
>If any of the compressor is damaged, it should be
carefully checked to determine that it will operate
correctly and perform its intended function. Check for
alignment of parts, damage to parts, air leaks and any
other conditions that may affect its operation. A guard or
any other part that is damaged or defective should be
properly repaired or replaced by an authorised service
centre. Defective pressure switches must be replaced
prior to further use of the compressor.
>Avoid kinking or trapping the air hose. Always replace
faulty hoses – never attempt a repair if a leak is
detected.
>Drain the tank after each use. Switch off and slowly
open the drain valve to release the air then tilt the
compressor to empty condensed water.
>Keep the motor vent clear and free from dust, wipe
regularly to maintain an adequate supply of clean air to
the air compressor.
4/19/17 4:35 PM
EN
Safety information TTB797CPR by TITAN

09
Getting started...
Vibration and noise reduction
To reduce the impact of noise and vibration emission,
limit the time of operation, use low-vibration and
low-noise operating modes as well as wear personal
protective equipment.
Take the following points into account to minimise the
vibration and noise exposure risks:
>Only use the product as intended by its design and
these instructions.
>Ensure that the product is in good condition and well
maintained.
>Use correct attachments for the product and ensure
they are in good condition.
>Keep tight grip on the handles / grip surface, this also
includes accessories.
>Maintain this product in accordance with these
instructions and keep it well lubricated (where
appropriate).
Important
Familiarise yourself with the use of this product
by means of this instruction manual. Memorise the
safety directions and follow them to the letter. This
will help to prevent risks and hazards.
>Always be alert when using this product, so that you
can recognise and handle risks early. Fast intervention
can prevent serious injury and damage to property.
>Switch off and disconnect from the power supply
if there are malfunctions. Have the product checked
by a qualied professional and repaired, if necessary,
before you operate it again.
Residual risks
Even if you are operating this product in accordance
with all the safety requirements, potential risks of
injury and damage remain. The following dangers
can arise in connection with the structure and design
of this product:
4/19/17 4:35 PM
EN
TTB797CPR by TITAN
Safety information

Getting started...
10
Safety warnings
>Injuries and damage to property due to broken
attachments or the sudden impact of hidden objects
during use.
>Danger of injury and property damage caused by ying
objects.
WARNING! This product produces an
electromagnetic eld during operation! This eld
may under some circumstances interfere with
active or passive medical implants! To reduce
the risk of serious or fatal injury, we recommend
persons with medical implants to consult their
doctor and the medical implant manufacturer
before operating this product!
WARNING! Some dust created by power
sanding, sawing, grinding, drilling and other
construction activities contains chemicals
known to cause cancer, birth defects or other
reproductive harm. Some examples of these
chemicals are:
• Lead from lead-based paint
• Crystalline silica from bricks and cement and
other masonry products
• Arsenic and chromium from chemically
treated timber
Your risk from these exposures varies, depending
upon how often you do this type of work. To
reduce your exposure to these chemicals:
• Work in a well-ventilated area.
• Work with approved protective equipment,
such as those dust masks that are specially
designed to lter microscopic particles.
4/19/17 4:35 PM
EN
Safety information TTB797CPR by TITAN

Getting
started...
11
WARNING! In the event that an air line is cut or
broken, the air supply must be turned off at the
compressor.
A broken air line which is not supported is
extremely dangerous and can whip around very
quickly, both with the capability of striking people,
and blowing foreign particles into the air.
Do not attempt to catch the air line but immediately
keep bystanders well clear and disconnect
the air supply to the hose by disconnecting the
compressor from the power supply, and then
remove the hose from the compressor.
Symbols
others the following symbols and abbreviations. Familiarize yourself with them
to reduce hazards like personal injuries and damage to property.
V~ Volt, (alternating voltage) Hz Hertz
W Watt /min or min-1 Per minute
s Second mm Millimetre
l Litre kg Kilogram
bar Pressure unit dB(A) Decibel (A-rated)
yyWxx Manufacturing date code; year of manufacturing (20yy) and week of
manufacturing (Wxx)
Protection against contact with the solid foreign bodies with φ2.5mm.
No protection against water.
IP30
Lock / to tighten or secure. Unlock / to loosen.
Note / Remark. Caution / Warning.
Read the instruction manual. Hearing protection
must be worn
Wear eye protection. Wear a dust mask.
EN
TTB797CPR by TITAN
Safety information

Getting started...
12

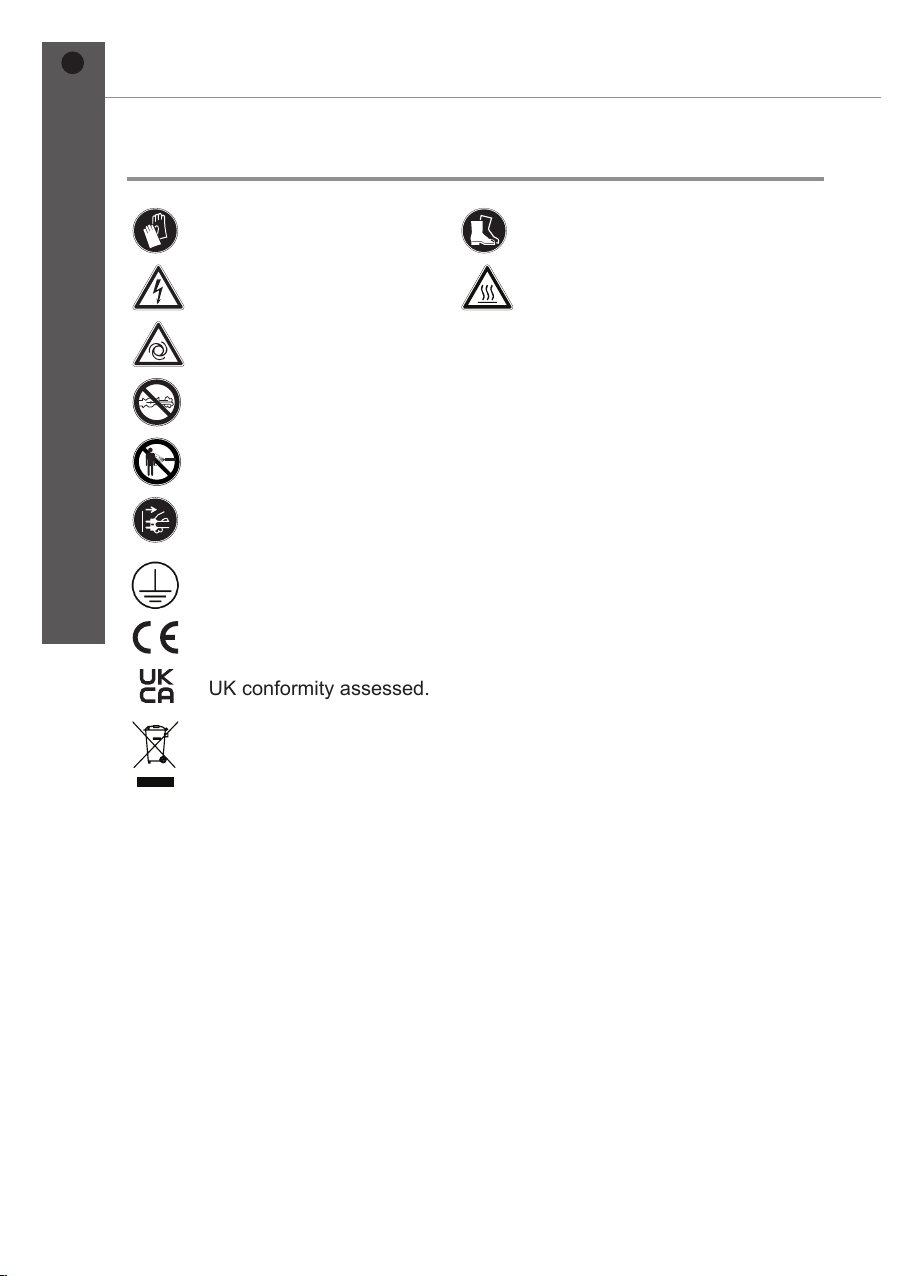

Symbols
Wear protective gloves. Wear protective, slip-
resistant footwear.
Beware of electric voltage! Warning! Risk of high
temperature!
Warning! The product may start without warning to maintain the set
pressure inside the pressure vessel.
Important! Do not turn the pressure regulator open before the air
hose is attached.
Do not direct air stream at persons or animals.
Switch the product off and disconnect it from the power supply
before assembly, cleaning, adjustments, maintenance, storage and
transportation.
Protective earth.
The product complies with the applicable European directives and
an evaluation method of conformity for these directives was done.
UK conformity assessed.
WEEE symbol. Waste electrical products should not be disposed of
with household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.
4/19/17 4:35 PM
EN
Safety information TTB797CPR by TITAN

Getting started...
13
Your product
Your product
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
0
2
4
6
8
1
0
1
2
1
4
1
6
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
30
60
90 120
150
180
210
240
PSI
bar
2 3
4
6
8
10
14
13
15
12 11
9
7
5
1
1. Pressure gauge
2. Pressure regulator
3. Cover
4. On / off switch
5. Power cord with plug
6. Pressure vessel
7. Safety valve
8. Wheel (x 2)
a. Axle with washer and welded nut*
b. Locking nut*
9. Rear support
10. Drain valve
11. Front support
12. Rubber foot
a. Bolt*
b. Nut*
13. Air vents
14. Quick-lock coupling
(air outlet)
15. Transport handle
16. Adaptor (male plug)*
NOTE: Parts marked with * are not shown in this overview. Please
refer to the respective section in the instruction manual.
4/19/17 4:35 PM
EN
TTB797CPR by TITAN

Getting started...
14
Your product / Before you start
General
> Rated voltage, frequency : 220 - 240 V~ , 50 Hz
> Nominal power : 1.5HP/1.2kW
> Rated no load speed n0:3450 min-1
> Degree of protection : IP30
> Protection class : I
> Weight : 15.5 kg
> Dimensions : 580 x 275 x 520 mm
Compressor
> Operating pressure : 8 bars
> Maximum allowable pressure at the
outlet of the compressor : 8 bars
> Pressure vessel capacity : 24 l
> Intake rate (theoretical) : approx. 180 l/min
> Pump-up time : 150 s
> Recovery time : 40 s
> Minimum operating temperature : + 5 °C
> Maximum operating temperature : + 40 °C
Sound values
> Sound pressure level LpA :76 dB(A)
> Sound power level LWA :96 dB(A)
> Uncertainty KpA , KWA :3 dB(A)
The sound values have been determined according to noise test code given in
EN 1012-1, using the basic standard EN ISO 2151.
The sound intensity level for the operator may exceed 80 dB(A) and ear
protection measures are necessary.
TTB797CPR
TT = TITAN
B = 240V AC
797 = Version number
CPR = Compressor
Unpacking
>
> Remove all packing materials and shipping devices, if applicable.
4/19/17 4:35 PM
EN TTB797CPR by TITAN

Before you start
Getting started...
15
You will need
(items not supplied)
Suitable personal protective equipment
Wrench
(items supplied)
Wheels (8)
Foot (12)
Adaptor (male plug) (16)
Assembly
WARNING! The product must be fully assembled before operation!
Do not use a product that is only partly assembled or assembled with
damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the product to power supply before it is completely
assembled!
NOTE: Take care of small parts that are removed during assembly or
when making adjustments. Keep them secure to avoid loss.

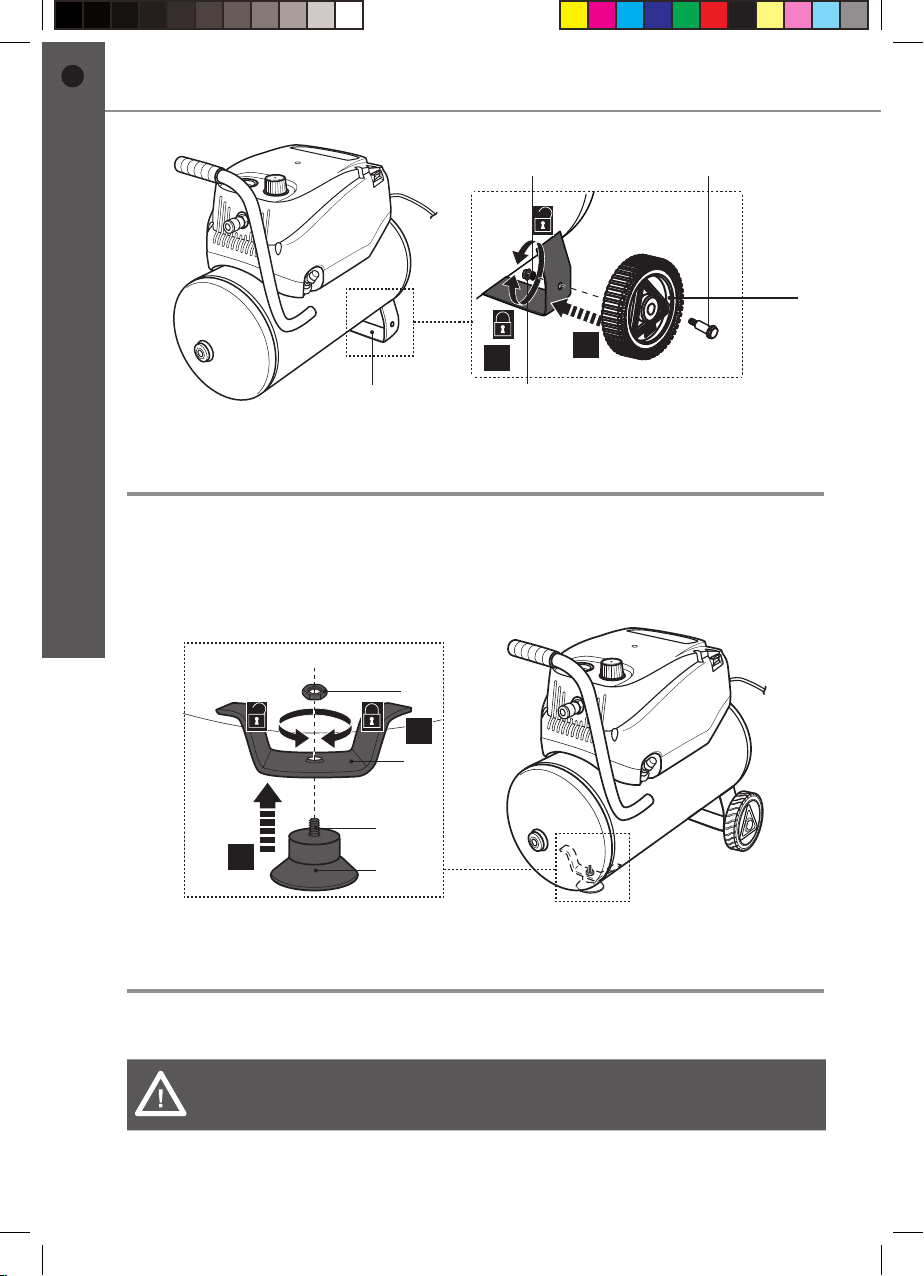

Wheels
> Align the bolt (8a), the hole of the wheel (8) with the hole on the rear support
(9) and insert it. (Fig. 1, step 1). Screw the locking nut (8b) with washer (8c)
to the bolt (8a) hand tight. (Fig.1, step 2).
> Then tighten the locking nut with a suitable wrench to secure the connection.
Do not overtighten.
> Repeat previous steps for assembling the second wheel. Lift the product by its
handle (15) and ensure both wheels rotate smoothly.
4/19/17 4:35 PM
EN
TTB797CPR by TITAN
> Make sure the delivery contents are complete and free of any damage. If you
your dealer. Using an incomplete or damaged product represents a hazard to
people and property.
> Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
WARNING! The product and the packaging are not children’s toys!
Children must not play with plastic bags, sheets and small parts!
There is a danger of choking and suffocation!

Before you start
Getting started...
16
Assembly
Foot
> Align the bolt (12a) of the foot (12) with the opening on the front support (11)
and insert it (Fig. 2, step 1).
> Screw the nut (12b) onto the bolt (12a) (Fig. 2, step 2). Do not overtighten.
2.
1.
12a
11
12b
12
Fig. 2
Connection to power supply
> Make sure the on / off switch (4) is in its off position O.
> Connect the plug (5) with a suitable socket.
WARNING! Check the voltage! The voltage must comply with the
information on the rating label!
> Your product is now ready to be used.
4/19/17 4:35 PM
EN TTB797CPR by TITAN
98b
8a8c
1.
2.
8
Fig. 1

In more detail...
In more
detail...
17
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Guarantee
EC declaration of conformity
26
27
27
28
22
20
18
4/19/17 4:36 PM
EN
TTB797CPR by TITAN

Getting started...
EN
18
In more detail...
Product functions
Intended use
This air compressor TTB797CPR is designated with a nominal power of 1.5HP
/1200Watts.
This product is intended for generating and supplying compressed air to
pneumatic power tools and tyres. Connect only attachment tools which
maximum air consumption is less than the air output of this product.
operation.
For safety reasons it is essential to read the entire instruction manual before
This product is intended for private domestic use only, not for any commercial
trade use. It must not be used for any purposes other than those described.
Safety features
Safety valve
Overload protection
The motor of this product is equipped with an overload protection. When the
motor is over limit temperature 140℃, the product stops automatically.
> Press the on / off switch (4) to its off position Oto switch the product off, and
then disconnect plug from the power supply.Turn the pressure regulator (2)
counter clockwise to stop the air flow to the quicklock coupling (14).
> Disconnect the product from the power supply and let it cool down for
10 minutes.
> Carefully release the remaining pressure in the attachment tool by operating it
until no airflow can be heard.and disconnect it from the quick-lock coupling (14).
Remove the cause of the overload.
> Reconnect the attachment tool to the quick-lock coupling. Ensure the
connection is secured.
WARNING! Make sure the on / off switch (4) is set to its off position O
and then insert the plug into a properly installed socket.
> Reconnect the product to the power supply and press the on / off switch (4)
to its on position I.
> Perform a test for about 2 minutes and 30 seconds to ensure the product runs
smoothly before continuing further operation. If you cannot switch the product
on, see chapter “Troubleshooting”.
4/19/17 4:36 PM
EN TTB797CPR by TITAN
In the event that the pressure inside the vessel exceeds the maximum allowable
pressure level, the safety valve is activated. Once the pressure drops down to

Getting started...
EN
19
In more detail...
Product functions
WARNING! Apart from the testing mentioned above, do not tamper
with the safety valve. Risk of injury and property damage!
Never use the product with a defective or damaged safety valve.
In case the safety valve appears damaged or malfunctioning, have it
checked and repaired by a specialist before using the product again!
Air pressure measurement
The product can measure air pressure without being connected to the power
supply.
> Insert a suitable attachment tool onto the product (see Operation - Attachment
tools).
>
> Read the value on the pressure gauge.
>
tool from the product.
4/19/17 4:36 PM
EN
TTB797CPR by TITAN
7.1
Fig. 3
proper levels, the safety valve is automatically deactivated. If the Safety Valve is
activated, a hissing noise will be heard. This will stop when the pressure has
been released.
To check the operation of the safety valve, carry out the following procedure.
With the compressor charged, open the relief nut (7.1) until a hissing sound is
heard. Once this sound is heard, do not open the valve any further.
Fully re-tighten the relief nut (7.1) on completion of this check.
This check should be carried out on a monthly basis to ensure continued
operation of the valve.
7
Fig. 4

Getting started...
EN
20
In more detail...
Operation
General operation
> Check the product, its power cord and plug as well as accessories for damage
before each use. Do not use the product if it is damaged or shows wear.
>
> Ensure that the air vents are always unobstructed and clear. Clean them if
necessary with a soft brush. Blocked air vents may lead to overheating and
damage the product.
> Switch the product off immediately if you are disturbed while working by other
people entering the working area. Always let the product come to complete
stop before averting.
> Do not overwork yourself. Take regular breaks to ensure you can concentrate
on the work and have full control over the product.
WARNING! Several parts such as the cover (3) become very hot
during operation! Be careful when using this product and avoid
contact with hot surfaces – danger of burns.

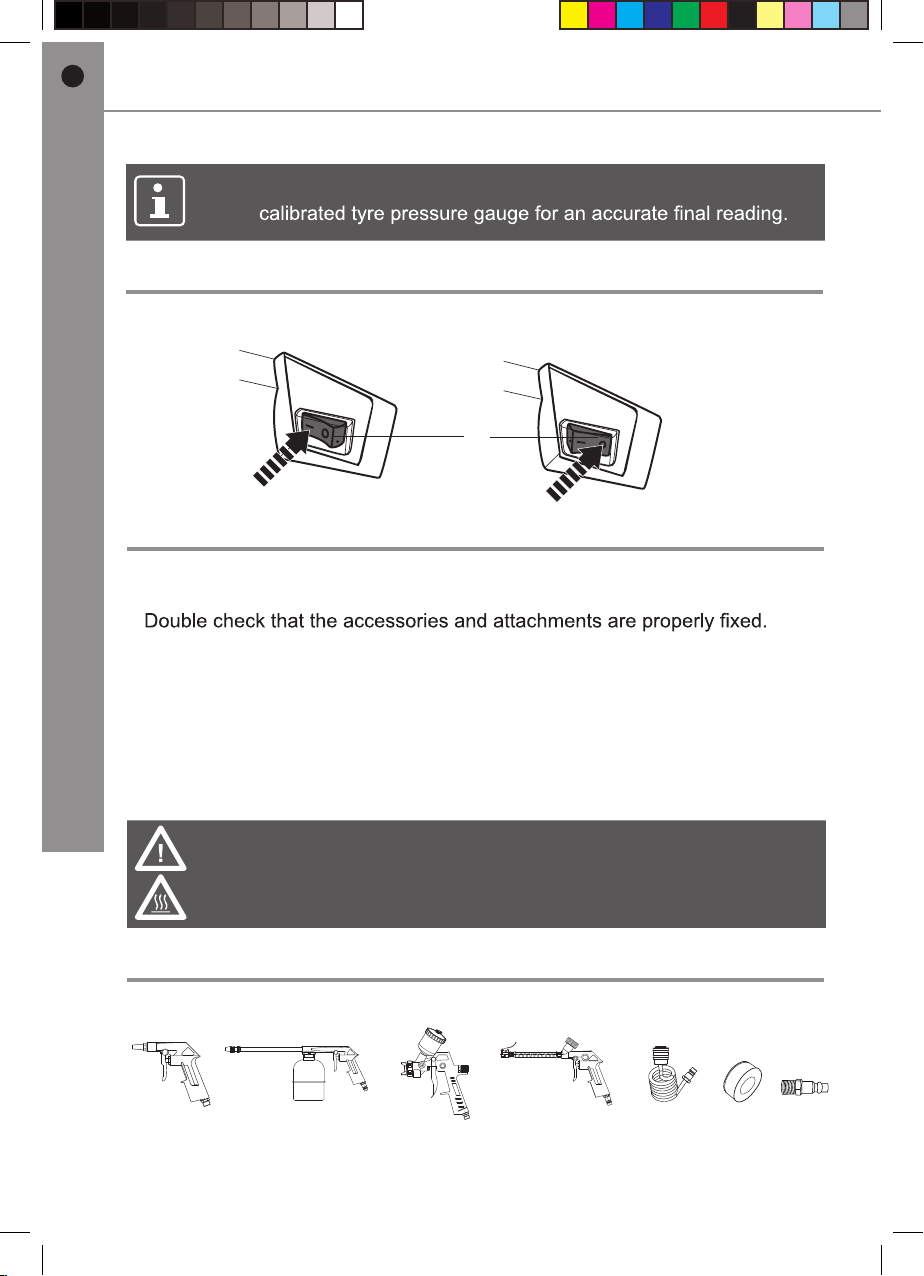

Attachment tools
This product is delivered with attachment tools.
4/19/17 4:36 PM
EN TTB797CPR by TITAN
4
Fig. 5 Fig. 6
Fig. 7
Washing gun Spray gun Inflating gun Air hose PTFE
tape
Quick-lock
coupling
Air duster
operation pressure
30-55 psi (2-3.7bar)
operation pressure
45-75psi (3.1-5.1bar)
operation pressure
45-55 psi (3.1-3.7bar)
gauge 0-150psi
(0-10.3bar)
size 5x8mmx5m
NOTE: The Pressure gauge is not calibrated. It is recommended to
use a
Switching on / off
> Press the on / off switch (4) to its on position Ito switch the product on (Fig. 5).
> Press the on / off switch (4) to its off position Oto switch the product off (Fig. 6 ).
