Titan TTL758CHN User manual

Electric Chain Saw
2000W
TTL758CHN
EAN: 3663602627913
Original Instructions_MNL_TTL758CHN_EN_V3_BX220IM_20200801
WARNING: Read the instructions before using the product!

02
TTL758CHN
These instructions are for your safety. Please read through them thoroughly
before use and retain them for future reference.
Safety information
Your product
Before you start
03
15
16
Getting started... 02
In more detail... 25
26
28
38
45
46
47
48
49
Product functions
Operation
Care and maintenance
Trouble shooting
Recycling and disposal
Guarantee
Technical specications
EC declaration of conformity
EN
Let’s
get started...

TTL758CHN
03
EN
Getting started...
Safety information
1. Children should be supervised to ensure that
they do not play with the product.
General power tool safety warnings
Safety warnings
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or
fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
1. Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
WARNING! Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock,
re and/or serious injury. Save all warnings
and instructions for future reference.
The term "power tool" in the warnings refers
to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.

TTL758CHN
04
EN
Getting started...
Safety information
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk
of electric shock if your body is earthed or
grounded.
3. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
5. When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
Personal safety
1. Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate

TTL758CHN
05
EN
Getting started...
Safety information
conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool. Carrying
power tools with your finger on the switch or
energising power tools that have the switch on
invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing
or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
7. If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
2. Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is

TTL758CHN
06
EN
Getting started...
Safety information
dangerous and must be repaired.
3. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
4. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Service
1. Have your power tools serviced by a
qualified repair person using only identical
replacement parts. This will ensure that safety
of the power tool is maintained.

TTL758CHN
07
EN
Getting started...
Safety information
Chain saw safety warnings
1. Keep all parts of the body away from the
saw chain when the chain saw is operating.
Before you start the chain saw, make sure
the saw chain is not contacting anything.
A moment of inattention while operating chain
saws may cause entanglement of your clothing
or body with the saw chain.
2. Always hold the chain saw with your right
hand on the rear handle and your left hand
on the front handle. Holding the chain saw with
a reversed hand configuration increases the risk
of personal injury and should never be done.
3. Hold the power tool by insulated gripping
surfaces only, because the saw chain may
contact hidden wiring or its own cord.
Saw chains contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
4. Wear safety glasses and hearing protection.
Further protective equipment for head,
hands, legs and feet is recommended.
Adequate protective clothing will reduce personal
injury by flying debris or accidental contact with
the saw chain.
5. Do not operate a chain saw in a tree.
Operation of a chain saw while up in a tree may
result in personal injury.
6. Always keep proper footing and operate
the chain saw only when standing on fixed,
secure and level surface. Slippery or unstable
surfaces such as ladders may cause a loss of
balance or control of the chain saw.
7. When cutting a limb that is under tension be

TTL758CHN
08
EN
Getting started...
Safety information
alert for spring back. When the tension in the
wood fibres is released the spring loaded limb
may strike the operator and/or throw the chain
saw out of control.
8. Use extreme caution when cutting brush and
saplings. The slender material may catch the
saw chain and be whipped toward you or pull
you off balance.
9. Carry the chain saw by the front handle
with the chain saw switched off and away
from your body. When transporting or storing
the chain saw always fit the guide bar cover.
Proper handling of the chain saw will reduce the
likelihood of accidental contact with the moving
saw chain.
10. Follow instructions for lubricating, chain
tensioning and changing accessories.
Improperly tensioned or lubricated chain may
either break or increase the chance for kickback.
11. Keep handles dry, clean, and free from oil
and grease. Greasy, oily handles are slippery
causing loss of control.
12. Cut wood only. Do not use chain saw for
purposes not intended. For example: do not
use chain saw for cutting plastic, masonry or
non-wood building materials. Use of the chain
saw for operations different than intended could
result in a hazardous situation.
Causes and operator prevention of kickback
Kickback may occur when the nose or tip of the
guide bar touches an object, or when the wood
closes in and pinches the saw chain in the cut.

TTL758CHN
09
EN
Getting started...
Safety information
Tip contact in some cases may cause a sudden
reverse reaction, kicking the guide bar up and back
towards the operator.
Pinching the saw chain along the top of the guide
bar may push the guide bar rapidly back towards
the operator.
Either of these reactions may cause you to lose
control of the saw which could result in serious
personal injury. Do not rely exclusively upon the
safety devices built into your saw. As a chain saw
user, you should take several steps to keep your
cutting jobs free from accident or injury.
Kickback is the result of tool misuse and/or incorrect
operating procedures or conditions and can be
avoided by taking proper precautions as given
below:
1. Maintain a firm grip, with thumbs and fingers
encircling the chain saw handles, with both
hands on the saw and position your body
and arm to allow you to resist kickback
forces. Kickback forces can be controlled by the
operator, if proper precautions are taken. Do not
let go of the chain saw.
2. Do not overreach and do not cut above
shoulder height. This helps prevent unintended
tip contact and enables better control of the
chain saw in unexpected situations.
3. Only use replacement bars and chains
specified by the manufacturer. Incorrect
replacement bars and chains may cause chain
breakage and/or kickback.
4. Follow the manufacturer’s sharpening and
maintenance instructions for the saw chain.
Decreasing the depth gauge height can lead to

TTL758CHN
10
EN
Getting started...
increased kickback.
Additional chain saw safety warnings
1. We recommend the use of a residual current
device with a tripping current of 30 mA or less.
2. Position the extension cord so that it will not be
caught on branches and the like, during cutting.
3. We recommend that the first-time users should,
as a minimum practice, cutting logs on a saw-
horse or cradle.
4. The machine shall be used in a covered and dry
area. The ambient temperature shall be included
between 15°C and 30°C. The humidity level
shall be less than 60%."
Vibration and noise reduction
To reduce the impact of noise and vibration
emission, limit the time of operation, use low-
vibration and low-noise operating modes as well as
wear personal protective equipment.
Take the following points into account to minimize
the vibration and noise exposure risks:
1. Only use the product as intended by its design
and these instructions.
2. Ensure that the product is in good condition and
well maintained.
3. Use correct application tools for the product and
ensure they in good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these
instructions and keep it well lubricated (where
appropriate).
6. Plan your work schedule to spread any high
vibration tool use across a number of days.
Safety information

TTL758CHN
11
EN
Getting started...
Emergency
Familiarise yourself with the use of this product by
means of this instruction manual. Memorise the
safety directions and follow them to the letter. This
will help to prevent risks and hazards.
1. Always be alert when using this product, so
that you can recognise and handle risks early.
Fast intervention can prevent serious injury and
damage to property.
2. Switch off and disconnect from the power supply
if there is any malfunction. Have the product
checked by a qualified specialist and repaired, if
necessary, before you put it into operation again.
Residual risks
Even if you are operating this product in accordance
with the provisions, residual risks will always
still remain. The following dangers can arise in
connection with the structure and design of this
product:
1. Health defects resulting from vibration emission
if the product is being used over longer period
of time or not adequately managed and properly
maintained.
2. Injuries and damage to property to due to broken
accessories or hidden objects that are suddenly
dashed.
3. Injuries and damage to property to due to thrown
and fallen objects.
4. Prolonged use of this product expose the
operator to vibrations and may produce
‘whitefinger’ disease. In order to reduce the risk,
please wear gloves and keep your hands warm.
If any of the ‘whitefinger’ symptoms appear,
Safety information

TTL758CHN
12
EN
Getting started...
Safety information
WARNING! This product produces an
electromagnetic eld during operation! This
eld may under some circumstances interfere
with active or passive medical implants! To
reduce the risk of serious or fatal injury, we
recommend persons with medical implants
to consult their physician and the medical
implant manufacturer before operating this
product!
seek medical advice immediately. ‘Whitefinger’
symptoms include: numbness, loss of feeling,
tingling, pricking, pain, loss of strength, changes
in skin colour or condition. These symptoms
normally appear in the fingers, hands or wrists.
The risk increases at low temperatures.

TTL758CHN
13
EN
Getting started...
Caution / Warning.
Read the instruction manual.
Wear eye protection
Wear hearing protection
Wear respiratory protection
Wear safety helmet
Wear face protection!
Wear protective gloves.
Wear safety footwear.
Switch the product off and disconnect it from the
power supply before assembly, cleaning, adjustments,
maintenance, storage and transportation.
Symbol explanation
Remove plug from the mains immediately if the power cord/
extension cord is damaged or cut.
Contact of the guide bar tip with any object should be
avoided.
Always use the product with two hands. Do not use one
handed when operating the product.
Kickback! Tip contact may cause the guide bar to move
suddenly upward and backwards what may cause serious
injury to user.
Safety information

TTL758CHN
14
EN
Getting started...

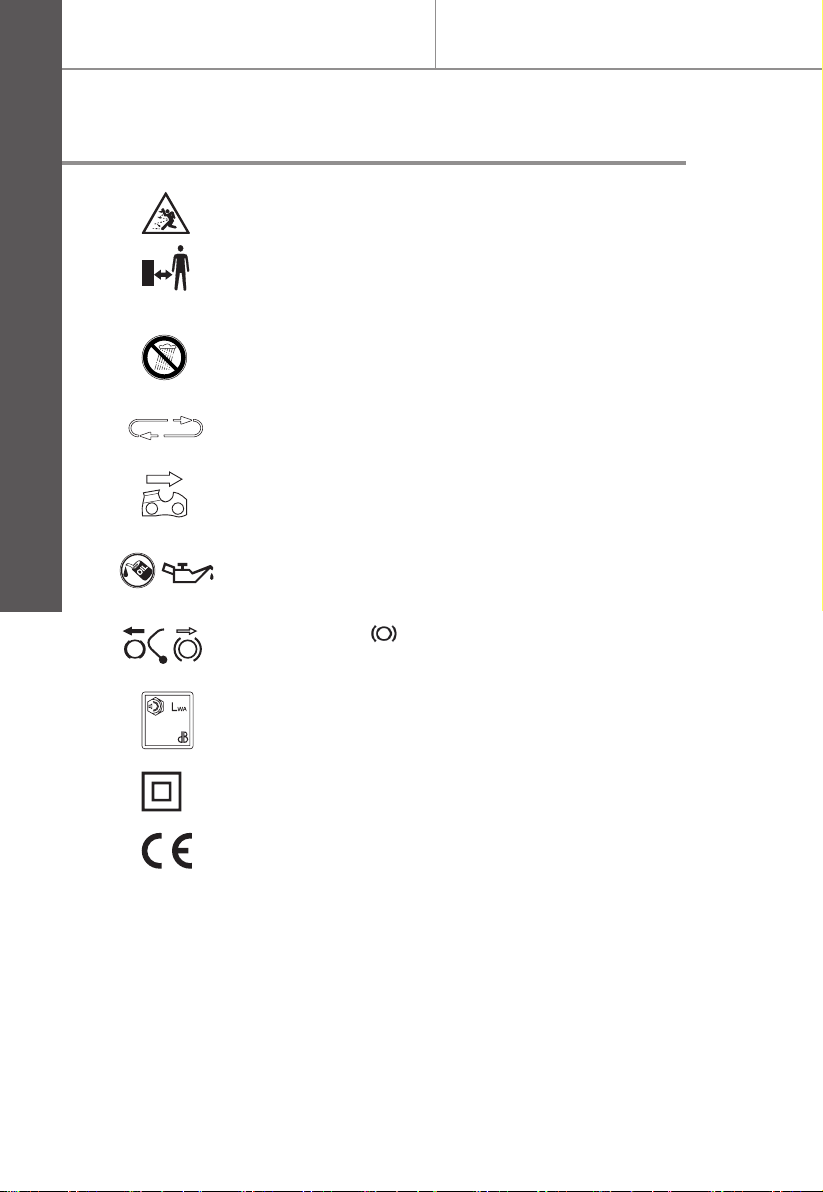

The product complies with the applicable European
directives and an evaluation method of conformity for these
directives were done.
TTL758CHN: TTL-TITAN, CHN-Chain Saw
Class II protection.
yyWxx Manufacturing date code; year of manufacturing
(20yy) and week of manufacturing (Wxx)
Objects thrown by the product could hit the user or other
bystanders. Always ensure that other people and pets
remain at a safe distance from the product when it is in
operation. In general, children must not come near the area
where the product is.
Symbol explanation
Correct direction of cutting-teeth
Chain oil fill
Do not use in rain or wet conditions.
Guaranteed sound power level value in 108 dB
108
Chain brake (the symbol shows the position in which
the brake is released)
Safety information
Correct direction of cutting teeth.

TTL758CHN
15
EN
Getting started...
Your product
Your product
1. Front handle
2. Front hand guard (Chain
brake lever)
3. Saw chain
4. Guide bar
5. Sprocket wheel
6. Retaining nut
7. Cover
8. Spiked bumper
9. a. Tension screw
b. Tension pin
10. Bolt
11. Oiling port
12. Drive sprocket
13. On/o󰀨 switch
14. Lock-o󰀨 button
15. Rear handle
16. Power cord with plug
17. Cable strain relief
18. Rear hand safeguard
19. Air vents
20. Oil level window
21. Chain oil tank cap
22. Guide bar cover
23. Spanner
14
17
18
9
11
9a
8
10
9b
12
20
16
15 13 1 21 2 7 3 4
22
5
23
6
19

TTL758CHN
16
EN
Getting started...
Unpack
You will need
(items not supplied)
Saw chain oil
Oil funnel
Lubrication oil
Sharpening set
(items supplied)
Guide bar (4)
saw chain (3)
Guide bar cover (22)
Spanner (23)
1. Unpack all parts and lay them on a at, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any
damage. If you nd that parts are missing or show damage do
not use the product but contact your dealer. Using an incomplete
or damaged product represents a hazard to people and property.
4. Ensure that you have all the accessories and tools needed for
assembly and operation. This also includes proper personal
protective equipment.
Before you start
Assembly
Assemble the guide bar (4) and saw chain (3) before operation.
1. Chain and guide bar
1). Use only a guide bar (4) and saw chain (3) combination
according to the technical data of the product.
WARNING! The product must be fully assembled before
operation! Do not use a product that is only partly assembled
or assembled with damaged parts!
Follow the assembly instructions step-by-step and use the
pictures provided as a visual guide to easily assemble the
product
Do not connect the product to the power supply until it is
completely assembled!
Always wear gloves during assembly!

TTL758CHN
17
EN
Getting started...
Before you start
2). Place the product on a suitable at surface with the front handle
(1) facing upward.
3). Loosen the retaining nut (6) with the spanner (23) and remove it
together with the cover (7).
4). Ensure the tension pin (9b) is positioned to the left side, adjust it
turning the tension screw (9a) anticlockwise with the multitool (23)
if required (Fig. 1a).
5). Spread the saw chain (3) out with the cutting edges of the chain
pointing in the rotational direction and slide the chain into the
groove around the guide bar (4) (Fig. 1b).
WARNING! Always use a saw chain designed as “low-
kickback” or a saw chain which meets the low-kickback
requirements! A standard saw chain (a chain which does not
have the kickback reducing guard links) should only be used
by an experienced professional operator!
Nevertheless, a low-kickback saw chain does not completely
eliminated kickback! A low-kickback or “safety” chain
should never be regarded as complete protection against
injury! Therefore always use a low-kickback saw chain in
conjunction with other kickback protection devices such as
the front hand guard!
Fig. 1a
9a
23
9b
Fig. 1b
4
6). Align the guide bar (4) and saw chain (3) assembly with the drive
sprocket (12) and bolt (10). Lay the saw chain around the drive
sprocket (12) and then lower the guide bar (4) to install it to the
bolt (Figs. 1c, 1d).

TTL758CHN
18
EN
Getting started...
Before you start

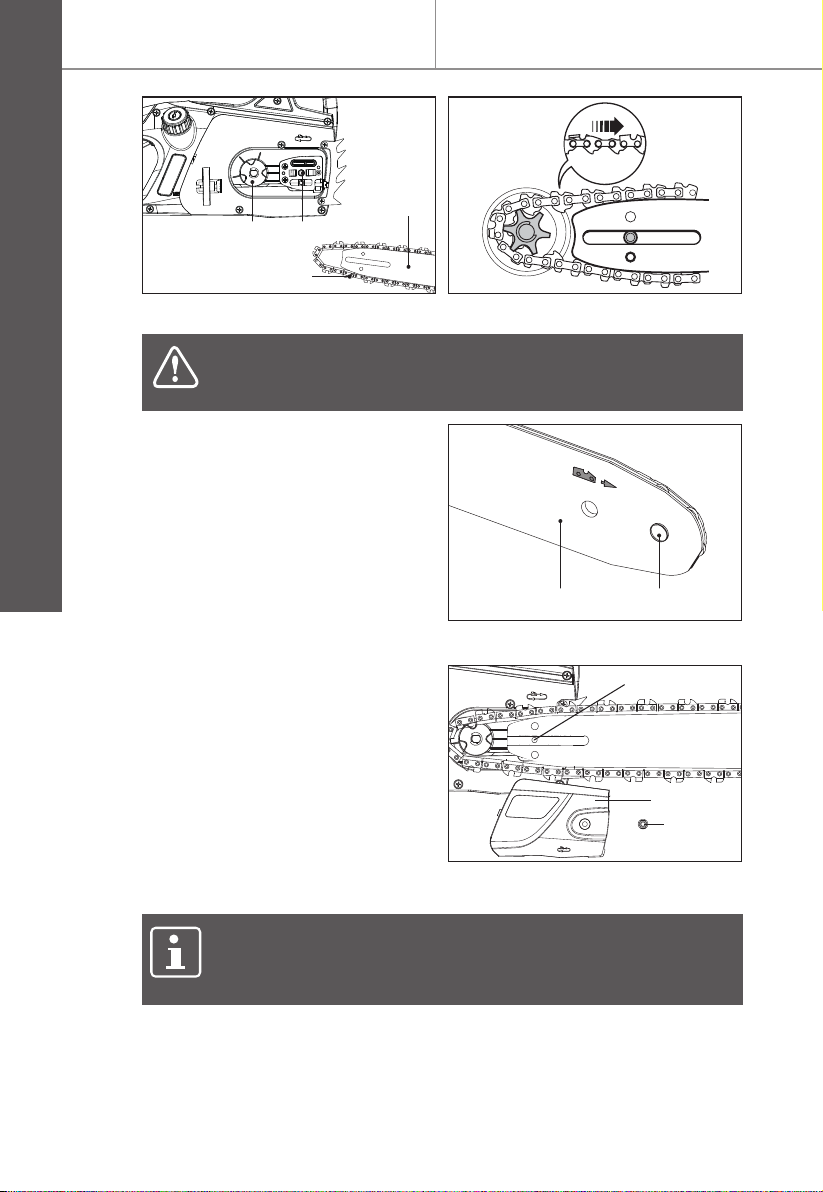

7). The saw chain movement
is as indicated by the arrow
(Fig. 1e). Make sure the saw
chain (3) is properly placed
over the sprocket wheel (5)
of the guide bar (4).
WARNING! The direction of the saw chain ‘cutters’ must be
as indicated by the symbol and arrow on the guide bar!
Fig. 1c
12 10
4
3
Fig.1e
54
Fig. 1d
8). Pre-tighten the saw chain (3)
turning the tension screw (9a)
clockwise with the multitool
(23)).
9). Replace the cover (7) and
slightly tighten the retaining
nut (6) (Fig. 1f).
Fig. 1f
10
7
6
NOTE: Fix the retaining nut nger tight only at this stage.
The chain tension cannot be adjusted with the retaining nut
tightened - it must be loosened rst.

TTL758CHN
19
EN
Getting started...
Before you start

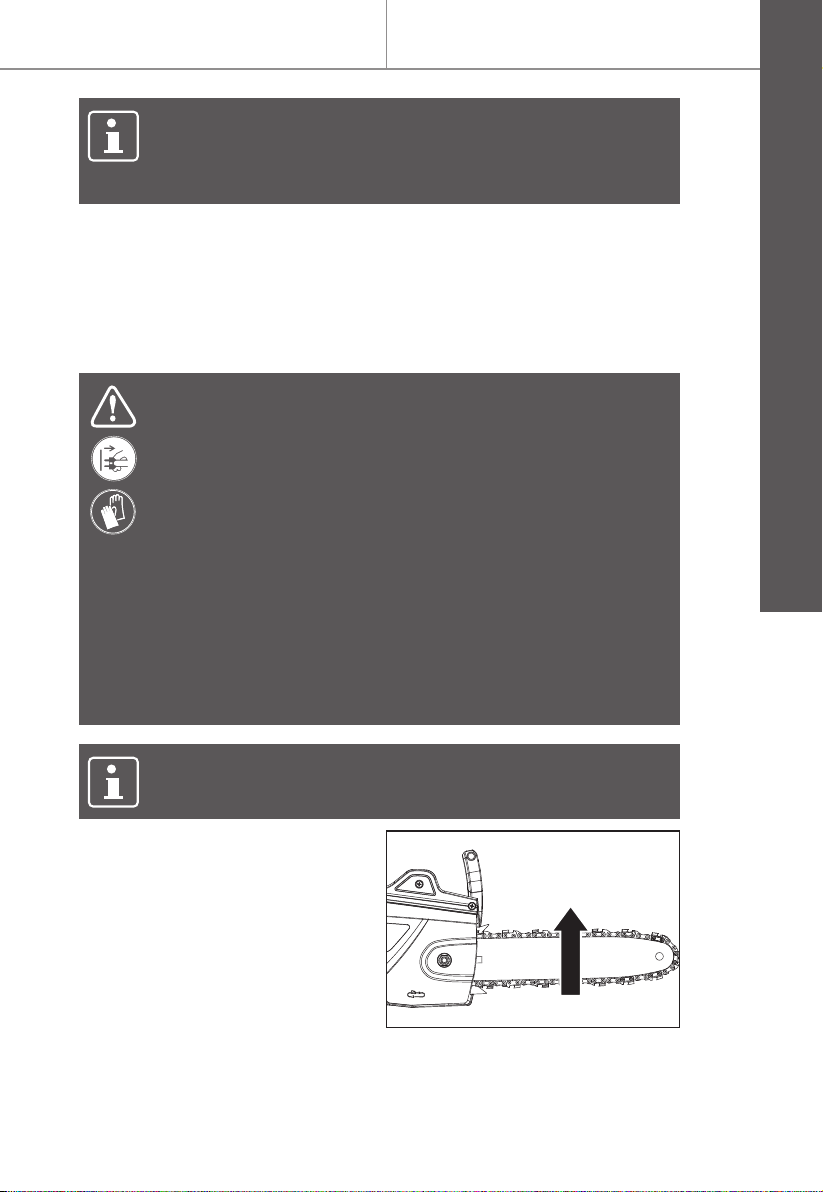

WARNING! Disconnect the product from the power supply
before adjusting saw chain tension!
The cutting edges of the saw chain are sharp! Always wear
protective gloves when handling chain!
Always maintain proper chain tension! A loose chain
increases the risk of kickback! A loose chain may jump out
of the guide bar groove! This may injure the operator and
damage the chain! A loose chain will cause rapid wear to the
chain, guide bar and sprocket!
Tensioning the chain too tightly will overload the motor and
cause damage, and insu󰀩cient tension can cause chain
derailing, whereas a correctly tightened chain provides the
best cutting characteristics and prolonged working life! The
chain life mainly depends upon su󰀩cient lubrication and
correct tensioning!
NOTE: The saw chain (3) has not yet been tensioned.
Tension the chain as described under “Saw chain
tensioning”. After operating the product for approximately
one hour, adjust the chain tension again.
2. Saw chain tensioning
Always check the saw chain tension before use, after the rst
cuts and regularly during use, approx. every ve cuts. Upon
initial operation, new chains can lengthen considerably. This is
normal during the break-in period and the interval between future
adjustments will lengthen quickly.
NOTE: The chain tension can not be adjusted with the
retaining nuts tightened - they must be loosened rst.
1). Place the product on a
suitable at surface.
2). Lift up the tip of the guide bar
(4) and keep it there as you
adjust the tension (Fig. 2a).
Fig. 2a

TTL758CHN
20
EN
Getting started...
Before you start

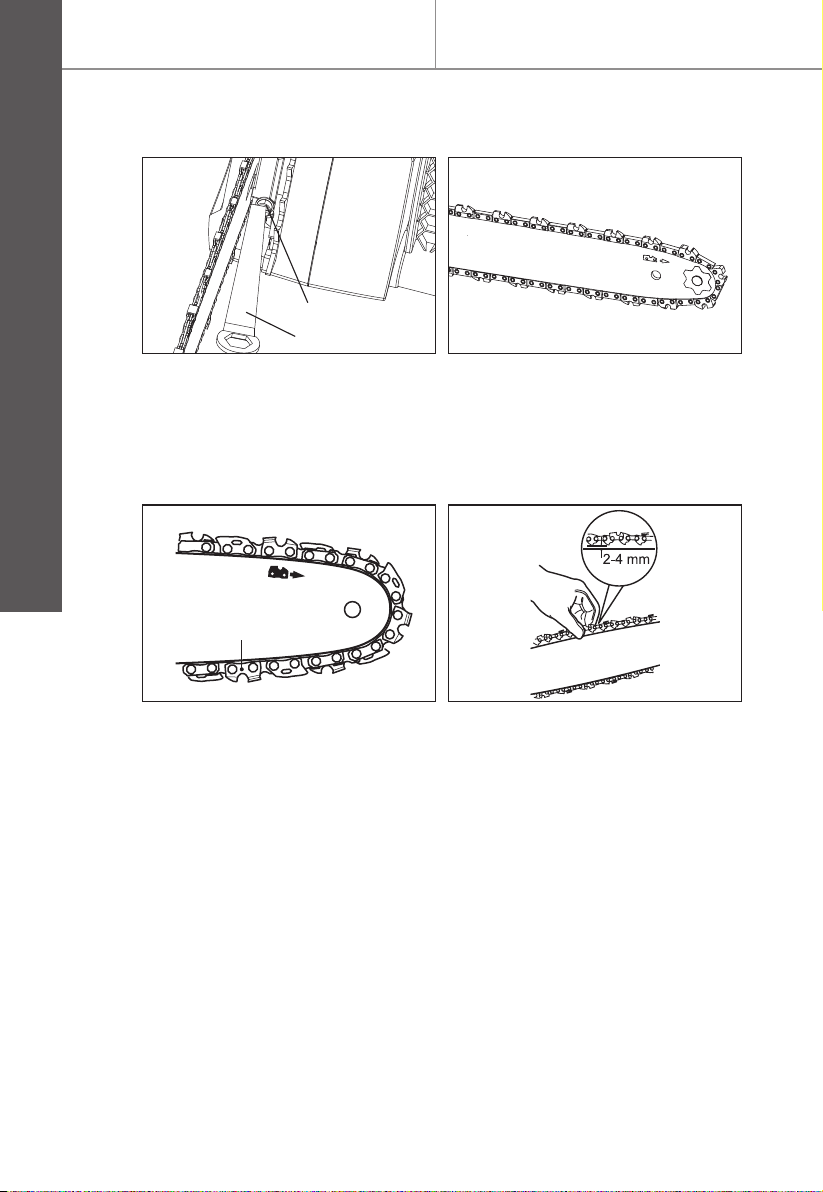

3). Turn the tension screw (9a) until the chain ‘tie straps’ are just
touching the bottom edge of the guide bar (4) (Fig. 2b, 2c).
4). Check the chain tension using one hand to lift the saw chain (3)
against the weight of the product. The correct chain tension is
achieved when the saw chain can be lifted by approximately 2 -
4 mm from the guide bar (4) in the centre (Figs.2d. 2e).
5). Adjust the tension if you nd that the chain saw is too loose or
tight.
6). Tighten the retaining nut.
7). Pull the saw chain (3) along the top of the guide bar (4) by hand
from one end to the other, several times. The chain should feel
tight but still move freely.
Chain 'tie straps'
Fig.2b
9a
23
Fig. 2d
Fig.2c
Fig. 2e
