Titan SNWBLW120 User manual

3 PT SNOW BLOWERS
SNWBLW120, SNWBLW150, SNWBLW180
170311, 170312, 170313
Operator’s Manual
Read the Operator’s Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!

2
WARNING
SAFETY INSTRUCTIONS
Remember, YOU are the key to safety. Good safety practices not only protect you, but also the
people around you. Make these practices a working part of your safety program. Be certain that
everyone operating this equipment is familiar with the recommended operating and
maintenance procedures and follows all the safety precautions. Most accidents can be
prevented. Do not risk injury or death by ignoring good safety practices.
The alert symbol is used throughout this manual. It indicates attention is required and identifies
hazards. Follow the recommended precautions.
The safety alert symbol means…
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Please read the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 800-605-7595 or email: inf[email protected]

3
GENERAL SAFETY INSTRUCTIONS
•Have a first-aid kit available for use and know how to use it.
•Have a fire extinguisher available, stored in a highly visible location, and know how to use
it.
•Wear appropriate protective gear. This list may include but is not limited to:
ohard hat
oprotective shoes with slip resistant soles
oprotective glasses or goggles
oheavy gloves
owet weather gear
ohearing protection
orespirator or filter mask
•Read and understand the Operator’s Manual and all safety signs before operating,
servicing, adjusting, repairing, or unplugging the equipment.
•Do not attempt any unauthorized modifications to your Farm King product as this could
affect function or safety, and could affect the life of the equipment.
•Never start or operate the snow blower except from the operator’s station on the power
unit.
•Inspect and clean the working area before operating.
•Keep hands, feet, clothing, and hair away from moving parts.
•Ensure bystanders are clear of the area before operating.
START-UP SAFETY
•Do not let inexperienced operators or children run this equipment.
•Place all tractor and machine controls in neutral before starting.
•Operate only with ROPS and seatbelt equipped tractors.
•Do not operate inside a building unless there is adequate ventilation.
•Ensure all shields are in place and in good condition before operating.
•Stay clear of PTO shaft and machine when engaging PTO.
OPERATION SAFETY
•Do not permit riders.
•Do not wear loose fitting clothing during operation.
•Do not allow anyone other than the operator close to the Auger when in operation.
•Stay clear of snow blower augers.
•Stay clear of snow blower discharge chute. Rocks or debris can be picked up and thrown.
•Never operate over 540 PTO rpm speed.
•Never operate equipment in the raised position.
TRANSPORT SAFETY
•Review Transport Safety instructions in tractor manual before moving.
•Check with local authorities regarding transport on public roads. Obey all applicable laws
and regulations.
•Make sure the SMV (Slow Moving Vehicle) emblem and all the lights and reflectors that
are required by the local highway and transport authorities are in place, are clean, and
can be seen clearly by all overtaking and oncoming traffic.

4
•Never have the equipment in operation during transport.
•Always travel at a safe speed.
SERVICE AND MAINTENANCE SAFETY
•Stop engine, set brake, remove ignition key, and wait for all moving parts to stop before
servicing, adjusting, repairing, or unplugging.
•Support the equipment with blocks or safety stands before working beneath it.
•Follow good shop practices including:
okeep service area clean and dry
obe sure electrical outlets and tools are properly grounded
ouse adequate light for the job.
•Use only tools, jacks, and hoists of sufficient capacity for the job.
•Replace and secure all shields removed during servicing before operating.
•Use heavy leather gloves to handle sharp objects.
•Check hydraulics regularly for leaks. Use cardboard to look for leaks, and use hand and
eye protection.
•Relieve pressure on hydraulic system before repairing or adjusting.
STORAGE SAFETY
•Store the unit in an area away from human activity.
•Do not permit children to play on or around the stored machine.
•Support the frame on stands and blocks to provide a secure base.
SAFETY SIGNS
•The following illustration shows the approximate location and detail of safety signs.
•Keep all safety signs clean and legible and replace any that are damaged or missing.
•When original parts are replaced, any safety signs affixed to those parts should be replaced
•as well. Replacement safety signs are available from your local dealer.

5

6
PACKAGIN LIST AND ASSEMBLY INSTRUCTIONS
1.1 REMOVE AND CHECK
Remove the packing, check goods without defect and omission.
FIGURE 1: Your New Snow Blower As It Is Shipped To You
FIGURE 2: Packaging frame decomposition

7
PACKING RACK LIST：
FIGURE 3: The Snow Blower and Accessory in Package
1.2 PACKING LIST
The detailed packing list as the following table 1.
TABLE 1: Packing List
Note
Driveline shaft shall be selected according to the power. If it is too long, please cut it to an
appropriate length. The meshing length of the sleeve shall not be less than 100 mm.
ITEM
DESCRIPTION
QTY
PACKAGE FORM
1
PACKING RACK
1
NONE
2
LOCKNUT M10
6
CRATE ATTACHMENT
3
REMOVABLE ANGLE STEEL
1
CRATE ATTACHMENT
4
BOLT M10X20
6
CRATE ATTACHMENT
5
REMOVABLE ANGLE STEEL
2
CRATE ATTACHMENT
ITEM
DESCRIPTION
QTY.
PACKAGE
FORM
1
MAIN BODY OF THE SNOW BLOWER
1
NONE
2
SHEAR BOLT DRIVELINE SHAFT
1
BUBBLE FILM
3
HANDLE& REAR BRACKET& SCREW ROD
ASSEMBLY
1
BUBBLE FILM
4
DISCHARGE CHUTE ASSEMBLY& SNOW
SPRAY MASK ASSEMBLY& FITTINGS
1
BUBBLE FILM

8
The detailed description of Handle& Rear bracket& Screw rod assembly
FIGURE 4: Handle& Rear Bracket& Screw Rod Assembly
TABLE 2: Handle& Rear bracket& Screw rod assembly List
The detailed description of Discharge Chute, Snow Spray Mask, and fittings assembly
FIGURE 5: Discharge Chute Assembly& Snow Spray Mask, and Fittings assembly
ITEM
DESCRIPTION
QTY
1
BOLT M8X20
2
2
SCREW ROD WELDMENT
1
3
REAR BRACKET
1
4
BOLT M6X45
1
5
LOCKNUT M6
1
6
WASHER 28
1
7
FRONT BRACKET
1
8
PIN SHAFT
1
9
HANDLE
1

9
TABLE 3: Discharge Chute Assembly, Snow Spray Mask, Fittings Assembly
INSTALLATION WIZARD
The installation wizard will guide you to finish the final assembly of your new Snow blower.
2.1 TOOL REQUIRED
•1/2” Ratchet Wrench with 10mm, 14mm, 17mm and19mmsleeves
•8-10, 12-14, 17-19 Spanner
2.2 TORQUE APPLICATION
Torque Values Chart for Commoon Bolt Sizes
Bolt Size
(Metric)
Bolt Head Identification
Class 8.8
Metric
N.m
Ft-lb
M6
9.8
7.2
M8
24.5
18.1
M10
44.1
32.5
M12
78.5
57.9
Torque tolerance +0%, -15% of torqueing values. Unless
otherwise specified use torque values listed above
2.3 INSTALLATION
STEP 1: Installing Discharge Chute, Snow Spray Mask, and Fittings assembly
ITEM
DESCRIPTION
QTY
1
DISCHARGE CHUTE WELDMENT
1
2
RPIN
2
3
PLAIN WASHER 10
4
4
ADJUSTING PLATE
1
5
HINGE ROD
1
6
COTTER PIN 2.5X25
2
7
SNOW SPRAY MASK WELDMENT
1

10

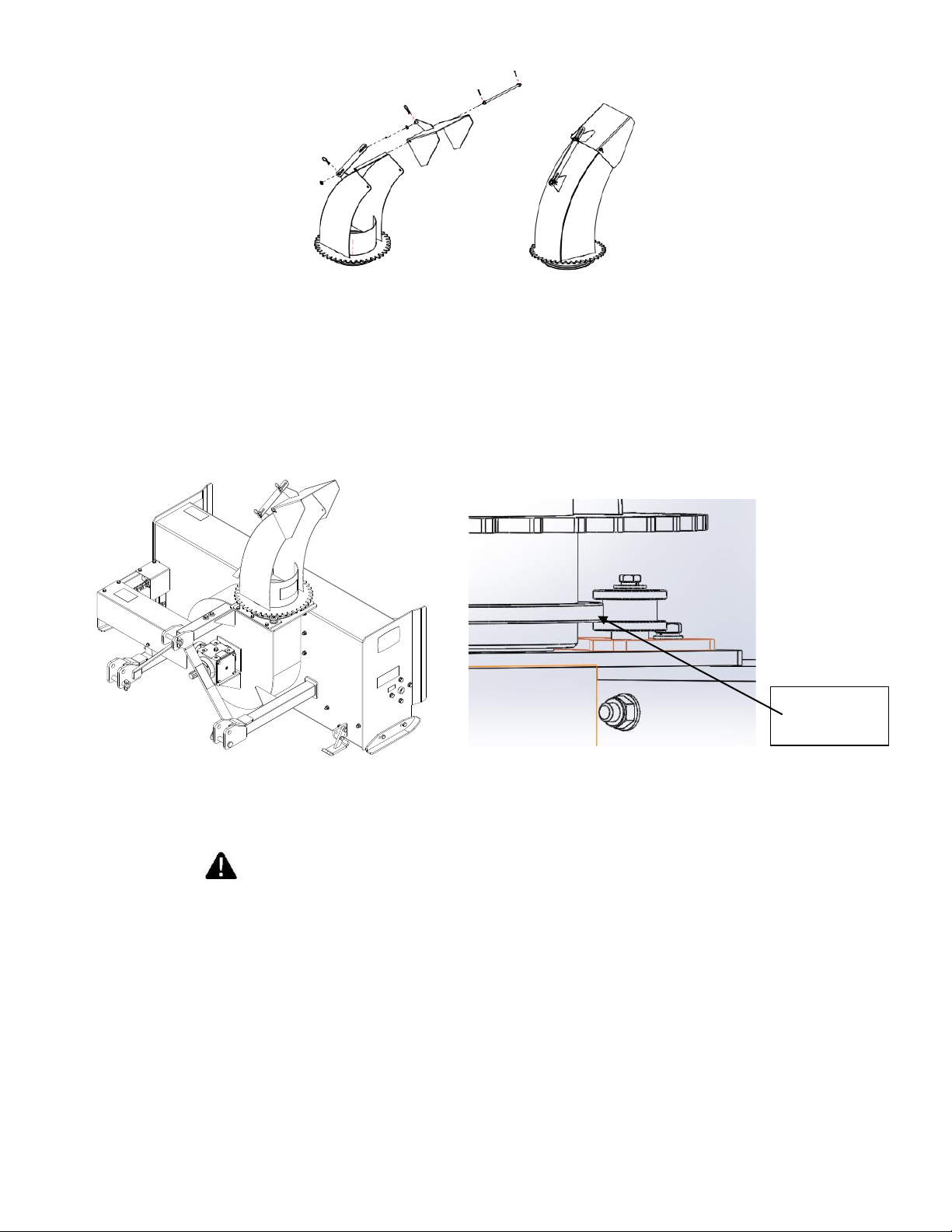

FIGURE 6: Installing Discharge Chute, Snow Spray Mask, and Fittings assembly
a. Install the Discharge chute and Snow spray mask with hinge rod.
b. Install 2pcs of plain washer 10 and cotter pins onto both side of the hinge rod.
c. Install the adjusting plate as discharge angle required, then put the flat washer 10 onto the pin
shaft. Finally secure with the R pin.
d. Install above components onto the snow blower as Figure7.
FIGURE 7: Discharge Chute Assembly, Snow Spray Mask, and Fittings assembly
Note: The support ring must be located in the roller groove.
Support
ring

11
STEP 2: Installing Handle, Rear Bracket and Screw Rod
assembly
a. Locate the front bracket on the position shown in the
Figure 8, and then fix it with M10x25 bolt, plain washer 10
and spring washer 10
FIGURE 8: Front bracket installation location
b. Locate the Rear bracket on the position shown in the
Figure9, and then fix it with M10x20 bolt, large plain
washer 10 and spring washer 10
FIGURE 9: Rear bracket installation location
c. Insert the pin shaft into the hole of the front
bracket, put the washer 28 into the inner side,
and then fix the Screw rod weldment with the pin
shaft with the M6x45 bolt and locknut M6;
FIGURE 10: Screw rod weldment installation

12
d. Insert the handle
into the hole at the
other end of the
Screw rod weldment
through the rear
bracket hole, adjust
the length of the
handle, screw in the
m8x20 bolt and
tighten it.
FIGURE 11: Handle installation
Note
Pay attention to the meshing of welding parts and gear disc.
WARNING
SAE EP 90W Gear oil must be filled before you finish the final assembly and start your first use.
Overfilling or underfilling gear oil may cause gearbox seizing or damage.

13
2.4 Gear Oil Filling
Check oil level in gearbox by removing the cap located on the side of the gearbox. Oil should be
level with middle side of plug hole. Add oil necessary by removing top cap and side plug. Add oil
until it flows from middle side plug hole.
FIGURE 11: Gearbox construction
ITEM 1 –Cap For Inlet Gearbox Oil | ITEM 2 –Gearbox | ITEM 3 –Plug For Gearbox Oil Level

14
DRIVELINE INSTALLATION AND SHORTENING
Included with your snowblower is a 43’’ shear pin PTO driveline. Please follow the below
installation instructions. If you find that the driveline is too long, please follow the below
shortening instructions to fit the driveline to your tractor.
Do not engage tractor PTO while hooking-up and unhooking driveline or stand near a rotating
driveline. A person’s body and /or clothing can become entangled.
1. Ensure Snowblower is properly attached to the tractor’s three-point arm.
2. Lower three-point arm slowly until the snowblower contacts the ground.
3. Slide driveline end with extended safety cone over the snowblower’s gearbox shaft and
secure with locking device of driveline.
4. Slide driveline over tractor’s PTO shaft and secure with locking device of driveline.
5. Driveline should now be moved back and forth to ensure that it is securely attached to
the tractor’s PTO shaft and snowblower’s gearbox.
6. Attach chain from the driveline shield to the upper hitch braces of the tractor and the
snow blower to ensure that the shield does not rotate.
7. If the driveline does not fit between the tractor and snowblower gearbox (driveline too
long), refer to “Shorten Driveline Length”.

15
SHORTEN DRIVELINE LENGTH
1. Un-hook the driveline from both the tractor PTO shaft and snowblower gearbox. Place
driveline aside.
2. Carefully raise the tractor’s three-point arm with attached snowblower until the PTO shaft
is level with the snowblower gearbox.

16
3. Pull the outer and inner drivelines apart.
4. Reattach outer driveline to tractor PTO shaft, and inner driveline to the snowblower
gearbox.
5. Hold inner and outer drivelines parallel to each other, or as close to parallel as possible:
a) Measure 1" (“B” dimension) back from the outer driveline universal joint shield and
make a mark at this location on the inner driveline shield.
b) Measure 1" (“B” dimension) back from the inner driveline universal joint shield and
make a mark at this location on the outer driveline shield.

17
6. Detach the inner and outer drivelines from the tractor PTO and snowblower gearbox
shafts.
7. Measure from end of the inner shield to the mark made in step 5.1 and record as
X dimension.
8. Measure from end of the outer shield to the mark made in step 5.2 and note down as Y
dimension.
9. Separate the shields from both drivelines by pushing in the three plastic tabs, then sliding
the shields off.

18
10. Cut off inner shield at the mark made during step 5.1. Cut off the same amount from the
end of inner shaft (“X” dimension).
11. Cut off outer shield at the mark made during step 5.2. Cut off the same amount from the
end of the outer shaft (“Y” dimension).
12. Remove all burrs from the shields and drivelines.
13. Reattach drivelines to their respective shields.

19
14. Reconnect inner and outer drivelines and reattach to tractor and snowblower. The
driveline is now able to be extended and retracted smoothly.

20
MAINTENANCE AND STORAGE
Regular Maintenance and Lubricate
•Check/Tighten fasteners after the first
2 hours of use and every 10 hours.
•Check and adjust drive chain tension
every 20 hours.
•Lubricate PTO shaft driveline every 20
hours.
•Oil drive chain every 10 hours.
•Check gearbox oil every 20 hours.
•Check safety shields before each use.
•Lubricate the bearings #1 & #2(see
picture) every 50 hours,
1. Bearing lubricator
2. Bearing lubricator
3. Cap for inlet gearbox oil
4. Cap for gearbox oil level
5. Cap for discharge gearbox oil
STORAGE
At the end of the working season or when the
snow blower will not be used for a long
period, it is a good practice to clean off any
dirt or salt that may have accumulated on the
snow blower and any of the moving parts.
Apply a coat of oil to the chain to prevent rust.
•Detach and store the snow blower in
an area where children normally do
not play.
•Clean as necessary.
•Check cutting blade for wear and
replace if necessary.
•Inspect snow blower for loose,
damaged or worn parts and adjust or replace as needed.
•Do not forget to check the safety labels.
•Replace worn labels.
•Store unit inside for longer life.
•Alternatively, cover with a tarp to reduce exposure and prevent weather damage.
•Repaint parts where paint is worn or scratched to prevent rust.
•Storing the snow blower in freezing conditions after use may cause the fan & auger to
freeze in place. This may result in breaking PTO shaft shear bolts upon startup.
