TITANTIG 200P AC/DC User manual

TitanTig 200P ACDC Pulse Operators Manual Issue. A 0516
TitanTig 200P AC/DC
Operating Manual
Operating manual EN
Brugsanvisning DA
Gebrauchsanweisung DE
Manual de instrucciones ES
Käyttöohje FI
Manueld’utilisation FR
Manualed’uso IT
Gebruiksaanwijzing NL
Bruksanvisning NO
Instrukcjaobsługi PL
Manual de utilização PT
Инструкциипоэксплуатации RU
Bruksanvisning SV
操作手册 CN
English

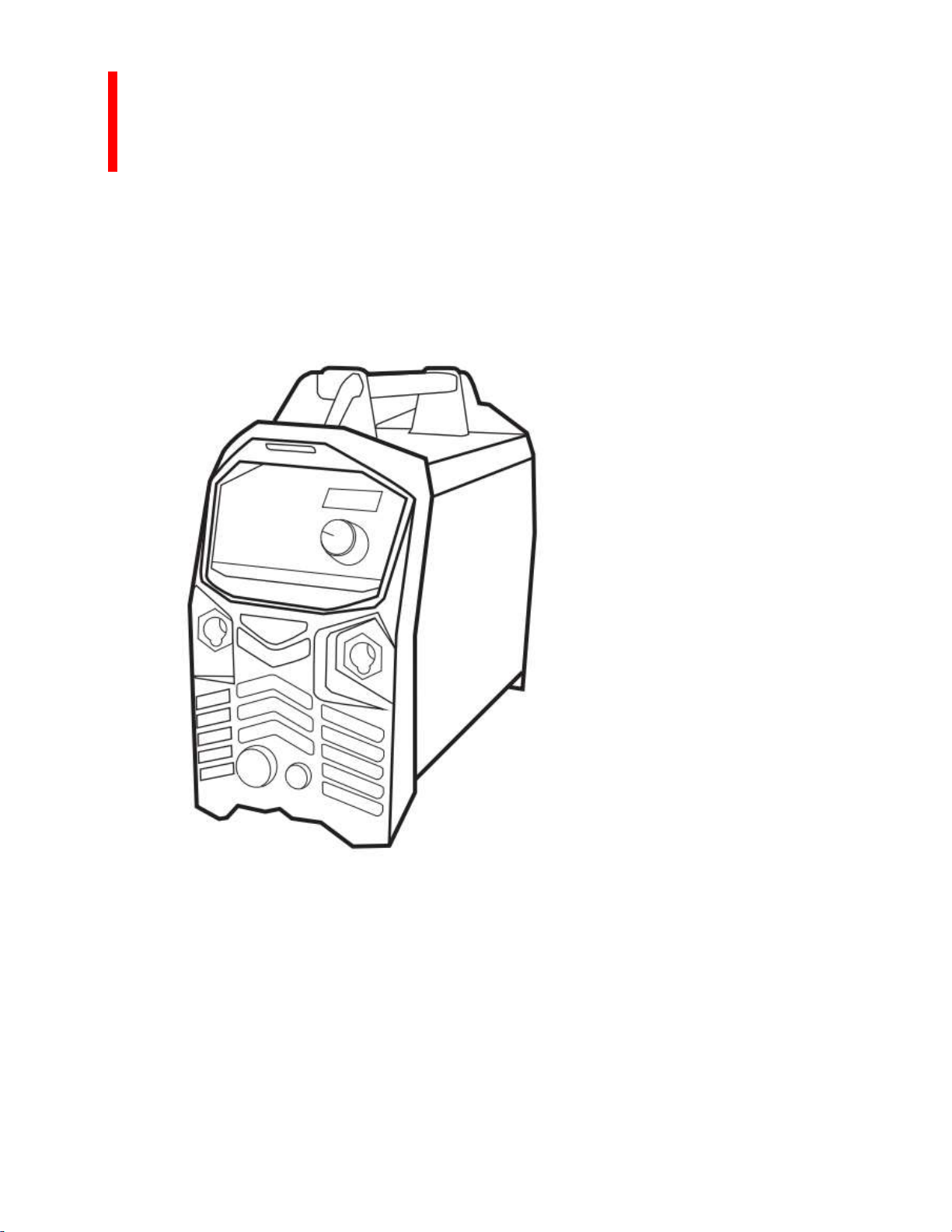

TitanTig 200P AC/DC TIG/Stick Welder
Model No. TTIG200PACDC Issue. A 05/16

TitanTig 200P ACDC Pulse Operators Manual Issue. A 0516

TitanTig 200P ACDC Pulse Operators Manual Issue. A 0516
Welcome:
Thank you for your purchase of your new Weldtronic product. The Weldtronic product range provides
you with quality and reliability.
This product is supported by our extensive service network. In the unlikely event of a problem occurring
please call your local distributor.
Please record below the details from your product as these will be required for warranty purposes and to
ensure you get the correct information should you require assistance or spare parts.
Date purchased: ________________________________________________________________________
From where: ___________________________________________________________________________
Serial No: ____________________________________________________________________________
(The serial number will be located on the equipment data plate underneath or on the rear panel)
This Operating manual has been designed to instruct you on the correct use and operation of your
Weldtronic product. Information is a guide and we assume no liability for its use.
Please take the time to read the entire manual paying particular attention to the Safety Precautions. They
will help you to avoid potential hazards that may exist when working with this product.
2 Year Warranty Statement.
This product is covered by a 2 Year Warranty Parts & Labour Warranty.
This warranty does not cover freight or goods that have been interfered with.
All goods in question must be repaired by an authorized repair agent as appointed by Weldtronic.
Warranty does not cover abuse, misuse, accident, theft or general wear & tear.
New product will not be supplied unless Weldtronic International P/L has inspected product
returned for warranty and agrees to replace the product.
Product will only be replaced if repair is not possible.
Warranty will be considered void if the 15 Amp primary power Input Plug is modified or replaced
to fit a domestic 10A primary power input Plug.
Warranty will be considered void if the equipment is powered from an unsuitable engine driven
generator.
Warranty will be considered void if no proof of purchase can be provided.
Warranty will be considered void if this product has been altered, tampered or used in any
manner contrary to customary usage or application.
Full warranty details and conditions supplied with this product are shown in the back of this
manual.

TitanTig 200P ACDC Pulse Operators Manual Issue. A 0516
Contents
SAFETYPRECAUTIONS………………….………………………………………………………..…………5
1.0 Preface…………………………………………………………………………………………………15
1.1 General…………………………………………………………………………………………………15
1.2 Introduction………………………………………………………………….………………………16
1.3 TechnicalSpecifications…………………………………………………………………..……19
1.4 ImportantNotesbeforeuse…….……………………………………………………………20
1.5 Overview of Power Source……………………………………………………………………21
2.0 Installation……………………………….…………………………………………………………22
3.0 Operation…………………………………………………………………………………………..24
3.1 MMAW(Stick)Welding……………………………………….………………………………25
3.2 GTAW (TIG)Welding…………………………………………..…………………………….…26
3.3 PanelLayout&Functions…………………………………………………………………...28
4.0 WeldingParameters…………………………………………………………………………...33
5.0 TroubleShooting…………………………………………………………………………………36
5.1 MMAWTroubleShooting…..……………………………………………………………….36
5.2 GTAW TroubleShooting………………………………………………………………………37
5.3 Electrical Trouble Shooting………………………………………………………………...38
6.0 Maintenance…………………………………………………………………………………..….40
7.0 Electrical Principle Diagram…………………………………………………………………41
8.0 Warranty Terms & Conditions……………………………………………………………..42

TitanTig 200P ACDC Pulse Operators Manual Issue. A 0516
SAFETY PRECAUTIONS – READ BEFORE USING
These general safety norms cover both arc welding machines and plasma cutting machines unless
otherwise noted.
The equipment must only be used for the purpose it was designed for. Using it in any other way could
result in damage or injury and in breach of the safety rules. Only suitably trained and competent persons
should use the equipment. Operators should respect the safety of other persons.
Prevention against electric shock
Theequipmentshouldbeinstalledbyaqualifiedpersonandinaccordancewithcurrentstandards
in operation. Itistheuser’sresponsibilitytoensurethattheequipmentisconnectedtoasuitable
power supply. Consult with your utility supplier if required.
If earth grounding of the work piece is required, ground it directly with a separate cable.
Do not use the equipment with the covers removed.
Do not touch live electrical parts or parts which are electrically charged.
Turnoffallequipmentwhennotin use.
Cables (both primary supply and welding) should be regularly checked for damage and
overheating. Do not use worn, damaged, under sized or poorly jointed cables.
Ensure that you wear the correct protective clothing, gloves, head and eye protection.
Insulate yourself from work and ground using dry insulating mats or covers big enough to prevent
any physical contact with the work ground.
Never touch the electrode if you are in contact with the work ground, or another electrode from a
differentmachine.
Do not wrap cables over your body.
Ensure that you take additional safety precautions when you are welding in electrically hazardous
conditions such as damp environments, wearing wet clothing, and metal structures. Try to avoid
welding in cramped or restricted positions.
Ensure that the equipment is well maintained. Repair or replace damaged or defective parts
immediately.Carryoutanyregularmaintenanceinaccordancewiththemanufacturer’s
instructions.
Safety against fumes and welding gases
Locate the equipment in a well-ventilated position.
Keep your head out of the fumes. Do not breathe the fumes.
Ensure the welding zone is in a well-ventilated area. If this is not possible provision should be
made for suitable fume extraction.
If ventilation is poor, wear an approved respirator. Read and understand the Material Safety Data
Sheets(MSDS’s)andthemanufacturer’sinstructionsformetals,consumable,coatings,cleaners,
and de-greasers.
Do not weld in locations near any de-greasing, cleaning, or spraying operations. Be aware that
heat and rays of the arc can react with vapours to form highly toxic and irritating gases.
Do not weld on coated metals, unless the coating is removed from the weld area, the area is well
ventilated, and while wearing an air-suppliedrespirator.Thecoatingsonmanymetalscangiveoff
toxic fumes if welded.

TitanTig 200P ACDC Pulse Operators Manual Issue. A 0516
Prevention against burns and radiation
Arc rays from the welding process produce intense, visible and invisible (ultraviolet and infrared)
rays that can burn eyes and skin.
Wearanapprovedweldinghelmetfittedwithapropershadeoffilterlenstoprotectyourface
and eyes when welding or watching
Wear approved safety glasses with side shields under your helmet.
Never use broken or faulty welding helmets.
Alwaysensurethereareadequateprotectivescreensorbarrierstoprotectothersfromflash,
glare and sparks from the welding area. Ensure that there are adequate warnings that welding or
cutting is taking place.
Wear suitable protective flame resistant clothing. The sparks and spatter from welding, hot work
pieces,andhotequipmentcancausefiresandburns
Welding on closed containers, such as tanks, drums, or pipes, can cause them to explode.
Accidental contact of electrode to metal objectscancausearcs,explosion,overheating,orfire.
Checkandbesuretheareaissafeandclearofinflammablematerialbeforecarryingoutany
welding.
Protection against noise
Some welding and cutting operations may produce noise.
Wear safety ear protection to protect your hearing.
Protection from moving parts
When the machine is in operation, keep away from moving parts such as motors and fans. Moving
parts,suchasthefan,maycutfingersandhandsandsnaggarments.
Protections and coverings may beremovedformaintenanceandcontrolsonlybyqualified
personnel,afterfirstdisconnectingthepowersupplycable.
Replacethecoveringsandprotectionsandclosealldoorswhentheinterventionisfinished,and
before starting the equipment.
Take care to avoidgettingfingerstrappedwhenloadingandfeedingwireduringsetupand
operation.
When feeding wire be careful to avoid pointing it at other people or toward your body.
Always ensure machine covers and protective devices are in operation.
Precautionsagainstfireandexplosion
Avoidcausingfiresduetosparksandhotwasteormoltenmetal
Ensurethatappropriatefiresafetydevicesareavailablenearthecutting/weldingarea.
Removeallflammableandcombustiblematerialsfromthecutting/weldingzone and
surrounding areas
Do not cut/weld fuel and lubricant containers, even if empty. These must be carefully cleaned
before they can be cut/welded.
Always allow the cut/welded material to cool before touching it or placing it in contact with
combustibleorflammablematerial.
Donotworkinatmosphereswithhighconcentrationsofcombustiblefumes,flammablegases
and dust.
Alwayschecktheworkareahalfanhouraftercuttingtomakesurethatnofireshavebegun

TitanTig 200P ACDC Pulse Operators Manual Issue. A 0516
Risksduetomagneticfields
The magneticfieldscreatedbyhighcurrentsmayaffecttheoperationofpacemakersor
electronically controlled medical equipment.
Wearers of vital electronic equipment should consult their physician before beginning any arc
welding, cutting, gouging or spot welding operations.
Donotgonearweldingequipmentwithanysensitiveelectronicequipmentasthemagneticfields
may cause damage.
RF Declaration
Equipment that complies with directive 2004/108/EC concerning electromagnetic compatibility (EMC) and
the technical requirements of EN60974-10 is designed for use in industrial buildings and not those for
domesticusewhereelectricityisprovidedviathelowvoltagepublicdistributionsystem.Difficultiesmay
arise in assuring class A electromagnetic compatibility for systems installed in domestic locations due to
conducted and radiated emissions.
In the case of electromagnetic problems, it is the responsibility of the user to resolve the situation. It may
benecessarytoshieldtheequipmentandfitsuitablefilterson the mains supply.
LF Declaration
Consult the data plate on the equipment for the power supply requirements.
Due to the elevated absorbance of the primary current from the power supply network, high power
systemsaffectthequalityofpowerprovidedbythe network. Consequently, connection restrictions or
maximum impedance requirements permitted by the network at the public network connection point
must be applied to these systems.
In this case the installer or the user is responsible for ensuring the equipment can be connected,
consulting the electricity provider if necessary.
Materials and their disposal
The equipment is manufactured with materials, which do not contain any toxic or poisonous materials
dangerous to the operator.
When the equipment is scrapped, it should be dismantled separating components according to the type of
materials.
Do not dispose of the equipment with normal waste. The European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment states the electrical equipment that has reached its end of life must be
collected separately and returned to an environmentally compatible recycling facility.
Handling of Compressed gas cylinders and regulators
All cylinders and pressure regulators used in welding operations should be handled with care.
Neverallowtheelectrode,electrodeholderoranyotherelectrically“hot”partstotouchacylinder.
Keep your head and face away from the cylinder valve outlet when opening the cylinder valve.
Always secure the cylinder safely.
Never deface or alter any cylinder

TitanTig 200P ACDC Pulse Operators Manual Issue. A 0516
EMF Information
Considerations About Welding And The Effects Of Low Frequency Electric And Magnetic Fields Welding
current, as it flows through welding cables, will cause electro-magnetic fields. There has been and still is
some concern about such fields, However, after examining more than 500 studies spanning 17 years of
research, a special blue ribbon committee of the National Research Council concluded that: "The body
of evidence, in the committees judgment, has not demonstrated that exposure to power-frequency
electric and magnetic fields is a human-health hazard." However studies are still going forth and evidence
continues to be examined. Until the final conclusions of the research are reached, you may wish to
minimize your exposure to electromagnetic fields when welding or cutting.
To reduce magnetic fields in the workplace, use the following procedures:
Keep cables close together by twisting or taping them.
Arrange cables to one side and away from the operator.
Do not coil or drape cables around your body.
Keep welding power source and cables as far away from operator as practical.
Connect work clamp to work piece as close to the weld as possible.
Limitations of warranty declaration regarding machine use
▲The welding machine(s) described in this manual are designed exclusively for electrical arc welding
with shielding gases Argon, CO2
or Ar + CO2 mixture(s) employing TIG technology. Using this
machine for other purposes is not allowed. Using this machine in opposition with instructions can
put the welder in danger. Damage can occur to the welding machine if not operated according to
this manual. Failures and accidents due to such actions are not covered by warranty, nor can the
producer be held responsible

TitanMig 195/225 Operators Manual
Issue. A 0415
Symbol usage
Means Warning! Watch Out! There are possible hazards with this procedure! The possible
hazards are shown in the adjoining symbols.
▲ Marks a special safety message.
Arc Welding Hazards
▲ The symbols shown below are used throughout this manual to call attention to and identify
possible hazards. When you see the symbol, watch out, and follow the related instructions to avoid
the hazard. The safety information given below is only a summary of the more complete safety
information found in the Safety Standards. Read and follow all Safety Standards.
▲ Only qualified persons should install, operate, maintain, and repair this unit.
▲ During operation, keep everybody, especially children, away.
ELECTRIC SHOCK can kill.
Touching live electrical parts can cause fatal shocks or severe burns. The electrode and
work circuit is electrically live whenever the output is on. The input power circuit and
machine internal circuits are also live when power is on. In semi-automatic or automatic
wire welding, the wire, wire reel, drive roll housing, and all metal parts touching the
welding wire are electrically live. Incorrectly installed or improperly grounded equipment
is a hazard.
Do not touch live electrical parts.
Wear dry, hoIe-free insulating gloves and body protection.
Insulate yourself from work and ground using dry insulating mats or covers big enough to prevent any
physical contact with the work or ground.
Do not use AC output in damp areas, if movement is confined, or if there is a danger of falling.
Use AC output ONLY if required for the welding process.
If AC output is required, use remote output control if present on unit.
Disconnect input power or stop engine before installing or servicing this equipment. Lockout/tagout input
power according to Safety Standards.
ProperlyinstallandgroundthisequipmentaccordingtoitsOwner’sManualandnational,state,andlocal
codes.
This group of symbols means Warning! Watch
Out! Possible ELECTRIC SHOCK, MOVING PARTS,
and HOT PARTS hazards.
Consult symbols and related instructions below for
n
e
c
e
s
s
a
r
y
a
c
t
i
o
n
s
t
o
a
v
o
i
d
t
h
e
h
a
z
a
r
d
s
.

TitanTig 200P AC/DC Pulse Operators Manual Issue. A 0516
Always verify the supply ground — check and be sure that input power cord ground wire is properly
connected to ground terminal in disconnect box or that cord plug is connected to a properly grounded
receptacle outlet.
When making input connections attach proper grounding conductor first - double-check connections.
Frequently inspect input power cord for damage or bare wiring replace cord immediately if damaged —
bare wiring can kill.
Turn off all equipment when not in use.
Do not use worn, damaged, undersized, or poorly spliced cables.
Do not drape cables over your body.
If earth grounding of the work piece is required, ground it directly with a separate cable.
Do not touch electrode if you are in contact with the work, ground, or another electrode from a different
machine.
Use only WeII-maintained equipment. Repair or replace damaged parts at once. Maintain unit according to
manual.
Wear a safety harness if working above floor level.
Keep all panels and covers securely in place.
Clamp work cable with good metal-to-metal contact to work piece or worktable as near the weld as
practical.
Insulate work clamp when not connected to work piece to prevent contact with any metal object.
Do not connect more than one electrode or work cable to any single weld output terminal.
▲SIGNIFICANT DC VOLTAGE exists after removal of input power on inverters.
Turn off inverter, disconnect input power, and discharge input capacitors according to instructions in
Maintenance Section before touching any parts.
FUMES AND GASES can be hazardous.
Welding produces fumes and gases. Breathing these fumes and gases can be hazardous to
your health.
Keep your head out of the fumes. Do not breathe the fumes.
If inside, ventilate the area and/or use exhaust at the arc to remove welding fumes and gases.
If ventilation is poor use an approved air-supplied respirator.
Read the Material Safety Data Sheets (MSDSs) and the manufacturers’ instructions for metals,
consumables, coatings, cleaners, and degreasers.
Work in a confined space only if it is well ventilated, or while wearing an air-supplied respirator. Always
have a trained watch-person nearby. Welding fumes and gases can displace air and lower the oxygen level
causing injury or death. Be sure the breathing air is safe.
Do not weld in locations near degreasing, cleaning, or spraying operations. The heat and rays of the arc can
react with vapours to form highly toxic and irritating gases.

TitanTig 200P AC/DC Pulse Operators Manual Issue. A 0516
Do not weld on coated metals, such as galvanized, lead, or cadmium plated steel, unless the coating is
removed from the weld area, the area is well ventilated, and if necessary, while wearing an air-supplied
respirator. The coatings and any metals containing these elements can give off toxic fumes if welded.
ARC RAYS can burn eyes and skin.
Arc rays from the welding process produce intense visible and invisible (ultraviolet and
infrared) rays that can burn eyes and skin. Sparks fly off from the weld.
Wear a welding helmet fitted with a proper shade of filler to protect your face and eyes when welding or
watching (see Safety Standards).
Wear approved safety glasses with side shields under your helmet.
Use protective screens or barriers to protect others from flash and glare; warn others not to watch the arc.
Wear protective clothing made from durable, flame-resistant material (leather and wool) and foot
protection.
WELDING can cause fire or explosion.
Welding on closed containers, such as tanks, drums, or pipes, can cause them to blow
up. Sparks can fly off from the welding arc. The flying sparks, hot work piece, and hot
equipment can cause fires and burns. Accidental contact of electrode to metal objects
can cause sparks, explosion, overheating, or lure. Check and be sure the area is safe
before doing any welding.
Protect yourself and others from flying sparks and hot metal.
Do not weld where flying sparks can strike flammable material.
Remove all flammables within 35 ft (10.7 m) of the welding arc. If this is not possible, tightly cover them
with approved covers.
Be alert that welding sparks and hot materials from welding can easily go through small cracks and
openings to adjacent areas.
Watch for fire, and keep a fire extinguisher nearby.
Be aware that welding on a ceiling, floor, bulkhead, or partition can cause fire on the hidden side.
Do not weld on closed containers such as tanks, drums, or pipes, unless they are properly prepared
according to Safety Standards.
Connect work cable to the work as close to the welding area as practical to prevent welding current from
travelling long, possibly unknown paths and causing electric shock and fire hazards.
Do not use welder to thaw frozen pipes.
Remove stick electrode from holder or cut off welding wire at contact tip when not in use.

TitanTig 200P AC/DC Pulse Operators Manual Issue. A 0516
Wear oil-free protective garments such as leather gloves, heavy shirt, cuff less trousers, high shoes, and a
cap.
Remove any combustibles, such as butane lighter or matches, from your person before doing any welding.
FLYING METAL can injure eyes.
Welding, chipping, wire brushing, and grinding cause sparks and flying metal. As
welds cool, they can throw off slag.
Wear approved safety glasses with side shields even under your welding helmet.
BUILDUP OF GAS can injure or kill.
Shut off shielding gas supply when not in use.
Always ventilate confined spaces or use approved air-supplied respirator.
HOT PARTS can cause severe burns.
Do not touch hot parts bare handed.
Allow cooling period before working on gun or torch.
MAGNETIC FIELDS can affect pacemakers.
Pacemaker wearers keep away.
Wearers should consult their doctor before going near arc welding, gouging, or spot
welding operations.
NOISE can damage hearing.
Noise from some processes or equipment can damage hearing.
Wear approved ear protection if noise level is high.

TitanTig 200P AC/DC Pulse Operators Manual Issue. A 0516
CYLINDERS can explode if damaged.
Shielding gas cylinders contain gas under high pressure. If damaged, a cylinder can
explode. Since gas cylinders are normally part of the welding process, be sure to treat
them carefully.
Protect compressed gas cylinders from excessive heat, mechanical shocks, slag, open flames, sparks, and
arcs.
Install cylinders in an upright position by securing to a stationary support or cylinder rack to prevent falling
or tipping.
Keep cylinders away from any welding or other electrical circuits.
Never drape a welding torch over a gas cylinder.
Never allow a welding electrode to touch any cylinder.
Never weld on a pressurized cylinder - explosion will result.
Use only correct shielding gas cylinders, regulators, hoses, and fittings designed for the specific application:
maintain them and associated parts in good condition.
Turn face away from valve outlet when opening cylinder valve.
Keep protective cap in place over valve except when cylinder is in use or connected for us
FIRE OR EXPLOSION hazard.
Do not install or place unit on, over, or near combustible surfaces.
Do not install unit near flammables.
Do not overload building wiring — be sure power supply system is properly sized,
rated, and protected to handle this unit.
FALLING UNIT can cause injury.
Use lifting eye to lift unit only, NOT running gear, gas cylinders, or any other
accessories.
Use equipment of adequate capacity to lift and support unit.
If using lift forks to move unit, be sure forks are long enough to extend beyond
opposite side of unit
OVERUSE can cause OVERHEATING
Allow cooling period; follow rated duty cycle
Reduce current or reduce duty cycle before starting to weld again.
Do not block or filter airflow to unit.

TitanTig 200P AC/DC Pulse Operators Manual Issue. A 0516
STATIC (ESD) can damage PC boards.
Put on grounded wrist strap BEFORE handling boards or parts.
Use proper static-proof bags and boxes to store, move, or ship PC boards.
MOVING PARTS can cause injury.
Keep away from moving parts.
Keep away from pinch points such as drive rolls.
WELDING WIRE can cause injury.
Do not press gun trigger until instructed to do so.
Do not point gun toward any part or the body, other people, or any metal when
threading welding wire.
H.F. RADIATION can cause interference.
High frequency (HF,) can interfere with radio, navigation, safety services, computers,
and communications equipment.
Have only qualified persons familiar with electronic equipment perform this
installation.
The user is responsible for having a qualified electrician promptly correct any
interference problem resulting from the installation.
If notified by the FCC about interference, stop using the equipment at once.
Have the installation regularly checked and maintained.
Keep high-frequency source doors and panels tightly shut. Keep spark gaps at correct setting, and use
grounding and shielding to minimize the possibility of interference.
ARC WELDING can cause interference.
Electromagnetic energy can interfere with sensitive electronic equipment such as
computers and computer-driven equipment such as robots.
Be sure all equipment in the welding area is electromagnetically compatible.
To reduce possible interference, keep weld cables as short as possible, close together,
and down low, such as on the floor.
Locate welding operation 100 meters from any sensitive electronic equipment.
Be sure this welding machine is installed and grounded according to this manual.
If interference still occurs, the user must take extra measures such as moving the welding machine,
using shielded cables, using line filters, or shielding the work area

TitanTig 200P AC/DC Pulse Operators Manual Issue. A 0516
1.0 Preface
1.1 General
Congratulations on choosing TitanTig 200P ACDC Welding Machines. Used correctly, our products
can significantly increase the productivity of your welding, and provide years of economical service.
This operating manual contains important information on the use, maintenance and safety of our
product. Please read the manual carefully before using the equipment for the first time.
For your own safety and that of your working environment, pay particular attention to the safety
instructions in the manual.
For more information on our products, contact us, consult an authorized dealer, or visit our website.
The specifications presented in this manual are subject to change without prior notice.
Important notes
Items in the manual that require particular attention in order to minimize damage and personal harm
are indicated with the ’NOTE!’ notation. Read these sections carefully and follow their instructions.
Disclaimer
While every effort has been made to ensure that the information contained in this guide is accurate
and complete, no liability can be accepted for any errors or omissions. We reserve the right to change
the specification of the product described at any time without prior notice.

TitanTig 200P AC/DC Pulse Operators Manual Issue. A 0516
1.2 Introduction
TitanTig 200P ACDC welding machine adopts the latest pulse width modulation (PWM) technology and
insulated gate bipolar transistor (IGBT) power module, which can change work frequency to medium
frequency so as to replace the traditional hulking work frequency transformer with the cabinet medium
frequency transformer. Thus, it is characterized with portable, small size, light weight, low consumption
and etc.
The parameters of TitanTig 200P ACDC on the front panel all can be adjusted continuously and steplessly,
such as start current, crater arc current, welding current, base current, duty ratio, upslope time,
downslope time, pre-gas, post-gas, pulse frequency, AC frequency, balance, hot start, arc force and arc
length etc. When welding, it takes high frequency and high voltage for arc igniting to ensure the success
ratio of igniting arc.
TitanTig 200 PACDC welding machine is suitable for all positions welding for various plates made of
stainless steel, carbon steel, alloyed steel, titanium, aluminium, magnesium, cuprum, etc, which is also
applied to pipe installment, mould mend, petrochemical, architecture decoration, car repair, bicycle,
handicraft and common manufacture.
Product functions
DC MMA
DC TIG
DC Pulse TIG
AC MMA
AC TIG
AC Pulse TIG
DC MMA, polarity connection can be chosen according to different electrodes.
AC MMA, magnetic flow caused by invariable DC polarity can be avoided；
DC TIG, DCEP is used normally (workpiece connected to positive polarity, while torch connected to
negative polarity). This connection has many characters, such as stable welding arc, low tungsten pole loss,
more welding current, narrow and deep weld;
AC TIG (rectangle wave), arc is more stable than Sine AC TIG. At the same time, you can not only obtain
the max penetration and the min tungsten pole loss, but also obtain better clearance effect.
DC Pulsed TIG has the following characters: 1) Pulse heating. Metal in Molten pool has short time on high
temperature status and freezes quickly, which can reduce the possibility to produce hot crack of the
materials with thermal sensitivity. 2) The workpiece gets little heat. Arc energy is focused. Be suitable for
thin sheet and super thin sheet welding. 3) Exactly control heat input and the size of the molten pool. The
depth of penetration is even. Be suitable for welding by one side and forming by two sides and all position
welding for pipe. 4) High frequency arc can make metal for microlite fabric, eliminate blowhole and
improve the mechanical performance of the joint. 5) High frequency arc is suitable for high welding speed
to improve the productivity.

TitanTig 200P AC/DC Pulse Operators Manual Issue. A 0516
Product performance characteristics
•AdvancedIGBTinvertertechnology
• Industry leading control system -MCU control system, responds immediately to any changes
•Invertingfrequencyof33~43kHzgreatlyreducesthesizeand weight of the welder.
•Greatreductioninmagneticandresistancelossenhancestheweldingefficiencyandenergysavingeffect.
•Workingfrequencyisbeyondtheaudiorange,whichalmosteliminatesnoisepollution.
•TIG/DC operation, If the tungsten electrode touches the workpiece when welding, the current will drop
to short-circuit current to protect tungsten
•High frequency and high voltage for arc igniting to ensure the success ratio of igniting arc, the reverse
polarity ignition ensures good ignition behavior in TIG-AC welding
•Pedal control the welding current
•Double purposes : AC inverter TIG/MMA and DC inverter TIG/MMA, Excellent performance on Al-alloy、
carbon steel、stainless steel、titanium
•Intelligent protection: over-voltage, over-current, over-heat, when the problems listed before occurred,
the alarm lamp on the front panel will be on and the output current will be cut off. It can self-protect and
prolong the using life
•Bionic and Ergonomic industrial design.
•Frontandrearpanelsmadeofhigh-intensity plastics suitable for working in severe conditions.
•Excellentinsulatingproperty.
•Water-resistant, antistatic and anticorrosion design.
• Avoid AC arc-break with special means, even if arc-break occurs the HF will keep the arc stable
Working Principle

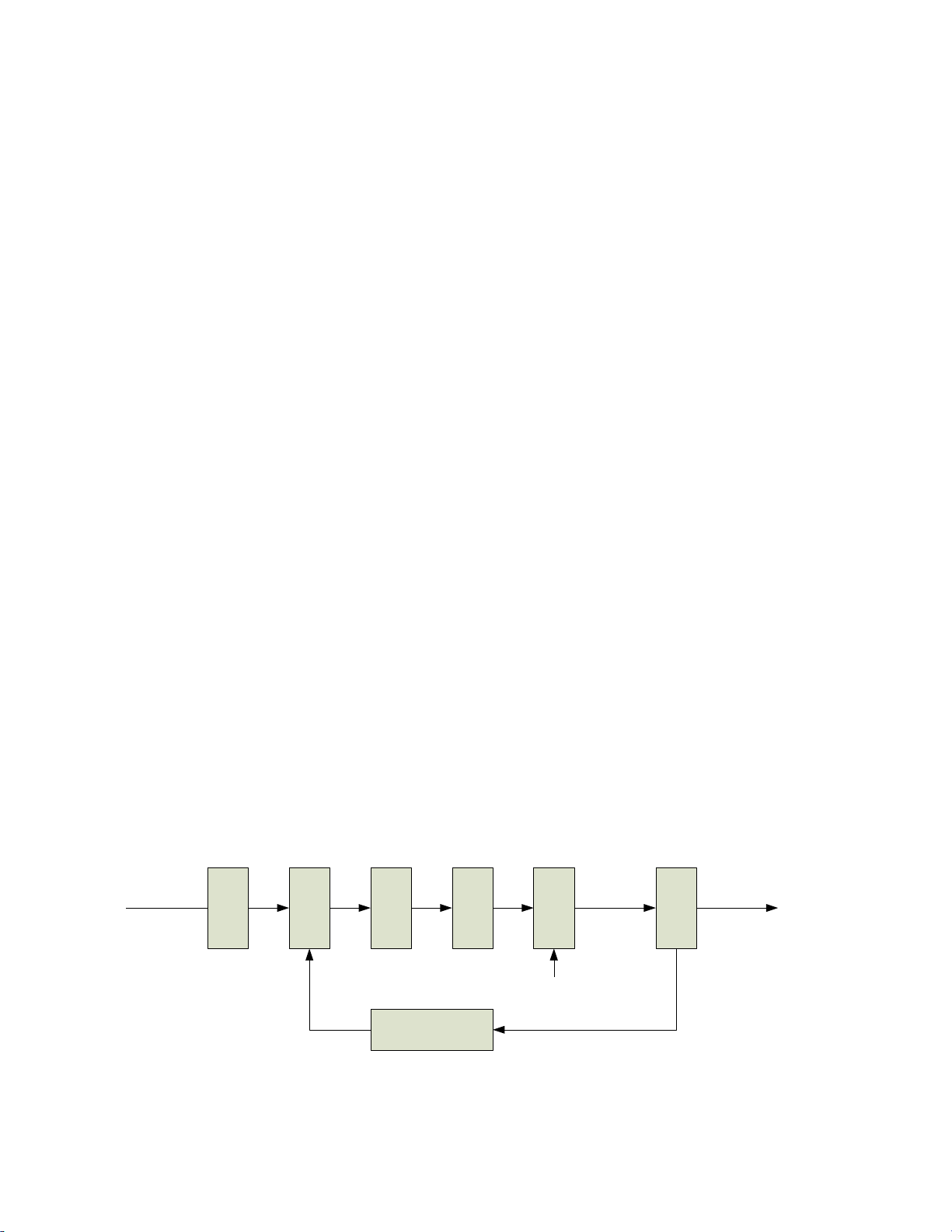

The working principle of TitanTig 200P ACDC welding machines is shown as the following figure.
Single-phase 220V work frequency AC is rectified into DC (about 312V), then is converted to medium
frequency AC (about 40KHz) by inverter device (IGBT module), after reducing voltage by medium
transformer (the main transformer) and rectifying by medium frequency rectifier (fast recovery diodes),
then is outputted DC or AC by selecting IGBT module. The circuit adopts current feedback control
technology to insure current output stably. Meanwhile, the welding current parameter can be adjusted
continuously and steplessly to meet with the requirements of welding craft.
Rectif
ier
Invert
er
Trans
forme
r
Rectif
ier
Hall
devic
e
Current feedback
control
Single-phase, AC DC AC DC
220V，50Hz
AC Invert
er
AC or DC
Control signal
AC or DC

TitanTig 200P AC/DC Pulse Operators Manual Issue. A 0516
Volt-Ampere Characteristic
TitanTig 200P ACDC welding machine has an excellent volt-ampere characteristic, whose graph is shown as
the following figure. The relation between the conventional rated loading voltage U2 and the conventional
welding current I2 is as follows:
When I2≤600A，U2=10+0.04I2(V); When I2＞600A,U2=34(V).
67
34
10
0 600 I2（A）
U2（V）
Working
point
Volt-ampere characteristic The relation between the
conventional loading
voltage and welding current

TitanTig 200P AC/DC Pulse Operators Manual Issue. A 0516
1.3 Technical Specifications
Models
Parameters TIG 200 AC/DC TIG 200P AC/DC
Input power (V) 1~220/230/240±10% 1~220/230/240±10%
Fre.（HZ） 50/60HZ 50/60HZ
Rated input current（A） 30.5（AC TIG）
28.3（DC TIG）
39.1（AC MMA）
40.7（DC MMA）
30.5（AC TIG）
28.3（DC TIG）
39.1（AC MMA）
40.7（DC MMA）
Rated input power（KW） 6.1（AC TIG）
6.4（DC TIG）
8.6（AC MMA）
8.9（DC MMA）
6.1（AC TIG）
6.4（DC TIG）
8.6（AC MMA）
8.9（DC MMA）
Duty cycle @40oC to
AS/NZ60974
AC TIG MMA ＆DC TIG AC TIG MMA ＆DC TIG
35% 200A 40% 170A 35% 200A 40% 170A
60% 155A 60% 140A 60% 155A 60% 140A
100% 120A 100% 110A 100% 120A 100% 110A
No load voltage (V) 52 52
Adjustment range of
welding current（A） 10～200（AC TIG） 10～170 ( MMA ＆DC TIG) 10～200（AC TIG） 10～170 ( MMA ＆DC TIG)
Down slope（S） 0～10 0～10
Post flow （S） 0～10 0～10
Pulse frequency（HZ） / 0.5~200
AC frequency（HZ） 60 60
Pulse width range（%） / 5~95
Clearance effect（%） 15～50 15～50
Efficiency（%） ≥85 ≥85
Power factor 0.6 0.6
Cooling AF AF
Protection class IP23 IP23
Insulation class H H
Dimensions of Machine
（L×W×H）（mm）
410×146×278 410×146×278
Weight(Kg) 7.0 7.0

TitanTig 200P AC/DC Pulse Operators Manual Issue. A 0516
1.4 Important notes before use
▲Do not operate or install this equipment without thoroughly reading this manual and the safety
precautions contained throughout.
Save this manual and keep it handy for reference.
Disconnect mains of the semi-automatic welding machine after finishing work or before a long break.
▲DO NOT make any modifications to the machine. It may cause changes in the features and
deterioration of technical data.
▲Any adaptations to this machine are prohibited and may void the warranty.
▲Warranty is void if any damage to the machine is caused by misuse.
Acceptable range of ambient temperature is from 10—40°C.
Acceptable range of humidity is 20°C at 95% humidity.
Specifications may change without previous notice.
▲Fitted for commissioning
▲Recommended outlet
▲Important Note on TitanTig
200P ACDC Input Power Supply
This unit has been supplied with
a downgraded 15 Amp primary
supply plug for commissioning
purposes only. You are advised to
upgrade the input power plug
and lead to a minimum of 32A if
sustained usage at maximum
amperage is desired.
▲WARNING
With the 15A plug supplied it is
recommended that the operator
does not exceed more than
180Amps, as use of higher
amperages over this amount may
lead to failure and overheating of
the 15A plug and circuit, which
may result in electrical supply
component damage and
ultimately electrical fires.
