Titon-Blue TR-M336 User manual

TR-M336 Titon-Blue
Please read the manual before installing and using this lighting
Keep it for future reference
LED Moving head
User manual
TR-M336
Introduction
Thank you for using our products!
TR-M336 is a very small and light LED Moving head light, its weight is only 3.6 kg. Itsbeam is very narrow and very
bright . It runsextremely fast. It is suitable for bar, disco, stage ,decoration ,etc .
This product complies with the following standards:
IEC60598-1:2003
IEC60598-2-17:1984+A2:1990
Main features
36 Pcs high-power 3WCREE XP-E LED

1
Excellent mixed color system
Linear colour temperature adjustment, dimmer very smooth
Calibrate colors function
Tight, punchy beam
compact，silent design
Speedly
Blue LCD display
Standar DMX-512 communication protocol
Easy for power connection

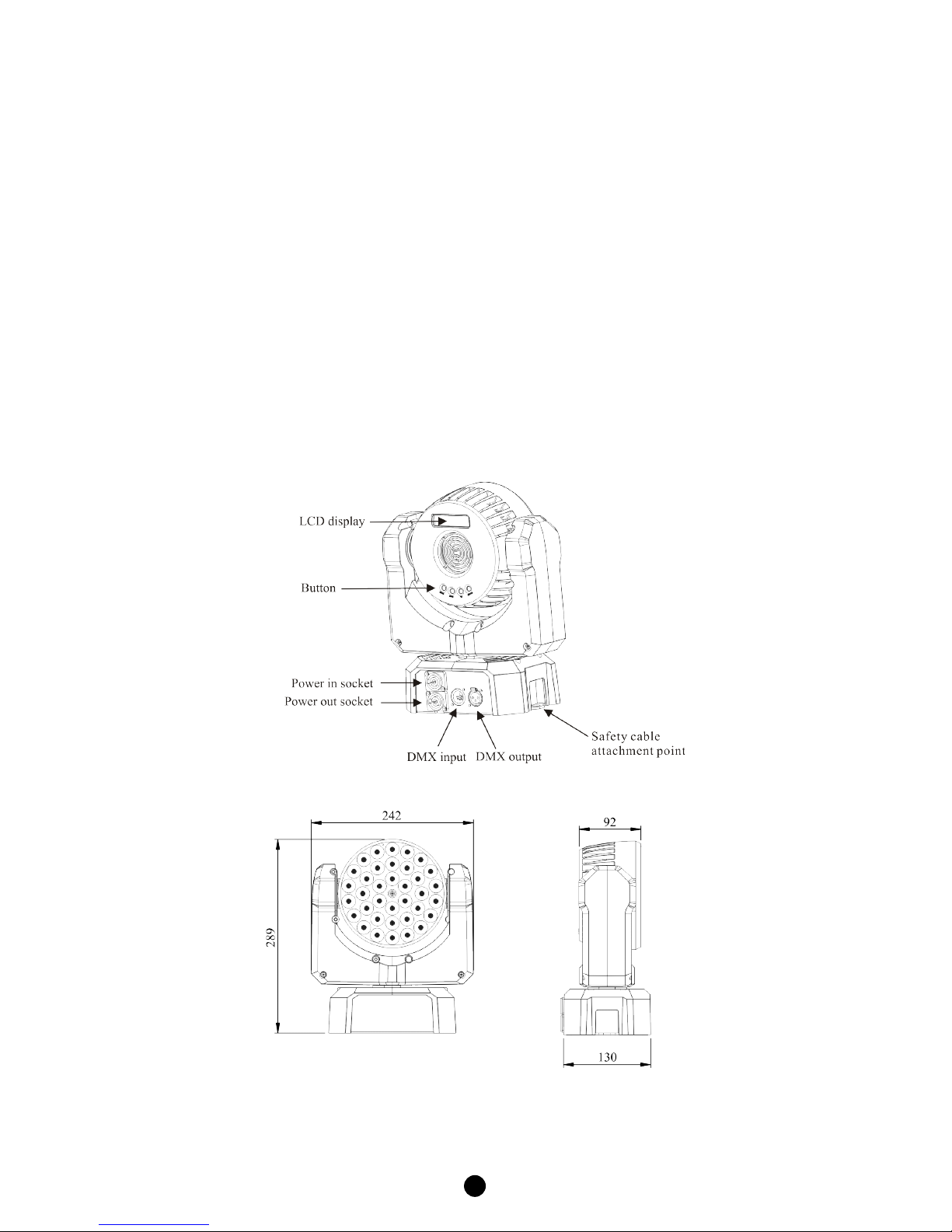

Overview and Dimensions
All dimensions are in millimeters

2
Safety information
important
Every person involved with the installation , operation and maintenance of this device has to be qualified and follow the
instructions of this manual . Manufacturer will not with responsibility for those operation not according to this Instruction
Verify that the voltage matches the rated voltage.
When the voltage is 110V , Do not connect more than 10 lightings in total to AC mains power in one interconnected
daisy chain
When the voltage is 220V , Do not connect more than 20 lightings in total to AC mains power in one interconnected
daisy chain
Before using the fixture, check that all power distribution equipment and cables are in perfect condition and rated for
the current requirements of all connected devices.
Always ground (earth) the fixture electrically .
Avoiding hit the Light when you are move or install the light .
The minimum distance between light-output and the illuminated surface must be more than 0.5 meters. Keep all
combustible materials (for example fabric, wood, paper) at least 0.2meters away from the fixture .
Do not expose the fixture to rain or moisture.
Avoid looking directly into the light source (especially those who suffer from epileptic fits)
Maximum ambient temperature (Ta) is 40°C. Do not operate fixture at temperatures higher than this .
The Maximum surface temperature is 50°C
When suspending the fixture above ground level, verify that the structure can hold at least 10 times the weight of all
installed devices.
Verify that all external covers and rigging hardware are securely fastened and use an approved means of secondary
attachment such as a safety cable.
Power connection

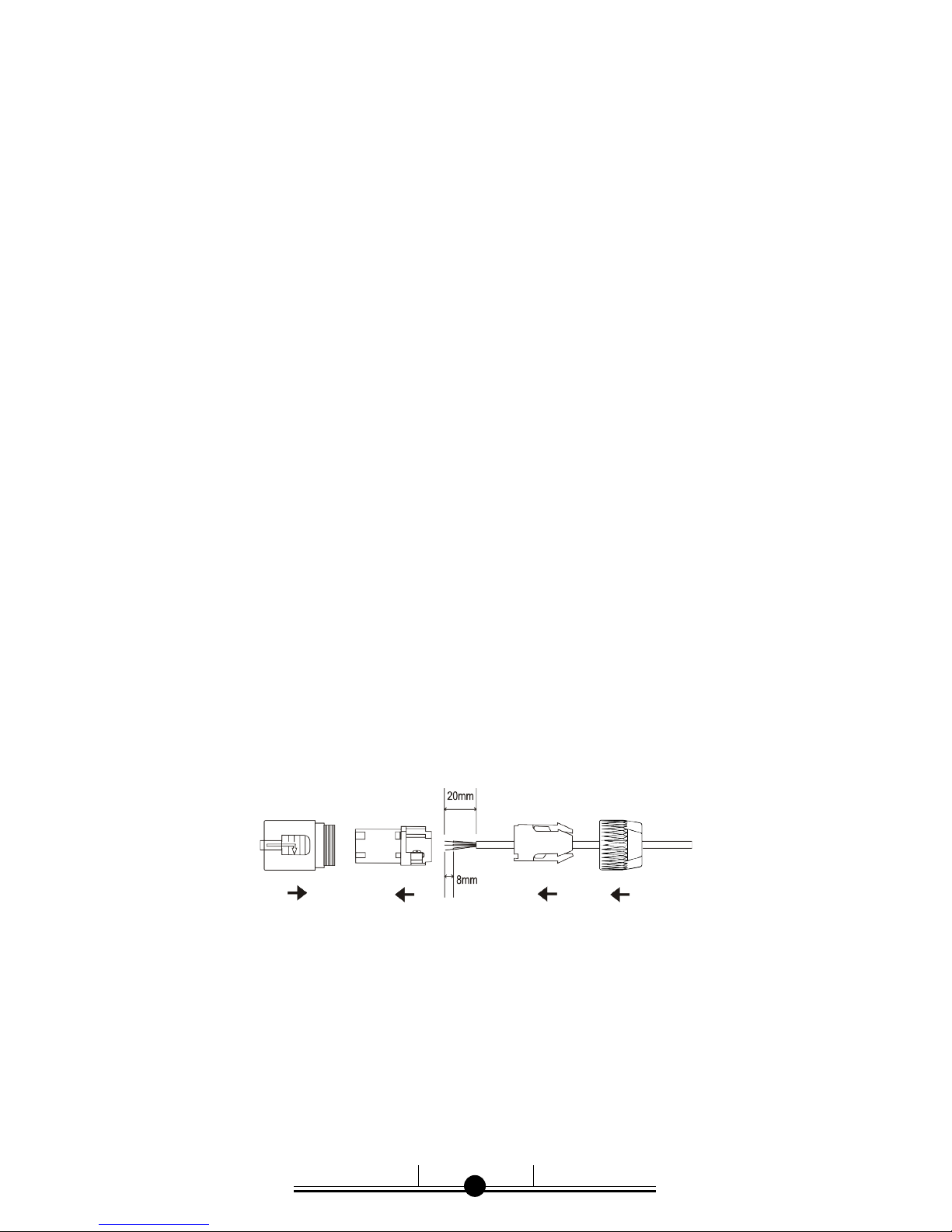

Installing a Neutrik connector on a power cable
The blue NAC3FCA connector is the power input connector, the light gray connector is the power output
connector
Select a three conductor 2.5mm2power cable
Install the Neutrik connector on the power cable , the below table shows the color-coding schemes and some
possible pin identification schemes; if pins are not clearly identified , or if you have any doubts about proper
installation , consult a qualified electrician
Wire color
Conductor
Symbol

3
DMX protocol
TR-M336 has five Channels modes , including:
Brown
Live
L
Blue
Neutral
N
Yellow/green
ground
Relaying power to other devices
The lightings can be linked in a chain by power
cables which installed a blue and a light-gray
connectors on the two ends. the light-gray connector
connects to the power out socket of the first lighting ,
and the blue connector connectsto the power in
socket of the subsequent lighting, and so on.
The power cable must is a three-conductor
2.5mm2cable
When the voltage is 110V , Do not connect more
than 10 lightings in total to AC mains power in
one interconnected daisy chain
When the voltage is 220V , Do not connect more
than 20 lightings in total to AC mains power in
one interconnected daisy chain

4
The default mode is STAGE 12 Channels Mode. If you want to alter it, enter DMX menu .
STAGE 12 channels mode
Channel
Value
Function
CH1
000-019
020-064
065-069
070-084
085-089
090-104
105-109
110-124
125-129
130-144
145-149
150-164
165-169
170-184
185-189
190-204
205-255
strobe
shutter open
strobe1(fast to slow)
shutter open
strobe2:opening pulse(fast to slow)
shutter open
strobe3: closing pulse (fast to slow)
shutter open
strobe4:random strobe(fast to slow)
shutter open
strobe5:random opening pulse(fast to slow)
shutter open
strobe6: random closing pulse (fast to slow)
shutter open
strobe7:burst pulse(fast to slow)
shutter open
strobe8:random burst pulse (fast to slow)
shutter open
CH2
000-255
Gobal dimmer
0~100%
CH3:
000-255
Pan
0~540°/0~630°
（the maximum angle base in the setting in menu）
CH4
000-255
Pan fine
CH5:
000-255
Tilt
0~240°
CH6:
000-255
Tilt fine
CH7
000-009
010-014
015-039
040-044
045-049
050-054
055-059
060-064
065-069
070-074
075-109
110-114
115-119
120-124
125-249
Fixture control settings
No function
Reset (hold for 8s)
No function
Normal motor speed
Maximum motor speed
Minimum motor speed
No function
Max. cooling fan speed
No function
Cooling fan speed trermostatically regulated
No function
Fast dimmer
No function
Smooth dimer
No function
HSV Mode
STAGEMode
7 Channels Mode
12 Channels Mode
9Channels Mode
8Channels Mode
5 Channels Mode

5
250-255
Illuminate display
CH8
000-009
010-014
015-019
020-024
025-029
030-034
035-039
040-044
045-049
050-054
055-059
060-064
065-069
070-074
075-079
080-084
085-089
090-094
095-099
100-104
105-109
110-114
115-119
120-124
125-129
130-134
135-139
140-144
145-149
150-154
155-159
160-164
165-169
170-174
175-179
180-255
Color wheel
Dimmer channel enable
Moroccan pink
Pink
Special rose pink
Follies pink
Fuchsia pink
Surprise pink
Congo Blue
Tokyo Blue
Deep Blue
Just Blue
Medium Blue
Double CT Blue
Slate Blue
Full CT Blue
Half CT Blue
Steel Blue
Lighter Blue
Light Blue
Medium Blue Green
Dark Green
Primary Green
Moss Green
Fern Green
JAS Green
Lime Green
Spring Yellow
Deep Amber
Chrome Orange
Orange
Gold Amber
Millennium Gold
Deep Golden Amber
Flame Red
Open
No function
CH9
000-255
Red dimmer
0~100%
CH10
000-255
Green dimmer
0~100%
CH11
000-255
Blue dimmer
0~100%
CH12
000-019
020-255
Color temperature control
No function
100000K →2500K
STAGE 9 channels mode
Channel
Value
Function
CH1
000-255
Red dimmer
0~100%
CH2
000-255
Green dimmer
0~100%
CH3
000-255
Blue dimmer
0~100%
CH4
000-255
Gobal dimmer
0~100%

6
CH5
000-009
010-149
150-199
200-249
250-255
strobe
No function
Strobe
Fast in slow out
Slow in fast out
No function
CH6:
000-255
Pan
0~540°/0~630°
（the maximum angle base in the setting in menu）
CH7
000-255
Pan fine
CH8
000-255
Tilt
0~240°
CH9:
000-255
Tilt fine
STAGE 8 channels mode
Channel
Value
Function
CH1
000-255
Red dimmer
0~100%
CH2
000-255
Green dimmer
0~100%
CH3
000-255
Blue dimmer
0~100%
CH4
000-255
Gobal dimmer
0~100%
CH5:
000-255
Pan
0~540°/0~630°
（the maximum angle base in the setting in menu）
CH6
000-255
Pan fine
CH7
000-255
Tilt
0~240°
CH8:
000-255
Tilt fine
STAGE 5 channels mode
Channel
Value
Function
CH1
000-255
Red dimmer
0~100%
CH2
000-255
Green dimmer
0~100%
CH3
000-255
Blue dimmer
0~100%
CH4:
000-255
Pan
0~540°/0~630°
（the maximum angle base in the setting in menu）
CH5
000-255
Tilt
0~240°
HVS 7 channels mode

7
Channel
Value
Function
CH1
000-255
Hue
0~100%
CH2
000-255
Saturation
0~100%
CH3
000-255
Value
0~100%
CH4:
000-255
Pan
0~540°/0~630°
（the maximum angle base in the setting in menu）
CH5
000-255
Pan fine
CH6
000-255
Tilt
0~240°
CH7:
000-255
Tilt fine
Button
SET：
UP：
DOWN：
ENTER：
Call the main menu, or escape the current menu(i.e. return to the
upper menu and give up the selected item or parameter) .
Browse the menu item forward or increase the parameter .
Browse the menu item backward or decrease the parameter .
Confirm the selected item or parameter(i.e. enter the next menu, or
escape the current menu and save the selected item or parameter)
Menu
Menu navigation
①SET menu←SET←Addr:001(DMX mode）→ENT→DMX menu②
UP↑↓DN
SET menu←SET←ManualDimmer→ENT→Manualdimmer menu③
UP↑↓DN
SET menu←SET←Red →ENT→null
UP↑↓DN
SET menu←SET←Green →ENT→null
UP↑↓DN
SET menu←SET←Blue →ENT→null
UP↑↓DN
SET menu←SET←Yellow→ENT→null
UP↑↓DN
SET menu←SET←Cyan →ENT→null
UP↑↓DN
SET menu←SET←Purple→ENT→null
UP↑↓DN
SET menu←SET←PureWhite→ENT→null
UP↑↓DN
SET menu←SET←Amber →ENT→null
UP↑↓DN
SET menu←SET←AllWhite→ENT→null
UP↑↓DN
SET menu←SET←3200K→ENT→null
UP↑↓DN
SET menu←SET←5600K→ENT→null
UP↑↓DN
SET menu←SET←6500K→ENT→null
UP↑↓DN
SET menu←SET←8500K→ENT→null

8
UP↑↓DN
SET menu←SET←10000K→ENT→null
UP↑↓DN
SET menu←SET←ChangColor→ENT→null
UP↑↓DN
SET menu←SET←Twinkling→ENT→null
UP↑↓DN
SET menu←SET←Fade→ENT→null
UP↑↓DN
SET menu←SET←Macro →ENT→Macr menu④
UP↑↓DN
①SET menu
SET Menu:
├Reset Machine
│├Reset:ON
│└Reset:OFF
├Load Parameter
│├Load ON
│└Load OFF
├Master / Alone
│├Master Mode
│└Alone Mode
├Auto / Sound
│├Auto Mode
│└Sound Mode
├MIC Sense:00~99%
├TC Switch
│├TC Switch Mask
││├Switch Mask ON
││└Switch Mask OFF
│└TC Switch Temp
│├TC Temp Cap
│└TC Temp Set
├Scan Setting
│├Reverse Pan
││├Reverse Pan :ON
││└Reverse Pan :OFF
│├Reverse Tilt
││├Reverse Tilt:ON
││└Reverse Tilt:OFF
│├Pan Degree
││├Pan Degree:630
││└Pan Degree:540
│├Scan BlackOut
││├ScanBlackOut:ON
││└ScanBlackOut:OFF
│└Feed Back
│├Feed Back:ON
│└Feed Back:OFF
├Dimmer Curve
│├Square Law
│├Inv Square Law
│└S-Vurve

9
├Dimmer Speed
│├Dimmer: Smooth
│└Dimmer: Fast
├Dmx Reset
│├Enabled
│├Disabled
├Fan
│├Regulated
│└Full
└Information
├Time:tt/mm/ss
├Date:mm/dd/yy
└Use Time :hour: minute
②DMX menu
DMX Menu:
├DMX Address: 001
├No DMX Signal
│├Stop Run
│├Hold Run
│├Auto Run
│└Sound Run
└DMX Channels
├HSV Mode
└STAGE Mode
├12 Channels
├9 Channels
├8 Channels
└5 Channels
③Macro menu
Macro Menu:
├Step Quantity:62
├Program Step 01
│├ChangeColor
│├Twinkling
│└Fade
│.......
└Program Step 62
④ManualDimmer menu
ManualDimmer:
├Light Switch
│├Light ON
│└Light OFF
├Light Red:000
├Light Green:000
├Light Blue:000
├Light Strobe:000

10
├Scan Pan:128
├Scan Tilt:128
├Scan PanFine:000
└ScanTiltFine:000
Technical parameters
Rated voltage：100~240V
Rated frequency：50/60Hz
Power：120W
LED：3W CREE XP-E
LED lifespan：about 50，000hours
LED quantity：12R+12G+12B
Color mixing：R：0~255，G：0~255 ，B：0~255
Effect: strobe, fade , color wheel
Beam angle：8°
Rotation Angle：Pan 540°/630°，Tlit 240°，self-correcting
Channel quantity：5，7，8，9，12
Control mode：DMX512，Master/slave，Sound actived
Protection grade：IP20
Working environment: indoor
Environment temperature：-30~+40℃
Size：L242*W130*H289mm
Weight：3.6kg
