Leviton 9866-b0w User manual

8" LED Downlight with Motion Sensor

Cat. No. 9866-B0W

INSTALLATION INSTRUCTIONS ENGLISH

DI-000-09866-05B

Flush-Mount with Bracket

WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at

circuit breaker or fuse and test that power is off before wiring!

Product Overview

WARNINGS:

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR

FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!

• To be installed and/or used in accordance with appropriate electrical codes and regulations.

• If you are unsure about any part of these instructions, consult an electrician.

CAUTIONS:

• For indoor applications only.

•READ AND SAVE THESE INSTRUCTIONS.

4. Tighten bracket until ush against the ceiling surface. DO NOT over

tighten. Over tightening will bend the bracket and make installation of lamp

difficult.

NOTE: Use 1/2 in. or 3/4 in. depending upon the depth of the ceiling box.

a. Push light body up to bracket. Be sure to align the

sensor towards the door or entry point.

Sensor

b. Rotate light body clockwise to engage with

the bracket.

Bracket engaged.

2. Remove surface cover.1. Rotate bracket counter clockwise.

Switch 1: 30/180 seconds auto time-off options

Switch 2: Sensor Modes

• Daytime – Turns on lamp regardless of ambient light.

• Nighttime – Only turns lamp on when sensor detects motion and

there is no ambient light.

Switch 3: Sensor ON/OFF

• Turns off sensor so lamp can be used with a single pole switch.

CCT changeable

3000K: Soft white, yellowish

4000K: Cool white

5000K: Daylight, bright white

Motion Sensor

3. Wire the device as shown below.

NOTES:

• Outlet box is required.

• Run the main wire through the middle of the bracket.

• Wire Ground wire to green screw on the mounting bracket.

GROUND

(Green)

LINE

(Black)

LOAD

(Black)

NEUTRAL

(White)

180 ON

30 OFF

Specications

LED Consumption 18 Watts

Light Output 1440 Lumens

Lamp Color 3000k, 4000k, 5000k

Temperature -25 C < Ta < +40 C

Operating Voltage 120V +/- 10% @ 60Hz

WEB VERSION

LIMITED 5 YEAR WARRANTY AND EXCLUSIONS

Leviton warrants to the original consumer purchaser and not for the benet of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and

proper use for ve years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option. For details visit www.leviton.com or call 1-800-824-3005. This warranty

excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused,

opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including

merchantability and tness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and tness for

a particular purpose, is limited to ve years. Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment,

lost sales or prots or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.

For Technical Assistance Call: 1-800-824-3005 (U.S. Only) or 1-800-405-5320 (Canada Only) www.leviton.com

FCC COMPLIANCE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

FOR CANADA ONLY

For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing of Canada ULC to the attention of the Quality Assurance Department, 165

Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1 800 405-5320.

INDUSTRY CANADA COMPLIANCE

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to

the following two conditions: (1) this device may not cause interference, and (2) this device must accept

any interference, including interference that may cause undesired operation of the device.

Top View Side View

2.4 m

(8 ft)

Sensor

2.4 m

(8 ft)

1.5 m

(5 ft)

1.5 m

(5 ft)

3.9 m (13 ft)

2.4 m

(8 ft)

2.4 m

(8 ft)

1.5 m

(5 ft)

1.5 m

(5 ft)

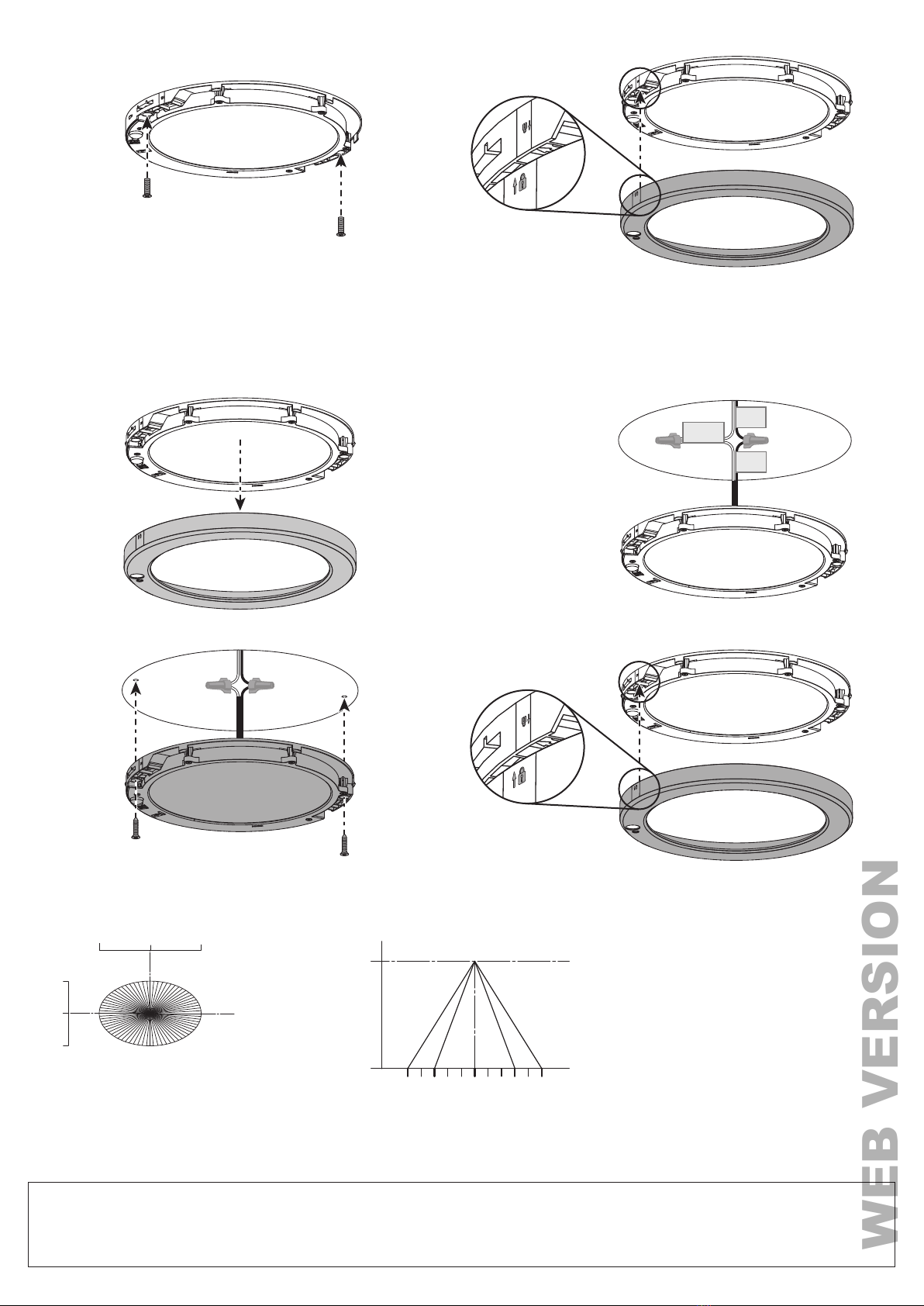

Flush-Mount without Bracket

WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at

circuit breaker or fuse and test that power is off before wiring!

Sensor Coverage

1. Remove surface cover. 2. Wire the device as shown below.

NOTE: Outlet box required.

NEUTRAL

(White)

LINE

(Black)

LOAD

(Black)

3. Install the light body with two screws. 4. Install surface cover to light body. Ensure lock marks are aligned.

7. Install surface cover to light body. Ensure lock marks are aligned.6. Once the light body is in place install the two 1/2 in. screws to secure light

body to the bracket.
