TMG DT3040-PRO User manual

W W W . T M G I N D U S T R I A L . C O M P 0 / 2 0 T o l l F r e e : 1 - 877- 7 6 1 - 2 8 1 9

W W W . T M G I N D U S T R I A L . C O M P 1 / 2 0 T o l l F r e e : 1 - 877- 7 6 1 - 2 8 1 9
Main Specifications :
Assembly size : W9.15 x L12 x H6 (m) / 30 x 40 x 20 (ft)
Ridge height : 6m / 20 ft
Peak clearance : 5.4m / 18 ft
Front roll up door : 4.27 x 3.96 (m) / 14 x 13 (ft)
Shoulder height : 3.6 m / 12ft
Prior to assembly
Please go through the whole instruction manual completely. It is very important to
follow your local safety regulations and industry standards during installation.
Regulations may include but are not limited to :
- Safety helmets, protective eyewear, and clothing
- Safety harnesses for all elevated workers
- Proper ladder, cage, and safety operation
Check all components and parts before installation. All parts are marked with a part
number, please refer to the parts list to ensure you have all parts.
Choose a day with low or no wind to install, it is hard to assemble with heavy wind.
Do not make any alterations to the structure. Do not hang any weight on the frame
during installation, including parts. We are not responsible for any damages or
injuries caused by inappropriate installation, unauthorized modifications or extreme
weather.
This building is not intended for human occupancy.
It is recommended to use heavy duty duct tapes to tape the tube connection joint spots
to protect the cover from damage and worn. It will help to extend the cover life span.
Check the parts list below to make sure all parts are received prior to assembly.

W W W . T M G I N D U S T R I A L . C O M P 2 / 2 0 T o l l F r e e : 1 - 877- 7 6 1 - 2 8 1 9
TMG-DT3040-PRO Part List
Parts
Code
Graphical
Description
Quantity
BOX
1
Peak arch tube
(for 4 middle trusses )
4
B
1A
Peak arch tube
(for front and rear truss)
2
B
2
Upper rafter tube
(for middle trusses)
8
A
2A
Upper rafter tube
(for front and rear truss)
4
A
3
Shoulder tube
(for middle trusses)
8
A
3A
Shoulder tube
(front and rear trusses)
4
A
4
Sidewall tube
(middle trusses)
8
A
4A
Sidewall tube
(Front and rear left truss)
3
A
4B
Sidewall tube
(Front right truss)
1
A
5
Roof purlin
(horizontal tube)
45
A
5L
Baseplate for front and rear
truss left corners
2
B
5R
Baseplate for front and rear
truss right corners
2
B
6
Rear door left column baseplate
1
B
6A
Rear door right column
baseplate
1
B

W W W . T M G I N D U S T R I A L . C O M P 3 / 2 0 T o l l F r e e : 1 - 877- 7 6 1 - 2 8 1 9
6B
Rear door middle column
baseplate
1
B
6L
Left baseplate of front door
frame
1
B
6R
Right baseplate of front door
frame
1
B
7
Baseplates for middle truss
8
B
7A
Ratchets
40
B
7B
Expansion bolts φ16
62
B
8
Ceiling cross bar
(front truss)
1
B
9
Ceiling cross bar
(front truss)
1
B
9L
Front vertical door rail
(left side upper part)
1
B
9R
Front vertical door rail
(right side upper part)
1
B
9A
Side door left tube
1
B
9B
Side door right tube
1
B
9C
Side door
1
B
10
Door center vertical supporting
rod for cross beam (front truss)
1
B
10A
Lower vertical tubes for rear
trusses
3
B

W W W . T M G I N D U S T R I A L . C O M P 4 / 2 0 T o l l F r e e : 1 - 877- 7 6 1 - 2 8 1 9
10B
Left and right upper vertical
tubes for rear trusses
2
B
10C
Middle upper vertical tubes for
rear trusses
1
B
10L
Front vertical door rail
(left side lower part)
1
B
10R
Front vertical door rail
(right side lower part)
1
B
11
Door frame horizontal tube
(front truss)
3
B
11A
Door frame middle horizontal
tube (rear truss)
4
B
11B
Door frame horizontal tube
(rear truss)
4
B
11C
Side door upper tube
1
B
12
Left and right bottom tension
bar (front and rear truss)
3
B
12A
Middle bottom tension bar
(rear truss)
2
B
12B
Bottom tension bar
1
B

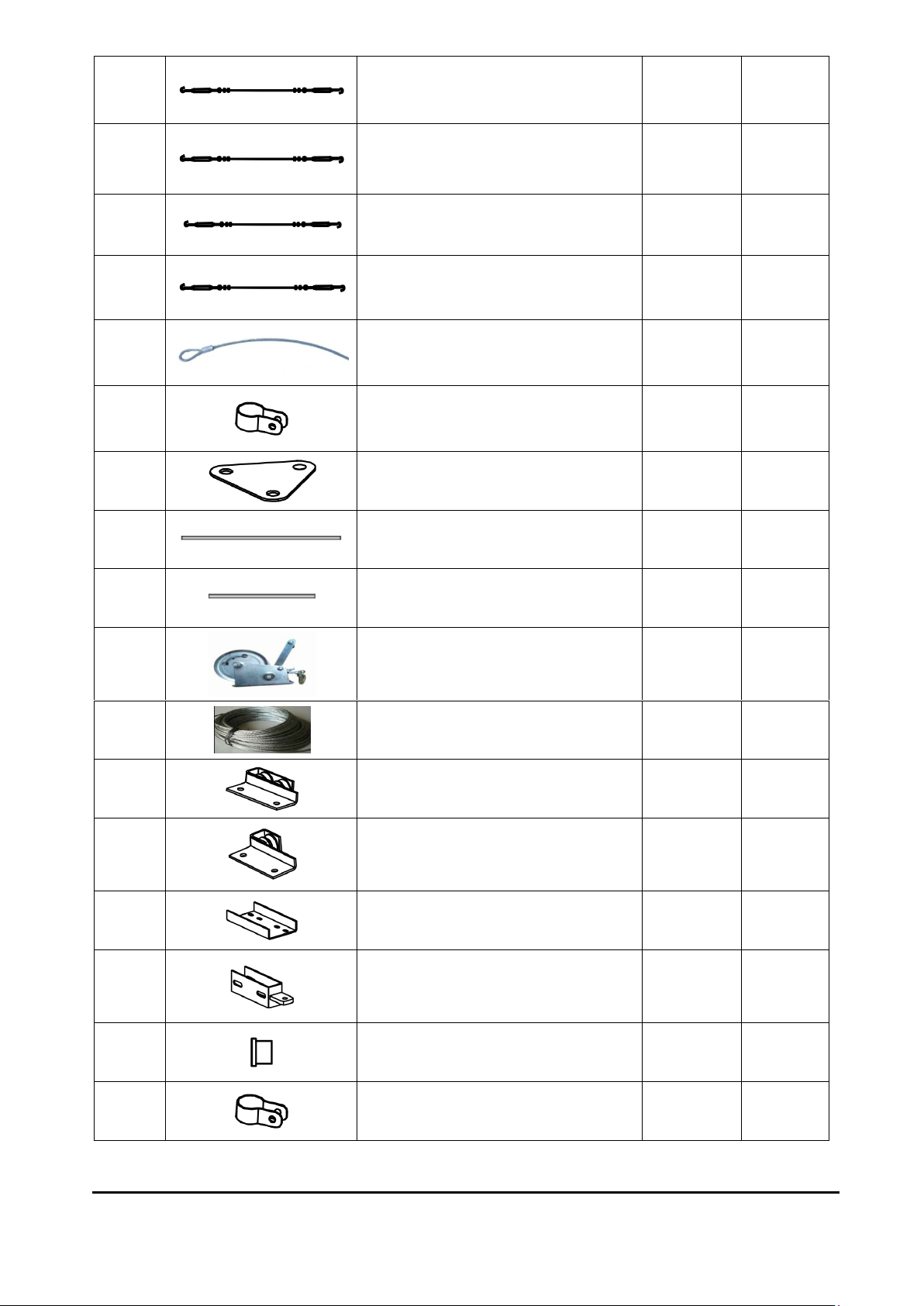

13
Front door hand winch crossing
tube
1
B
14
Top cover tension tube
(for both bottom sides)
2 groups
B
15
Front roll up door dropping
tubes (to connect #16)
7
B
16
Front roll up door dropping
tubes (to connect #15)
7
B

W W W . T M G I N D U S T R I A L . C O M P 5 / 2 0 T o l l F r e e : 1 - 877- 7 6 1 - 2 8 1 9
17
Sidewall frame steel tension
cables
14
B
18
Ridge steel tension cables
(front and rear trusses)
24
B
19
Middle truss crossing steel
tension cables
4
B
20
Front and rear truss left and
right steel cables
4
B
21
Tie down straps (for #7A and
front and rear arches)
40
B
21A
Tube clamps (φ25)
28
B
22
Cable connection plate
32
B
22A
Pressing plate
6
B
22B
Pressing plate
1
B
23
Roll up door hand winch
1
B
23A
Wire rope for front hand winch
1
B
23B
Right pulley system for front
door
1
B
23C
Left pulley system for front
door
1
B
24
Front vertical door rail
connection plate
2
B
24A
Front vertical door rail end
plate (floatable to keep door
rail straight)
2
B
25
Tension tube end water plug
16
B
26
Tube clamps (φ48)
6
B

W W W . T M G I N D U S T R I A L . C O M P 6 / 2 0 T o l l F r e e : 1 - 877- 7 6 1 - 2 8 1 9
27
Hex bolt
M10x30mm and nuts
28
B
28
Self locking bolt
M10x70mm and nuts
54
B
29
Strengthened bolt
M12x30mm and nuts
120
B
30
Hex bolt
M10x50mm and nuts
14
B
31
Hex bolt
M10x70mm and nuts
58
B
32
Braided rope
(tie to front and back doors)
1 bundle
B
33
Roof fabric tarp cover
1
B
34
Front truss cover panel
1
B
34A
Rear truss fabric cover panel
1
B
35
Front roll up door cover panel
1
B
36
Front fabric tarp secure pin
1
B
37
Plastic hose (in grooves at both
ends of #33)
10
B
37A
Connector
(for connection #37)
8
B
38
Scratch resistant tape
2
B
39
Tapping screw (#12x25mm)
60
B

W W W . T M G I N D U S T R I A L . C O M P 7 / 2 0 T o l l F r e e : 1 - 877- 7 6 1 - 2 8 1 9
Installation steps
Step 1 : Review the whole structure and choose the proper installation site
Choose a solid level ground area to set up the building. Do not install in an area
where the floor is soft, a wetland, can not take the weight, or keep the building steady.
We strongly recommend to install the building on a concrete foundation with all
expansion bolts to secure all baseplates. Do not use any anchor spikes!
Watch the surroundings! Do not set up the building near any snowdrifts. The fabric
cover can hold up a certain amount of falling leaves, light debris and wind resistance,
however, large, fast or sharp falling items and big wind might punch or tear the fabric
materials. Keep the building surroundings clear to avoid potential damages.
Be careful with power and heat sources. Do not keep heat sources near the cover. Do
not expose the building to open flame.
 Review the whole frame structure diagram as shown in Figure 1, decide the
roll up door position, and make sure you will have about 3 ft clearance around
the building.

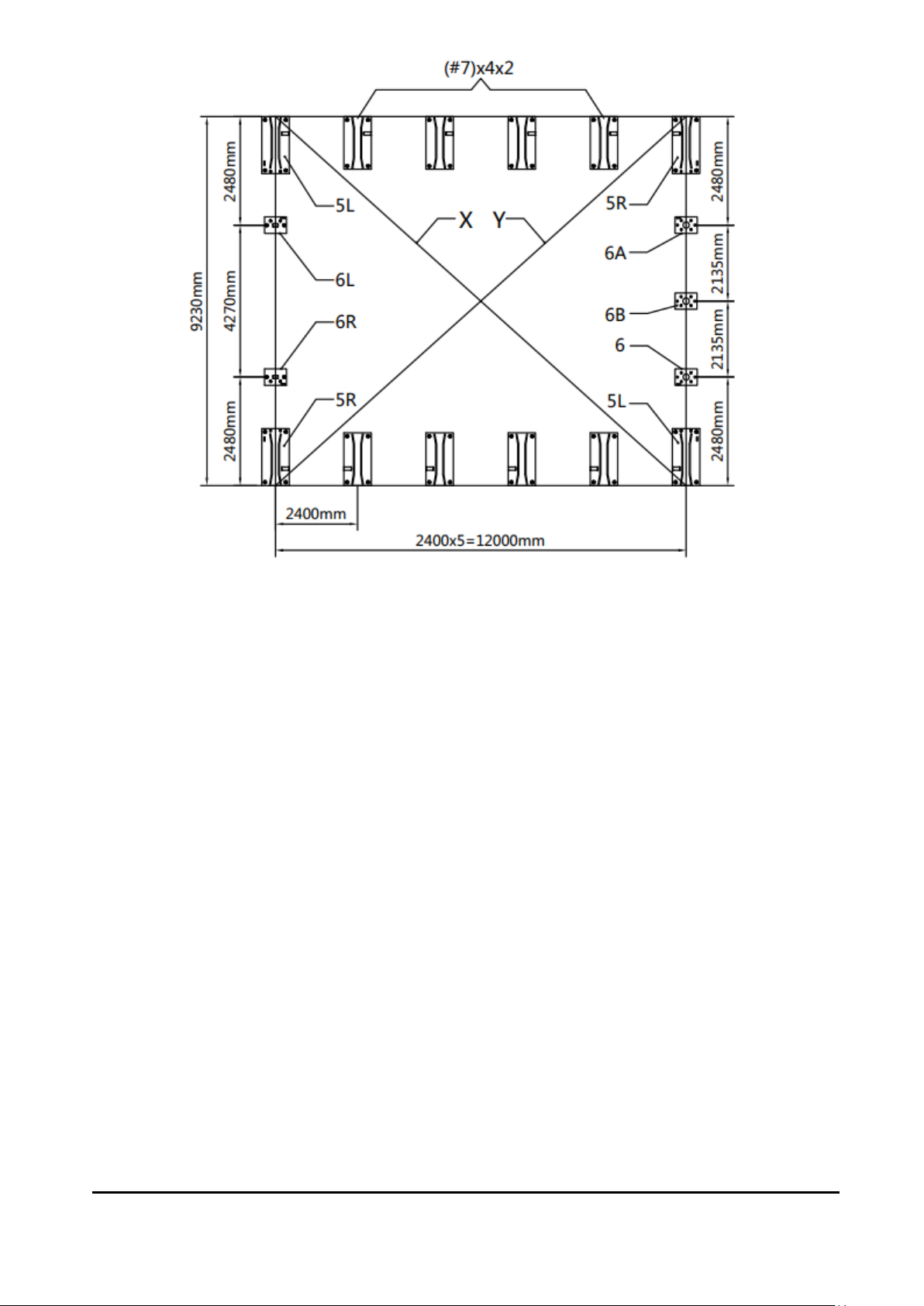

 Draw a rectangular square base line showing all positions of base plates and
front and rear doors. The diagonal X and Y must be equal. ( refer to figure1)
 Baseplates : all baseplates must be bolted firmly with expansion bolts (#7B).
It is concrete expansion bolt .
 Baseplate installation is as below and all baseplates are required to install and
tie firmed on this step. ( refer to figure 1)
- (4) Baseplates (#5L, #5R)
- (2) Baseplates (#6L, #6R)
- (1) Baseplates (#6)
- (1) Baseplates (#6A)
- (1) Baseplates (#6B)
- (8) Baseplates (#7)
- (58) Expansion bolts (#7B)

W W W . T M G I N D U S T R I A L . C O M P 8 / 2 0 T o l l F r e e : 1 - 877- 7 6 1 - 2 8 1 9
Figure 1
Step 2 : Assemble all trusses
The building includes 6 trusses : (1) front truss, (1) rear truss, and (4) middle
trusses. The front truss installed with the fabric panel (#34) and roll up door
(#35).
Parts used to install the front truss in this step. (refer to figure 2)
- (1) Peak arch tube (#1A)
- (2) Upper rafter tube (#2A)
- (2) Shoulder tube (#3A)
- (1) Sidewall tube (#4A)
- (1) Sidewall tube (#4B)
- (12) Strengthened bolt (#29)

W W W . T M G I N D U S T R I A L . C O M P 9 / 2 0 T o l l F r e e : 1 - 877- 7 6 1 - 2 8 1 9
Figure 2
Parts used to install the rear truss in this step. (refer to figure 3)
- (1) Peak arch tube (#1A)
- (2) Upper rafter tube (#2A)
- (2) Shoulder tube (#3A)
- (2) Sidewall tube (#4A)
- (12) Strengthened bolt (#29)
Figure 3
Parts used to install (4) middle trusses in this step. (refer to figure 4)
- (1x4) Peak arch tube (#1)
- (2x4) Upper rafter tube (#2)
- (2x4) Shoulder tube (#3)
- (2x4) Sidewall tube (#4)
- (12x4) Strengthened bolt (#29)

W W W . T M G I N D U S T R I A L . C O M P 10/ 2 0 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 4
Lay down all (6) trusses on the ground when the assembly is all completed and
before moving to next step, and then wrap (#38) around the sharp points of the
joint to avoid friction between the fabric and the interface, resulting in fabric
damage. (refer to figure 5)
- (2) Scratch resistant tape (#38)
Figure 5
Step 3 : Put up the front truss
Put up the front truss: use a crane is the best and safest way, otherwise pull with
ropes is another option, but you have to make sure it is safe, and you have enough
manpower. We recommend 4 to 6 people to pull the truss up from different
directions. When the truss is up, tie the ropes to the heavy objects to make sure the
truss will stay upright steady, and use bolt (#29) to connect the truss to the base
plate. (refer to figure 6)

W W W . T M G I N D U S T R I A L . C O M P 11 / 2 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Parts used in this step : (8) Strengthened bolt (#29)
Figure 6
Step 4 : Put up the rest trusses
Refer to step 3 to put up the rest trusses, connect all purlins (#5) with bolt
(#28) and secure all bolts firmly on each span before going to next truss.

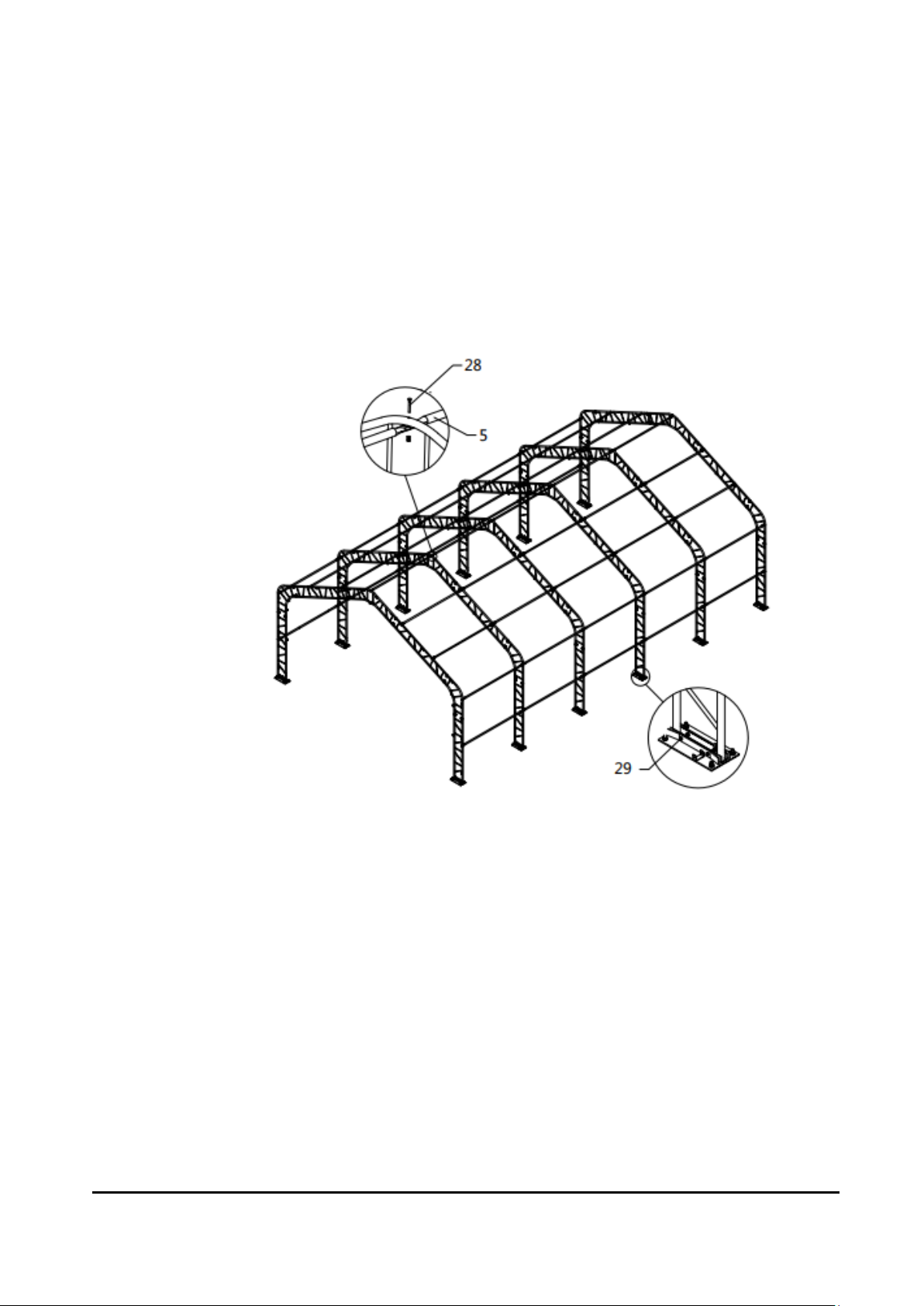

Parts used in this step. (refer to figure 7)
- (9) Roof purlin (#5)
- (18) Self locking bolt (#28)
- (8) Strengthened bolt (#29)

W W W . T M G I N D U S T R I A L . C O M P 12/ 2 0 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 7
Repeat above step to put up all other trusses (from 3rd to 6th truss), and connect
all purlins. Now the whole structure is completely up. (refer to figure 8)
Parts used in this step.
- (36) Roof purlin (#5)
- (36) Self locking bolt (#28)
- (32) Strengthened bolt (#29)
Figure 8

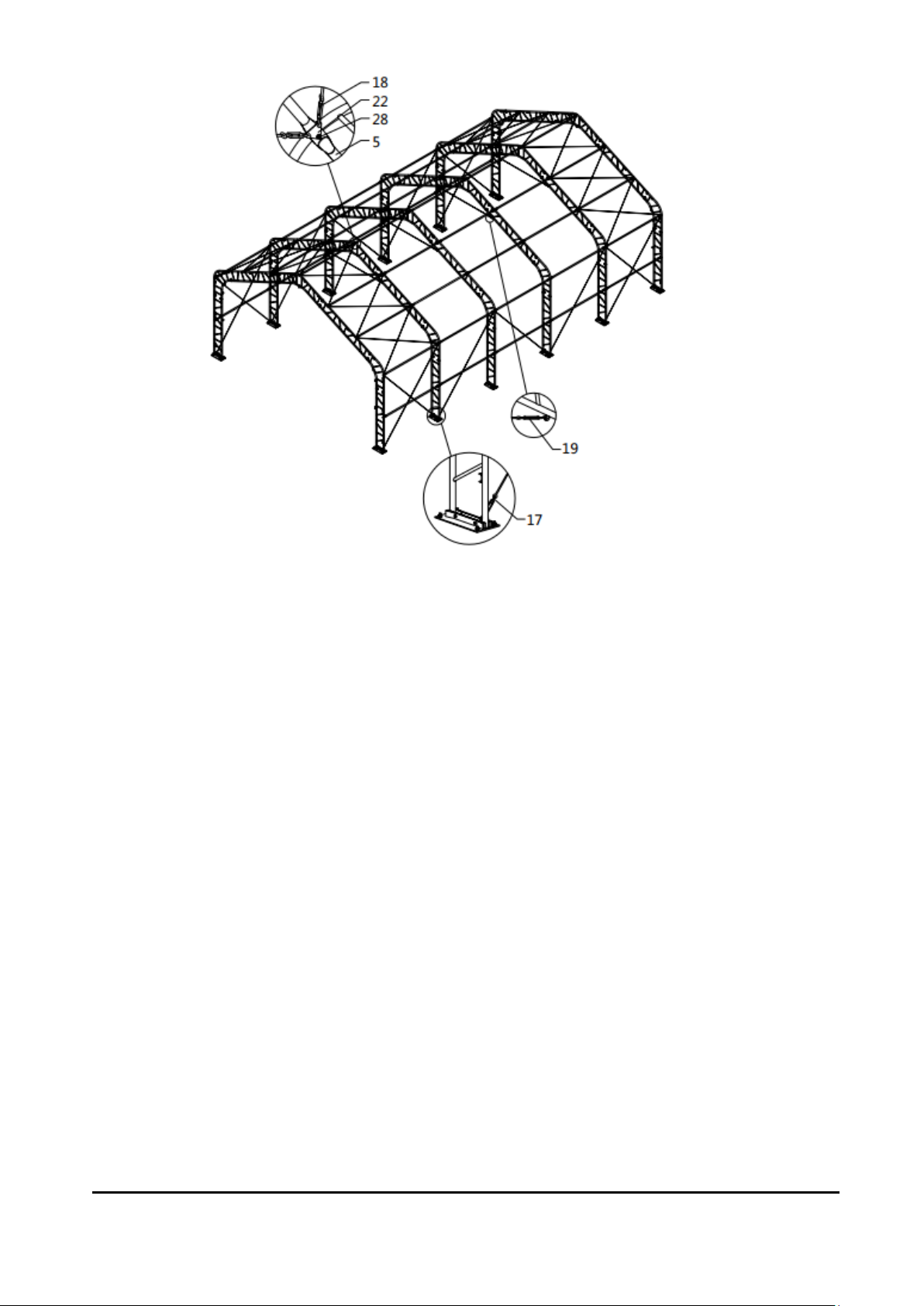

Tension cable installation . All cables are diagonally installed on each side
of the interval as figure 9.
Parts used in this step.
- (14) Sidewall frame steel tension cables (#17)
- (24) Ridge steel tension cables (#18)
- (4) Middle truss crossing steel tension cables (#19)
- (32) Cable connection plate (#22)

W W W . T M G I N D U S T R I A L . C O M P 13/ 2 0 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 9
The whole structure inspection : check all components and trusses to make
sure the whole structure is squared to the base line drawn at the step 1. All
trusses must be set up righted at 90 degree. All purlins must be straight inline.
If any purlins are not inline with they will need to be corrected before
moving to the next step.
Now it is the time to secure all bolts and nuts firmed on the structure. But do
not over-tight the bolts, otherwise the tubes might be damaged.
Step 5 : Front trusses to complete

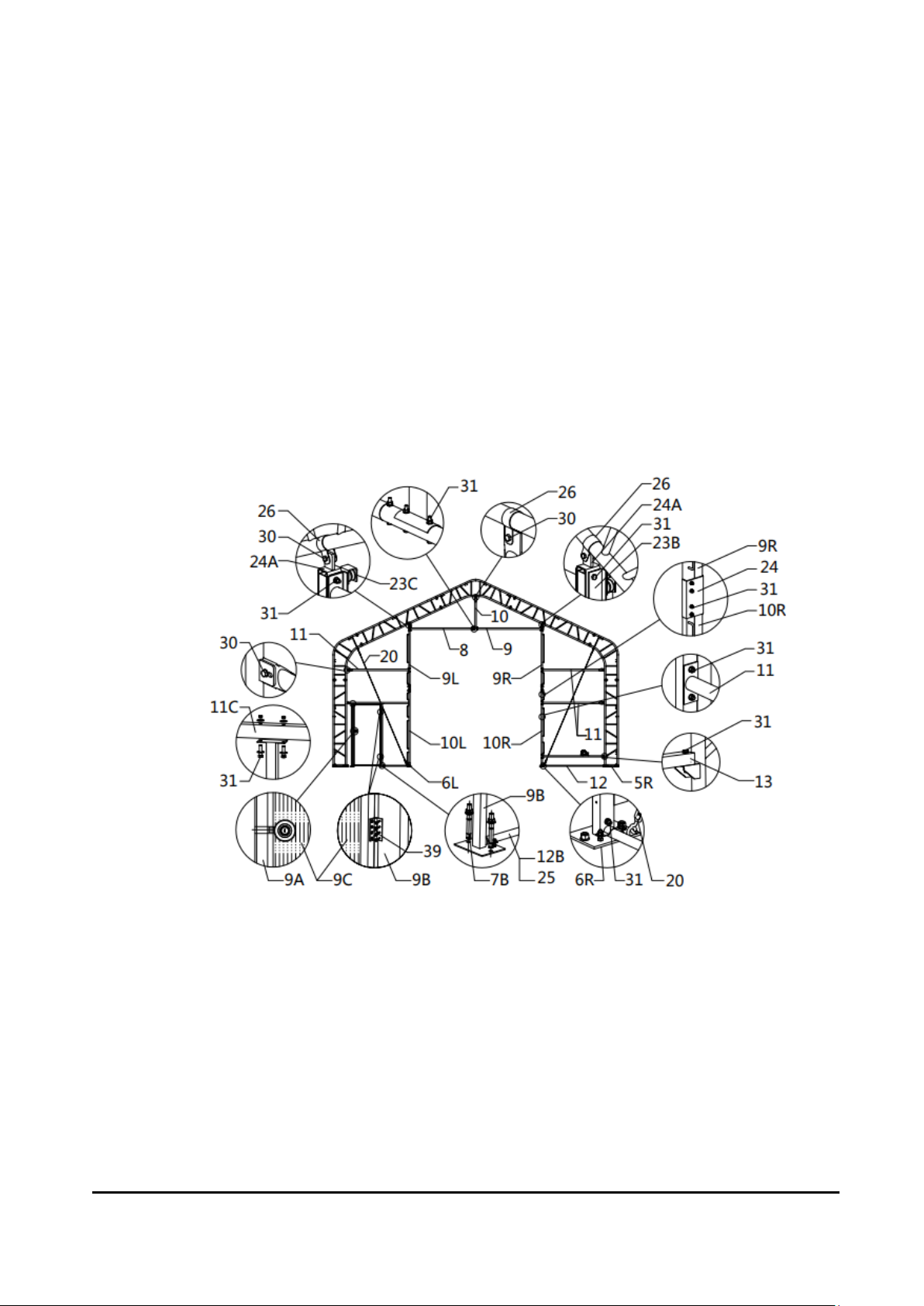

Parts used in this step. (refer to figure 10)
-(4) Expansion bolts (#7B)
-(1) Ceiling cross bar (#8)
-(1) Ceiling cross bar (#9)
-(1) Side door left tube (#9A)
-(1) Side door right tube (#9B)
-(1) Side door (#9C)
-(1) Front vertical door rail (#9L)
-(1) Front vertical door rail (#9R)
-(1) Front vertical door rail (#10L)

W W W . T M G I N D U S T R I A L . C O M P 14/ 2 0 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
-(1) Front vertical door rail (#10R)
-(1) Door center vertical supporting rod for cross beam (#10)
-(3) Door frame horizontal tube (#11)
-(1) Side door upper tube (#11C)
-(1) Bottom tension bar (#12)
-(1) Bottom tension bar (#12B)
-(1) Front door hand winch crossing tube (#13)
-(2) Front and rear truss left and right steel cables (#20)
-(1) Right pulley system for front door (#23B)
-(1) Left pulley system for front door (#23C)
-(2) Front vertical door rail connection plate (#24)
-(2) Front vertical door rail end plate (#24A)
-(4)Tension tube end water plug (#25)
-(3) Tube clamps (#26)
-(7) Hex bolt (#30)
-(32) Hex bolt (#31)
-(8) Tapping screw (#39)
Figure 10

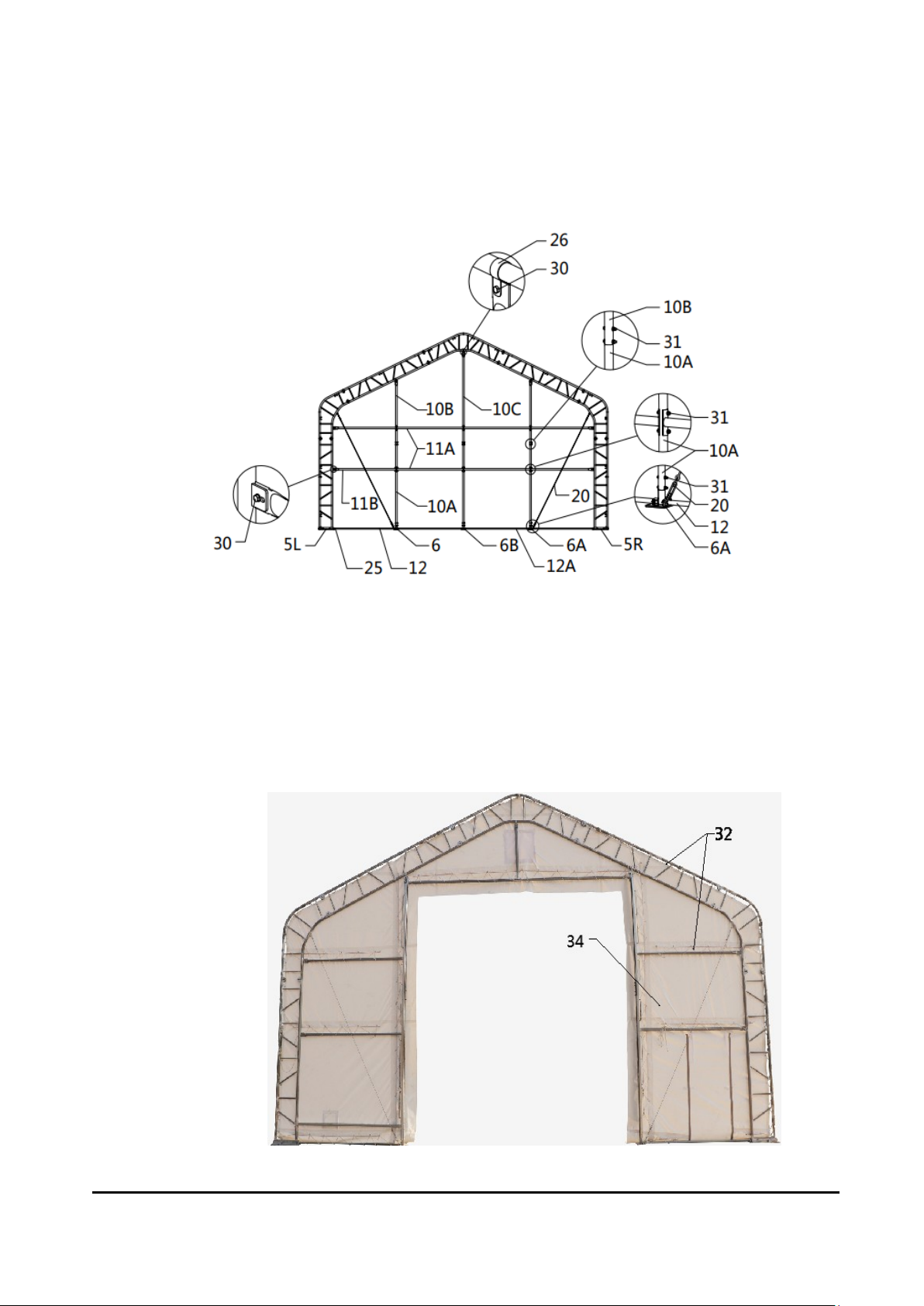

Step 6 : Install the remaining parts on the rear truss (figure 11)
Parts used in this step.
-(3) Lower vertical tubes for rear trusses (#10A)
-(2) Left and right upper vertical tubes for rear trusses (#10B)
-(1) Middle upper vertical tubes for rear trusses (#10C)
-(4) Door frame horizontal tube (#11B)
-(4) Door frame middle horizontal tube (#11A)

W W W . T M G I N D U S T R I A L . C O M P 15/ 2 0 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
-(2) Left and right bottom tension bar (#12)
-(2) Middle bottom tension bar (#12A)
-(2) Front and rear truss left and right steel cables (#20)
-(8)Tension tube end water plug (#25)
-(3) Tube clamps (#26)
-(7) Hex bolt (#30)
-(24) Hex bolt (#31)
Figure 11
Step 7 : Install front cover panels
Lift up (#34) cover panels, starting from the center point of the frame (highest
ridge point) use ropes (#32) through the grommets to tie the panel to the truss
firmly. All grommets need to be tied to the frame as shown in figure 12.
Figure 12

W W W . T M G I N D U S T R I A L . C O M P 16/ 2 0 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

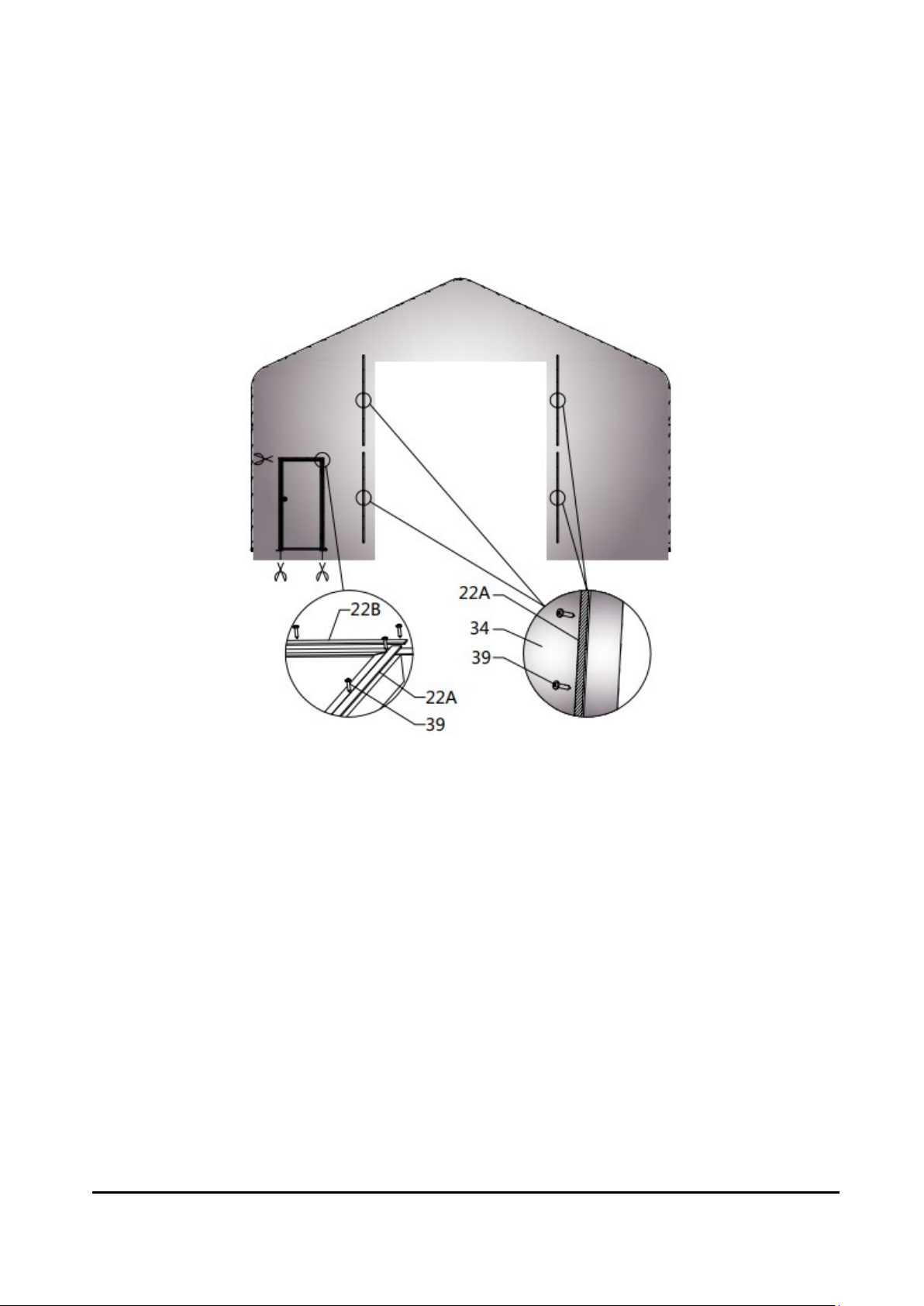

Install the front door pressing plate. Trim the side door tarp.(refer to
figure13)
- (6) Pressing plate (#22A)
- (1) Pressing plate (#22B)
- (52) Tapping screw (#39)
Figure 13
Step 8 : Install mechanical roll up door

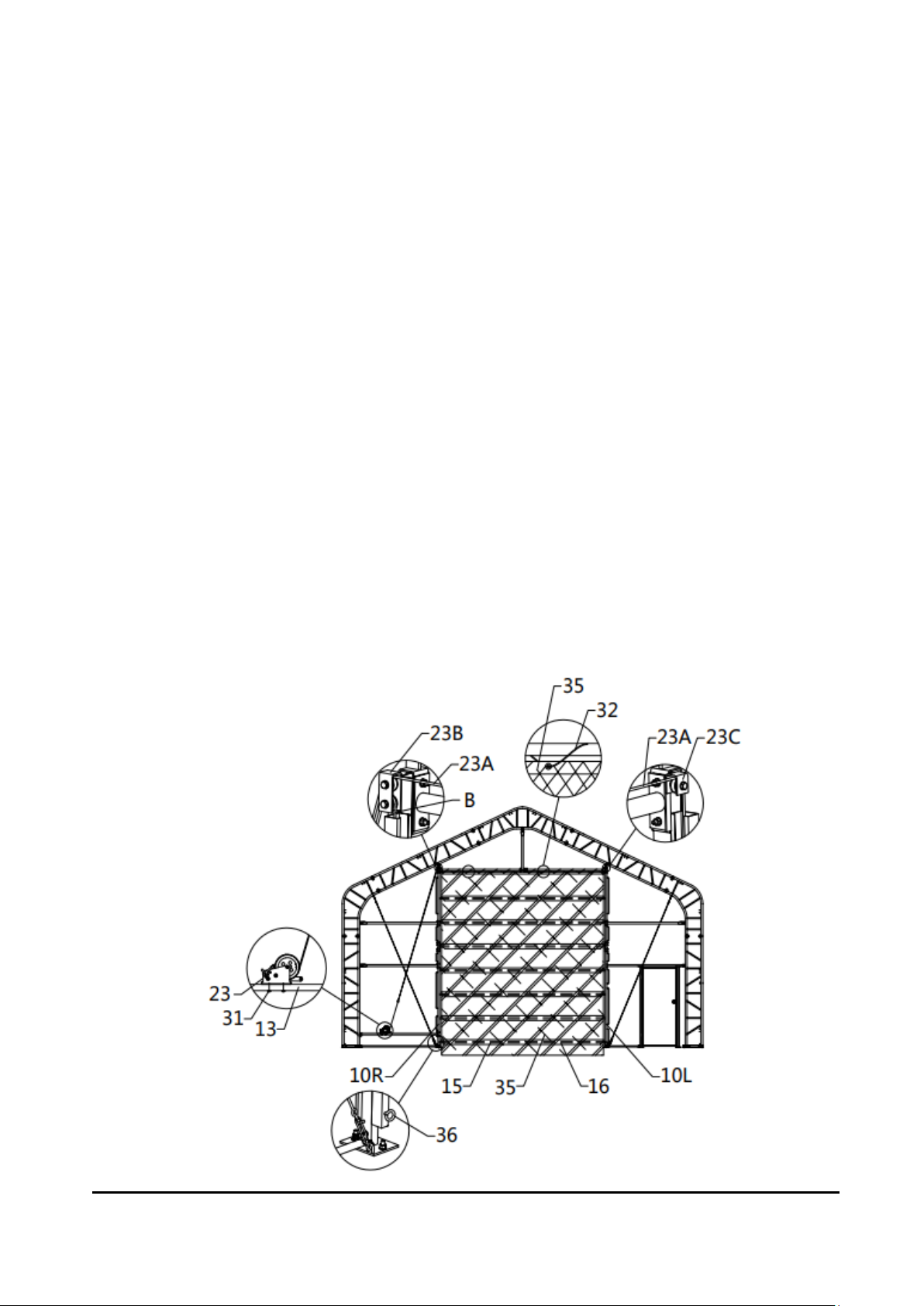

Front door installation - when you look at figure 14, please look at the
door from inside.
Components include: one hand winch (#23) and steel cables (#23A). The
hand winch comes with a shorter cable, we call it cable (#B).
Mount the hand winch on the lower beam (#13).
Slide the bottom dropping tube (#15,#16) into the bottom horizontal fabric
pocket on door cover (#35). Then slide the other six upper dropping tubes
(#15, #16) into other horizontal pockets.
From the bottom door rails (#10L,#10R), slowly put the first dropping tube
(#15, #16) into the rail, then put the others (#15, #16) into the door rails.

W W W . T M G I N D U S T R I A L . C O M P 17/ 2 0 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Pull cable (#B) from the winch to run through the lower roller of the dual
pulley (#23C), go straight down at the left side, reach to the left end of
dropping tube (#15). Tie the cable to the end hole.
Connect cable( #23A) to the winch and pull it to run through the upper
roller of the dual pulley (#23B), reach through the single pulley( #23C),
then go straight down to the right end of dropping tube (#16). Tie the cable
to the end hole.
Now the door can be opened or closed by operating the winch assembly.
Run the door up and down a few times to make sure all dropping tubes are
moving smooth. Use lubricant oil if needed.
Parts used in this step.
-(7) Front roll up door dropping tubes (#15)
-(7) Front roll up door dropping tubes (#16)
-(1) Roll up door hand winch (#23)
-(1) Wire rope for front and rear door hand winch (#23A)
-(2) Hex bolt (#31)
-(1) Braided rope (#32)
-(1) Front roll up door cover panel (#35)
-(1) Front fabric tarp secure pin (#36)

W W W . T M G I N D U S T R I A L . C O M P 18/ 2 0 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 14
Step 9 : Install rear cover panel

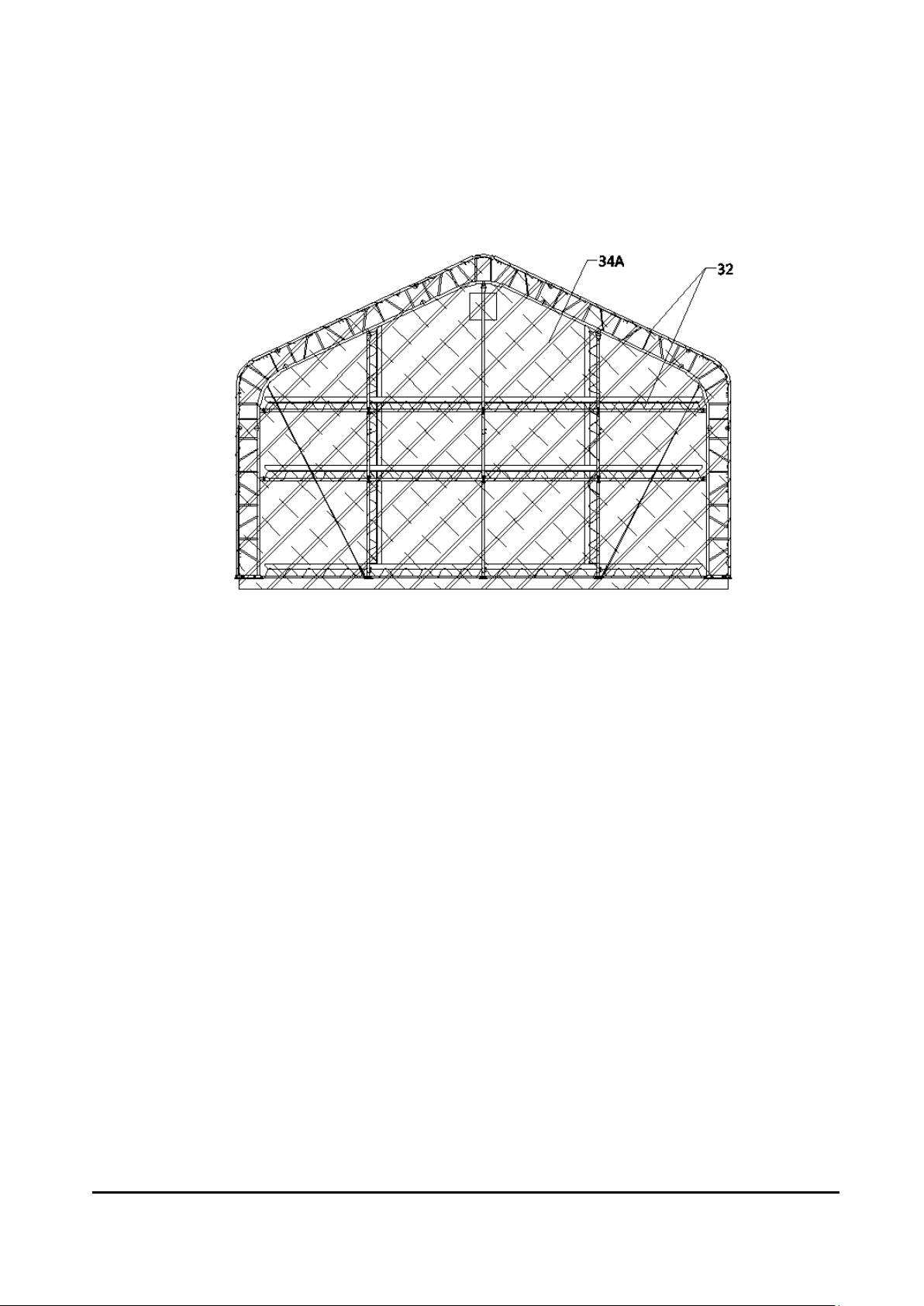

The door cover must be zipped. Use rope (#32) to lift up the rear cover (#34A)
from the center grommet and tie it firmly to the truss tube and spread toward
both sides through each grommet along the tube. (refer to figure 15)
Figure 15
Step 10 : Install roof cover (#33)
NOTE : The cover must be installed on a windless day. DO NOT attempt to
install the cover during windy conditions.

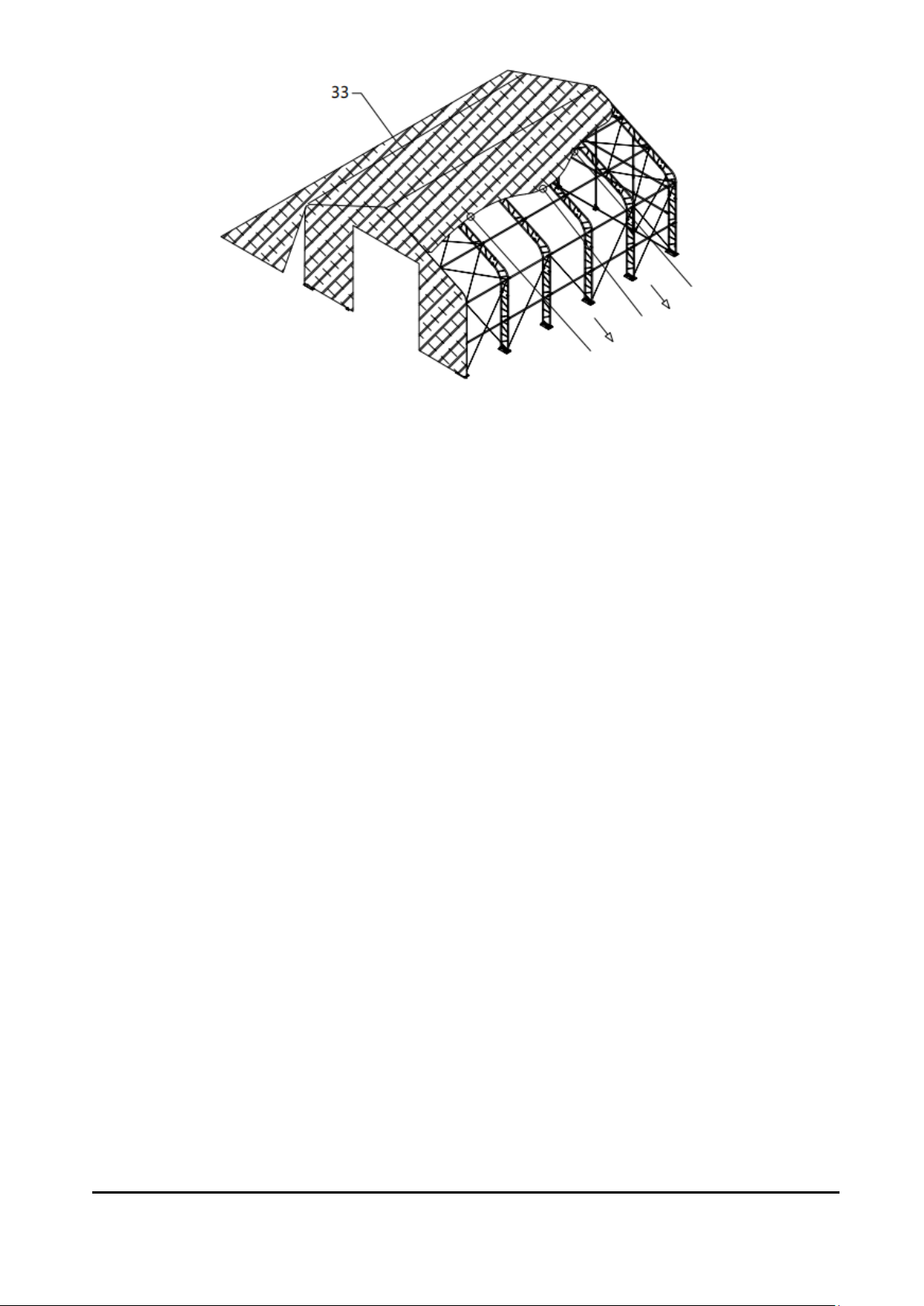

As shown on figure 16, when you are ready to install the roof cover, unpack
the cover and position it parallel to the building frame on one side.
The cover must be pulled over the top of the truss frame without being
snagged or stressed on any frame members.
Use multiple ropes over the top of the frame as shown in figure16.Having a
couple of people inside of the structure with a ladder to assist to push
upwards would help the cover to be pulled over smoothly without any
damage.

W W W . T M G I N D U S T R I A L . C O M P 19/ 2 0 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 16
Step 11 : Tension the cover on the frame from side to side (figure 17)
After the cover is installed on the roof, insert the plastic pipe (#37) slowly
into the grooves on two ends of the cover (not two sides), and then insert
tension tubes (#14) in the groove on both sides of the cover bottom, Add the
water plug (#25) on the 1st tube (#14) to protect the fabric while the tube is
going through and add the water plug on the last tube also to keep water
away.
Stretch and adjust the cover from left and right, back and forth, to make sure
it is square and centered. Cut the grooves from inner side facing to the ratchet
hardware( #7A), and add tie down straps (#21) to pull the tension tube and tie
the strap to the base.
Evenly adjust the ratchets on both sides of the cover to take wrinkles out and
make the cover flat and smooth. Do not fully tie the cover yet. Leave
adequate strap so that the cover can also be adjusted front to back in next
step.
Parts used in this step.
-(40) Ratchets (#7A)
-(2) Top cover tension tube (#14)
-(40) Tie down straps (#21)
-(28) Tube clamps (#21A)
-(4) Tension tube end water plug (#25)
-(28) Hex bolt (#27)
-(10) Plastic hose (#37)
-(8) Connector (#37A)
