TONOR TW620 User manual

Instruction Manual
UHF Wireless Microphone
TW620
TW630
TW820

Thank you for purchasing TONOR wireless
microphone. This manual is intended to help
you understand all about this microphone and
how to use it. TONOR always strives for the
ultimate user experience. All our knowledge
and passion for audio technology are incorpo-
rated into building microphones with high
performance for you. The TONOR microphone
is high quality and easy to use to achieve the
best user experience.
Enjoy your microphone!
TONOR Team
ABOUT THIS MANUAL

CATALOGUE
English
Deutsch
Español
01~11
12~22
23~33
34~44
45~55
Français
Italiano

TW620
TW630
Package Including
English
01

TW820
02
or or

When using this device, keep it away from water.
Use the device in ventilated environment, keep it away from
fire.
Since it's a wireless device, please keep it away from other
interfering sources.
Don't take apart the device.
Please use the standard power supply, high voltage may
damage the device.
Please place the used batteries into the recycle bin, don't litter
them.
Frequency Response: 50Hz-15Khz
Operating Frequency (US): 902.8-926.8MHz
Operating Frequency (UK/EU): 823-831MHz
Operating Range: Up to 60m
Frequency Stability: ±0.0005 MHz
SNR: 96dB
Sound Distortion: ≤0.5%
Mic Input Sensitivity: -51dBV
RF Sensitivity: -95dBm
Operating Temperature: 0˚C to +55˚C
OPERATING ENVIRONMENTS & NOTES
SPECIFICATIONS
03

Install 2*AA batteries before
using the wireless
microphone and installing
instruction is as follows:
1. Take down the tail tube of
mic.
2. Install the batteries and
tighten tail tube of mic.
Note: The positive and
negative polarity of battery
cannot be reversed.
As shown in above pictures:
1. Display Screen
2. On/Off Switch
3. Tail Tube
4. HI-LO Button
5. Battery Compartment
MICROPHONE OPERATION INSTRUCTION
1
2
354
04

Instruction:
1. Press button 2 for 2s to turn it on/off.
2. Press the HI-LO button 4, then the frequency on the screen wilI
be changed.
1
2
05
4

LIGHT INSTRUCTION:
Battery indicator 4
Red light when shutdown charging: The receiver is in charging
model.
Light off when shutdown charging: The receiver is fully charged.
Green light: The receiver is turn on.
Yellow light when turn on charging: The receiver is in charging
model. The light turns green when the receiver is fully charged.
RF light 5
Turns off: The receiver is not connected to the microphone.
Stays on: The receiver and microphone are successfully connected.
Flashes quickly: The receiver and microphone are successfully
connected, and the microphone is transmitting audio signals.
Flashes slowly: The power of the receiver is in a low battery status.
1. USB-C CHARGING PORT
2. POWER BUTTON (long press for 2 seconds to tum it on/off)
3. SIGNAL ANTENNA
4. BATTERY INDICATOR
5. RF LIGHT
RECEIVER INSTRUCTION FOR TW620 AND TW630
06
2
13
4 5

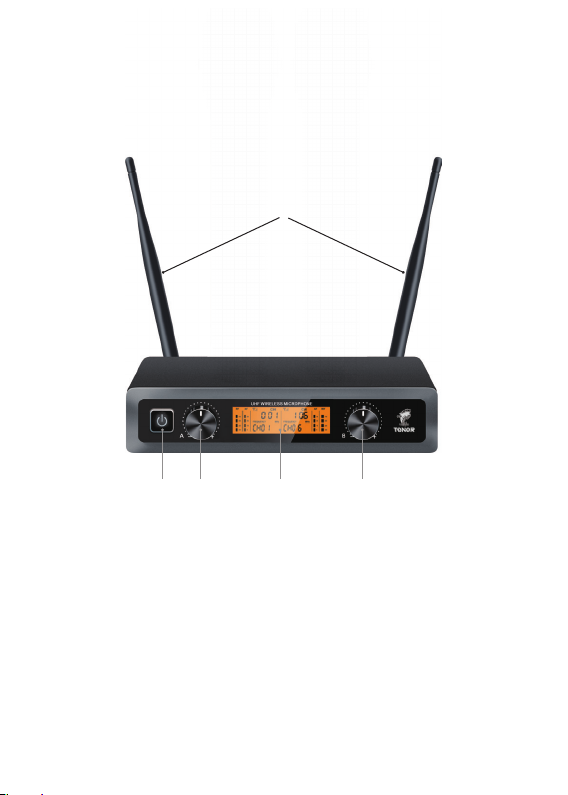

1. Receiving antenna
2. Power switch (long press for 2s to tum it on/off)
3. Volume adjusting button for microphone A
4. LCD display screen
5. Volume adjusting button for microphone B
07
1
23 4 5
RECEIVER INSTRUCTION FOR TW820

Before using the device, take out the wireless receiver from the
package, and connect the following cables: firstly use the 6.35
audio cable to connect the receivers MIX's port and other audio
devices (speaker, amplifier, mixer, etc,). Secondly, erect the
antenna, and connect the power cable. Thirdly, check if
microphone is connected to the receiver successfully after turning
on the device.
As shown in above pictures:
1. ANT B
2. BAL B
3. MIX
4. DC IN
5. BAL A
6. ANT A
08
1 2 3 4 5 6

When the receiver is connected to power supply successfully, but
the batteries of microphone are not installed, LCD screen will
display as following pictures:
As shown in above pictures:
1. Signal levels of mic A
2. Volume levels of mic A
3. Signal receiving of mic A
4. Current channel of mic A
5. Current frequency of mic A
6. Signal levels of mic B
7. Volume levels of mic B
8. Current channel of mic B
9. Signal receiving of mic B
10. Current frequency of mic B
09
RECEIVER DISPLAY SHOWS FOR TW820
1234
510
9 8 76

No sound for TW620 (The batteries of microphone have already
been installed, but the RF light(green)still flash slowly.)
Wireless Microphone ID Pairing Steps:
1. Make sure that the receiver and microphone are turned OFF.
2. Unscrew the microphone tail tube and install the batteries into
the mic's battery compartment.
3. Make sure that the microphone is OFF, press and hold the HI/LO
button 4 and the power button 2 simultaneously, do not release
them, until the microphone screen flashes quickly, then release two
buttons simultaneously.
4. Turn on the receiver's power button, wait for 5 seconds or so,
then press the HI/LO button 4 (on the microphone) once, until the
microphone screen becomes steady and no longer flashes, the RF
light on the receiver turns steady, indicating that the pairing is
successful.
5. Tum off the microphone, then tighten the microphone tail tube.
Pairing is now completed.
TROUBLESHOOTING

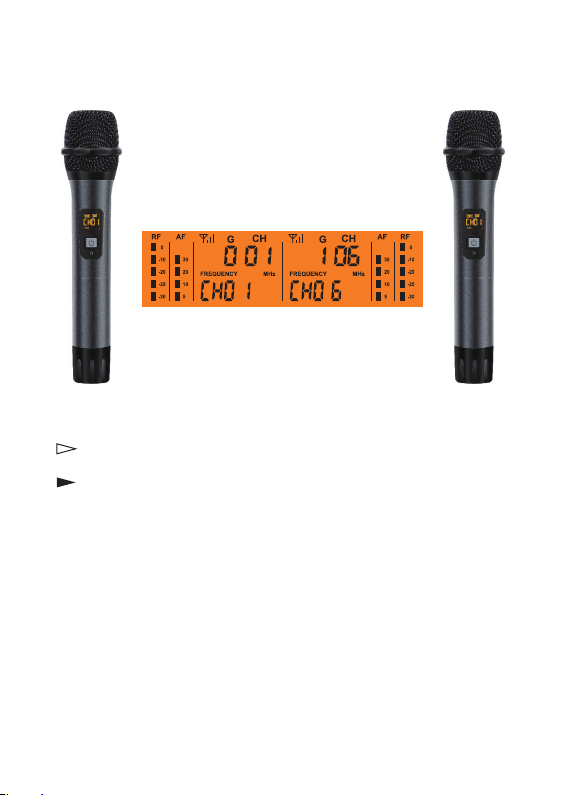

When the receiver is connected to power supply successfully, and
the batteries of microphone are also installed, LCD screen will
display as following pictures:
10

No sound for TW630 (The batteries of microphone have already
been installed, but one of the microphone has on sound.)
Please turn off the microphone which can work normally, then
you will find that the RF light on the receiver will not stay on but
flashes slowly.
Then, please follow the steps below to pair the microphone (no
sound) with the receiver.
Wireless Microphone ID Pairing Steps:
1. Make sure that the receiver and microphone are turned OFF.
2. Unscrew the microphone tail tube and install the batteries into
the mic's battery compartment.
3. Make sure that the microphone is OFF, press and hold the HI/LO
button 4 and the power button 2 simultaneously, do not release
them, until the microphone screen flashes quickly, then release two
buttons simultaneously.
4. Turn on the receiver's power button, wait for 5 seconds or so,
then press the HI/LO button 4 (on the microphone) once, until the
microphone screen becomes steady and no longer flashes, the RF
light on the receiver turns steady, indicating that the pairing is
successful.
5. Tum off the microphone, then tighten the microphone tail tube.
Pairing is now completed.
Received signal with noise or interference
Change to other channels;
Check if receiving distance exceeds the maximum range.
Microphone cannot be tumed on
Check if batteries are installed reversely;
Change to new batteries.
TONOR provides 2 years of after-sales service, free replacement to
products that are NOT damaged resulting from accident,
alteration, misuse, negligence, or abuse. If exceeding 30 days of
Amazon return policy, you can still contact us through our Shopify
TONORMIC. We will serve you with full sincerity!
WARRANTY
11

Deutsch
12
TW620
TW630
Lieferumfang

13
TW820
or or

14
Halten Sie das Gerät von Wasser fern, wenn Sie es benutzen.
Verwenden Sie das Gerät in einer gut belüfteten Umgebung
und halten Sie es von Feuer fern.
Halten Sie das Gerät bitte von anderen Störquellen fern, da es
sich um ein drahtloses Gerät handelt.
Bauen Sie das Gerät nicht auseinander.
Verwenden Sie ein Standard-Netzteil, eine hohe Spannung
kann das Gerät beschädigen.
Bitte werfen Sie die verbrauchten Batterien nicht in den Müll,
sondern in den Recycling-Behälter.
Frequenzbereich: 50 Hz-15 Khz
Betriebsfrequenz (USA): 902,8–926,8 MHz
Betriebsfrequenz (UK/EU): 823–831 MHz
Betriebsreichweite: Bis zu 60 m
Frequenzstabilität: ±0.0005 MHz
SNR: 96 dB
Klangverzerrung: ≤0,5 %
Empfindlichkeit des Mikrofoneingangs: -51 dBV
RF-Empfindlichkeit: -95 dBm
Betriebstemperatur: 0˚C to +55˚C
BETRIEBSUMGEBUNG & HINWEISE
TECHNISCHE DATEN

15
Legen Sie vor Gebrauch des
drahtlosen Mikrofos 2x
AA-Batterien ein und gehen
Sie wie folgt vor:
1. Nehmen Sie das Endstück
des Mikrofons ab.
2. Legen Sie die Batterien ein
und schrauben Sie das
Endstück des Mikrofons fest.
Hinweis: Verwechseln Sie
nicht die positive und
negative Polarität der
Batterie.
Wie in den obigen Bildern gezeigt:
1. Display
2. Ein/Aus Taste
3. Endstück
4. +/- Taste
5. Batteriefach
GEBRAUCHSANWEISUNG FÜR DAS MIKROFON
1
2
354

16
Anleitung:
1. Drücken Sie die Taste 2 für 2 Sekunden, um das Gerät
ein-/auszuschalten.
2. Drücken Sie die Taste +/- 4, um die Frequenz auf dem Bildschirm
zu ändern.
1
2
4

17
LICHTANZEIGE:
Batterieanzeige 4
Rotes Licht beim Herunterfahren des Ladevorgangs: Der
Empfänger befindet sich im Lademodell.
Licht aus beim Herunterfahren des Ladevorgangs: Der Empfänger
ist vollständig aufgeladen.
Grünes Licht: Der Empfänger ist eingeschaltet.
Gelbes Licht beim Einschalten des Ladevorgangs: Der Empfänger
befindet sich im Lademodus. Das Licht leuchtet grün, wenn der
Empfänger vollständig aufgeladen ist.
RF-Licht 5
Schaltet aus: Der Empfänger ist nicht mit dem Mikrofon verbunden.
Lichtanzeige an: Der Empfänger und das Mikrofon sind erfolgreich
verbunden.
Blinkt schnell: Der Empfänger und das Mikrofon sind erfolgreich
verbunden und das Mikrofon überträgt Audiosignale.
Blinkt langsam: Die Stromversorgung des Empfängers ist in einem
niedrigen Batteriestatus.
EMPFÄNGER-ANLEITUNG FÜR TW620 UND TW630
1. USB-C LADEANSCHLUSS
2. EIN-/AUS TASTE (2 Sekunden lang gedrückt halten, um es ein-/auszuschalten)
3. SIGNALANTENNE
4. BATTERIEANZEIGE
5. RF-LICHTT
2
13
4 5
