4ECM-88/88B Series
3. Spare Parts
3-1. Notes on Repair Parts
1. Safety Related Components Warning
w
Components marked !are critical to safe operation.
Therefore, specified parts should be used in the case of
replacement.
2. Standardization of Parts
Some repair parts supplied by Sony differ from those
used for the unit. These are because of parts common-
ality and improvement.
Parts list has the present standardized repair parts.
3. Stock of Parts
Parts marked with “o” at SP (Supply Code) column of
the spare parts list may not be stocked. Therefore, the
delivery date will be delayed.
4. Harness
Harnesses with no part number are not registered as
spare parts.
In need of repair, get components shown in the list and
repair using them.
3-1.

5
ECM-88/88B Series
1
2
1
2
4
5
3
3-2. Exploded Views and Parts List
3-2-1. ECM-88/88B/88BC
No. Part No. SP Description
1 A-8345-890-A s CAPSULE ASSY (ECM-88)
A-1093-039-A s CAPSULE ASSY (ECM-88B/ECM-88BC)
2 A-8345-891-A s CASE ASSY, AMPLIFIER (ECM-88)
A-1093-064-A s CASE ASSY, AMPLIFIER (ECM-88B)
A-1093-040-A s CASE ASSY, AMPLIFIER (ECM-88BC)
3 1-560-155-41 s CONNECTOR (PLUG)
4 2-523-605-11 s BUSHING, MICROPHONE
5 2-523-606-00 s CLAMP, CORD
No. Part No. SP Description
1 A-8345-890-A s CAPSULE ASSY (ECM-88PT)
A-1093-039-A s CAPSULE ASSY (ECM-88BPT)
A-8347-162-A s CAPSULE ASSY (ECM-88FPT)
2 A-8345-891-A s CASE ASSY, AMPLIFIER (ECM-88PT)
A-1093-064-A s CASE ASSY, AMPLIFIER (ECM-88BPT)
A-8347-163-A s CASE ASSY, AMPLIFIER (ECM-88FPT)
3-2-2. ECM-88PT/88BPT/88FPT

6ECM-88/88B Series
Wind screen assy
Needle holder assy
Clip holder assy

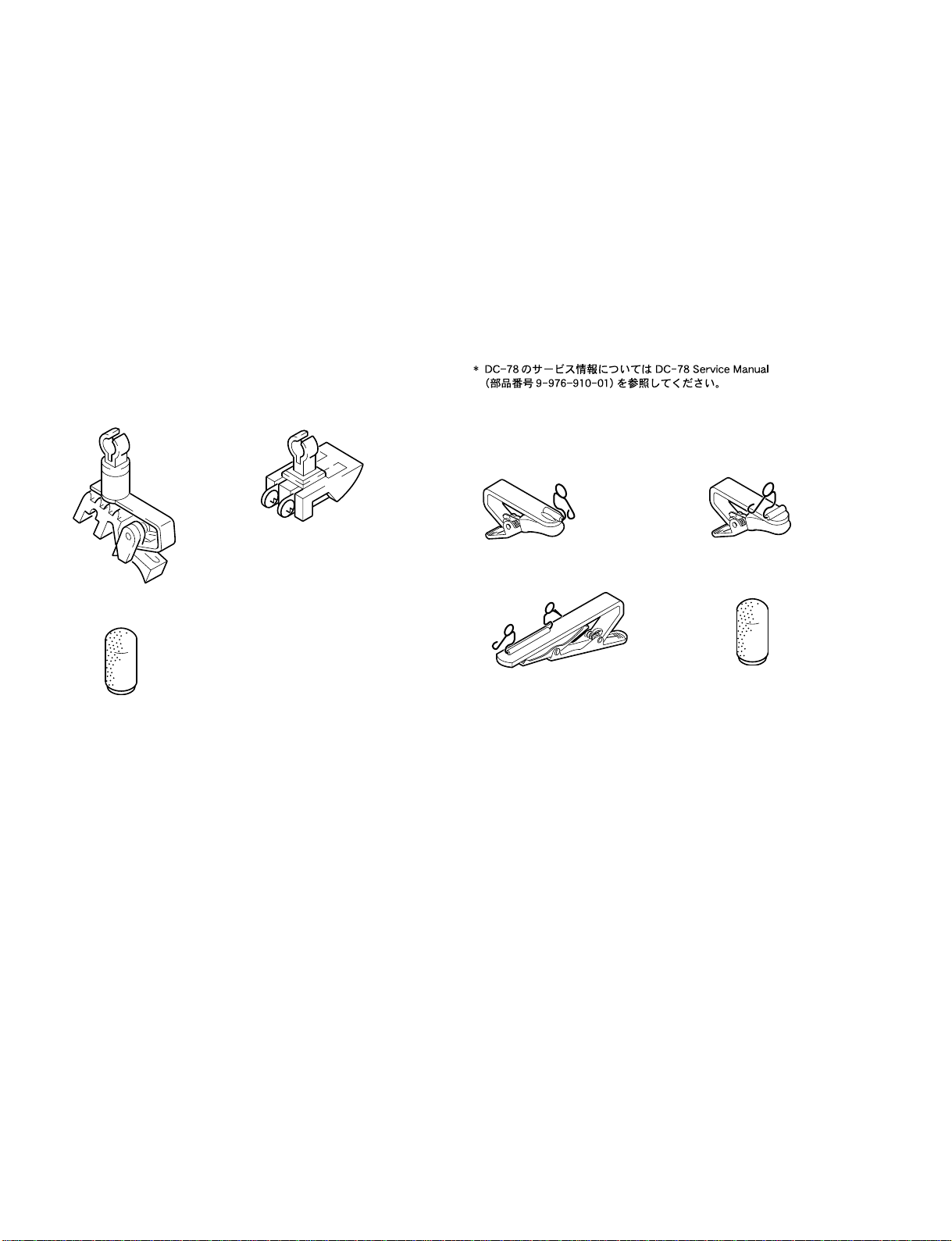

3-3. Supplied Accessories
3-3-1. ECM-88/88PT/88FPT
1. ECM-88/88PT
No. Part No. SP Description
1pc X-3168-437-2 s HOLDER ASSY, CLIP
1pc X-3168-438-1 s HOLDER ASSY, NEEDLE
1pc X-3168-439-2 s SCREEN ASSY, WIND
1pc X-3168-441-1 s CASE ASSY (ECM-88 only)
1pc 1-500-051-11 s BEAD, FERRITE (WITH CASE)
1pc 3-704-902-02 s OPERATING INSTRUCTIONS
2. ECM-88FPT
No. Part No. SP Description
1pc 1-500-051-11 s BEAD, FERRITE (WITH CASE)
1pc 3-704-902-02 s OPERATING INSTRUCTIONS
3-3-2. ECM-88B/ECM-88BC/ECM-88BPT
No. Part No. SP Description
1pc X-3168-439-2 s SCREEN ASSY, WIND
1pc X-3698-535-1 s CLIP ASSY, HORIZONTAL
1pc X-3698-536-1 s CLIP ASSY, VERTICAL
1pc X-3698-537-1 s CLIP ASSY, DOUBLE (ECM-88B only)
1pc X-3698-538-1 s CASE ASSY (ECM-88B only)
1pc 1-500-051-11 s BEAD, FERRITE (WITH CASE)
1pc 3-863-708-01 s OPERATING INSTRUCTIONS
1pc - DC-78
*
(ECM-88B only)
Double clip assy (ECM-88B only)
Wind screen assy
Vertical clip assy
Horizontal clip assy
*For the DC-78 service information, refer to the DC-78 Service Manual
(parts number: 9-976-910-01).

Printed in Japan
2004. 11 08
Sony Corporation ©2002
ECM-88 (SY)
ECM-88PT (SY)
ECM-88FPT (SY)
ECM-88B (SY)
ECM-88BC (SY)
ECM-88BPT (SY) J, E
9-976-909-03
