Fame Audio USB Vocal Kit User manual

ENGLISH
Important safety instructions! Please read before connection!
DANGER! (Electric shock due to high voltages in the device)
The housing must not be removed! There are no parts to be maintained in the device.
Inside the unit there are components which are under high electrical voltage.
Before each use, check the device for damage or the absence of components, protective
devices or housing parts. If this is the case, do not use the device!
Leave maintenance and repair work to a qualified service workshop or contact your
dealer.
DANGER! (Electric shock due to short circuit)
Modifications to the power cord or plug are prohibited. If the power cord is damaged, it
must be replaced immediately with an original spare part from the manufacturer. Failure
to do so may result in fire or death due to electric shock!
DANGER! (For babies and children)
Dispose of or store any packaging material properly! Packaging material must be kept out
of the reach of babies and children due to the danger of suffocation.
Make sure that children never use the device unattended! In addition, make sure that
children do not remove (small) parts from the device, as they could suffocate by
swallowing parts!
Hint! (Fire hazard due to overheating)
The maximum permissible ambient temperature of this device is 40°C.
Ensure that the unit is placed in a place with adequate ventilation, out of the reach of
direct heat sources, naked flames and combustible materials and liquids.
The ventilation slots of the device must not be taped or covered.
Hint! (Operating conditions)
Due to its structural characteristics, the device is designed for indoor operation (IP20).
Never expose the device to rain, moisture or liquids as this may cause damage.
Vibrations, dust or solar radiation can also lead to damage, avoid them!
Hint! (Condensation)
To avoid condensation in the unit, the unit should adapt to the ambient temperature
before commissioning.

ENGLISH
Hint! (Power supply)
This microphone contains an integrated USB audio interface, as well as the necessary
microphone amplification. This makes it completely "self-powered" and no cumbersome
handling of power supplies etc. necessary.
Can also be used immediately in mobile operation.
Hint! (Unwanted odours)
A new product can sometimes lead to unwanted odours. This reaction is normal and
disappears after a few minutes.
Symbols on device and packaging:
The lightning flash symbol warns the user about non-insulated current and the
risk of electrocution.
The exclamation mark symbol warns the user about important maintenance and
operating instructions in the manual.
Intended for indoor use.
Read manual.

ENGLISH
Congratulations on your new FAME Audio USB Vocal Kit!
Thank you for choosing a FAME Audio product. Thanks to efficient development and economical
production, FAME Audio makes high-quality products at a fantastic price possible.
Please read the operating instructions carefully to be informed of all functions of this product and
keep them for future reference.
Have fun with your new product!
Your FAME Audio Team
Guarantee:
The current general terms and conditions and guarantee
conditions of Music Store professional GmbH apply.
Can be viewed under: www.musicstore.de
If you have any questions or suggestions,
please contact us:
MUSIC STORE professional GmbH
Istanbulstr. 22-26
51103 Cologne
Managing Director: Michael Sauer
WEEE-Reg.-No. DE 41617453
Tel: +49 221 8884-0
Fax: +49 221 8884-2500
info@musicstore.de
Intended use:
The FAME Audio USB Vocal Kit has a USB port and can therefore be connected to your Mac or
PC. It is a high-quality microphone with an integrated audio interface, so no additional interface is
required. Due to its technical and sound characteristics, the microphone is ideal for film dubbing,
voice-over, multimedia applications and home studio music productions. The driver architecture is
already integrated in Windows and OSX operating systems and no further installation is required.
The device may only be operated for this purpose and in accordance with the operating
instructions. Other purposes as well as operation under other operating conditions are expressly
not intended and can lead to damage to property or personal injury! No liability is assumed for
damage resulting from improper use.
It must be ensured that the device is operated exclusively by trained and competent users who are
in full possession of their mental, physical and sensory abilities. The use of other persons is
expressly only permitted at the request of a person responsible for their safety, who instructs or
supervises the use.
Content
Amount
FAME Audio USB Mic
1x
Elastic shock mount
1x
Stand
1x
USB Cabel
1x
Pop Filter
1x
Manual
1x

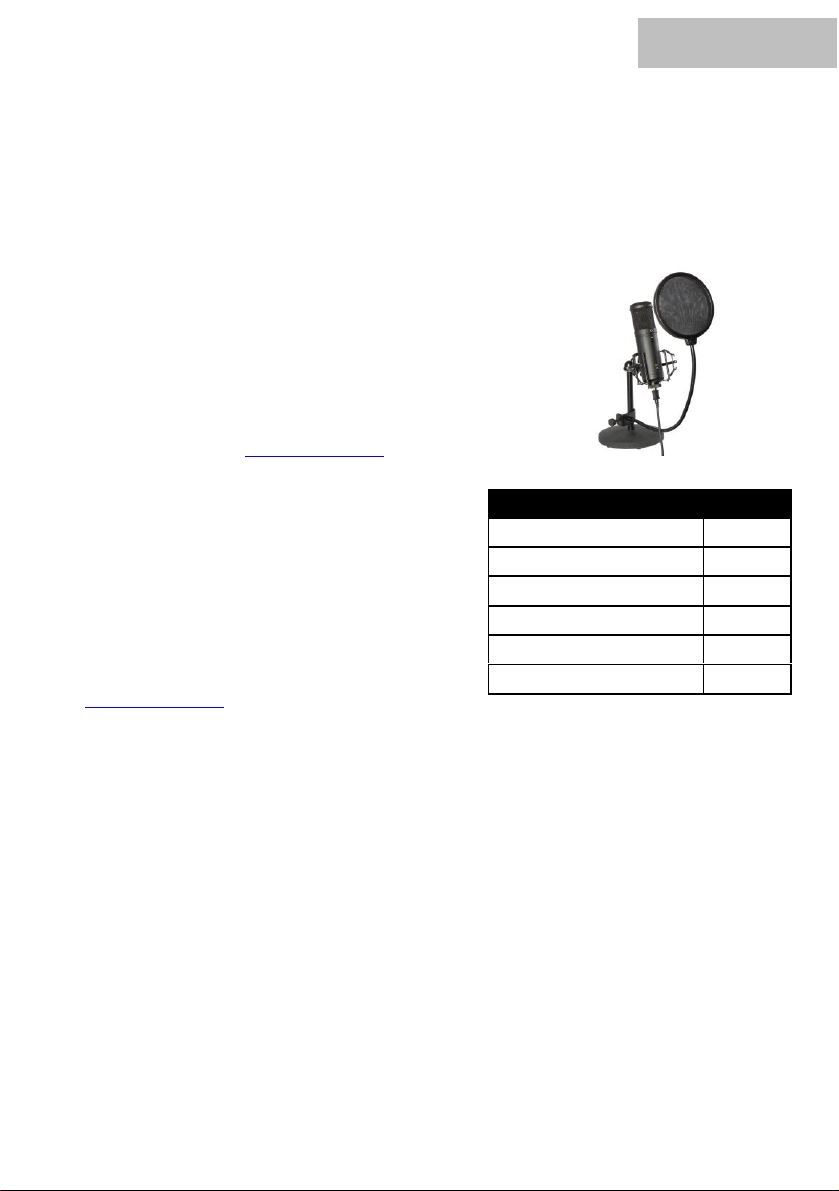

Scope of delivery:

ENGLISH
Installation:
Always check the device for damage before use. Use the original packaging or suitable transport
or storage packaging to protect the product optimally from influences such as dust or moisture,
etc. when not in use.
Note!
The following points should be observed to avoid serious problems or damage.
To prevent damage to the sensitive microphone capsule, never remove the
microphone grille.
Never pull or plug-in the cable during operation.
Dropping the microphone can cause serious damage to both the interior and
the housing.
The microphone should be stored safely after each use / placed in the
transport packaging.
Please use only slightly damp cloths for cleaning.
Only clean the microphone when it is not connected / in use.
Liquids of any kind should be kept away from the product. The penetration of
liquid can cause serious damage to the technology.
Observe the specified sound pressure level/noise level spacing to prevent
damage to the diaphragm caused by extreme levels.
Avoid feedback by keeping the microphone away from activated speakers that
are simultaneously monitoring the signal. If necessary, switch off the speakers
completely.
Hint!
Feedback can cause enormous damage to loudspeaker membranes.
Specifications:
Model
FAME Audio USB Vocal Kit
Sound conversion principle
USB condenser microphone
Polar pattern
Cardioid
Frequency range
30 Hz –18 kHz
Sensitivity
-32 dB (0 dB = 1V/Pa@1kHz)
Sampling Rate
16 Bit / 48kHz
Max. SPL
140 dB (@1kHz = 1% T.H.D.)
Required connector
USB (supplied)

ENGLISH
Directional Characteristics:
Microphones have one or more directional characteristics in order to achieve better sound
recording results, depending on the application. Sound arriving at the capsule from certain angles
can be erased, damped or not influenced at all. How strong or weak these effects are depends on
the microphone. The main polar patterns are omnidirectional and figure-eight, while the cardioid,
wide cardioid, supercardioid and hypercardioid characteristics are mixed.
Example application 1: Omnidirectional
Since the omnidirectional characteristic has no suppression due to the design of the microphone,
sound from all directions can be picked up almost uniformly.
Example application 2: Cardioid
Sound hitting the rear is suppressed or damped by the cardioid characteristic. The focus here is
on the direct signal.

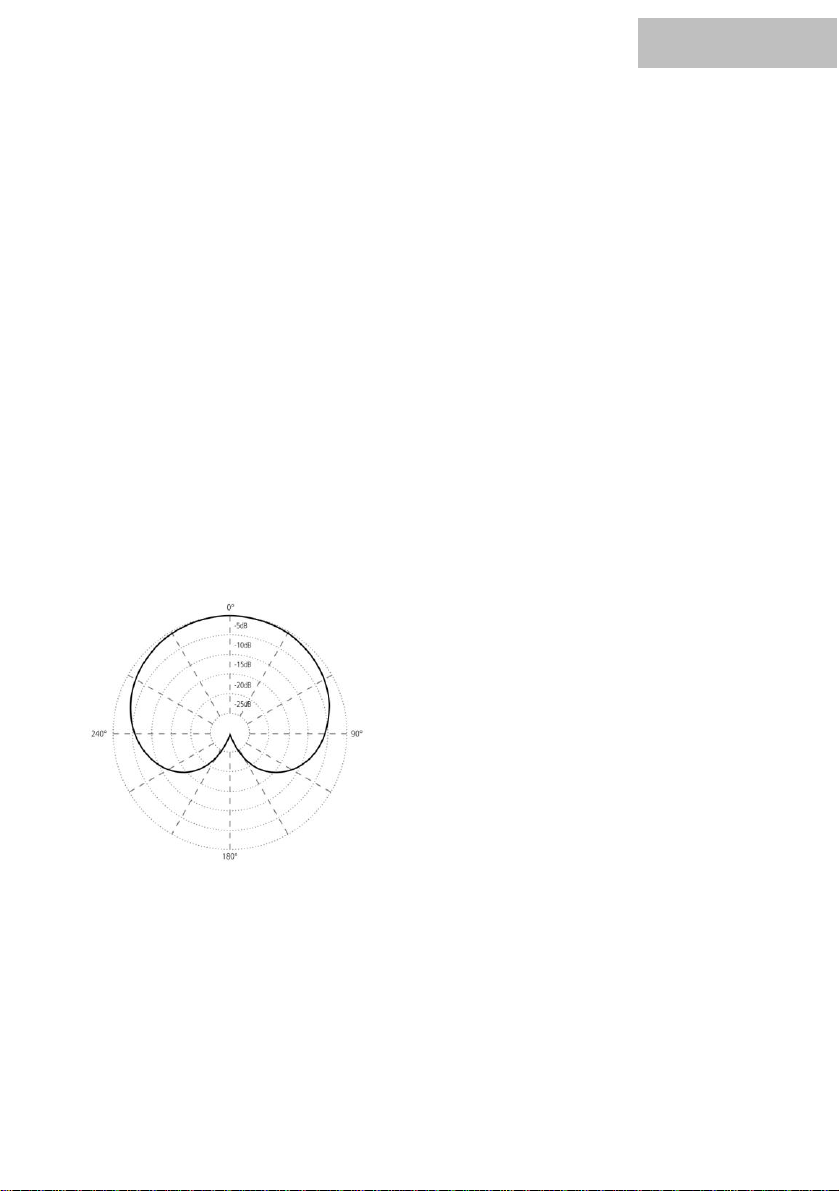

FAME Audio USB Vocal Kit with cardioid polar pattern:
The included USB condenser microphone features a cardioid characteristic that effectively cancels
or attenuates sound from the rear (at 180° or below). This microphone is therefore ideal for
voice, vocal, voice-over and instrument pickups.
(Drawing is for general illustration only and varies according to microphone)

ENGLISH
Troubleshooting:
The following overview serves as an aid for quick troubleshooting. If you should be uncertain,
contact the manufacturer, the dealer or the corresponding specialist personnel. Never open the
the device on your own!
If the specified fixes have not been successful, please contact our service staff. The contact
details can be found at www.musicstore.de
Cleaning:
A regular cleaning of the device from impurities and dust increases the durability of the product.
Always disconnect the device from the power supply before cleaning it! Never clean the appliance
wet! Optical lenses should be cleaned with a dry microfiber cloth to optimize light output.
Ventilation grilles and openings should always be cleaned of dust and dirt. Suitable compressed
air sprays are recommended for this application.
Symptom
Troubleshooting
No sound
Check the USB cable for damage (cuts, kinks,
etc.).
Check the plug connection
Microphone with DAW activation or direct
monitoring activation
Microphone may need to be calibrated. Please
read the software manual of the DAW in question.
Delayed sound
Change the buffer size in the DAW settings. The
lower the number, the lower the latency. (Note:
with a low buffer size, the computer needs a
higher performance. Depending on the computer,
this can lead to higher performance losses).

ENGLISH
Environmental Protection:
The company MUSIC STORE professional GmbH always strives to reduce the burden of packaging
to a minimum. The use of environmentally friendly and recyclable materials is of fundamental
importance to us. Please recycle the packaging components after use.
Disposal of packaging:
Ensure that paper packaging, plastic materials, etc. are separately recycled. Observe the
corresponding disposal instructions on the packaging.
Disposal of batteries:
Batteries should not be thrown away! Please dispose of batteries in accordance with
official regulations.
Disposal of your old device:
Do not dispose of the device with household waste! This device is subject to the WEEE
Directive (Waste Electrical and Electronic Equipment) in its currently valid version.
The device is to be disposed of by an approved disposal company or your local waste disposal
service. The regulations applicable in your country must be observed!
Manufacturers: MUSIC STORE professional GmbH,
Istanbulstraße 22-26,
51103 Cologne, Germany

ENGLISH
MS ID: REC0014024-000
01/2019
