ToooAir TC-500 User manual

TC-500 Quick Start Guide
ToooAir Wide Area Platform
ToooAir PTY LTD
Suite 1103, 1 Newland Street Bondi Junction, NSW 2022

TC-500 Quick Start Guide
1
TC-500 Quick Start Guide
Thanks for choosing our product!
This Quick Start Guide is only applicable to: TC-500.
Before using the product, please read the Quick Start Guide to fully benefit from the TC-500.

TC-500 Quick Start Guide
2

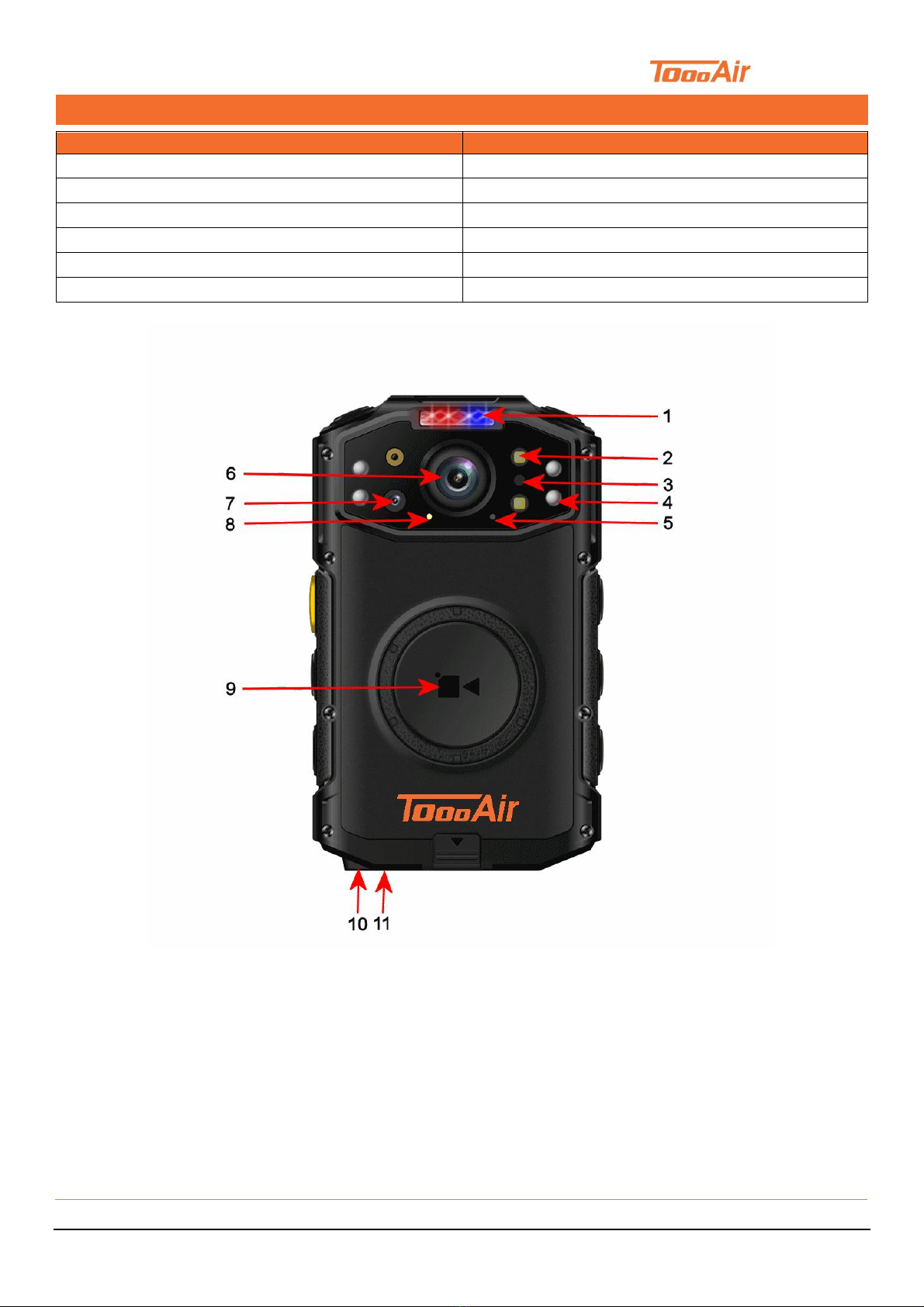

TC-500 DIAGRAM
Operating State
Indication
Standby
Green (Steady)
Low Battery
Red (Blinking)
Charging
Green (Steady)
Fully Charged
Green (Steady)
PTT Transmitting
Red (Steady)
PTT Receiving
Green (Steady)
1. Warning Lights
2. Torch LED
3. Distance Sensor
4. Infrared LED
5. Microphone
6. Main Camera
7. Secondary Camera
8. Status LED
9. Video Record Button
10. Pop-pin Connector
11. Microphone

TC-500 Quick Start Guide
3

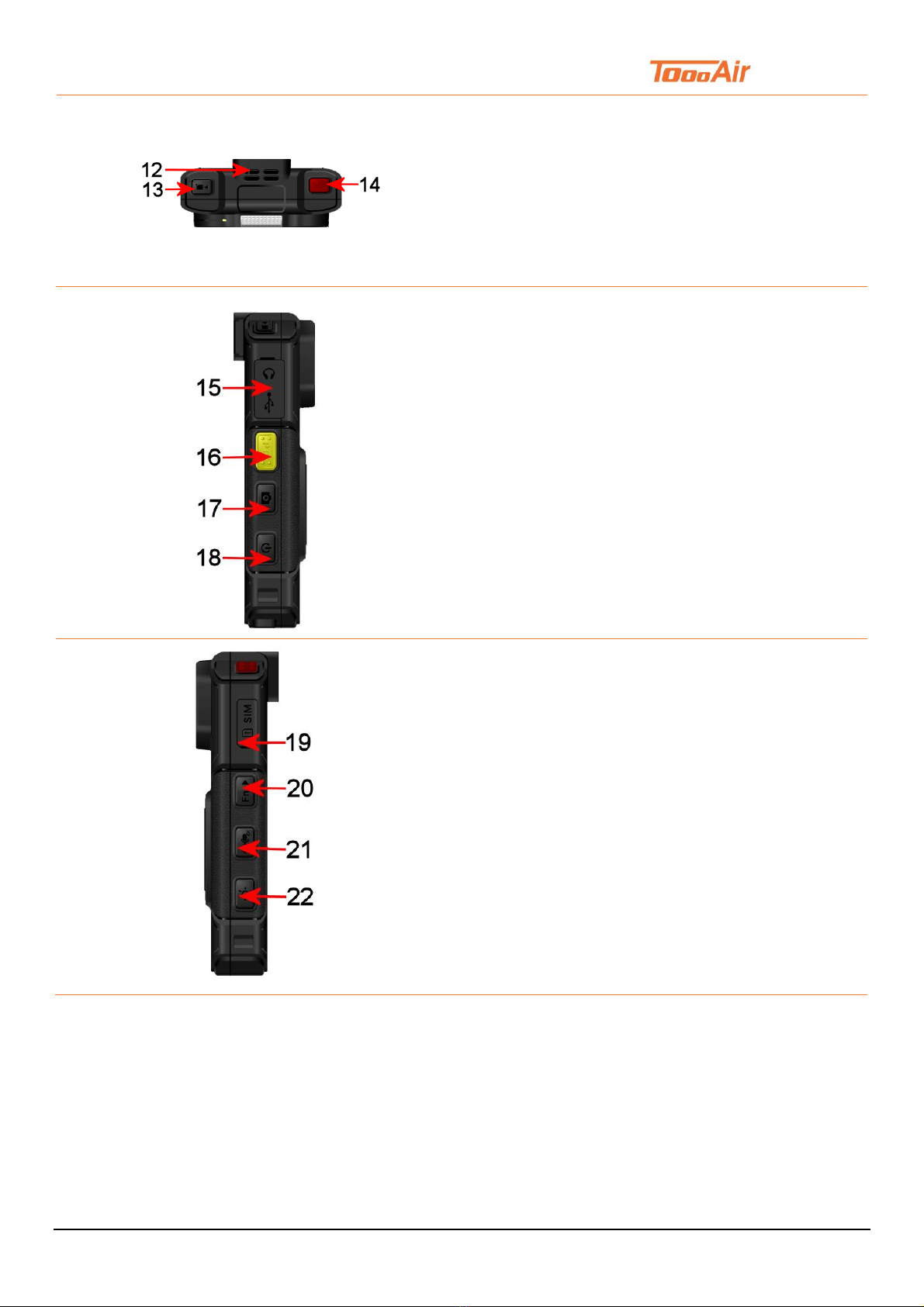

12. Speaker
13. Video Record Button
14. SOS Button
15. USB Interface
16. Push-to-Talk Button
17. Camera / Torch Button
18. Power Button
19. SIM Card
20. Volume Mute / Vol + Button
21. Audio Record / Vol - Button
22. Infrared Adjust / Warning lights Button

TC-500 Quick Start Guide
4

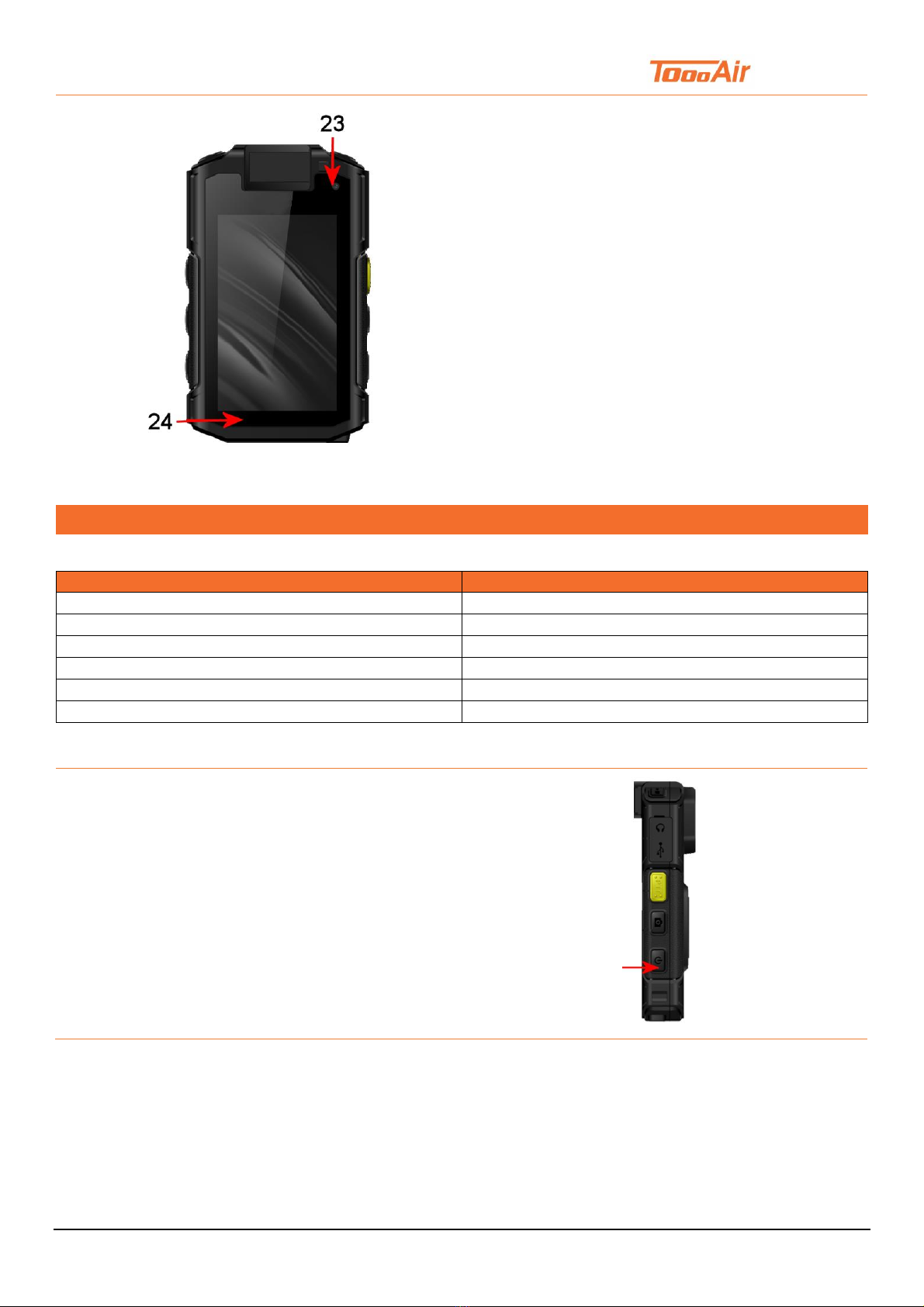

23. Display
24. Camera
GETTING STARTED
In The Box
Item
Quantity
TC-500 Body Worn Camera
1
Power Adapter
1
USB Cable
1
Belt Clip
1
User Manual
1
Shoulder Clip
1
Power On/Off the Device
Press and hold the Power button until the device
powers on, located on the left side of the device.
Power off the device via press and holding the button
and tap Power off.

TC-500 Quick Start Guide
5
Push To Talk
Press and hold the Push To Talk button to place the
device into broadcast mode, releasing the PTT button
will place the device into receive mode.

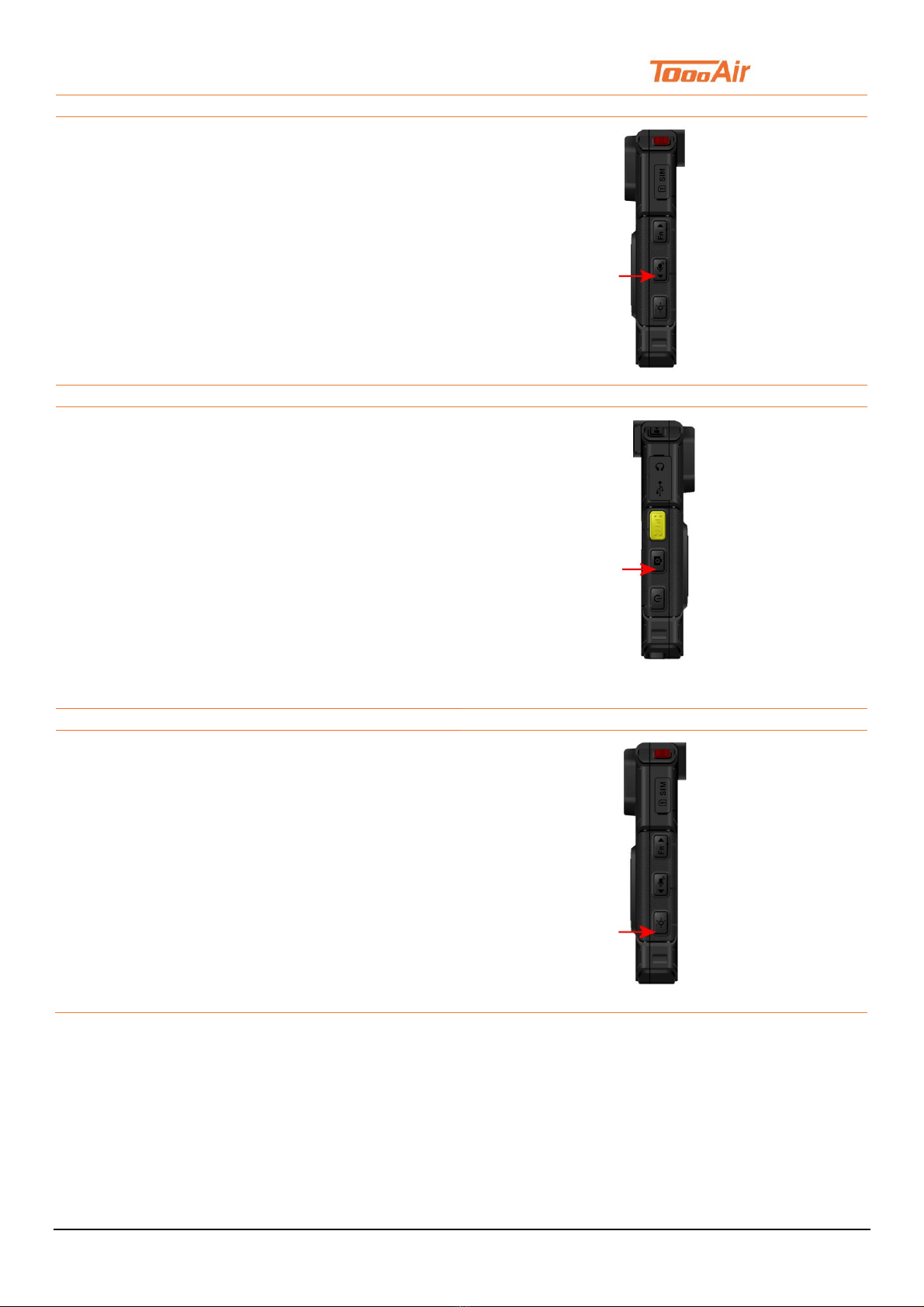

Adjust Volume
The Device volume can be adjusted by short pressing
the Vol + / - buttons on the right-hand side of the
device.
Long pressing the Vol + mutes/unmutes the audio.
SOS Alert
Press and holding in the SOS button for 3 seconds will
trigger an SOS broadcast to all users connected to the
ToooAir system.
Short pressing the PTT button will acknowledge an SOS
alert.
Video Recording
Short pressing the Video Record button will begin
recording video, an audible tone will signify the device
is in Video Recording mode.
Short pressing the Video Record button will stop the
recording.
For supported recording resolution please refer to the
specifications located on the ToooAir website.

TC-500 Quick Start Guide
6
Audio Recording
Short pressing the Audio Record button will begin
recording audio, an audible tone will signify the device
is in Audio Recording mode.
Short pressing the Audio Record button will stop the
recording.
Camera
Short pressing the Camera button will begin Camera
mode, an audible tone will signify the device is in
Camera mode. While the device is in Camera mode,
press the Camera button to take a photo.
Short pressing the Video Record button will terminate
Camera mode.
For supported camera resolution please refer to the
specifications located on the ToooAir website.
Infrared Mode
The device automatically decides if the camera needs to
be placed infrared mode based off the lighting
environment when placed into Video Recording, Video
Live Stream or Camera mode.
The device can also be manually placed into infrared
mode by short pressing the infrared button located on
the left-hand side of the device.
Note, the device needs to be in either Video Record,
Video Live stream or Camera mode to manually adjust
the infrared setting.

TC-500 Quick Start Guide
7
Sim Card Installation
The device supports NANO sized SIM cards. You can
install the SIM card via the SIM card slot located on the
left-hand side of the device.
For supported networks please refer to technical
specifications accessible via ToooAir website.

TC-500 Quick Start Guide
8
BASIC OPERATIONS
ToooAir App Home
The home display gives quick access to the features and
on-board files the device contains. Tapping each icon
will navigate into each feature.
Tap PTT Call to access the ToooAir push-to-talk voice menu. Please refer to the ToooAir Application
guide for further information, accessible from the ToooAir website;
https://www.toooair.com.au/Resources
Tap Video Record icon to begin recording video to the device.
Tap the red power icon to stop recording video.
Tap Video Upload to live stream video to the ToooAir server, please note if you are not connected to
a Wi-Fi network this will be using cellular data.
Tap the red power icon to stop recording video to the ToooAir server.
Tap Audio Record icon to begin recording audio to the device.
Tap the red power icon to stop recording audio.
Tap File Manager to access the recordings and pictures taken that have been recorded/saved to the
device.
Tap the back button to return to the home screen.
Tap File Upload to upload the saved recordings or pictures from the device to the ToooAir server.
Select your desired files and tap UPLOAD to begin uploading the files to the ToooAir server.
Tap the back button to return to the home screen.
Tap Map to access the live map display of the ToooAir fleet. Please refer to the ToooAir application
guide for further information.
Tap the back button to return to the home screen.
Tap Msg to access Text Message feature. Please refer to the ToooAir application guide for further
information.
Tap Setting to access the ToooAir Push-to-talk adjustable settings. Please refer to the ToooAir
application guide for further information.

TC-500 Quick Start Guide
9
SPECIFICATIONS
Model Number:
TC-500
Colours:
Black
Dimensions:
103mm x 65mm x 18mm
Weight:
180g
Ingress Protection:
IP68
Audio Output:
1.5W
Working Temperature:
-30°C to +55°C
Frequencies:
WCDMA: Band 1/5
FDD-LTE: Band 1/2/3/4/5/7/8/17/20/28A/28B
TDD-LTE: Band 34/38/39/40/41
WiFi:
WiFi IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
Bluetooth:
4.1 LE
NFC:
Supported
Location:
Assisted GPS (A-GPS) / BD / GALILEO / GLONASS / Digital Compass / WiFi / Cellular
Memory:
64GB Storage
Display:
3.1" Touch Screen
Camera:
32MP 1920x1080/1280x720/640x480
View Angle:
≥ 120 Degree
Recording Format:
Video: MP4
Audio: WAV
Infrared Support:
Up-to 10 Meters
Sensors:
Ambient Light / Proximity / Accelerometer / Geomagnetic
SIM Card:
Nano-SIM
Operating System:
Android 8.1
Third Party Applications:
Supported
Battery:
3200mAh
Working Time:
12 Hours
Standby Time:
20 Hours
Recharge Time:
2 Hours

TC-500 Quick Start Guide
10
IMPORTANT NOTICE
RECYCLING
The crossed-out wheeled-bin symbol on your product, battery, literature, or packaging reminds you that all
electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of
their working life. Do not dispose of these products as unsorted municipal waste. Always return your used electronic
products, batteries, and packaging materials to dedicated collection points. This way you help prevent uncontrolled
waste disposal and promote the recycling of materials. More detailed information is available from the product
retailer, local waste authorities or national producer responsibility organisations.
FURTHER SAFETY ADVICE
• Do not touch the screen of the device with sharp objects. Dust particles and nails may scratch the screen. Please
maintain the screen clean. Remove dust on the screen with a soft cloth gently, and do not scratch the screen.
• Do not put the device in environments with excessive temperatures, as this could lead to heating of the battery,
resulting in fire or explosion.
• Do not charge the device near any flammable or explosive substances.
• Charge the device under dry indoor conditions only.
• Do not charge the device in environments with much dust or humidity.
• Do not use the device in areas where regulations or legislatives prohibit the use.
• Do not expose the device or charger to strong magnetic fields, such as are emitted from induction ovens or
microwaves.
• Do not attempt to open or repair the device. Improper repair or opening can lead to the destruction of the
device, fire or explosion. Only authorized personnel are allowed to repair the device.
• Power off the device in hospitals or other places where the use of mobile phones is prohibited. This device
may affect proper work of medical equipment, such as pacemakers. Always keep a distance of at least 15 cm
between the device and these devices.
• Make sure the volume level is not set too high when plugging earphones and headphones
to protect your hearing.
• Observe all corresponding laws that are in force in the respective countries regarding the
use of devices while operating a vehicle.
• Please power off the device and disconnect the charging cable before cleaning the device.
• Do not use any chemical cleaning agents to clean the device or the charger. Use a damp and anti-static soft
cloth for cleaning.
•Please only use USB cable and USB adapter supplied to re-charge the device.
WARRANTY
•Warranty period is 1 year from date of purchase
•For additional warranty information please check: https://www.toooair.com.au/TermsConditions.aspx
This product involves constant upgrading and/or improvement, our company reserves the right to change the
specifications of software and/or hardware mentioned in this operating guide without any prior notice. The product
specifications and information mentioned in the operating guide are for reference only.
