Topcom SKYR@CER USB 4001G User manual

SKYR@CER USB 4001G
USER GUIDE / HANDLEIDING / MANUEL D’UTILISATEUR /
BEDIENUNGSANLEITUNG / MANUAL DE USUARIO /
BRUKSANVISNING / BRUGERVEJLEDNING /
ANVÄNDARHANDBOK / KÄYTTÖOHJE / MANUALE D’USO /
MANUAL DO UTILIZADOR / Ο∆ΗΓΙΕΣ ΧΡΗΣΗΣ /
РЪКОВОДСТВО НА ПОТРЕБИТЕЛЯ / UŽIVATELSKÁ
PŘÍRUČKA / HASZNÁLATI ÚTMUTATÓ / INSTRUKCJA
OBSŁUGI / MANUAL DE INSTALARE SI UTILIZARE /
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ / UŽÍVATEL’SKÝ
MANUÁL / KULLANICI KILAVUZU
V.1.2
HL_Skyracer USB 4001g.book Page 1 Monday, April 3, 2006 2:15 PM

For use in:
Belgium, Holland, Germany, England, Sweden,
Denmark, Norway, Finland, Spain, Italy, Portugal, Greece,
Turkey, Russia, Poland, Romania, Hungary, Slovakia,
Czech, Bulgaria
HL_Skyracer USB 4001g.book Page 2 Monday, April 3, 2006 2:15 PM

UK The features described in this manual are published with reservation to modifications.
NL De in deze handleiding beschreven mogelijkheden worden gepubliceerd onder
voorbehoud van wijzigingen.
FR Les possibilités décrites dans ce manuel sont publiées sous réserve de modifications.
DE Die in dieser Bedienungsanleitung umschriebenen Möglichkeiten, werden
vorbehaltlich Änderungen publiziert.
ES Las características descritas en este manual pueden ser objeto de futuras
modificaciones.
SE Funktionerna i denna bruksanvisning publiceras med reservation för ändringar.
DK Vi forbeholder os retten til ændringer af de specifikationer, der er beskrevet
i denne brugsanvisning.
NO Funksjoner beskrevet i denne manualen kan endres uten nærmere informasjon.
FI Tässä ohjekirjassa julkaissut tiedot voivat muuttua ilman ennakkoilmoitusta.
IT Le caratteristiche descritte nel presente manuale vengono pubblicate con riserva di
modifica.
PT As características descritas neste manual são publicadas sob reserva de
modificação.
GR Οι λειτουργίες που περιγράφονται στο παρόν εγχειρίδιο, δηµοσιεύονται µεεπιφύλαξη
τυχόν τροποποιήσεων.
BG Описаните втова Ръководство характеристики се публикуват, като се запазва
правото за въвеждане на изменения.
CS Možnost úpravy funkcí popsaných v této příručce vyhrazena.
HU A jelen használati útmutatóban leírt adatokra a gyártó fenntartja a változtatás jogát.
PL Właściwości opisane w niniejszej instrukcji obsługi sąpublikowane z zatrzeżeniem
prawa wprowadzenia zmian.
RO Descrierile din acest manual sunt publicate sub rezerva modificarilor.
RU Указанные здесь характеристики могут быть изменены.
SK Vlastnosti popísané v tejto príručke sú publikované s vyhradeným právom na zmenu.
TU Bu kullanim kilavuzunda açiklanan özellikler, degisiklik hakki sakli tutularak
yayinlanmaktadir.
This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC.
The Declaration of conformity can be found on :
http://www.topcom.net/support/cedeclarations.php
HL_Skyracer USB 4001g.book Page 3 Monday, April 3, 2006 2:15 PM

UK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
NL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
FR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
DE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
ES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
SE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
DK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
NO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
FI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
IT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
PT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
GR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
BG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
CZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
HU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
PL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
RO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
RU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
SK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
TR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
HL_Skyracer USB 4001g.book Page 1 Monday, April 3, 2006 2:15 PM

HL_Skyracer USB 4001g.book Page 2 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
6 Topcom Skyr@cer USB 4001g
1 System Requirements
• Windows 2000 and XP operating systems
• PC with Pentium III 600MHz system or above is recommended
• USB connection ( USB 2.0 recommended ! )
• One CD-ROM drive
2 Installation
1. Before you insert the Wireless USB stick into your computer, please install the
Software first.
Note: all the snapped images of installation mentioned in this manual are
based on Windows XP. For other windows operating system, all the
procedures are the same but the screens are not exactly the same.
2. Turn on the computer. Insert the CD into the CD-ROM Drive. The Autorun
screen will automatically appear:
– Please click "Install Software".
HL_Skyracer USB 4001g.book Page 6 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
Topcom Skyr@cer USB 4001g 7
ENGLISH
3. The Install Shield Wizard will automatically start.
– Please click "Yes" to start the installation.
– Please click "Next"
HL_Skyracer USB 4001g.book Page 7 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
8 Topcom Skyr@cer USB 4001g

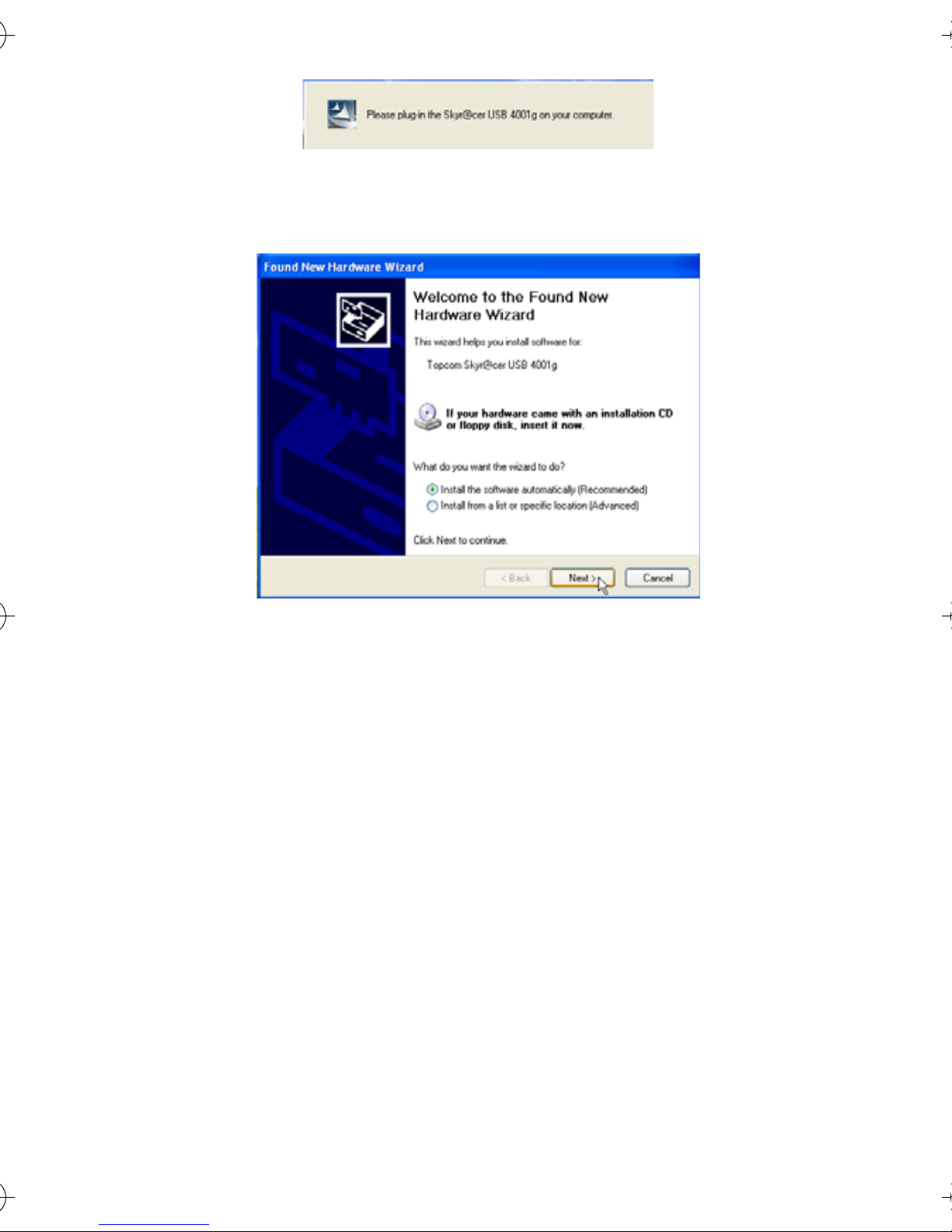

Now plug the Wireless USB Stick in your USB connection. The drivers will be
installed automatically.
– Please click "Next"
HL_Skyracer USB 4001g.book Page 8 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
Topcom Skyr@cer USB 4001g 9
ENGLISH
During the installation, next screen will appear:
– Please click "Continue Anyway"
– Please click "Finish"
HL_Skyracer USB 4001g.book Page 9 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
10 Topcom Skyr@cer USB 4001g

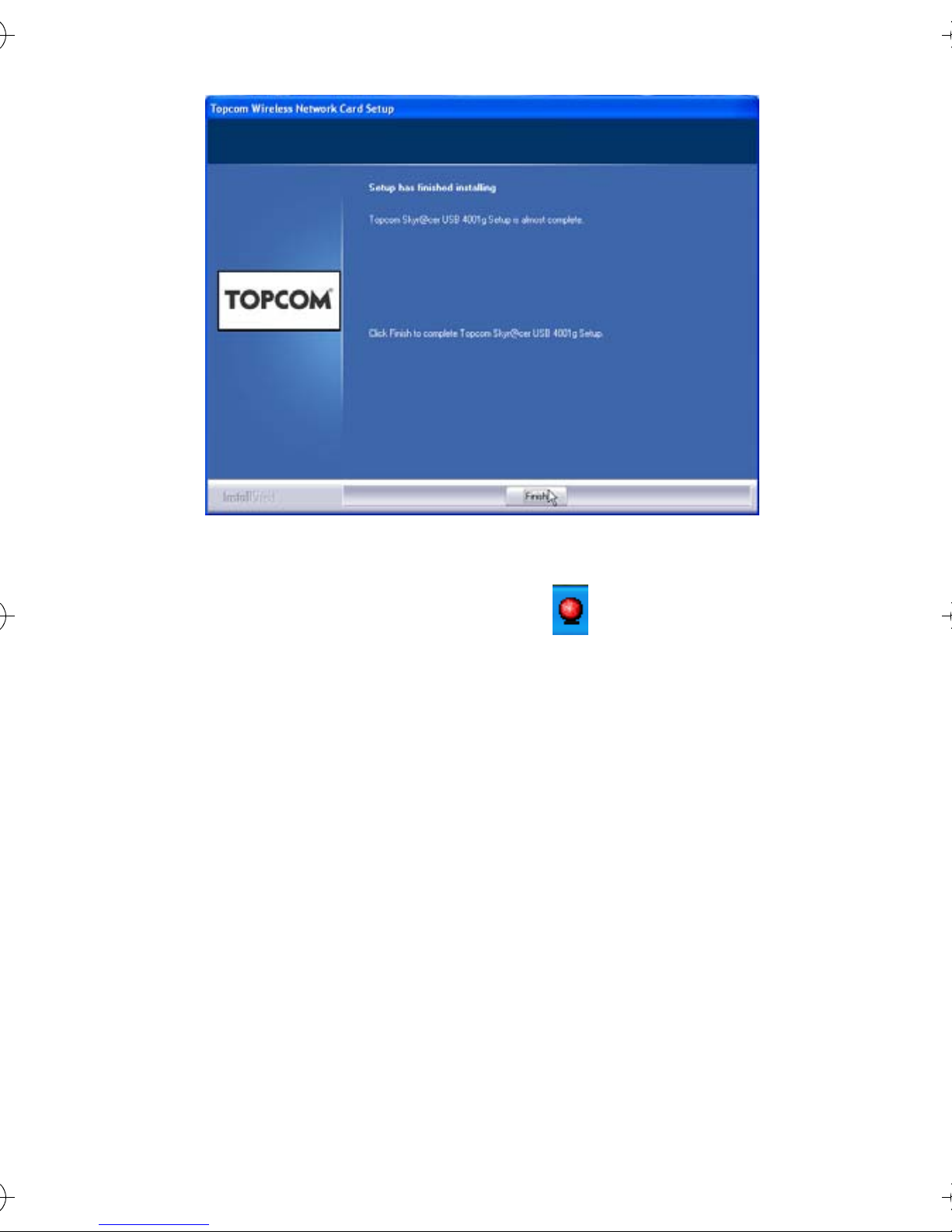

– Please click "Finish"
Once the installation is successful, the utility icon will show up in your Systray.
HL_Skyracer USB 4001g.book Page 10 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
Topcom Skyr@cer USB 4001g 11
ENGLISH
3 Configuration
Double-click the icon to open the utility.
The "Site Survey" screen will appear. All available wireless networks are shown
in the window.
In the example above, the SSID is "Topcom" and WEP encryption is used.
When you click "Connect", you can connect to the wireless network until the
computer is switched off. If you click "Add to Profile", the settings for this Wireless
Access Point (or Wireless Router) will be stored in the profile list.
– Now select your Wireless Access Point and click "Add to Profile".
HL_Skyracer USB 4001g.book Page 11 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
12 Topcom Skyr@cer USB 4001g
Next screen will appear:
– Now enter a profile name : in example above "ROUTER" is created.
– Click OK to confirm.
Remark: If the Wireless Access Point has encryption settings, next screen
will appear.
In the example above, WEP encryption is used.
– Click OK
HL_Skyracer USB 4001g.book Page 12 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
Topcom Skyr@cer USB 4001g 13
ENGLISH
Next screen will appear:
– Enter the encryption key. Please make sure that exactly the same
encryption type / key is entered as in your Wireless Access Point (or
Wireless Router)
– Click OK to confirm.
Now the wireless profile is created.
HL_Skyracer USB 4001g.book Page 13 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
14 Topcom Skyr@cer USB 4001g

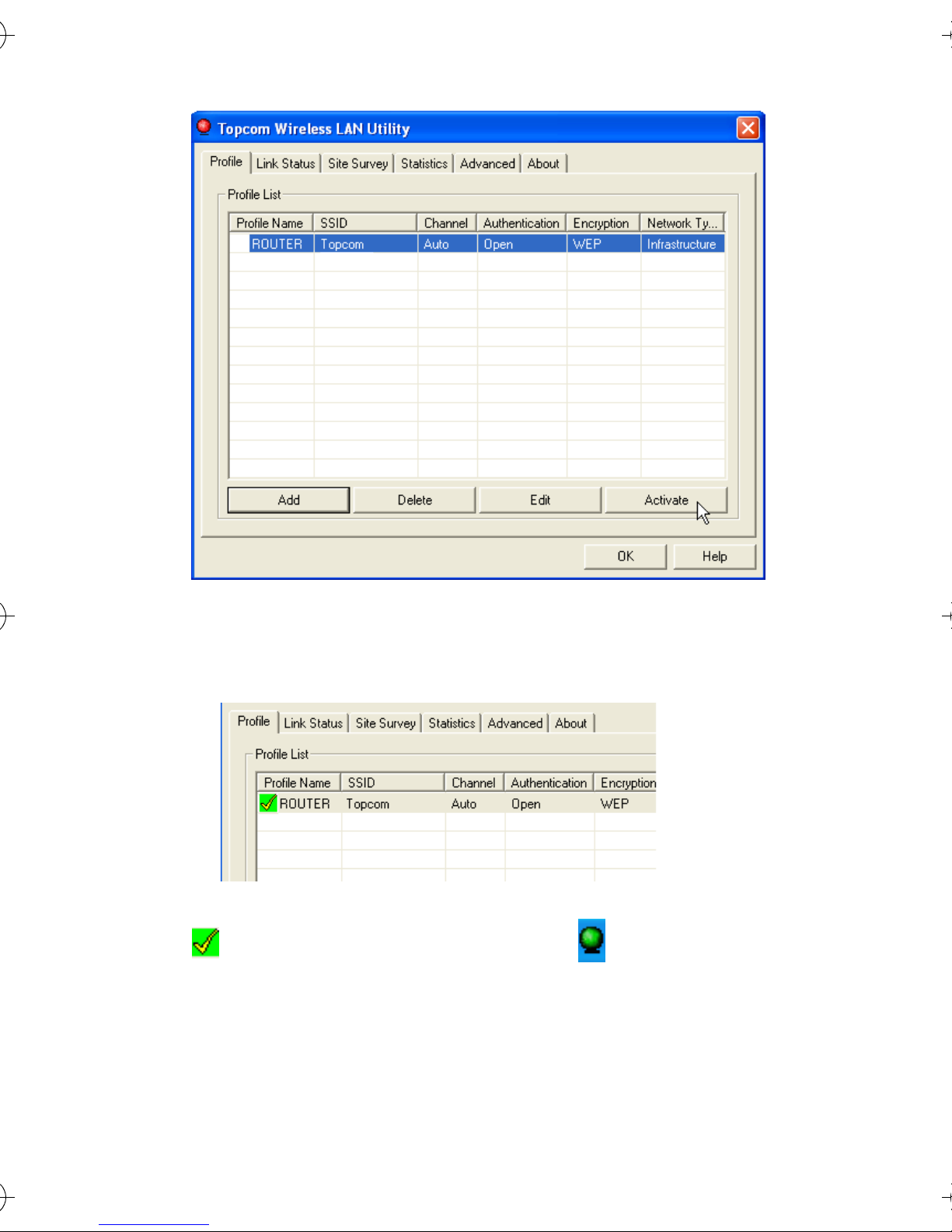

– Now click "Activate" to activate the profile.
The icon in front of the profile name and the icon in the systray indicate that
the connection is successful.
For more details, please read the full English user guide on the provided CD-rom.
HL_Skyracer USB 4001g.book Page 14 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
Topcom Skyr@cer USB 4001g 15
ENGLISH
4Warranty
4.1 Warranty period
Topcom units have a 24-month warranty period. The warranty period starts on the
day the new unit is purchased. Consumables or defects causing a negligible effect
on operation or value of the equipment are not covered.
The warranty has to be proven by presentation of a copy of the original purchase
receipt, on which the date of purchase and the unit-model are indicated.
4.2 Warranty handling
A faulty unit needs to be returned to an authorized service centre including a valid
purchase note. If the unit develops a fault during the warranty period, the service
centre will repair any defects caused by material or manufacturing faults free of
charge.
The service centre will at its discretion fulfil its warranty obligations by either
repairing or exchanging the faulty units or parts of the faulty units. In case of
replacement, colour and model can be different from the original purchased unit.
The initial purchase date shall determine the start of the warranty period. The
warranty period is not extended if the unit is exchanged or repaired by the
appointed service centres.
4.3 Warranty exclusions
Damage or defects caused by incorrect treatment or operation and damage
resulting from use of non-original parts or accessories are not covered by the
warranty.
The warranty does not cover damage caused by outside factors, such as lightning,
water and fire, nor any damage caused during transportation.
No warranty can be claimed if the serial number on the unit has been changed,
removed or rendered illegal.
5 Disposal of the device (environment)
At the end of the product lifecycle, you should not throw this product into
the normal household garbage but bring the product to a collection point
for the recycling of electrical and electronic equipments. The symbol on
the product, user guide and/or box indicate this.
Some of the product materials can be re-used if you bring them to a
recycling point. By re-using some parts or raw materials from used
products you make an important contribution to the protection of the environment.
Please contact your local authorities in case you need more information on the
collection points in your area.
HL_Skyracer USB 4001g.book Page 15 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
16 Topcom Skyr@cer USB 4001g
1 Systeemvereisten
• Windows 2000 en XP-besturingssystemen
• PC met Pentium III 600MHz of hoger wordt aanbevolen
• USB-aansluiting (USB 2.0 aanbevolen! )
• Één cd-romstation
2 Installatie
1. Vooraleer u de draadloze USB-stick in uw computer steekt, moet u eerst de
software installeren.
Opmerking: alle installatie-screenshots in deze handleiding zijn gebaseerd
op Windows XP. Voor andere Windows-besturingssystemen zijn alle
procedures dezelfde maar de schermen kunnen lichtjes verschillen.
2. Schakel de computer in. Plaats de cd in uw cd-romstation . Het Autorun-
scherm verschijnt automatisch:
– Klik op "Install Software".
HL_Skyracer USB 4001g.book Page 16 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
Topcom Skyr@cer USB 4001g 17
NEDERLANDS
3. De InstallShield Wizard zal automatisch starten.
– Klik op "Yes" om de installatie te starten.
– Klik op "Next"
HL_Skyracer USB 4001g.book Page 17 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
18 Topcom Skyr@cer USB 4001g
Steek nu de draadloze USB Stick in uw USB-aansluiting. De drivers worden
automatisch geïnstalleerd.
– Klik op "Next"
HL_Skyracer USB 4001g.book Page 18 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
Topcom Skyr@cer USB 4001g 19
NEDERLANDS
Tijdens de installatie verschijnt het volgende scherm:
– Klik op "Continue Anyway"
– Klik op "Finish"
HL_Skyracer USB 4001g.book Page 19 Monday, April 3, 2006 2:15 PM

Topcom Skyr@cer USB 4001g
20 Topcom Skyr@cer USB 4001g
– Klik op "Finish"
Eens de installatie is voltooid, verschijnt het pictogram van het hulpprogramma
in uw systeemvak.
HL_Skyracer USB 4001g.book Page 20 Monday, April 3, 2006 2:15 PM
