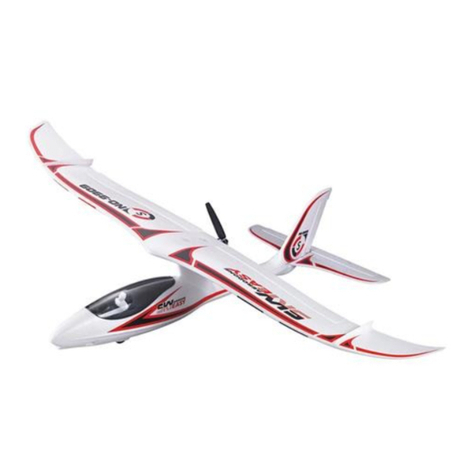

Topwing Skyeasy Smart FPV Glider User manual

Quick Start of Skyeasy Smart FPV Glider
Transmitter Introduction
Flight Mode Select
Self-leveling: Put the left switch to the upper position.
Stabilizing: Put the left switch to the middle position.
Normal: Put the left switche to the lower position.
How to Use the Special Features
One-Key Start: Press the “S”key on tx, and toss the plane out into air, the motor will be activated automatically and the plane
will fly by itself.
Auto Pilot: While in the air, the plane will circle automatically at the default height.
One-Key Return Home: Press the “H”key on tx, the plane will return to the point where it is launched and start to circle around
the launch point.
Warning: it is highly recommended that the pilot doesn’t wear the FPV goggle when precise operations are needed, such as
landing. Otherwise, there will be a danger of crash.
How to Bind Tx with Rx
The Tx and Rx are pre-binded in factory. So no binding required. If there is situation when binding is required, please follow the
instructions as below:
Notice:
(1) Please keep the plane still while binding, to avoid any interference.
(2) Please avoid binding when other similar binding is going on.
(1) Install the flight battery, and keep the plane still on the ground.
(2) Put the transmitter close to plane, and long press and hold button “A”while
powering on the transmitter. About 10 seconds later, the tails will move and
voice notice will be heard, which indicate the binding success. Several seconds
later, the tails will move up and down 4 times, which means calibration
successful, and the plane is ready to fly.

Get to Start
(1) install the vertical wing (2) install the main wing (3) install the propeller
(4) Power on the transmitter and then connect the battery wire which marked with a label “3”
How to Use the FPV Goggle
The FPV goggle is preset to be in the same band as the video transmitter on the plane. So no any setup required. If there is a
situation of band change required, you can follow the instructions on the manual for FPV goggle. And the band of video
transmitter as below:
Step 1: Long press the button on video transmitter to enter setup;
Step 2: Short press the button to choose channel (CH1-CH8);
Step 3: Long press the button to enter frequency setup. Short press to choose frequency (A, B, C, D, E, F);
Step 4: Long press the button to enter power setup. Short press to choose the power (H: 200mw, U: 100mw, L: 25mw, -: off);
Step:5: Long press the button to exit setup.
Battery Warning
2S 7.4V 1800mAh battery recommended. If you will stock the battery for a long time, please keep the battery voltage at
7.4-7.6V.
SHENZHEN TOPWING INTELLIGENCE TECHNOLOGY CO., LIMITED
Customer Service: [e-mail]
