Toro 71257 User manual

FormNo.3361-100RevA
XL320LawnTractor
ModelNo.71257—SerialNo.290000001andUp
Registeratwww.Toro.com.OriginalInstructions(EN)

Introduction
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoidinjury
andproductdamage.Youareresponsibleforoperating
theproductproperlyandsafely.
YoumaycontactTorodirectlyatwww .Toro.comfor
productandaccessoryinformation,helpndinga
dealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafetyalertsymbol
(Figure2),whichsignalsahazardthatmaycauseserious
injuryordeathifyoudonotfollowtherecommended
precautions.
Figure2
1.Safetyalertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
Contents
Introduction.................................................................2
Safety...........................................................................3
SafeOperationPracticesforRide-on(Riding)
RotaryLawnMowers........................................3
ToroRidingMowerSafety....................................5
SoundPressure.....................................................5
SoundPower........................................................5
Vibration..............................................................5

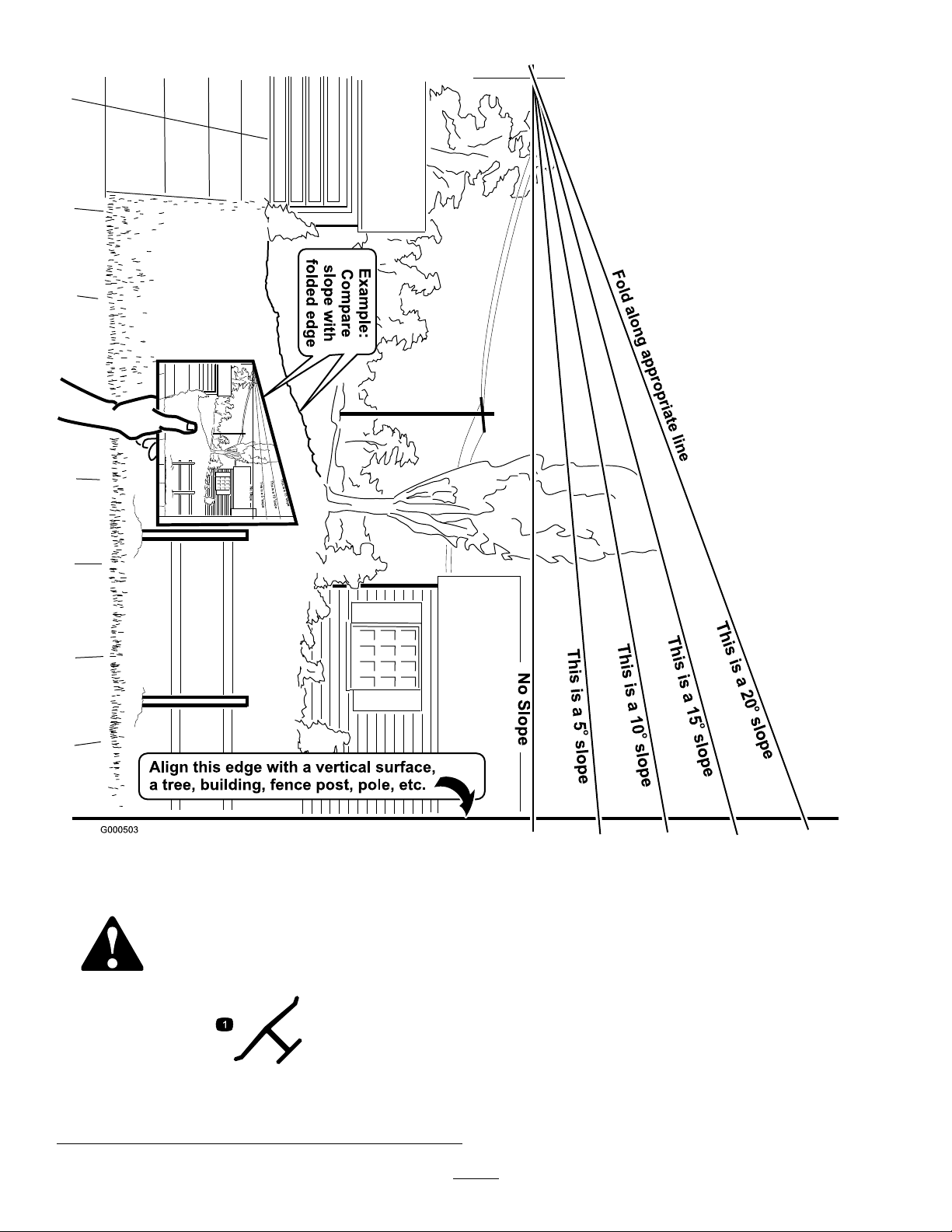

SlopeChart..........................................................6

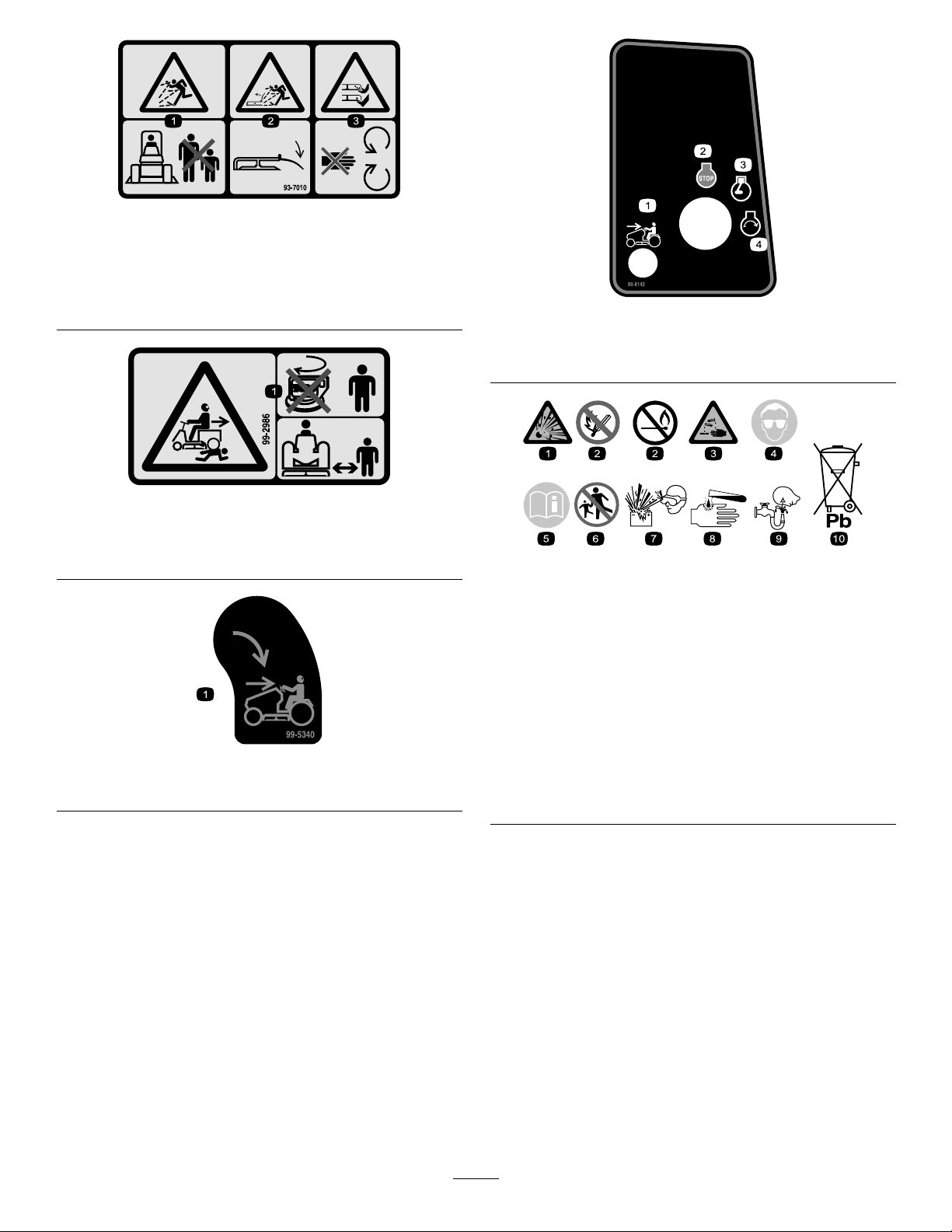

SafetyandInstructionalDecals.............................6
Setup............................................................................9
1ActivatingandInstallingtheBattery...................9
ProductOverview......................................................10
Controls.............................................................10
Operation...................................................................11
AddingFuel.......................................................11
CheckingtheEngineOilLevel............................12
UsingtheParkingBrake......................................12
PositioningtheSeat............................................12
UsingtheBladeControl(PTO)...........................13
SettingtheHeightofCut....................................13
StartingtheEngine.............................................13
StoppingtheEngine...........................................14
UsingtheSafetyInterlockSystem.......................14
TestingtheSafetyInterlockSystem.....................15
DrivingtheTractorForwardorBackward...........16
SelectingtheGroundSpeed................................16
StoppingtheTractor...........................................16
SideDischargingorMulchingtheGrass..............17
InstallingtheDischargeCover............................17
OperatingTips...................................................17
Maintenance...............................................................19
RecommendedMaintenanceSchedule(s)................19
Lubrication.............................................................20
GreasingandLubricatingtheTractor..................20
EngineMaintenance...............................................20
ServicingtheEngineOil.....................................20
ServicingtheAirCleaner....................................21
ServicingtheSparkPlug.....................................22
FuelSystemMaintenance.......................................24
DrainingtheFuelTank.......................................24
ReplacingtheFuelFilter.....................................24
ElectricalSystemMaintenance................................25
ServicingtheBattery...........................................25
ServicingtheFuse..............................................27
©2008—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved

DriveSystemMaintenance.....................................27
CheckingtheTirePressure.................................27
BrakeMaintenance.................................................28
ServicingtheParkingBrake................................28
BeltMaintenance....................................................29
ReplacingtheBladeDriveBelt............................29
ServicingtheBlade.................................................29
InspectingtheBlade...........................................29
RemovingtheBlade............................................29
SharpeningtheBlade..........................................30
InstallingtheBlade.............................................30
RemovingtheMower.........................................30
InstallingtheMower...........................................32
LevelingtheMowerfromSidetoSide.................32
AdjustingtheFront-to-RearBladeSlope.............33
Cleaning.................................................................35
WashingtheUndersideoftheMower..................35
Storage.......................................................................36
Troubleshooting.........................................................38
Schematics.................................................................40
Safety
SafeOperationPracticesfor
Ride-on(Riding)RotaryLawn
Mowers
Readandunderstandthecontentsofthismanualbefore
operatingthetractor.
ThefollowinginstructionsarefromtheCENstandard
EN836:1997.
Thisproductiscapableofamputatinghandsand
feetandthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriousinjuryordeath.
Training
•Readtheinstructionscarefully.Befamiliarwiththe
controlsandtheproperuseoftheequipment.
•Neverallowchildrenorpeopleunfamiliarwith
theseinstructionstousethelawnmower.Local
regulationscanrestricttheageoftheoperator.
•Nevermowwhilepeople,especiallychildren,orpets
arenearby.
•Keepinmindthattheoperatororuserisresponsible
foraccidentsorhazardsoccurringtootherpeopleor
theirproperty.
•Donotcarrypassengers.
•Alldriversshouldseekandobtainprofessional
andpracticalinstruction.Suchinstructionshould
emphasize:
–theneedforcareandconcentrationwhen
workingwithride-onmachines;
–controlofaride-onmachineslidingonaslope
willnotberegainedbytheapplicationofthe
brake.Themainreasonsforlossofcontrolare:
◊insufcientwheelgrip;
◊beingdriventoofast;
◊inadequatebraking;
◊thetypeofmachineisunsuitableforitstask;
◊lackofawarenessoftheeffectofground
conditions,especiallyslopes;
◊incorrecthitchingandloaddistribution.
Preparation
•Whilemowing,alwayswearsubstantialfootwearand
longtrousers.Donotoperatetheequipmentwhen
barefootorwearingopensandals.
3

•Thoroughlyinspecttheareawheretheequipment
istobeusedandremoveallobjectswhichmaybe
thrownbythemachine.
•Warning—Fuelishighlyammable.
–Storefuelincontainersspecicallydesignedfor
thispurpose.
–Refueloutdoorsonlyanddonotsmokewhile
refuelling.
–Addfuelbeforestartingtheengine.Never
removethecapofthefueltankoraddfuelwhile
theengineisrunningorwhentheengineishot.
–Iffuelisspilled,donotattempttostartthe
enginebutmovethemachineawayfromthe
areaofspillageandavoidcreatinganysourceof
ignitionuntilfuelvaporshavedissipated.
–Replaceallfueltanksandcontainercapssecurely.
•Replacefaultysilencers.
•Beforeusing,alwaysvisuallyinspecttoseethatthe
blades,bladeboltsandcutterassemblyarenotworn
ordamaged.Replacewornordamagedbladesand
boltsinsetstopreservebalance.
•Onmulti-bladedmachines,takecareasrotatingone
bladecancauseotherbladestorotate.
Operation
•Donotoperatetheengineinaconnedspacewhere
dangerouscarbonmonoxidefumescancollect.
•Mowonlyindaylightoringoodarticiallight.
•Beforeattemptingtostarttheengine,disengageall
bladeattachmentclutchesandshiftintoneutral.
•Donotuseonslopesofmorethan
–5°whenmowingonsidehills;
–10°whenmowinguphill;
–15°whenmowingdownhill.
•Rememberthereisnosuchthingasasafeslope.
Travelongrassslopesrequiresparticularcare.To
guardagainstoverturning:
–donotstoporstartsuddenlywhengoingupor
downhill;
–engageclutchslowly,alwayskeepmachinein
gear,especiallywhentravellingdownhill;
–machinespeedsshouldbekeptlowonslopes
andduringtightturns;
–stayalertforhumpsandhollowsandother
hiddenhazards;
–nevermowacrossthefaceoftheslope,unless
thelawnmowerisdesignedforthispurpose.
•Usecarewhenpullingloadsorusingheavy
equipment.
–Useonlyapproveddrawbarhitchpoints.
–Limitloadstothoseyoucansafelycontrol.
–Donotturnsharply.Usecarewhenreversing.
–Usecounterweight(s)orwheelweightswhen
suggestedintheinstructionhandbook.
•Watchoutfortrafcwhencrossingornearroadways.
•Stopthebladesrotatingbeforecrossingsurfaces
otherthangrass.
•Whenusinganyattachments,neverdirectdischarge
ofmaterialtowardbystandersnorallowanyonenear
themachinewhileinoperation.
•Neveroperatethemachinewithdamagedguardsor
withoutsafetyprotectivedevicesinplace.
•Donotchangetheenginegovernorsettingsor
overspeedtheengine.Operatingtheengineat
excessivespeedcanincreasethehazardofpersonal
injury.
•Beforeleavingtheoperator’sposition:
–disengagethepowertake-offandlowerthe
attachments;
–changeintoneutralandsettheparkingbrake;
–stoptheengineandremovethekey.
•Disengagedrivetoattachments,stoptheengine,
anddisconnectthesparkplugwire(s)orremovethe
ignitionkey
–beforeclearingblockagesoruncloggingchute;
–beforechecking,cleaningorworkingonthelawn
mower;
–afterstrikingaforeignobject.Inspectthelawn
mowerfordamageandmakerepairsbefore
restartingandoperatingtheequipment;
–ifthemachinestartstovibrateabnormally(check
immediately).
•Disengagedrivetoattachmentswhentransporting
ornotinuse.
•Stoptheengineanddisengagedrivetoattachment
–beforerefuelling;
–beforeremovingthegrasscatcher;
–beforemakingheightadjustmentunless
adjustmentcanbemadefromtheoperator’s
position.
•Reducethethrottlesettingduringenginerun-out
and,iftheengineisprovidedwithashut-offvalve,
turnthefueloffattheconclusionofmowing.
4

MaintenanceandStorage
•Keepallnuts,boltsandscrewstighttobesurethe
equipmentisinsafeworkingcondition.
•Neverstoretheequipmentwithfuelinthetank
insideabuildingwherefumescanreachanopen
ameorspark.
•Allowtheenginetocoolbeforestoringinany
enclosure.
•Toreducetherehazard,keeptheengine,silencer,
batterycompartmentandfuelstorageareafreeof
grass,leaves,orexcessivegrease.
•Checkthegrasscatcherfrequentlyforwearor
deterioration.
•Replacewornordamagedpartsforsafety.
•Ifthefueltankhastobedrained,thisshouldbe
doneoutdoors.
•Onmulti-bladedmachines,takecareasrotatingone
bladecancauseotherbladestorotate.
•Whenmachineistobeparked,storedorleft
unattended,lowerthecuttingmeansunlessapositive
mechanicallockisused.
ToroRidingMowerSafety
Thefollowingparagraphcontainssafetyinformation
specictoToroproductsthatisnotincludedinthe
CENstandard.
UseonlyToro-approvedattachments.Thewarranty
maybevoidedifyouusethetractorwithunapproved
attachments.
SoundPressure
Thisunithasamaximumsoundpressurelevelatthe
operator’searof86dBA,basedonmeasurementsof
identicalmachinesperEN11094andEN836.
SoundPower
Thisunithasaguaranteedsoundpowerlevelof100
dBA,basedonmeasurementsofidenticalmachinesper
EN11094.
Vibration
Thisunitdoesnotexceedahand/armvibrationlevelof
8.0m/s2,basedonmeasurementsofidenticalmachines
perEN1033.
Thisunitdoesnotexceedawholebodyvibration
levelof0.8m/s2,basedonmeasurementsofidentical
machinesperEN1032.
5

SlopeChart
SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaof
potentialdanger.Replaceanydecalthatisdamagedorlost.
Manufacturer’sMark
1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.
6

92-5730
1.Choke3.Continuousvariable
setting
2.Fast4.Slow
93-6673
1.Engage3.Disengage
2.PowerTake-off(PTO)4.Parkingbrake
93-6674
1.Crushinghazard,hand—readtheinstructionsbefore
servicingorperformingmaintenance.
93-6675
1.Parkingbrake—toengage,pressthebrake/clutchpedal
andlifttheparkingbrakelever;todisengagepressand
releasethebrake/clutchpedal.
2.Brakeandclutch—toengage,pressthebrake/clutchpedal.
3.Fast
4.Continuousvariablesetting
5.Slow
6.Warning—readtheOperator’sManual.
7.Warning—toavoidtippingthetractor,donotdriveacross
slopesgreaterthan5degrees,upslopesgreaterthan10
degrees,ordownslopesgreaterthan15degrees.
8.Thrownobjecthazard-keepbystandersasafedistance
fromthemachine.
9.Thrownobjecthazard,mower—keepthedeectorinplace.
10.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts.
11.Crushing/dismembermentofabystander—keepbystanders
asafedistancefromthemachine.
93-7009
1.Warning—don’toperatethemowerwiththedeectorupor
removed;keepthedeectorinplace.
2.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts.
7

93-7010
1.Thrownobjecthazard—stayasafedistancefromthe
machine.
2.Thrownobjecthazard,mower—keepthedeectorinplace.
3.Cutting/dismembermentofhandorfoot—stayawayfrom
movingparts.
99-2986
1.Crushing/dismembermenthazardofbystanders—donot
turnthekeywhilechildrenarepresent;keepchildrenasafe
distancefromthemachine.
99-5340
1.KeyChoice—turntoenablereversemowing.
99-8142
1.Mowinginreverseenabled3.Engine—Run
2.Engine—Stop4.Engine—Start
BatterySymbols
Someorallofthesesymbolsareonyourbattery
1.Explosionhazard6.Keepbystandersasafe
distancefromthebattery.
2.Nore,opename,or
smoking.
7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries
3.Causticliquid/chemical
burnhazard
8.Batteryacidcancause
blindnessorsevereburns.
4.Weareyeprotection9.Flusheyesimmediately
withwaterandgetmedical
helpfast.
5.ReadtheOperator’s
Manual.
10.Containslead;donot
discard.
8

Setup
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
ProcedureDescriptionQty.Use
1
Bulkelectrolytewith1.265specic
gravitymustbepurchasedfromalocal
batterysupplyoutlet.
80oz.
(2.4l)ActivatingandInstallingtheBattery
1
ActivatingandInstallingthe
Battery
Partsneededforthisprocedure:
80oz.
(2.4l)
Bulkelectrolytewith1.265specicgravitymustbe
purchasedfromalocalbatterysupplyoutlet.
Procedure
Batteryelectrolytecontainssulfuricacidwhich
isadeadlypoisonandcausessevereburns.
•Donotdrinkelectrolyteandavoidcontact
withskin,eyesorclothing.Wearsafety
glassestoshieldyoureyesandrubbergloves
toprotectyourhands.
•Fillthebatterywherecleanwaterisalways
availableforushingtheskin.
•Followallinstructionsandcomplywithall
safetymessagesontheelectrolytecontainer.
1.Removethebatteryfromthetractor.
2.Cleanthetopofthebatterywithapapertowel.
Important:Neverllthebatterywith
electrolytewhilethebatteryinstalledinthe
tractor.Electrolytecouldbespilledonother
partsandcausecorrosion.
3.Removetheventcapsfromthebattery(Figure3).
Figure3
4.Slowlypourelectrolyteintoeachbatterycelluntil
thelevelisuptotheupperlineonthebatterycase
(Figure4).
Figure4
Important:Donotoverllthebatterybecause
electrolyte(sulfuricacid)cancausesevere
corrosionanddamagetothechassis.
5.Waitvetotenminutesafterllingthebatterycells.
Addelectrolyte,ifnecessary,untiltheelectrolyte
levelisuptotheupperlineonthebatterycase.

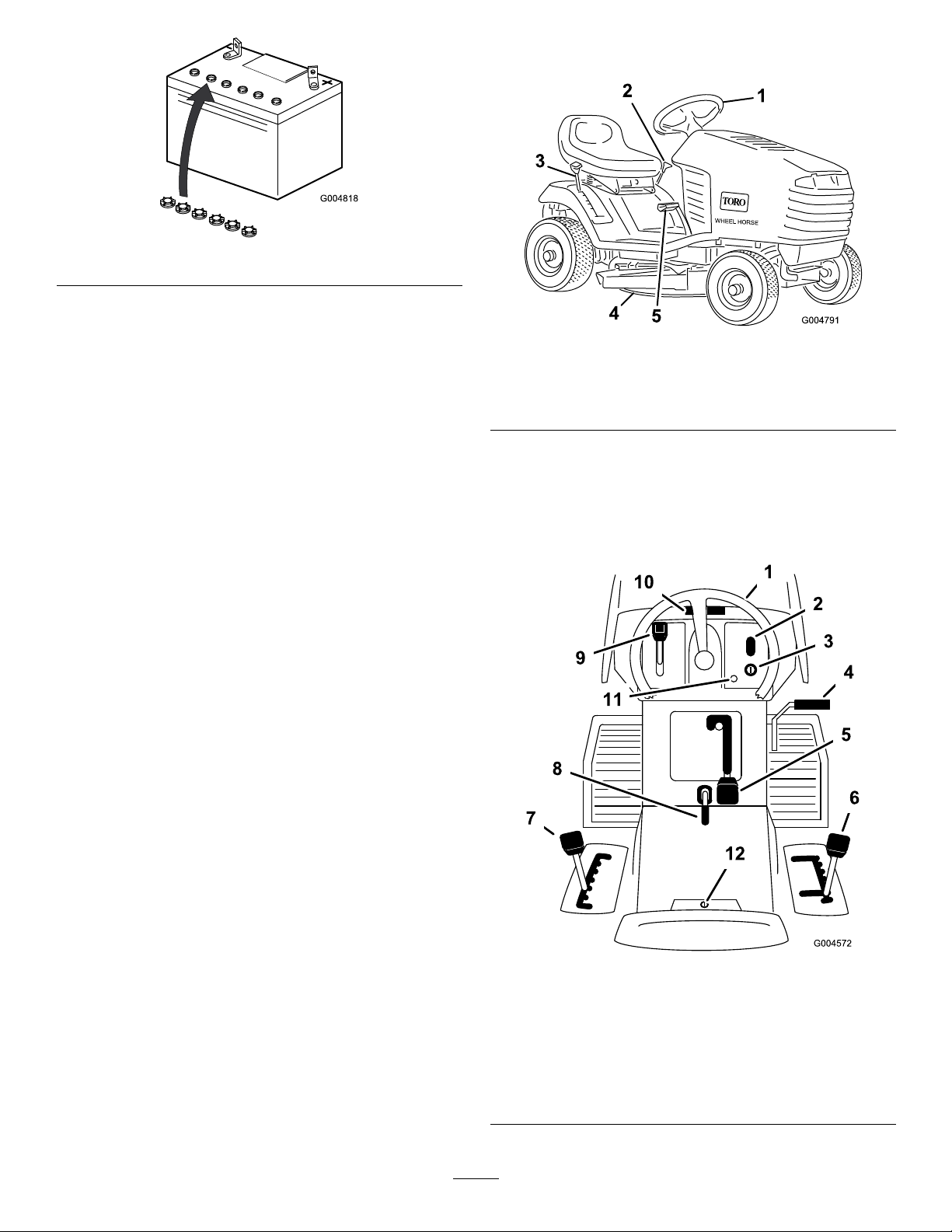

6.Installbatteryllercaps(Figure5).
9

Figure5
ProductOverview
Figure6
1.Steeringwheel4.Mower
2.Height-of-cutlever5.Clutch/brakepedal
3.Groundspeedlever
Controls
Becomefamiliarwiththecontrols(Figure7)beforeyou
starttheengineandoperatethetractor.
Figure7
1.Steeringwheel7.Height-of-cutlever
2.Lightswitch—on/off
(optional)
8.Parkingbrakelever
3.Ignitionswitch9.Throttlelever
4.Clutch/brakepedal10.Hoodopening
5.Bladecontrol11.Operating-in-reverselight
6.Groundspeedlever12.KeyChoice®switch
10

Operation
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
AddingFuel
UseUnleadedRegularGasolinesuitablefor
automotiveuse(85pumpoctaneminimum).Leaded
regulargasolinemaybeusedifunleadedregularisnot
available.
Important:Neverusemethanol,gasoline
containingmethanol,orgasoholcontainingmore
than10%ethanolbecausethefuelsystemcouldbe
damaged.Donotmixoilwithgasoline.
Incertainconditions,gasolineisextremely
ammableandhighlyexplosive.Areor
explosionfromgasolinecanburnyouand
othersandcandamageproperty.
•Fillthefueltankoutdoors,inanopenarea,
whentheengineiscold.Wipeupany
gasolinethatspills.
•Neverllthefueltankinsideanenclosed
trailer.
•Donotllthefueltankcompletelyfull.Add
gasolinetothefueltankuntilthelevelis1/4
to1/2inch(6to13mm)belowthebottomof
thellerneck.Thisemptyspaceinthetank
allowsgasolinetoexpand.
•Neversmokewhenhandlinggasoline,and
stayawayfromanopenameorwhere
gasolinefumesmaybeignitedbyaspark.
•Storegasolineinanapprovedcontainerand
keepitoutofthereachofchildren.Never
buymorethana30-daysupplyofgasoline.
•Donotoperatewithoutentireexhaust
systeminplaceandinproperworking
condition.
Incertainconditionsduringfueling,static
electricitycanbereleasedcausingaspark
whichcanignitethegasolinevapors.Are
orexplosionfromgasolinecanburnyouand
othersandcandamageproperty.
•Alwaysplacegasolinecontainersonthe
groundawayfromyourvehiclebeforelling.
•Donotllgasolinecontainersinsidea
vehicleoronatruckortrailerbedbecause
interiorcarpetsorplastictruckbedliners
mayinsulatethecontainerandslowtheloss
ofanystaticcharge.
•Whenpractical,removegas-powered
equipmentfromthetruckortrailerand
refueltheequipmentwithitswheelsonthe
ground.
•Ifthisisnotpossible,thenrefuelsuch
equipmentonatruckortrailerfroma
portablecontainer,ratherthanfroma
gasolinedispensernozzle.
•Ifagasolinedispensernozzlemustbeused,
keepthenozzleincontactwiththerimof
thefueltankorcontaineropeningatall
timesuntilfuelingiscomplete.
Gasolineisharmfulorfatalifswallowed.
Long-termexposuretovaporscancauseserious
injuryandillness.
•Avoidprolongedbreathingofvapors.
•Keepfaceawayfromnozzleandgastankor
conditioneropening.
•Keepgasawayfromeyesandskin.
UsingStabilizer/Conditioner
Useafuelstabilizer/conditionerinthemachineto
providethefollowingbenets:
•Keepsgasolinefreshduringstorageof90daysor
less.Forlongerstorageitisrecommendedthatthe
fueltankbedrained.
•Cleanstheenginewhileitruns
•Eliminatesgum-likevarnishbuildupinthefuel
system,whichcauseshardstarting
11

Important:Donotusefueladditivescontaining
methanolorethanol.
Addthecorrectamountofgasstabilizer/conditioner
tothegas.
Note:Afuelstabilizer/conditionerismosteffective
whenmixedwithfreshgasoline.Tominimizethe
chanceofvarnishdepositsinthefuelsystem,usefuel
stabilizeratalltimes.
FillingtheFuelTank
1.Shuttheengineoffandsettheparkingbrake.
2.Cleanaroundeachfueltankcapandremovethecap.
3.Addunleadedregulargasolinetobothfueltanks,
untilthelevelis1/4to1/2inch(6mmto13mm)
belowthebottomofthellerneck.
Thisspaceinthetankallowsgasolinetoexpand.
Donotllthefueltankscompletelyfull.
4.Installfueltankcapssecurely.
5.Wipeupanygasolinethatmayhavespilled.
CheckingtheEngineOilLevel
Beforeyoustarttheengineandusethetractor,check
theoillevelintheenginecrankcase;refertoChecking
theOilLevel.
UsingtheParkingBrake
Alwayssettheparkingbrakewheneveryoustopthe
tractororleaveitunattended.
SettingtheParkingBrake

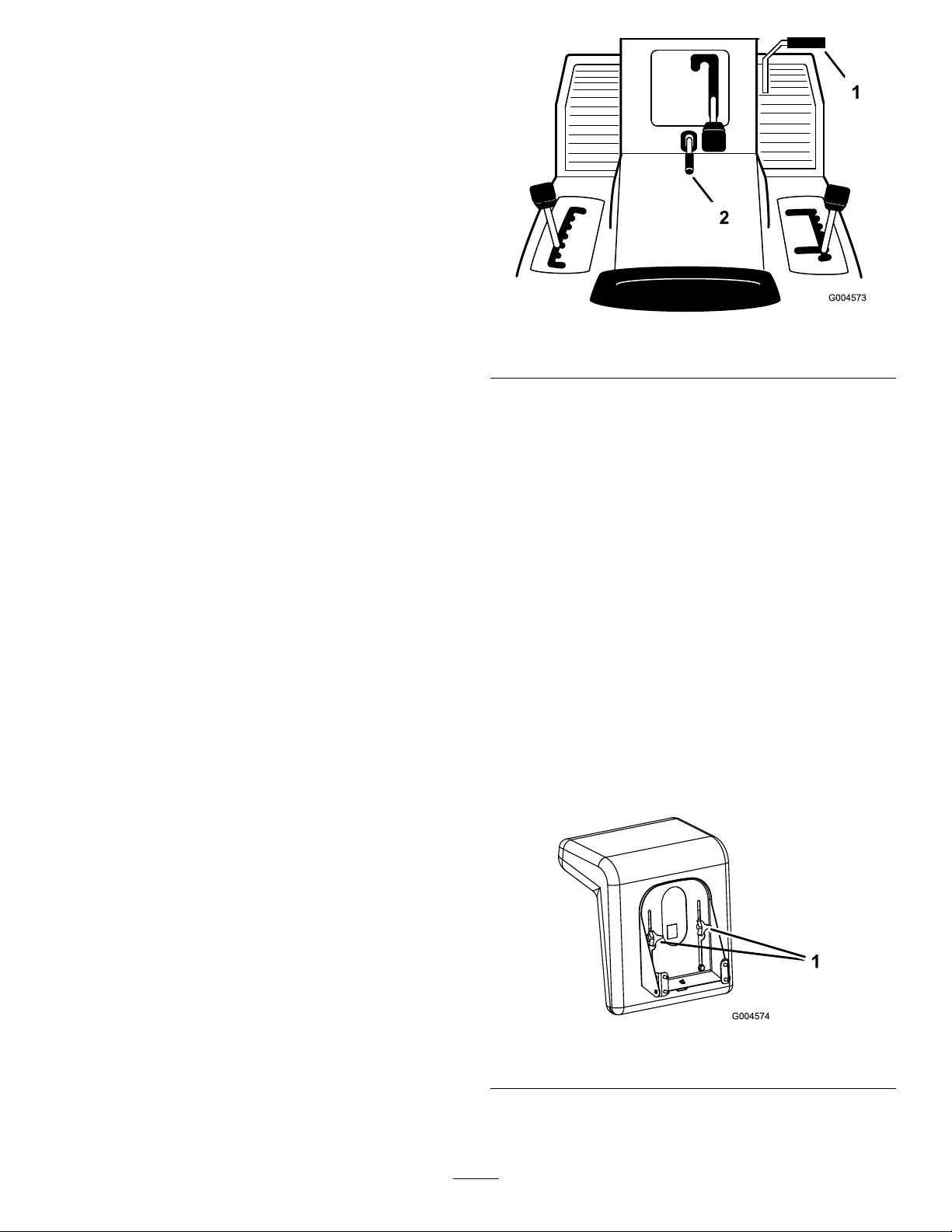

1.Pushtheclutch/brakepedal(Figure8)downand
holdit.
Figure8
1.Clutch/brakepedal2.Parkingbrakelever
2.Lifttheparkingbrakelever(Figure8)upand
graduallytakeyourfootofftheclutch/brakepedal.
Note:Theclutch/brakepedalshouldstayinthe
depressed(locked)position.
ReleasingtheParkingBrake
1.Pushdownontheclutch/brakepedal(Figure8).
Note:Theparkingbrakelevershouldrelease.
2.Graduallyreleasetheclutch/brakepedal.
PositioningtheSeat
Theseatcanmoveforwardandbackward.Position
theseatwhereyouhavethebestcontrolofthetractor
andaremostcomfortable.
1.Raisetheseatandloosentheadjustmentknobs
(Figure9).
Figure9
1.Adjustmentknobs
2.Movetheseattothedesiredpositionandtighten
theknobs.
12

UsingtheBladeControl(PTO)
Thebladecontrol(PTO)leverengagesanddisengages
powertotheblade.
EngagingtheBlade
1.Depresstheclutch/brakepedaltostopthetractor.
2.Shiftthebladecontrol(PTO)levertoEngage
(Figure10).

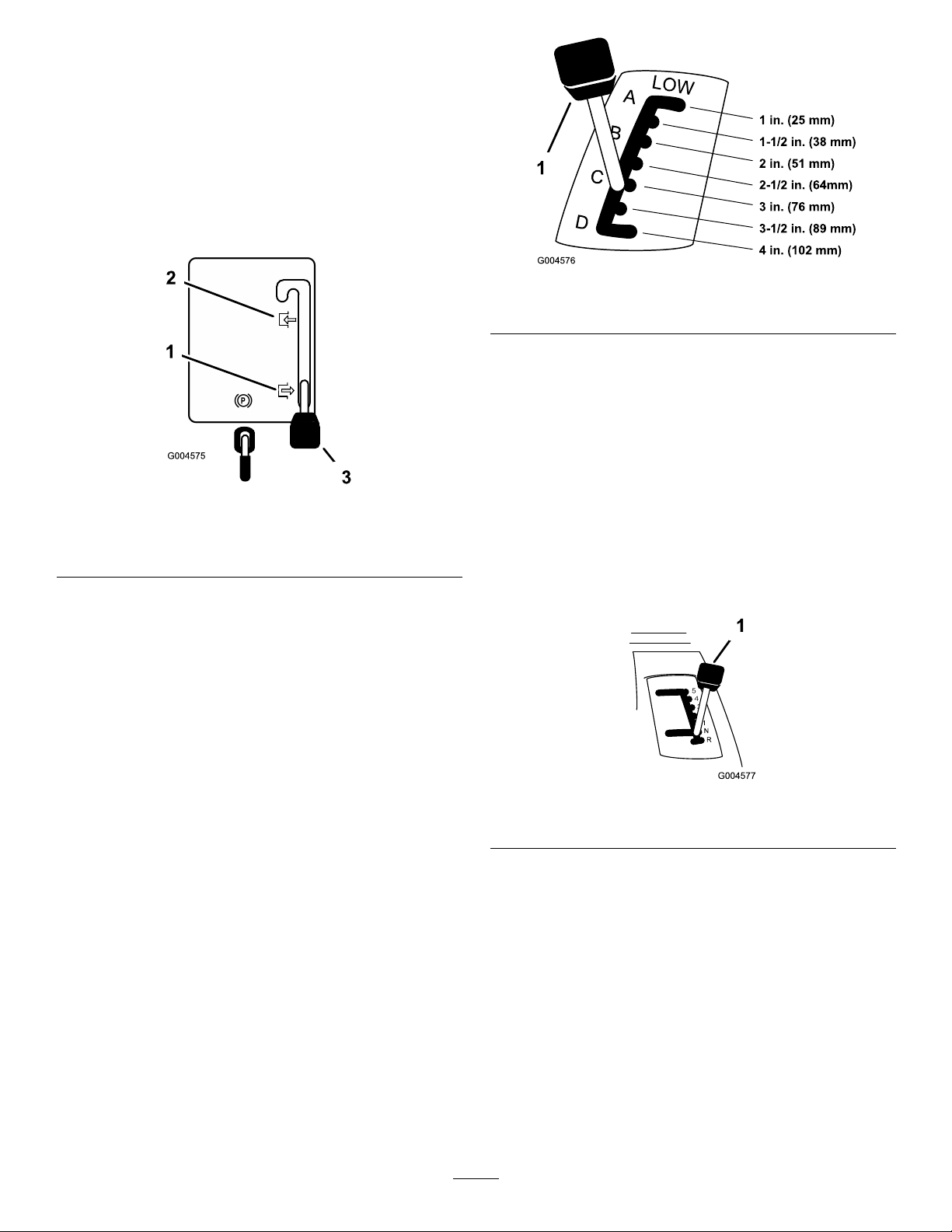

Figure10
1.Disengage3.Bladecontrol(PTO)lever
2.Engage
DisengagingtheBlade
1.Depresstheclutch/brakepedaltostopthetractor.
2.Shiftthebladecontrol(PTO)levertoDisengage
(Figure10).
SettingtheHeightofCut
Usetheheight-of-cutlevertoraiseandlowerthemower
tothedesiredcuttingheight.Youcansetthecutting
heightto7differentpositionsfromapproximately1
to4inch(25to102mm).
Pullontheheight-of-cutleverandshiftitintothe
desiredposition(Figure11).
Figure11
1.Height-of-cutlever
StartingtheEngine
1.Sitdownontheseat.
2.Settheparkingbrake;refertoSettingtheParking
Brake.
Note:Theenginedoesnotstartunlessyouset
theparkingbrakeorfullydepresstheclutch/brake
pedal.
3.ShiftthegroundspeedleverintoNeutral
(Figure12).
Figure12
1.Groundspeedlever
4.Shiftthebladecontrol(PTO)levertoDisengage
(Figure10).
5.ShiftthethrottlelevertoChoke(Figure13).
13

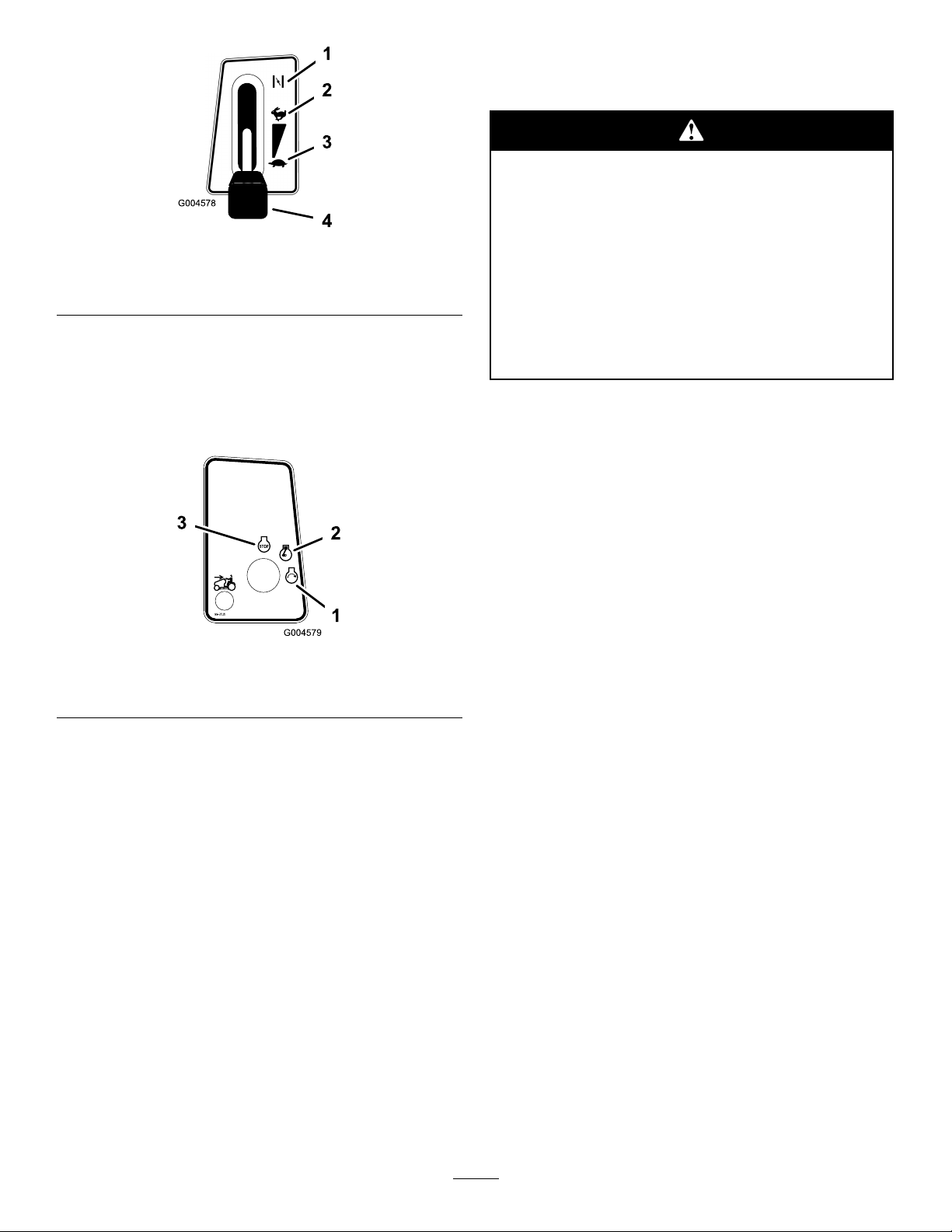

Figure13
1.Choke3.Slow
2.Fast4.Throttlelever
Note:Anenginethathasbeenrunningandis
warmmaynotrequirestep5.
6.Turntheignitionkeyclockwiseandholditinthe
Startposition(Figure14).Whentheenginestarts,
releasethekey.
Figure14
1.Start3.Off
2.On
Important:Iftheenginedoesnotstartafter
30secondsofcontinuouscranking,turnthe
ignitionkeytoOffandletthestartermotor
cool;refertoTroubleshooting.
7.Aftertheenginestarts,slowlyshiftthethrottlelever
toFast(Figure13).Iftheenginestallsorhesitates,
shiftthethrottleleverbacktoChokeforafew
secondsandthenshiftthethrottlelevertoFast.
Repeatthisstepasrequired.
StoppingtheEngine
1.ShiftthethrottlelevertoSlow(Figure13).
2.TurntheignitionkeytoOff(Figure14).
3.Removetheignitionkey.
UsingtheSafetyInterlock
System
Ifthesafetyinterlockswitchesaredisconnected
ordamaged,thetractorcouldoperate
unexpectedly,causingpersonalinjury.
•Donottamperwiththeinterlockswitches.
•Checktheoperationoftheinterlock
switchesdailyandreplaceanydamaged
switchesbeforeoperatingthetractor.
•Replaceswitchesevery2yearsregardlessof
whethertheyareoperatingproperlyornot.
UnderstandingtheSafetyInterlock
System
Thesafetyinterlocksystemisdesignedtopreventthe
enginefromstartingunless:
•Theclutch/brakepedalisdepressed.
•Thebladecontrol(PTO)leverisintheDisengage
position.
Thesafetyinterlocksystemstopstheengineifyourise
fromtheseatwhenyoureleasetheclutch/brakepedal
orengagetheblade.
SettingtheKeyChoice® ®
®Switchto
OperateinReverse
Theinterlockfeatureonthetractorpreventsthepower
take-off(PTO)fromoperatingwhenyoubackupthe
tractor.IfyoushiftthegroundspeedleverintoReverse
withthePTOengaged(i.e.,withthemowerbladesor
otherattachmentrunning),theenginewillstop.Donot
mowinreverseunlessitisabsolutelynecessary.
IfyouneedtousethePTOwhilebackingup,turn
offtheinterlockfeatureusingtheKeyChoiceswitch
locatedneartheseatbracket(Figure15).
14

Figure15
1.KeyChoiceswitch
Youcouldbackoverachildorbystanderwhile
themowerbladeorotherattachmentisengaged
andcauseseriousinjuryordeath.
•Donotmowinreverseunlessitisabsolutely
necessary.
•DonotinserttheKeyChoicekeyunlessitis
absolutelynecessary.
•Alwayslookbackwardanddownbefore
backingupthetractor.
•UsetheKeyChoiceswitchonlyifyouare
certainthatnochildrenorotherbystanders
willenterthemowingarea.
•Beveryobservantafterdeactivatingthe
interlockbecausethesoundoftheengine
maypreventyoufromnoticingthatachild
orbystanderhasenteredtheworkarea.
•Alwaysremoveboththeignitionand
KeyChoicekeysandputtheminasafeplace
outofthereachofchildrenorunauthorized
userswhenyouleavethetractorunattended.
1.Engagetheblade(PTO).
2.InserttheKeyChoicekeyintotheswitch(Figure15).
3.TurntheKeyChoicekey.
Note:Aredlightonthefrontconsole(Figure16)
turnson,indicatingthattheinterlockisdisabled.
Figure16
1.Operating-in-reverselight
4.ShiftthegroundspeedleverintoReverseand
completeyourtask.
5.Disengagetheblade(PTO)toactivatetheinterlock.
6.RemovetheKeyChoicekeyandputitinasafeplace
outofthereachofchildren.
TestingtheSafetyInterlock
System
Ifthesafetyinterlockswitchesaredisconnected
ordamaged,thetractorcouldoperate
unexpectedly,causingpersonalinjury.
•Donottamperwiththeinterlockswitches.
•Checktheoperationoftheinterlock
switchesdailyandreplaceanydamaged
switchesbeforeoperatingthetractor.
Testthesafetyinterlocksystembeforeyouusethe
tractoreachtime.Ifthesafetyinterlocksystemdoesnot
operateasdescribedbelow,haveanAuthorizedService
Dealerrepairthesafetyinterlocksystemimmediately.
Whilesittingintheseat,performthefollowingchecks:
1.ShiftthegroundspeedleverintoNeutral,setthe
parkingbrake,shiftthebladecontrol(PTO)lever
toEngage,andturntheignitionkeytoStart:The
engineshouldnotcrank.
2.WiththegroundspeedleverinNeutral,shift
thebladecontrol(PTO)levertotheDisengage
position,releasetheparkingbrake,andturnthe
ignitionkeytoStart:Theengineshouldnotcrank.
3.WiththegroundspeedleverinNeutral,setthe
parkingbrake,shiftthebladecontrol(PTO)leverto
Disengage,andstarttheengine.Whiletheengineis
15

running,releasetheparkingbrakeandriseslightly
fromtheseat:Theengineshouldstop.
4.Shiftthebladecontrol(PTO)leverintothe
Disengageposition,shiftthegroundspeedleverin
Neutral,settheparkingbrake,andstarttheengine.
Whiletheengineisrunning,shiftthebladecontrol
(PTO)leverintotheEngageposition,pushinthe
clutch,andshiftthegroundspeedleverinReverse:
Theengineshouldstop.
5.Shiftthebladecontrol(PTO)leverintothe
Disengageposition,shiftthegroundspeedleverin
Neutral,andsettheparkingbrake.Starttheengine,
shiftthebladecontrol(PTO)leverintotheEngage
position,andturntheKeyChoicekeyandrelease
it:Theoperating-in-reversewarninglightshould
illuminate.
6.Shiftthebladecontrol(PTO)levertotheDisengage
position:Theoperating-in-reversewarninglight
shouldturnoff.
DrivingtheTractorForwardor
Backward
Thethrottlecontrolregulatestheenginespeedas
measuredinRPM(revolutionsperminute).
Togoforwardorbackward:
1.Depresstheclutch/brakepedal.
2.Shiftthegroundspeedlevertothedesiredforward
speedortoReverse.
Note:Asyouslowlyreleasethepedal,thetractor
willbegintomove.
3.Steerthetractorwiththesteeringwheel.
Note:Tooperatethetractorinreversewiththe
blade(PTO)engaged,youmustdeactivatethe
operating-in-reverseinterlockusingtheKeyChoice
switchlocatedinfrontofandbelowtheseat.
Suddenlyreleasingtheclutchpedalcouldcause
youtolosecontrolandsuddenlyputthetractor
inmotion.
Alwaysreleasetheclutchpedalslowlywhen
startingthetractorinmotion.
SelectingtheGroundSpeed
Important:Toavoidtransmissiondamage,always
depresstheclutch/brakepedalbeforeshiftinginto
oroutofReverse.
Alwaysstartthetractorinmotionbydepressingthe
clutch/brakepedalandshiftingintothedesiredspeed.
Oncethetractorisinmotion,youcanshiftintoany
forwardspeedwithoutdepressingtheclutch/brake
pedal.Inmostconditions,thetractorispowerful
enoughtomoveoutinanyspeed.Ifitwillnotmove
outinahigherspeedbecauseofaheavyload,shiftto
alowerspeed.
Important:Donotshiftonslopes.Chooseaslow
speedsothatyouwillnothavetostoporshift
whileontheslope.
StoppingtheTractor
1.Depresstheclutch/brakepedal.
2.ShiftthegroundspeedleverintoNeutral.
3.Disengagetheblade(PTO).
4.TurntheignitionkeytoOff.
5.Settheparkingbrakeifyouleavethetractor
unattended;refertoSettingtheParkingBrake.
Note:Removethekeysfromtheignitionand
KeyChoiceswitches.
Childrenorbystandersmaybeinjuredifthey
moveorattempttooperatethetractorwhileit
isunattended.
AlwaysremovetheignitionandKeyChoice
keysandsettheparkingbrakewhenleaving
thetractorunattended,evenifjustforafew
minutes.
Important:Topreventexcessivewear,donot
“ridethebrakes.”Shiftthegroundspeedlever
toalowerspeedsothatyouwillnothaveto
stoporshiftwhileyouareontheslope.
16

SideDischargingorMulching
theGrass
Withoutthegrassdeector,dischargecover,
orcompletegrasscatcherassemblymounted
inplace,youandothersareexposedtoblade
contactandthrowndebris.Contactwitha
rotatingmowerbladeandthrowndebriswill
causeinjuryordeath.
•Neverremovethegrassdeectorfrom
themowerbecausethegrassdeector
routesmaterialdowntowardtheturf.Ifthe
grassdeectoriseverdamaged,replaceit
immediately.
•Neverputyourhandsorfeetunderthe
mower.
•Nevertrytocleardischargeareaormower
bladesunlessyoudisengagetheblade
(PTO)androtatetheignitionkeytoOff.
Also,removethekeyanddisconnectthe
wirefromthesparkplug.
Themowerhasahingedgrassdeectorthatdisperses
clippingstothesideanddowntowardtheturf.
Tomulchthegrassclippings,youmustinstallthe
dischargecoverintotheopeninginthesideofthe
mower;refertoInstallingtheDischargeCover.
InstallingtheDischargeCover
Toconvertfromasidedischargetoamulchingmower,
installthedischargecoverintotheopeningattheside
ofthemower.
1.Stoptheengineandwaitforallmovingpartsto
stop.
2.Removetheignitionkey.
3.Liftthegrassdeectorandplacethedischarge
coverovertheopeningontothelowerlipofthe
mowerandslideitintothefronthinge(Figure17).
Figure17
1.Grassdeector4.Hingepin
2.Dischargecover5.Wingnut
3.Lowerlip
4.Slidethehingepinthroughthehinge(Figure17).
5.Securethedischargecovertothemowerwiththe
wingnut(Figure17).
6.Toconvertbacktoasidedischargemower,remove
thedischargecoverandlowerthegrassdeector
overthedischargeopening.
OperatingTips
•Forthebestperformance,operatetheengineat
themaximumspeed.Themowerrequiresairto
thoroughlycutgrassclippings,sodonotsetthe
height-of-cuttooloworcompletelysurroundthe
mowerinuncutgrass.Alwaysleaveonesideofthe
mowerfreefromuncutgrasstoallowtheairtobe
drawnintothemower.
•Cutthegrassslightlylongerthannormaltoensure
thatthecuttingheightofthemowerdoesnotscalp
anyunevenground.Whencuttinggrasslongerthan
6inch(15cm)tall,cutthelawntwicetoensurean
acceptableappearance.
•Itisbesttocutonlyabout1/3ofthegrassblade.
Donotcutmorethanthatunlessthegrassissparse
oritislatefallwhengrassgrowsmoreslowly.
•Alternatethemowingdirectiontokeepthegrass
standingstraight.Thisalsohelpsdisperseclippings
andenhancesdecompositionandfertilization.
•Grassgrowsatdifferentratesatdifferenttimesof
theseason.Tomaintainthesamecuttingheight,
whichisagoodpractice,mowmoreofteninearly
spring.Asthegrassgrowthrateslowsinmid
summer,mowlessfrequently.
17

•Ifthegrassislongerthannormal,orifitcontains
ahighdegreeofmoisture,raisethecuttingheight
higherthanusual,cutthegrassatthatsetting,and
thencutthegrassagainatthelower,normalsetting.
•Ifyoumuststopthetractorwhilemowing,youmay
leaveaclumpofgrassclippingsonyourlawn.To
avoidthis,dothefollowing:
–Engagethebladeandmovetoapreviouslycut
area.
–Dispersetheclippingsevenlybyraisingthe
mower1or2height-of-cutsettingswhiledriving
forwardwiththebladeengaged.
•Usethewashoutporttocleanclippingsanddirt
fromtheundersideofthemoweraftereachuse.If
grassanddirtbuildupinsidethemower,thecutting
qualitywilleventuallybecomeunsatisfactory.
•Maintainasharpbladethroughouttheseason.A
sharpbladecutsgrasscleanlywithouttearingor
shreddingthegrassblades.Tearingandshredding
thegrassturnsitbrownattheedges,whichslows
itsgrowthandincreasesthechanceofdisease.
Every30days,checkthebladeforsharpnessand
ledownanynicks.
18

Maintenance
Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.
RecommendedMaintenanceSchedule(s)
MaintenanceService
IntervalMaintenanceProcedure
Aftertherst5hours•Changetheengineoil.
Beforeeachuseordaily
•Checktheengineoillevel.
•Checkthebrakes.
•Checkthecuttingblade.
•Cleanthemowerhousing.
•Checkthesafetyinterlocksystem.
Every25hours
•Greasethechassis(moreoftenindirtyordustyconditions).
•Servicethefoamaircleaner(morefrequentlyindirtyordustyconditions).
•Checkthesparkplug.
•Checkthetirepressure.
Every50hours
•Changetheengineoil(morefrequentlywhenoperatingunderaheavyloadorat
hightemperatures).
•Checkthebatteryelectrolyte.
Every100hours
•Servicethepaperaircleaner(morefrequentlyindirtyordustyconditions).
•Replacethesparkplug.
•Replacethefuellter.
•Cleanthecoolingsystem(morefrequentlyindirtyordustyconditions).
Beforestorage
•Performallofthemaintenanceprocedureslistedabove.
•Checkthebeltsforwear/cracks.
•Drainthefueltank.
•Paintchippedsurfaces.
•Chargethebatteryanddisconnectthecables.
Yearly
•Checkthesafetyinterlocksystem.
•Checkthebrakes.
•Checkthesparkplug.
•Checkthebatteryelectrolyte.
•Checkthetirepressure.
Important:Refertoyourengineoperator’smanualforadditionalmaintenanceprocedures.
Ifyouleavethekeyintheignitionswitch,someonecouldaccidentlystarttheengineandseriously
injureyouorotherbystanders.
Removethekeyfromtheignitionanddisconnectthewirefromthesparkplugbeforeyoudoany
maintenance.Setthewireasidesothatitdoesnotaccidentallycontactthesparkplug.
19

Lubrication
GreasingandLubricatingthe
Tractor
Greasethetractorwithageneral-purposegreaseafter
every25operatinghoursoronceayear,whichever
occursrst.Greasethetractormorefrequentlywhen
theoperatingconditionsareextremelydustyorsandy.
HowtoGreasetheTractor
ServiceInterval:Every25hours
1.Disengagetheblade(PTO).
2.ShiftthegroundspeedleverintoNeutral.
3.Settheparkingbrake.
4.Stoptheengineandwaitforallmovingpartstostop.
5.Removetheignitionkey.
6.Cleanthegreasettingswitharag.Makesureto
scrapeanypaintoffthefrontofthettings.
7.Connectagreaseguntoeachttingandpump
greaseintoit.
8.Wipeupanyexcessgrease.
WheretoAddGrease
Lubricatethefrontwheelsandthesteeringspindlesuntil
thegreasebeginstooozeoutofthebearings(Figure18).
Figure18
EngineMaintenance
ServicingtheEngineOil
Checktheoilleveldailyorafterevery8hours.
Changetheoilaftertherst5operatinghoursandevery
50operatinghoursthereafter.
Note:Changetheoilmorefrequentlywhenoperating
conditionsareextremelydustyorsandy.
OilType:Detergentoil(APIserviceSF,SG,SH,SJ,or
higher)
CrankcaseCapacity:48oz.or1-1/2qt.(1400ccor1.4l)
Viscosity:Seethetablebelow.
Figure19
CheckingtheOilLevel
ServiceInterval:Beforeeachuseordaily
1.Parkthetractoronalevelsurface.
2.Disengagetheblade(PTO).
3.ShiftthegroundspeedleverintoNeutral.
4.Settheparkingbrake.
5.Stoptheengineandwaitforallmovingpartstostop.
6.Removetheignitionkey.
7.Openthehood.
8.Cleanaroundtheoildipstick(Figure20)sothatdirt
cannotfallintothellholeanddamagetheengine.
20
