FormNo.3409-396RevA
TimeCutter®ZS4200TorZS5000
RidingMower
ModelNo.74657—SerialNo.400000000andUp
ModelNo.74661—SerialNo.400000000andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3409-396*A

ThisproductcomplieswithallrelevantEuropeandirectives;
fordetails,pleaseseetheseparateproductspecicDeclaration
ofConformity(DOC)sheet.
GrossHorsepower
Thegrossornethorsepowerofthisenginewaslaboratory
ratedbytheenginemanufacturerinaccordancewiththe
SocietyofAutomotiveEngineers(SAE)J1940.Ascongured
tomeetsafety,emission,andoperatingrequirements,
theactualenginetorqueonthisclassofmowerwillbe
signicantlylower.
Gotowww.Toro.comtoviewspecicationsonyourmower
model.
Important:IfyouareusingamachinewithaToro
engineabove1500m(5,000ft)foracontinuousperiod,
ensurethattheHighAltitudeKithasbeeninstalledso
thattheenginemeetsCARB/EPAemissionregulations.
TheHighAltitudeKitincreasesengineperformance
whilepreventingspark-plugfouling,hardstarting,and
increasedemissions.Onceyouhaveinstalledthekit,
attachthehigh-altitudelabelnexttotheserialdecal
onthemachine.ContactanyAuthorizedToroService
DealertoobtaintheproperHighAltitudeKitand
high-altitudelabelforyourmachine.Tolocateadealer
convenienttoyou,accessourwebsiteatwww.Toro.com
orcontactourToroCustomerCareDepartmentatthe
number(s)listedinyourEmissionControlWarranty
Statement.
Removethekitfromtheengineandrestoretheengine
toitsoriginalfactorycongurationwhenrunningthe
engineunder1500m(5,000ft).Donotoperateanengine
thathasbeenconvertedforhigh-altitudeuseatlower
altitudes;otherwise,youcouldoverheatanddamage
theengine.
Ifyouareunsurewhetherornotyourmachinehasbeen
convertedforhigh-altitudeuse,lookforthefollowing
label(Figure3).
decal127-9363
Figure3
Introduction
Thismachineisaride-on,rotary-bladeintendedtobeused
byhomeownersinresidentialapplications.Itisprimarily
designedforcuttinggrassonwell-maintainedlawns.Itisnot
designedforcuttingbrush,mowinggrassandothergrowth
alongsidehighways,orforagriculturaluses.
Readthisinformationcarefullytolearnhowtooperateand
maintainyourproductproperlyandtoavoidinjuryand
productdamage.Youareresponsibleforoperatingthe
productproperlyandsafely.
YoumaycontactTorodirectlyatwww .Toro.comforproduct
safetyandoperationtrainingmaterials,accessoryinformation,
helpndingadealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof
yourproductready.Figure1identiesthelocationofthe
modelandserialnumbersontheproduct.Writethenumbers
inthespaceprovided.
g188142
Figure1
Undertheseat
1.Modelandserial-numberplate
Writetheproductmodelandserialnumbersinthespace
below:
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafety-alertsymbol(Figure2),
whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.
©2016—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved

g000502
Figure2
1.Safety-alertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.
Contents
Safety...........................................................................4
GeneralSafety.........................................................4
SlopeIndicator.......................................................5
SafetyandInstructionalDecals.................................6
ProductOverview.........................................................12
Controls...............................................................12
BeforeOperation......................................................13
BeforeOperationSafety..........................................13
RecommendedFuel................................................14
UsingStabilizer/Conditioner...................................14
FillingtheFuelTank...............................................14
CheckingtheEngine-OilLevel.................................15
BreakinginaNewMachine......................................15
ThinkSafetyFirst...................................................15
UsingtheSafety-InterlockSystem.............................16
PositioningtheSeat................................................16
AdjustingtheMotion-ControlLevers........................16
ConvertingtoSideDischarge...................................17
DuringOperation.....................................................20
DuringOperationSafety.........................................20
OperatingtheMowerBlade-ControlSwitch
(PTO)...............................................................21
OperatingtheThrottle............................................21
OperatingtheChoke...............................................21
OperatingtheIgnitionSwitch..................................22
StartingandShuttingOfftheEngine.........................22
UsingtheMotion-ControlLevers.............................23
DrivingtheMachine...............................................23
StoppingtheMachine.............................................24
AdjustingtheHeightofCut.....................................25
AdjustingtheAnti-ScalpRollers...............................25
UsingtheSideDischarge.........................................26
OperatingTips......................................................26
AfterOperation........................................................27
AfterOperationSafety............................................27
PushingtheMachinebyHand..................................27
TransportingtheMachine........................................28
LoadingtheMachine..............................................29
Maintenance.................................................................30
RecommendedMaintenanceSchedule(s)......................30
Pre-MaintenanceProcedures......................................31
MaintenanceandStorage.........................................31
RaisingtheSeat......................................................31
ReleasingtheMower-DeckCurtain...........................31
Lubrication...............................................................32
GreasingtheBearings.............................................32
EngineMaintenance..................................................32
EngineSafety.........................................................32
ServicingtheAirCleaner.........................................32
ServicingtheEngineOil..........................................33
ServicingtheSparkPlug..........................................36
CleaningtheCoolingSystem....................................37
FuelSystemMaintenance...........................................37
ReplacingtheIn-LineFuelFilter...............................37
ElectricalSystemMaintenance....................................38
ElectricalSystemSafety...........................................38
3

ServicingtheBattery...............................................38
ServicingtheFuses.................................................40
DriveSystemMaintenance.........................................40
CheckingtheTirePressure......................................40
ReleasingtheElectricBrake.....................................41
MowerMaintenance...................................................41
ServicingtheCuttingBlades.....................................41
LevelingtheMowerDeck........................................43
RemovingtheMowerDeck.....................................45
InstallingtheMowerDeck.......................................46
ReplacingtheGrassDeector..................................47
MowerBeltMaintenance............................................48
InspectingtheBelts................................................48
ReplacingtheMower-DeckBelt...............................48
Cleaning...................................................................49
WashingtheUndersideoftheMower........................49
Storage........................................................................50
CleaningandStorage..............................................50
Troubleshooting...........................................................52
Schematics...................................................................54
Safety
ThismachinehasbeendesignedinaccordancewithENISO
5395:2013.
GeneralSafety
Thisproductiscapableofamputatinghandsandfeetand
ofthrowingobjects.Alwaysfollowallsafetyinstructionsto
avoidseriouspersonalinjury.
Usingthisproductforpurposesotherthanitsintendeduse
couldprovedangeroustoyouandbystanders.
•ReadandunderstandthecontentsofthisOperator’sManual
beforeyoustarttheengine.Ensurethateveryoneusing
thisproductknowshowtouseitandunderstandsthe
warnings.
•Donotputyourhandsorfeetnearmovingcomponents
ofthemachine.
•Donotoperatethemachinewithoutallguardsandother
safetyprotectivedevicesinplaceandworkingonthe
machine.
•Keepclearofanydischargeopening.Keepbystandersa
safedistanceawayfromthemachine.
•Keepchildrenoutoftheoperatingarea.Neverallow
childrentooperatethemachine.
•Stopthemachineandshutofftheenginebeforeservicing,
fueling,oruncloggingthemachine.
Improperlyusingormaintainingthismachinecanresult
ininjury.Toreducethepotentialforinjury,complywith
thesesafetyinstructionsandalwayspayattentiontothe
safety-alertsymbol,whichmeansCaution,Warning,or
Danger—personalsafetyinstruction.Failuretocomplywith
theseinstructionsmayresultinpersonalinjuryordeath.
Youcanndadditionalitemsofsafetyinformationintheir
respectivesectionsthroughoutthismanual.
4

SlopeIndicator
G01 1841
g011841
Figure4
Thispagemaybecopiedforpersonaluse.
1.Themaximumslopeyoucansafelyoperatethemachineonis15degrees.Usetheslopecharttodeterminethedegreeofslope
ofhillsbeforeoperating.Donotoperatethismachineonaslopegreaterthan15degrees.Foldalongtheappropriateline
tomatchtherecommendedslope.
2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.
3.Exampleofhowtocompareslopewithfoldededge
5

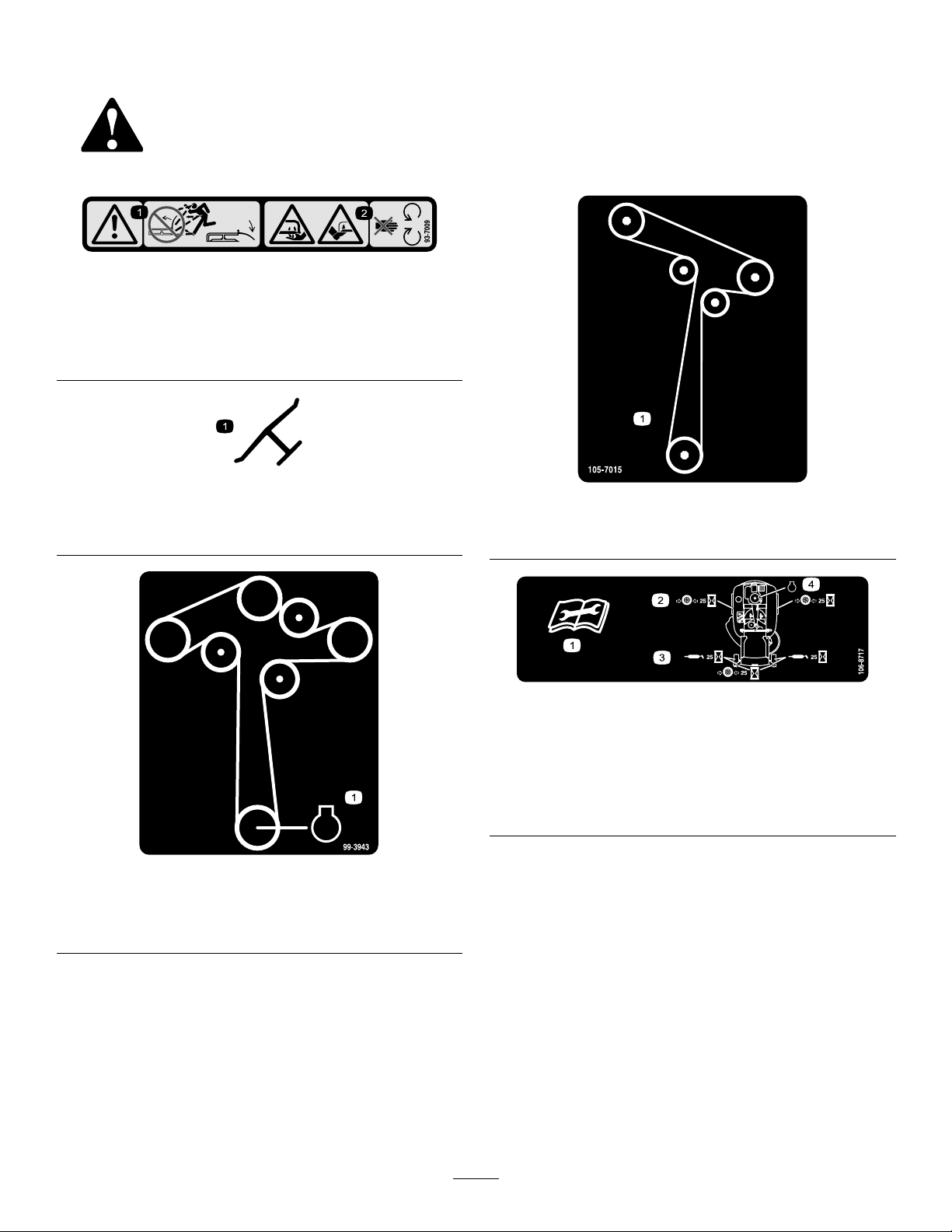

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaofpotential
danger.Replaceanydecalthatisdamagedormissing.
decal93-7009
93-7009
1.Warning—donotoperatethemowerwiththedeectorup
orremoved;keepthedeectorinplace.
2.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts.
decaloemmarkt
Manufacturer'sMark
1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.
decal99-3943
99-3943
ForModelswith127cm(50inch)Decks
1.Engine
decal105-7015
105-7015
ForModelswith107cm(42inch)Decks
decal106-8717
106-8717
1.Readtheinstructionsbeforeservicingorperforming
maintenance.
2.Checktirepressureevery25operatinghours.
3.Greaseevery25operatinghours.
4.Engine
6

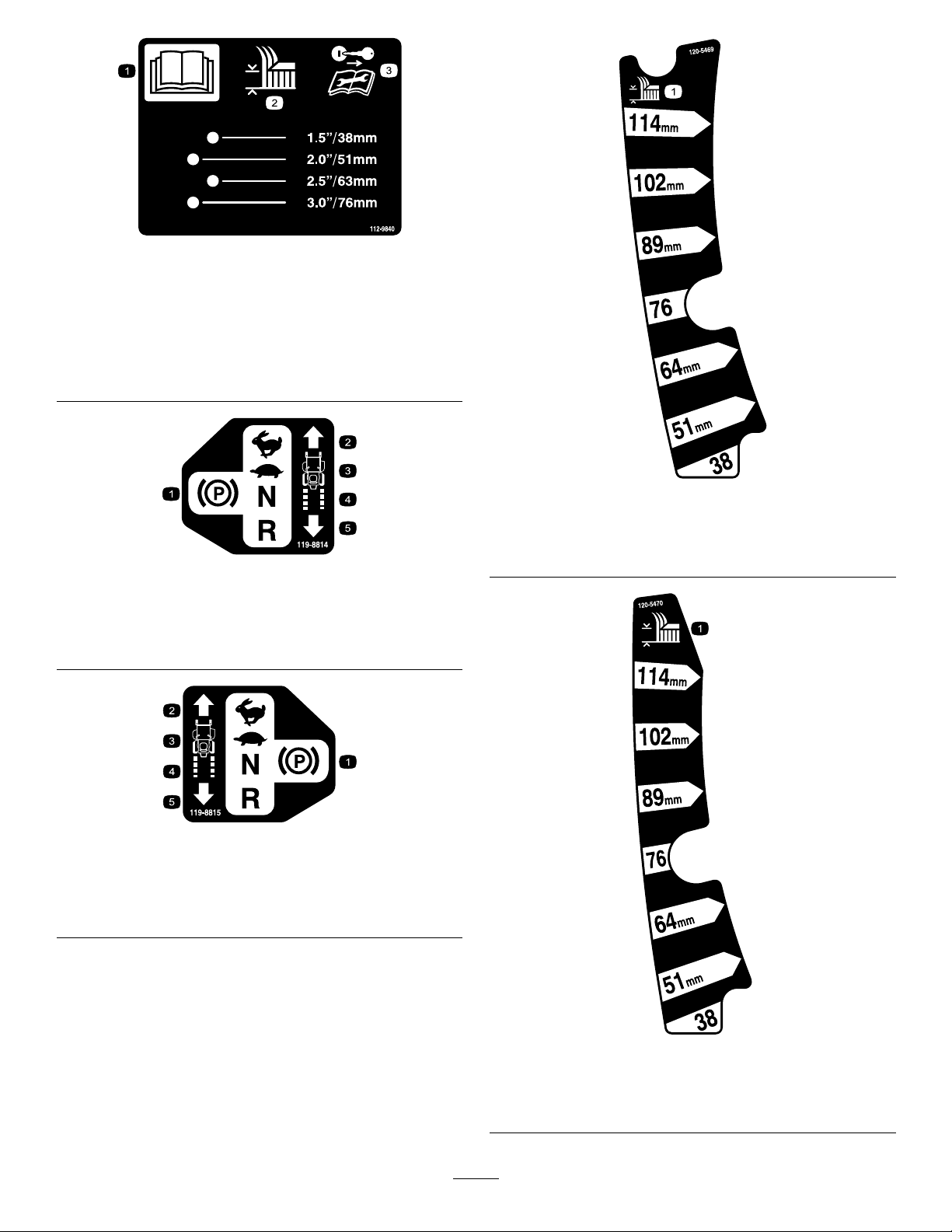

decal112-9840
112-9840
ForModelswith127cm(50inch)Decks
1.ReadtheOperator's
Manual.
3.Removetheignitionkey
andreadtheinstructions
beforeservicingor
performingmaintenance.
2.Heightofcut
decal119-8814
119-8814
1.Parkingposition4.Neutral
2.Fast5.Reverse
3.Slow
decal119-8815
119-8815
1.Parkingposition4.Neutral
2.Fast5.Reverse
3.Slow
decal120-5469
120-5469
ForModelswith107cm(42inch)Decks
1.Heightofcut
decal120-5470
120-5470
ForModelswith127cm(50inch)Decks
1.Heightofcut
7

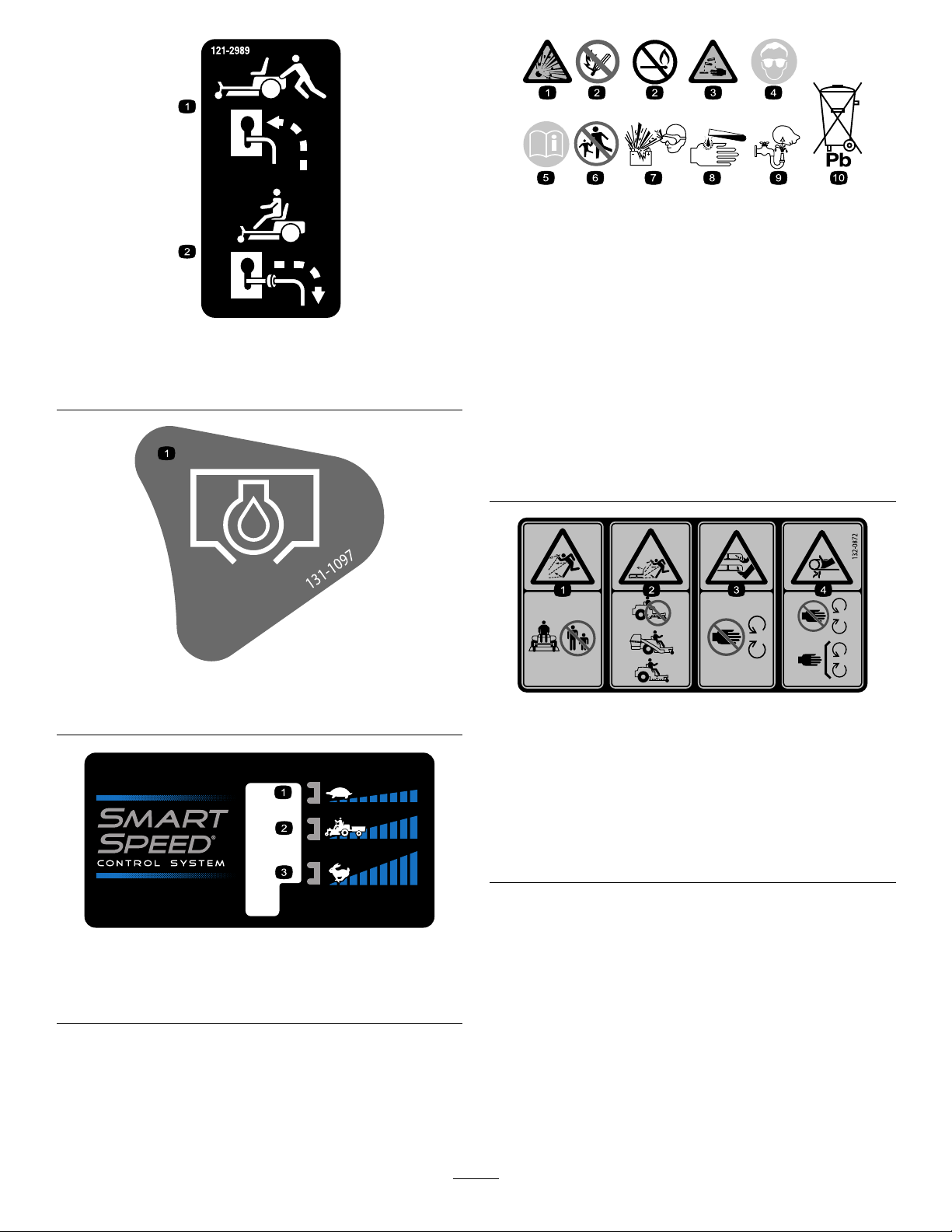

decal121-2989b
121-2989
1.Bypassleverpositionfor
pushingthemachine
2.Bypassleverpositionfor
operatingthemachine
decal131-1097
131-1097
1.Oildrain
131-3948
decal131-3948
131-3948
1.Slow3.Fast
2.Towing
decalbatterysymbols
BatterySymbols
Someorallofthesesymbolsareonyourbattery.
1.Explosionhazard6.Keepbystandersasafe
distanceawayfromthe
battery.
2.Nore,opename,or
smoking
7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries.
3.Causticliquid/chemical
burnhazard
8.Batteryacidcancause
blindnessorsevereburns.
4.Weareyeprotection.9.Flusheyesimmediately
withwaterandgetmedical
helpfast.
5.ReadtheOperator's
Manual.
10.Containslead;donot
discard.
decal132-0872
132-0872
1.Thrownobject
hazard—keepbystanders
awayfromthemachine.
3.Severinghazardofhand
orfoot—keepawayfrom
movingparts.
2.Thrownobjecthazard,
raisedbafe—donot
operatethemachinewith
anopendeck;usea
baggerorabafe.
4.Entanglement
hazard—keepaway
frommovingparts;keep
allguardsandshieldsin
place.
8

decal121-0772
121-0772
ForModelswith107cm(42inch)Decks
1.Fast4.Choke
2.Continuous-variablesetting5.Powertakeoff(PTO),blade-controlswitch
3.Slow
9

decal121-0773
121-0773
ForModelswith127cm(50inch)Decks
1.Fast4.Choke
2.Continuous-variablesetting5.Powertakeoff(PTO),blade-controlswitch
3.Slow
10

decal132-0869
132-0869
1.Warning—readthe
Operator'sManual.
3.Cuttinghazardofhand,
mowerblade;pinching
hazardofhand,belt—keep
handsandfeetawayfrom
movingparts;keepall
guardsandshieldsinplace.
5.Ramptipping
hazard—whenloading
ontoatrailer,donotuse
dualramps;onlyusea
singlerampwideenough
forthemachineandthat
hasaninclinelessthan
15degrees;backupthe
ramp(inreverse)anddrive
forwardofftheramp.
7.Tippinghazardon
slopes—donotuseon
slopesnearopenwater;do
notuseonslopesgreater
than15degrees.
2.Warning—beforeservicing,
engagetheparkingbrake,
removethekeyandthe
sparkplugconnection.
4.Thrownobject
hazard—keepbystanders
awayfromthemachine;
removedebrisfromthe
areabeforemowing;keep
thedeectorshielddown.
6.Bodilyharmhazard—no
riders;lookbehindyou
whenmowinginreverse.
11

ProductOverview
g027829

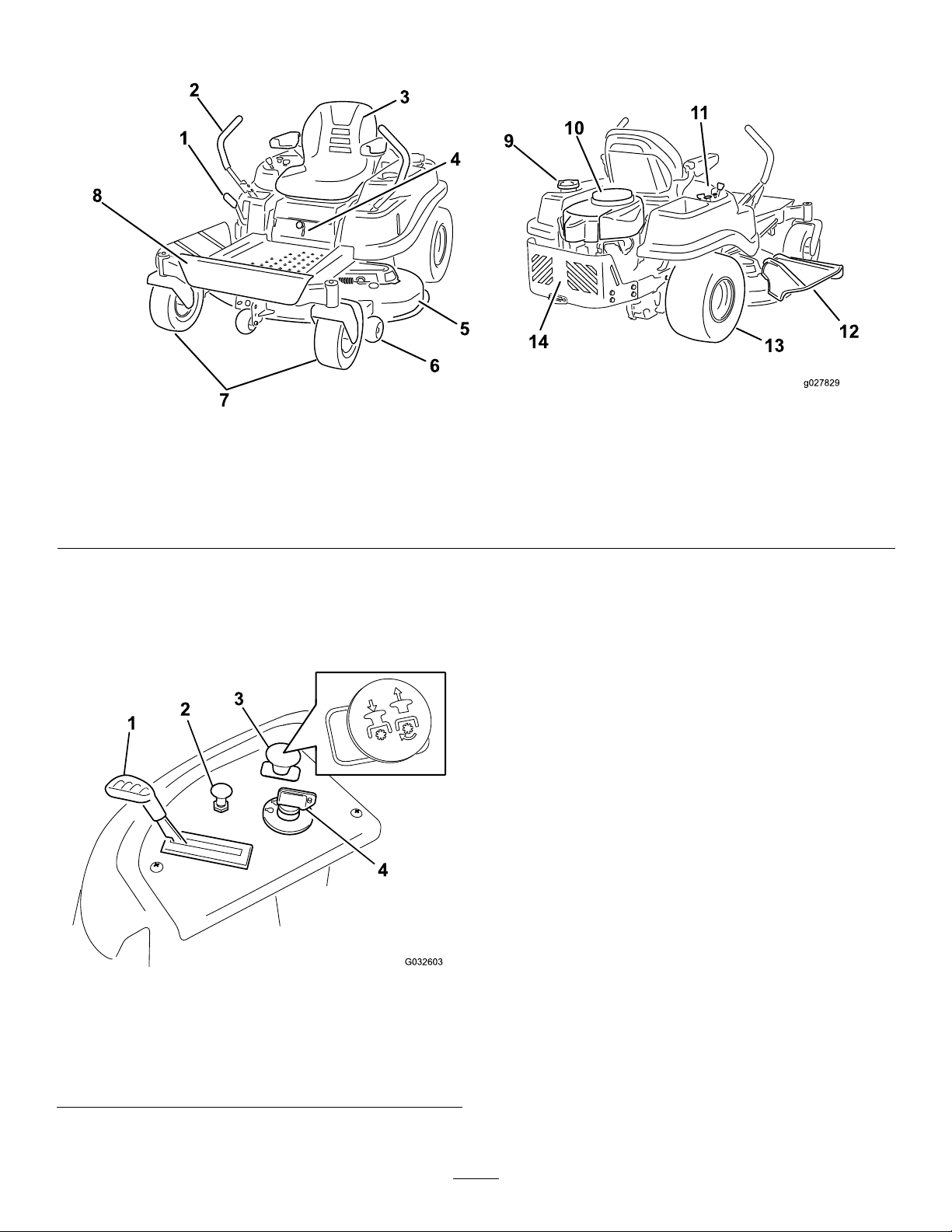

Figure5
1.Height-of-cutlever5.Mowerdeck9.Fuel-tankcap13.Rear-drivewheel
2.Motion-controllevers6.Anti-scalproller10.Engine14.Engineguard
3.Operatorseat7.Frontcasterwheel11.Controlpanel
4.SmartSpeed™lever8.Footrest12.Deector
Controls
BecomefamiliarwithallthecontrolsinFigure5andFigure6
beforeyoustarttheengineandoperatethemachine.
g032603
Figure6
Controlpanel
1.Throttle3.Blade-controlswitch
(powertakeoff)
2.Choke4.Ignitionswitch
IgnitionSwitch
Usethisswitchtostartthemowerengine.Ithas3positions:
START,RUN,andOFF.
ChokeControl
Usethechoketostartacoldengine.Pullthechokeknob
uptoengageit.Pushthechokeknobdowntodisengage
it(Figure6).
ThrottleControl
Thethrottlecontrolstheenginespeed,andithasa
continuous-variablesettingfromtheSLOWtoFASTposition
(Figure6).
Blade-ControlSwitch(PowerTakeoff)
Theblade-controlswitch,representedbyapower-takeoff
(PTO)symbol,engagesanddisengagespowertothemower
blades(Figure6).
12

Motion-ControlLevers
Usethemotion-controlleverstodrivethemachineforward,
reverse,andturneitherdirection.
ParkPosition
Movethemotion-controlleversoutwardfromthecenter
tothePARKpositionwhenexitingthemachine(Figure5).
Alwayspositionthemotion-controlleversintothePARK
positionwhenyoustopthemachineorleaveitunattended.
SmartSpeed™ControlSystemLever
TheSmartSpeed™Control-Systemlever,locatedbelowthe
operatingposition,givesyouachoicetodrivethemachineat
3speedranges—trim,tow,andmow(Figure5).
Fuel-PresenceWindow
Youcanusethefuelwindow ,locatedontheleftsideofthe
machine,toverifythepresenceoffuelinthetank(Figure7).
G014521
1
g014521
Figure7
1.Fuel-presencewindow
Height-of-CutLever
Usetheheight-of-cutlevertolowerandraisethedeckfrom
theseatedposition.Movingtheleverup(towardyou)raises
thedeckfromthegroundandmovingtheleverdown(away
fromyou)lowersthedecktowardtheground.Adjustthe
height-of-cutonlywhilethemachineisnotmoving(Figure5).
Attachments/Accessories
AselectionofToroapprovedattachmentsandaccessoriesis
availableforusewiththemachinetoenhanceandexpand
itscapabilities.ContactyourAuthorizedServiceDealeror
Distributororgotowww .Toro.comforalistofallapproved
attachmentsandaccessories.
Operation
Note:Determinetheleftandrightsidesofthemachine
fromthenormaloperatingposition.
BeforeOperation
BeforeOperationSafety
GeneralSafety
•Neverallowchildrenoruntrainedpeopletooperateor
servicethemachine.Localregulationsmayrestrictthe
ageoftheoperator.Theownerisresponsiblefortraining
alloperatorsandmechanics.
•Becomefamiliarwiththesafeoperationoftheequipment,
operatorcontrols,andsafetysigns.
•Knowhowtostopthemachineandenginequickly.
•Checkthatoperator-presencecontrols,safetyswitches,
andshieldsareattachedandfunctioningproperly.Donot
operatethemachineunlesstheyarefunctioningproperly.
•Beforemowing,alwaysinspectthemachinetoensurethat
theblades,bladebolts,andcuttingassembliesareingood
workingcondition.Replacewornordamagedbladesand
boltsinsetstopreservebalance.
•Inspecttheareawhereyouwillusethemachineand
removeallobjectsthatthemachinecouldthrow .
•Evaluatetheterraintodeterminetheappropriate
equipmentandanyattachmentsoraccessoriesrequiredto
operatethemachineproperlyandsafely.
FuelSafety
•Toavoidpersonalinjuryorpropertydamage,useextreme
careinhandlingfuel.Fuelvaporsareammableand
explosive.
•Extinguishallcigarettes,cigars,pipes,andothersources
ofignition.
•Useonlyanapprovedfuelcontainer.
•Donotremovethefuelcaporaddfueltothefueltank
whiletheengineisrunningorwhilehot.
•Donotrefuelthemachineindoors.
•Donotstorethemachineorfuelcontainerwherethere
isanopename,spark,orpilotlight,suchasonawater
heateroronotherappliances.
•Donotllcontainersinsideavehicleoronatruckor
trailerbedwithaplasticliner.Alwaysplacecontainerson
theground,awayfromyourvehiclebeforelling.
•Removetheequipmentfromthetruckortrailerand
refuelitwhileitisontheground.Ifthisisnotpossible,
thenrefuelfromaportablecontainerratherthana
fuel-dispensernozzle.
•Donotoperatethemachinewithouttheentireexhaust
systeminplaceandinproperworkingcondition.
13

•Keepthefuel-dispensernozzleincontactwiththerimof
thefueltankorcontaineropeningatalltimesuntilfueling
iscomplete.Donotuseanozzlelock-opendevice.
•Ifyouspillfuelonyourclothing,changeyourclothing
immediately.Wipeupanyfuelthatspills.
•Neveroverllthefueltank.Replacethefuelcapand
tightenitsecurely.
•Storefuelinanapprovedcontainerandkeepitoutofthe
reachofchildren.Neverbuymorethana30-daysupply
offuel.
•Donotllthefueltankcompletelyfull.Addfueltothe
fueltankuntilthelevelis6to13mm(1/4to1/2inch)
belowthebottomofthellerneck.Thisemptyspacein
thetankallowsfueltoexpand.
–Avoidprolongedbreathingofvapors.
–Keepyourfaceawayfromthenozzleandgastank
opening.
–Avoidcontactwithskin;washoffspillswithsoapand
water.
RecommendedFuel
•Forbestresults,useonlyclean,fresh(lessthan30days
old),unleadedgasolinewithanoctaneratingof87or
higher((R+M)/2ratingmethod).
•Ethanol:Gasolinewithupto10%ethanol(gasohol)
or15%MTBE(methyltertiarybutylether)byvolume
isacceptable.EthanolandMTBEarenotthesame.
Gasolinewith15%ethanol(E15)byvolumeisnot
approvedforuse.Neverusegasolinethatcontains
morethan10%ethanolbyvolume,suchasE15
(contains15%ethanol),E20(contains20%ethanol),or
E85(containsupto85%ethanol).Usingunapproved
gasolinemaycauseperformanceproblemsand/orengine
damagewhichmaynotbecoveredunderwarranty.
•Donotusegasolinecontainingmethanol.
•Donotstorefueleitherinthefueltankorfuelcontainers
overthewinterunlessyouuseafuelstabilizer.
•Donotaddoiltogasoline.
UsingStabilizer/Conditioner
Useafuelstabilizer/conditionerinthemachinetoprovide
thefollowingbenets:
•Keepsfuelfreshduringstorageof90daysorless(drain
thefueltankwhenstoringthemachineformorethan
90days)
•Cleanstheenginewhileitruns
•Eliminatesgum-likevarnishbuildupinthefuelsystem,
whichcauseshardstarting
Important:Donotusefueladditivescontaining
methanolorethanol.
Addthecorrectamountoffuelstabilizer/conditioner
tothefuel.
Note:Afuelstabilizer/conditionerismosteffective
whenmixedwithfreshfuel.Tominimizethechanceof
varnishdepositsinthefuelsystem,usefuelstabilizerat
alltimes.
FillingtheFuelTank
1.Parkthemachineonlevelground.
2.Shutofftheengineandengagetheparkingbrake.
3.Cleanaroundthefuel-tankcap.
4.Fillthefueltanktothebottomofthellerneck(Figure
8).
Note:Donotllthefueltankcompletelyfull.The
emptyspaceinthetankallowsthefueltoexpand.
g027243
AB
E
D
C
g027243
Figure8
14

CheckingtheEngine-OilLevel
Beforeyoustarttheengineandusethemachine,check
theoillevelintheenginecrankcase;refertoCheckingthe
Engine-OilLevel(page33).
BreakinginaNewMachine
Newenginestaketimetodevelopfullpower.Mowerdecks
anddrivesystemshavehigherfrictionwhennew ,placing
additionalloadontheengine.Allow40to50hoursof
break-intimefornewmachinestodevelopfullpowerand
bestperformance.
ThinkSafetyFirst
Pleasereadallsafetyinstructionsandsymbolsinthesafety
section.Knowingthisinformationcouldhelpyouor
bystandersavoidinjury.
DANGER
Operatingthemachineonwetgrassorsteepslopes
cancauseslidingandlossofcontrol.
•Donotoperateonslopesgreaterthan15degrees.
•Reducespeedanduseextremecautionon
slopes.
•Donotoperatethemachinenearwater.
DANGER
Wheelsdroppingoveredgescancauserollovers,
whichmayresultinseriousinjury,death,or
drowning.
Donotoperatethemachineneardrop-offs.
g000513
Figure9
1.SafeZone—usethe
machinehereonslopes
lessthan15degreesor
atareas.
3.Water
2.DangerZone—usea
walk-behindmowerand/or
ahandtrimmeronslopes
greaterthan15degrees,
neardrop-offsandwater.
CAUTION
Thismachineproducessoundlevelsinexcessof
85dBAattheoperator’searandcancausehearing
lossthroughextendedperiodsofexposure.
Wearhearingprotectionwhenoperatingthis
machine.
Useprotectiveequipmentforyoureyes,ears,hands,feet,
andhead.
G009027
12
g009027
Figure10
1.Weareyeprotection.2.Wearhearingprotection.
15

UsingtheSafety-Interlock
System
WARNING
Ifthesafety-interlockswitchesaredisconnectedor
damaged,themachinecouldoperateunexpectedly,
causingpersonalinjury.
•Donottamperwiththeinterlockswitches.
•Checktheoperationoftheinterlockswitches
dailyandreplaceanydamagedswitchesbefore
operatingthemachine.
UnderstandingtheSafety-Interlock
System
Thesafety-interlocksystemisdesignedtopreventtheengine
fromstartingunless:
•Theblade-controlswitch(PTO)isdisengaged.
•Themotion-controlleversareinthePARKposition.
Thesafety-interlocksystemalsoisdesignedtoshutoffthe
enginewheneverthecontrolleversareoutofthePARK
positionandyourisefromtheseat.
TestingtheSafety-InterlockSystem
Testthesafety-interlocksystembeforeyouusethemachine
eachtime.Ifthesafetysystemdoesnotoperateasdescribed
below,haveanAuthorizedServiceDealerrepairthesafety
systemimmediately.
1.Sitontheseat,movethemotion-controlleversinthe
PARKposition,andmovetheblade-controlswitchto
theONposition.Trystartingtheengine;theengine
shouldnotcrank.
2.Sitontheseatandmovetheblade-controlswitchto
theOFFposition.Moveeithermotion-controlleverto
thecenter,unlockedposition.Trystartingtheengine;
theengineshouldnotcrank.Repeatwiththeother
motion-controllever.
3.Sitontheseat,movetheblade-controlswitchtothe
OFFposition,andlockthemotion-controlleversin
thePARKposition.Starttheengine.Whiletheengine
isrunning,engagetheblade-controlswitch,andrise
slightlyfromtheseat;theengineshouldshutoff.
4.Sitontheseat,movetheblade-controlswitchtothe
OFFposition,andlockthemotion-controlleversinthe
PARKposition.Starttheengine.Whiletheengineis
running,movethemotion-controlleverstothecenter,
unlockedposition,engagetheblade-controlswitch,and
riseslightlyfromtheseat;theengineshouldshutoff.
PositioningtheSeat
g027249
B
C
A
g027249
Figure11
AdjustingtheMotion-Control
Levers
AdjustingtheHeight
Youcanadjustthemotion-controllevershigherorlowerfor
maximumcomfort(Figure12).
g027252
B
A
g027252
Figure12
16

AdjustingtheTilt
Youcanadjustthemotion-controlleversforwardorrearward
foryourcomfort.
1.Loosentheupperboltholdingthecontrollevertothe
control-armshaft.
2.Loosenthelowerboltjustenoughtopivotthecontrol
leverforwardorrearward(Figure12).
3.Tightenbothboltstosecurethecontrolleverinthe
newposition.
4.Repeattheadjustmentfortheothercontrollever.
ConvertingtoSideDischarge
Machineswith107cm(42-inch)Mower
DecksOnly
Themowerdeckandmowerbladesshippedwiththismachine
weredesignedforoptimummulchingandsidedischarge
performance.
RemovingtheDischargeCoverforSide-Discharging
1.Parkthemachineonalevelsurfaceanddisengagethe
blade-controlswitch.
2.Ensurethattheparkingbrakeisengaged,shutoffthe
engine,removethekey,andwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
3.Removethe2boltsandnutsthatsecurethedischarge
covertothemower(Figure13).
G009660
1
2
3
4
5
g009660
Figure13
1.Capnut(1/4inch)4.Rotatethecoverup
2.Dischargecover5.Removethecover
3.Bolt(1/4x2-1/2inches)
4.Removethedischargecover.
5.Liftupthegrassdeector,andlocatethelocknuton
thedeectorpivotrod.
6.Removetheexistingthinnut(3/8inch).
7.Installthecutoffbafetotheexposedpivotrod
(Figure14).
Note:Usetheexistingthinnut(3/8inch)tosecure
thebafetothemower.
Note:Thecutoffbafewasshippedwiththemachine
asaloosepart.
G005667
1
2
3
g005667
Figure14
1.Pivotrod3.Existingthinnut(3/8inch)
2.Cutoffbafe(originally
shippedwiththemachine)
8.Torquethefastenerto7to9N∙m(14to18ft-lb).
9.Lowerthegrassdeectoroverthedischargeopening
Important:Ensurethatthemowerhasahinged
grassdeectorthatdispersesclippingstotheside
anddowntowardtheturf,whileinside-discharge
mode.
InstallingtheDischargeCoverforMulching
1.Parkthemachineonalevelsurfaceanddisengagethe
blade-controlswitch.
2.Ensurethattheparkingbrakeisengaged,shutoffthe
engine,removethekey,andwaitforallthemoving
partstostopbeforeleavingtheoperatingposition.
3.Removethecutoffbafefromthemowerdeck(Figure
14).
4.Liftthegrassdeectorandslidethetabsontopofthe
dischargecoverunderthegrassdeectorretainingrod.
5.Rotatethedischargecoverdownovertheopening,and
ontothelowerlipofthemower(Figure15).
17

g005652
Figure15
1.Dischargecover3.Bolt(1/4x2-1/2inches)
2.Capnut(1/4inch)
6.Securethedischargecovertothelowerlipofthe
mowerwith2bolts(1/4x2-1/2inches)and2capnuts
(1/4inch)asshowninFigure15.
Note:Donotovertightenthenuts;thiscoulddistort
thecoverandcausebladecontact.
Machineswith127cm(50-inch)Mower
DecksOnly
Themowerdeckandmowerbladesshippedwiththismachine
weredesignedforoptimummulchingandsidedischarge
performance.
RemovingtheRightBafeforSide-Discharging
1.Parkthemachineonalevelsurfaceanddisengagethe
blade-controlswitch.
2.Ensurethattheparkingbrakeisengaged,shutoffthe
engine,removethekey,andwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
3.Removetherightmowerblade;refertoRemovingthe
Blades(page43).
4.Removethe2knobsandcurvedwashersthatsecure
therightbafetothemower(Figure16).
g005655
Figure16
1.Knob3.Bafestudcomingthrough
themower
2.Curvedwasher
5.Removetherightbafeandlowerthegrassdeector
overthedischargeopeningasshowninFigure16and
Figure17.
g024261
Figure17
1.Rightbafe3.Dischargeopening
2.Curvedwasherandknob
6.Installfastenersintotheholesinthetopofthemower
topreventyingdebris.
18

WARNING
Openholesinthemowerexposeyouand
otherstothrowndebristhatcancausesevere
injury.
•Neveroperatethemowerwithouthardware
mountedinallholesinthemowerhousing.
•Installthehardwareinthemountingholes
whenyouremovethemulchingbafe.
7.Installtherightmowerblade;refertoInstallingthe
Blades(page43).
8.Liftupthegrassdeector.Install2bolts(5/16x3/4
inch)tothe2holesalongthedeckcutout.
9.Installthecutoffbafetothemowerdeck(Figure18).
Note:Usethe2locknuts(5/16inch)tosecurethe
bafetothemowerdeck.
Note:Thecutoffbafewasshippedwiththemachine
asaloosepart.
G015321
1
2
3
g015321
Figure18
1.Bolt(5/16x3/4inch)3.Locknut(5/16inch)
2.Cutoffbafe
10.Torquethefastenersto7to9N∙m(14to18ft-lb).
11.Lowerthegrassdeectoroverthedischargeopening.
Important:Ensurethatthemowerhasahinged
grassdeectorthatdispersesclippingstotheside
anddowntowardtheturf,whileinside-discharge
mode.
InstallingtheRightBafeforMulching
1.Parkthemachineonalevelsurfaceanddisengagethe
blade-controlswitch.
2.Ensurethattheparkingbrakeisengaged,shutoffthe
engine,removethekey,andwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
3.Removethecutoffbafefromthemowerdeck(Figure
18).
4.Removetherightmowerblade;refertoRemovingthe
Blades(page43).
5.Slidetherightbafeunderthemowerdeck,andsecure
itusing2knobsandthecurvedwashers(cuppedside
facingthemower)asshowninFigure16andFigure17.
Important:Ensurethatthetabonthefarright
sideoftherightbafeisoutsideofthemowerand
isushwiththemowerwall.
6.Installtherightmowerblade;refertoInstallingthe
Blades(page43).
19

DuringOperation
DuringOperationSafety
GeneralSafety
•Theowner/operatorcanpreventandisresponsiblefor
accidentsthatmaycausepersonalinjuryorproperty
damage.
•Wearappropriateclothing,includingeyeprotection;
slip-resistant,substantialfootwear;andhearing
protection.Tiebacklonghairanddonotwearjewelry.
•Donotoperatethemachinewhileill,tired,orunderthe
inuenceofalcoholordrugs.
•Nevercarrypassengersonthemachineandkeep
bystandersandpetsawayfromthemachineduring
operation.
•Operatethemachineonlyingoodvisibilitytoavoidholes
orhiddenhazards.
•Avoidmowingonwetgrass.Reducedtractioncould
causethemachinetoslide.
•Ensurethatalldrivesareinneutral,theparkingbrake
isengaged,andyouareintheoperatingpositionbefore
youstarttheengine.
•Keepyourhandsandfeetawayfromthecuttingunits.
Keepclearofthedischargeopeningatalltimes.
•Lookbehindanddownbeforebackinguptobesureof
aclearpath.
•Usecarewhenapproachingblindcorners,shrubs,trees,
orotherobjectsthatmayobscureyourvision.
•Donotmowneardrop-offs,ditches,orembankments.
Themachinecouldsuddenlyrolloverifawheelgoes
overtheedgeoriftheedgegivesway.
•Stopthebladeswheneveryouarenotmowing.
•Stopthemachineandinspectthebladesafterstrikingan
objectorifthereisanabnormalvibrationinthemachine.
Makeallnecessaryrepairsbeforeresumingoperation.
•Slowdownandusecautionwhenmakingturnsand
crossingroadsandsidewalkswiththemachine.Always
yieldtheright-of-way.
•Disengagethedrivetothecuttingunitandshutoffthe
enginebeforeadjustingtheheightofcut(unlessyoucan
adjustitfromtheoperatingposition).
•Neverrunanengineinanareawhereexhaustgasesare
enclosed.
•Neverleavearunningmachineunattended.
•Beforeleavingtheoperatingposition(includingtoempty
thecatchersortounclogthechute),dothefollowing:
–Stopthemachineonlevelground.
–Disengagethepowertake-offandlowerthe
attachments.
–Engagetheparkingbrake.
–Shutofftheengineandremovethekey.
–Waitforallmovingpartstostop.
•Donotoperatethemachinewhenthereistheriskof
lightning.
•Donotusethemachineasatowingvehicle.
•Donotchangethegovernorspeedoroverspeedthe
engine.
•UseaccessoriesandattachmentsapprovedbyToroonly.
SlopeSafety
•Slowdownthemachineanduseextracareonhillsides.
Travelupanddownonhillsides.Turfconditionscan
affectthestabilityofthemachine.
•Avoidturningthemachineonslopes.Ifyoumustturnthe
machine,turnitslowlyandgraduallydownhill,ifpossible.
•Donotturnthemachinesharply.Usecarewhenreversing
themachine.
•Useextracarewhileoperatingthemachinewith
attachments;theycanaffectthestabilityofthemachine.
20
