Toro TimeCutter 74780 User manual

FormNo.3408-598RevA
TimeCutter®SW3200Riding
Mower
ModelNo.74780—SerialNo.400000000andUp
ModelNo.74781—SerialNo.400000000andUp
g027913
Registeratwww.Toro.com.
OriginalInstructions(EN)*3408-598*A

WARNING
CALIFORNIA
Proposition65Warning
Thisproductcontainsachemicalorchemicals
knowntotheStateofCaliforniatocausecancer,
birthdefects,orreproductiveharm.
Theengineexhaustfromthisproduct
containschemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
ThissparkignitionsystemcomplieswithCanadianICES-002
ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineonany
forest-covered,brush-covered,orgrass-coveredlandunless
theengineisequippedwithasparkarrester,asdenedin
Section4442,maintainedineffectiveworkingorderorthe
engineisconstructed,equipped,andmaintainedforthe
preventionofre.
GrossHorsepower
Thegrossornethorsepowerofthisenginewaslaboratory
ratedbytheenginemanufacturerinaccordancewiththe
SocietyofAutomotiveEngineers(SAE)J1940.Ascongured
tomeetsafety,emission,andoperatingrequirements,
theactualenginetorqueonthisclassofmowerwillbe
signicantlylower.
Gotowww.Toro.comtoviewspecicationsonyourmower
model.
Introduction
Thismachineisaride-on,rotary-bladelawnmowerintended
tobeusedbyhomeownersinresidentialapplications.Itis
primarilydesignedforcuttinggrassonwell-maintainedlawns.
Itisnotdesignedforcuttingbrush,mowinggrassandother
growthalongsidehighways,orforagriculturaluses.
Readthisinformationcarefullytolearnhowtooperateand
maintainyourproductproperlyandtoavoidinjuryand
productdamage.Youareresponsibleforoperatingthe
productproperlyandsafely.
YoumaycontactTorodirectlyatwww.Toro.comforproduct
safetyandoperationtrainingmaterials,accessoryinformation,
helpndingadealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof
yourproductready.Figure1identiesthelocationofthe
modelandserialnumbersontheproduct.Writethenumbers
inthespaceprovided.
g188142
Figure1
Undertheseat
1.Modelandserialnumberplate
Writetheproductmodelandserialnumbersinthespace
below:
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafety-alertsymbol(Figure2),
whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.
g000502
Figure2
1.Safety-alertsymbol.
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.
©2016—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved

Contents
Safety...........................................................................4
GeneralSafety.........................................................4
SlopeIndicator.......................................................5
SafetyandInstructionalDecals.................................6
ProductOverview.........................................................10
Controls...............................................................10
BeforeOperation......................................................12
BeforeOperationSafety..........................................12
RecommendedFuel................................................12
UsingStabilizer/Conditioner...................................12
FillingtheFuelTank...............................................13
CheckingtheEngine-OilLevel.................................13
BreakinginaNewMachine......................................13
ThinkSafetyFirst...................................................13
UsingtheSafety-InterlockSystem.............................15
PositioningtheSeat................................................16
PositioningtheSteeringWheel.................................16
DuringOperation.....................................................16
DuringOperationSafety.........................................16
OperatingtheSmartPark™ParkingBrake..................17
OperatingtheMowerBlade-ControlSwitch
(PTO)...............................................................17
OperatingtheThrottle............................................18
OperatingtheIgnitionSwitch..................................18
StartingandShuttingOfftheEngine.........................19
DrivingtheMachine...............................................19
StoppingtheMachine.............................................20
MowinginReverse.................................................20
AdjustingtheHeightofCut.....................................20
UsingtheGrassDeector.......................................21
OperatingTips......................................................21
AfterOperation........................................................22
AfterOperationSafety............................................22
PushingtheMachinebyHand..................................22
TransportingtheMachine........................................23
LoadingtheMachine..............................................23
Maintenance.................................................................25
RecommendedMaintenanceSchedule(s)......................25
Pre-MaintenanceProcedures......................................25
MaintenanceandStorage.........................................25
RaisingtheSeat......................................................26
RaisingtheFrontoftheMachine..............................26
Lubrication...............................................................27
GreasingtheBearings.............................................27
EngineMaintenance..................................................27
EngineSafety.........................................................27
ServicingtheAirCleaner.........................................27
ServicingtheEngineOil..........................................28
ServicingtheSparkPlug..........................................31
CleaningtheBlowerHousing...................................31
FuelSystemMaintenance...........................................32
ReplacingtheIn-LineFuelFilter...............................32
ElectricalSystemMaintenance....................................33
ElectricalSystemSafety...........................................33
ChargingtheBattery...............................................33
ServicingtheFuses.................................................34
DriveSystemMaintenance.........................................35
CheckingtheTirePressure......................................35
ReleasingtheElectricBrake.....................................35
MowerMaintenance...................................................36
ServicingtheCuttingBlades.....................................36
LevelingtheMowerDeck........................................38
RemovingtheMowerDeck.....................................39
InstallingtheMowerDeck.......................................40
ReplacingtheGrassDeector..................................40
MowerBeltMaintenance............................................41
InspectingtheBelts................................................41
ReplacingtheMowerBelt........................................41
Cleaning...................................................................42
CleaningundertheFrontoftheMachine...................42
WashingtheUndersideoftheMower........................42
Storage........................................................................43
CleaningandStorage..............................................43
Troubleshooting...........................................................45
Schematics...................................................................47
3

Safety
ThismachinehasbeendesignedinaccordancewithANSI
B71.1-2012.
GeneralSafety
Thisproductiscapableofamputatinghandsandfeetand
ofthrowingobjects.Alwaysfollowallsafetyinstructionsto
avoidseriouspersonalinjury.
Usingthisproductforpurposesotherthanitsintendeduse
couldprovedangeroustoyouandbystanders.
•ReadandunderstandthecontentsofthisOperator’sManual
beforeyoustarttheengine.Ensurethateveryoneusing
thisproductknowshowtouseitandunderstandsthe
warnings.
•Donotputyourhandsorfeetnearmovingcomponents
ofthemachine.
•Donotoperatethemachinewithoutallguardsandother
safetyprotectivedevicesinplaceandworkingonthe
machine.
•Keepclearofanydischargeopening.Keepbystandersa
safedistanceawayfromthemachine.
•Keepchildrenoutoftheoperatingarea.Neverallow
childrentooperatethemachine.
•Stopthemachineandshutofftheenginebeforeservicing,
fueling,oruncloggingthemachine.
Improperlyusingormaintainingthismachinecanresult
ininjury.Toreducethepotentialforinjury,complywith
thesesafetyinstructionsandalwayspayattentiontothe
safety-alertsymbol,whichmeansCaution,Warning,or
Danger—personalsafetyinstruction.Failuretocomplywith
theseinstructionsmayresultinpersonalinjuryordeath.
Youcanndadditionalitemsofsafetyinformationintheir
respectivesectionsthroughoutthismanual.
4

SlopeIndicator
G01 1841
g011841
Figure3
Thispagemaybecopiedforpersonaluse.

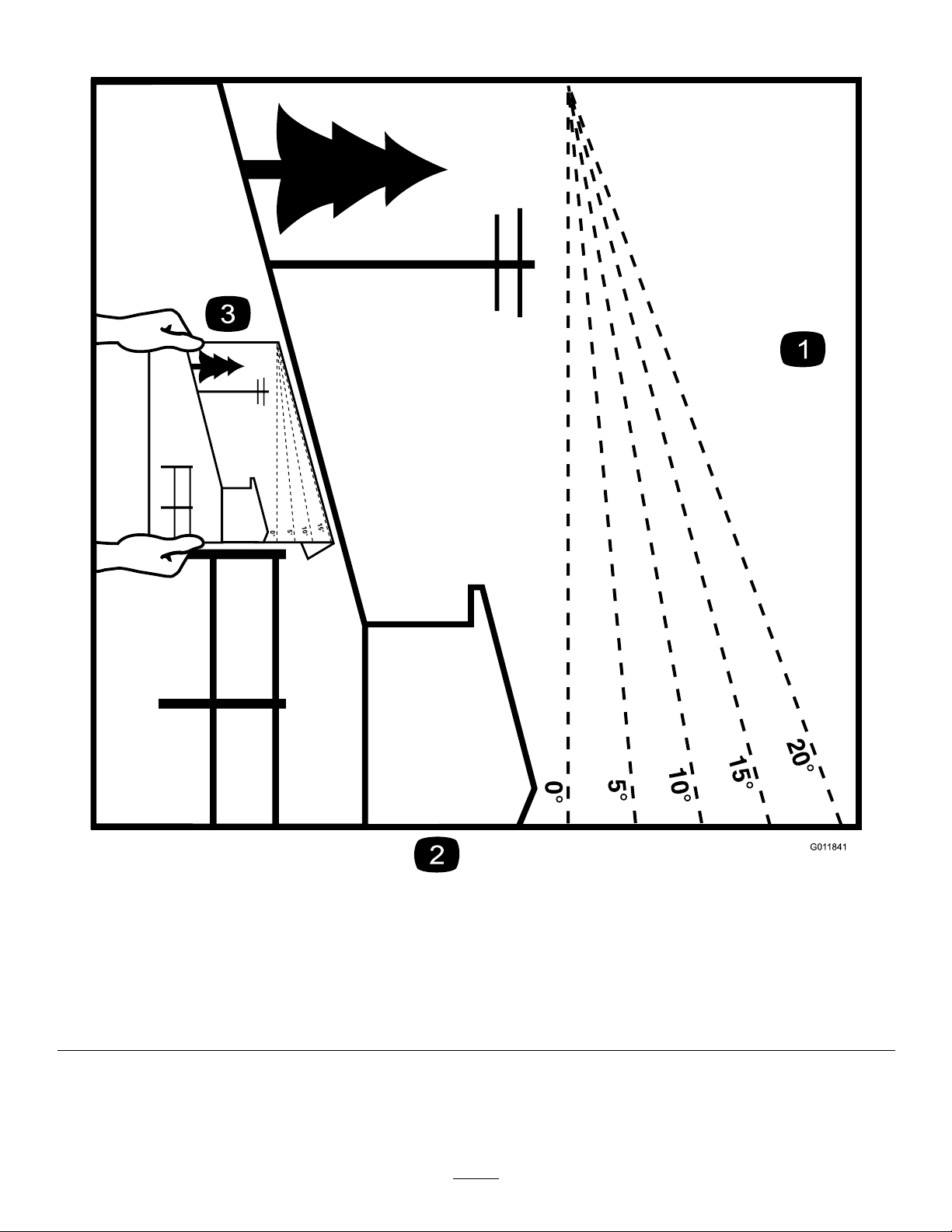

1.Themaximumslopeyoucansafelyoperatethemachineonis15degrees.Usetheslopecharttodeterminethedegreeofslope
ofhillsbeforeoperating.Donotoperatethismachineonaslopegreaterthan15degrees.Foldalongtheappropriateline
tomatchtherecommendedslope.
2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.
3.Exampleofhowtocompareslopewithfoldededge
5

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaofpotential
danger.Replaceanydecalthatisdamagedormissing.
decal93-7009
93-7009
1.Warning—don'toperatethemowerwiththedeectorupor
removed;keepthedeectorinplace.
2.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts.
decal106-8717
106-8717
1.Readtheinstructionsbeforeservicingorperforming
maintenance.
2.Checktirepressureevery25operatinghours.
3.Greaseevery25operatinghours.
4.Engine
decaloemmarkt
Manufacturer'sMark
1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.
decal119-8871
119-8871
1.Height-of-cut
decal121-2989b
121-2989
1.Bypassleverpositionfor
pushingthemachine
2.Bypassleverpositionfor
operatingthemachine
6

decalbatterysymbols
BatterySymbols
Someorallofthesesymbolsareonyourbattery.
1.Explosionhazard6.Keepbystandersasafe
distanceawayfromthe
battery.
2.Nore,opename,or
smoking
7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries.
3.Causticliquid/chemical
burnhazard
8.Batteryacidcancause
blindnessorsevereburns.
4.Weareyeprotection.9.Flusheyesimmediately
withwaterandgetmedical
helpfast.
5.ReadtheOperator's
Manual.
10.Containslead;donot
discard.
decal131-3620
131-3620
1.Pedalposition—forward3.Pedalposition—reverse
2.Pedalposition—neutral
decal131-3621b
131-3621
1.Crushing/dismembermenthazardofbystanders—keep
bystandersawayfromthemachine;donotstartthe
machinewithbystandersnearby.
decal131-3665
131-3665
1.Bladespinning3.ReadtheOperator's
Manual.
2.Reverse
decal131-3955
131-3955
1.On2.Off
7

decal132-0872
132-0872
1.Thrownobject
hazard—keepbystanders
awayfromthemachine.
3.Severinghazardofhand
orfoot—keepawayfrom
movingparts.
2.Thrownobjecthazard,
raisedbafe—donot
operatethemachinewith
anopendeck;usea
baggerorabafe.
4.Entanglement
hazard—keepaway
frommovingparts;keep
allguardsandshieldsin
place.
decal132-6863
132-6863
decal121-0771
121-0771
1.Choke4.Slow
2.Fast5.Powertake-off(PTO),Bladecontrolswitch
3.Continuousvariablesetting
8

decal132-0870
132-0870
1.Warning—readtheOperator'sManual.3.Bodilyharmhazard—noriders;look
behindyouwhenmowinginreverse.
5.Ramptippinghazard—whenloading
ontoatrailer,donotusedualramps;
onlyuseasinglerampwideenough
forthemachineandthathasanincline
lessthan15degrees;backupthe
ramp(inreverse)anddriveforwardoff
theramp.
2.Cuttinghazardofhand,mowerblade;
pinchinghazardofhand,belt—keep
handsandfeetawayfrommoving
parts;keepallguardsandshieldsin
place.
4.Thrownobjecthazard—keep
bystandersawayfromthemachine;
removedebrisfromtheareabefore
mowing;keepthedeectorshield
down.
6.Tippinghazardonslopes—donot
makesharp,quickturns;donotuse
slopesgreaterthan15degrees.
9

ProductOverview
g027912
1
2
45
6
7
8
9
11
12
10
3
g027912
Figure4
1.Traction-controlpedal4.Steeringwheel7.Engine10.KeyChoice®control
2.Height-of-cutlever5.Controlpanel8.Fuel-tankcap11.Mowerdeck
3.SmartPark™switch6.Operatorseat9.Reardrivewheel12.Frontcasterwheels
Controls
BecomefamiliarwithallcontrolsinFigure4,Figure5,and
Figure6beforeyoustarttheengineandoperatethemachine.
5
6
7
g027892
g027892
Figure5
ControlPanel
1.SmartPark™switch5.Parkingbrake—On
2.Throttle/Chokecontrol6.Parkingbrakeindicator
light
3.Ignitionswitch7.Parkingbrake—Off
4.Blade-controlswitch
(powertake-off)
g028251
Figure6
1.Operating–in–Reverse
warninglight
3.Fuel-presencewindow
2.KeyChoicekey(bluein
color)
IgnitionSwitch
Usethisswitchtostartthemowerengine.Ithas3positions:
START,RUN,andOFF.
10

Throttle/ChokeControl
Thethrottleandchokecontrolsarecombinedinto1control
lever.Thethrottlecontrolstheenginespeedandhasa
continuous-variablesettingfromSLOWtoFAST.Engagethe
chokebymovingtheleverpasttheFASTsettinguntilitstops
(Figure5).
Blade-ControlSwitch(PowerTakeoff)
Theblade-controlswitch(PTO)engagesanddisengages
powertothemowerblades(Figure5).
Fuel-PresenceWindow
Thefuelwindow,locatedontheleftsideofthemachine,can
beusedtoverifythepresenceoffuelinthetank(Figure6).
Height-of-CutLever
Usetheheight-of-cutlevertolowerandraisethedeckfrom
theseatedposition.Movingtheleverup(towardyou)raises
thedeckfromthegroundandmovingtheleverdown(away
fromyou)lowersthedecktowardtheground.Adjustthe
height-of-cutonlywhilethemachineisnotmoving(Figure
19).
KeyChoice®Switch
Thisswitchallowsyoutomowinreversewhenitisactivated.
Toactivateit,turntheswitchtotheONpositionandrelease
itafterthePTOisengaged.Todeactivateit,disengagethe
powertakeoff(PTO)(Figure6).
Operating-in-ReverseWarningLight
TheOperating-in-Reversewarninglightilluminates
wheneveryouusetheKeyChoicekeytodeactivatethe
operating-in-reverseinterlock.Itisareminderthatthe
interlocksystemisdeactivated.Thelightgoesoutwhenever
youdisengagethePTOorshutofftheengine.Whenthelight
ison,lookbehindyouanduseextracautionwhenbackingup.
SmartPark™Switch
Theparkingbrakeisactivatedelectronically.
Engagetheparkingbrakeby1ofthefollowingactions:
•PressingtheSmartPark™switchtotheONposition
(Figure5).
•Theparkingbrakeengagesautomaticallywhenyouleave
theseatandthetractioncontrolpedalisintheNEUTRAL
position.
•Theparkingbrakeautomaticallyengages5to6seconds
aftertheignitionswitchisturnedtotheOFFposition(if
itisnotalreadyengaged).
Todisengagetheparkingbrake,presstheSmartParkswitch
totheOFFpositionwiththekeyintheRUNposition.
Attachments/Accessories
AselectionofToroapprovedattachmentsandaccessoriesis
availableforusewiththemachinetoenhanceandexpand
itscapabilities.ContactyourAuthorizedServiceDealeror
Distributororgotowww.Toro.comforalistofallapproved
attachmentsandaccessories.
11

Operation
Note:Determinetheleftandrightsidesofthemachine
fromthenormaloperatingposition.
BeforeOperation
BeforeOperationSafety
GeneralSafety
•Neverallowchildrenoruntrainedpeopletooperateor
servicethemachine.Localregulationsmayrestrictthe
ageoftheoperator.Theownerisresponsiblefortraining
alloperatorsandmechanics.
•Becomefamiliarwiththesafeoperationoftheequipment,
operatorcontrols,andsafetysigns.
•Knowhowtostopthemachineandshutofftheengine
quickly.
•Checkthatoperator-presencecontrols,safetyswitches,
andshieldsareattachedandfunctioningproperly.Donot
operatethemachineunlesstheyarefunctioningproperly.
•Beforemowing,alwaysinspectthemachinetoensurethat
theblades,bladebolts,andcuttingassembliesareingood
workingcondition.Replacewornordamagedbladesand
boltsinsetstopreservebalance.
•Inspecttheareawhereyouwillusethemachineand
removeallobjectsthatthemachinecouldthrow .
•Evaluatetheterraintodeterminetheappropriate
equipmentandanyattachmentsoraccessoriesrequiredto
operatethemachineproperlyandsafely.
FuelSafety
•Toavoidpersonalinjuryorpropertydamage,useextreme
careinhandlingfuel.Fuelvaporsareammableand
explosive.
•Extinguishallcigarettes,cigars,pipes,andothersources
ofignition.
•Useonlyanapprovedfuelcontainer.
•Donotremovethefuelcaporaddfueltothefueltank
whiletheengineisrunningorwhilehot.
•Donotrefuelthemachineindoors.
•Donotstorethemachineorfuelcontainerwherethere
isanopename,spark,orpilotlight,suchasonawater
heateroronotherappliances.
•Donotllcontainersinsideavehicleoronatruckor
trailerbedwithaplasticliner.Alwaysplacecontainerson
theground,awayfromyourvehiclebeforelling.
•Removetheequipmentfromthetruckortrailerand
refuelitwhileitisontheground.Ifthisisnotpossible,
thenrefuelfromaportablecontainerratherthana
fuel-dispensernozzle.
•Donotoperatethemachinewithouttheentireexhaust
systeminplaceandinproperworkingcondition.
•Keepthefuel-dispensernozzleincontactwiththerimof
thefueltankorcontaineropeningatalltimesuntilfueling
iscomplete.Donotuseanozzlelock-opendevice.
•Ifyouspillfuelonyourclothing,changeyourclothing
immediately.Wipeupanyfuelthatspills.
•Neveroverllthefueltank.Replacethefuelcapand
tightenitsecurely.
•Storefuelinanapprovedcontainerandkeepitoutofthe
reachofchildren.Neverbuymorethana30-daysupply
offuel.
•Donotllthefueltankcompletelyfull.Addfueltothe
fueltankuntilthelevelis6to13mm(1/4to1/2inch)
belowthebottomofthellerneck.Thisemptyspacein
thetankallowsfueltoexpand.
–Avoidprolongedbreathingofvapors.
–Keepyourfaceawayfromthenozzleandfueltank
opening.
–Avoidcontactwithskin;washoffspillswithsoapand
water.
RecommendedFuel
•Forbestresults,useonlyclean,fresh(lessthan30days
old),unleadedgasolinewithanoctaneratingof87or
higher((R+M)/2ratingmethod).
•Ethanol:Gasolinewithupto10%ethanol(gasohol)
or15%MTBE(methyltertiarybutylether)byvolume
isacceptable.EthanolandMTBEarenotthesame.
Gasolinewith15%ethanol(E15)byvolumeisnot
approvedforuse.Neverusegasolinethatcontains
morethan10%ethanolbyvolume,suchasE15
(contains15%ethanol),E20(contains20%ethanol),or
E85(containsupto85%ethanol).Usingunapproved
gasolinemaycauseperformanceproblemsand/orengine
damagewhichmaynotbecoveredunderwarranty.
•Donotusegasolinecontainingmethanol.
•Donotstorefueleitherinthefueltankorfuelcontainers
overthewinterunlessyouuseafuelstabilizer.
•Donotaddoiltogasoline.
UsingStabilizer/Conditioner
Useafuelstabilizer/conditionerinthemachinetoprovide
thefollowingbenets:
•Keepsfuelfreshduringstorageof90daysorless(drain
thefueltankwhenstoringthemachineformorethan
90days)
•Cleanstheenginewhileitruns
•Eliminatesgum-likevarnishbuildupinthefuelsystem,
whichcauseshardstarting
12

Important:Donotusefueladditivescontaining
methanolorethanol.
Addthecorrectamountoffuelstabilizer/conditioner
tothefuel.
Note:Afuelstabilizer/conditionerismosteffective
whenmixedwithfreshfuel.Tominimizethechanceof
varnishdepositsinthefuelsystem,usefuelstabilizerat
alltimes.
FillingtheFuelTank
1.Parkthemachineonlevelground.
2.Shutofftheengineandengagetheparkingbrake.
3.Cleanaroundthefuel-tankcap.
4.Fillthefueltanktothebottomofthellerneck(Figure
7).
Note:Donotllthefueltankcompletelyfull.The
emptyspaceinthetankallowsthefueltoexpand.
g027243
AB
E
D
C
g027243
Figure7
CheckingtheEngine-OilLevel
Beforeyoustarttheengineandusethemachine,check
theoillevelintheenginecrankcase;refertoCheckingthe
Engine-OilLevel(page28).
BreakinginaNewMachine
Newenginestaketimetodevelopfullpower.Mowerdecks
anddrivesystemshavehigherfrictionwhennew,placing
additionalloadontheengine.Allow40to50hoursof
break-intimefornewmachinestodevelopfullpowerand
bestperformance.
ThinkSafetyFirst
Pleasereadallsafetyinstructionsandsymbolsinthesafety
section.Knowingthisinformationcouldhelpyouor
bystandersavoidinjury.
DANGER
Operatingthemachineonwetgrassorsteepslopes
cancauseslidingandlossofcontrol.
•Donotoperateonslopesgreaterthan15degrees.
•Reducespeedanduseextremecautionon
slopes.
•Donotoperatethemachinenearwater.
DANGER
Wheelsdroppingoveredgescancauserollovers,
whichmayresultinseriousinjury,death,or
drowning.
Donotoperatethemachineneardrop-offs.
DANGER
Operatingthemachinewhiletherollbarisdown
mayleadtoseriousinjuryordeathintheeventofa
rollover.
Alwayskeeptherollbarinthefullyraisedand
lockedpositionandusetheseatbelt.
13

g027830
g027830
Figure8
1.SafeZone—usethe
machinehereonslopes
lessthan15degreesor
atareas.
3.Water
2.DangerZone—usea
walk-behindmowerand/or
ahandtrimmeronslopes
greaterthan15degrees
andneardrop-offsor
water.
CAUTION
Thismachineproducessoundlevelsinexcessof
85dBAattheoperator’searandcancausehearing
lossthroughextendedperiodsofexposure.
Wearhearingprotectionwhenoperatingthis
machine.
Useprotectiveequipmentforyoureyes,ears,hands,feet,
andhead.
G009027
12
g009027
Figure9
1.Weareyeprotection.2.Wearhearingprotection.
14

UsingtheSafety-Interlock
System
WARNING
Ifsafety-interlockswitchesaredisconnectedor
damaged,themachinecouldoperateunexpectedly
causingpersonalinjury.
•Donottamperwiththeinterlockswitches.
•Checktheoperationoftheinterlockswitches
daily,andreplaceanydamagedswitchesbefore
operatingthemachine.
UnderstandingtheSafety-Interlock
System
Thesafety-interlocksystemisdesignedforthefollowing:
•Topreventtheenginefromstartingunlessthetraction
pedalisintheNEUTRALposition.
•Toautomaticallyensurethattheparkingbrakeisengaged
andthePTOisoffwhenstartingthemachine.
•Toshutofftheenginewheneverthetractionpedalisnot
intheNEUTRALpositionandyourisefromtheseat.
•Toautomaticallyengagetheparkingbrakeanddisengage
thePTO,whenyouriseoutoftheseatwiththetraction
pedalintheNEUTRALposition.
•Toshutofftheenginewhenevertheparkingbrakeisnot
engagedandyourisefromtheseat.
TestingtheSafety-InterlockSystem
1.Sitintheseatwiththeengineoffandensurethatthe
PTOswitchisintheOFFposition.
2.TurntheignitionkeytotheSTARTposition;thestarter
shouldcrank.Donotstartorshutofftheengineprior
tostep3.
3.TurnthekeytotheONpositionandpushtheSmart
ParkswitchtotheOFFposition.Thebrakeshould
disengageandthebrakelightshouldturnoff.
4.Withthebrakedisengagedandtractionpedalinthe
NEUTRALposition,turntheignitionswitchtothe
STARTposition.Thebrakeshouldautomatically
engage,theengineshouldcrank,andthebrakelight
shouldturnon.
5.WiththeengineoffandthekeyintheONposition,
engagethePTObypullinguptheblade-controlswitch;
youshouldheartheclutchengage.
6.Ensurethatthetractionpedalisinneutralandturn
theignitionswitchtotheSTARTposition.ThePTO
shoulddisengageandtheengineshouldcrankandstart
withoutthebladesmoving.
7.Withtheenginerunning,risefromtheseat.Theengine
shouldremainrunningandthebrakelightshouldbe
on.
8.Returntotheseatanddisengagetheparkingbrakeby
pushingtheSmartParkswitchtotheOFFposition.
Theengineshouldcontinuetorun.
9.Risefromtheseatagain.Thebrakeshould
automaticallyengageandtheengineshouldcontinue
torun.
10.Returntotheseatandengagethebladesbypullingup
theblade-controlswitch.
11.Risefromtheseat.Thebladesshoulddisengageand
theengineshouldcontinuetorun.
12.Returntotheseatandpulluptheblade-controlswitch.
Thebladesshouldengage.Disengagethebladesby
pushingdowntheblade-controlswitch.
13.Pulluptheblade-controlswitchtoengagetheblades.
MovethetractionpedaltotheREVERSEposition.The
bladesshoulddisengage.Movethetractionpedalto
theNEUTRALposition.
14.Pulluptheblade-controlswitchtoengagetheblades.
TurntheKeyChoiceswitchtotheONposition
andreleaseit.Theoperating-in-reverselightshould
illuminate.
15.MovethetractionpedaltotheREVERSEposition.
Thebladesshouldremainengaged.Pushthe
blade-controlswitchintodisengagetheblades.The
operating-in-reverselightshouldturnoff.Movethe
tractionpedaltotheNEUTRALposition.
16.Ifnotengaged,pushtheSmarkParkswitchtotheON
positionandlightlytapthetractionpedalintheeither
15

theFORWARDorREVERSEposition.Thebrakeshould
disengageandthebrakelightshouldturnoff.
Note:Tapthepedal,donotfullyengagethepedalas
thatcausesthebrakesystemtobindandnotrelease.
17.Withthebrakereleased,engagethetractionpedal
slightlyandrisefromtheseat.Theengineshouldshut
off.
18.Returntotheseatandturntheignitionkeytothe
OFFposition.Afterseveralseconds,thebrakesystem
shouldengage.
Note:WiththekeyintheOFFposition,thebrakelight
doesnotilluminate.
PositioningtheSeat
g027249
B
C
A
g027249
Figure10
PositioningtheSteeringWheel
Thesteeringwheelhas3positionsforoperationand1full-up
position.Usethefull-uppositionforsteppingonandoff
themachineandgettingoutoftheseat.Whenoperatingthe
machine,positionthesteeringwheelwhereyouhavethebest
controlofthemachineandaremostcomfortable.
1.Pressyourfootontothesteering-columnreleaselever.
2.Positionthesteeringwheeltothedesiredposition
(Figure11).
g027751
B
A
g027751
Figure11
DuringOperation
DuringOperationSafety
GeneralSafety
•Theowner/operatorcanpreventandisresponsiblefor
accidentsthatmaycausepersonalinjuryorproperty
damage.
•Wearappropriateclothing,includingeyeprotection;
slip-resistant,substantialfootwear;andhearing
protection.Tiebacklonghairanddonotwearjewelry.
•Donotoperatethemachinewhileill,tired,orunderthe
inuenceofalcoholordrugs.
•Nevercarrypassengersonthemachineandkeep
bystandersandpetsawayfromthemachineduring
operation.
•Operatethemachineonlyingoodvisibilitytoavoidholes
orhiddenhazards.
•Avoidmowingonwetgrass.Reducedtractioncould
causethemachinetoslide.
•Ensurethatalldrivesareinneutral,theparkingbrake
isengaged,andyouareintheoperatingpositionbefore
youstarttheengine.
16

•Keepyourhandsandfeetawayfromthecuttingunits.
Keepclearofthedischargeopeningatalltimes.
•Lookbehindanddownbeforebackinguptobesureof
aclearpath.
•Usecarewhenapproachingblindcorners,shrubs,trees,
orotherobjectsthatmayobscureyourvision.
•Donotmowneardrop-offs,ditches,orembankments.
Themachinecouldsuddenlyrolloverifawheelgoes
overtheedgeoriftheedgegivesway.
•Stopthebladeswheneveryouarenotmowing.
•Stopthemachineandinspectthebladesafterstrikingan
objectorifthereisanabnormalvibrationinthemachine.
Makeallnecessaryrepairsbeforeresumingoperation.
•Slowdownandusecautionwhenmakingturnsand
crossingroadsandsidewalkswiththemachine.Always
yieldtheright-of-way.
•Disengagethedrivetothecuttingunitandshutoffthe
enginebeforeadjustingtheheightofcut(unlessyoucan
adjustitfromtheoperatingposition).
•Neverrunanengineinanareawhereexhaustgasesare
enclosed.
•Neverleavearunningmachineunattended.
•Beforeleavingtheoperatingposition(includingtoempty
thecatchersortounclogthechute),dothefollowing:
–Stopthemachineonlevelground.
–Disengagethepowertake-offandlowerthe
attachments.
–Engagetheparkingbrake.
–Shutofftheengineandremovethekey.
–Waitforallmovingpartstostop.
•Donotoperatethemachinewhenthereistheriskof
lightning.
•Donotusethemachineasatowingvehicle.
•Donotchangethegovernorspeedoroverspeedthe
engine.
•UseaccessoriesandattachmentsapprovedbyToroonly.
SlopeSafety
•Slowdownthemachineanduseextracareonhillsides.
Travelupanddownonhillsides.Turfconditionscan
affectthestabilityofthemachine.
•Avoidturningthemachineonslopes.Ifyoumustturnthe
machine,turnitslowlyandgraduallydownhill,ifpossible.
•Donotturnthemachinesharply.Usecarewhenreversing
themachine.
•Useextracarewhileoperatingthemachinewith
attachments;theycanaffectthestabilityofthemachine.
OperatingtheSmartPark™
ParkingBrake
Theparkingbrakeisactivatedelectronically.
Engagetheparkingbrakeby1ofthefollowingactions:
•PressingtheSmartPark™switchtotheONposition
(Figure5).
•Theparkingbrakeengagesautomaticallywhenthe
operatorleavestheseatandthetractioncontrolpedalis
intheNEUTRALposition.
•Theparkingbrakeautomaticallyengages5to6seconds
aftertheignitionswitchisturnedtotheOFFposition(if
itisnotalreadyengaged).
Disengagetheparkingbrakeby1ofthefollowingactions:
•Tapthetraction-controlpedalforwardorreverse.
•PressingthebrakeswitchtotheOFFposition(Figure5).
OperatingtheMower
Blade-ControlSwitch(PTO)
Theblade-controlswitch(PTO)startsandstopsthemower
bladesandanypoweredattachments.
EngagingtheBlade-ControlSwitch
(PTO)
G008945
g008945
Figure12
Note:AlwaysengagethebladeswiththethrottleintheFAST
position(Figure13).
17

g186693
Figure13
DisengagingtheBlade-ControlSwitch
(PTO)
G009174
g009174
Figure14
OperatingtheThrottle
YoucanmovethethrottlecontrolbetweentheFASTand
SLOWpositions(Figure15).
AlwaysusetheFASTpositionwhenturningonthemower
deckwiththeblade-controlswitch(PTO).
g187361
Figure15
OperatingtheIgnitionSwitch
1.TurntheignitionkeytotheSTARTposition(Figure16).
Note:Whentheenginestarts,releasethekey.
Important:Donotengagethestarterformore
than5secondsatatime.Iftheenginefailsto
start,wait15secondsbetweenattempts.Failureto
followtheseinstructionscanburnoutthestarter
motor.
Note:Youmayneedmultipleattemptstostartthe
enginewhenyoustartitthersttimeafterthefuel
systemhasbeenwithoutfuelcompletely.
START
RUN
ST OP
G008947
g008947
Figure16
2.TurntheignitionkeytotheSTOPpositiontoshutoff
theengine.
18

StartingandShuttingOffthe
Engine
StartingtheEngine
Note:Awarmorhotenginemaynotrequirechoking.
Important:Donotengagethestarterformorethan
5secondsatatime.Engagingthestartermotorfor
morethan5secondscandamagethestartermotor.If
theenginefailstostart,wait10secondsbeforeoperating
theenginestarteragain.
g027899
B
CD
E
A
F
g027899
Figure17
ShuttingOfftheEngine
1.Disengagethebladesbymovingtheblade-control
switchtotheOFFposition(Figure17).
2.MovethethrottlelevertotheFASTposition.
3.TurntheignitionkeytotheOFFpositionandremove
thekey.
DrivingtheMachine
Thismachinehasthecharacteristicsofbothagardentractor
andazero-turnmachine.Likeagardentractor,themachine
hasafootpedalthatcontrolstheforwardandreversemotion
alongwiththespeed,andithasasteeringwheelthatcontrols
thedirectionandtheturningradius.Likeazero-turnmachine,
thereardrivewheelsoperateindependentlyofeachother,
enablingyoutomakesharpturnsandtoturnindifferent
directionsquickly.Thesecharacteristicsvastlyimprovethe
maneuverabilityofthemachine,buttheymayalsorequire
youtopracticedrivingifyouareunfamiliarwiththistypeof
machine.
WARNING
Themachinecanspinveryrapidly.Youmaylose
controlofthemachineandcausepersonalinjuryor
damagetothemachine.
•Usecautionwhenmakingturns.
•Slowthemachinedownbeforemakingsharp
turns.
Thethrottlecontrolregulatestheenginespeedasmeasured
inrpm(revolutionsperminute).Placingthethrottlecontrol
intheFASTpositioncanbebestforperformance.Formost
applications,operatingintheFULL-THROTTLEpositionis
desirable.
DrivingForwardorBackward
1.MovethethrottletotheFASTposition.
2.Releasetheparkingbrake.
3.Placeyourfootontothetraction-controlpedaland
slowlypressthetopofthepedaltogoforward,or
pressonthebottomofthepedaltomovebackward
(Figure18).
Note:Thefartheryoumovethepedalineither
direction,thefasterthemachinemovesinthat
direction.
g027750
Figure18
1.Forward3.Backward
2.Traction-controlpedal
4.Toslowdown,releasethepressureonthe
traction-controlpedal.
19

StoppingtheMachine
Toshutoffthemachine,releasethetraction-controlpedal,
disengagetheblade-controlswitch,ensurethatthethrottle
isintheFASTposition,engagetheparkingbrake,andturn
theignitionkeytooff.
Note:Remembertoremovethekeyfromtheignitionswitch.
WARNING
Childrenorbystandersmaybeinjuredifthey
moveorattempttooperatethemowerwhileitis
unattended.
AlwaysremoveboththeignitionandKeyChoice
keysandengagetheparkingbrakewhenleavingthe
machineunattended,evenifjustforafewminutes.
MowinginReverse
Themachinehasaninterlockfeaturethatpreventsthemower
deckfrommowingwhilethemachineistravelinginreverse.
IfyoushiftintoreversewiththePTOengaged,thePTO
stops.Ifyouneedtomowwhileinreversegear,youcan
temporarilydeactivatethisinterlock.
Note:Donotmowwhilebackingupunlessitisnecessary.
DANGER
Achildorbystandercouldbebackedoverbya
ridingmowerwithbladesengagedandcause
seriouspersonalinjuryordeath.
•Donotmowinreverseunlessabsolutely
necessary.
•Alwayslookbackwardanddownbeforebacking
up.
•UsetheKeyChoiceswitchonlyifyouarecertain
nochildrenorotherbystanderswillappearin
themowingarea.
•AlwaysremoveboththeignitionandKeyChoice
keysandputtheminasafeplaceoutofthe
reachofchildrenorunauthorizeduserswhen
leavingthemachineunattended.
Ifyouarecertainthatyoucansafelymoworoperatean
attachmentinreverse,completethefollowingprocedure:
1.InserttheKeyChoicekeyintotheKeyChoiceswitch
(Figure6).
2.EngagethePTO.
3.TurntheKeyChoicekeyclockwiseuntilitstopsand
releaseit.
Note:Aredlightilluminatingontheconsoleindicates
thattheinterlockhasbeendeactivated.
4.Performthemowing.
5.Whennishedmowing,removetheKeyChoicekey
(Figure6).
Note:Onceyoudeactivatetheinterlock,itstaysin
thismode—withyourmowerbladeorPTOpowered
attachmentoperatingwheneveryoubackup—andthe
consolelightstaysonuntilyoueitherdisengagethe
PTOorshutofftheengine.
AdjustingtheHeightofCut
Note:Thetransportpositionisthehighestheight-of-cut
positionorcuttingheightat115mm(4-1/2inches)asshown
inFigure19.
Heightofcutiscontrolledbytheleverlocatedtotherightof
theoperatingposition(Figure19).
g028025
Figure19
20
