Introduction
Read this manual carefully to learn how to operate and
maintain your product properly. The information in this
manual can help you and others avoid injury and product
damage. Although Toro designs and produces safe
products, you are responsible for operating the product
properly and safely.
You may contact Toro directly at www.Toro.com for
product and accessory information, help finding a dealer, or
to register your product.
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model and
serial numbers of your product ready. Figure 1 illustrates
the location of the model and serial numbers on the
product.
m-5975
1

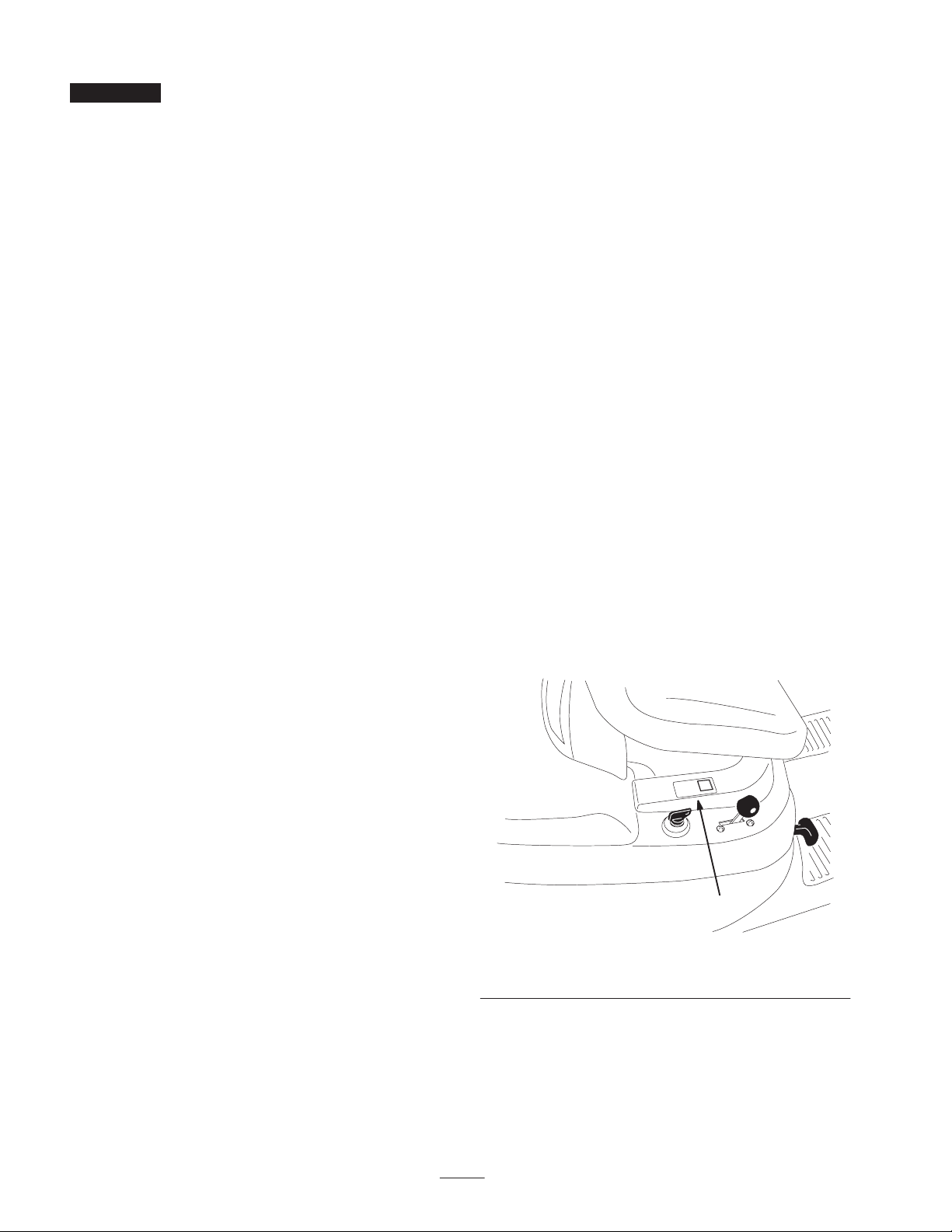

Figure 1
1. Location of the model and serial numbers

3
Write the product model and serial numbers in the space
below:
Model No.
Serial No.
This manual identifies potential hazards and has special
safety messages that help you and others avoid personal
injury and even death. Danger, Warning, and Caution are
signal words used to identify the level of hazard. However,
regardless of the hazard, be extremely careful.
Danger signals an extreme hazard that will cause serious
injury or death if you do not follow the recommended
precautions.
Warning signals a hazard that may cause serious injury or
death if you do not follow the recommended precautions.
Caution signals a hazard that may cause minor or moderate
injury if you do not follow the recommended precautions.
This manual uses 2 other words to highlight information.
Important calls attention to special mechanical
information and Note: emphasizes general information
worthy of special attention.
Safety
Safe Operation Practices for
Ride-on (Riding) Rotary Lawn
Mowers
Read and understand the contents of this manual before
operating the machine.
This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
The following instructions are from the CEN standard EN
836:1997.
This product is capable of amputating hands and feet and of
throwing objects. Always follow all safety instructions to
avoid serious injury or death.
Training
•Read the instructions carefully. Be familiar with the
controls and the proper use of the equipment.
•Never allow children or people unfamiliar with these
instructions to use the lawnmower. Local regulations
can restrict the age of the operator.
•Never mow while people, especially children, or pets
are nearby.
•Keep in mind that the operator or user is responsible for
accidents or hazards occurring to other people or their
property.
•Do not carry passengers.
•All drivers should seek and obtain professional and
practical instruction. Such instruction should
emphasize:
– the need for care and concentration when working
with ride-on machines;
– control of a ride-on machine sliding on a slope will
not be regained by the application of the brake. The
main reasons for loss of control are:
•insufficient wheel grip;
•being driven too fast;
•inadequate braking;
•the type of machine is unsuitable for its task;
•lack of awareness of the effect of ground
conditions, especially slopes;
•incorrect hitching and load distribution.
Preparation
•While mowing, always wear substantial footwear and
long trousers. Do not operate the equipment when
barefoot or wearing open sandals.
•Thoroughly inspect the area where the equipment is to
be used and remove all objects which may be thrown by
the machine.
•Warning—Fuel is highly flammable.
– Store fuel in containers specifically designed for this
purpose.
– Refuel outdoors only and do not smoke while
refuelling.
– Add fuel before starting the engine. Never remove
the cap of the fuel tank or add fuel while the engine
is running or when the engine is hot.
– If fuel is spilled, do not attempt to start the engine
but move the machine away from the area of
spillage and avoid creating any source of ignition
until fuel vapors have dissipated.
– Replace all fuel tanks and container caps securely.
•Replace faulty silencers.
•Before using, always visually inspect to see that the
blade, blade bolt and cutter assembly are not worn or
damaged.

4
Operation
•Do not operate the engine in a confined space where
dangerous carbon monoxide fumes can collect.
•Mow only in daylight or in good artificial light.
•Before attempting to start the engine, disengage all
blade attachment clutches and shift into neutral.
•Do not use on slopes of more than
–5when mowing on side hills;
–10 when mowing uphill;
–15when mowing downhill.
•Remember there is no such thing as a safe slope. Travel
on grass slopes requires particular care. To guard
against overturning:
– do not stop or start suddenly when going up or
downhill;
– engage clutch slowly, always keep machine in gear,
especially when travelling downhill;
– machine speeds should be kept low on slopes and
during tight turns;
– stay alert for humps and hollows and other hidden
hazards;
•Use care when pulling loads or using heavy equipment.
– Use only approved drawbar hitch points.
– Limit loads to those you can safely control.
– Do not turn sharply. Use care when reversing.
•Watch out for traffic when crossing or near roadways.
•Stop the blades from rotating before crossing surfaces
other than grass.
•When using any attachments, never direct discharge of
material toward bystanders nor allow anyone near the
machine while in operation.
•Never operate the machine with damaged guards or
without safety protective devices in place.
•Do not change the engine governor settings or
overspeed the engine. Operating the engine at excessive
speed can increase the hazard of personal injury.
•Before leaving the operator’s position:
– disengage the power take-off and lower the
attachments;
– change into neutral and set the parking brake;
– stop the engine and remove the key.
•Disengage drive to attachments, stop the engine, and
disconnect the spark plug wire or remove the ignition
key
– before clearing blockages or unclogging chute;
– before checking, cleaning or working on the
lawnmower;
– after striking a foreign object. Inspect the
lawnmower for damage and make repairs before
restarting and operating the equipment;
– if the machine starts to vibrate abnormally (check
immediately).
•Disengage drive to attachments when transporting or
not in use.
•Stop the engine and disengage drive to attachment
– before refuelling;
– before removing the grass catcher;
– before making height adjustment unless adjustment
can be made from the operator’s position.
•Reduce the throttle setting during engine run-out and, if
the engine is provided with a shut-off valve, turn the
fuel off at the conclusion of mowing.
Maintenance and Storage
•Keep all nuts, bolts and screws tight to be sure the
equipment is in safe working condition.
•Never store the equipment with fuel in the tank inside a
building where fumes can reach an open flame or spark.
•Allow the engine to cool before storing in any
enclosure.
•To reduce the fire hazard, keep the engine, silencer,
battery compartment and fuel storage area free of grass,
leaves, or excessive grease.
•Check the grass catcher frequently for wear or
deterioration.
•Replace worn or damaged parts for safety.
•If the fuel tank has to be drained, this should be done
outdoors.
•When machine is to be parked, stored or left
unattended, lower the cutting means unless a positive
mechanical lock is used.

5
Toro Riding Mower Safety
The following paragraph contains safety information
specific to Toro products or other safety information that
you must know that is not included in the CEN standard.
Use only Toro-approved attachments. Warranty may be
voided if used with unapproved attachments.
Sound Pressure Level
This unit has a maximum sound pressure level at the
operator’s ear of 87 dBA, based on measurements of
identical machines per Directive 98/37/EC.
Sound Power Level
This unit has a guaranteed sound power level of 100 dBA,
based on measurements of identical machines per Directive
2000/14/EC.
Vibration Level
This unit does not exceed a whole body vibration level of
0.5 m/s2based on measurements of identical machines per
Directive 98/37/EC.

6

7

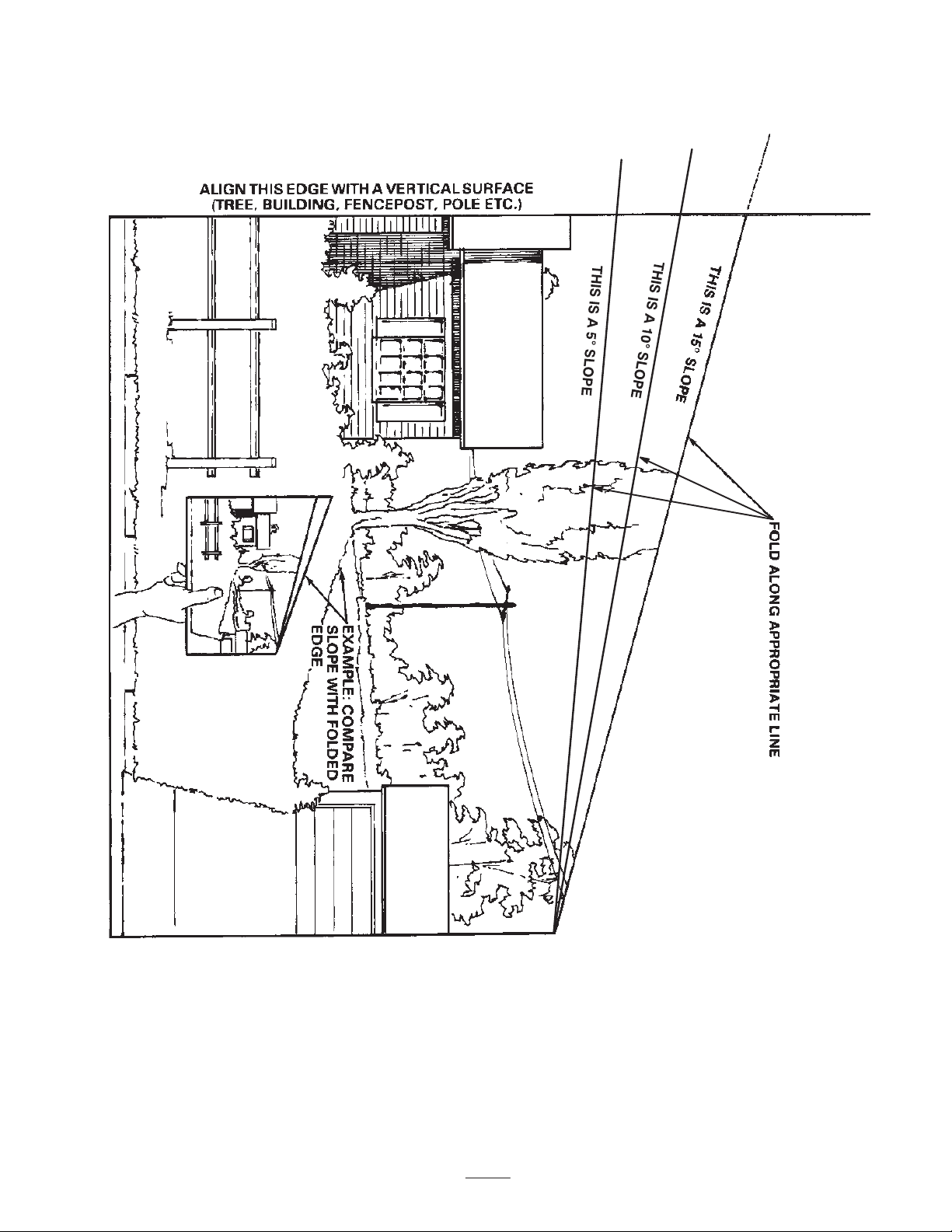

Slope Chart

8

9
Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential danger. Replace any decal that is damaged or lost.
99-2986
1. Crushing/dismemberment hazard of bystanders—do not turn
the key while children are present; keep children a safe
distance from the machine.
105-0529
1. Warning—do not touch the hot surface.
105-0530
1. Height of cut
105-0531
1. Disengage the cutting blade.
105-0532
1. Engage the cutting blade.
105-0535
1. Grass collector full 2. Operating in reverse
106-1802
1. Warning—read the Operator’s Manual.
2. Cutting hazard of hand—remove the ignition key and read the
instructions before servicing or performing maintenance.
3. Thrown object hazard—keep bystanders a safe distance from
the machine.
4. Tipping hazard—do not drive up a slope greater than 10
degrees.

10
106-2940
1. Warning—do not place you hands or feet under the mower.
106-2941
1. Push the lever in to push
the machine.
2. Pull the lever out to drive
the machine.
106-2942
1. Turn the key to mow in reverse.
106-2943
1. Thrown object and cutting hazards—do not operate the
machine with the discharge opening uncovered; always
operate the machine with the recycling cover, rear discharge
deflector, or grass collector installed.
Molded into the floor near the brake pedal
1. Brake
Molded into the floor near the parking brake lever
1. Parking brake
Molded into the floor near the traction control
pedal
1. Forward
Molded into the floor near the traction control
pedal
1. Neutral
Molded into the floor near the traction control
pedal
1. Reverse
Molded into the body near the throttle control
lever
1. Fast
2. Slow
3. Choke
Molded into the body near the ignition switch
1. Engine
