1. Overview
This DU CMOS series is an integrated-(one-body)-type camera that adopts a global shutter CMOS
sensor. DU1207M adopts a 12M B&W type 1.1 sensor. Suffix [CG] or [CF] is attached to the color
model. For video output and camera control, the USB 3.0 interface standard is adopted for high
transfer rate, and it is easy to integrate into industrial equipment.
2. Features
2.1 High frame rate
Supporting high frame rate, DU1207MG 32fps, DU1207MCG/MCF 31fps for mono (Bayer) bpp8
output mode.
2.2 Global shutter
As it employs a global electronic shutter similar to a CCD image sensor, clear images of even
fast-moving object are obtainable with less blur.
2.3 USB 3.0 interface
Video output and camera control are performed via the USB 3.0 standard interface. Data transfer
is up to 5Gbps (Maximum) that enables to output uncompressed video data at high frame rate.
2.4 USB3 Vision
This product is based on USB3 Vision Ver.1.0.
2.5 GenICam Ver.2.3
This product is based on GenICam Generic Interface for Cameras Ver.2.3.
2.6 IIDC2 Digital Camera Control Specification Ver.1.1.0
This product is based on IIDC2 Digital Camera Control Specification Ver.1.1.0.
2.7 e-CON Connector adoption
The e-CON connector adoption enables to assemble the cable easily without using special tools.

D4271476B
7
Copyright © 2017 TOSHIBA TELI CORPORATION, All Rights Reserved. http://www.toshiba-teli.co.jp/en/
2.8 Random Trigger Shutter
The Random Trigger Shutter function provides images in any timing by input of an external trigger
signal. Trigger control from PC is available as well.
2.9 Scalable
Selectable video output area. This mode achieves higher frame rate by reducing vertical output
area. And reduces occupied data rate of USB bus by reducing horizontal output area.
2.10 Binning
Pixel data is combined by vertical and horizontal. It achieves high frame rate.
2.11 Decimation
Camera reads all effective areas at high speed by skipping lines.
2.12 Color processing
Color models have built in color processing.
There are RGB, BGR, YUV 4:2:2, YUV 4:1:1, Bayer and Mono output modes.
In addition, it produced an image with restrained false color by adaptive filter interpolating 7 x 7
pixels.
2.13 IR –cut filter
Build-in IR-cut filter models are optional for color models.
Suffix [F] is attached to the model name of built-in IR-cut filter model.
2.14 EU RoHS & Chinese ROHS

D4271476B
8
Copyright © 2017 TOSHIBA TELI CORPORATION, All Rights Reserved. http://www.toshiba-teli.co.jp/en/
3. Configuration
(1) Camera body
* No application software and manuals are attached to this camera.
4. Optional part
- Camera mounting kit Model name: CPTC6M
* Contact your dealer / distributor for details of option units.

D4271476B
9
Copyright © 2017 TOSHIBA TELI CORPORATION, All Rights Reserved. http://www.toshiba-teli.co.jp/en/
5. Functions
5.1 Gain
Manual gain and automatic gain control (AGC) settings are provided. Gain is adjustable from 0 to
+24dB.
5.1.1 Manual
The camera gain can be set manually.
5.1.2 AGC
The camera gain is automatically adjusted to suit subject brightness.
Notes on gain setting:
Setting the gain value too high increases noises. When you adjust the brightness of the image, I ask
you to have final image quality checked with your environment.
5.2 Black Level
Black level is adjustable from -25% to +25% as white saturation level is 100%.
5.3 Gamma
Gamma correction curve is adjustable from 0.45 to 1.
5.4 LUT (Look up Table)
Arbitrary curve and binarization are possible by using 12 bit input and 12 bit output LUT.
5.5 Exposure Time
Manual exposure time and automatic exposure time control (AE) are available
5.5.1 Manual
Exposure time is adjustable by micro-second unit.
5.5.2 AE
The exposure time is adjusted automatically to suit subject brightness.
This mode can also operate with AGC (Automatic Gain Control) to automatically adjust fluctuations
in subject brightness across a wide range (ALC operation).

D4271476B
10
Copyright © 2017 TOSHIBA TELI CORPORATION, All Rights Reserved. http://www.toshiba-teli.co.jp/en/
5.6 White balance
Color models have three white balance modes, Manual White Balance (MWB) and One-Push auto
White Balance (OPWB). Select the mode to suit the subject and purpose.
5.6.1 MWB
R/B gain can be set independently.
5.6.2 OPWB
When OPWB is executed, the camera adjusts R/B gain automatically.
5.7 Masking correction
Color models have RGB 3x3 matrixes correction.
5.8 Sharpness
It is possible to adjust the edge enhancement of the image.
5.9 Hue
Color models have hue control.
5.10 Saturation
Color models have saturation control.
5.11 Chunk
It is possible to integrate some sort of information about each image with video data.

D4271476B
11
Copyright © 2017 TOSHIBA TELI CORPORATION, All Rights Reserved. http://www.toshiba-teli.co.jp/en/
5.12 Random Trigger Shutter
An image is captured at the desired timing using trigger signal input. External trigger signal from
trigger input connector and software trigger from control command via the USB 3.0 interface are
available (Edge mode / Bulk mode). Trigger polarity is selectable (High active / Low active).
Note that Random Trigger Shutter will cause a delay between trigger signal and start of exposure.
See 7. Timing Chart for detail.
- Edge mode (TriggerSequence0)
The exposure time is determined by Exposure Time setting.
Exposure
Trigger
ExposureTime
USB Streaming
- Level mode (TriggerSequence1)
The exposure time is determined by the pulse width of the trigger signal.
Exposure
Trigger
Pulse Width
USB Streaming Image
- Bulk mode (TriggerSequence6)
Camera exposes and transfers multiple frames by a single trigger.
Exposure
Trigger
ExposureTime TriggerAdditionalParameter = 3
USB Streaming Image Image
Notes on Random Trigger Shutter :
- In the period when FRAME_TRIGGER_WAIT signal is inactive, user must not input external trigger
signal to this camera.
- When the interval of the input trigger signal is extremely short, or when the trigger signal is noisy,
there is a possibility of causing the malfunction. In this case, please input a proper trigger signal.

D4271476B
12
Copyright © 2017 TOSHIBA TELI CORPORATION, All Rights Reserved. http://www.toshiba-teli.co.jp/en/
5.13 Sequential Shutter
Sequential Shutter function performs sequential capturing with applying the settings of UserSet that
have been made entry in advance.
ExposureTime = 10ms
...
Sensor
Frame
Exposure
ExposureTime = 2ms
... ExposureTime = 20ms ...
USB
Streaming
Exposure1
Frame1
ExposureTime = 10ms
...
Frame2 Frame3 Frame4
Sequence
Index = 1
SequentialShutterTerminateAt = 3
...
...
Exposure2 Exposure3 Exposure4
Sequence
Index = 2 Sequence Index = 3 Sequence Index = 1
Entry1 = UserSet1 Entry2 = UserSet4 Entry3 = UserSet2 Entry1 = UserSet1
Note on Sequential Shutter:
- In Sequential Shutter mode, window size is unchangeable.
5.14 Trigger Delay
You can add the delay between trigger signal input and the start of exposure.
USB Streaming
Exposure
Trigger signal
TriggerDelay

D4271476B
13
Copyright © 2017 TOSHIBA TELI CORPORATION, All Rights Reserved. http://www.toshiba-teli.co.jp/en/

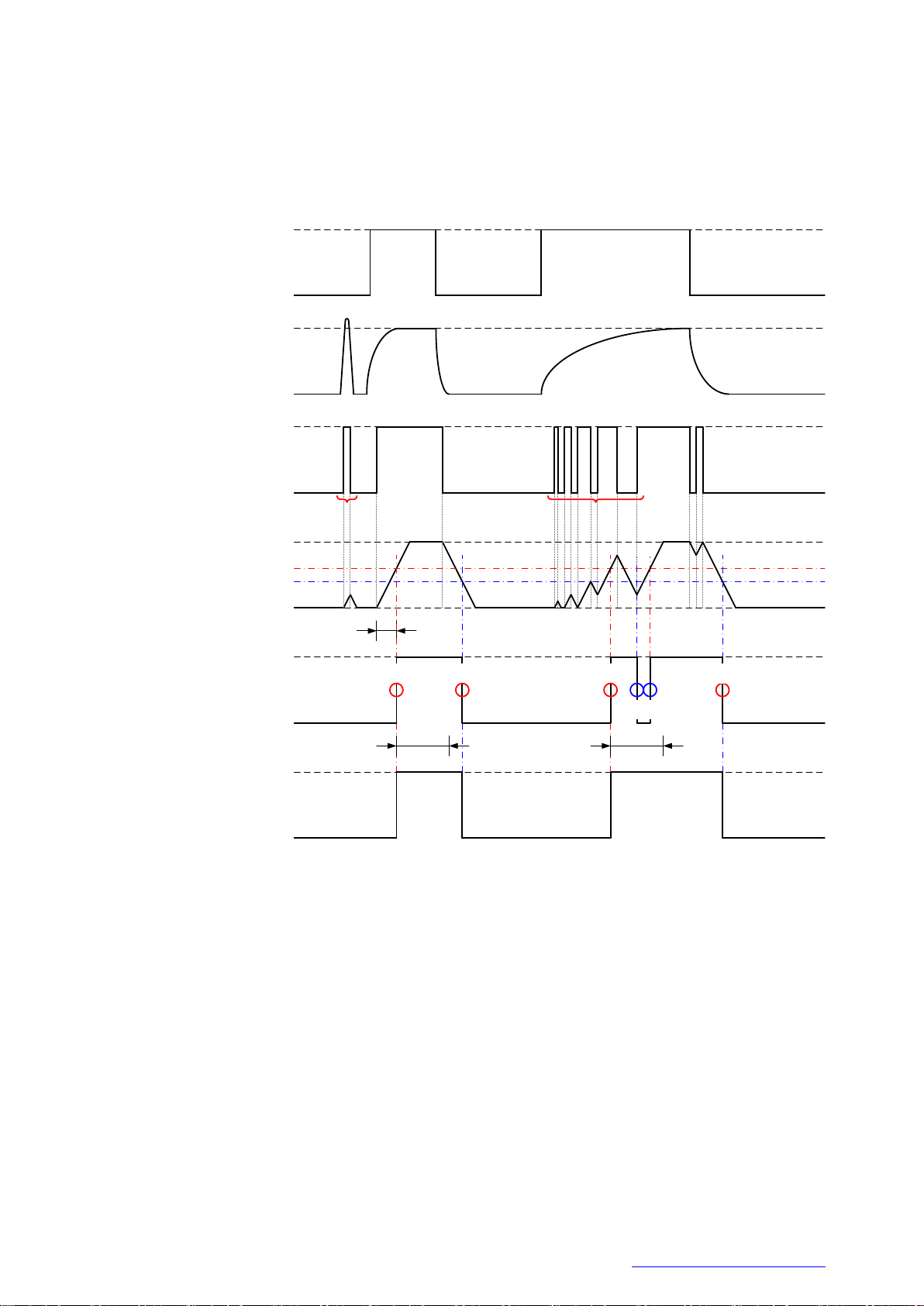

5.15 AntiGlitch –AntiChattering
AntiGlitch and AntiChattering functions filter noise and unstable state of the digital input (trigger
signal).
Low
High
Low
Trigger Signal
(Skewed)
High
Low
Trigger Signal
(Original)
high slew ratenoise low slew rate
Digital Input
High
High threshold
AntiGlitch
Value
High
Low
High
Low
Low threshold
Delay
AntiChattering
Value
Valid
Signal
AntiChattering Circuit
Output
Integration of
Digital Input
AntiGlitch Circuit
Output
Valid
Edge
Invalid
Edge
Valid
Edge
Valid
Signal
Valid
Edge Valid Edge
Insensible
Time Insensible Time
Glitch Chattering

D4271476B
14
Copyright © 2017 TOSHIBA TELI CORPORATION, All Rights Reserved. http://www.toshiba-teli.co.jp/en/
5.16 Event
Camera notifies FrameTrigger status and other information by USB3 Vision Event Packet.
- FrameTrigger : Reception of Frame Start Trigger
- FrameTriggerError : Rejection of Frame Start Trigger
- FrameTriggerWait : Start of waiting for Frame Start Trigger
- FrameTransferStart : Start of transferring streaming data
- FrameTransferEnd : End of transferring streaming data
- ExposureStart : Start of Exposure
- ExposureEnd : End of Exposure
- Timer0Start : Start of Timer0
- Timer0End : End of Timer0
Events timing are as following chart.
A B C D E
A B C
Overlap Trigger Reception
A B C
(1)
(6) (7) (6) (7) (6) (7)
(1) (1)
(4) (5) (4) (5) (4) (5)
(3) (3) (3)
FrameTriggerWait will be activated before
approx. (Sensor Read Out End - Exposure Time)
D E
D E
(6) (7)
(1)
(4) (5) (4)
(3)
(2) (1)
(6) (7)
This trigger is
ignored.
Overlap Trigger Rejection
Event Name
FrameTriggerWait
(Low Active)
EXT_TRIG
(Falling edge)
Exposure
Sensor Read Out
Bus Transfer
Timer0Active
(Low Active)
(8) (9) (8) (9) (8) (9) (8) (9) (8) (9)
(3) FrameTriggerWait
(4) FrameTransferStart
(5) FrameTransferEnd
(6) ExposureStart
(7) ExposureEnd
(1) FrameTrigger
(2) FrameTriggerError
(8) Timer0Start
(9) Timer0End
: Reception of Frame Start Trigger.
: Rejection of Frame Start Trigger.
: Start of waiting for Frame Start Trigger.
: Start of transferring streaming data.
: End of transferring streaming data.
: Start of Exposure.
: End of Exposure.
: Start of Timer0.
: End of Timer0.

D4271476B
15
Copyright © 2017 TOSHIBA TELI CORPORATION, All Rights Reserved. http://www.toshiba-teli.co.jp/en/
5.17 GPIO
Selected signals are output from GPIO pins of I/O connector. Following signals are selectable.
Output signal is 5V CMOS.
TIMER0 ACTIVE : This signal can be used as strobe control signal.
The delay time and pulse width of this signal are configurable.
USER OUTPUT : Level selectable user output by register setting.
EXPOSURE ACTIVE : Period from exposure start to end.
FRAME ACTIVE : Period from exposure start to the CMOS transfer completion.
FRAME TRANSFER : Period of transferring image data on USB bus.
FRAME TRIGGER WAIT : Indicating waiting a Random Trigger Shutter.
An External trigger is input during this period,
exposure starts immediately.
EXT_TRIG
Exposure
VD
Sensor Output
USB Streaming
TIMER0 ACTIVE
EXPOSURE
ACTIVE
FRAME ACTIVE
FRAME
TRANSFER
FRAME TRIGGER
WAIT
Delay Duration
* ActiveLow

D4271476B
16
Copyright © 2017 TOSHIBA TELI CORPORATION, All Rights Reserved. http://www.toshiba-teli.co.jp/en/
5.18 Scalable
Scalable is to read out arbitrary area of the image. Only single rectangle is selectable. Concave or
convex shape is impossible. The number of selectable window is only one.
- Window size: {A+4*m (H)} * {B+2*n (V)}
A, B = minimum unit size
m, n = integer
The window size is equal or less than maximum image size.
- Start address: {4*i (H)} * {2*j (V)}
i, j = integer
The window size is equal or less than maximum image size.
Model Name
DU1207MG (MCG/MCF)
Width and OffsetX unit size
4
Height and OffsetY unit size
2
Minimum unit size (H) * (V)
64 x 64
Maximum unit size (H) * (V)
4096 x 3000
( X , Y )=( 4 * i , 2 * j )
A + 4 * m
B + 2 * n
In the scalable mode, camera reads out only necessary area at the normal speed and reads out other
area at high speed. The trigger interval can be shorter when the vertical height size is small.

D4271476B
17
Copyright © 2017 TOSHIBA TELI CORPORATION, All Rights Reserved. http://www.toshiba-teli.co.jp/en/
5.19 Binning
In the binning mode, a pixel is added with the neighboring pixel(s). This increases the sensitivity of
the image and frame rate.
Vertical and Horizontal can be set individually.
*The frame rate will be increased with only monochrome model.
5.20 Decimation
Decimation feature reads out all effective areas at high speed by skipping pixels and lines.
Decimation feature can make frame rate faster.
Vertical and Horizontal can be set individually.
5.21 Reverse
Image can be flipped in horizontal and/or vertical direction.
5.22 Defect Pixel Correction
Defect Pixel Correction is available up to 256 pixels.
5.23 Image Buffer
Camera stores images temporarily in image buffer, and read them out in arbitrary timing.
5.24 User Free Memory
A free memory area is available to read and write arbitrary data for user. Individual numbers can be
assigned when multiple BU cameras are connected.
5.25 Test Pattern
Following test patterns are available.
Black : Full screen 0 LSB (@ 8-bit)
White : All pixels 255 LSB (@ 8-bit)
Grey A : Full screen 170 LSB (10101010B) (@ 8-bit)
Grey B : Full screen 85 LSB (01010101B) (@ 8-bit)
Horizontal ramp waveform
Vertical ramp waveform
Grey scale(B/W models only)
Color Bar (Color models only)

D4271476B
18
Copyright © 2017 TOSHIBA TELI CORPORATION, All Rights Reserved. http://www.toshiba-teli.co.jp/en/
6. Specifications
6.1 Electrical specification
(*1) at the all pixel readout
Model Name
DU1207MG
Optical part
Optical glass
Imager
CMOS image sensor
Number of effective pixels (H) x (V)
4096 x 3000
Scanning area (H) x (V) [mm]
14.19 x 10.34 (1.1 type)
Pixel size (H) x (V) [μm]
3.45 x 3.45
Scan method
Progressive
Electronic shutter method
Global shutter
Aspect ratio
Approx. 4:3
Sensitivity
860lx, F5.6, 1/32s
Minimum illuminance
2lx (F1.4, Gain +24dB, Video Level 50%)
Gain
MANUAL、AGC (factory setting：MANUAL)
Setting range
0 to +24dB (factory setting : 0dB)
AGC effective area
Set in arbitrary percentage. (factory setting : 100% (full
screen))
Black Level
-25 to 25% (factory setting : 0% [ 0LSB@8bit ])
Gamma
γ=1.0 to 0.45 (factory setting : γ=1.0)
LUT
Input 12 bit, Output 12 bit
Sharpness
0(OFF)～7 ( factory setting : OFF)
Image Buffer
256M Byte
User Setting Memory
15 channels
User Free Memory
64 Byte
Test Pattern
Black, White, Grey A, Grey B
Horizontal ramp waveform, Vertical ramp waveform,
Grey scale (factory setting : OFF)
Power supply
DC +5V5% (from USB connector)
Power consumption(*1)
4.0W (maximum)

D4271476B
19
Copyright © 2017 TOSHIBA TELI CORPORATION, All Rights Reserved. http://www.toshiba-teli.co.jp/en/
(*1) at the all pixel readout
Model Name
DU1207MCG
DU1207MCF
Optical part
Optical glass
IR cut filter
Imager
CMOS image sensor
Number of effective pixels (H) x (V)
4096 x 3000
Scanning area (H) x (V) [mm]
14.19 x 10.34 (1.1 type)
Pixel size (H) x (V) [μm]
3.45 x 3.45
Color filter
RGB primary color mosaic-on-tip color filter
Scan method
Progressive
Electronic shutter method
Global shutter
Aspect ratio
Approx. 4:3
Sensitivity
1150lx, F5.6, 1/31s
1425lx, F5.6, 1/31s
Minimum illuminance
3lx (Gain +24dB, Video Level 50%)
Gain
MANUAL、AGC (factory setting：MANUAL)
Setting range
0 to +24dB (factory setting : 0dB)
AGC effective area
Set in arbitrary percentage. (factory setting : 100% (full
screen))
Black Level
-25 to 25% (factory setting : 0% [ 0LSB@8bit ])
Gamma
γ=1.0 to 0.45 (factory setting : γ=1.0)
Hue
-180°to 180°(factory setting : 0°)
Saturation
x0 to x2 (factory setting : x1.3)
White balance
MWB, OPWB (factory setting : MWB)
Effective range
2,500～6,500K
MWB setting format
R/B gain independent setting
OPWB effective area
Full pixel
LUT
Input 12 bit, Output 12 bit
Sharpness
0(OFF)～7 ( factory setting : OFF)
Image Buffer
256M Byte
User Setting Memory
15 channels
User Free Memory
64 Byte
Test Pattern
Black, White, Grey A, Grey B
Horizontal ramp waveform, Vertical ramp waveform, Color
bars
(factory setting : OFF)
Horizontal ramp waveform, Vertical ramp waveform,
Color bars (factory setting : OFF)
Power supply
DC +5V5% (from USB connector)
Power consumption(*1)
4.5W (maximum)
