Toshiba Rav-sm1101dtp-a User manual

For commercial use

AIR CONDITIONER (SPLIT TYPE)

Owner’s Manual

Indoor Unit

Model name:

Concealed Duct High Static Pressure Type

English

1116950231

RAV-SM1101DTP-A

RAV-SM1401DTP-A

RAV-SM1601DTP-A

1116950231_EN.indd cover11116950231_EN.indd cover1 5/9/19 1:50 PM5/9/19 1:50 PM

– 1 –

Original instruction

ADOPTION OF NEW REFRIGERANT

This Air Conditioner uses R410A an environmentally friendly refrigerant.

According to EN 60335-1

This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

According to IEC 60335-1

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a

person responsible for their safety.

Children should be supervised to ensure that they do not play

with the appliance.

1-EN 2-EN

Contents

1 Precautions for safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 Part names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 Wired remote controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4 Correct usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

5 Timer operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6 Power saving mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

7 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

8 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

9 Operations and performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

10 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

11 Speciﬁcations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1116950231_EN.indd 11116950231_EN.indd 1 5/9/19 1:50 PM5/9/19 1:50 PM

– 2 –

EN

ID

Thank you for purchasing this Toshiba air conditioner.

Please read carefully through these instructions that contain important information which complies with the

Machinery Directive (Directive 2006/42/EC), and ensure that you understand them.

After reading these instructions, be sure to keep them in a safe place together with the Installation Manual supplied

with your product.

Generic Denomination: Air Conditioner

Definition of Qualified Installer or Qualified Service Person

The air conditioner must be installed, maintained, repaired and removed by a qualified installer or qualified service

person. When any of these jobs is to be done, ask a qualified installer or qualified service person to do them for you.

A qualified installer or qualified service person is an agent who has the qualifications and knowledge described in

the table below.

evahtsumtnegaehthcihwegdelwonkdnasnoitacifilauQtnegA

Qualified installer The qualified installer is a person who installs, maintains, relocates and removes the air conditioners

made by Toshiba Carrier Corporation. He or she has been trained to install, maintain, relocate and

remove the air conditioners made by Toshiba Carrier Corporation or, alternatively, he or she has been

instructed in such operations by an individual or individuals who have been trained and is thus

thoroughly acquainted with the knowledge related to these operations.

The qualified installer who is allowed to do the electrical work involved in installation, relocation and

removal has the qualifications pertaining to this electrical work as stipulated by the local laws and

regulations, and he or she is a person who has been trained in matters relating to electrical work on

the air conditioners made by Toshiba Carrier Corporation or, alternatively, he or she has been

instructed in such matters by an individual or individuals who have been trained and is thus thoroughly

acquainted with the knowledge related to this work.

The qualified installer who is allowed to do the refrigerant handling and piping work involved in

installation, relocation and removal has the qualifications pertaining to this refrigerant handling and

piping work as stipulated by the local laws and regulations, and he or she is a person who has been

trained in matters relating to refrigerant handling and piping work on the air conditioners made by

Toshiba Carrier Corporation or, alternatively, he or she has been instructed in such matters by an

individual or individuals who have been trained and is thus thoroughly acquainted with the knowledge

related to this work.

The qualified installer who is allowed to work at heights has been trained in matters relating to working

at heights with the air conditioners made by Toshiba Carrier Corporation or, alternatively, he or she

has been instructed in such matters by an individual or individuals who have been trained and is thus

thoroughly acquainted with the knowledge related to this work.

Qualified service

person

The qualified service person is a person who installs, repairs, maintains, relocates and removes the

air conditioners made by Toshiba Carrier Corporation. He or she has been trained to install, repair,

maintain, relocate and remove the air conditioners made by Toshiba Carrier Corporation or,

alternatively, he or she has been instructed in such operations by an individual or individuals who have

been trained and is thus thoroughly acquainted with the knowledge related to these operations.

The qualified service person who is allowed to do the electrical work involved in installation, repair,

relocation and removal has the qualifications pertaining to this electrical work as stipulated by the local

laws and regulations, and he or she is a person who has been trained in matters relating to electrical

work on the air conditioners made by Toshiba Carrier Corporation or, alternatively, he or she has been

instructed in such matters by an individual or individuals who have been trained and is thus thoroughly

acquainted with the knowledge related to this work.

The qualified service person who is allowed to do the refrigerant handling and piping work involved in

installation, repair, relocation and removal has the qualifications pertaining to this refrigerant handling

and piping work as stipulated by the local laws and regulations, and he or she is a person who has

been trained in matters relating to refrigerant handling and piping work on the air conditioners made

by Toshiba Carrier Corporation or, alternatively, he or she has been instructed in such matters by an

individual or individuals who have been trained and is thus thoroughly acquainted with the knowledge

related to this work.

The qualified service person who is allowed to work at heights has been trained in matters relating to

working at heights with the air conditioners made by Toshiba Carrier Corporation or, alternatively, he

or she has been instructed in such matters by an individual or individuals who have been trained and

is thus thoroughly acquainted with the knowledge related to this work.

These safety cautions describe important matters concerning safety to prevent injury to users or other people and

damages to property. Please read through this manual after understanding the contents below (meanings of

indications), and be sure to follow the description.

Indication Meaning of Indication

WARNING Text set off in this manner indicates that failure to adhere to the directions in the warning could result

in serious bodily harm (*1) or loss of life if the product is handled improperly.

CAUTION Text set off in this manner indicates that failure to adhere to the directions in the caution could result

in slight injury (*2) or damage (*3) to property if the product is handled improperly.

*1: Serious bodily harm indicates loss of eyesight, injury, burns, electric shock, bone fracture, poisoning, and other

injuries which leave aftereffect and require hospitalization or long-term treatment as an outpatient.

*2: Slight injury indicates injury, burns, electric shock, and other injuries which do not require hospitalization or longterm

treatment as an outpatient.

*3: Damage to property indicates damage extending to buildings, household effects, domestic livestock, and pets.

3-EN 4-EN

1116950231_EN.indd 21116950231_EN.indd 2 5/9/19 1:50 PM5/9/19 1:50 PM

– 3 –

Warning indications on the air conditioner unit

noitpircseDnoitacidnigninraW

WARNING

ELECTRICAL SHOCK HAZARD

Disconnect all remote electric power supplies before servicing.

WARNING

Moving parts.

Do not operate unit with grille removed.

Stop the unit before the servicing.

CAUTION

High temperature parts.

You might get burned when removing this panel.

CAUTION

Do not touch the aluminum fins of the unit.

Doing so may result in injury.

CAUTION

BURST HAZARD

Open the service valves before the operation, otherwise there might be

the burst.

WARNING

ELECTRICAL SHOCK HAZARD

Disconnect all remote

electric power supplies

before servicing.

WARNING

Moving parts.

Do not operate unit with grille

removed.

Stop the unit before the servicing.

CAUTION

High temperature parts.

You might get burned

when removing this panel.

CAUTION

Do not touch the aluminum

fins of the unit.

Doing so may result in injury.

CAUTION

BURST HAZARD

Open the service valves before

the operation, otherwise there

might be the burst.

5-EN 6-EN

1Precautions for safety

The manufacturer shall not assume any liability for the damage

caused by not observing the description of this manual.

WARNING

General

• Carefully read Owner’s Manual before starting the air conditioner.

There are many important things to keep in mind for daily

operation.

• Ask for installation to be performed by the dealer or a

professional. Only a qualiﬁed installer(*1) is able to install an air

conditioner. If a non-qualiﬁed person installs an air conditioner, it

may result in problems such as ﬁre, electric shock, injury, water

leakage, noise and vibration.

• Do not use any refrigerant different from the one speciﬁed

for complement or replacement. Otherwise, abnormally high

pressure may be generated in the refrigeration cycle, which may

result in a failure or explosion of the product or an injury to your

body.

• Places where the operation sound of the outdoor unit may cause

a disturbance. (Especially at the boundary line with a neighbour,

install the air conditioner while considering the noise.)

• This appliance is intended to be used by expert or trained users

in shops, in light industry, or for commercial use by lay persons.

Transportation and storage

• To transport the air conditioner, wear shoes with protective toe

caps, protective gloves, and other protective clothing.

• To transport the air conditioner, do not take hold of the bands

around the packing carton. You may injure yourself if the bands

should break.

1116950231_EN.indd 31116950231_EN.indd 3 5/9/19 1:50 PM5/9/19 1:50 PM

– 4 –

EN

ID

7-EN 8-EN

• Before stacking the packing cartons for storage or transportation,

heed the precautions written on the packing cartons. Failure to

heed the precautions may cause the stack to collapse.

• The air conditioner must be transported in stable condition. If any

part of the product broken, contact your dealer.

• When the air conditioner must be transported by hand, carry it by

two or more people.

Installation

• Only a qualiﬁed installer(*1) or qualiﬁed service person(*1) is

allowed to carry out the electrical work of the air conditioner.

Under no circumstances must this work be done by an

unqualiﬁed individual since failure to carry out the work properly

may result in electric shocks and / or electrical leaks.

• After the installation work has been completed, have the installer

explain about the circuit breaker positions. In the event that

trouble has occurred in the air conditioner, set the circuit breaker

to the OFF position, and contact a service person.

• If the unit is installed in a small room, take appropriate measures

to prevent the refrigerant from exceeding the limit concentration

even if it leaks. Consult the dealer from whom you purchased the

air conditioner when you implement the measures. Accumulation

of highly concentrated refrigerant may cause an oxygen

deﬁciency accident.

• Do not install the air conditioner in a location that may be subject

to a risk of expire to a combustible gas. If a combustible gas

leaks and becomes concentrated around the unit, a ﬁre may

occur.

• Use the company-speciﬁed products for the separately

purchased parts. Use of non-speciﬁed products may result in

ﬁre, electric shock, water leakage or other trouble. Have the

installation performed by a professional.

• Conﬁrm that earthing is performed correctly.

Operation

• Before opening the electrical control box cover of the indoor unit

or service panel of the outdoor unit, set the circuit breaker to the

OFF position. Failure to set the circuit breaker to the OFF position

may result in electric shocks through contact with the interior

parts. Only a qualiﬁed installer(*1) or qualiﬁed service person(*1)

is allowed to remove the electrical control box cover of the indoor

unit or service panel of the outdoor unit and do the work required.

• Inside the air conditioner are high-voltage areas and rotating

parts. Due to the danger of electric shocks or of your ﬁngers or

physical objects becoming trapped in the rotating parts, do not

remove service panel of the outdoor unit. When work involving

the removal of these parts is required, contact a qualiﬁed

installer(*1) or a qualiﬁed service person(*1).

• Do not move or repair any unit by yourself. Since there is high

voltage inside the unit, you may get electric shock when removing

the cover and main unit.

• Use of a stand more than 50 cm high to clean the ﬁlter of the

indoor unit or to carry out other such jobs constitutes working at

heights. Due to the danger of falling off the stand and injuring

yourself while working at heights, this kind of work should not be

done by unqualiﬁed individuals. When this kind of work must be

carried out, do not do it yourself but ask a qualiﬁed installer(*1) or

a qualiﬁed service person(*1) to do it for you.

• Do not touch the aluminum ﬁn of the outdoor unit. You may injure

yourself if you do so. If the ﬁn must be touched, do not touch it

yourself but contact a qualiﬁed installer(*1) or a qualiﬁed service

person(*1).

• Do not climb onto or place objects on top of the outdoor unit. You

may fall or the objects may fall off of the outdoor unit and result in

injury.

• Do not place any combustion appliance in a place where it is

directly exposed to the wind of air conditioner, otherwise it may

cause imperfect combustion.

1116950231_EN.indd 41116950231_EN.indd 4 5/9/19 1:50 PM5/9/19 1:50 PM

– 5 –

9-EN 10-EN

• When the air conditioner is operated with a combustion appliance

in the same place, ventilate the room sufﬁciently. Poor ventilation

causes oxygen shortage.

• When the air conditioner is used in a closed room, sufﬁciently

ventilate the room. Poor ventilation causes oxygen shortage.

• Do not expose your body to cool air directly for a long time and

do not cool yourself excessively.

Doing so may result in deteriorated physical condition and ill

health.

• Do not insert your ﬁnger or a stick into the air intake or discharge.

Doing so may result injury as the fan is rotating at high speed

inside the unit.

• Consult the shop where you purchased the air conditioner if air

conditioning (cooling and heating) is not performed properly as a

refrigerant leakage may be the cause. Conﬁrm the repair details

with a qualiﬁed service person(*1) when the repair includes

additional charging of the refrigerant.

• Stop running the air conditioner and turn off the breaker before

cleaning.

Otherwise, injury may result as the fan is rotating at high speed

inside the unit.

Repairs

• If there is any kind of trouble (such as when an error display

has appeared, there is a smell of burning, abnormal sounds

are heard, the air conditioner fails to cool or heat or water is

leaking) has occurred in the air conditioner, do not touch the

air conditioner yourself but set the circuit breaker to the OFF

position, and contact a qualiﬁed service person(*1). Take steps

to ensure that the power will not be turned on (by marking “out

of service” near the circuit breaker, for instance) until qualiﬁed

service person(*1) arrives. Continuing to use the air conditioner in

the trouble status may cause mechanical problems to escalate or

result in electric shocks or other trouble.

• If the fan guard is damaged, do not approach the outdoor unit but

set the circuit breaker to the OFF position, and contact a qualiﬁed

service person(*1) to have the repairs done. Do not set the circuit

breaker to the ON position until the repairs are completed.

• If there is a danger of the indoor unit’s falling, do not approach

the indoor unit but set the circuit breaker to the OFF position, and

contact a qualiﬁed installer(*1) or a qualiﬁed service person(*1) to

reﬁt the unit. Do not set the circuit breaker to the ON position until

the unit has been reﬁtted.

• If there is a danger of the outdoor unit’s toppling over, do not

approach the outdoor unit but set the circuit breaker to the OFF

position, and contact a qualiﬁed installer(*1) or a qualiﬁed service

person(*1) to have the improvements or reﬁtting done. Do not set

the circuit breaker to the ON position until the improvements or

reﬁtting is completed.

• Do not modify the products. Do not also disassemble or modify

the parts. It may cause a ﬁre, electric shock or injury.

Relocation

• When the air conditioner is to be relocated, do not relocate it

yourself but contact a qualiﬁed installer(*1) or a qualiﬁed service

person(*1). Failure to relocate the air conditioner properly may

result in electric shocks and / or a ﬁre.

CAUTION

To disconnect the appliance from the mains supply.

• This appliance must be connected to the mains by means of a

switch with a contact separation of at least 3 mm.

The installation fuse (all types can be used) must be used for

the power supply line of this air conditioner.

1116950231_EN.indd 51116950231_EN.indd 5 5/9/19 1:50 PM5/9/19 1:50 PM

– 6 –

EN

ID

11-EN 12-EN

Installation

• Certainly lay the drain hose for perfect draining. Improper

drainage may cause ﬂooding in the house and getting furniture

wet.

• Connect the air conditioner to an exclusive power supply of the

rated voltage, otherwise the unit may break down or cause a ﬁre.

• Conﬁrm that the outdoor unit are ﬁxed on the base. Otherwise,

falling down of the units or other accidents may occur.

Operation

• Do not use this air conditioner for special purpose such as

preserving food, precision instruments, art objects, breeding

animals, car, vessel.

• Do not touch any switches with wet ﬁnger, otherwise you may get

an electric shock.

• If the air conditioner will not be used for a considerably long time,

turn off the main switch or the circuit breaker, for safety.

• To make the air conditioner operate in its original performance,

operate it within the range of the operating temperature speciﬁed

in the instructions. Otherwise it may cause a malfunction, or

water leak from the unit.

• Prevent any liquid from falling into the remote controller. Do not

spill juice, water or any kind of liquid.

• Do not wash the air conditioner. Doing so may result in electric

shock.

• Check whether the installation base and other equipment have

become deteriorated after being used for a long time. Leaving

them such condition may result in the unit’s falling down and

causing injury.

• Do not leave ﬂammable sprays or other ﬂammable materials near

the air conditioner, and do not spray ﬂammable aerosol directly to

the air conditioner. They may catch ﬁre.

• Stop running the air conditioner and turn off the breaker before

cleaning.

Otherwise, injury may result as the fan is rotating at high speed

inside the unit.

• Ask for cleaning of the air conditioner to be performed by the

dealer.

Cleaning the air conditioner in an improper manner may cause

damage to plastic parts, insulation failure of electric parts or other

parts, and result in a malfunction. In the worst case, it may result

in water leakage, electric shock, smoke emission or ﬁre.

• Do not put a water container such as a vase on the unit.

Water intrusion into the unit may occur and it may cause

deterioration of electric insulation and result in electric shock.

(*1) Refer to the “Deﬁnition of Qualiﬁed Installer or Qualiﬁed

Service Person.”

1116950231_EN.indd 61116950231_EN.indd 6 5/9/19 1:50 PM5/9/19 1:50 PM

– 7 –

2Part names

Indoor unit

Outdoor unit (The design varies depending on the outdoor unit.

The following illustration shows an example.)

Air discharge

Connect a discharge duct.

Electrical control box

The earth screw is provided in the

electrical control box.

Drain pan

Air intake

Air intake (Side and rear)

Panel

There is an earth screw, valves,

and electric parts inside.

Air discharge

Piping panel

Wiring hole

Refrigerant pipe outlet

Fixing leg

13-EN 14-EN

Information on the transportation, handling and storage of the

carton

Examples of indication on the carton

Symbol Description Symbol Description

Keep dry Do not drop

Fragile Do not lay down

Stacking height

(6 cartons can be stacked in this

case)

Do not walk on this carton

This side up Do not step

Handle with care

Other cautions Description

CAUTION

Injury possibility.

Don’t handle with packing band, or may get injured in case of broken

band.

Stacking notice.

In case that cardboard boxes protrude out of pallet when stacking.

Lay a 10 mm thick plywood over the pallet.

5 cartons

1116950231_EN.indd 71116950231_EN.indd 7 5/9/19 1:50 PM5/9/19 1:50 PM

– 8 –

EN

ID

3Wired remote controller

This remote controller can control the operation of up to 8 indoor units.

Display section

In the display illustration below all the icons are shown. When the unit is in

operation, only relevant icons will be displayed.

When the leak breaker is turned on at the first time, flashes on the

display part of the remote controller.

While this icon is flashing, the model is being automatically confirmed.

Wait till icon has disappeared to use the remote controller.

1Operation mode

The selected operation mode is displayed.

2Error display

Displayed while the protective device works or an

error occurs.

3SETTING display

Displayed during setup of the timer or other

settings.

4TEST run display

Displayed during a test run.

5Timer display

The selected timer time is displayed.

When an error occurs, error code is displayed.

6Timer mode display

The selected timer mode is displayed.

7Filter display

Reminder to clean the air filter.

8Fan speed display

The selected fan speed mode is displayed.

9Set temperature display

The selected set temperature is displayed.

10

Power saving mode display

Limits compressor speed (capacity) to save

energy.

SET

TIME

TIMER SET

TEST

FILTER

RESET

TEMP.

CL

FAN

SAVE

SWING/FIX

VENT

MODE

ON / OFF

UNIT LOUVER

Display

section

Operation

section

1

8

6

16

4

2

3

5

7

13

15 14 17

9

12 11 10

(Auto)

(High)

(Med.)

(Low)

11

UNIT No. display

The selected indoor unit number is displayed.

Also number of indoor or outdoor unit which an

error occurs is displayed.

12

Central control display

Displayed when the air conditioner is used under

the central control in combination with a central

control remote controller.

In case the remote controller is disabled by the

central control system, flashes.

The button operation is not accepted.

Even when ON / OFF, MODE, or TEMP. button is

pushed, and the button operation is not accepted.

(Settings made by the remote controller vary with

the central control mode. For details, refer to the

Owner’s Manual of the central control remote

controller.)

13

Remote controller sensor display

Displayed while the sensor of the remote controller

is used.

14

Pre-heat display

Displayed when the heating mode is energized or

defrost cycle is initiated.

While this icon is displayed, the indoor fan stops.

15

No function display

Displayed when the function requested is not

available on that model.

16

1

6

4

2

3

5

7

13

15 14

9

12 11 10

8

16

17

Service display

17

Operation ready display

This display appears on some models.

15-EN 16-EN

1116950231_EN.indd 81116950231_EN.indd 8 5/9/19 1:50 PM5/9/19 1:50 PM

– 9 –

Operation section

Push each button to select a desired operation.

The control saves commands in memory and after the initial setting, there is no need for any additional

settings unless changes are desired. The air conditioner can be operated by pushing the button.

1

button (Temperature set button)

Adjusts the set point.

Select the desired set point by pushing TEMP.

or TEMP. .

2button (Timer set button)

Use to setup the timer.

3button (Filter reset button)

Resets “ ” display after cleaning filter.

4button (Test button)

Use only for service.

(During normal operation, do not use this button.)

5button

When the button is pushed, the operation starts,

and it stops by pushing the button again.

When the operation has stopped, the operation

lamp and all the displays disappear.

6Operation lamp

Green light illuminates when unit is on.

Although it flashes when operating the protection

device or an error occurs.

7

button (Operation mode button)

Selects desired operation mode.

8button (Fan speed button)

Selects the desired Fan speed.

9button (Ventilation button)

Use when a power ventilation kit (locally procured)

is connected.

If “ ” is displayed on the remote controller

when this button is pushed, no vent kit

connected.

10

button (Power save operation)

Use to initiate power saving mode.

11

button (Unit / Louver select button)

Selects a unit number (left) and louver number

(right).

UNIT:

Selects an indoor unit when multiple indoor units

are controlled with one remote controller.

LOUVER:

No Function.

12

button (Swing / Louver direction

button)

No Function.

OPTION:

Remote controller sensor

Usually the temperature sensor of the indoor unit

senses the temperature. The temperature on the

surrounding of the remote controller can also be

sensed.

For details, contact the dealer from which you have

purchased the air conditioner.

8

6

4

3

2

5

7

10

12

1

9

11

4Correct usage

When the air conditioner is used for the first time or when the setting is changed, follow the steps below. Settings

are saved in memory and are displayed anytime the unit is turned on by pushing the button.

Preparation

When the circuit breaker is turned on, the partition lines are displayed on the remote controller.

* After the circuit breaker is turned on, the remote controller does not accept any commands for approx.

1 minute, this is not a failure.

REQUIREMENT

When the air conditioner is re-powered after it has not been used for a long period, turn on the circuit breaker at least

12 hours before starting the air conditioner.

Start

1Push

button.

The operation lamp illuminates, and the operation

starts.

2Select an operation mode with the “ ”

button.

One push of the button, and the display changes

in the order shown below.

3Select fan speed with “ ” button.

One push of the button, and the display changes

in the order shown below.

When fan is in “ Auto”, fan speed is

adjusted based on difference between set point

and room temperature.

In heating operation, if the room temperature is

not heated sufficiently with speed “ Low”

operation, select “ Med.” or “ High”

operation.

The temperature sensor detects the return air

temperature at the indoor unit, which differs

from the room temperature depending on the

installation condition.

Set point is a target of room temperature.

( “Auto” is not selectable in the Fan

mode.)

4Select the set point temperature by pushing

the “TEMP. ” or “TEMP. ” buttons.

Stop

Push button.

The operation lamp goes off, and the operation stops.

SET

TIME

TIMER SET

TEST

FILTER

RESET

TEMP.

CL

FAN

SAVE

SWING/FIX

VENT

MODE

ON / OFF

UNIT LOUVER

1

3 2

4

Auto Heat Dry FanCool

Auto High Med Low

17-EN 18-EN

1116950231_EN.indd 91116950231_EN.indd 9 5/9/19 1:50 PM5/9/19 1:50 PM

– 10 –

EN

ID

NOTE

Auto Changeover

During Auto Mode, the unit selects the operating mode (cooling, heating or fan only) based on the user set point

temperature.

If the Auto mode is uncomfortable, you can select the desired conditions manually.

Heating

If there is a demand for heating, unit will start approximately 3 to 5 minutes after the mode is selected.

After the heating operation has stopped, fan may continue to run for approx. 30 seconds.

When the room temperature reaches the set temperature, the outdoor unit stops and the indoor unit fan runs at

extremely low speed.

During defrost operation, the fan stops so that cool air is not discharged. (“ ” Pre-heat is displayed.)

When operation is restarted after stop

When attempting to restart the unit immediately after it was stopped, the unit can not start for approx. 3 minutes this

is to protect the compressor.

8 °C operation (For object pre-heating)

The air conditioner can control the heating temperature to about 8°C in the heating mode.

The 8°C heating operation requires settings with the wired remote controller. Ask the installer or dealer for

the settings according to the installation manual of the indoor unit.

Start

Stop

NOTE

The discharged air temperature is lower than that in the normal heating operation.

The room temperature may not be heated evenly depending on the remote controller installation location.

The room temperature may not reach 8°C depending on the room size or the installation conditions.

Setting for fan speed is available during the 8°C heating operation.

The 8°C heating operation is cancelled in the following cases.

When operation is stopped with button

When another operation mode is selected with button

When temperature setting or operation mode is changed or operation is started / stopped by the wireless remote controller

or the central control remote controller.

When this operation mode is used, observe proper operating hours and we recommend that you ask service staff for

periodic maintenance of the air conditioner.

1. Set the displayed temperature to 18°C in the heating mode by pushing TEMP. button.

2. Set the displayed temperature to 8°C by pushing TEMP. button for at least 4 seconds.

1. Set the displayed temperature to 18°C by pushing TEMP. button.

The air conditioner returns to the normal HEAT mode. Select a desired temperature and operation

mode.

5Timer operation

Three timer modes are available: (Setting of up to 168 hours is enabled.)

Set

1Push button.

The timer mode changes with every push of the

button.

and timer display flashes.

2Push to select “set time”.

With every push of button, the set time

increases by 0.5 hr (30 minutes).

When a time more than 24 hours is set for timer

operation, timer can be set in increments of 1 hr.

The maximum set time is 168hr (7 days).

The remote control displays the set time with

time (between 0.5 and 23.5 hours) (*1) or

number of days and time (24 hours or more) (*2)

as shown below.

With every push of button, the set time

decreases by 0.5 hr (30 minutes) (0.5 -

23.5 hours) or 1 hr (24 - 168 hours).

Example of remote control display

23.5 hours (*1)

34 hours (*2)

3Push button.

display disappears and time display goes

on, and or display flashes.

(When On timer is activated, time and On timer

are displays and other displays disappear.)

4Cancel timer operation

Push button.

Timer display disappears.

NOTE

When the operation stops after the timer reached the

preset time, the Repeat Off timer resumes the

operation by pushing button and stops the

operation after the time of the timer has reached the

set time.

When is pushed while the Off timer function of

the air conditioner is active, the indication of the timer

function disappears and then appears again after

about 5 seconds.

This is due to normal processing of the remote

controller.

Off timer : The unit stops when the set time is reached.

Repeat Off timer : The unit stops daily when the set time is reached.

On timer : The unit starts when the set time is reached.

1

3

2

4

shows 1 day (24 hours).

shows 10 hours. (Total 34 hours)

(Off timer) (On timer)(Repeat Off timer)

No display

Off Off On

Number of days Time

19-EN 20-EN

1116950231_EN.indd 101116950231_EN.indd 10 5/9/19 1:50 PM5/9/19 1:50 PM

– 11 –

6Power saving mode

The power saving mode saves energy by limiting the maximum current which will effect heating or cooling capacity

that the unit can generate.

Push button during operation.

• The air conditioner enters power saving mode.

•appears on the display.

Power saving mode will stay in effect until it is cancelled.

To cancel the power saving mode, push button again.

disappears.

To configure the power saving settings

1Push button for at least 4 seconds when the air conditioner is not working.

flashes.

2Push (left side of the button) to select an indoor unit to be set.

• Each time the button is pushed, UNIT No. change as follows:

The fan of the selected unit runs.

3Push TIME buttons, to adjust the setting of power level.

• Each push of the button changes the power level by 1 % within the range from 100 % to 50 %.

• The factory default is 75 %.

4

3

1

52

UNIT No.

1-1

UNIT No.

1-2

UNIT No.

1-3

UNIT No.

1-4

Setting of power level in

power saving mode

4Push button.

5Push button to complete the setting.

NOTE

When other electric appliances are used at the same time, to avoid triggering the circuit breaker, power saving mode

is recommended. Of course you can use power saving mode to save energy as well.

Power saving mode consumes less energy, but may not heat / cool the room as much as normal mode. (The

maximum current is limited to approximately 75 % (factory default) of the normal mode.)

To adjust the power-save settings, see “To configure the power saving settings” in Power saving mode.

Even when operation start / stop, operation mode change, or power reset is performed during the power saving mode,

the power saving mode is retained until the next operation.

7Maintenance

WARNING

Cleaning the air filter and other parts of the air filter involves dangerous work in high places, so be sure to have

a qualified installer or qualified service person to do it.

Do not attempt it by yourself.

Cleaning air filters

Clogged air filters will reduce the cooling and heating performance.

1) If “ ” is displayed on the remote controller, clean the air filters.

2) When the cleaning of air filters has been completed, push button.

“ ” disappears.

When not used for a long time

1. Perform the fan operation for a couple of hours to dry inside.

2. Push button on the remote controller to stop running, and turn off the circuit breaker.

3. Clean the air filters and reinstall them.

Before the cooling season

Clean the drain pan

Contact the dealer where you purchased the product.

(Drain does not work if the drain pan or vent is clogged. In some cases the drain may overflow and wet the wall

or floor. Clean the drain pan before the cooling season.)

Check periodically

If the unit is used for a long time, parts may deteriorate and cause malfunction or bad drainage of dehumidified

water depending on the heat, humidity, or dust.

In addition to the usual maintenance, it is recommended that you have the unit checked and maintained by the

dealer where you purchased it.

(1)

(2)

21-EN 22-EN

1116950231_EN.indd 111116950231_EN.indd 11 5/9/19 1:50 PM5/9/19 1:50 PM

– 12 –

EN

ID

NOTE

For environmental conservation, it is strongly recommended that the indoor and outdoor units of the air conditioner in

use be cleaned and maintained regularly to ensure efficient operation of the air conditioner.

When the air conditioner is operated for a long time, periodic maintenance (once a year) is recommended.

Furthermore, regularly check the outdoor unit for rust and scratches, and remove them or apply rustproof treatment, if

necessary.

As a general rule, when an indoor unit is operated for 8 hours or more daily, clean the indoor unit and outdoor unit at

least once every 3 months. Ask a professional for this cleaning / maintenance work.

Such maintenance can extend the life of the product though it involves the owner’s expense.

Failure to clean the indoor and outdoor units regularly will result in poor performance, freezing, water leakage, and even

compressor failure.

Maintenance List

Part Unit Check (visual / auditory) Maintenance

Heat exchanger Indoor / outdoor Dust / dirt clogging, scratches Wash the heat exchanger when it is clogged.

Fan motor Indoor / outdoor Sound Take appropriate measures when abnormal

sound is generated.

egakaerb,trid/tsuDroodnIretliF

Wash the filter with water when it is

contaminated.

Replace it when it is damaged.

roodnInaF

Vibration, balance

Dust / dirt, appearance

Replace the fan when vibration or balance is

terrible.

Brush or wash the fan when it is contaminated.

Air intake /

discharge grilles Indoor / outdoor Dust / dirt, scratches Fix or replace them when they are deformed or

damaged.

Drain pan Indoor Dust / dirt clogging, drain

contamination

Clean the drain pan and check the downward

slope for smooth drainage.

Ornamental panel,

louvers Indoor Dust / dirt, scratches Wash them when they are contaminated or apply

repair coating.

Exterior Outdoor Rust, peeling of insulator

Peeling / lift of coat Apply repair coating.

8Troubleshooting

Check the points described below before requesting repair.

If there is something unusual even after checking the above, stop running the unit, turn off the circuit breaker, and

inform the dealer where you purchased the product of the product number and symptom. Do not attempt to repair

the unit by yourself as doing so is dangerous. If the check indicator (e.g. , , ) is displayed on the remote

controller LCD, inform the dealer of its content as well.

If any of the following occur, stop running the unit immediately, turn off the circuit breaker, and contact the dealer

where you purchased the product.

The switch does not work properly.

The circuit breaker often blows out.

You unintentionally put a foreign object or water inside.

The unit cannot be run even after the cause of the protective device activation is removed.

Other unusual conditions are found.

esuaCmotpmyS

It is not a malfunction.

Outdoor unit

White, misty, cold air or water comes out

Sometimes the noise of air leaking is

heard.

A noise is heard when the power is turned

on.

The fan of the outdoor unit is automatically stopped

and defrosting is performed.

The solenoid valve works when defrosting starts or

stops.

The outdoor unit is preparing for running.

Indoor unit

Sometimes a swishing is heard.

A clacking sound is heard.

Discharged air smells unusual.

When the unit starts running, during operation, or

immediately after the unit stops running, a sound such

as water flowing may be heard, or the operation sound

may become louder for a couple of minutes

immediately after the unit starts running. This is the

sound of the refrigerant flowing or the dehumidifier

draining.

This is a sound generated when the heat exchanger or

other part expands and contracts slightly due to

temperature change.

Various smells from the walls, carpet, clothes,

cigarette, cosmetics or other things adhere to the air

conditioner.

The unit does not run. Has a blackout occurred?

Has the circuit breaker blown?

Has the protective device been activated? (The

operation indicator and on the remote controller

are blinking.)

Check again.

The room does not cool down or warm up.

Is the air intake or discharge of the outdoor unit

clogged?

Is a door or window open?

Is the air filter clogged with dust?

Is the air volume set to “LOW”? Or is the operation

mode set to “FAN”?

Is the setup temperature appropriate?

23-EN 24-EN

1116950231_EN.indd 121116950231_EN.indd 12 5/9/19 1:50 PM5/9/19 1:50 PM

– 13 –

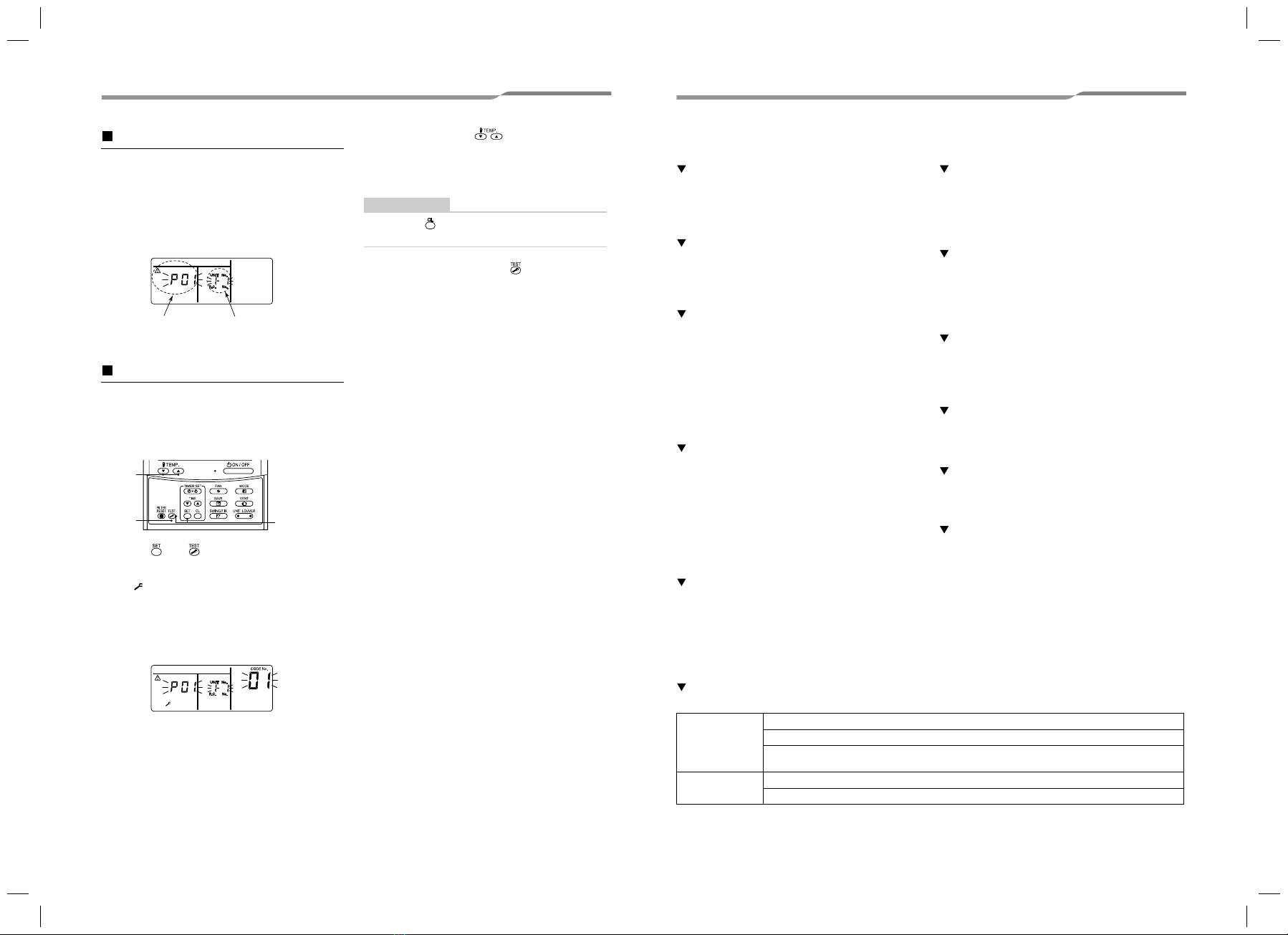

Confirmation and check

When an error occurred in the air conditioner, an error

code and indoor UNIT No. appear on the display part

of the remote controller.

The error code is only displayed during the operation.

If the display disappears, operate the air conditioner

according to the following “Confirmation of error log” for

confirmation.

Confirmation of error log

When an error occurred on the air conditioner, the error

log can be confirmed with the following procedure.

(The error log is stored in memory up to 4 errors.)

The log can be confirmed from both operating status

and stop status.

1Push and buttons simultaneously for

4 seconds or more, the following display

appears.

If is displayed, the mode enters in the

error log mode.

[01: Order of error log] is displayed in CODE No.

[Error code] is displayed in CHECK.

[Indoor unit address in which an error occurred]

is displayed in Unit No..

2Every pushing of button used to set

temperature, the error log stored in memory

is displayed in order.

The numbers in CODE No. indicate CODE No.

[01] (latest) o[04] (oldest).

REQUIREMENT

Do not push button because all the error log of the

indoor unit will be deleted.

3After confirmation, push button to return

to the usual display.

Error code Indoor UNIT No. in

which an error occurred

3

2

1

9Operations and performance

Check before running

Check whether the earth wire is cut or disconnected.

Check whether the air filter is installed.

Turn on the circuit breaker 12 hours or more before

starting operation.

3 minutes protection function

3-minutes protection function prevents the air

conditioner from starting for initial 3 minutes after the

main power switch / circuit breaker is turned on for re-

starting the air conditioner.

Power failure

Power failure during operation will stop the unit

completely.

To restart the operation, push the ON / OFF button

on the remote controller.

Lightning or a wireless car telephone operating

nearby may cause the unit to malfunction. Turn off

the main power switch or circuit breaker and then

turn them on again. Push the ON / OFF button on the

remote controller to restart.

Defrosting operation

If the outdoor unit is frosted during the heating

operation, defrosting starts automatically (for

approximately 2 to 10 minutes) to maintain the heating

capacity.

The fans in both indoor and outdoor units will stop

during the defrosting operation.

During the defrosting operation, the defrosted water

will be drained from the bottom plate of the outdoor

unit.

Heating capacity

In the heating operation, the heat is absorbed from the

outside and brought into the room. This way of heating

is called heat pump system. When the outside

temperature is too low, it is recommended to use

another heating apparatus in combination with the air

conditioner.

Protective device

Stops operation when the air-conditioner is

overloaded.

If the protective device is activated, the unit stops

running, and the operation indicator and check

indicator on the remote controller blink.

If the protective device is activated

Turn off the circuit breaker and perform a checkup.

Continued running may cause a malfunction.

Check whether the air filter is installed. If not, the

heat exchanger may be clogged with dust and water

leakage may occur.

During cooling

The air intake or discharge of the outdoor unit is

clogged.

Strong wind continuously blows against the outlet of

the outdoor unit.

During heating

The air filter is clogged with a large amount of dust.

The air intake or discharge of the indoor unit is

clogged.

Do not turn off the circuit breaker

During the air-conditioning season, leave the circuit

breaker turned on, and use the ON / OFF key on the

remote controller.

Attention to snowfall and freeze on the

outdoor unit

In snowy areas, the air intake and air discharge of

the outdoor unit are often covered with snow or

frozen up.

If snow or freeze on the outdoor unit is left as it is, it

may cause machine failure or poor warming.

In cold areas, pay attention to the drain hose so that

it perfectly drains water without water remaining

inside for freeze prevention. If water freezes in the

drain hose or inside the outdoor unit, it may cause

machine failure or poor warming.

Air conditioner operating conditions

For proper performance, operate the air conditioner under the following temperature conditions:

If air conditioner is used outside of the above conditions, safety protection may work.

Cooling operation

Outdoor temperature : –15 °C to 4°C (Dry bulb temp.)

Room temperature : 21 °C to 32 °C (Dry bulb temp.), 15 °C to 24 °C (Wet bulb temp.)

[CAUTION] Room relative humidity – less than 80 %. If the air conditioner operates in

excess of this figure, the surface of the air conditioner may cause dewing.

Heating operation Outdoor temperature : –15 °C to 15 °C (Wet bulb temp.)

Room temperature : 15 °C to 28 °C (Dry bulb temp.)

25-EN 26-EN

1116950231_EN.indd 131116950231_EN.indd 13 5/9/19 1:50 PM5/9/19 1:50 PM

– 14 –

EN

ID

Under 70 dBA

RAV-SM1601DTP-A 42

11

Model Sound power level (dBA) Weight (kg)

Cooling Heating

RAV-SM1101DTP-A 42

RAV-SM1401DTP-A 42

Specifications

10Installation

Do not install the air conditioner in the following places

Do not install the air conditioner in any place within 1 m from a TV, stereo, or radio set. If the unit is installed in

such place, noise transmitted from the air conditioner affects the operation of these appliances.

Do not install the air conditioner near a high frequency appliance (such as sewing machine or massager for

business use), otherwise the air conditioner may malfunction.

Places where iron or other metal dust is present. If iron or other metal dust adheres to or collects on the interior

of the air conditioner, it may spontaneously combust and start a fire.

Do not install the air conditioner in a humid or oily place, or in a place where steam, soot, or corrosive gas is

generated.

Do not install the air conditioner in a salty place such as seaside area.

Do not install the air conditioner in a place where a great deal of machine oil is used.

Do not install the air conditioner in a place where it is usually exposed to strong wind such as in seaside area.

Do not install the air conditioner in a place where sulfureous gas generated such as in a spa.

Do not install the air conditioner in a vessel or mobile crane.

Do not install the air conditioner in an acidic or alkaline atmosphere (in a hot-spring area or near a chemicals

factory, or in a place subject to combustion emissions). Corrosion may be generated on the aluminum fin and

copper pipe of the heat exchanger.

Do not install the air conditioner near an obstacle (such as air vent, lighting equipment) that disturbs discharge

air. (Turbulent airflow may reduce the performance or disable devices.)

Do not use the air conditioner for special purposes such as preserving food, precision instruments, or art objects,

or where breeding animals or growing plants are kept.

(This may degrade the quality of preserved materials.)

Do not install the air conditioner over an object that must not get wet. (Condensation may drop from the indoor

unit at a humidity of 80% or more or when the drain port is clogged.)

Do not install the air conditioner in a place where an organic solvent is used.

Do not install the air conditioner near a door or window subject to humid outside air.

Condensation may form on the air conditioner.

Do not install the air conditioner in a place where special spray is used frequently.

Be careful with noise or vibrations

Do not install the air conditioner in a place where noise by outdoor unit or hot air from its air discharge annoys

your neighbours.

Install the air conditioner on a solid and stable foundation so that it prevents transmission of resonating, operation

noise and vibration.

If one indoor unit is operating, some sound may be audible from other indoor units that are not operating.

27-EN 28-EN

1116950231_EN.indd 141116950231_EN.indd 14 5/9/19 1:50 PM5/9/19 1:50 PM

– 15 –

MEMO

..................................................................................................

1116950231_EN.indd 151116950231_EN.indd 15 5/9/19 1:50 PM5/9/19 1:50 PM

– 16 –

EN

ID

MEMO

..................................................................................................

1116950231_EN.indd 161116950231_EN.indd 16 5/9/19 1:50 PM5/9/19 1:50 PM

– 17 –

MEMO

..................................................................................................

1116950231_EN.indd 171116950231_EN.indd 17 5/9/19 1:50 PM5/9/19 1:50 PM

1116950231_EN.indd 181116950231_EN.indd 18 5/9/19 1:50 PM5/9/19 1:50 PM

144 / 9 Moo 5, Bangkadi Industrial Park, Tivanon Road, Tambol Bangkadi, Amphur Muang, Pathumthani 12000, Thailand

1116950231

1116950231_EN.indd 191116950231_EN.indd 19 5/9/19 1:50 PM5/9/19 1:50 PM
