Toshiba JTNI6 Series User manual

Unied Controller
Unied Controller TC-net 100 PCI express Card JTNI6 Instruction Manual
6F8C1450
Instruction Manual
TC-net 100 PCI express Card JTNI6
1450.1.1203


Unied Controller TC-net 100 PCI express Card JTNI6 Instruction Manual
March 31, 2012
© Toshiba Corporation 2012
All Right Reserved.
No part of this document may be reproduced
without the prior written consent of Toshiba.
First Edition
Notes
(1) The technical information described in this document is for the explanation of the typical operation of the product and its
application. It shall not be construed that Toshiba or third party will guarantee to use the intellectual property or other rights
concerning the said information or grant the license.
2. Unauthorized reproduction of this Instruction Manual in whole or a part is prohibited.
3. The contents of this document subject to change without prior notice.
4. We extended all possible means to ensure the contents of this Instruction Manual, however, if you have any questions, found
any errors or noticed anything wrong, please contact us.
PCI express and PCIe are registered trademarks of the PCI-SIG.
Microsoft, Windows is a registered trademark of Microsoft Corporation in the U.S.A. and other countries.
Social Infrastructure Systems Company
Automation Products & Facility Solution Division
1-1, Shibaura 1-chome, Minato-ku, Tokyo 105-8001, Japan

Unified Controller TC-net 100 PCI express Card JTNI6 Instruction Manual
Safety Precautions
i
On the product and this instruction manual, important information for safe and correct use to
prevent danger to the user and other people as well as property damage is described.
Understand the following information (signs and symbols) before reading the text, and follow the
described items.
Description of signs
Sign Description
DANGER Indicates that failure to avoid it will result in an immediate risk of death or
serious injury(*1).
WARNING Indicates that failure to avoid it will result in a risk of death or serious
injury(*1).
CAUTION Indicates that failure to avoid it will result in a risk of light or medium
injury(*2) or only property damage(*3).
*1: A serious injury indicates loss of sight, injury, burns (high/low temperature), electric shock,
broken bones, or intoxication that will have aftereffects and require hospitalization or long-term
hospital visits for healing.
*2: An injury indicates an injury, burn, or electric shock that does not need hospitalization or long-term
hospital visits for healing.
*3: A property damage indicates consequential damage in terms of breakage of properties or materials.
Description of symbols
Symbol Meaning
Prohibited
Indicates “Prohibition” or “You must not do”.
Specific details are indicated near the symbol with pictures and text.
Mandatory
Indicates “Mandatory Action” or “Do as indicated”.
Specific details are indicated near the symbol with pictures and text.
Warning
Indicates Warning.
Specific details are indicated near the symbol with pictures and text.
(Note) Descriptions of Prohibition, Mandatory Action, and Caution vary depending on the display on the
main unit.

6F8C1450
ii
1. Safety Precautions on Installation
WARNING
Mandatory
Be sure to ground the device
with dedicated Type D
grounding for each
transmission path.
Grounding must be 1 point grounding.
Operation without grounding may cause
transmission error, and electric shock or
fire.
Prohibited
Do not apply higher voltage
than rated voltage into
connector.
It may cause electric shock or fire.
CAUTION
Prohibited
Do not install, store or use it in
the following environments.
・A place with a lot of dust
・A place with corrosive gases (SO2,
H2S) or flammable gases
・A place with vibrations and shocks
exceeding the allowed values
・A place with condensations due to
rapid temperature changes
・A place with low or high temperature
outside of the installation condition
・A place with high humidity outside of
the installation condition
・A place with direct sunlight
・A place near equipment generating
strong radio waves or magnetic fields
It may cause accidents.
Mandatory
For installation and wiring of
the system, observe the
installation conditions and
methods described in this
document.
Otherwise, it can cause a fall, a fire, a
failure, or malfunction.
Mandatory
Install the device at a place
where maintenance and
inspection are easy to do.
Otherwise, it may cause accidents.
Prohibited
Do not block the ventilation
hole or air inlet/outlet.
It may cause fire or failure due to
overheat.
Mandatory
When installing the device,
make sure that the external
power is off.
Otherwise, it may cause an electric
shock or failure.

Unified Controller TC-net 100 PCI express Card JTNI6 Instruction Manual iii
2. Safety Precautions on Maintenance and Inspection
WARNING
Mandatory
When installing or removing
the module after wiring, make
sure that the external power
supply is off.
Otherwise, there will be live electric poles
on the back of the external terminal block
of the module, and it may cause an
electric shock.
CAUTION
Prohibited
Be careful not to hit or drop
the device or board, or not to
give excess shock to it.
Excess shock can cause failure.
Mandatory
Touch a grounded metal part to
discharge the static electricity
on your body before touching
the device or board.
Otherwise, charged static electricity on
your body can cause malfunction or
failure.
Mandatory
Use soft cloth to clean the
device, module, or board. Use
water-dipped and squeezed
cloth to clean it if dirty.
Leaving the device dirty can cause
mistaken or malfunction.
Mandatory
Place a board or module
removed from the unit or base
unit on a conductive mat or
conductive bag (used for a
backup board) on a grounded
table.
Otherwise, parts may be damaged due
to static electricity.
Prohibited
Do not apply benzene and
thinner to remove stain on
device, module, or board.
It may cause deformation or
discoloration of the device panel,
module, or board.

6F8C1450
iv
3.
Safety Precautions on Replacement of Life Limited Parts
WARNING
Mandatory
Turn off the power of the
equipment before replacing
the power fuse or warning
fuse.
Otherwise, it may cause electrical shock
or fire.
4. Precautions On Daily Use
WARNING
No touch
Do not touch the terminals of
the module and unit during
energization.
It may cause an electric shock.
Prohibited
Do not modify, repair,
disassemble, or adjust the
device, module, or board.
It may cause an electric shock, fire, injury,
or failure.
Upon faulty operation or failure, contact
Toshiba's branch office or service offices.
Mandatory
Before using, check that the
power capacity, frequency,
voltage, and regulation comply
with the device specifications.
If not, it may cause damage of the device,
or fire due to overheat, as well as not
obtaining the original performance of the
device.
Mandatory
Turn off power immediately if
the ambient temperature or
internal temperature exceeds
beyond normal range or if
failure is occurred in the
device. Contact one of Toshiba
service representatives for
repairing.
Operation under such situation can
cause fire due to overheat.

Unified Controller TC-net 100 PCI express Card JTNI6 Instruction Manual v
CAUTION
Prohibited
Do not touch any components,
IC parts, terminals, connectors,
or printed circuit boards in the
module.
Otherwise, it can cause the IC or LSI or
the like to be broken by static electricity,
resulting in failure or malfunction.
Also, the edge of components can cause
injury or burn with the heated part.
Prohibited
Do not disassemble or modify
the device, module, or board.
Otherwise, it can cause malfunction or
failure, and lose the safety of the device
as well.
Prohibited
Do not forcibly bend or pull or
distort the power cord and
other cables.
Otherwise, they can be cut off or cause
overheat.
Prohibited
Do not enter wire scrapes or
other foreign debris into the
device. Also, do not insert
metal parts into them.
They can cause fire or accidents.
5. Safety Precautions on Disposal
CAUTION
Mandatory
Observe ordinances and rules.
When destroying the product, observe
the ordinances and rules of the local
government.
Prohibited
For transportation and storage
of the product, use a
conductive bag and packaging
box.
Otherwise, it may cause failure.

6F8C1450
vi
Restrictions on Application
■This product is not developed/manufactured for use in systems involving devices that
directly affect human life (Note 1). Do not use them for such applications.
■To use this product for systems that involve devices that significantly affect human safety or
maintenance of public functions (Note 2), special considerations (Note 3) are required in
system operation, maintenance, and management. In this case, contact one of Toshiba's
sales representatives.
(Note 1) Devices that directly affect human life include the following.
Medical devices such as life supporting devices and devices for surgical units.
(Note 2) Systems that involve devices that significantly affect human safety or
maintenance of public functions include the following.
Main unit control systems of nuclear power plants, safety protection systems of
nuclear facilities, and other systems that are critical for safety
Operation control systems of mass transportation systems and air traffic control
systems
(Note 3) Special considerations indicate sufficient discussions with Toshiba's engineers to
construct a safe system (e.g. employing fool-proof design, fail-safe design, or
redundant design).
Disclaimer
■Toshiba shall not be responsible for any damage caused by a fire or an earthquake for
which Toshiba is not responsible for, acts of a third party, other accidents, the user's willful
acts or negligence, misuse, or use in abnormal conditions.
■Toshiba shall not be responsible for any incidental damage (loss of business profits,
interruption of business, change or loss of stored memory) caused by use of or unable to
use of this product.
■Toshiba shall not be responsible for any damage caused by failure to observe the
information described in the instruction manual.
■Toshiba shall not be responsible for any damage caused by malfunctions due to
combination with any connected device.
■Toshiba shall not be responsible for any damage caused by malfunctions due to
combination with any application program created by the customer.
Note
・Use your cellular phone or PHS one meter or more away from the product main unit in operation, various
transmission cables, and I/O cable. Otherwise, the system may malfunction.

Unified Controller TC-net 100 PCI express Card JTNI6 Instruction Manual vii
This manual is for the Interface Card JTNI Series that connect the Information and Control
Network TC-net 100 to a general-purpose personal computer having a PCI Express™ (hereafter,
called as “PCIe”) bus.
The JTNI Series includes the following cards.
Card Connecting Cable Connector Transmission line Connecting PCI interface
JTNI61 Optical fiber MT-RJ optical Single PCI Express x1
JTNI62 Optical fiber MT-RJ optical Dual PCI Express x1
First of all, make sure to read ‘Safety precautions’ in order to use the equipment correctly.
After reading this manual, keep it in a safe place so that you can read it wherever necessary.
Related Documents
The documents related to this manual are shown below.
Unified Controller nv series TC-net 100 PCI express Card JTNI6
Instruction Manual (6F8C1450) (this document)
Unified Controller nv series TC-net 100 PCI express Card JTNI6
Support Software Instruction Manual (6F8C1456)
Unified Controller nv series / Integrated Controller V series Engineering Tool
Instruction Manual –Basic- (6F8C1290)
Integrated Controller V series Information and
Control Network TC-net 100 PCI Bus Card Instruction Manual (6F8C0941)
Introduction

6F8C1450
viii
Be Sure To Observe The Following
Observe the following to ensure the safety of the operator in using the equipment and to keep
it in normal operating condition.
1. Carefully read the User’s Manual before use.
2. Avoid installing or keeping the equipment at any of the places or in the environment
mentioned below.
(1) Very dusty place
(2) Place where corrosive gases (SO2, H2S, etc.) are generated
(3) Place where the product may be exposed to vibration or shock
(4) Environment of low or high temperature deviating from the conditions for installation
specified herein.
(5) Very humid place
3. If the ambient temperature or the internal temperature of the equipment has arisen too high,
or if the equipment has developed a fault, stop using it, switch power off, and contact the
nearest Toshiba service station.
4. Do not open the case of the equipment while it is in operation.
5. Do not attempt to modify the equipment.
6. Take care not to drop the equipment during transit.

Unified Controller TC-net 100 PCI express Card JTNI6 Instruction Manual ix
Chapter 1
Overview
…1
1.1 Overview·····················································································2
1.2 System Configuration ·····························································3
Chapter 2
Names of Parts
and Their
Functions
…5
2.1 Names and Functions of the Parts ···········································6
Chapter 3
Switch Setting
…9
3.1 Setting Switches ··········································································11
Chapter 4
Installation and
Wiring
…13
4.1 Before Starting········································································14
4.2 Installation················································································15
4.3 Connection···············································································17
4.4 Card Replacement ·································································18
Chapter 5
Maintenance and
Inspection
…19
5.1 Inspection·················································································21
5.2 Troubleshooting ·····································································22
5.3 Life Limited Parts ···································································22
CONTENTS

6F8C1450
x
Appendix A
Specifications
…23
A.1 General Specifications··························································24
A.2 TC-net 100 Specifications····················································26
Appendix B
Dimensions
…27
B.1 Outside Dimensions···································································28
Appendix C
External
Connectors
…29
C.1 2-Core MT-RJ Connector Socket ·······································30
C.2 EN 8-pin Modular Connector Socket ································30
Appendix D
Related Products
…31
Appendix E
Hexadecimal
Conversion
Tables
…33

1
Chapter 1
Overview
1.1 Overview ·········································································· 2
1.2 System Configuration ··················································· 3

Chapter 1 Overview
6F8C1450
2
1.1 Overview
The PCIe Bus Card JTNI Series for the Information and Control Network TC-net
100 is a series of interface cards connecting PCIe buses, the most used of
internal buses for general-purpose personal computers, to the TC-net 100, which
is a control LAN (Local Area Network) having the realtime characteristics of
Ethernet.
The standard transmission line configuration of the TC-net 100 is dual, which
permits highly reliable system configuration. The JTNI6 series comes in two
models: JTNI62 with a transmission line interface of optical fiber cord (GI 62.5/125
or GI 50/125). Models JTNI61 (optical) for single transmission line configuration
are also available.

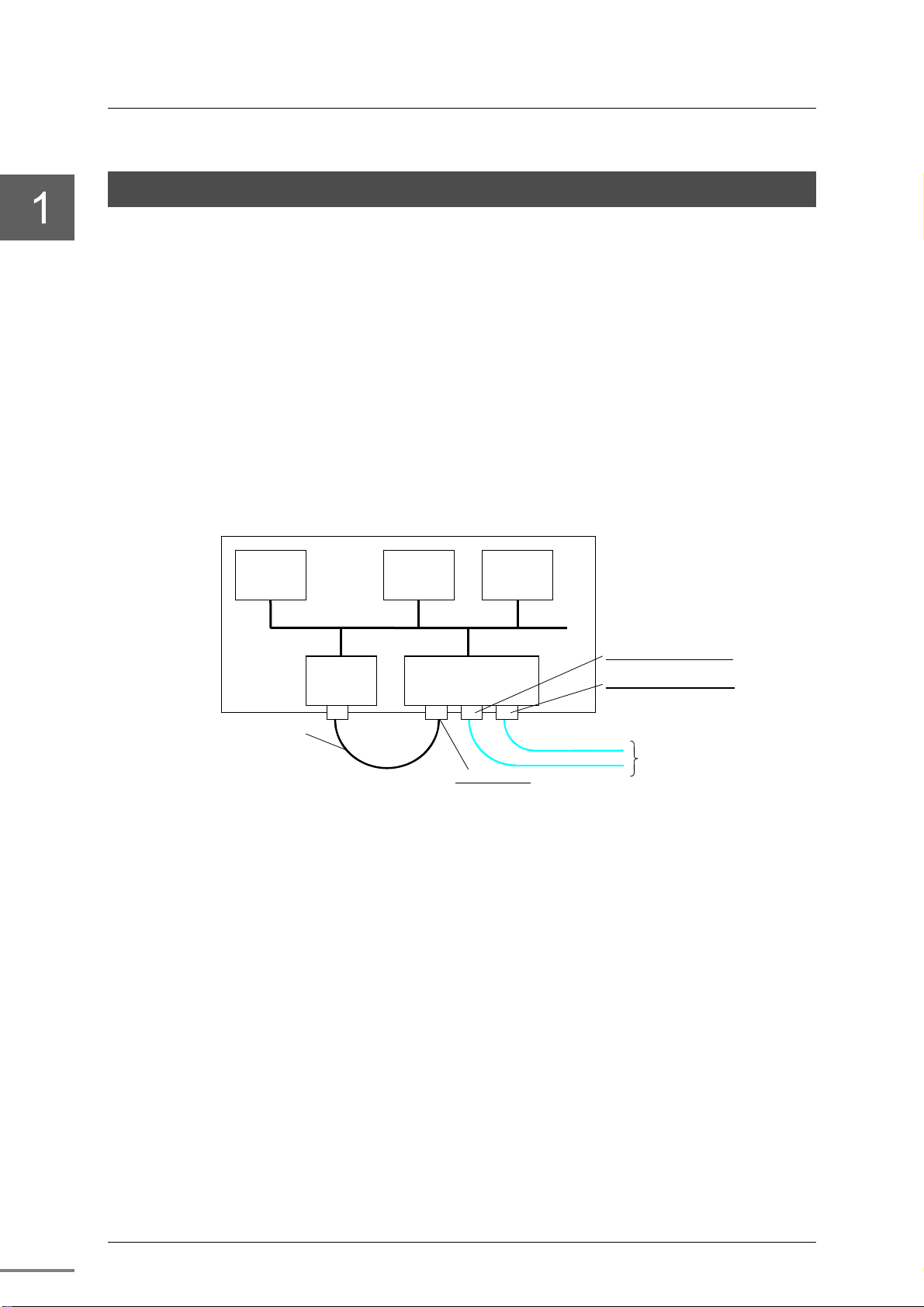

Figure 1-1 JTNI Series Configuration
Note: Ethernet cards are to be purchased by the customer.
Main
processor
card
Extension
card
Extension
card
TC-net 100 interface
card JTNI62
Ethernet
card (Note)
Optical fiber cord with
MT-RJ connector
PCIe bus
Personal computer
TC-Net 100 line A port
TC-Net 100 line B port
Category 5 twisted-pair
cable (cross)
Ethernet port

1.2 System Configuration
Unified Controller TC-net 100 PCI express Card JTNI6 Instruction Manual 3
1.2 System Configuration
Figure 1-2 shows the example of system configuration with TC-net 100 applied.
Figure 1-2 Example of System Configuration
Host System network
Information and control network
JTNI6 JTNI6
UTNH23A/B
TC-net 100
TC-net I/O
System
Unified controller
nv series

Chapter 1 Overview
6F8C1450
4

5
Chapter 2
Names of Parts and Their
Functions
2.1 Names and Functions of the Parts···································· 6

Chapter 2 Names of Parts and Their Functions
6F8C1450
6
2.1 Names and Functions of the Parts
Names of each part and their functions of JTNI6 are described here.
JTNI61 panel
JTNI61
EN
TN-A
LINK
ACT
ACT LINK
JTNI62 panel
JTNI62
EN
TN-B
TN-A
LINK
ACT
ACT LINK ACT LINK
DIP-SW STN-L STN-H
Ethernet
光T/R
光T/R
Note: The JTNI61 for single systems have the TN-A connector only; they have
no TN-B connector.

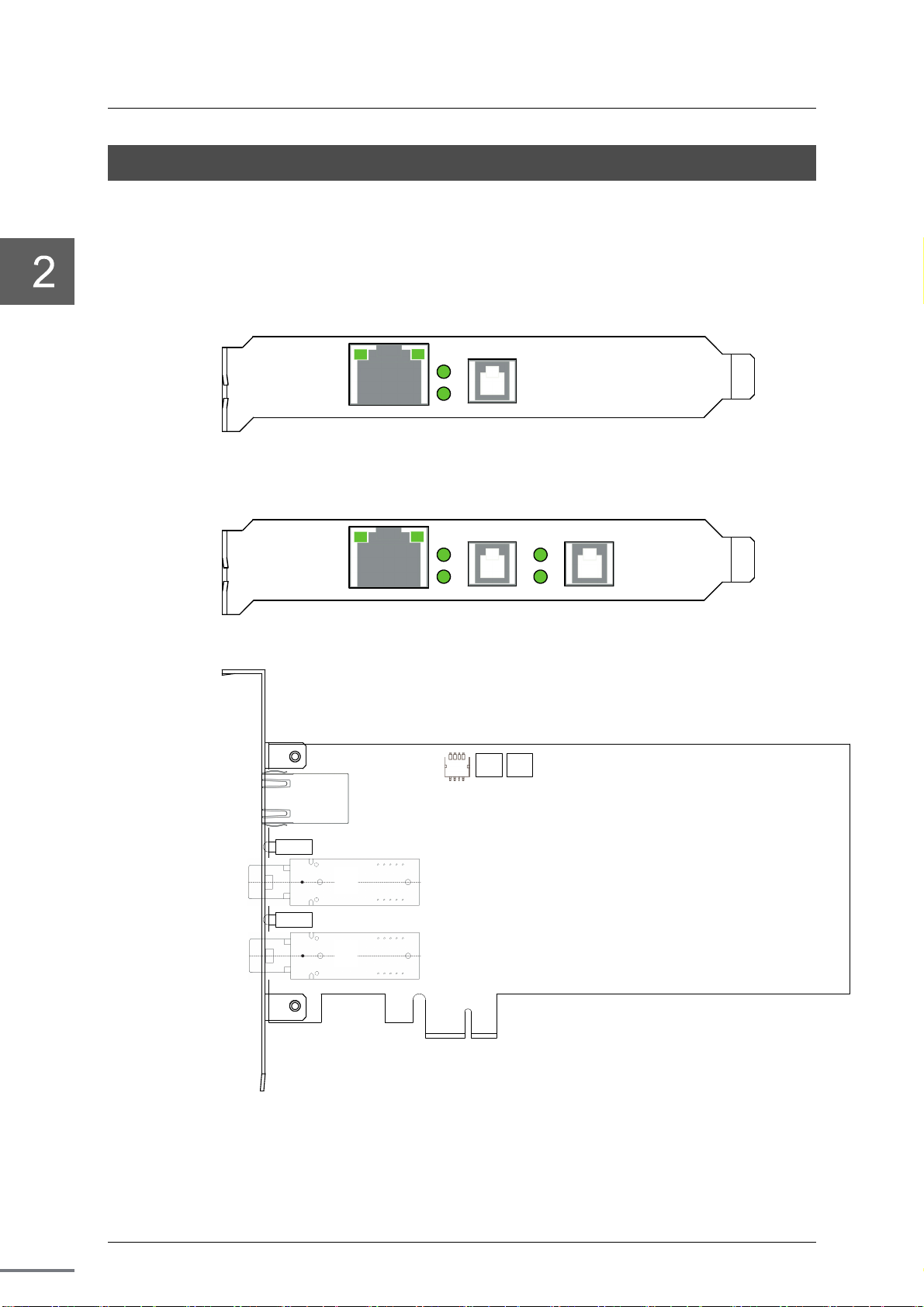

Figure 2-1 The card appearance
Opt
Opt
EN
TN-A
TN-B

Unified Controller TC-net 100 PCI express Card JTNI6 Instruction Manual 7
(1) LED
■TN-A connector (TC-net 100 line A)
• ACT
Indicates TC-net 100 transmission. Turned on and off by the hardware. It lights
when transmission is made to line A. It blinks or remains lit during normal
operation.
• LINK
Indicates that line A is linked to the hub. It is turned on and off by the hardware.
It remains lit during normal operation.
■TN-B connector (TC-net 100 line B)
• ACT
Indicates TC-net 100 transmission. Turned on and off by the hardware. It lights
when transmission is made to line B. It blinks or remains lit during normal
operation.
• LINK
Indicates that line B is linked to the hub. It is turned on and off by the hardware.
It remains lit during normal operation.
■EN connector
• ACT
Indicates Ethernet transmission. Turned on and off by the hardware. It lights
when transmission is made to an Ethernet port. It blinks or remains lit during
normal operation.
• LINK
Indicates that an Ethernet port is linked to the opposite Ethernet card. It is
turned on and off by the hardware. It remains lit during normal operation.

Chapter 2 Names of Parts and Their Functions
6F8C1450
8
Table 2-1 Status Indicating LEDs
Name Description Normal
Indication
EN-LINK
(green)
Ethernet port linkage
ON: Connected normally to Ethernet card of PC
OFF: Not connected to Ethernet card of PC
ON
EN-ACT
(yellow)
Ethernet port frame transmission/reception
ON: Ethernet frame being transmitted/received
OFF: No Ethernet transmission
Blink or ON
TN-A LINK
(green)
TC-net 100 line A linkage
ON: Linked normally to hub
OFF: Not connected to hub
ON
TN-A ACT
(green)
TC-net 100 line A transmission/reception
ON: frame being transmitted/received
OFF: No transmission
ON
TN-B LINK
(green)
TC-net 100 line B linkage
ON: Linked normally to hub
OFF: Not connected to hub
ON
TN-B ACT
(green)
TC-net 100 line B transmission/reception
ON: frame being transmitted/received
OFF: No transmission
ON
(2) External connectors
• TN-A, TN-B
TC-net 100 interface connectors. Use the MT-RJ connector.
• EN
Ethernet port connector. Use the RJ-45 connector.
(Note1) * To connect an EN to an Ethernet card, use the cross cable 20 cm long
(supplied with the card as an accessory).
(Note2) * Ethernet cards to be purchased by the customer.
