ControlNet

Universal PCI

Scanner Card

1784-PKTCS

Installation

Instructions

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Important User Information

Solid state equipment has operational characteristics differing from those of electromechanical equipment.

Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (Publication

SGI-1.1 available from your local Rockwell Automation sales office or online at www.ab.com/manuals/gi)

describes some important differences between solid state equipment and hard-wired electromechanical

devices. Because of this difference, and also because of the wide variety of uses for solid state equipment, all

persons responsible for applying this equipment must satisfy themselves that each intended application of

this equipment is acceptable.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages

resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many

variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot

assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits,

equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell

Automation, Inc., is prohibited.

Throughout this manual we use notes to make you aware of safety considerations.

WARNING Identifies information about practices or circumstances that can cause an explosion in a

hazardous environment, which may lead to personal injury or death, property damage,

or economic loss.

IMPORTANT Identifies information that is critical for successful application and understanding of the

product.

ATTENTION Identifies information about practices or circumstances that can lead to personal injury

or death, property damage, or economic loss. Attentions help you:

•identify a hazard

•avoid a hazard

•recognize the consequence

SHOCK HAZARD Labels may be located on or inside the equipment to alert people that dangerous

voltage may be present.

BURN HAZARD Labels may be located on or inside the equipment to alert people that surfaces may be

dangerous temperatures.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Environment and Enclosure

Preventing Electrostatic Discharge

ATTENTION This equipment is intended for use in a Pollution Degree 2 industrial environment,

in overvoltage Category II applications (as defined in IEC publication 60664-1), at

altitudes up to 2000 meters without derating.

This equipment is considered Group 1, Class A industrial equipment according to

IEC/CISPR Publication 11. Without appropriate precautions, there may be

potential difficulties ensuring electromagnetic compatibility in other environments

due to conducted as well as radiated disturbance.

This equipment is supplied as “open type” equipment. It must be mounted within

an enclosure that is suitably designed for those specific environmental conditions

that will be present and appropriately designed to prevent personal injury resulting

from accessibility to live parts. The interior of the enclosure must be accessible only

by the use of a tool. Subsequent sections of this publication may contain additional

information regarding specific enclosure type ratings that are required to comply

with certain product safety certifications.

NOTE: See NEMA Standards publication 250 and IEC publication 60529, as

applicable, for explanations of the degrees of protection provided by different

types of enclosure. Also, see the appropriate sections in this publication, as well as

the Allen-Bradley publication 1770-4.1 (“Industrial Automation Wiring and

Grounding Guidelines”), for additional installation requirements pertaining to this

equipment.

ATTENTION This equipment is sensitive to electrostatic discharge, which can cause internal

damage and affect normal operation. Follow these guidelines when you handle this

equipment:

•Touch a grounded object to discharge potential static.

•Wear an approved grounding wriststrap.

•Do not touch connectors or pins on component boards.

•Do not touch circuit components inside the equipment.

•If available, use a static-safe workstation.

•When not in use, store the equipment in appropriate static-safe packaging.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Hazardous Location Approval

The following information applies when

operating this equipment in hazardous

locations:

Informations sur l’utilisation de cet équipement en

environnements dangereux:

Products marked “CL I, DIV 2, GP A, B, C, D” are

suitable for use in Class I Division 2 Groups A, B, C, D,

Hazardous Locations and nonhazardous locations only.

Each product is supplied with markings on the rating

nameplate indicating the hazardous location

temperature code. When combining products within a

system, the most adverse temperature code (lowest

“T” number) may be used to help determine the

overall temperature code of the system. Combinations

of equipment in your system are subject to

investigation by the local Authority Having

Jurisdiction at the time of installation.

Les produits marqués "CL I, DIV 2, GP A, B, C, D" ne

conviennent qu’à une utilisation en environnements de

Classe I Division 2 Groupes A, B, C, D dangereux et non

dangereux. Chaque produit est livré avec des marquages

sur sa plaque d’identification qui indiquent le code de

température pour les environnements dangereux.

Lorsque plusieurs produits sont combinés dans un

système, le code de température le plus défavorable

(code de température le plus faible) peut être utilisé pour

déterminer le code de température global du système.

Les combinaisons d’équipements dans le système sont

sujettes à inspection par les autorités locales qualifiées

au moment de l’installation.

WARNING EXPLOSION HAZARD

•Do not disconnect equipment

unless power has been

removed or the area is known

to be nonhazardous.

•Do not disconnect

connections to this

equipment unless power has

been removed or the area is

known to be nonhazardous.

Secure any external

connections that mate to this

equipment by using screws,

sliding latches, threaded

connectors, or other means

provided with this product.

•Substitution of components

may impair suitability for

Class I, Division 2.

•If this product contains

batteries, they must only be

changed in an area known to

be nonhazardous.

AVERTISSEMENT RISQUE D’EXPLOSION

•Couper le courant ou

s’assurer que

l’environnement est

classé non dangereux

avant de débrancher

l'équipement.

•Couper le courant ou

s'assurer que

l’environnement est

classé non dangereux

avant de débrancher les

connecteurs. Fixer tous

les connecteurs externes

reliés à cet équipement à

l'aide de vis, loquets

coulissants, connecteurs

filetés ou autres moyens

fournis avec ce produit.

•La substitution de

composants peut rendre

cet équipement inadapté

à une utilisation en

environnement de Classe

I, Division 2.

•S’assurer que

l’environnement est

classé non dangereux

avant de changer les

piles.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Windows 2000, NT, and XP are trademarks of Microsoft Corporation.

RSLogix5000, RSNetWorx, RSLinx, and IOLinx are trademarks of Rockwell Automation.

WARNING If you connect or disconnect the communications cable with power applied to

this module or any device on the network, an electrical arc can occur. This

could cause an explosion in hazardous location installations.

When used in a Class I, Division 2, hazardous location, this equipment must be

mounted in a suitable enclosure with proper wiring method that complies with

the governing electrical codes.

If you insert or remove the card while host power is on, an electrical arc can

occur. This could cause an explosion in hazardous location installations.

Be sure that power is removed or the area is nonhazardous before proceeding.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Publication 1784-IN042A-EN-P - April 2005

Preface

About the 1784-PKTCS Universal PCI Scanner

Card

What I

s

a 1784-PKTCS Universal PCI Scanner Card?

The ControlNet 1784-PKTCS card is a Universal Peripheral Component Interconnect (PCI)

open-bus interface card. The card enables PCI local bus compatible computers to

communicate directly with other ControlNet products.

The 1784-PKTCS scanner card provides ControlNet I/O scanning as well as monitoring and

configuration capabilities.

Purpose of This Manual

Use this document to learn how to install and use the 1784-PKTCS scanner card.

Intended Audience

Read this manual before you install or use the ControlNet PCI communication interface

cards. You should be familiar with ControlNet technology when applying products such as

those described in this publication.

For Information On This Topic Refer To Page

About the 1784-PKTCS Universal PCI Scanner Card 7

Purpose of This Manual 7

Intended Audience 7

Terminology 8

What Your Package Contains 8

For Further Reference 8

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

8Preface

Publication 1784-IN042A-EN-P - April 2005

Terminology

What Your Package Contains

With this package you should receive:

•one 1784-PKTCS card

•one IOLinx 1784-PKTCS driver CD-ROM

•ControlNet Universal PCI Scanner Card Installation Instructions, publication

1784-IN042

For Further Reference

Refer to these publications for more information on installing and using your 1784-PKTCS

card:

this term means

ControlNet networking standard maintained by ControlNet

International

PCI peripheral component interconnect

Publication

Number

Publication Title

CNET-UM001 ControlNet Communication Modules in Logix5000 Control System User Manual

1789-UM002 SoftLogix5800 System User Manual

CNET-IN002 ControlNet Coax Media Planning and Installation Guide

9230-IOLINXSDK IOLinx Software Development Kit

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Publication 1784-IN042A-EN-P - April 2005

Table of Contents

Chapter 1

Install IOLinx

Uninstall the Previous Version of IOLinx . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Install IOLinx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Chapter 2

Install the 1784-PKTCS Card

Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Access the Computer’s PCI Local Bus Expansion Slots . . . . . . . . . . . . . . 2-2

Insert the Card into the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Connect to the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Connect the Card Directly to the ControlNet Network . . . . . . . . . . . . . . 2-5

Connect to a Device on the ControlNet Network. . . . . . . . . . . . . . . . . . . 2-6

What Is Next?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Chapter 3

Install the Driver in Windows XP

Install the Driver in Windows XP for the First Time . . . . . . . . . . . . . . . . 3-1

Update the Existing Driver in Windows XP . . . . . . . . . . . . . . . . . . . . . . . 3-3

Chapter 4

Install the Driver in Windows 2000

Install the Driver in Windows 2000 for the First Time . . . . . . . . . . . . . . . 4-1

Update the Existing Driver in Windows 2000 . . . . . . . . . . . . . . . . . . . . . . 4-4

Chapter 5

Once You Have Completed the Installation

Register the EDS File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Configure the Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Configure a Virtual Backplane Driver in RSLinx Software . . . . . . . . . . . . 5-3

Configure the Scan List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Go On Line With RSNetWorx for ControlNet Software . . . . . . . . . . . . . 5-4

When You Use RSNetWorx for ControlNet Software. . . . . . . . . . . . 5-5

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

2Table of Contents

Publication 1784-IN042A-EN-P - April 2005

Chapter 6

Use IOView to Verify the Configuration

Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11

Start IOView . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

Create a View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

Read Inputs and Write Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

Change the Read/Write Period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

Change Output Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

Change the View State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

Delete a View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

Chapter 7

Interpret Status Indicators

Appendix A

Specifications

Index

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Publication 1784-IN042A-EN-P - April 2005

Chapter

1

Install IOLinx

Uninstall the Previous Version of IOLinx

1. Shut down all applications that use the IOLinx ControlNet Driver, including RSLinx

and SoftLogix.

2. Click on IOLinx for ControlNet to remove it.

3. Select Remove.

For Information On This Topic Refer To Page

Uninstall the Previous Version of IOLinx 1-1

Install IOLinxInstall IOLinx 1-2

IMPORTANT Do not install the 1784-PKTCS ControlNet Universal PCI scanner card

in the same PC as a 1784-KTCS ControlNet ISA-bus scanner card. Before

installing the 1784-PKTCS card, remove all the 1784-KTCS cards and

uninstall the associated drivers.

IMPORTANT Before you update the new driver and IOLinx, you must uninstall any

earlier versions of IOLinx. If you do not currently have IOLinx installed,

go to the Install IOLinx procedure on page 1-2.

in this operating system: select:

Windows 2000 Start ⇒Settings ⇒Control Panel, then double-click the

Add/Remove Programs icon

Windows XP Start ⇒Control Panel ⇒Add or Remove Programs, or

Start ⇒Control Panel, then double-click the Add or Remove

Programs icon

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

1-2 Install IOLinx

Publication 1784-IN042A-EN-P - April 2005

4. Select Yes to uninstall IOLinx.

5. Reboot the computer.

Install IOLinx

1. Insert the CD in the computer’s CD-ROM drive or access the compressed file you

downloaded and saved to a temporary directory.

2. If you are installing from CD-ROM and Autorun is enabled for your CD-ROM drive,

go to step 5on page 1-3.

3. Select Start ⇒Run.

TIP If you are prompted to remove unused shared files, select No to All.

IMPORTANT We recommend that you exit all Windows programs before running this

Setup program.

TIP The CD-ROM supports Windows Autorun. If you have Autorun

configured, once the CD is inserted into the CD-ROM drive, the

installation will automatically start at the first setup screen.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Install IOLinx 1-3

Publication 1784-IN042A-EN-P - April 2005

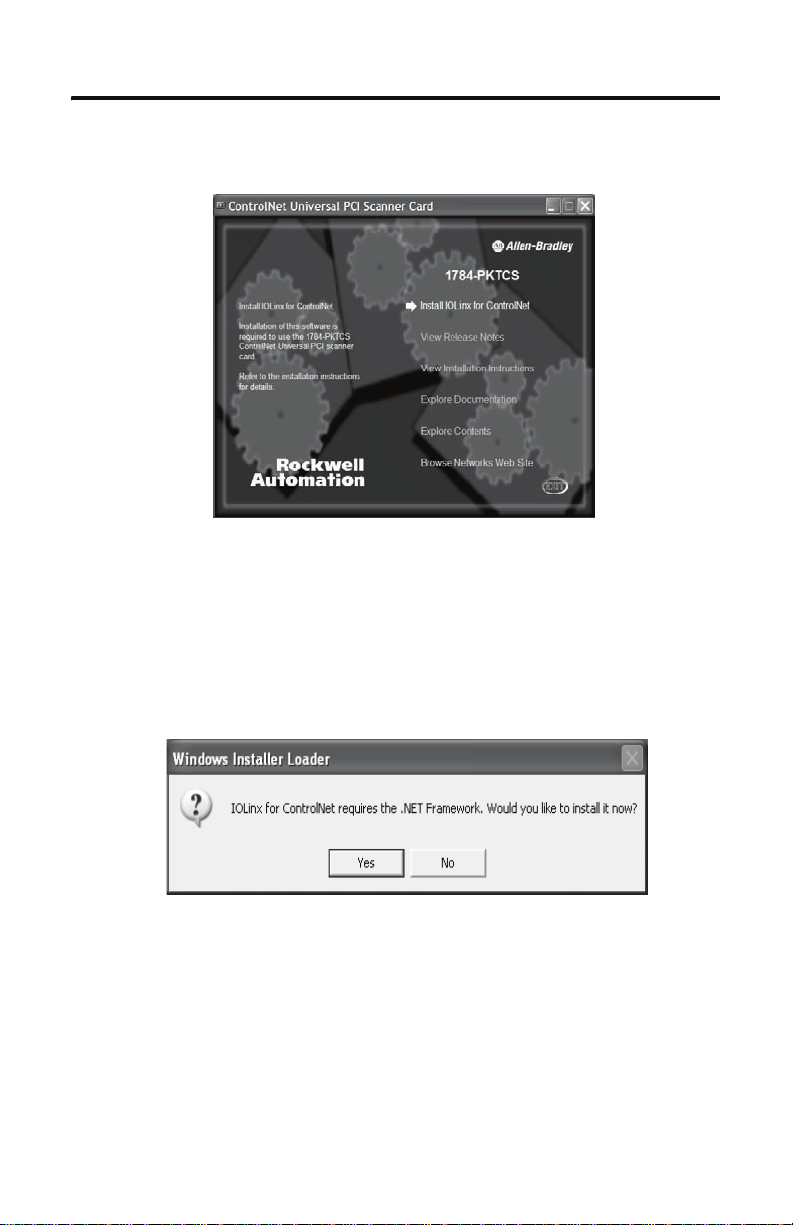

4. At the Run pop-up window, type x:\setup where xis the drive where the installation

files are stored. You see the ControlNet Universal PCI Scanner Card screen.

5. Select Install IOLinx for ControlNet.

6. If the Microsoft .NET Framework is already installed on your computer, go

to step 10.

If the Microsoft .NET Framework is not installed on your PC, you will be prompted

to install it.

7. Click Yes to install the Microsoft .NET Framework.

8. Follow the on-screen instructions to install the software.

9. When you have finished installing the.NET Framework, return to step 5.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

1-4 Install IOLinx

Publication 1784-IN042A-EN-P - April 2005

10. Click Next.

11. Use the default path to the folder. Select the Everyone or Just me radio button,

depending on your application.

12. Click Next. You see the Confirm Installation screen.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Publication 1784-IN042A-EN-P - April 2005

Chapter

2

Install the 1784-PKTCS Card

Before You Begin

To install the card, you need to:

•access the computer’s expansion slots

•insert the card into the computer

For Information On This Topic Refer To Page

Before You Begin 2-1

Access the Computer’s PCI Local Bus Expansion Slots 2-2

Insert the Card into the Computer 2-2

Connect to the Network 2-3

Connect the Card Directly to the ControlNet Network 2-5

Connect to a Device on the ControlNet Network 2-6

IMPORTANT The card’s dimensions are shown below.

4.2 in.

10.7 cm

6.5 in.

16.5 cm

31474-M

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

2-2 Install the 1784-PKTCS Card

Publication 1784-IN042A-EN-P - April 2005

Access the Computer’s PCI Local Bus Expansion Slots

To install the card, you must access the computer’s PCI local bus expansion slots. Follow

these general steps, or refer to your computer’s user guide for further instructions:

1. Shut down the host computer.

2. Remove the computer’s cover.

3. Select a vacant PCI local bus expansion slot.

4. Loosen the screw (if present) on the back (rear bracket) of the computer.

5. Remove the slot’s expansion cover.

Insert the Card into the Computer

To insert the card inside the computer:

1. Handle the card so that you prevent electrostatic discharge. Refer to the Preface of

this manual for more information.

2. Insert the card into the edge connector and tighten the expansion slot screw (if

present).

3. Replace the computer’s cover.

WARNING When used in a Class I, Division 2, hazardous location, this

equipment must be mounted in a suitable enclosure with prop-

er wiring method that complies with the governing electrical

codes.

If you insert or remove the card while host power is on, an

electrical arc can occur. This could cause an explosion in haz-

ardous location installations.

Be sure that power is removed or the area is nonhazardous be-

fore proceeding.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Install the 1784-PKTCS Card 2-3

Publication 1784-IN042A-EN-P - April 2005

4. Turn on the computer to be certain that it comes up correctly.

Connect to the Network

After you have installed the card, you can connect it:

•directly to a ControlNet network, which requires a tap (page 2-5)

•to a device already connected to the ControlNet network (page 2-6)

See Figure 2.1 on page 2-4 for the connectors and indicators.

If the computer: then:

powers up go on to the next section, Connect to the Network , on page 2-3

hangs up either the card is not seated correctly in the PCI slot or you have a

memory or I/O conflict. You should:

•remove and reinsert the card into the same PCI slot and

try again

•remove and reinsert the card into a different PCI slot and

try again

•remove all other non-essential cards and try again

If you continue to experience difficulty, contact your local

Rockwell Automation sales representative or distributor, or call

Rockwell Automation Technical Support at 440.646.5800.

WARNING If you connect or disconnect the ControlNet cable with power applied

to this module or any device on the network, an electrical arc can

occur. This could cause an explosion in hazardous location

installations.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

2-4 Install the 1784-PKTCS Card

Publication 1784-IN042A-EN-P - April 2005

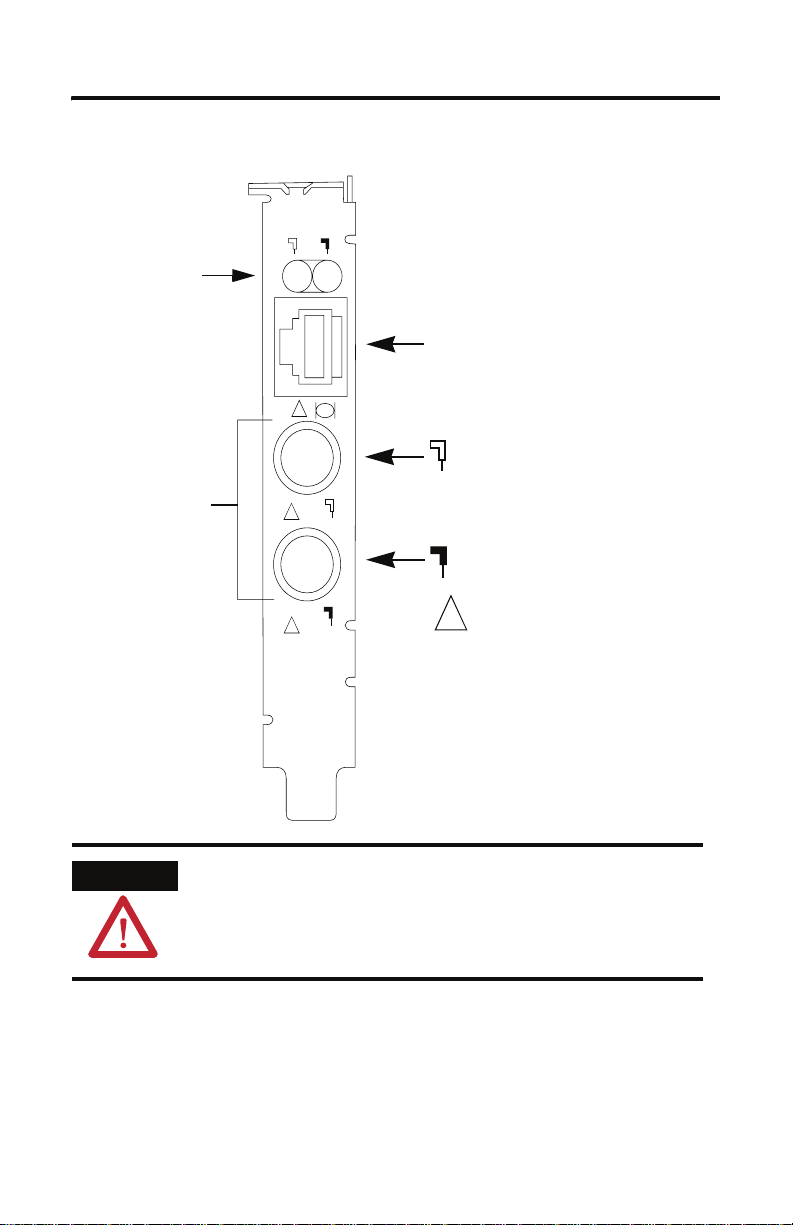

Figure 2.1 1784-PKTCS card

ATTENTION Do not connect different ControlNet networks to this card. If you

attempt to connect a second network to this card, your

communication system will operate erratically.

A

B

Network Access Port (NAP)

RJ-45 connector for connecting

programming terminals to devices on

a ControlNet network

Channel A

BNC connectors for connecting directly to

ControlNet network

Channel B

Do not connect different

ControlNet networks to this card.

Redundant media

BNC connectors

Diagnostic status

indicators

42281

!

!!

Allen-Bradley

1784-PKTCS

ControlNet

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Install the 1784-PKTCS Card 2-5

Publication 1784-IN042A-EN-P - April 2005

Connect the Card Directly to the ControlNet Network

To connect the card directly to a ControlNet network as shown in Figure 2.2, follow the

instructions in these publications:

•ControlNet Coax Tap Installation Instructions, publication 1786-IN007

•ControlNet Coax Media Planning and Installation Manual, publication CNET-IN002

Figure 2.2 Connect the card directly to the ControlNet network

ATTENTION If you connect the product to a cable system that does not support

redundant media, connect the tap dropline to the BNC connector

labeled channel A. Channel B is left unconnected.

If the cable system is redundant, connect the product so that all

devices on the network use the same cable for the same channel. That

is, all channel A connectors connect to one cable; all channel B

connectors connect to the other cable.

TIP If you use a non-redundant cable system, all ControlNet devices must

be on the same channel, channel A.

Desktop host

computer

1784-PKTCS

1786-TPR, -TPS, -TPYR, or -TPYS tap

ControlNet network

42200

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

2-6 Install the 1784-PKTCS Card

Publication 1784-IN042A-EN-P - April 2005

Connect to a Device on the ControlNet Network

The 1786-CP cable (Figure 2.3) connects a host computer to another ControlNet device. It

has two RJ-45 8-pin connectors.

Figure 2.3 1786-CP cable

See Table 2.1 and Table 2.2 for the wiring for the 1786-CP cable.

ATTENTION Use only the 1786-CP cable when you connect a programming

terminal to the network through the network access port (NAP). If

you use a different cable, it could result in possible network failures

or product damage.

Table 2.1 Wiring for 1786-CP connector cable

Connector 1

Wire Number Signal Mnemonic Signal Name

1ISO-GND Isolated Ground

2N.C. No Connection

3PTTX-H Transmit Data High

4PTTX-L Transmit Data Low

5PTRX-L Receive Data Low

6PTRX-H Receive Data High

7N.C. No Connection

8ISO-GND Isolated Ground

RJ-45 8-pin connectors

1786-CP cable

30124-m

Connector 1 Connector 2

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Install the 1784-PKTCS Card 2-7

Publication 1784-IN042A-EN-P - April 2005

When you use the RJ-45 connector, you can connect the card to a ControlNet network

without a tap through the Network Access Port (or NAP) of a programmable controller, I/O

adapter, or other ControlNet compliant devices (Figure 2.4 and Figure 2.5).

Table 2.2 Wiring for 1786-CP connector cable

Connector 2

Wire Number Signal Mnemonic Signal Name

1ISO-GND Isolated Ground

2N.C. No Connection

3PTRX-H Receive Data High

4PTRX-L Receive Data Low

5PTTX-L Transmit Data Low

6PTTX-H Transmit Data High

7N.C. No Connection

8ISO-GND Isolated Ground

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW
