Total TD205106 User manual
2
3
Safety Instructions
WARNING!
Read all
instructions
Failure to followall in
structions listed belowmay result inelectric
shock, fire and/orserious injury. Theterm
"power tool" inall of thewarnings listed
below refers toyour mains-operated (corded)
power tool.
1) Work area
a) Keep work area clean and well lit.
Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust.
Power tools create sparks which may ignite
the dust or fumes.
c) Keep children and bystanders away while
operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools.
Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or
grounded surfaces such as pipes, radiators,
ranges and refrigerators.
There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions.
Water entering a power tool will increase the
risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts.
Damaged or entangled cords increase the risk
of electric shock.
e) When operating a power tool outdoors,
use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol
or medication.
A moment of inattention while operating power
tools may result in serious personal injury.
b) Use safety equipment. Always wear eye
protection.
Safety equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce
personal injuries.
c) Avoid accidental starting. Ensure the
switch is in the off-position before plugging
in.
Carrying power tools with your finger on the
switch or plugging in power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on.
A wrench or a key to a rotating
part of the power tool may result in personal
injury.
e) Do not overreach. Keep proper footing
and balance at all times.
This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts.
Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used.
Use of these devices can reduce dust related
hazards.
4) Power tool use and care
a) Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job better
and safer at the rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and off.
Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
c) Disconnect the plug from the power
source before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the
risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tools operation.
If damaged, have the power tool repaired
before use.
Many accidents are caused by poorly
Safety Instructions
maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
g) Use the power tool, accessories and tool
bits etc., in accordance with these
instructions and in the manner intended for
the particular type of power tool, taking into
account the working conditions and the work
to be performed.
Use of the power tool for operations different
from intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a
qualified repair person using only identical
replacement parts.
This will ensure that the safety of the power
tool is maintained.
Additional safety instructions for your drill
1.Always wear ear protectors with electric drill.
Exposure to noise can cause hearing loss.
2.Always wear eye protectors when using this
impact drill.
3.Always use the auxiliary handles supplied
with the tool. Loss of control can cause
personal injury.
4.Always check walls and ceiling to avoid
hidden power cables and pipes. A metal
detector can be obtained.
5.Do not start the drill with the chuck key in
chuck.
6.Make sure the power switch is not "on"
before you plug in. Always switch off before
you put your drill down.
7.Hold your impact drill firmly in both hands.
8.Make sure drill bit are tightened securely
in chuck.
9.Do not use damaged or worn drill bits.
10.Use clamps or a vice to hold workpiece,
if possible.
Double insulation
The tool is double insulated. This means
that all the external metal parts are
electrically insulated from the mains power
supply. This is done by placing insulation
barriers between the electrical and
mechanical components making it
unnecessary for the tool to be earthed.
Important note
Ensure your mains supply voltage is the
same as your tool rating plate voltage.
Remove the mains plug from socket before
carrying out any adjustment or servicing.

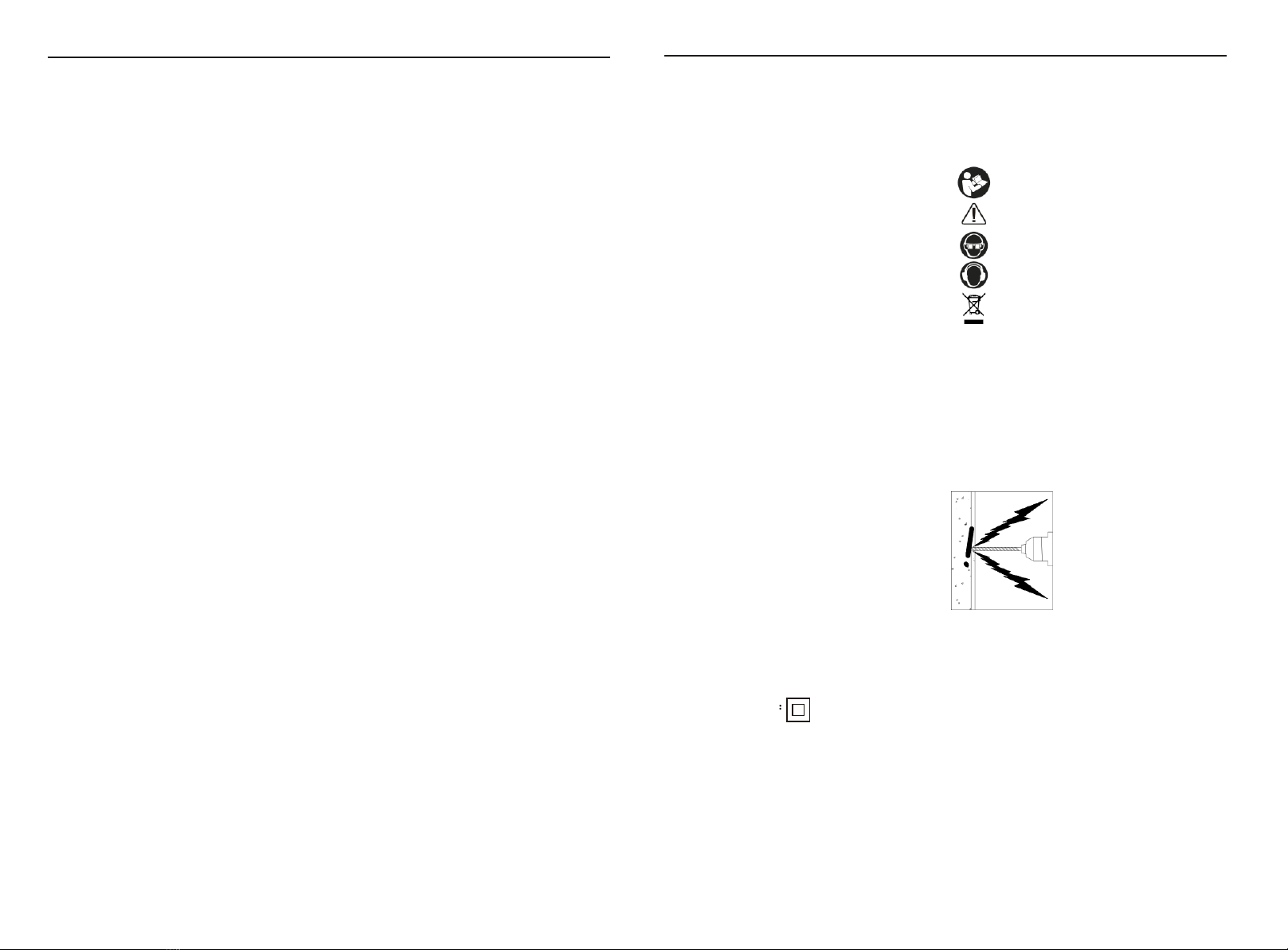

SYMBOLS
Read the manual
Warning
Wear eye protection
Wear ear protection
WEEE marking
4
5

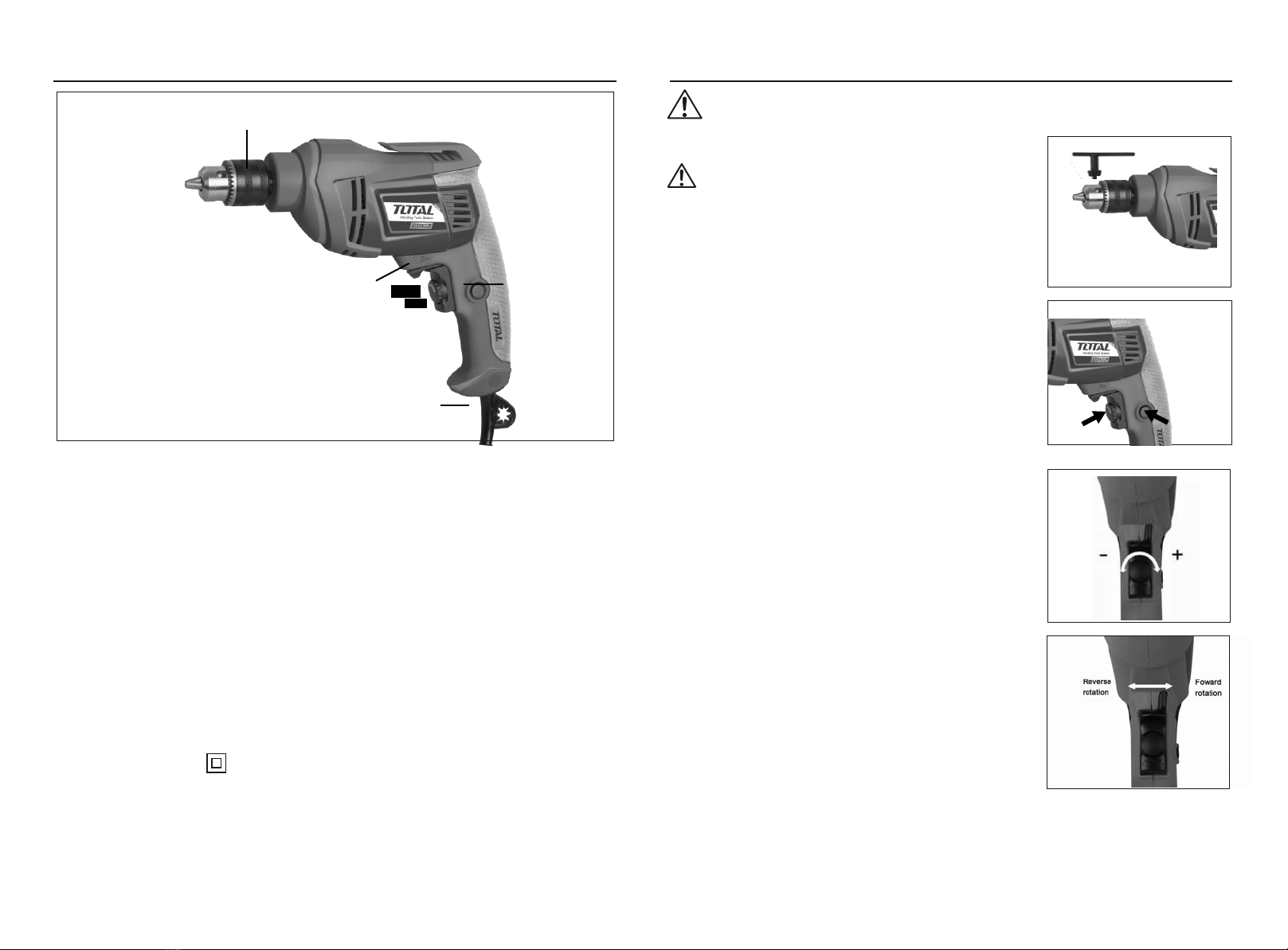

Components,Specifications and Accessories
1
Operation
Warning: Before
u
sing your drill be sure to read the instruction
manual carefully.
In
serting a t
ool
into chuck (seeD
i
a1)
Warning: Before installing t
ool,
remove mains
plug
from mains s
uppl
y
.
Remove chuck keyfrom key storagetab at base
of drill handle,place key intochuck, turn key
anti-clockwise to undo/loosenchuck, inset
drill/tool and firmly tighten chuck by turning
key clockwise. Removekey and replacein storage
6 2 tab at baseof drill handle.
54
Op
erating the On/Off switch (see Dia2)
Press the on/off switch infor operation, release
switch to stop.Ifyou wish touse the drill
continuously the switchlock button canbe
pushed in afterthe on/offswitch has been
depressed. To release thelock button simply
3 depress on/off switch fully, the button will
automatically release.
Dia 1
Turn chuck
key clockwise
to tighten
Dia 2
Components list
1 Chuck
2 Switch lock button
3 Cable sleeve
Technical Specifications
4 On/Off switch
5 Variable speed control
6 Forward/reverse selector switch
Variable speed c
on
trol se
l
ector (seeD
i
a3)
The maximum speedcan be alteredby turning
the variable speedcontrol.
Turn
clockwise to
increase and an
t
i-clockwiseto decrease speed.
The speed ofthe drill varieswith the amountof
pressure applied tothe on/off swi
t
ch, i.e. more
pressure for higherspeed.
Dia 3
Model No.:
Rated power input:
Rated
voltage:
No load
speed:
TD205106
500W
220-240V~50/60Hz
0-2800/min
UTD205106
500W
110-120V~60Hz
0-2800/min
TD205106-8(BS Plug)
500W
220-240V~50/60Hz
0-2800/min
TD205106E
500W
220-240V~50/60Hz
0-2800/min
Changing rotational direction (see D
i
a4)
To change the rotational direction, push the
Dia 4
Chuck
capacity: 1.5-10mm
1/16˝-3/8˝
1.5-10mm
1.5-10mm
forward/reverse selector switch onyour drill .
Max. drilling in steel: 10mm
Max. drilling in wood: 25mm
Double insulation:
3/8˝
1˝
10mm
25mm
10mm
25mm
Note: Never move the forward/reverse
switch while the drill in operation or the
on/off switch is locked as this will damage
the drill .
Accessories:
1. Chuck key 1pcs
6
7
NO.
Part Description
Qty
1
screw M5X18
1
2
10mm chuck
1
3
chuck key
1
4
output shaft
1
5
woodruff key
1
6
bearing 6000
1
7
steel sleeve
1
8
gear wheel
1
9
circlip for shaft
1
10
bearing 626
2
11
right housing
1
12
bearing 608
1
13
armature
1
14
brush box
2
15
carbon brush
2
16
brush holder cover
2
17
stator
1
18
screw ST4x14
11
19
brand
1
20
left housing
1
21
switch
1
22
cable clamp
1
23
inductance(option)
1
24
capacitor(option)
1
25
cable sleeve
1
26
cable
1
Maintenance
and Troubleshooting
Working hints for your drill
1 Drilling steel
HSS drill bits should always be used for drilling steel with a lower speed.
2 Screw driving
Use a low speed to drive in or remove screws.
3 Pilot holes
When drilling a large hole in tough material (i.e. steel), we recommend drilling
a small pilot hole first before using a large drill bit.
4 Cool the motor
If your power tool becomes too hot, set the speed to maximum and run no load
for 2-3 minutes to cool the motor.
Maintenance
1 Never use water or chemical cleaners to clean your power tool. Wipe clean
with a dry cloth.
2 Always store your power tool in a dry place.
3 Keep the motor ventilation slots clean.
4 If you see some sparks flashing in the ventilation slots, this is normal and will
not damage your power tool.
5 If the supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
Troubleshooting
1 If your drill will not operate, check the power at the mains plug.
2 If the drill is not drill ing properly, check the drill bit for sharpness, replace
drill bit if worn. Check that the drill is set to forward rotation for normal use.
3 If a fault can not be rectified return the drill to qualified repair personel for service.
TD205106,UTD205106,TD205106-8,TD205106E
Spare part list
8
9
TD205106,UTD205106,TD205106-8,TD205106E
Exploding view
TD205106,UTD205106,
TD205106-8,TD205106E
1
اﻟﻜﮭﺮﺑﺎﺋﯿﺔ
اﻟﺤﻔﺮ
6 2
54
3
