Total TG111165 User manual

Herramientas Eléctricas
1
FICHA TÉCNICA
Marca: Total Tools
Voltaje: 110-120V~50/60Hz
Potencia: 1050W
Velocidad sin carga: 0-1100/0-3000/min
Velocidad de impacto: 0-17600/0-48000/min
Mandril: 5/8”
Incluye: 1 set de escobillas de carbón, manija auxiliar,
1 llave de ajuste para mandril y 1 barra indicadora de
profundidad
Peso: 3.9 Kg.
Garantía: 1 año
Procedencia: Importado
Producto: Taladro de impacto 1050W Total Tools
CÓDIGO: UTG111165
DESCRIPCIÓN: Taladro de impacto 1050W Total Tools de
un voltaje de 110-120V~50/60Hz su potencia es 1050W.
Su velocidad sin carga de 0-1100/0-3000/min con una
velocidad de impacto de 0-17600/0-48000/min. Incluye
un set de escobillas de carbón, manija auxiliar, una
llave de ajuste para mandril y una barra indicadora de
profundidad. Su peso es de 3.9 Kg. y su garantía es de
1 año.
3-16mm Caja a color F R
1050W 110-120V
~50/60Hz
min-1
0-1100 /
0-3000
min-1
0-17600/
0-48000

TG111165,UTG111165,TG111165E,TG111165-4
TG111165-6,TG111165-8,TG111165S
IMPACT DRILL
1050W

The symbols in instruction manual and the label on the tool
Double insulated for additional protection.
Read the instruction manual before using.
CE conformity.
Wear safety glasses, hearing protection and dust mask.
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or
retailer for recycling advice.
Safety alert.
Please only use the accessories supported by the manufacture.
2

GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings and all instructions. Failure to
f
ollow the warnings and instructions may result in electric shock, fire and/or seriou
s
i
njury.
S
ave all warnings and instructions for future reference.
T
he term "power tool" in the warnings refers to your mains-operated (corded
)
p
ower tool or battery-operated (cordless) power tool.
1
) Work area safety
a) Keep work area clean and well lit. Cluttered and dark areas invite
accidents.
b) Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2
) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded surfaces such as
pipes, radiators, ranges and refrigerators. There is an increased risk
of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering
a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
3

a residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
3
) Personal safety
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired
or under the influence of drugs, alcohol or medication. A moment o
f
inattention while operating power tools may result in serious personal
injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the
off-position before connecting to power source and/or battery
pack, picking up or carrying the tool. Carrying power tools with your
finger on the switch or energizing power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning the power tool
on. A wrench or a key left attached to a rotating part of the power tool
may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. Thi
s
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Kee
p
your hair, clothing and gloves away from moving parts. Loos
e
clothes, jewellery or long hair can be caught in moving parts.
g)If devices are provided for the connection of dust extraction an
d
collection facilities, ensure these are connected and properly used
.
Use of dust collection can reduce dust-related hazards.
4

and must be repaired.
c) Disconnect the plug from the power source and/or the battery pac
k
from the power tool before making any adjustments, changin
g
accessories, or storing power tools. Such preventive safety measure
s
reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allo
w
persons unfamiliar with the power tool or these instructions t
o
operate the power tool. Power tools are dangerous in the hands o
f
untrained users.
e) Maintain power tools. Check for misalignment or binding of movin
g
parts, breakage of parts and any other condition that may affect th
e
power tools operation. If damaged, have the power tool repaire
d
before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tool
s
with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance wit
h
these instructions, taking into account the working conditions an
d
the work to be performed. Use of the power tool for operations differen
t
from those intended could result in a hazardous situation.
5
) Service
a) Have your power tool serviced by a qualified repair person using
only identical.
This will ensure that the safety of the power tool is
maintained.
5

Additional Safety Warnings
-Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
-Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal
injury.
-Hold power tool by insulated gripping surfaces, when performing an operation where
the cutting accessory may contact hidden wiring or its own cord. Cutting accessory
c
ontacting a "live" wire may make exposed metal parts of the power tool "live" and could give the
o
perator an electric shock
Residual risks
Even when the power tool is used as prescribed it is not possible to
eliminate all residual risk factors. The following hazards may arise in
connection with the power tool’s construction and design:
a) Health defects resulting from vibration emission if the power tool is being
used over longer period of time or not adequately managed and properly
maintained.
b) Injuries and damage to property to due to broken accessories that are
suddenly dashed.
Warning! This power tool produces an electromagnetic field during
operation. This field may under some circumstances interfere with active or
passive medical implants. To reduce the risk of serious or fatal injury, we
recommend persons with medical implants to consult their physician and the
medical implant manufacturer before operating this power tool.
6

7

PRODUCT DESCRIPTION
You must abide by certain safety precautions when using the equipment. In order to
prevent injuries and damages from occurring, you must always read through this operating manual
Carefully.
This manual must be kept in a safe place so that the information that it contains is always available. This
operating manual must accompany the equipment if it is transferred to somebody else.
We do not accept any liability for accidents or damage arising from ignoring this manual and the safety
instructions.
SPECIFICATIONS
220-240V~
Frequency
Rated Voltage
0-1100min-1,0-3000min-1
50/60Hz
0-17600min-1,0 -48000min-1
16mm
20mm
40mm
110-120V~
1/8˝-5/8˝
UTG111165
1050W1050W
/Ⅱ
TG111165/TG111165E
/Ⅱ
Weight 3.7kg 3.7kg
3-16 mm
0-1100min-1,0-3000min-1
zH06
0-17600min-1,0 -48000min-1
5 /8˝
3 /4˝
1 -9/16˝
ACCESSORIES:
No-Load Speed
Protection class
Blows Per Minute
Metal
Masonry
Drill Capacity
Wood
1pcs auxiliary handle
1set carbon brushes
1pcs depth gauge
1pcs chuck key
Modle
Power
Chuck Capacity
220-240V~
Frequency
Rated Voltage
0-1100min-1,0-3000min-1
50/60Hz
0-17600min-1,0 -48000min-1
16mm
20mm
40mm
220-240V~
TG111165S
1050W1050W
/Ⅱ
TG111165-6/TG111165-8/TG111165-4
(ISRAEL Plug) (BS Plug) (IRAM Plug) (SAA Plug)
/Ⅱ
Weight 3.7kg 3.7kg
3-16 mm
0-1100min-1,0-3000min-1
zH06/05
0-17600min-1,0 -48000min-1
16mm
20mm
40mm
No-Load Speed
Protection class
Blows Per Minute
Metal
Masonry
Drill Capacity
Wood
Modle
Power
Chuck Capacity 3-16 mm
8

9

10

11

12

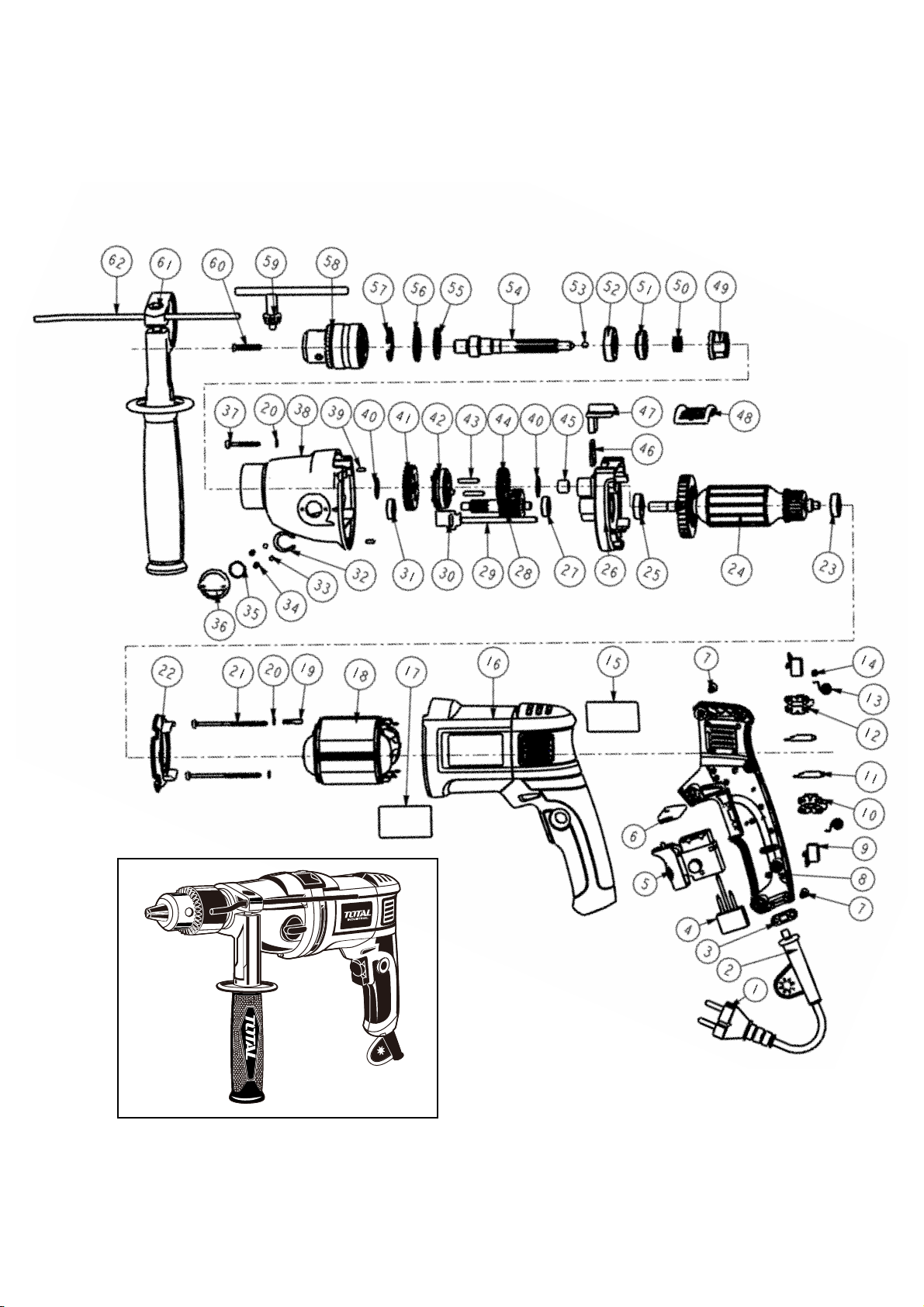

TG111165,TG111165E,UTG111165,TG111165-4
TG111165-6,TG111165-8,TG111165S Expioding view

tfahsrofpilcriC23elbaC1 Φ16
2 Cable Armor 33 Ball Φ4
3 Cable Clip 34 Spring A
4 Capacitor 35 Rubber Ring 17
bonK63hctiwS5
6 Switch Lever 37 Tapping Screw ST4X35
7 Tapping Screw ST4X16 38 Gear Box
8 Right Handle 39 Pin 3X8
9 Carbon Brush 40 Washer
10 Lower brush holder 41 Slow Gear
hctulC24rotcudnI11
12 Upper brush holder 43 Gudgeon
13 Coil spring 44 Quick Gear
14 Tapping Screw ST3X8 45 Bearing HK081210
15 Right Nameplate 46 Shifting Block
nottuBhsuP74gnisuoH61
17 Left Nameplate 48 Push Button SeathtooTtcapmImlaC94rotatS81
19 Waveform buckle 50 Spring B
20 Plane Washer Φ4 51 Act Impact Tooth
21 Tapping Screw ST4X70 52 Bearing 6002
22 Fan Guide 53 Ball Φ5
23 Bearing 627 54 Output Spindle
tleflooW55rotoR42
25 Bearing 609 56 Seal Ring
26 Supporter 57 Circlip for shaft Φ32
27 Bearing 627 58 Chuck Φ13
28 Middle Gear 59 Chuck Key Φ13
29 Pin B5X70 60 Anti-clockwise Screw M5X25
eldnaHediS16edilS03
31 Bearing 607 62 Scale
13
TG111165,TG111165E,UTG111165,TG111165-4
TG111165-6,TG111165-8,TG111165S Spare part list

T0918.V09
MADE IN CHINA
www.totaltools.cn
TOTAL TOOLS CO., PTE. LTD.
IMPACT DRILL
1050W
