Totem KIN SUB 10 User manual

OWNERS MANUAL

Totemacoustic.com

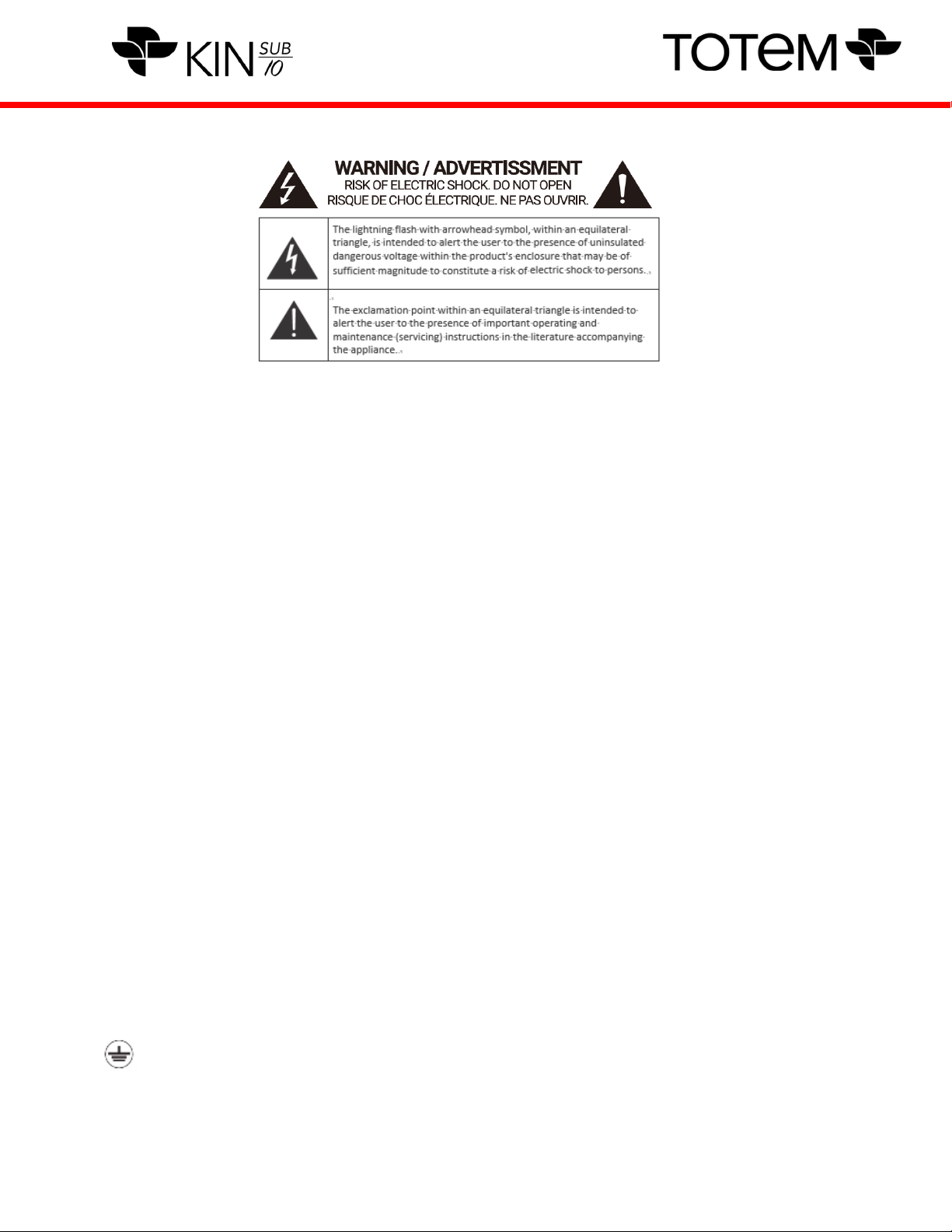

IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one wider than the other.
The wide bladed is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. The equipment shall be used at maximum 40 degree C ambient temperature.
14. Do not open the equipment to reduce the risk of electrical shock. For safety reasons it is only allowed to be opened
by qualified service personnel.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. And the
apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall
be placed on the apparatus.
16. The MAINS plug or appliance inlet is used as the disconnect device and shall remain readily operable.
17. The product shall be used on open bench.
18. No naked flame sources, such as lighted candles, should be placed on the apparatus.
19. The use of apparatus in tropical climates. -
20. Minimum 10cm distances around the apparatus for sufficient ventilation
21. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths,
curtains, etc.
22. WARNING
Do not ingest the battery, Chemical burn hazard
(The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed,
it can cause severe internal burns in just 2 hours and can lead to death.
23. Warning: the apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing
connection.

Totemacoustic.com
FCC Warnings
This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions:
(1) This device may not cause harmful interference; and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
IC WARNING
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two
conditions: (1) This device may not cause interference; and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
CAUTION
To prevent electrical shock do not use the electrical plug of your Totem Subwoofer with an extension cord, receptacle
or other outlet unless the blades can be fully inserted to prevent exposure. To protect against the risk of electrical shock
do not use near bathtubs, sinks, swimming pools, saunas, in wet basements, near other water sources, or rain. If service
is required, please refer to your Totem Authorized Dealer.

Totemacoustic.com
Created in 1987, Totem’s mission is to develop loudspeakers capable of
producing an involving performance that is true to the artist’s intention.
Our goal is to provide designs that are affordable, cosmetically timeless,
and invoke an emotional response. Music, movies, TV, and video games
are accurately rendered with a powerful focus that is yet soul stirring.
Discover yours today.
Each speaker is a ‘piece de resistance’ that attests to the profound sound
staging that can be reproduced by adaptable and innovative engineering.
Listen and believe...
Designed by Totem Acoustic in Montreal, Canada, Totem Kin subwoofers and amplifiers were
created to provide a simple yet remarkable audio solution. Created to seamlessly integrate with any
speaker and immerse the listener in a totally realistic 3D sonic experience, our Subs redefine
exactness, speed and musicality. For easy use under any conditions, the KIN SUB10 performs with
astonishing presence, no matter the size of your space.
Totem Acoustic keeps to a strict quality control regimen and all factory-sealed products leave our
facility in perfect condition. If there are any damages visible or concealed that has occurred in
handling it must be reported immediately to your Authorized Totem Dealer. Carefully remove the
speakers from the box and save all interior and exterior packaging for future use.
We sincerely thank you for having granted Totem a special place in your living environment. Our speakers
are designed to redefine your musical understanding and open corridors of new experiences. We hope you
not only enjoy but experience Totem as your guide to a new and rewarding listening environment! You will
without a doubt experience a Totem moment.
CONGRATULATIONS
OUR VISION
DISCOVERING TOTEM SUBWOOFERS

Totemacoustic.com
KIN SUB 10
Congratulations on your new Totem KIN subwoofer!
A compact, reference sub designed to seamlessly blend with your Totem speakers in any stereo or
home theatre application.
Please take the time to fully read this manual prior to beginning set-up. The manual will clearly
guide you to achieve the best possible sound that these newly acquired Totem speakers are capable
of providing.
Totem Acoustic keeps to a strict quality control regimen and all factory-sealed products leave our
facility in perfect condition. If there are any damages visible or concealed that has occurred in
handling it must be reported immediately to your Totem Authorized Dealer.
Carefully remove the speaker(s) from the box(es); take caution as the size often deceives the actual
weight. Save all custom cartons and packaging foam for future use. They are rather expensive and
may come in handy for future upgrades.
• 10-inch reinforced Fiberglass subwoofer cones
• Integrated 300-watt high efficiency amplifier
• Adjustable (50 to 150Hz) Low-pass crossover
• Bass EQ
• RCA Subwoofer and LFE inputs
• Signal sensing auto turn/off button
• Variable volume control
• 0 to 180 variable phase control
• Frequency response 27-200Hz
• 4 adhesive backed feet
DISCOVERING TOTEM SUBWOOFERS
UNPACKING
PRODUCT FEATURES / SPECIFICATIONS

Totemacoustic.com
CONTROLS and CONNECTIONS

Totemacoustic.com
4)Volume: When setting the volume control at the subwoofer, begin with your main speakers
playing at a normal listening level and the volume control of the subwoofer in MIN position. Then,
slowly turn up the volume until the desired bass level is achieved. Bass output will then be regulated
in conjunction with the speakers by your amplifier’s volume.
5)Frequency: This control determines the frequencies the subwoofer will play. This frequency is
manually controlled and is continuously variable between 50-150Hz. Generally, Totem speakers are
set between 40 and 70 Hz for floor-standing speakers and 70Hz and above for Bookshelf speakers.
You can experiment with which position works best with your main speakers by turning this control
until the sound of the low frequency coming from the subwoofer is nicely blended with the sound of
6)Phase: Adjusts the phase of the Totem subwoofer to your main speakers. When in phase, the
system will produce a much fuller bass response. The simplest way to adjust the phase of your
system is to have a second individual to adjust the phase dial as you are sitting in the listening
ii i
7)Power Mode: In the AUTO setting, the KIN Sub 10 will automatically wake from standby when it
senses and incoming signal and return to standby when no signal is present. In the ON mode, the
sub will always stay on and not go into a standby mode, even if a signal is not present.
1)Inputs: (LINE IN RIGHT&LEFT/LFE) When using a surround receiver or processor equipped with a
single LFE or Subwoofer Output, use the single LFE connection. If the component has both stereo
Left and Right outputs, then connect to both the Left and Right inputs. See Connections for more
explanations on setting up your subwoofer.
9)Main Power:Turns the power ON or OFF. This only needs to be set to ON once, then the
subwoofer will go into standby mode when a signal is no longer present.
10)VOLTAGE: 220-240v or 100-120v. This is set by Totem, based on where the item was shipped. It
is not recommended to modify this switch unless you are sure of the voltage in your country.
3)PAIR:The KIN Sub 10 can be connected wirelessly in tandem with the Totem Link Wireless
Transmitter. Pushing the PAIR button on the Link and then on the sub will pair them. Consult the
LINK manual for wireless connection set up.
8)BASS EQ:The Natural setting is pure and linear, providing tight, musical bass. High Impact
increases the output by several dB in the lower range of its frequencies, often preferred in home
theater and gaming.
2)LED:GREEN=ON RED=STANDBY BLUE=WIRELESS
11)AC Input:The included power cord connects here. This module also holds the accessible fuse.
CONTROLS and CONNECTIONS

Totemacoustic.com
In order to achieve maximum performance your KIN SUB 10 requires proper positioning. We suggest
you experiment with the location during your setup to find where it sounds best while seated in your
listening position.
When using the subwoofer in a stereo setup its ideal location is generally between the main speakers
or closely positioned beside them. See Fig. 1.
When the Totem subwoofer is used in a home cinema system it is recommended to place it in a
corner. See Fig.2. Be careful not to place the subwoofer too close to the corner, or it will start to
sound congested, causing detail loss. Also make sure not to place the sub equidistant from the two
walls in your corner.
FIG 1
As every room is different, experimentation is the key to determining the optimal location for the
Totem subwoofer. Always keep in mind that frequency response and output level can be significantly
affected / influenced by placement all depending on the room’s acoustic properties.
One method of finding your preferred location starts with placing the connected sub in the main
listening location. Then, while content with good bass output is playing, slowly walk the perimeter of
the room. You will find that bass is stronger and tighter in some locations and substantially weaker
and less defined in others. When you have found the area where you feel bass sounds best, place
the subwoofer there. You will now find the performance you want form the listening position.
PLACEMENT
FIG 2

Totemacoustic.com
LFE/Sub Out Connection: This is the most popular method for connecting a subwoofer and is used
with most stereo receivers, surround receivers, and some integrated amplifiers.
This method requires setup in the bass management section of the receiver to determine which
frequencies are sent to the subwoofer and speakers. Speakers can be set to large or small, the
crossover point can be set, and even the volume output are all regulated within the bass management
section. Set Volume to 80%, Crossover to its highest point, and Phase at 0 on the subwoofer when
using it in conjunction with any type of bass management or room correction software.
Pre-Out connection: This method is typically used with integrated amplifiers and some stereo
receivers. The speakers will continue to reproduce bass frequencies and you must use the
subwoofer’s controls to find the perfect blend between it and the speakers.
Stereo Pre-Out (FIG 2): If the amplifier/receiver is equipped with stereo (Right and Left) Pre Outputs
then it can be connected to the subwoofer’s right and left inputs with a stereo RCA wire. This is a
common connection with integrated amplifiers.
FIG 1
Prior to making any connections ensure the power switch is set to OFF and the VOLUME dial is set
to its minimum value.
CONNECTIONS

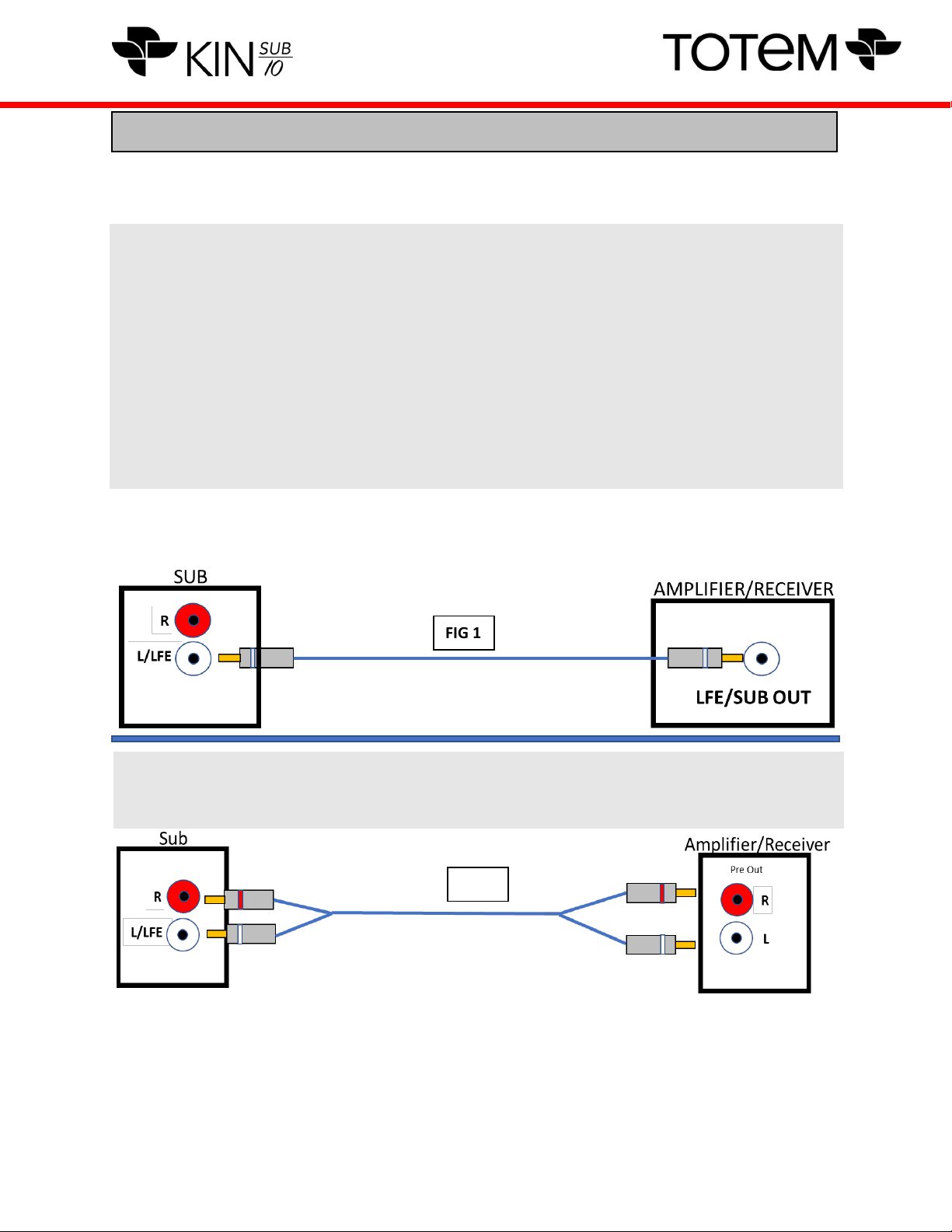

LFE/Sub Out Connection (FIG 1): This is the simplest and most common connection. It works for any
receiver or amp with a dedicated subwoofer output. Use a subwoofer cable to connect the
amp/receiver’s SUB or LFE Output to the L/LFE (Low Frequency Effect) input on the sub.
FIG 2
Caution! This subwoofer has electronics built into the cabinet. Do not place the cabinet next to
sources of heat such as furnace registers, radiators, etc. Do not place the unit near sources of
excessive moisture, such as evaporative coolers, humidifiers, etc. The power cord should be routed in
such a way that it will not be walked on, pinched, or compressed in any way that could result in
d h l

Totemacoustic.com

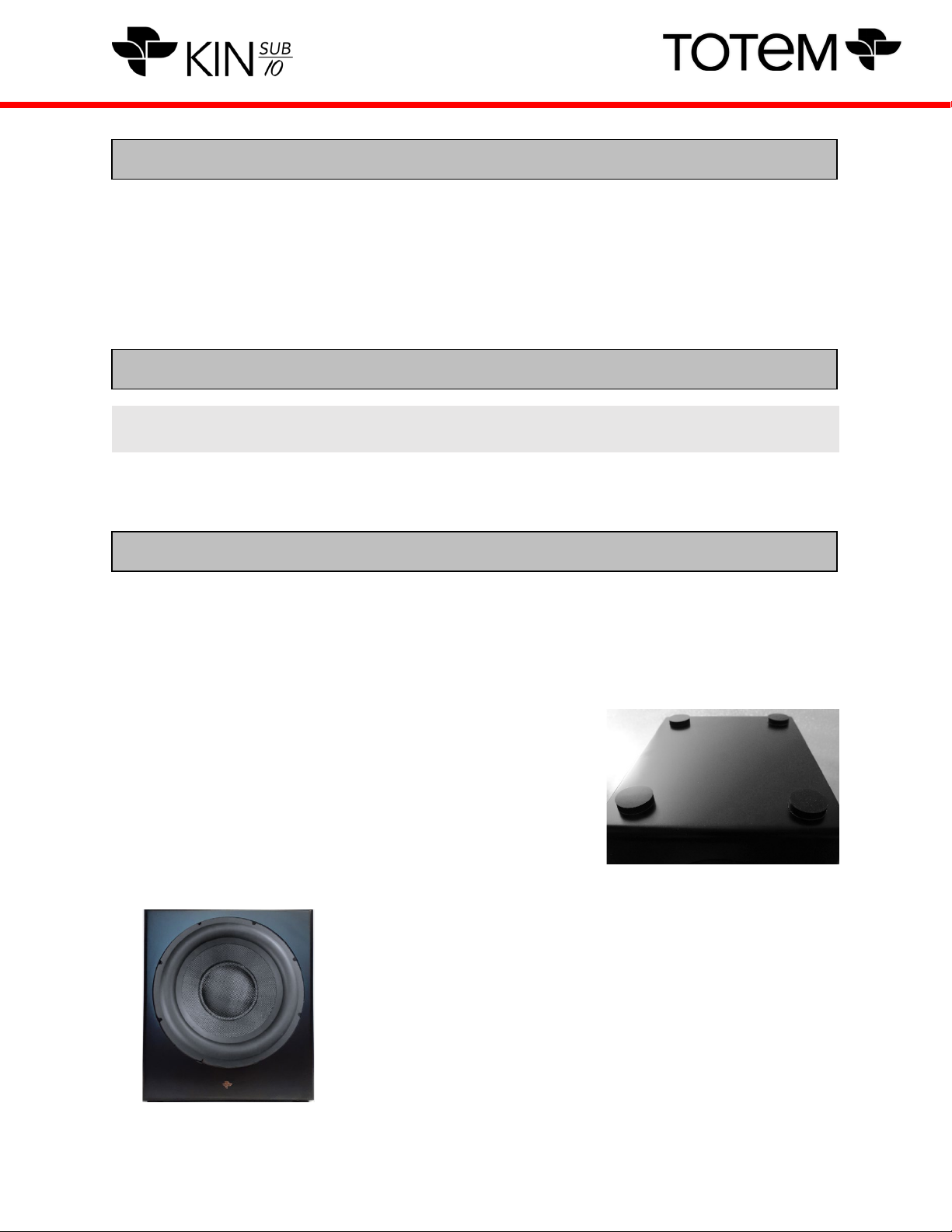

Place the subwoofer upside down. To prevent scratching the surface
of the subwoofer, place the subwoofer on a soft surface like a carpet
or a similarly soft, nonabrasive surface.
Remove the backing from the adhesive feet and attach them to the
corners of the subwoofer.
Return the subwoofer to its upright position.
Place it in its desired location.
Make the suitable connections.
Enjoy powerful yet musical bass enhancement.
The KIN SUB 10 includes 4 adhesive backed feet. These feet help acoustically isolate the cabinet
from the floor, preventing resonances, vibrations, and other unwanted effects that can have
negative effects on the performance. It is strongly recommended that they be used so the
subwoofer can perform at its full potential.
The KIN SUB 10 can be connected wirelessly in tandem with the Totem Link wireless transmitter.
The pairing button and blue LED on the amp panel is used in conjunction with the transmitter.
Consult its manual for wireless connection set up.
RED=standby GREEN=On BLUE=Wireless
WIRELESS CONNECTION OPTION
LED DESIGNATIONS
ADHESIVE FEET

Totemacoustic.com
Design: Powered Subwoofer
Enclosure: Sealed
Amplifier: Class D 300 watts
Woofer: 10” cone composed of high tensile spun fibreglass strands top coated
and bonded to a cellulose core. Driven by vented magnetics utilizing an
oversized ferrite magnet assembly. Butyl rubber surround.
Voice coil: High temperature enamel resin coated copper wire wound on a vented
aluminum former
Frequency response: 27 Hz - 200 Hz
Crossover: Variable from 50Hz to 150Hz, 24dB/Octave
Phase: Variable from 0 to 180 degrees
Volume: Variable
Inputs: Stereo RCA/LFE/Wireless
Power modes: Auto/On
Dimensions (HxWxD) : 13” x 11.5” x 13.5” / 330mm x 292mm x D 345mm
Weight: 30.86lb / 14kg
SPECIFICATIONS

Totemacoustic.com
Please register online at www.totemacoustic.com within two weeks of the purchase date. Totem
speakers must be purchased from a TOTEM AUTHORIZED DEALER.
Keep your original bill or receipt obtained from your Totem Authorized Dealer.
Retain the sturdy carton and all packing material; if needed, it will prove invaluable for damage-free
transport or storage.
All Totem products are created with the utmost care and quality in mind. If ever a problem should arise,
Totem’s subwoofers are covered by a two (2) year limited warranty, starting from the date of purchase.
The warranty applies to products in normal home use only. The warranty is void if serial numbers have
been altered or removed. The warranty is void if products show signs of abuse. The warranty is void if
the subwoofer has been tampered with.
The subwoofer requires at least 85-100 hours of actual break-in time period. During this time, refrain
from playing the unit at very loud levels. You will notice a definite gradual improvement as your unit
breaks in. Should servicing be required please contact your Totem Authorized Dealer.
We reserve the right to any future change or modification without notice.
For further assistance, contact your TOTEM AUTHORIZED DEALER or visit the Support Section of the
Totem website at www.totemacoustic.com/support
We very much would appreciate if you took the time to register your product online. Product
registration leads to quicker assistance and more efficient support in the rare case that your speaker
should have a problem. This can be done quickly and easily in the support section of our site:
https://totemacoustic.com/en/support/product-registration
Join the Totem Tribe and sign up for our newsletter at
totemacoustic.com
Follow and Like us on Facebook:
https://www.facebook.com/totemacoustic/
TOTEM LIMITED WARRANTY ON SUBWOOFERS
PRODUCT REGISTRATION
