NVX VCW102 User manual

Thank You for Choosing NVX
Congratulations on the purchase of your new NVX component subwoofer! The VC-Series Subwoofer you hold in your
hands is the culmination of an extensive research, development and real world testing process. While this isn’t the
easiest way to build a sub, the time and personal attention we dedicate reects in the quality and perfomance of the
nished product. We are proud to build NVX subwoofers, and are condent you will be proud to own one.

Specifications
VC-Series Subwoofers incorporate features designed to optimize performance, durability and usability in a real
automotive environment, including:
• Woven Fiber Pressed Paper Cone
Strong and lightweight material for accurate response and extreme SPL
• Heavy Duty Die Cast Aluminum Basket
High strength construction resulting in a durable, long lasting subwoofer
• Custom High Roll Foam Surround with Nylon Stitching
Specially treated to provide maximum excursion and power handling
• 195 oz. Triple stacked High Energy Magnet Structure (127 oz. for VCW102/04)
Promotes higher power handling
• 3.0” High Temperature Aluminum Voice Coil (2.5” for VCW102/04)
Provides maximum current distribution and power handling while effectively dissipating heat

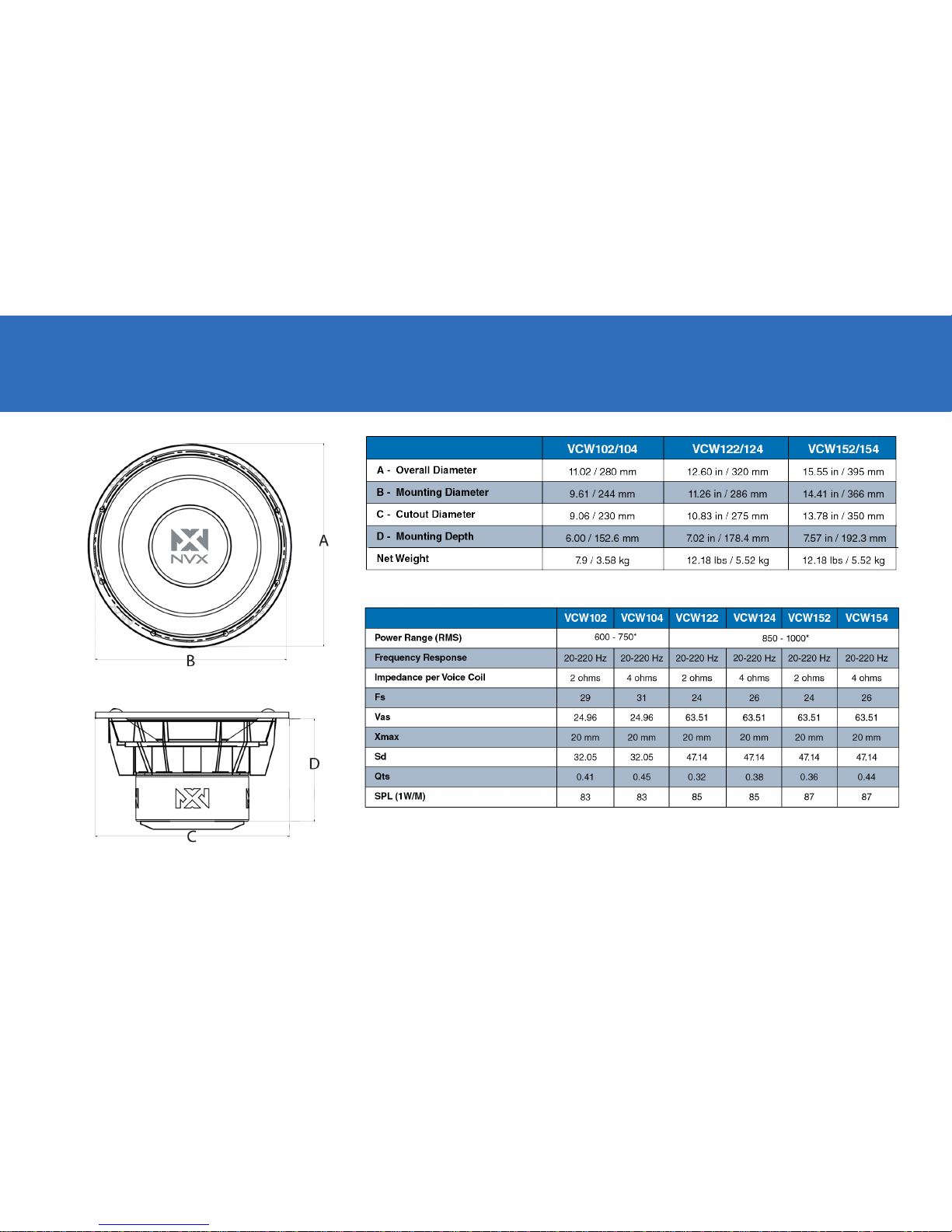

Specifications Continued
*Varies based on enclosure type and volume. See pages 4 and 5.

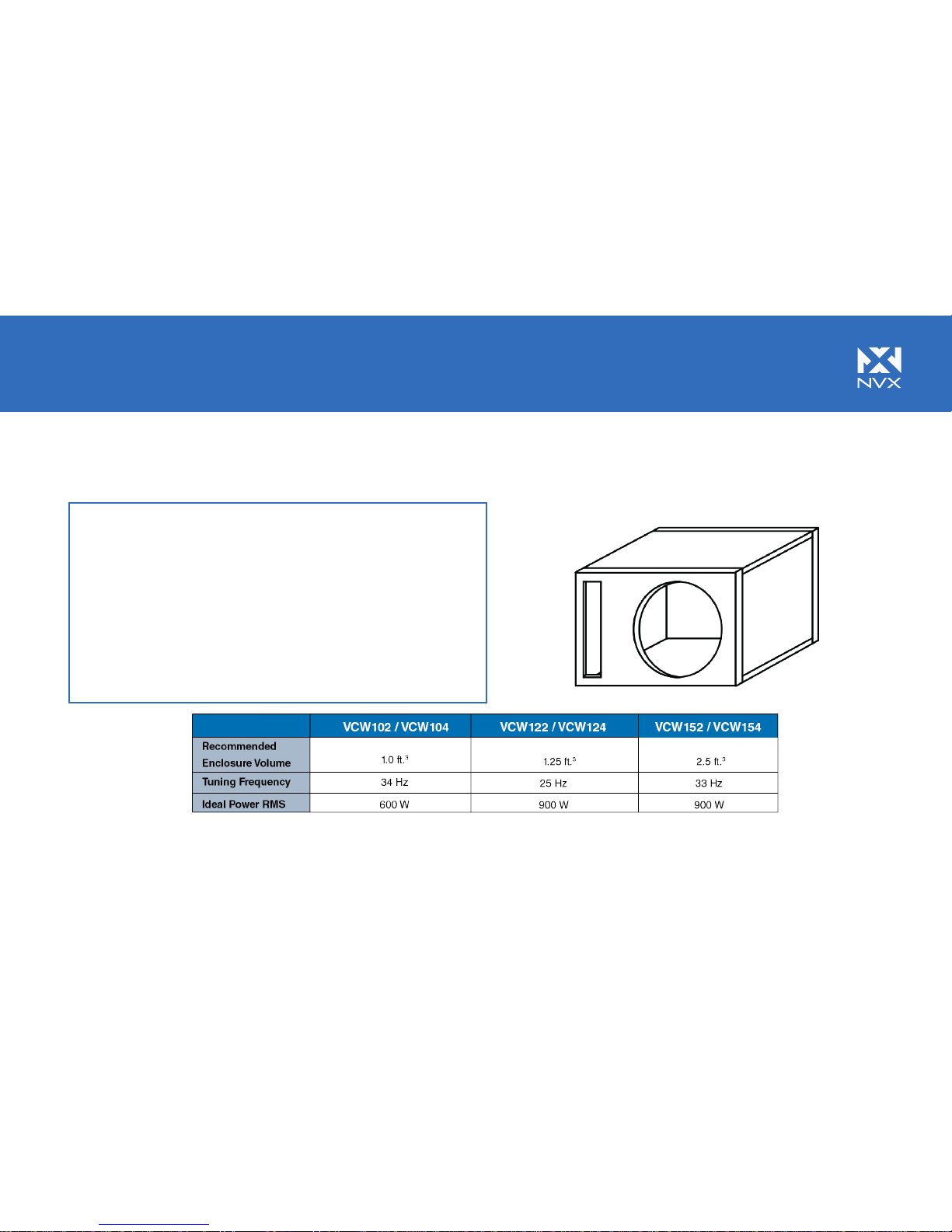

Ported Box - Ported Boxes are the enclosure type we
recommend for optimum performance of your
VC-Series Subwoofer. A ported box features a vent or port
to couple the woofer’s back-wave with the front-wave. This
results in markedly improved efciency and low frequency
response.
These enclosures are somewhat larger than the sealed
alternative.
Enclosures
The enclosure designs listed below will give you the best possible performance from your VC-Series subwoofer. NVX
woofers are optimized for use in both ported and sealed enclosures, each of which has distinct sonic characteristics.

Enclosures Continued

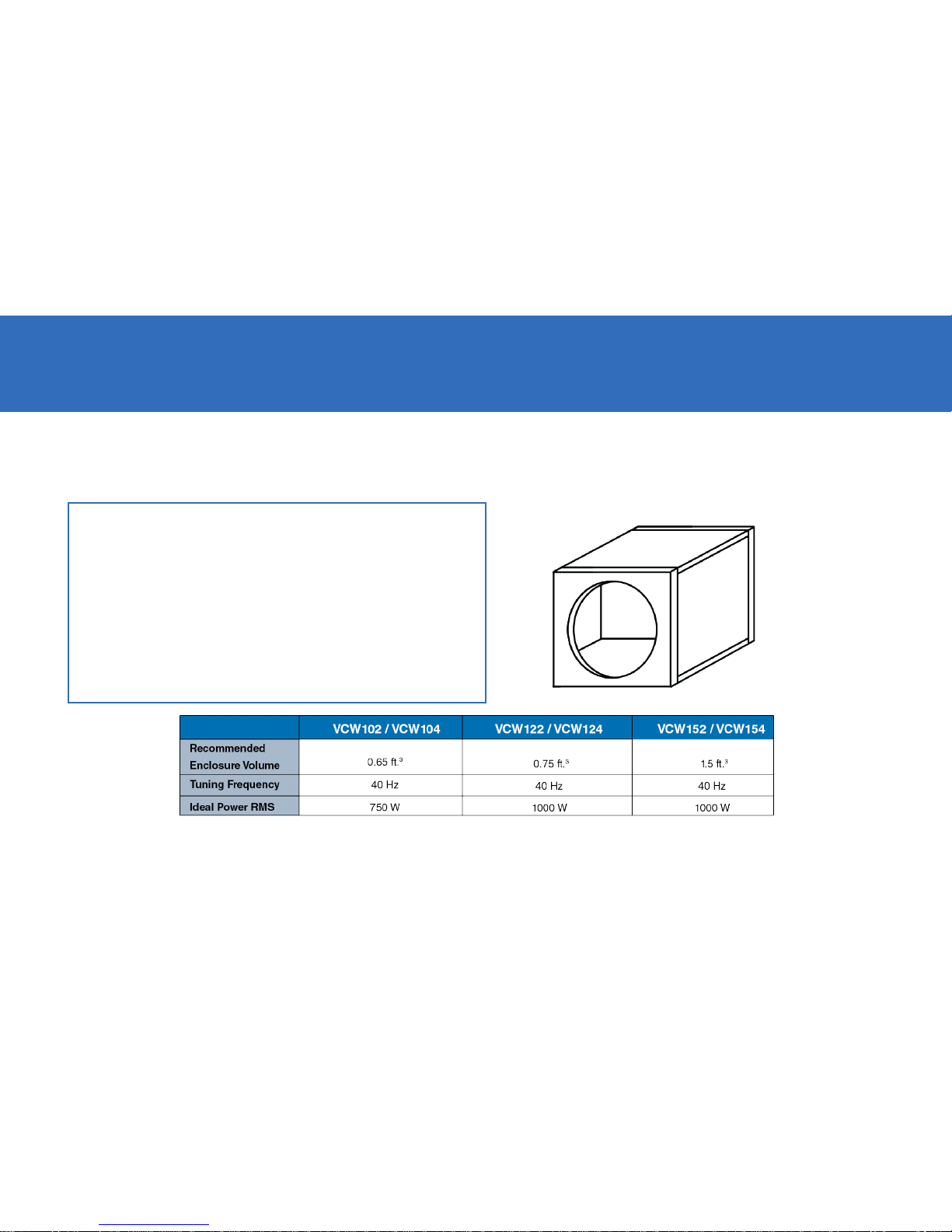

Sealed Boxes - A sealed enclosure offers improved acoustic
suspension and cone control, which reduces distortion and
increases the power handling capabilities of the subwoofer.
They are smaller than their ported counterparts, and offer
atter bass response with more consistency across the
frequency range.

Warranty
NVX warrants to the original retail purchaser that this product is to be free from defective materials and workmanship for a period of one (1) year from
the date of purchase, if it is properly used and maintained. If this product proves defective in either material or workmanship, NVX, at it’s discretion, will
(a) repair the product, or (b) replace the product, at no charge for parts or labor. If the product model is no longer available and cannot be repaired
effectively or replaced with an identical model, NVX at it’s sole option may replace the unit with a current model of equal or greater value. To obtain
a repair or replacement under the terms of this warranty, please return to dealer rst, if possible, and the dealer will direct you accordingly for repairs
or replacement. You will be required to submit a copy of the original receipt. Return shipping for exchanges/repairs is the sole responsibility of the
original retail purchaser.
Limitations:
• This limited warranty does not cover failure of the product resulting improper installation, misuse, abuse, accident, negelect, mishandling, or wear
from ordinary use or environmental deterioration.
• This limited warranty does not cover cosmetic damage, including paint damage, or consequential damage to ordinary use or environmental
deterioration.
• This limited warranty does not cover cosmetic damage, including paint damage, or consequential damage to other components or premises which
may result for any reason from the failure of the product.
• This limited warranty is null and void for products not used in accordance with NVX’s instructions.
• This limited warranty is null and void for products with altered or missing serial numbers and for products not purchased from an authorized dealer.
• This limited warranty terminates if you sell or otherwise transfer this product to another party.
• This limited warranty is null and void for any speaker or subwoofer that has been damaged due to over-powering causing burnt voice coils and /or
mechanical failures such as ripped spiders or surrounds.

Warranty Continued
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO
STATE, JURISDICTION TO JURISDICTION, OR COUNTRY TO COUNTRY. NVX’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN
HARDWARE IS LIMITED TO REPLACEMENT OR REPAIR AS SET FORTH IN THIS WARRANTY STATEMENT. ALL EXPRESS AND IMPLIED
WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME STATES, JURISDICTIONS, OR COUNTRIES
DO NOT ALLOW THE EXCLUSION OF CERTAIN IMPLIED WARRANTIES OR CONDITIONS, OR LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY OR CONDITION LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU. NVX DOES NOT ACCEPT LIABILITY FOR SPECIAL,
INDIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, ANY LIABILITY FOR THIRD PARTY CLAIMS
AGAINST YOU FOR DAMAGES OR FOR PRODUCTS NOT BEING AVAILABLE FOR USE. THE MAXIMUM LIABILITY FOR WHICH NVX MAY
BE RESPONSIBLE WILL BE NO MORE THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF THE CLAIM.
SOME STATES, JURISDICTIONS, OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INDIRECT,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Warranty Outside the U.S.
The Warranty on this product shall comply with applicable law when sold to a consumer outside of the United States. To obtain any applicable
warranty service, please contact the dealer from which you purchased this product, or the distributor that supplied this product.

Defective products should be returned to the place of purchase. Your Authorized NVX Dealer is trained to handle and expedite any warranty
claim. Assistance in locating an Authorized Dealer can be found at www.nvx.com or by contacting NVX directly.
Alternatively, if it becomes necessary for you to return defective product directly to NVX, please refer to the following instructions for
warranty service:
�Receive your RA Number from NVX online at www.nvx.com/support
�Package all defective components in the original packaging (if available) or in a package that will prevent shipping damage.
�Package the original packaging in an additional shipping container to avoid shipping damages and to comply with most shipping
couriers such as UPS and FedEx.
�Insure your return at the price paid as NVX is not responsible for insurance losses or damages occurring in shipment to our facility.
�Clearly mark RA Number on the outside shipping container.
� Return only defective components as the return of functioning items increases your return freight charges.
- Non-defective returns or products not eligible for warranty service will be returned freight collect.
� Include a copy of the original receipt with the purchase date clearly visible, and a “proof-of-purchase” statement listing the customer’s
name, dealer’s name and invoice number, and product purchased.
- Warranty expiration on items without proof-of-purchase will be determined from type of sale and the manufacturing date code.
� Ship your package freight prepaid to the address below. Items sent freight collect or COD will be refused.
NVX
15303 Ventura Blvd.
9th Floor
Sherman Oaks, CA 91403
Failure to follow the steps listed above may void your warranty. Any questions can be directed via email to [email protected] or via mail at the address listed above.
What To Do If You Need Warranty or Service
