Toughbook Arbitrator CCR24PNA User manual

---------------------------------------------------------------------------------------
Read this user guide carefully for safe operation and proper use of
the product.
Features and specifications are subject to change without
notification.
Toughbook Arbitrator
WIRELESS TRANSCEIVER SYSTEM
CCR24PNA
User Guide
VERSION 1.1

TABLE OF CONTENTS
114
SPECIFICATIONS
Power DC 12V for RX
Frequency (MHz) 2.4GHz FHSS with 2,400 ~ 2,483MHz
Number of Channel 95 Channels
Channel Space 864KHz
Speech Coder 32Kbps ADPCM with Parity
Type of Modulation GFSK MODULATION / DEMODULATION
Data Rate 576Kbps Time Division Duplex
Receiver Sensitivity
Power
Consumption
Min: -90 dBm
Typ.: -92 dBm to -94 dBm @BER = 0.001
Max: -96 dBm
Maximum when charging: 610mA
Battery Talk Time: 12 Hours
Charge Time: 3 Hours
Battery Capacity Lithium-Ion Polymer
3.7V DC/1300mA
TX Power Levels Approx. 260 mW
Temperature Range Operating: 32℉~ 113℉ ( 0°C ~ 45°C )
Storage: -4℉~ 113℉ ( -20℃~ 45℃)
Dimensions
(L x W x H) TX: 53mm x 25mm x 72.5mm
(2.1” x 1.0” x 2.9”)
RX: 100.5mm x 38.5mm x 67.5mm
(4.0” x 1.5” x 2.7”)
Section Page
Caution/Warning 2-4
Package Contents 5
Descriptions 6-10
Installation & Operation 11-12
Troubleshooting 13
Specifications 14

CAUTION
312
Warning
(1) Immediately discontinue use of the battery if, while using, charging, or
storing the battery, the battery emits an unusual smell, feels hot,
changes color, changes shape or appears abnormal in any other way.
Contact your authorized reseller or Panasonic if any of these
problems are observed.
(2) Do not place the batteries in microwave ovens, high-pressure containers,
or on induction cookware.
(3) In the event that the battery leaks and the fluid gets into one’s eye, do not
rub the eye. Rinse well with water and immediately seek medical care.
If left untreated the battery fluid could cause damage to the eye.
Caution
(1) If the device is to be used by small children, an adult should explain the
contents of the user’s manual to the children. The person should
provide adequate supervision to insure that the device is being used
as explained in the user’s manual.
(2) When the battery is worn out, insulate the terminals with adhesive tape or
similar materials before disposal.
Danger
Be sure to follow the rules listed below while charging the battery. Failure to
do so may cause the battery to become hot, explode, or ignite and
cause serious injury.
· When charging the battery, either use a specified battery charger or
otherwise insure that the battery charging conditions specified by
Panasonic are met.
· Do not attach the batteries to a power supply plug or directly to a vehicle’s
cigarette lighter.
· Do not place the batteries in or near fire, or into direct sunlight. When the
battery becomes hot, the built-in safety equipment is activated,
preventing the battery from charging further, and overheating the
battery, which would destroy the safety equipment and can cause add
itional heating, breaking, or ignition of the battery.
Charger Stand
TIP 1: How to undock TX from RX and Home Charger
INSTALLATION – Desktop Charger
Battery LED:
RED = Charging
GREEN = Fully Charged
Installation for Charger Stand
To prevent units from being broken, undock
the TX from the RX as shown in the image to
the right.

510
PACKAGE CONTENTS
- Transmitter (TX)
- Receiver (RX)
- Plug-in Microphone (MONO)
- Mounting Bracket for Receiver with Screws
- Rechargeable Li-Ion Battery
- Leather Pouch
- External Antenna
- Desktop Charger for Transmitter
- AC Power Supply for Desktop Charger
- Charger Stand for Desktop Charger
- RF Main Cable
- In-car Microphone (MIC)
- User Guide
Mode TALK REC Low
Battery Out of Range Mute
TALK
REC
OFF:
GREEN
On
REC:
GREEN
Blink
LED OFF
LED +
Vibration GREEN On
Vibration
(1 time
only)
Vibration
(1 time
per
second)
Vibration
(2 times
per 3
seconds)
Vibration
(1 time
per 5
seconds)
GREEN
Blink RED Blink RED On
LED OFF
Vibration LED
OFF LED OFF LED OFF
No
Vibration
No
LED
No Vibration
LED OFF (GREEN Off , RED Off)
TALK:
Green On &
Red Fast
Blink
REC:
Green Blink
& Red Fast
Blink
DESCRIPTION – Transmitter (TX) LED’s
Vibration
(1 time
only)
Vibration
(1 time
per
second)
Vibration
(2 times
per 3
seconds)
Vibration
(1 time
per 5
seconds)
Notes:
1) After synchronization, the mode goes back to its previous selected mode
2) When TX is Off and inserted to RX, there will be no synchronization
3) If the TX goes out of range, it will resume its previous status when it
comes back into range

7 8

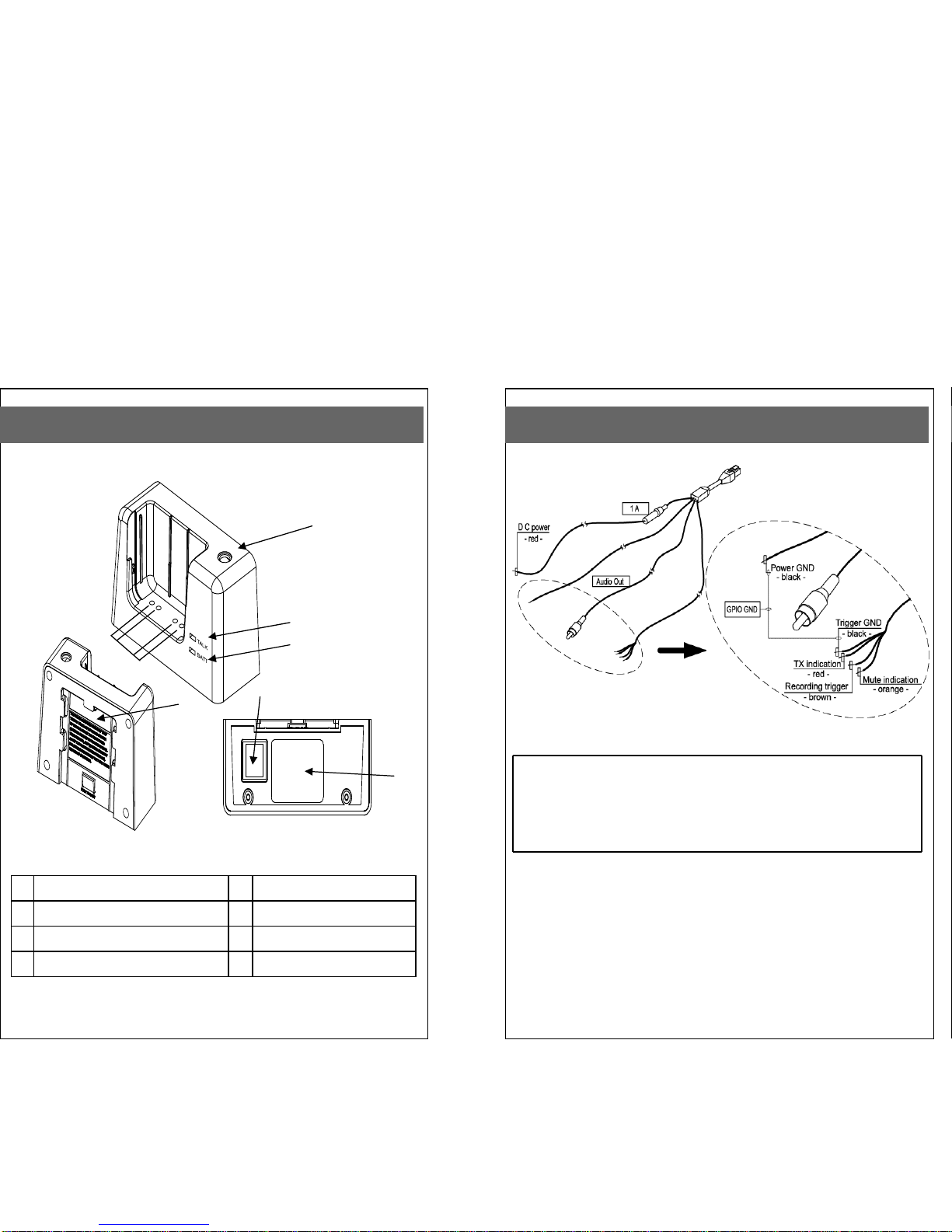

DESCRIPTION - Receiver
1Antenna Connection 5Serial Number Label
2Audio Recording LED 6Main Cable Connection
3Battery Charging LED 7FCC, UL, IC Labels
4Charging PIN/Matching ID
1
2
3
4
56
7
DESCRIPTION – RF Main Cable
Connection with the system
- Audio Out: Connects to “Audio In” port in the back of the recorder
- Power (Red), Power GND (Black): Connect to the engine battery
- TX Indication (Red): Connect to GPIO cable
- Mute Indication (Orange): Connect to GPIO cable
- Trigger REC (Brown): Connect to GPIO cable
- Trigger GND (Black): Connect to GPIO ground cable
Important:
-The following ground cables have to be connected together
- CCR24PNA Power ground cable
- CCR24PNA Trigger ground cable
- Recorder GPIO ground cable

9 6
DESCRIPTION – Receiver (RX) LED’s
Note: When the TX is docked in
the RX, the GREEN Talk LED will
blink once. If it continues to blink,
please refer to Troubleshooting
section for more details.
Note: When fully charged, the TX
stops drawing current from the
battery to prevent overcharging.
Audio Recording LED:
GREEN = Unit recording
(after the TX Talk button has
been pressed)
Battery Charging LED:
RED = Charging
GREEN = Fully charged
DESCRIPTION – Transmitter (TX)
12
3
4 6 7
8
11
910
5
1Built-in MIC 7LED Indicator (see pg 10)
2FCC, IC, UL Labels 8Talk Button
3Serial # Label 9Mode Selection Button
4TX Power On/Off Switch 10 Mute Button
5Battery Cover 11 Lapel MIC Input
6LED Indicator (see pg 10)

11 4
INSTALLATION & OPERATION
Installation:
1) Install the mounting bracket by using the screws
2) Slide the RX Set onto the bracket
3) Connect the main cable to the RX
4) Connect external antenna to the RX
Operation:
1) Charge the TX for at least 3 hours
2) Switch the power on (located on the bottom of the TX)
3) Place the TX into the RX to synchronize
Note: Disconnect the battery or turn off the device when the TX is not in use
for long periods of time
CAUTION
Warning
Do not continue charging the battery if it does not charge within the specified
charging time. Doing so may cause the battery to become hot,
explode, or ignite. There is a risk of explosion if the battery is replaced
by an incorrect type.
Dispose of used batteries according to the instructions.
2. While Charging
Caution
The temperature range over which the battery can be charged is
10°C to 45°C. Charging the battery at temperatures outside of this
range may cause the battery to become hot or to break. Charging the
battery outside of this temperature range may also harm the
performance of the battery or reduce the battery’s life expectancy.
3. When Discharging the Battery
Danger
Do not discharge the battery using any device except for the specified device.
When the battery is used in devices aside from the specified device it
may damage the performance of the battery or reduce its life
expectancy, and if the device causes an abnormal current to flow, it
may cause the battery to become hot, explode, or ignite and cause
serious injury.
Caution
The temperature range over which the battery can be discharged is
-10°C to 45°C. Use of the battery outside of this temperature range
may damage the performance of the battery or may reduce its life
expectancy.
Antenna Location:
1) Place external antenna on the windshield at the point
(Horizontal or Vertical) as shown in the following picture:
Installation must only be conducted by a qualified technician

13 2
TROUBLESHOOTING
Problem Check points
No reception -Check the battery status
-Check the connection and cables
- Check the communication range
Poor reception,
static, noise
- Change the location of the RX
- Check the communication range
- Check to see if unit is placed near
TV, speakers, or other electronic
devices
Unit does not
respond
- Check the battery status
- Check the power switch on the bottom
of the unit
- Check the connection and cables
- If the problem persists, please contact
technical support
Blinking GREEN
Talk LED on TX
AND
blinking GREEN
LED on RX
(when TX is
docked in RX)
- Remove and re-insert the RF Main
Cable to restart the unit.
- If the problem persists, please contact
technical support
TIP 2: Preserving the Batteries
CAUTION
1. When Using the Battery
Danger
(1) Misusing the battery may cause the battery to get hot, explode,
or ignite and cause serious injury. Be sure to follow the safety rules
listed below:
- Do not place the battery in fire or heat the battery.
- Do not install the battery backwards so that the polarity is reversed.
- Do not connect the positive terminal and the negative terminal of the
battery to each other with any metal object (such as a wire).
- Do not carry or store the batteries together with necklaces, hairpins, or
other metal objects.
- Do not pierce the battery with nails, strike the battery with a hammer, step
on the battery, or otherwise subject it to strong impacts or shocks.
- Do not solder directly onto the battery.
- Do not expose the battery to water or salt water, or allow the battery to get
wet.
(2) Do not disassemble or modify the battery. The battery contains safety
and protection devices which, if damaged, may cause the battery to
generate heat, explode or ignite.
(3) Do not place the battery on or near fires, stoves, or other high
temperature locations. Do not place the battery in direct sunlight, or
use/store the battery inside cars in hot weather. Doing so may cause
the battery to generate heat, explode, or ignite. Using the battery in
this manner may also result in a loss of performance and a shortened
life expectancy.
(4) Do not insert the battery into equipment designed to be hermetically
sealed. In some cases hydrogen or oxygen may be discharged from
the cell which may result in rupture, fire or explosion.
To maintain the optimum capacity of the pack, the unit has to be
fully discharged every 6 months. This can be accomplished by
leaving the unit on. Then recharge the battery to full capacity
again.
