Kenwood TK-7180 User manual

TK-7180/ TK-8180
TK-7189/ TK-8189
VHF FM TRANSCEIVER/ UHF FM TRANSCEIVER
INSTRUCTION MANUAL
ÉMETTEUR-RÉCEPTEUR FM VHF/ ÉMETTEUR-RÉCEPTEUR FM UHF
MODE D’EMPLOI
TRANSCEPTOR FM VHF/ TRANSCEPTOR FM UHF
MANUAL DE INSTRUCCIONES
RICETRASMETTITORE FM VHF/ RICETRASMETTITORE FM UHF
MANUALE DI INSTRUZIONI
VHF-FM-TRANSCEIVER/ UHF-FM-TRANSCEIVER
BEDIENUNGSANLEITUNG
VHF FM ZENDONTVANGER/ UHF FM ZENDONTVANGER
GEBRUIKSAANWIJZING
© B62-1767-10 (E)
09 08 07 06 05 04 03 02 01
123
456
789
0
#

VHF FM TRANSCEIVER/
UHF FM TRANSCEIVER
TK-7180/ TK-8180
TK-7189/ TK-8189
INSTRUCTION MANUAL
ENGLISH

i
THANK YOU
We are grateful you chose KENWOOD for your personal mobile applications.
We believe this easy-to-use transceiver will provide dependable communications
to keep personnel operating at peak efficiency.
KENWOOD transceivers incorporate the latest in advanced technology. As a
result, we feel strongly that you will be pleased with the quality and features of
this product.
MODELS COVERED BY THIS MANUAL
The models listed below are covered by this manual:
•TK-7180: VHF FM Transceiver
•TK-7189: VHF FM Transceiver (with front panel keypad)
•TK-8180: UHF FM Transceiver
•TK-8189: UHF FM Transceiver (with front panel keypad)
NOTICES TO THE USER
◆Government law prohibits the operation of unlicensed transmitters within the territories under
government control.
◆Illegal operation is punishable by fine and/or imprisonment.
◆Refer service to qualified technicians only.
SAFETY: It is important that the operator is aware of, and understands, hazards
common to the operation of any transceiver.
◆EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.)
Turn OFF your transceiver while taking on fuel or while parked in gasoline service stations. Do not
carry spare fuel containers in the trunk of your vehicle if your transceiver is mounted in the trunk area.
◆INJURY FROM RADIO FREQUENCY TRANSMISSIONS
Do not operate your transceiver when somebody is either touching the antenna or standing within
2 to 3 feet (60 to 90 cm) of it, to avoid the possibility of radio frequency burns or related physical
injury.
◆DYNAMITE BLASTING CAPS
Operating the transceiver within 500 feet (150 m) of dynamite blasting caps may cause them to
explode. Turn OFF your transceiver when in an area where blasting is in progress, or where
“TURN OFF TWO-WAY RADIO” signs have been posted. If you are transporting blasting caps in
your vehicle, make sure they are carried in a closed metal box with a padded interior. Do not
transmit while the caps are being placed into or removed from the container.

ii
PRECAUTIONS
Observe the following precautions to prevent fire, personal injury, and transceiver
damage.
•Do not attempt to configure the transceiver while driving; it is too dangerous.
•Do not disassemble or modify the transceiver for any reason.
•Do not expose the transceiver to long periods of direct sunlight, nor place it near
heating appliances.
•Do not place the transceiver in excessively dusty, humid, or wet areas, nor on unstable
surfaces.
•If an abnormal odor or smoke is detected coming from the transceiver, switch the
transceiver power off immediately, and contact your KENWOOD dealer.
•Use of the transceiver while you are driving may be against traffic laws. Please check
and observe the vehicle regulations in your area.
•Do not use options not specified by KENWOOD.
◆The transceiver operates in 12 V negative ground systems only! Check the battery polarity and
voltage of the vehicle before installing the transceiver.
◆Use only the supplied DC power cable or a KENWOOD optional DC power cable.
◆Do not cut and/or remove the fuse holder on the DC power cable.
For passenger safety, install the transceiver securely using the supplied mounting bracket and screw
set so the transceiver will not break loose in the event of a collision.

iii
CONTENTS
UNPACKING AND CHECKING EQUIPMENT ................................... 1
SUPPLIED ACCESSORIES ..................................................................... 1
PREPARATION .................................................................................. 2
TOOLS REQUIRED .............................................................................. 2
POWER CABLE CONNECTION ............................................................... 2
INSTALLING THE TRANSCEIVER .............................................................. 3
GETTING ACQUAINTED ................................................................... 4
FRONT PANEL ................................................................................... 4
REAR PANEL ..................................................................................... 4
DISPLAY ........................................................................................... 6
PROGRAMMABLE FUNCTIONS ...................................................... 7
BASIC OPERATIONS ........................................................................ 8
OVERVIEW ......................................................................................... 8
SWITCHING POWER ON/ OFF ............................................................. 8
ADJUSTING THE VOLUME ..................................................................... 8
SELECTING AZONE AND CHANNEL ........................................................ 9
TRANSMITTING ................................................................................... 9
RECEIVING ........................................................................................ 9
CONVENTIONAL SCAN .................................................................. 10
ADD TO SCAN/ DELETE FROM SCAN ................................................... 10
SCAN REVERT ................................................................................. 11
PRIORITY SCAN ............................................................................... 11
QUIET TALK (QT)/ DIGITAL QUIET TALK (DQT) .......................... 12
OPERATOR SELECTABLE TONE (OST) ................................................ 12
5-TONE SIGNALING ........................................................................ 13
MAKING ASELCALL (SELECTIVE CALL)............................................... 13
TRANSMITTING ASTATUS MESSAGE .................................................... 13
RECEIVING SELCALLS AND STATUS MESSAGES ..................................... 14
REVIEWING MESSAGES IN THE QUEUE MEMORY .................................... 14

iv
FleetSync: ALPHANUMERIC 2-WAY PAGING FUNCTION........... 15
SELCALL (SELECTIVE CALLING)......................................................... 15
STATUS MESSAGE ............................................................................ 16
SHORT MESSAGES ........................................................................... 17
LONG MESSAGES ............................................................................. 17
GPS REPORT ................................................................................. 17
DTMF (DUAL TONE MULTIE FREQUENCY) CALLS .................... 18
MANUAL DIALING ............................................................................. 18
AUTODIAL ....................................................................................... 18
REDIAL ........................................................................................... 18
CONNECT/ DISCONNECT IDS.............................................................. 19
DTMF SIGNALING ........................................................................... 19
STUN ............................................................................................. 19
EMERGENCY CALLS ...................................................................... 20
ADVANCED OPERATIONS ............................................................. 21
TALK AROUND ................................................................................. 21
MONITOR/ SQUELCH OFF .................................................................. 21
SCRAMBLER .................................................................................... 22
CLOCK ........................................................................................... 22
LCD BRIGHTNESS ........................................................................... 23
HORN ALERT ................................................................................... 23
PUBLIC ADDRESS (PA)..................................................................... 23
BACKGROUND OPERATIONS ....................................................... 24
TIME-OUT TIMER (TOT) ................................................................... 24
BUSY CHANNEL LOCKOUT (BCL) ...................................................... 24
SIGNAL STRENGTH INDICATOR ............................................................ 24
BEGINNING/ END OF TRANSMIT SIGNAL ............................................... 24
VGS-1 OPTIONAL VOICE GUIDE & STORAGE UNIT ................... 25
VOICE RECORDER ............................................................................ 25
VOICE GUIDE .................................................................................. 26

1
UNPACKING AND CHECKING EQUIPMENT
Note: The following unpacking instructions are for use by your KENWOOD dealer, an authorized
KENWOOD service facility, or the factory.
Carefully unpack the transceiver. We recommend that you identify the items
listed in the following table before discarding the packing material. If any items
are missing or have been damaged during shipment, file a claim with the carrier
immediately.
SUPPLIED ACCESSORIES
DC power cable
(with fuses)
Mounting bracket Screw set
metI rebmuNtraP ytitnauQ
elbacrewopCDXX-3257-03E1
)A51(esuF•XX-4200-25F2
tekcarbgnitnuoMXX-2660-92J1
:teswercS
XX-9302-99N1
)seceip4(wercsgnippat-fleS•
)seceip4(rehsawhtiwwercsdedaeh-xeH•
)seceip4(rehsawgnirpS•
)seceip4(rehsawtalF•
launamnoitcurtsnIXX-7671-26B1

2
Various electronic equipment in your vehicle may malfunction if they are not properly protected from
the radio frequency energy which is present while transmitting. Electronic fuel injection, anti-skid
braking, and cruise control systems are typical examples of equipment that may malfunction. If your
vehicle contains such equipment, consult the dealer for the make of vehicle and enlist his/her aid in
determining if they will perform normally while transmitting.
Note: The following preparation instructions are for use by your KENWOOD dealer, an authorized
KENWOOD service facility, or the factory.
TOOLS REQUIRED
Note: Before installing the transceiver, always check how far the mounting screws will extend below
the mounting surface. When drilling mounting holes, be careful not to damage vehicle wiring or parts.
The following tools are required for installing the transceiver:
•1/14 inch (6 mm) or larger electric drill
•5/32 inch (4.2 mm) drill bit for the self-tapping screws
•Circle cutters
POWER CABLE CONNECTION
◆The transceiver operates in 12 V negative ground systems only! Check the battery polarity and
voltage of the vehicle before installing the transceiver.
◆Use only the supplied DC power cable or a KENWOOD optional DC power cable.
◆Do not cut and/or remove the fuse holder on the DC power cable.
1Check for an existing hole, conveniently located in the firewall, where the
power cable can be passed through. If no hole exists, use a circle cutter to
drill the firewall, then install a rubber grommet.
2Run the two power cable leads through the firewall and into the engine
compartment, from the passenger compartment.
3Connect the red lead to the positive (+) battery terminal and the black lead to
the negative (–) battery terminal.
•Locate the fuse as close to the battery as possible.
4Coil and secure the surplus cable with a retaining band.
•Be sure to leave enough slack in the cables so the transceiver can be removed for
servicing while keeping the power applied.
PREPARATION

3
INSTALLING THE TRANSCEIVER
For passenger safety, install the transceiver securely using the supplied mounting bracket and screw
set so the transceiver will not break loose in the event of a collision.

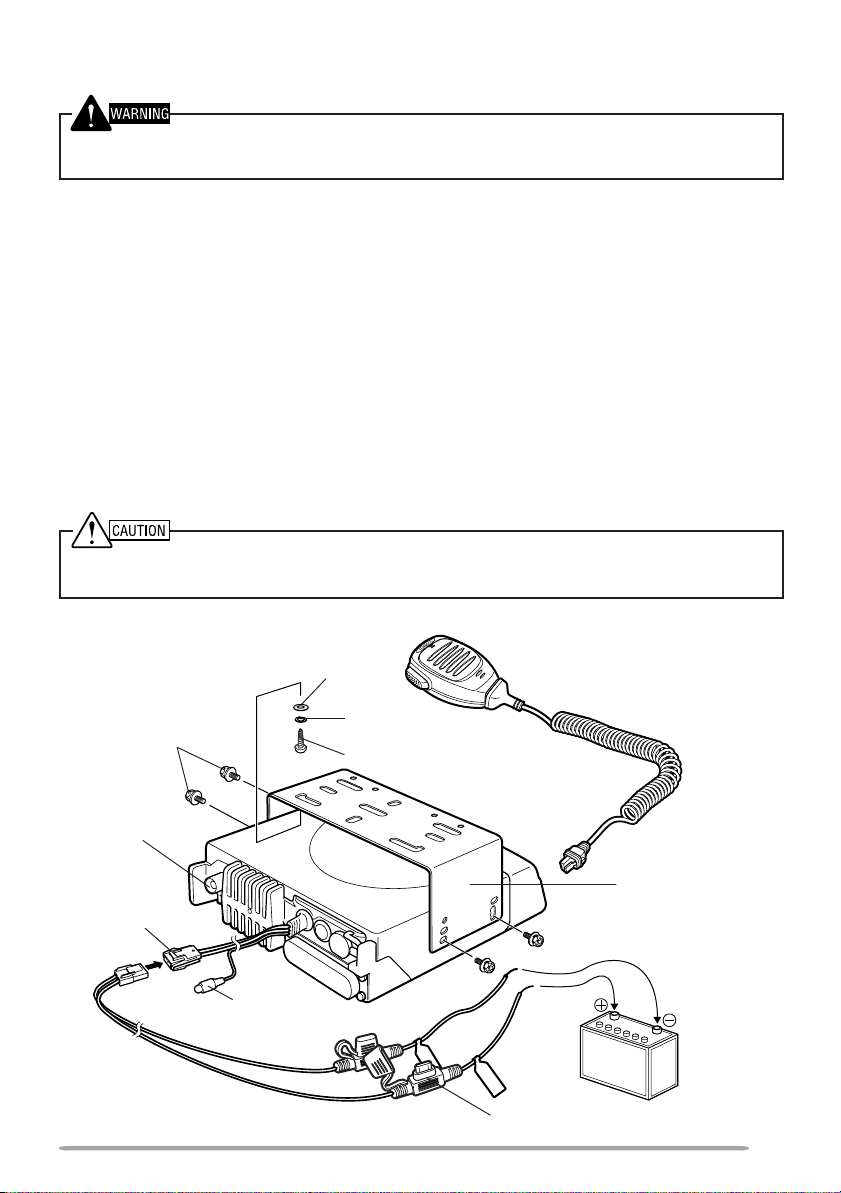

1Mark the position of the holes in the dash by using the mounting bracket as a
template. Drill the holes, then attach the mounting bracket using the supplied
self-tapping screws.
•Be sure to mount the transceiver in a location where the controls are within easy
reach of the user and where there is sufficient space at the rear of the transceiver
for cable connections.
2Connect the antenna and the supplied power cable to the transceiver.
3Slide the transceiver into the mounting bracket and secure it using the
supplied hex-headed screws.
4Mount a microphone hanger in a location where it will be within easy reach of
the user.
•The optional microphone and microphone cable should be mounted in a place
where they will not interfere with the safe operation of the vehicle.
When replacing the fuse in the DC power cable, be sure to replace it with a fuse of the same value.
Never replace a fuse with a fuse that has a higher value.
Hex-headed
screws
DC power
cable
Mounting bracket
Antenna
connector
Power input
connector
Fuse
Black (–)
cable Red (+)
cable
12 V vehicle
battery
Optional microphone
Self-tapping screw
Spring washer
Flat washer
Ignition
sense cable

4
GETTING ACQUAINTED

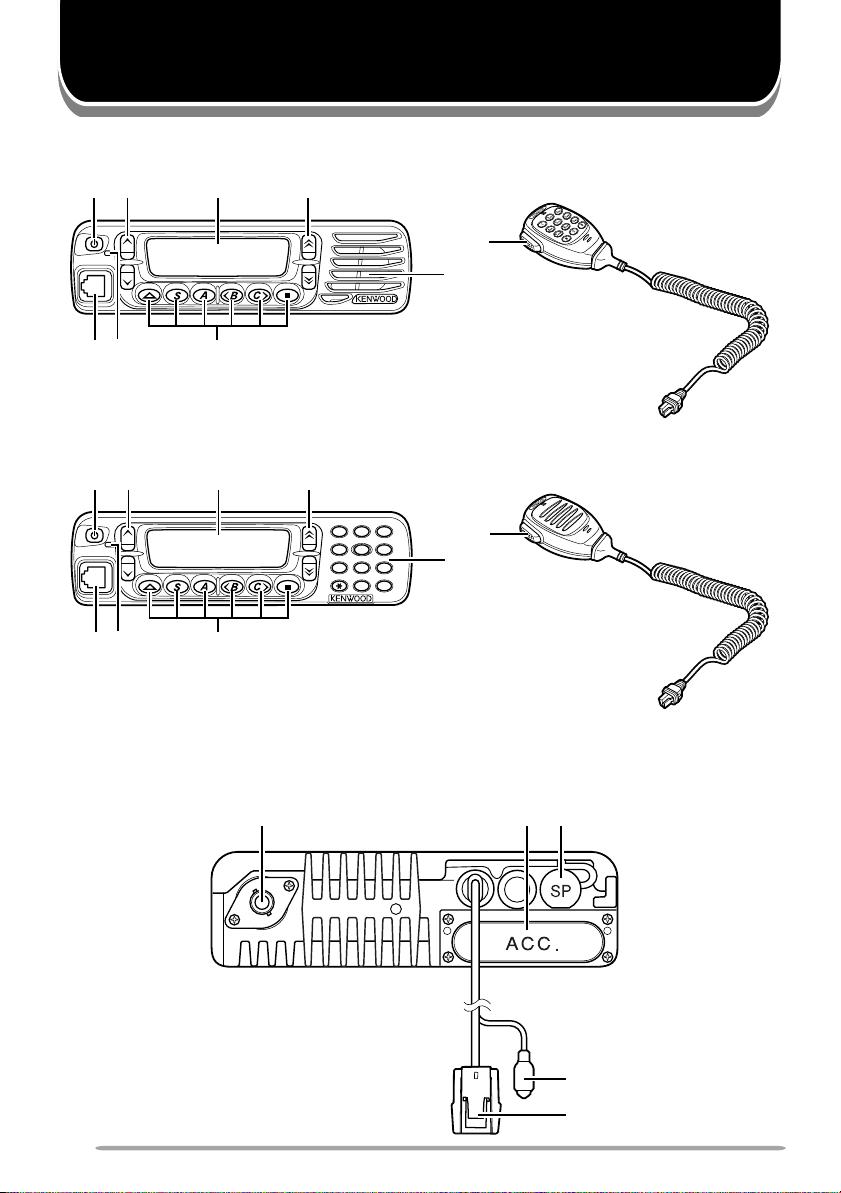

FRONT PANEL
qw e r
ia
o
ty u
TK-7180/ TK-8180
123
456
789
0
#
qw e r
ib
o
ty u
TK-7189/ TK-8189
REAR PANEL
!0 !2
!3
!4
!1

5
qq
qq
q(Power) switch
Press to switch the transceiver ON. Press again to switch the transceiver
OFF.
ww
ww
w/ keys
Press to activate their programmable functions {page 7}.
ee
ee
eDisplay
Refer to page 6.
rr
rr
r/ keys
Press to activate their programmable functions {page 7}.
tt
tt
tMicrophone jack
Insert the microphone plug into this jack.
yy
yy
yTransmit/ Busy/ Call indicator
Lights red while transmitting, green while receiving, and orange while
receiving a call using optional signaling.
uu
uu
u, S, A, <B, C>, ■keys
Press to activate their programmable functions {page 7}.
ii
ii
i
a) Speaker (TK-7180/ TK-8180)
Internal speaker.
b) DTMF Keypad (TK-7189/ TK-8189)
Press the keys on the keypad to make DTMF calls {page 18} or to activate
their programmable functions {page 7}.
oo
oo
oPTT (Push-to-Talk) switch
Press and hold this switch, then speak into the optional microphone to call a
station.
!0!0
!0!0
!0 Antenna connector
Attach the vehicle antenna to this connector {page 3}.
!1!1
!1!1
!1 ACC. (accessory) connector
Connect external KENWOOD accessories to this connector.
!2!2
!2!2
!2 SP (speaker) jack
Connect an external speaker to this jack.
!3!3
!3!3
!3 Ignition sense line
Connect the vehicle ignition sensor to this line.
!4!4
!4!4
!4 Power input connector
Attach the supplied DC power cable to this connector {page 3}.

6

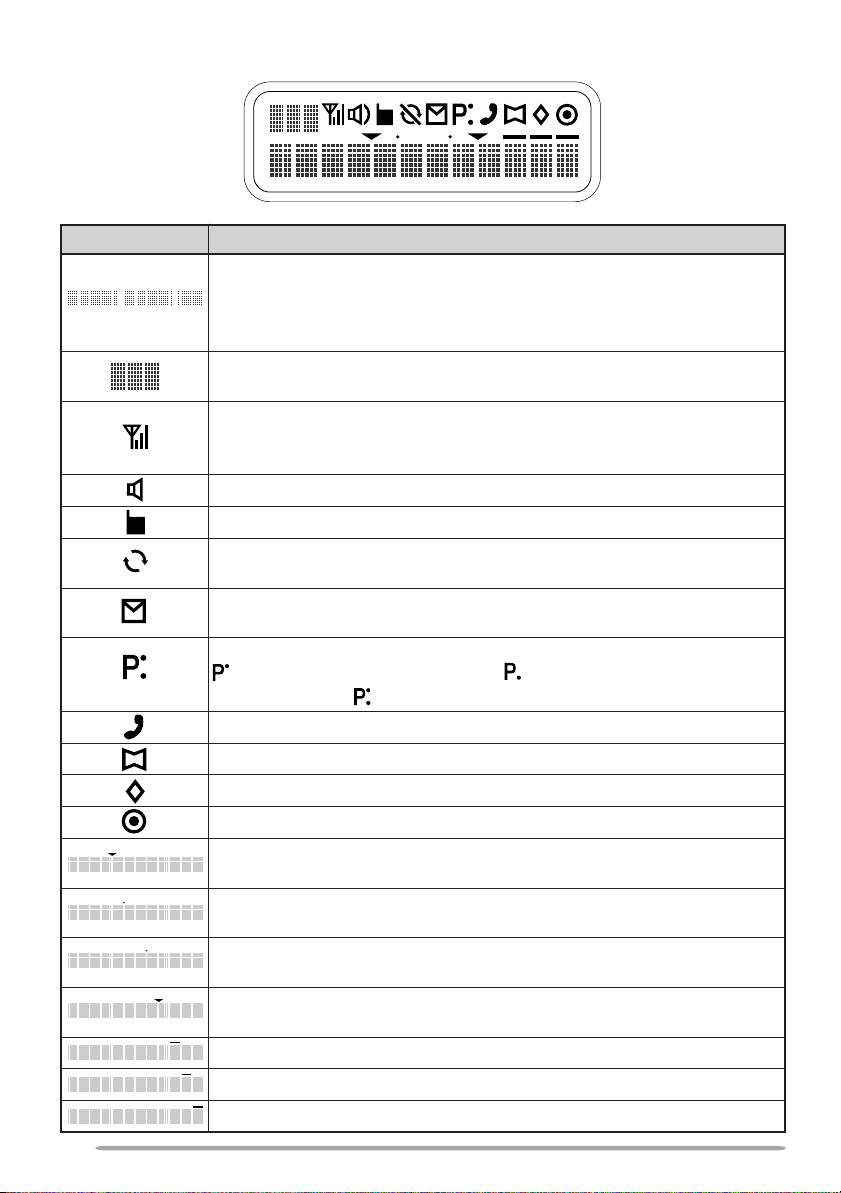

DISPLAY
rotacidnI noitpircseD
nacrelaedruoY.srebmunlennahcdnaenozehtsyalpsiD
ni,sretcarahc21otpuhtiwsemanlennahcdnaenozmargorp
cnySteelFdnaenot-5deviecersyalpsidoslA.srebmunfoecalp
.segassem
tsilsyalpsidoslA.srebmunlennahcdnaenozehtsyalpsiD
.senoTelbatceleSrotarepOrofsrebmun
3lladnaannetnanA.slangisdeviecerfohtgnertsehtsyalpsiD
ybannetnaehtelihwslangisgnortsstneserpersrabhtgnerts
.slangiskaewstneserper)srabhtgnertson(flesti
.detavitcasiffOhcleuqSrorotinoMnehwsraeppA
.detavitcaneebsahnoitcnufdnuorAklaTehtnehwsraeppA
detcelesehtnehwroedomnacSgnisuerauoynehwsraeppA
.enozllaClennahCeerFrognitoVasienoz
egassemanehwsthgiL.egassemaevieceruoynehwsehsalF
.yromemeueuqehtniderotssi
.ytiroirpsademmargorpsilennahcdetcelesehtnehwsraeppA
,1lennahCytiroirPstneserperytiroirPstneserper
dna,2lennahC.2dna1slennahCytiroirPstneserper
.reviecsnartsihtnodesutonsinocisihT
.detavitcasinoitcnuftrelAnroHehtnehwsraeppA
.detavitcasinoitcnufrelbmarcSehtnehwsraeppA
.detavitcasinoitcnufsserddAcilbuPehtnehwsraeppA
gninnacsehtotdeddasienozdetcelesehtnehwsraeppA
.ecneuqes
1-SGVehtnonoitcnufgnidroceRotuAehtnehwsraeppA
.detavitcasinoitpo
sinoitpo1-SGVehtnoegasseMylpeRotuAnanehwsraeppA
.detavitca
gninnacsehtotdeddasilennahcdetcelesehtnehwsraeppA
.ecneuqes
.detavitcaneebsahnoitcnufAXUAehtnehwsraeppA
.detavitcaneebsahnoitcnufBXUAehtnehwsraeppA
.detavitcaneebsahnoitcnufTSOehtnehwsraeppA

7
PROGRAMMABLE FUNCTIONS
The , , , , , S, A, <B, C>, ■, DTMF (TK-7189/ TK-8189 only) keys, and
optional microphone with DTMF keypad can be programmed with the functions
listed below. Please contact your dealer for further details on these functions.
•Auto Reply Message 1, 2
•Autodial
•Autodial Programming
•AUX A
•AUX B
•Call 1 ~ Call 6
•CH/GID Down
•CH/GID Down (Continuous)
•CH/GID Recall
•CH/GID Up
•CH/GID Up (Continuous)
•Channel Entry
•Clock
•Digit 1x Down 3
•Digit 10x Down 3
•Digit 1x Up 3
•Digit 10x Up 3
•Direct CH/GID 1 ~ 5
•Direct CH/GID 1 ~ 5 Select
•Display Character
•Emergency 4
•Fixed Volume
•Function
•Home CH/GID
•Home CH/GID Select
•Horn Alert
•LCD Brightness
•Lone Worker
•Monitor
•Monitor Momentary
•None
•OST
•Playback 2
•Priority Channel Select
•Public Address
•Queue
•Receive Entry 3
•Scan
•Scan Delete/Add
•Scrambler
•Scrambler Code
•Selcall
•Selcall + Status
•Send the GPS data 1
•Squelch Level
•Squelch Off
•Squelch Off Momentary
•Status
•Talk Around
•Transceiver Password
•Transfer 3
•Voice Memo 2
•Volume Down
•Volume Down (Continuous)
•Volume Up
•Volume Up (Continuous)
•Zone Delete/Add
•Zone Down
•Zone Down (Continuous)
•Zone Up
•Zone Up (Continuous)
1“Auto Reply Message” and “Send the GPS data” can be used only for FleetSync.
2“Auto Reply Message”, “Playback”, and “Voice Memo” can be programmed only when the optional
VGS-1 board has been installed.
3“Digit 1x Down”, “Digit 10x Down”, “Digit 1x Up”, “Digit 10x Up”, “Receive Entry”, and “Transfer”
can be programmed only for 5-tone calls.
4“Emergency” can be programmed only on the key.

8
BASIC OPERATIONS
OVERVIEW
Your dealer can program your transceiver with Conventional, Voting, Voting with
Signaling, and Free Channel Call zones. The transceiver can handle up to 128
zones with up to 250 channels in each zone and a total combined maximum of
512 channels. Zones, channels, and their functions are programmed by your
dealer.
SWITCHING POWER ON/ OFF
Press the switch to switch the transceiver ON.
•Abeep sounds and the display momentarily lights up.
•If the Transceiver Password function is programmed, “ ” appears on the
display. You must enter the password to unlock the transceiver. Refer to “Transceiver
Password”, below.
Press the switch again to switch the transceiver OFF.
■TRANSCEIVER PASSWORD
To enter the password:
1Press the and keys to select a digit.
2Press the C> key to accept the entered digit and move to the next digit.
•Press the Akey to delete an incorrect character. Press and hold the Akey to
delete all entered characters.
•Repeat steps 1 and 2 to enter the entire password.
3Press the Skey to confirm the password.
•If you enter an incorrect password, an error tone sounds and the transceiver
remains locked.
To enter the password using a DTMF keypad:
1Press the DTMF keys corresponding to the password digits.
•Press the DTMF #key to delete an incorrect character. Press and hold the
DTMF #key to delete all entered characters.
2Press the DTMF key to confirm the password.
•If you enter an incorrect password, an error tone sounds and the transceiver
remains locked.
ADJUSTING THE VOLUME
Press the key programmed as Volume Up to increase the volume and Volume
Down to decrease the volume.

9
SELECTING AZONE AND CHANNEL
Select the desired zone using the keys programmed as Zone Up and Zone
Down.
Select the desired channel using the keys programmed as CH/GID (Channel/
Group ID) Up and CH/GID (Channel/ Group ID) Down.
Names can be programmed for zones and channels with up to 12 characters
each. However, to fit on the display, names will be abbreviated. Your dealer can
set the zone name to a length of 0 to 12 digits. Channel names will shorten
appropriately, to fit in the 12-digit display.

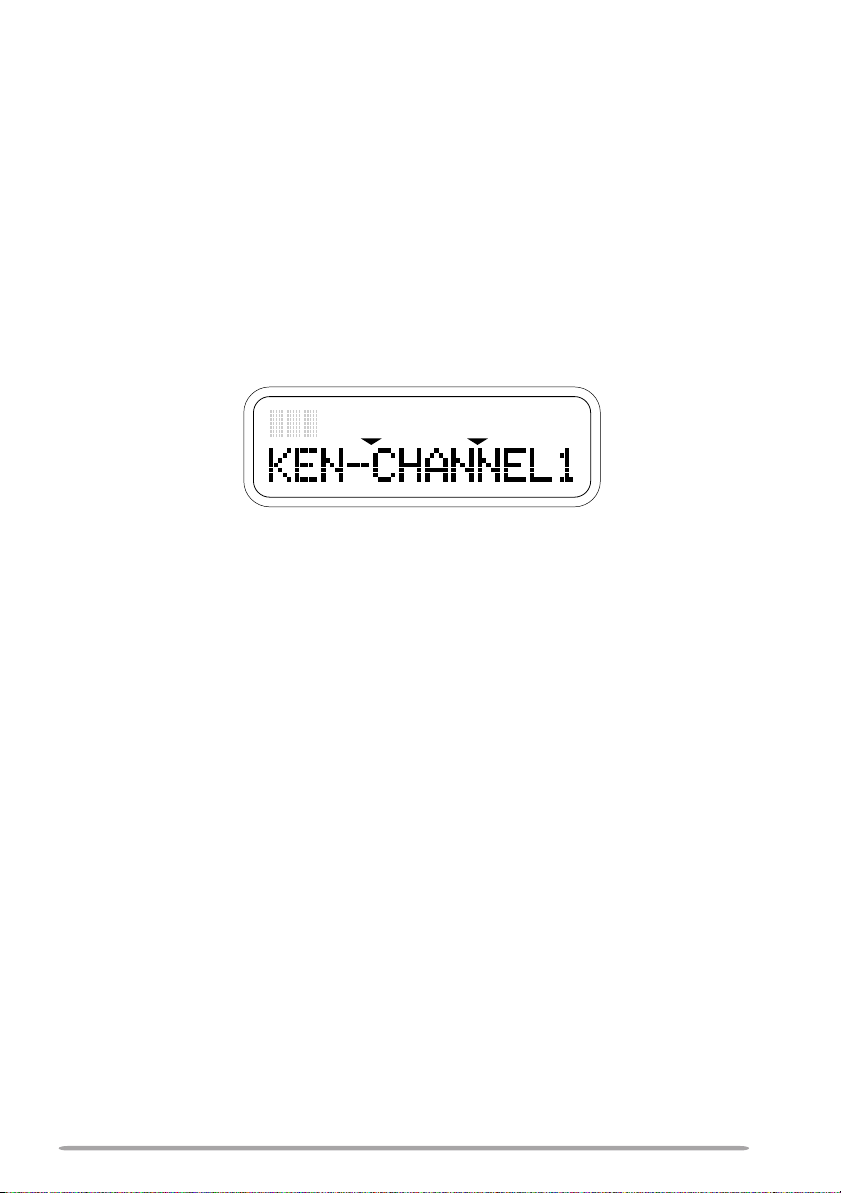

For example, if the channel name is “–CHANNEL1–” and the zone name is
“KENWOOD”, and your dealer sets the zone name to 3-digits, the following
display will appear:
TRANSMITTING
1Select the desired zone and channel using the Zone and CH/GID keys.
•In Voting, Voting with Signaling, and Free Channel Call zones, the channel is
selected automatically.
2In Conventional zones, press the key programmed as Monitor or Squelch
Off to check whether or not the channel is free.
•If the channel is busy, wait until it becomes free.
3Press microphone PTT switch and speak into the microphone. Release the
PTT switch to receive.
•For best sound quality at the receiving station, hold the microphone approximately
1.5 inches (3 ~ 4 cm) from your mouth.
•In Voting and Voting with Signaling zones, the transceiver will search for the
closest repeater and transmit using that repeater’s frequency.
•In Free Channel Call zones, the transceiver will search for a free channel and will
begin transmitting on that channel.
RECEIVING
1Select the desired zone and channel using the Zone and CH/GID keys.
•Alternatively, in Conventional zones, you can activate the Scan function if desired.
•In Voting and Voting with Signaling zones, the transceiver will automatically search
for the strongest signal and receive on that frequency.
•In Free Channel Call zones, the transceiver will automatically search for any signal
and will receive on that channel.
2When you hear a caller’s voice, readjust the volume as necessary.

10
CONVENTIONAL SCAN
If the Scan function is programmed, Conventional zones or channels can be
scanned by pressing the key programmed as Scan. Scan can be used as either
Single Scan or Multi Scan.
•Single Scan monitors only the channels of the currently selected zone, which have
been added to the scanning sequence. If set up to scan Priority channels, the Priority
channels will be scanned even if they are not within the currently selected zone.
•Multi Scan monitors all channels of every zone, which have been added to the
scanning sequence.
To activate Scan, press the key programmed as Scan.
•The icon and “ ” or the revert zone and channel number appear on the display.
•The zone add indicator ( ) will appear on the display when the selected
zone is added to the scan sequence. The channel add indicator ( ) will
appear on the display when the selected channel is added to the scan sequence.
•When a call is received, scanning stops and the zone and channel digits appear.
Press the microphone PTT switch and speak into the microphone to respond to the
call. The transceiver will continue scanning after a predetermined time delay if the
PTT switch is released and no further signal is received.
To stop scanning, press the Scan key again.
ADD TO SCAN/ DELETE FROM SCAN
Press the key programmed as Scan Delete/Add to add or remove each channel
to or from the scan sequence.
•The channel add indicator ( ) will appear on the display when the
selected channel is added to the scan sequence.
Press the key programmed as Zone Delete/Add to add or remove each zone to
or from the scan sequence.
•The zone add indicator ( ) will appear on the display when the selected
zone is added to the scan sequence.

11
SCAN REVERT
You can select Revert zones and channels using the Zone and CH/GID keys.
Eight types of Scan Reverts which can be programmed by your dealer are
available.
•Last Called Revert: The last zone/ channel received is assigned as the new revert
zone and channel.
•Last Used Revert: The last zone/ channel responded to is assigned as the new
revert zone and channel.
•Selected: The last zone/ channel selected is assigned as the new revert zone and
channel.
•Selected + Talkback: If the zone/ channel has been changed during Scan, the newly
selected zone/ channel is assigned as the new revert zone and channel. The
transceiver “talks back” on the current receive channel.
•Priority 1: If your dealer has programmed a Priority 1 channel, this channel is the
revert zone and channel.
•Priority 1 + Talkback: If your dealer has programmed a Priority 1 channel, this
channel is the revert zone and channel. The transceiver “talks back” on the current
receive channel.
•Priority 2: If your dealer has programmed a Priority 2 channel, this channel is the
revert zone and channel.
•Priority 2 + Talkback: If your dealer has programmed a Priority 2 channel, this
channel is the revert zone and channel. The transceiver “talks back” on the current
receive channel.
PRIORITY SCAN
A Priority channel must be programmed in order for Priority Scan to function.
The transceiver will automatically change to the Priority channel when a signal is
received on it, even if a signal is being received on a normal channel.
•The indicator represents the Priority 1 channel.
•The indicator represents the Priority 2 channel.
•The indicator represents both the Priority 1 and Priority 2 channel.

12
QUIET TALK (QT)/ DIGITAL QUIET TALK (DQT)
Your dealer may have programmed QT or DQT signaling on your transceiver
channels. A QT tone/ DQT code is a sub-audible tone/code which allows you to
ignore (not hear) calls from other parties who are using the same channel.
When a channel is set up with a QT tone or DQT code, squelch will open only
when a call containing a matching tone or code is received. Likewise, signals
that you transmit will be heard only by parties whose QT/ DQT signaling matches
your transceiver.
If a call containing a different tone or code is made on the same channel you are
using, squelch will not open and you will not hear the call. Although it may seem
like you have your own private channel while using QT/ DQT, other parties can
still hear your calls if they set up their transceiver with the same tone or code.
OPERATOR SELECTABLE TONE (OST)
You can change the preset encode and decode tones for the selected channel.
Your dealer can program up to 40 tones on your transceiver.
To turn OST on or off, press the key programmed as OST.
•The OST indicator ( ) appears on the display when this function is
activated.
To change the preset encode/decode tones:
1Press and hold the key programmed as OST.
•The duration for holding the OST key is programmed by your dealer.
•The OST number and name appear on the display.
2Press the <B and C> keys or enter the list number directly using a DTMF
keypad to select your desired encode/decode pair.
•If programmed by your dealer, you can also use the and keys.
3Press the Sor DTMF key to accept the new setting and return to normal
operation.

13
5-tone Signaling is enabled or disabled by your dealer. This function opens the
squelch only when the transceiver receives the 5 tones programmed in your
transceiver. Transceivers that do not transmit the correct tones will not be heard.
Note: Your transceiver functions include either 5-tone Signaling or FleetSync {page 15}, but not both.
MAKING ASELCALL (SELECTIVE CALLING)
A Selcall is a voice call to a particular station. To make a Selcall:
1Select your desired zone and channel.
2Press the key programmed as Selcall or Selcall + Status to enter Selcall
Mode.
3Press the <B and C> keys to select the ID of the station you want to call.
•If programmed by your dealer, you can also use the and keys.
•Alternatively, you can enter a station ID using a DTMF keypad.
•If Manual Input Mode is enabled, you can enter digits by using a DTMF keypad or
by selecting digits with the and keys. To enter manual input mode, first press
and hold the S or DTMF key. When using the and keys, cycle through the
digits to select a digit. The cursor can be shifted to the left or right by pressing the
<B or C> key. Repeat this process until the entire ID is entered.
4Press the key programmed as Call 1 to Call 6 to begin your call.
TRANSMITTING ASTATUS MESSAGE
Status messages can contain up to 16 alphanumeric characters. To transmit a
Status message:
1Select your desired zone and channel.
2Press the key programmed as Status to enter Status Mode or Selcall +
Status to enter Selcall Mode.
•When using the Status key to enter Status Mode, the station ID is fixed and cannot
be selected. Skip to step 5 to continue.
3In Selcall Mode, press the <B and C> keys to select the ID of the station you
want to call.
•If programmed by your dealer, you can also use the and keys.
•Alternatively, you can enter a station ID using a DTMF keypad.
•If Manual Input Mode is enabled, you can enter digits by using an optional DTMF
keypad or by selecting digits with the and keys. To enter manual input mode,
first press and hold the S or DTMF key. When using the and keys, cycle
through the digits to select a digit. The cursor can be shifted to the left or right by
pressing the <B or C> key. Repeat this process until the entire ID is entered.
4Press the Sor DTMF key to enter Status Mode.
5-TONE SIGNALING

14
5Press the <B and C> keys to select the status ID you want to transmit.
•If programmed by your dealer, you can also use the and keys.
•Alternatively, you can enter a station ID using a DTMF keypad.
•If Manual Input Mode is enabled, you can enter digits by using an optional DTMF
keypad or by selecting digits with the and keys. To enter manual input mode,
first press and hold the S or DTMF key. When using the and keys, cycle
through the digits to select a digit. The cursor can be shifted to the left or right by
pressing the <B or C> key. Repeat this process until the entire ID is entered.
6Press the Call 1 to Call 6 key to initiate the Status call.
RECEIVING SELCALLS AND STATUS MESSAGES
When you receive a signal containing the correct tones, squelch opens and you
will hear the call.
•The LED indicator flashes orange.
•To mute the speaker after squelch opens, press the key programmed as Monitor.
•Your dealer can program the Monitor function to close again after a specific time
period elapses.
•If Transpond for 5-tone Signaling is programmed, an acknowledgement signal is
returned to the calling station.
•If Call Alert for 5-tone Signaling is programmed, an alert tone will sound when the
correct tones are received.
•Your dealer can program the transceiver to display the received Selcall/Status.
To respond to the call, press the microphone PTT switch and speak into the
microphone.
REVIEWING MESSAGES IN THE QUEUE MEMORY
A maximum of 15 received messages can be stored in the Queue memory of
your transceiver. Saved messages can be viewed after reception. When the
Queue memory is full, the oldest message will be erased when a new message
is received.
Then icon lights when a message is stored in the Queue memory.
1Press the key programmed as Queue to enter Queue Mode.
2Press the <B and C> keys to select the desired message.
•If programmed by your dealer, you can also use the and keys.
•Press and hold the Sor DTMF key to toggle between the called ID/ status ID,
the channel name, and the time of the received message.
3Press the Sor DTMF key to return to Normal Operation Mode.
•To delete the selected message, press the Aor DTMF #key. To confirm the
deletion, press the Sor DTMF key.
•To delete all messages, press and hold the Aor DTMF #key for 1 second. To
confirm the deletion, press the Sor DTMF key.
