This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Prius c.
A word about safe vehicle operationsA word about safe vehicle operations
This Quick Reference Guide is not a full description of Prius c
operations. Every Prius cowner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2016
Prius c

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
1
INDEX
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument cluster 9
Smart Key system1,2 7
OVERVIEW
FEATURES/OPERATIONS
TOYOTA SAFETY SENSE
Audio 18
Auto lock/unlock117
Automatic air
conditioning/heating 16
Bluetooth®Device
Pairing Section 36-45
Clock 22
Cruise control 20
Drive mode 11
Hill-start Assist Control (HAC) 23
Hybrid Synergy Drive System 10
Hybrid transmission 11
Lights & turn signals 15
Moon roof 17
Multi-Information Display (MID)221
Parking brake 20
Power outlet-12V DC 18
Seat adjustments-Front 12
Seat-Folding down rear seat 13
Seat heaters 16
Seats-Head restraints 12
Steering wheel switches 19
Telephone controls (Bluetooth®)22
Tilt and telescopic steering wheel 21
USB/AUX port 19
Windows-Power 13
Windshield wipers & washers 14
Auto High Beams (AHB) 30
Lane Departure Alert (LDA) 27-29
Pre-Collision System (PCS) 25-26
Quick overview-
Toyota Safety Sense C 24
Sensors 24
Doors-Child safety locks 32
Door locks 32
Floor mat installation 34
Seat belts 31
Spare tire & tools 32
Star Safety System™ 33-34
Tire Pressure Monitoring
(warning) System 31
SAFETY AND EMERGENCY FEATURES

2
OVERVIEW

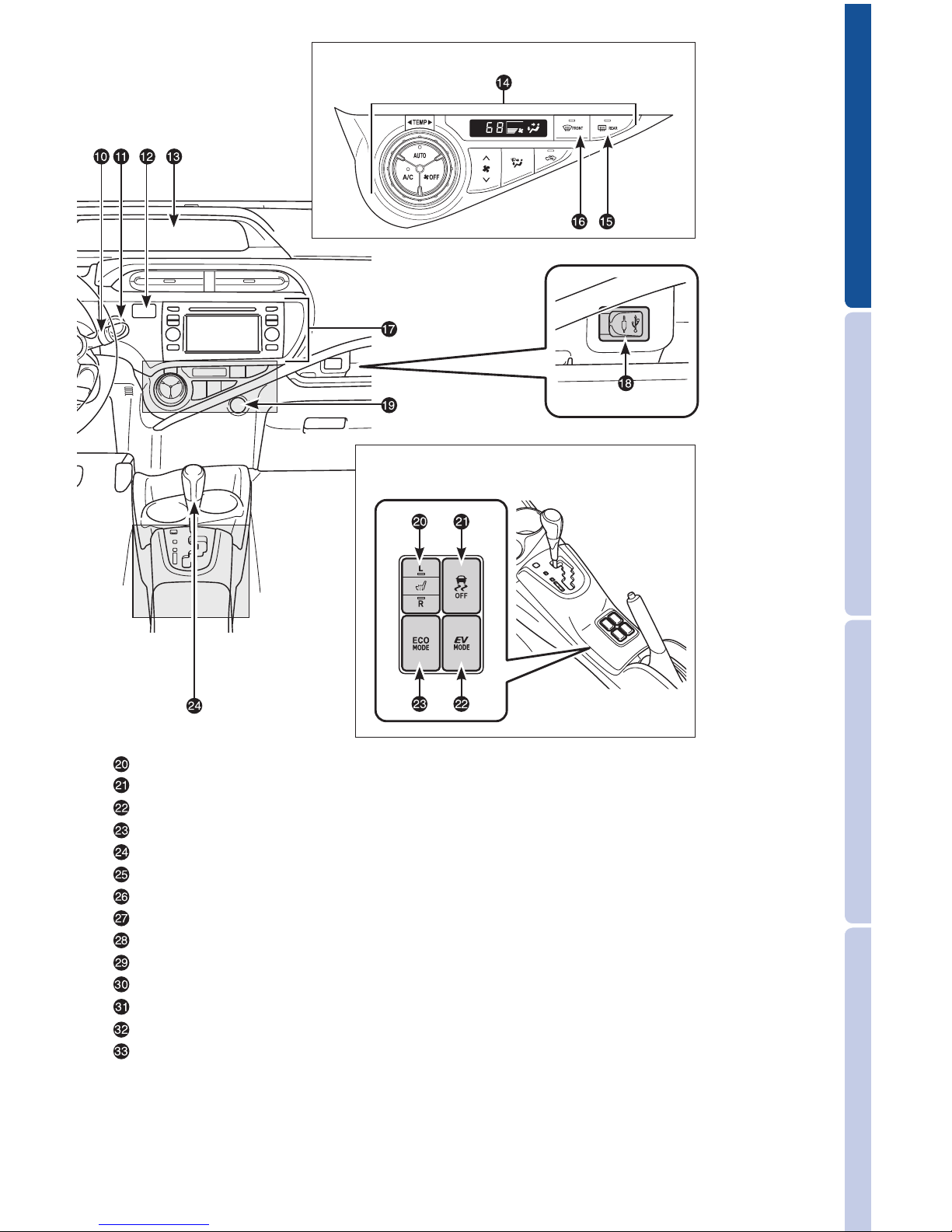

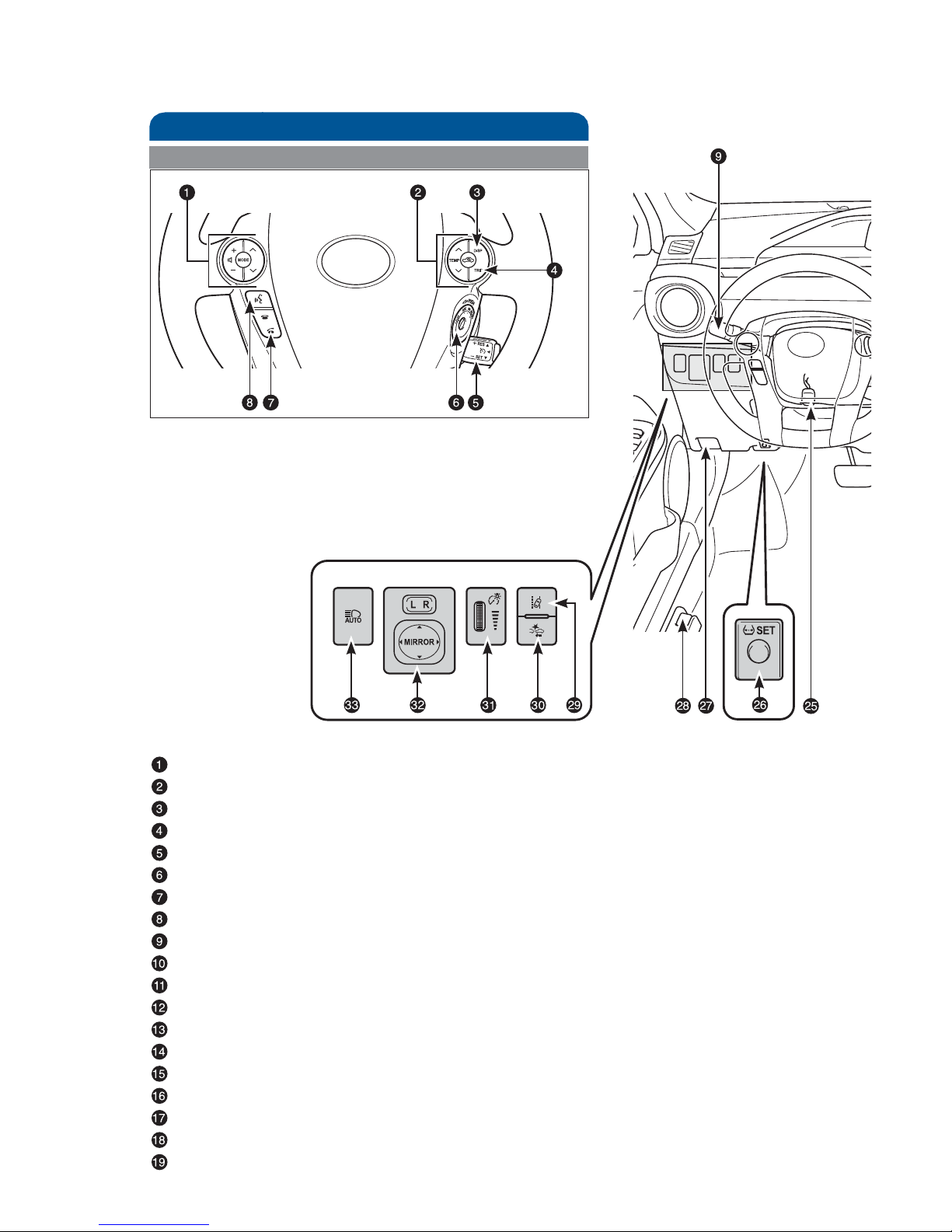

Instrument panel
Steering wheel controls
Steering wheel audio controls
Steering wheel climate controls
Multi-Information Display “DISP” button
“TRIP” button
Cruise control1
Ignition switch (standard key)1
Telephone controls
Voice command button2,3
Headlight/turn signal and fog light1 controls
Wiper and washer controls
Power button (Smart Key)1
Emergency flasher button
Instrument cluster
Air conditioning/heating controls
Outside heated rearview mirror1/rear window defogger button
Front window defogger button
Audio system2or audio/navigation system2
USB/AUX port
12V DC power outlet

Seat heater controls1
VSC OFF switch
“EV MODE” drive switch
“ECO MODE” drive switch
Shift lever
Tilt and telescopic steering lock release lever
Tire Pressure Monitoring (warning) System reset
Hood lock release lever
Fuel tank door opener
Lane Departure Alert (LDA) switch1
Pre-Collision System (PCS) switch1
Instrument cluster light control dial
Power rearview mirror controls
Automatic High Beam (AHB) switch1
1If equipped
2For more information, refer to “Navigation System Owner’s Manual” and
“2016 Entune™ Audio Quick Reference Guide.”
OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
3
Air Conditioning system
Lower center console switches
2016_Prius_c_QRG_D2_1.indd 3 11/13/15 11:19 PM

4
OVERVIEW
Indicator symbols
Instrument cluster
Speedometer
Transmission shift position indicator
Fuel gauge
Multi-Information Display
Service indicators and reminders
Charging system warning1
Brake system warning1
Headlight low/high beam indicator
Turn signal indicator
Low Tire Pressure Warning1
Immobilizer system indicator2
Airbag SRS warning1
Master warning1
Malfunction/Check Engine indicator1
Electric power steering system warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Brake system warning light (yellow indicator)1
1If indicator does not turn off within a few seconds of starting Hybrid System, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2, 2016 Owner’s
Manual.

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
5

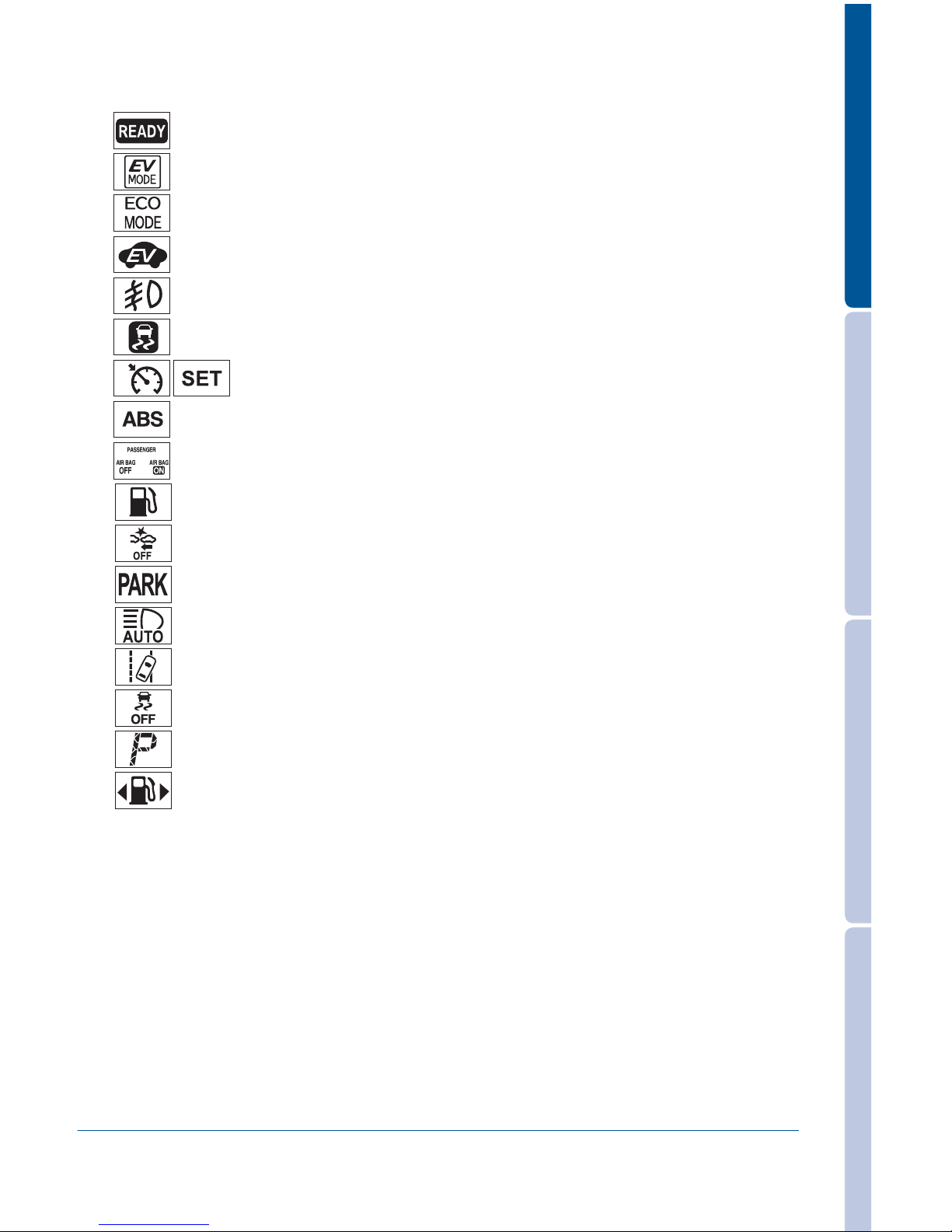

Anti-lock Brake System warning1
Slip indicator/Hill-start Assist Control indicator1
READY indicator
Front fog light indicator
Eco Mode indicator
EV Drive Mode indicator
2If equipped.
Cruise control2/cruise control “SET” indicator2indicator
EV drive indicator
SRS airbag on-off indicator1
Low fuel level warning
Automatic High Beam (AHB) indicator2
Pre-Collision System (PCS) warning2
Lane Departure Alert (LDA) indicator2
Shift position indicator
Parking brake warning
VSC OFF indicator1
Arrow direction indicates fuel tank door position

6
OVERVIEW

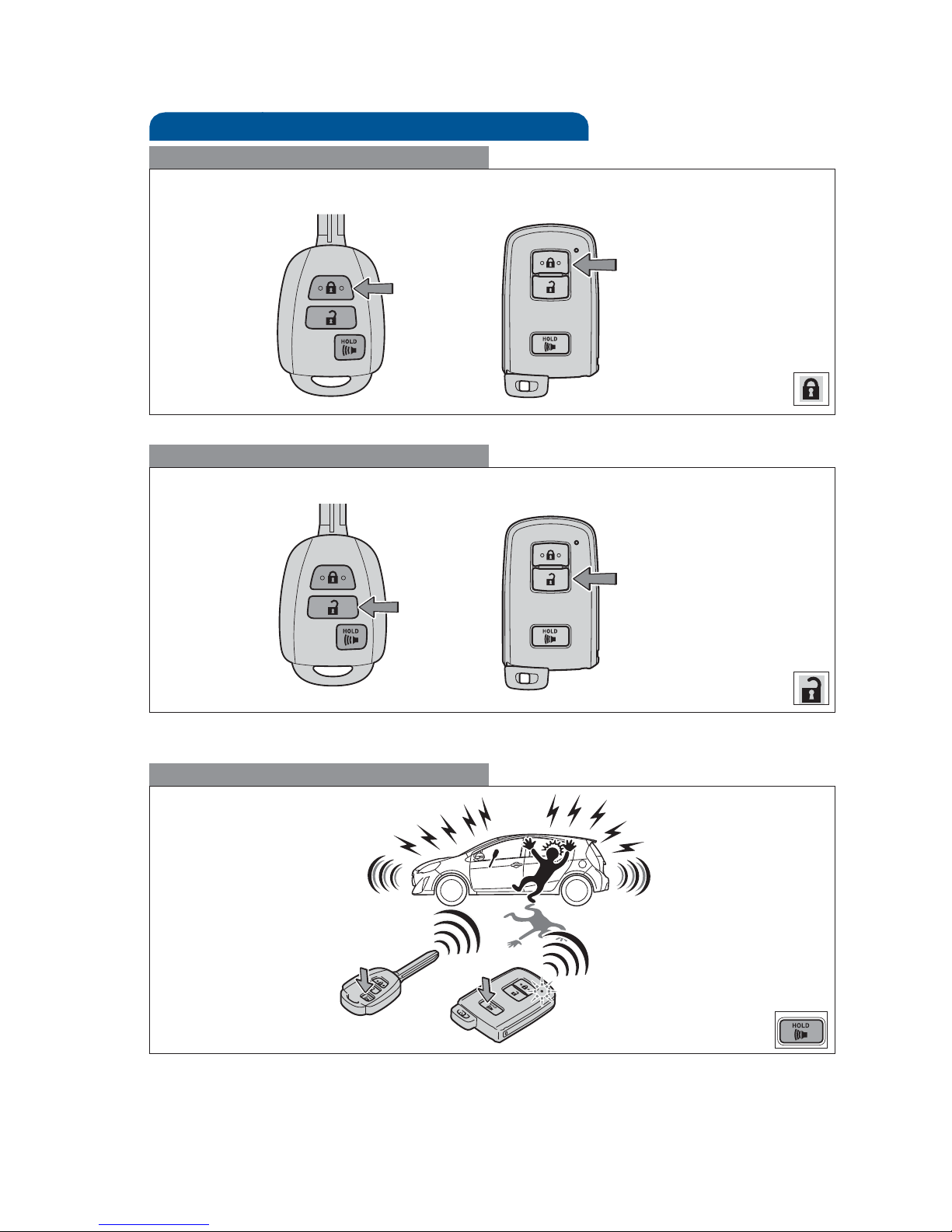

Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Type A Type B
Type A Type B

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
7

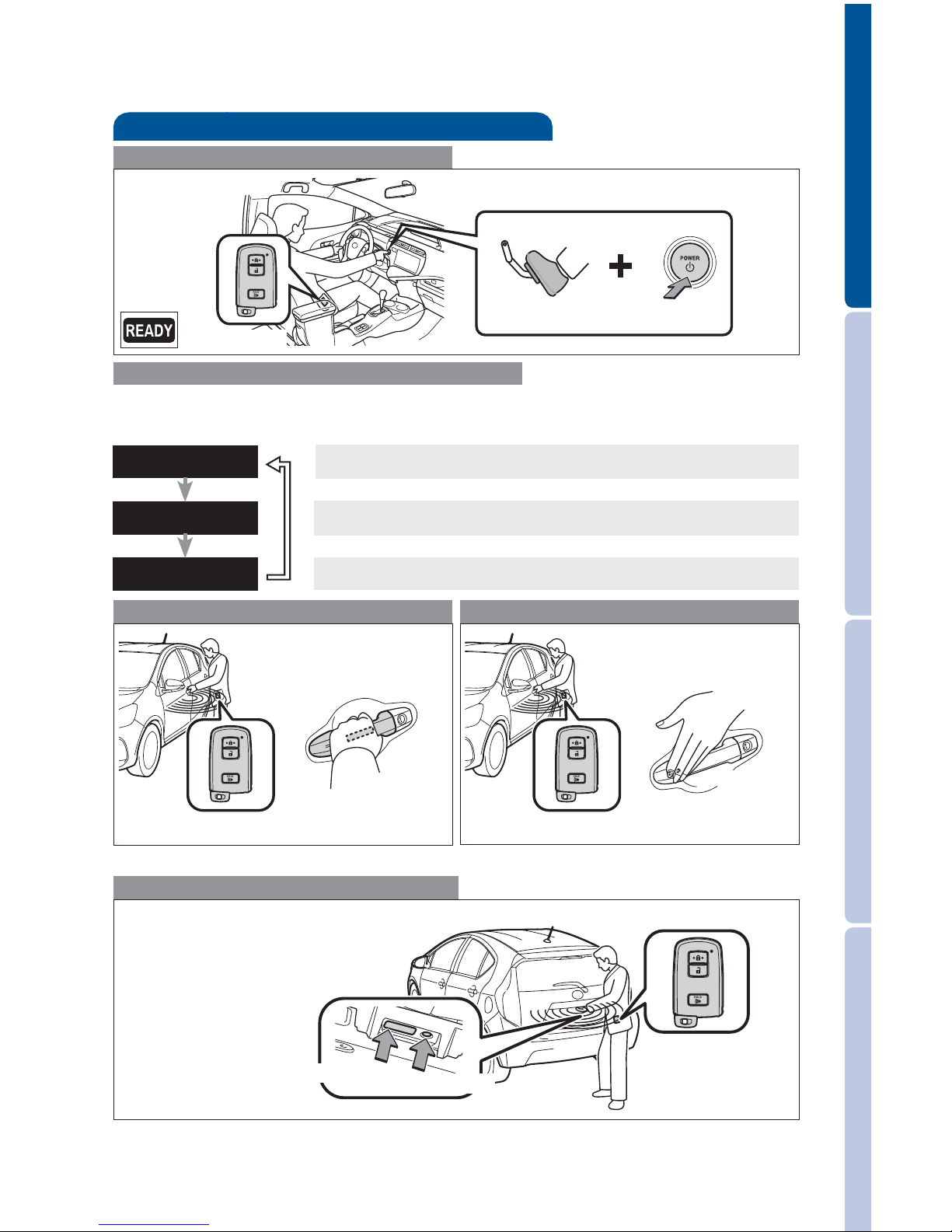

Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; Hybrid System is not engaged.
All systems OFF.
POWER ON
POWER ON
Push
Depress
brake pedal
Carrying
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
Power (without starting Hybrid System)
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Back door lock/unlock
Carry remote to
lock/unlock
Unlocking operation*
Carry remote to unlock
Driver door unlock*
Grasp
Push to lock
Push to unlock
Locking operation*
Carry remote to lock
All-door lock
Touch
* Front door handles only.

8
OVERVIEW
Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull
Turn to open
Store
Engage support rod
Pull

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
9
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Maintenance reset light instructions can be found in “Maintenance
Requirements Chapter” in Owner’s Manual.
Engine maintenance
Light control-Instrument cluster
Brightness
control
-
+

10
FEATURES/OPERATIONS

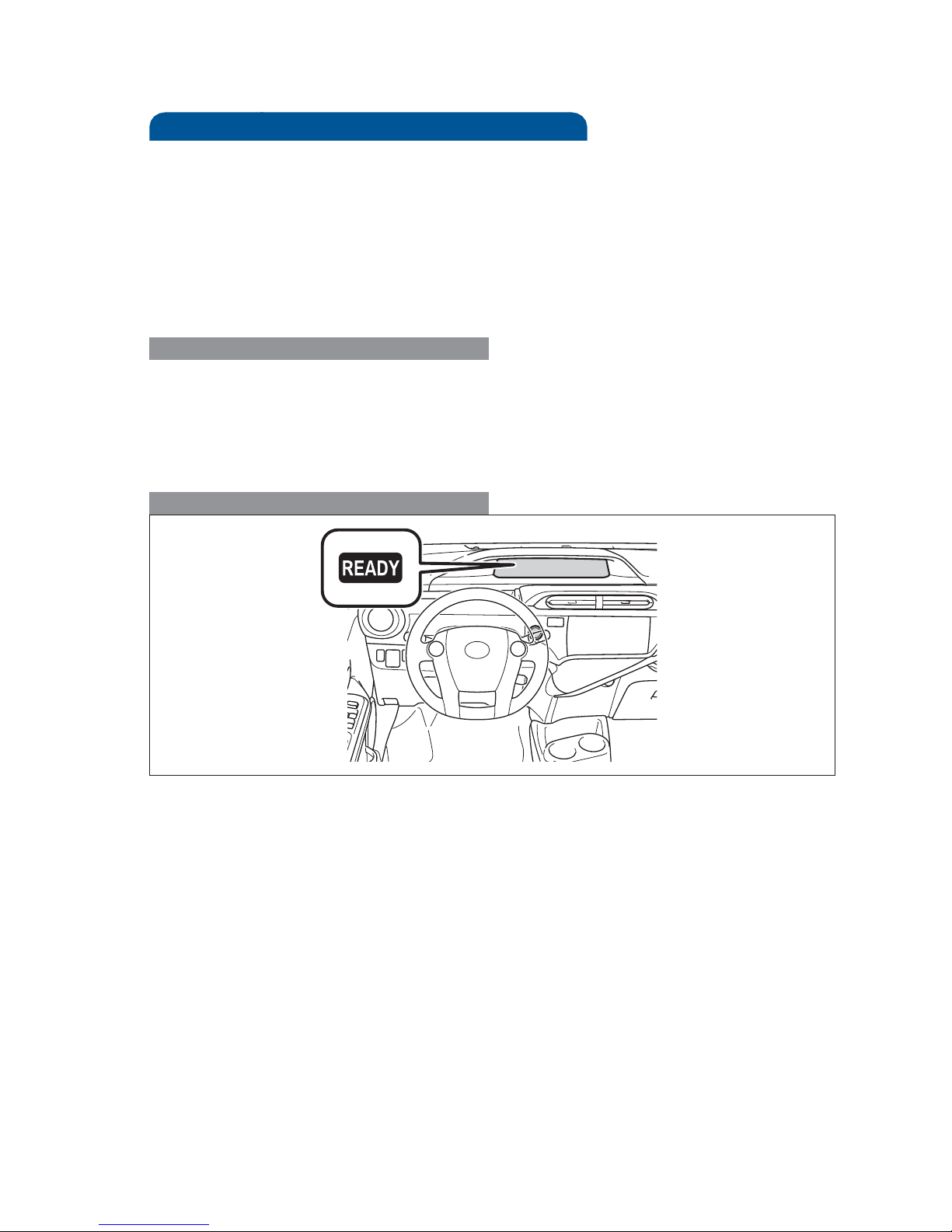

Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition,
the engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the multi-information display or the Display Audio System.
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
(1) Put the selector lever in “P.”
(2) Vehicles with Smart Key system:
Depress the brake pedal, and press the “POWER” switch briefly and firmly.
Vehicles without Smart Key system:
Depress the brake pedal, and turn the key to the “START” position.
(3) The “READY” light will blink. After a few seconds, when the light remains
steady and a beep sounds, you may begin driving.

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
11
Hybrid transmission
1 The “POWER”/ignition switch must be “ON” and the brake pedal depressed to
shift from Park.
2 The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (e.g. downhill driving, coasting to a stop).
ECO MODE
Park1
Reverse
Neutral
Drive
Engine brake2
Push
Eco Mode helps achieve low fuel consumption during trips that involve frequent
accelerating and braking.
Refer to the Owner’s Manual for more details.
Drive mode
EV MODE
EV Drive Mode allows the electric motor (traction motor), powered by the hybrid
battery (traction battery), to be used to drive the vehicle under certain driving
conditions.
Push

12
FEATURES/OPERATIONS
Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side; if equipped)
Seatback angle
Seats-Head restraints
Rear outboard
Front (adjustable type)/Rear center
Lock release button
Lock release buttons

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
13

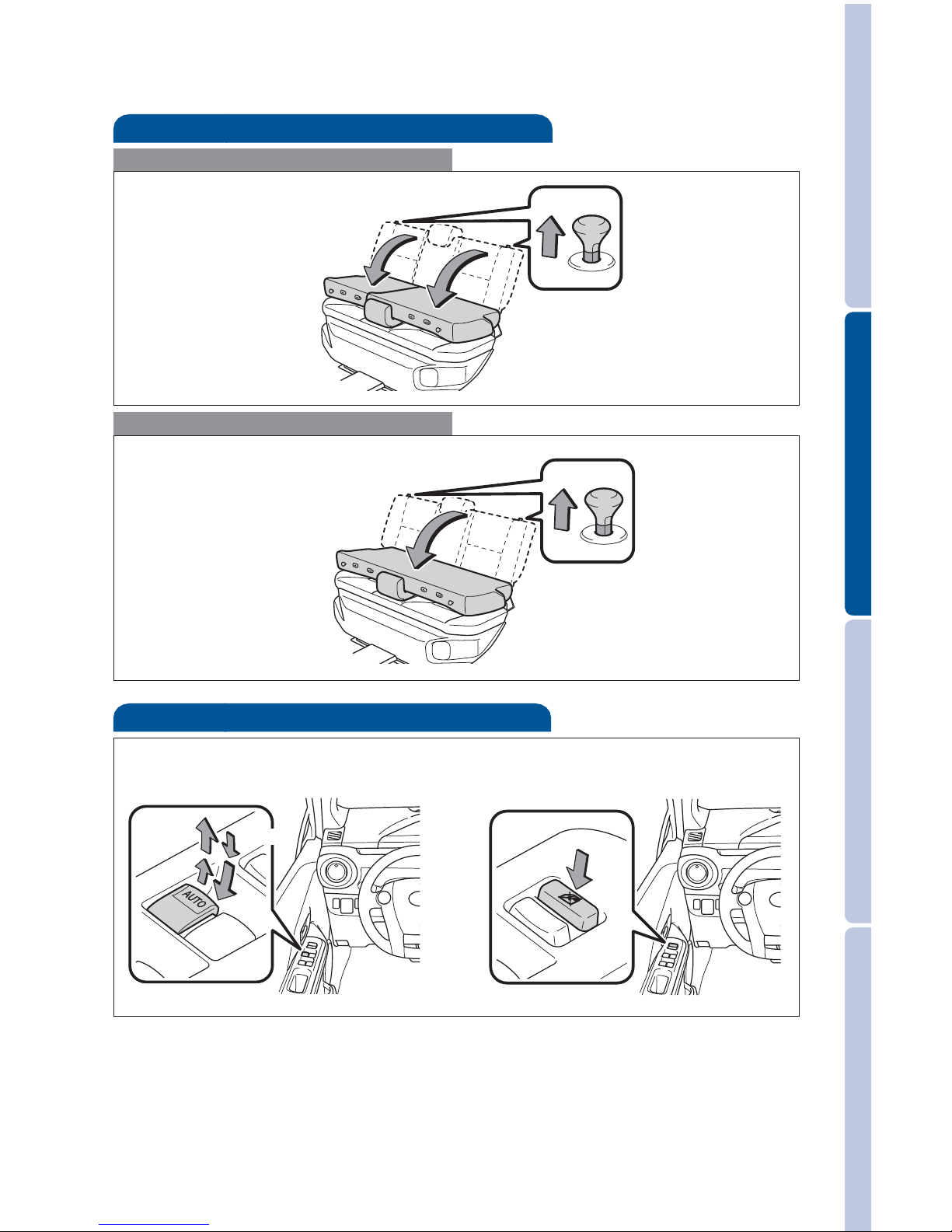

Seat-Folding down rear seat
Non-split rear seat
Split rear seats
(1) Pull up
(2) Fold down
(1) Pull up
(2) Fold down
Windows-Power
Up Down
Window lock switch
Automatic operation (driver side only) Push the switch completely down or pull
it completely up and release to fully open or close. To stop the window partway,
operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Driver side

14
FEATURES/OPERATIONS

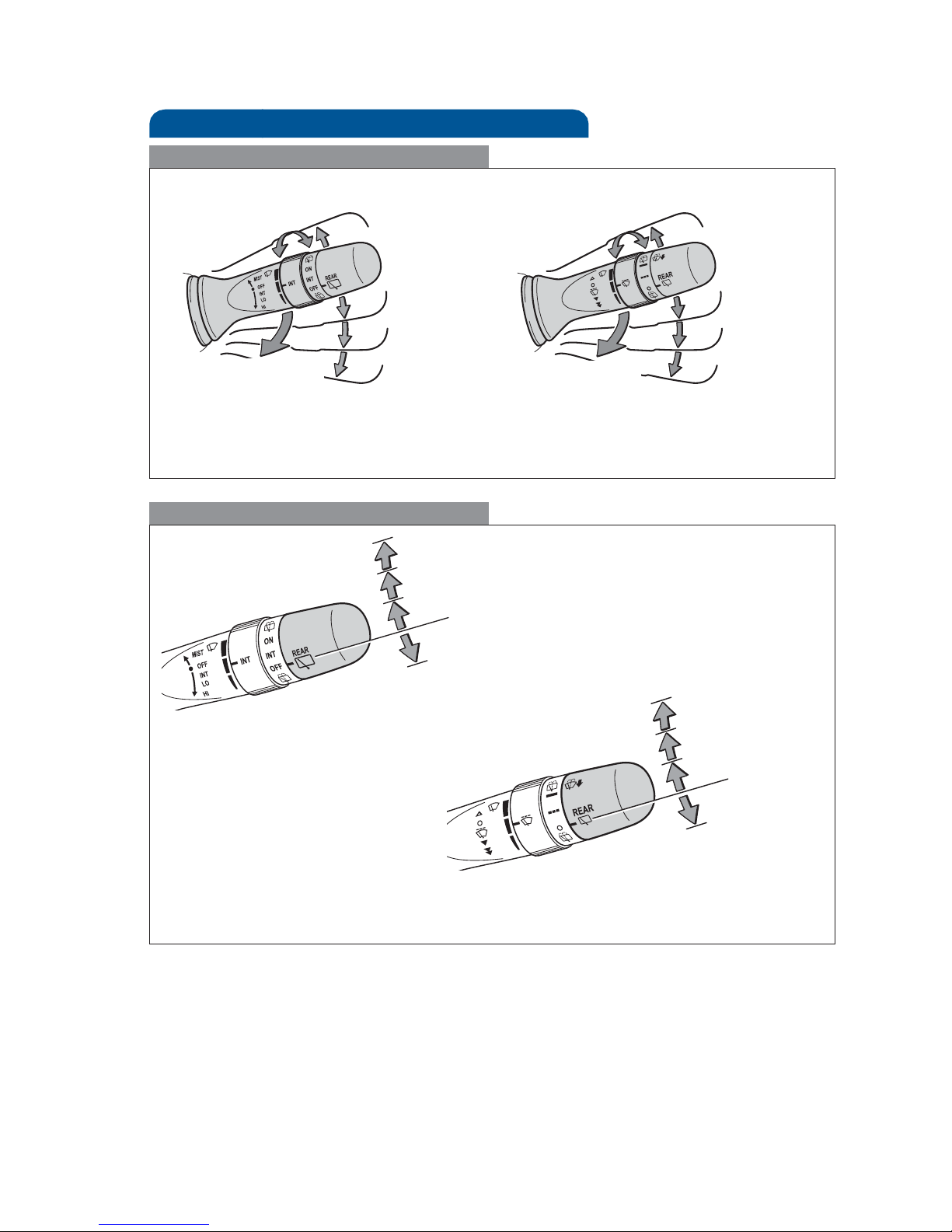

Windshield wipers & washers
Interval
wipe
Single wipe
Slow
Fast
Pull to wash and wipe
Interval wipe
Single wipe
Slow
Fast
Pull to wash and wipe
Front
Type A Type B
Adjust frequency*Adjust frequency*
*Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency. (if equipped)
Rear (if equipped)
Wash and wipe
Wipe
Interval wipe
Wash and wipe*
Wash and wipe
Wipe
Interval wipe
Wash and wipe*
Type A
Type B
*The wipers will automatically operate a couple of times after
the washer squirts.

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
15
Lights & turn signals
Headlights
Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
Low beam
High beam
High beam flasher
Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Turn Turn
Turn signals
Right turn
Lane change
Lane change
Left turn
Parking lights
Headlights
OFF
DRL
Parking lights
Headlights
DRL
Type A
Type A
Type B
Type B

16
FEATURES/OPERATIONS
Automatic air conditioning/heating
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake
and fan to adjust automatically.
Temperature setting display
Fan speed display
Airflow mode display
Windshield defogger
Outside heated rearview mirror (if equipped)/Rear window defogger
Recirculate cabin air (outside air when OFF)
Airflow vent
In “ ” mode, use outside air (“ ” indicator OFF) to reduce window
fogging.
Fan speed control
Climate control OFF
Air Conditioning ON/OFF
Temperature selector dial
Seat heaters (if equipped)
Push
Push
Driver seat
Front passenger seat

OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
17
Moon roof (if equipped)

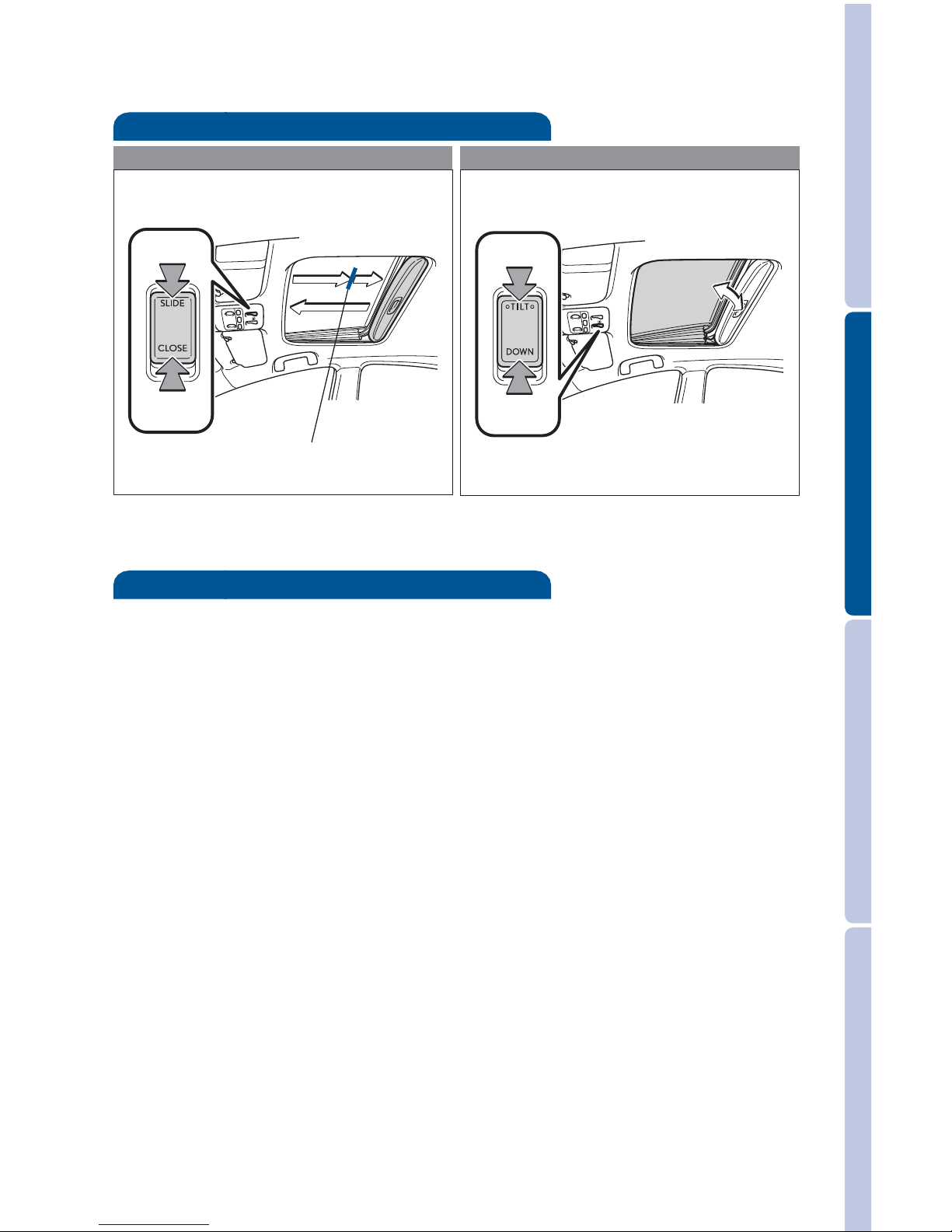

Sliding operation Tilting operation
Recommended open position to
minimize wind noise.
Open
Close
Push once to open; moon roof will automatically stop at the recommended
position. Push again to open completely.
Push once to open to recommended
position; again to open completely.
Close
Tilt
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
Vehicles without Smart Key system
-Doors unlock when the ignition switch is set from “ON” to “ACC” or “LOCK” and
driver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the “POWER” switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.

18
FEATURES/OPERATIONS

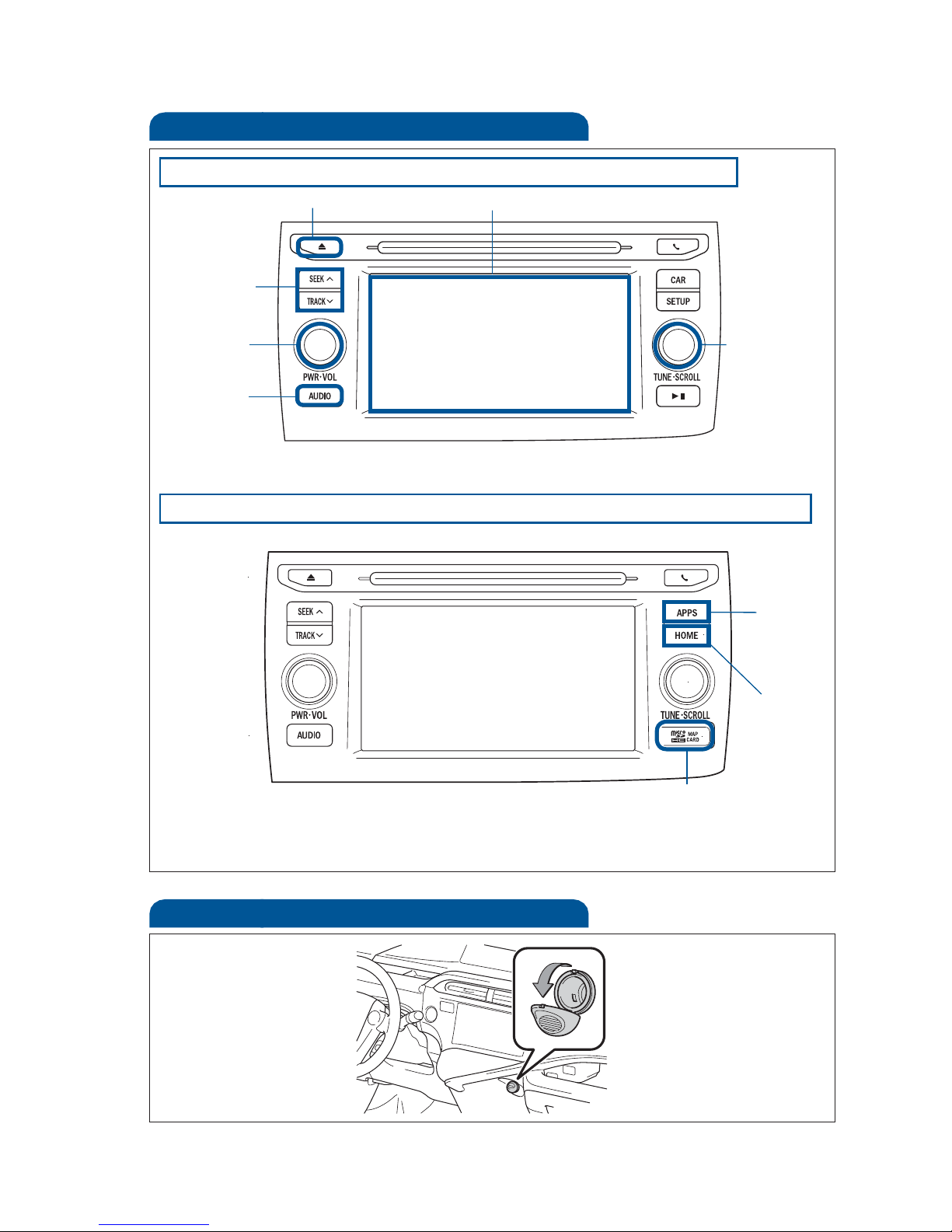

Type 3 - Entune™ Premium Audio with Integrated Navigation and App Suite
Audio
Type 1 - Entune™ Audio
Power outlet - 12V DC
The “POWER”/ignition switch must be set at the “ACC” or “ON” position for use.
Touch screen displayEject CD
Seek station/
CD track select
Push to turn
ON/OFF
Push to
display audio
screen
Turn to
tune radio
stations
manually or
select tracks
or files
Refer to the “Navigation System Owner’s Manual” and “2016 Entune™ Audio Quick
Reference Guide.”
Press to
display
APPS
Press to
display
Home
screen
MAP card insert
