This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satised driving in your new
Prius v.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Prius voperations.
Every Prius vowner should review the Owner’s Manual that accompanies this
vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.

OVERVIEWFEATURES/OPERATIONSSAFETY AND EMERGENCY FEATURES
1
INDEX
Engine maintenance 9
Fuel tank door release and cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry1,2 6
Light control-Instrument panel 8
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.
3HomeLink®is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Air Conditioning/Heating 17
Audio 18
Auto lock/unlock1,2 10
Bluetooth®Device Pairing Section 28-37
Clock 23
Cruise control 20
Dynamic Radar Cruise Control
(DRCC) 21
EV drive mode 12
Garage door opener (HomeLink®)323
Hill-start Assist Control (HAC) 23
Hybrid Synergy Drive System 10
Lane Departure Alert (LDA) 16
Lights1& turn signals 15
Panoramic roof shades119
Parking brake 12
Power outlets 20
Seat adjustments-Front 13
Seat heaters 16
Seat-Folding down rear seat 14
Seats-Flattening front seatbacks 13
Seats-Head restraints 13
Steering wheel switches 19
Telephone controls (Bluetooth®) 22
Tilt and telescopic steering wheel 12
Transmission 11
Trip information display 22
Windows-Power 16
Windshield wipers & washers 14
Doors-Child safety locks 25
Door locks 25
Floor mat installation 27
Seat belts 24
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Star Safety System™26-27
Tire Pressure Monitoring
(warning) System (TPMS) 24

Steering wheel controls
2
OVERVIEW

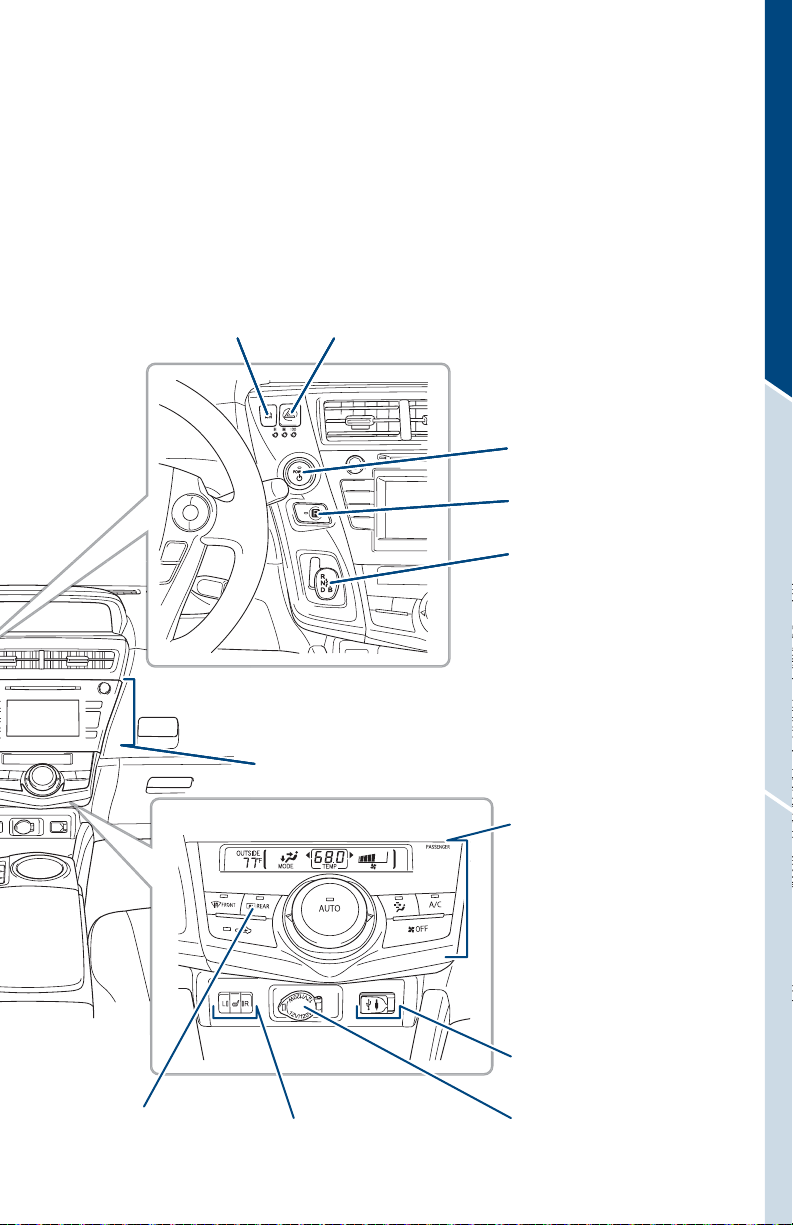

Instrument panel
Type A
Type A Type B
Meter control switches
Type B
Lane Departure Alert
(LDA) switch2
Automatic High Beams
(AHB) switch2
Pre-Collision System
(PCS) switch2
VSC off switch
VSC off switch
Instrument panel
light control
Instrument panel
light control
Hood lock release lever
Tire Pressure Monitoring
(warning) System reset
switch
Tilt and telescopic steering
lock release lever
Headlight and turn signal controls/
Headlight, turn signal and front fog light controls2
Steering wheel
audio controls1
“TRIP” button
Trip information
display button
“TRIP” button
Steering wheel
climate controls
Cruise control
Dynamic Radar Cruise Control
Vehicle-to-vehicle distance button2
Telephone controls1
Voice command
button1
Multi-Information Display (MID)2
Wiper and washer controls
Fuel tank door
release lever

OVERVIEWFEATURES/OPERATIONSSAFETY AND EMERGENCY FEATURES
3
1 For more details, refer to the “Navigation System Owner’s Manual” and
“2017 Entune™ Audio Quick Reference Guide.”
2 If equipped.
Air conditioning controls
AUX port/USB port
Emergency flasher button
Power button
“P” position switch
Shift lever
Mph or km/h button
Power outlet
Seat heater switches2
Outside rearview mirror/
Rear window defogger button
Audio system1/Navigation system1,2

4
For details, refer to “Indicators and warning lights,” Section 2-2, 2017 Owner’s
Manual.
Vehicles with Multi-Information display
Vehicles without Multi-Information display
1If indicator does not turn off within a few seconds of starting Hybrid System, there may be a mal-
function. Have vehicle inspected by your Toyota dealer.
Anti-lock Brake System warning1
Charging system warning1
Brake system warning1
Brake system warning
(yellow indicator)1
Malfunction/
Check Engine indicator1
Maintenance required reminder1,3
Master warning1,3
Go to service warning1,3
OVERVIEW
Instrument cluster
Instrument symbols
Hybrid System Indicator
Speedometer
Transmission shift
position indicator
Fuel gauge Trip information
display
Odometer and trip meter
display
Hybrid battery
(traction battery) status
Clock
Speedometer
Transmission shift
position indicator
Fuel gauge Trip information
display
Odometer and trip
meter display
Hybrid battery
(traction battery) status
Multi-Information Display
Clock
Hybrid System Indicator
Service indicators and reminders

OVERVIEWFEATURES/OPERATIONSSAFETY AND EMERGENCY FEATURES
5
2If this light flashes, refer to “Cruise control,” or “Dynamic Radar Cruise Control,” Section 4-5, 2017
Owner’s Manual.
3If equipped
High coolant temperature warning1
Low engine oil pressure warning1,3
Hybrid System warning1,3
ECO MODE indicator
EV drive mode indicator
Power Mode indicator
EV indicator3
ECO Driving Indicator1,3
Hybrid System overheat warning1,3
Low hybrid battery
(traction battery) warning
READY indicator
Driver seat belt reminder and/
or front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger occupant classification
or front passenger airbag ON/OFF
indicator
Low Tire Pressure Warning1
Open door warning
Airbag SRS warning1
Electric power steering system warning1
Immobilizer system indicator
Low fuel level warning
Fuel tank door position
Parking lock system warning1,3
Smart Key system warning3
P position request indicator1,3
Parking lock system warning
message3
Cruise control
indicators2,3
Slip indicator/Hill-start Assist
Control indicator1
Pre-Collision System (PCS)
warning light1,3
Traction Control OFF indicator3
VSC OFF indicator
Lane Departure Alert (LDA) indicator3
Turn signal indicator
Headlight low/high beam
indicators
Front fog light indicator
Automatic headlight leveling system
warning1,3
LED headlight warning1,3
Automatic High Beams
indicator3

6

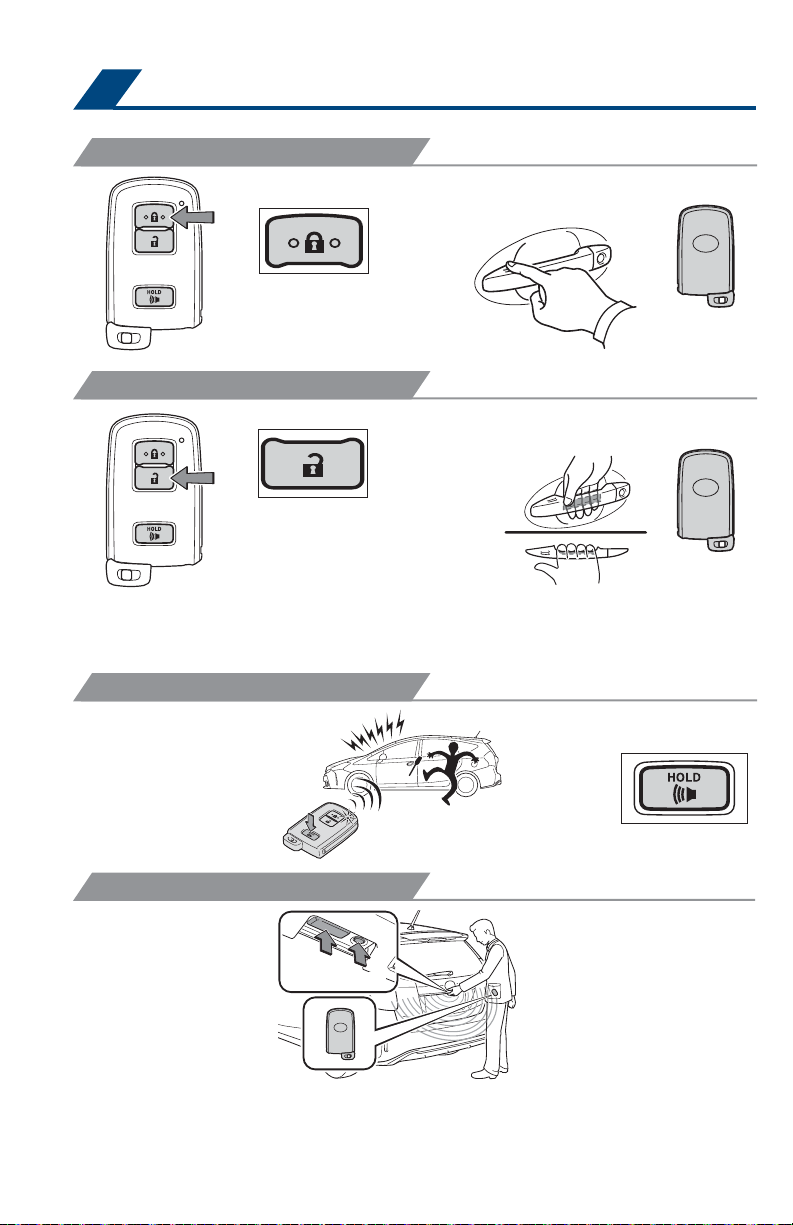

LOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle or pushing unlock button on rear hatch
will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Carry remote to
lock/unlock
Lock
Unlock
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
PANIC BUTTON
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
Push and hold
Push
Push
ONCE: Driver door
TWICE: All doors
OVERVIEW
Keyless entry
Carry remote
to unlock
Carry remote
to lock
All-door lock
Touch
Driver door unlock*
Grasp

OVERVIEWFEATURES/OPERATIONSSAFETY AND EMERGENCY FEATURES
7
START FUNCTION
Fuel tank door release and cap
NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check
Engine “ ” indicator may illuminate.
Turn to openStore
Pull
Smart key system (and remote entry)
Depress
brake pedal Push
Without depressing the brake pedal, pressing the “POWER” button will change
the operation mode in succession from:
Accessories such as the radio will operate.
Power ON; Hybrid System is not engaged
All systems OFF.
POWER (WITHOUT STARTING HYBRID SYSTEM)
POWER ON
POWER ON
Carry remote
to start

8
Brightness
control
-
+
OVERVIEW
Hood release
Light control - Instrument panel
Pull up latch
and raise hood
Engage
support rod
Pull
Upper slot: to open
Lower slot: to open wide

OVERVIEWFEATURES/OPERATIONSSAFETY AND EMERGENCY FEATURES
9
Engine maintenance
Windshield washer fluid tank Engine oil level dipstick
Engine coolant reservoir Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help extend
the life of your vehicle and maintain performance. Please refer to the “Warranty
& Maintenance Guide.” Maintenance reset light instructions can be found in
“Maintenance Requirements Chapter” in Owner’s Manual.

10
TIPS FOR IMPROVED FUEL ECONOMY
STARTING YOUR VEHICLE
NOTE: Fuel consumption and energy information of the Hybrid System are shown
on the Entune™ Audio system screen or the navigation system.
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the vehicle.
To conserve energy, when the brakes are applied the braking force generates
electricity which is then sent to the traction battery. In addition, the engine shuts off
when the vehicle is stopped. The benefits are better fuel economy, reduced vehicle
emissions and improved performance.
- Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
- When possible, link trips to reduce engine cold starts.
- Avoid driving at speeds that are higher than necessary, especially on the highway.
- When possible, avoid sudden stops to maximize regenerative braking energy.
- Minimize use of the air conditioning.
FEATURES/OPERATIONS
Hybrid Synergy Drive System
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
- Doors lock when shifting from Park.
- Doors lock when the vehicle speed is approximately 12 mph or higher.
- Doors unlock when shifting into Park.
- Doors unlock when the driver’s door is opened within 10 seconds after turning the
“POWER” switch OFF.
Refer to the Owner’s Manual for more details.
(1) Depress the brake pedal and
press the “POWER” switch briefly
and firmly.
(2) The “READY” light will blink.
After a few seconds, when the
light remains steady and a beep
sounds, you may begin driving.

OVERVIEWFEATURES/OPERATIONSSAFETY AND EMERGENCY FEATURES
11
ECO MODE
POWER MODE
* The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.). While vehicle is
stopped, push “P” button to park.
Eco Mode helps achieve low fuel consumption during trips that involve frequent
accelerating and braking.
Refer to the Owner’s Manual for more details.
Push
Reverse
Park button
Neutral
Drive
Engine brake*
Use when a higher level of response is desired, such as when driving in
mountainous regions.
Refer to the Owner’s Manual for more details.
Transmission
Push
Push

12
Push
EV drive mode allows the electric motor (traction motor), powered by the hybrid
battery (traction battery), to be used to drive the vehicle under certain driving
conditions.
Refer to the Owner’s Manual for more details.
FEATURES/OPERATIONS
EV drive mode
Parking brake
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Angle
Length
Tilt and telescopic steering wheel
Lock release lever

OVERVIEWFEATURES/OPERATIONSSAFETY AND EMERGENCY FEATURES
13
Seat adjustments - Front
Seats - Head restraints
Seats - Flattening front seatbacks
Manual seat Power seat (driver’s side)
*If equipped
Seat position
(forward/backward)
Seat cushion
angle*
Height crank
(driver side only)
Seatback angle
Lumbar support
(driver side only)
Lumbar support
(driver side only)
Height crank
(driver side only)
Seatback angle
Seat position
(forward/backward)
(2) Remove head restraints
(3) Pull up (manual) or turn (power)(1) Move front seats forward
(4) Flatten seatbacks
Lock release button

14
Pull up
FRONT
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Type A Type B
FEATURES/OPERATIONS

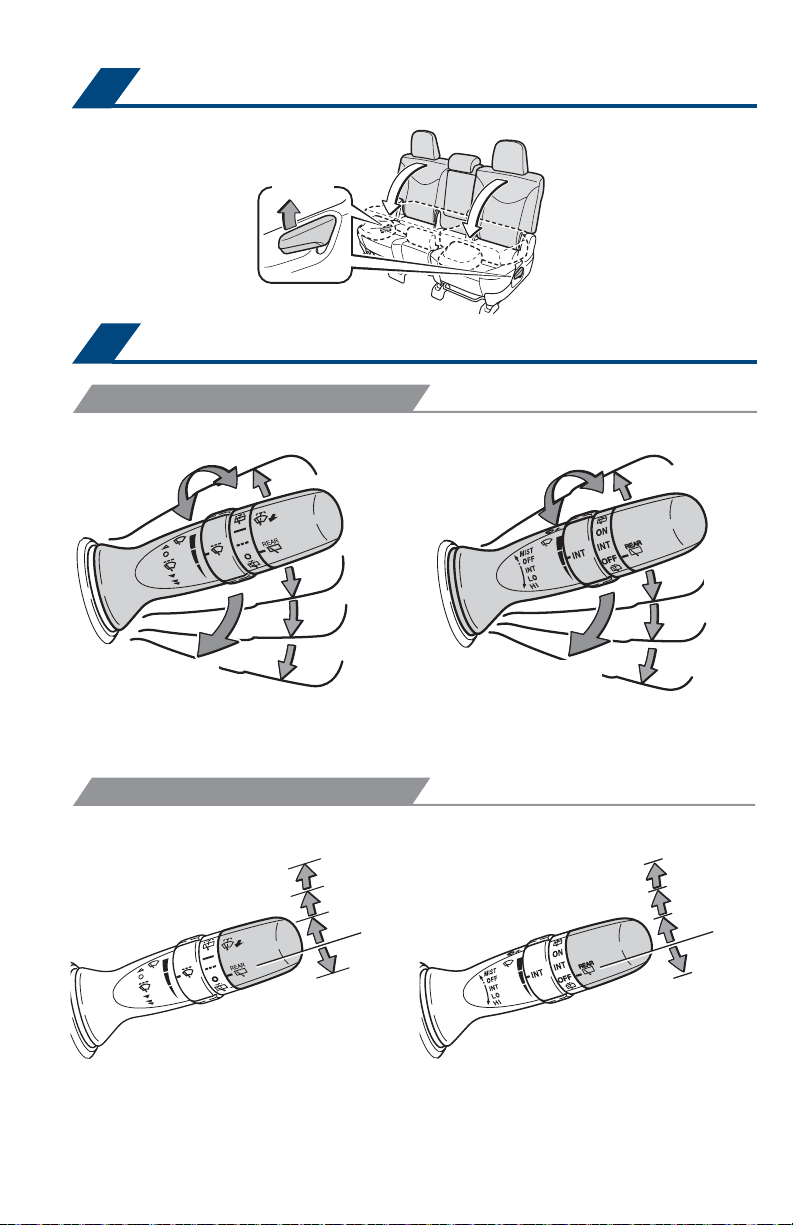

Seat - Folding down rear seat
Windshield wipers & washers
REAR
Wash
and wipe
Wash
and wipe
Wipe Wipe
Interval
wipe
Interval
wipe
Wash
and wipe
Wash
and wipe
Type A Type A
Interval
wipe
Single
wipe
Single
wipe
Slow Slow
Fast
Fast
Adjustment
frequency*
Adjustment
frequency*
Pull to wash and wipe Pull to wash and wipe
Interval
wipe

OVERVIEWFEATURES/OPERATIONSSAFETY AND EMERGENCY FEATURES
15

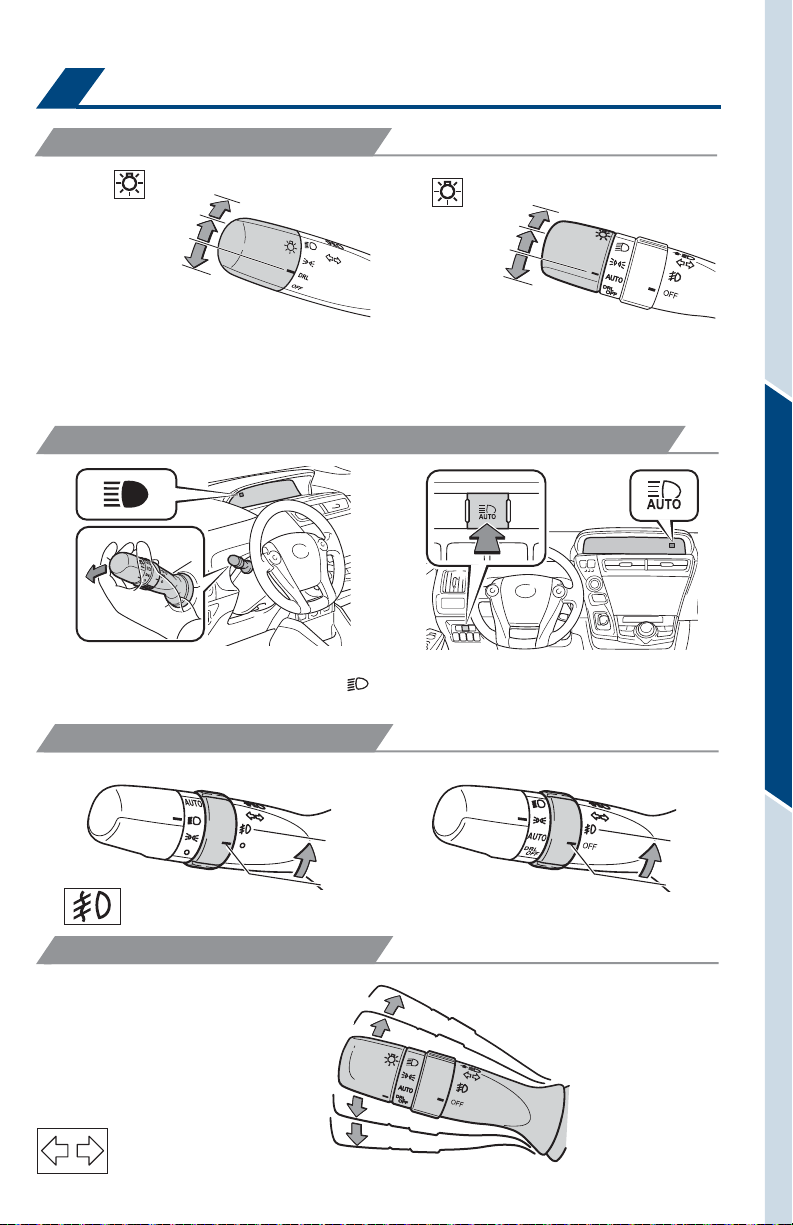

HEADLIGHTS
TURN SIGNALS
Push the lever away from you with
the headlight switch in AUTO or
position.
Indicator displays when headlights
are turned on automatically and
system is active.
Automatic light cutoff system Automatically turns lights off after a delay of 30
seconds or when lock switch on remote is pushed after all doors are locked.
High beams Push forward to turn high beams ON and pull toward you to flash
high beams.
Type A
(1) (2)
Type A
Type B
Type B
FRONT FOG LIGHTS (IF EQUIPPED)
AUTOMATIC HIGH BEAMS (AHB)(IF EQUIPPED)
Lights & turn signals
Push
Front fog lights come on only when the headlights are on low beam.
Parking lights
Headlights
OFF
DRL
Parking lights
Headlights
OFF
*DRL
* If equipped
Turn Turn
Off Off
On On
Right turn
Lane change
Lane change
Left turn

16
Push Push
Up
Down
Window lock switch
Automatic operation Push the switch completely down or pull it completely up and
release to fully open or close. To stop the window partway, operate the switch in
the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
The Lane Departure Alert recognizes the visible lane
markers using a camera as a sensor and alerts the
driver with beeping and flashing indicators when the
vehicle deviates from its lane. Press the LDA switch to
activate the system.
Refer to the Owner‘s Manual for more details on this system before attempting to
use it.
FEATURES/OPERATIONS
Windows - Power
Seat heaters (if equipped)
Lane Departure Alert (LDA)(if equipped)
Driver seat Front passenger seat

OVERVIEWFEATURES/OPERATIONSSAFETY AND EMERGENCY FEATURES
17
Air conditioning/heating
Adjust/selectAdjusting the
temperature setting
will cause the airflow
vents, air intake
and fan to adjust
automatically.
Move the dial left and
right to select function
(a frame displays around
selection):
-Fan speed control
-Temperature selector
-Airflow vent
Use “ ” or “ ” mode
to reduce window fogging
(system automatically
switches to outside air
mode).
Climate control OFFRecirculate cabin air
(outside air when OFF)
Automatic climate
control ON
Temperature
setting display
Temperature
setting display
Airflow mode display
Temperature setting display
Fan speed display
Micro dust and pollen filter mode
(turns off automatically after 3 minutes)
Air conditioning ON/OFF
Windshield
defogger

18
Entune™ Audio1,2
Entune™ Premium JBL®Audio with Integrated Navigation and App Suite2
Entune™ Premium Audio with Integrated Navigation and App Suite2
FEATURES/OPERATIONS
Audio (if equipped)
1Refer to the “OWNER’S MANUAL.”
2Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” and “2017 Entune™ Audio Quick
Reference Guide.”
NOTE: Concentrating on the road should always be your first priority while driving. Do not
use the Entune system if it will distract you.
Access to
navigation
system2
Push to display
home screen
MAP CARD Slot
Seek station/
CD track select
Turn to tune
radio stations
manually or
select tracks or
files
Push to pause or
resume playing
Push to access hands
free Bluetooth®system
Eject CD
Push to turn
ON/OFF
Push to display
audio screen
Push to display
Setup screen
Push to display
vehicle information
Touch screen display
