Vehicle charging
and OperatiOns
Quick reference guide
00505-Qrg13 - raVeV
2 0 1 3
RAV4 EV
12-TCS-06643_QRG_MY13RAV4EV_CVR.idd 2 12/6/12 3:28 PM

This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new RAV4 EV.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of RAV4 EV
operations. Every RAV4 EV owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2013
RAV4 EV
INDEX
* Visit your Toyota dealer for information on customizing this feature.
OVERVIEW
Charge port 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry* 6
Motor maintenance 9
Smart Key system* 7
Charging 19-24
Charging cable-Plugging in 14-17
Charging cable-Unplugging 18
Charging equipment 12
Charging-Power sources 13
Confirming charge settings 28
Electric Vehicle System 10
Extended charge mode 25-26
Inspecting electrical leakage
detection function
Multi-Information
Display-Charging information
Range Map screen 11
ELECTRIC VEHICLE SYSTEM
2013Rav4EV.indd 2 12/3/12 11:35 PM

OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
1
2013
RAV4 EV
INDEX
* Visit your Toyota dealer for information on customizing this feature.
OVERVIEW FEATURES/OPERATIONS
Air Conditioning/Heating 37
Clock 38
Cruise control 41
Door locks 35
Hill-start Assist Control (HAC) 43
iPod
®
/USB/AUX port 40
Light control-Instrument panel 35
Lights & turn signals 33
Multi-Information Display 42
Navigation system 38-39
Parking brake 30
Power outlets-12V DC 42
Seat adjustments-Front 31
Seat adjustments-Rear 31
Seat heaters 37
Seats-Folding down rear seats 32
Seats-Head restraints 32
Steering wheel switches 40
Telephone controls (Bluetooth®) 36
Tilt and telescopic steering wheel 41
Transmission 30
VSC OFF button 43
Windows-Power 34
Windshield wipers & washers
34
Doors-Child safety locks 44
Emergency tire puncture repair kit 45
Floor mat installation 47
Seat belts 44
Seat belts-Shoulder belt anchor 45
Star Safety SystemTM 46-47
Tire Pressure Monitoring
(warning) System
Charge port 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry* 6
Motor maintenance 9
Smart Key system* 7
Charging 19-24
Charging cable-Plugging in 14-17
Charging cable-Unplugging 18
Charging equipment 12
Charging-Power sources 13
Confirming charge settings 28
Electric Vehicle System 10
Extended charge mode 25-26
Inspecting electrical leakage
detection function
Multi-Information
Display-Charging information
Range Map screen 11
27-28
29
45
SAFETY AND EMERGENCY FEATURES
ELECTRIC VEHICLE SYSTEM
2013Rav4EV.indd 1 12/3/12 11:35 PM

2
OVERVIEW

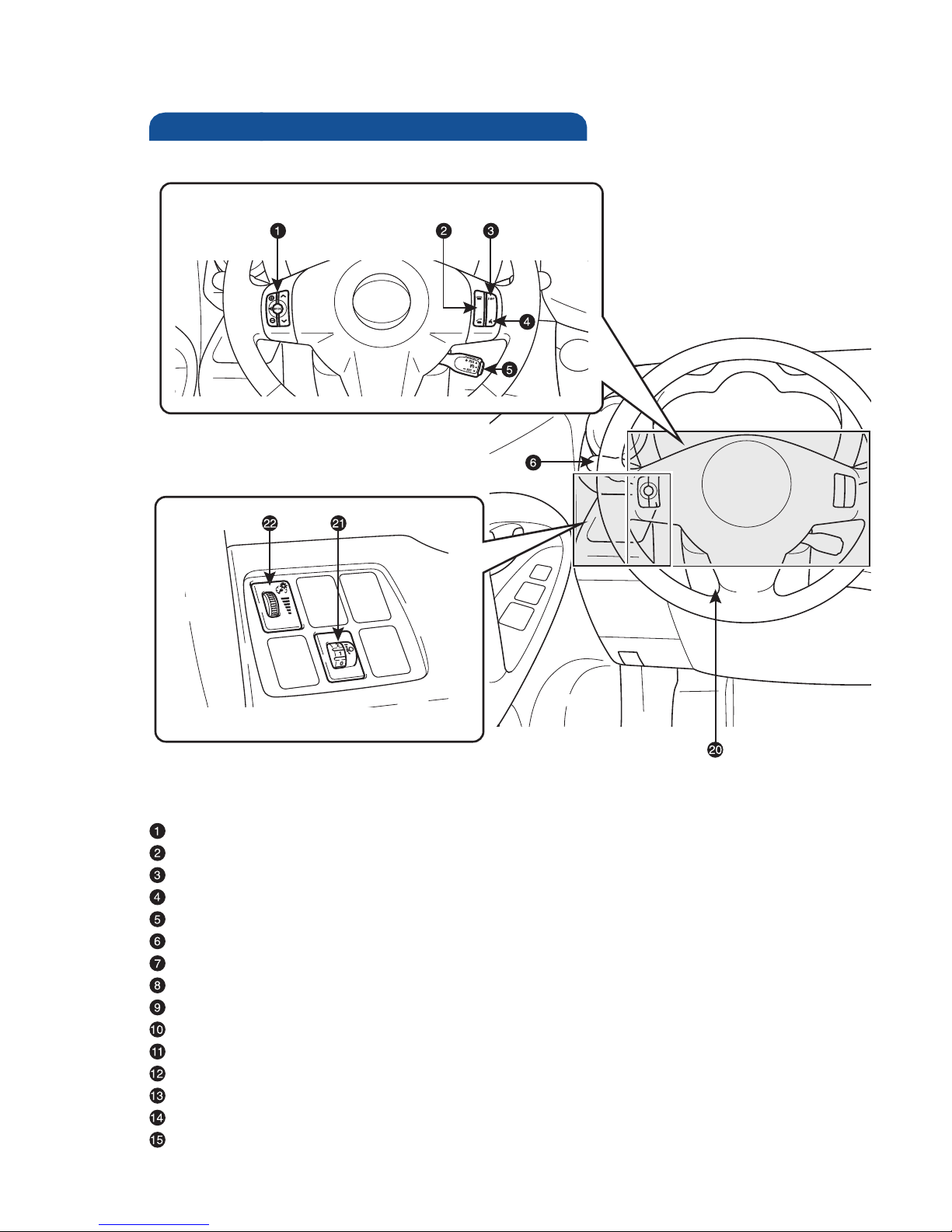

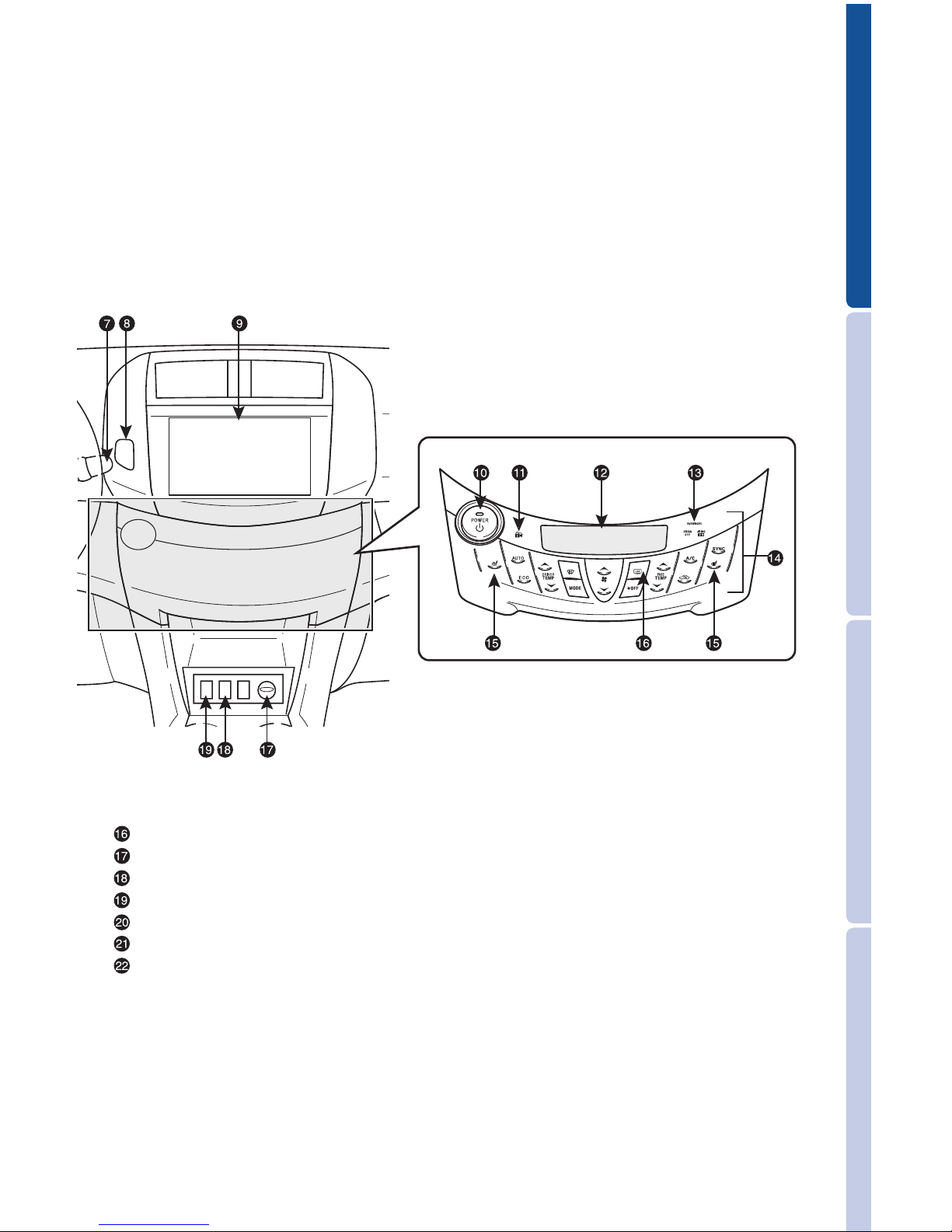

Instrument panel
Rear window and outside rearview mirror defogger switch
12V DC Power outlet
SPORT mode switch
VSC OFF switch
Tilt and telescopic steering release
Manual headlight leveling dial
Instrument panel light control
* For details, refer to the “Navigation System Owner’s Manual.”
Steering wheel audio controls
Telephone controls
Multi-Information Display switch
Speech command button
Cruise control
Headlight and turn signal control
Wiper and washer controls
Emergency flasher switch
Navigation/Audio system*
Power button
Immobilizer indicator
Clock and HVAC display
Front passenger occupant classification indicator
Air Conditioning controls
Seat heater controls
Steering wheel controls
2013Rav4EV.indd 2 12/3/12 11:36 PM

OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
3
Rear window and outside rearview mirror defogger switch
12V DC Power outlet
SPORT mode switch
VSC OFF switch
Tilt and telescopic steering release
Manual headlight leveling dial
Instrument panel light control
* For details, refer to the “Navigation System Owner’s Manual.”
Steering wheel audio controls
Telephone controls
Multi-Information Display switch
Speech command button
Cruise control
Headlight and turn signal control
Wiper and washer controls
Emergency flasher switch
Navigation/Audio system*
Power button
Immobilizer indicator
Clock and HVAC display
Front passenger occupant classification indicator
Air Conditioning controls
Seat heater controls
2013Rav4EV.indd 3 12/3/12 11:36 PM

4
OVERVIEW
Open door warning
EV System indicator
SOC (State Of Charge) gauge
Driving range
Service indicator and reminder
Speedometer
Multi-Information Display
Transmission shift position indicator
Odometer and two trip meters
Display change button
Instrument cluster
12-volt battery charging system warning1
Plug-in indicator (yellow/green)
Brake system warning (red)1
Output control warning
Master warning

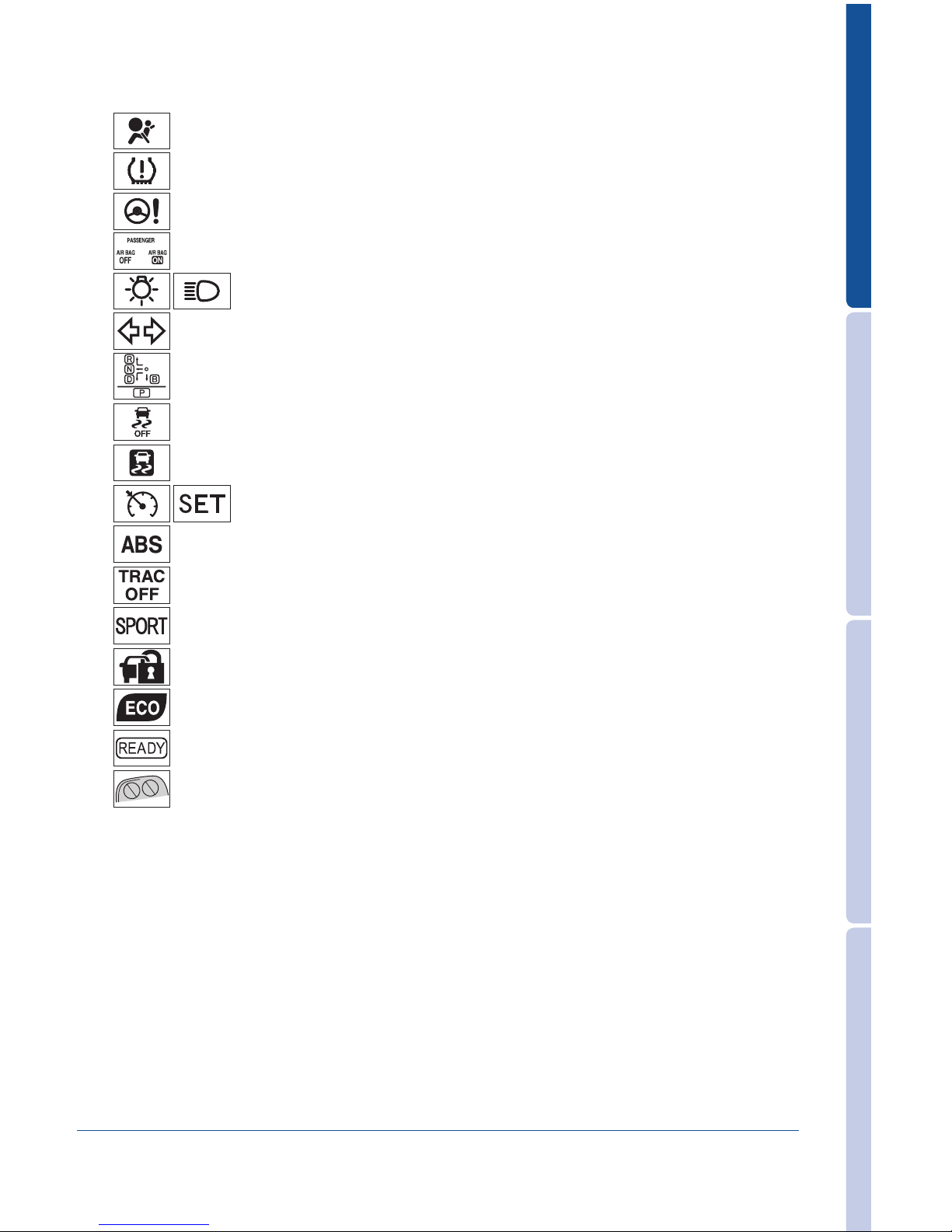

Indicator symbols
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
SOC (state of charge) warning
Brake system warning (yellow)1
2If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.
1If indicator does not turn off within a few seconds of starting EV System, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2013Rav4EV.indd 4 12/3/12 11:36 PM

OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
5
EV System indicator
SOC (State Of Charge) gauge
Driving range
Service indicator and reminder
Speedometer
Multi-Information Display
Transmission shift position indicator
Odometer and two trip meters
Display change button
Transmission shift position indicator
Turn signal indicator
SRS Airbag warning1
Headlight low/high beam indicator
Low Tire Pressure Warning1
Electric power steering system warning1
Slip indicator/Hill-start Assist Control (HAC) indicator1
Cruise control indicator2/Cruise control SET indicator2
Anti-lock Brake System warning1
2If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.
1If indicator does not turn off within a few seconds of starting EV System, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Vehicle Stability Control (VSC) OFF indicator1
Traction Control OFF indicator1
F ront passenger occupant classification indicator
Charging indicator
READY indicator
ECO Driving Indicator Light1
SPORT mode indicator
Immobilizer indicator
2013Rav4EV.indd 5 12/3/12 11:36 PM

6
OVERVIEW

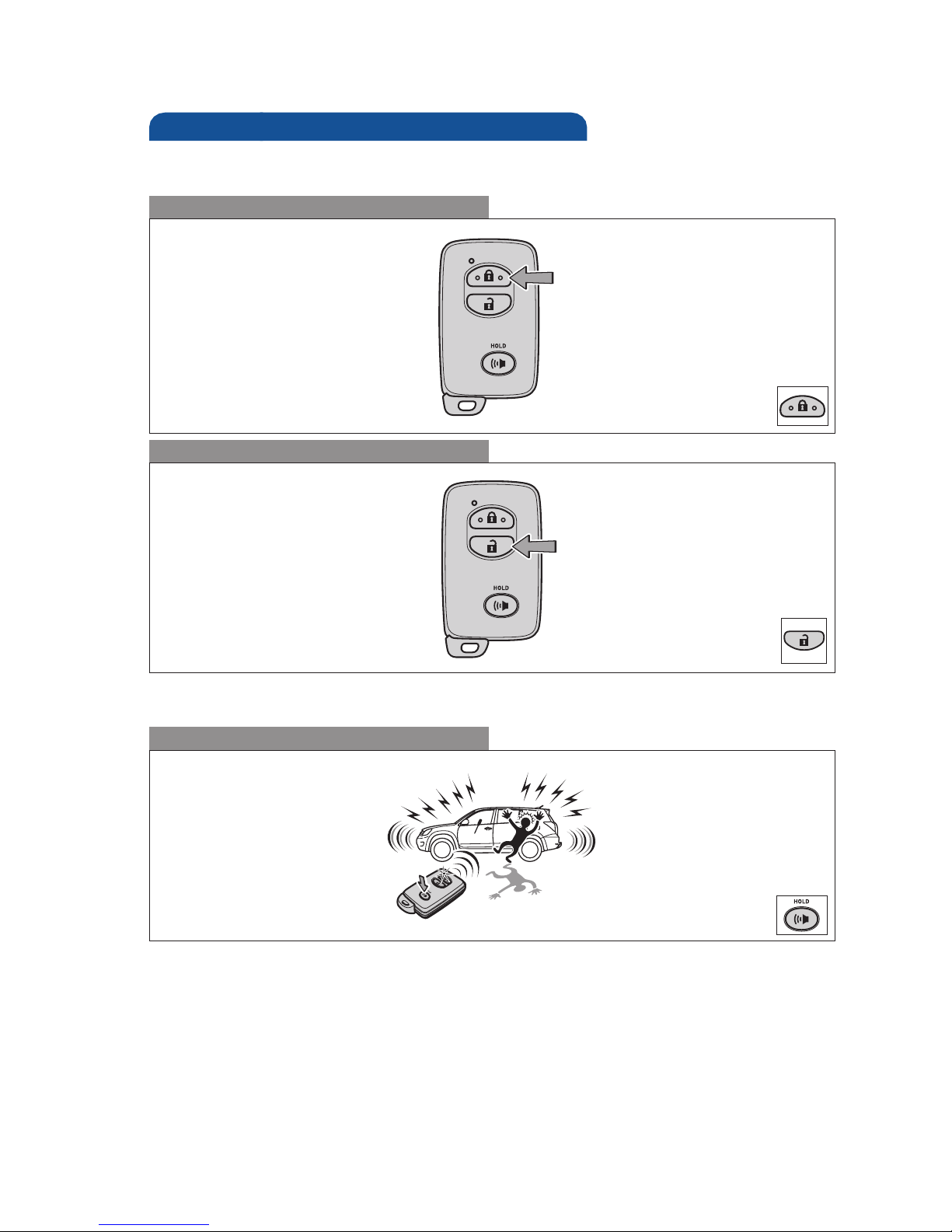

Keyless entry
Locking operation
Unlocking operation
Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for more
details.
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push ONCE: Driver door
TWICE: All doors
Push
Smart Key system
Start function
NOTE: Shift position must be in Park and brake pedal depressed.
Carrying
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle or back door opener will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting EV System)
ACCESSORY
ON
OFF
Back door lock/unlock
Locking operation
Carry remote to lock
Carry remote
to lock/unlock
2013Rav4EV.indd 6 12/3/12 11:36 PM

OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
7
Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for more
details.
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Smart Key system
Start function
NOTE: Shift position must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle or back door opener will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting EV System)
Accessories such as the radio will operate.
Power ON; the EV System is not engaged.
All systems OFF.
ACCESSORY
ON
OFF
Back door lock/unlock
Locking operation Unlocking operation
Carry remote to lock Carry remote to unlock
Front door lock Front door unlock*
Push
Grasp
Push
Grasp
Carry remote
to lock/unlock
2013Rav4EV.indd 7 12/3/12 11:36 PM

8
Motor coolant reservoir
Heater coolant reservoir
Traction battery coolant reservoir
Windshield and back window washer fluid tank
NOTE: Regularly scheduled maintenance will help extend the life of your
vehicle and maintain performance. Please refer to the “Warranty
Maintenance Guide.”
Motor maintenance
OVERVIEW
Charge port
Unlock
Hood release
Pull up latch
and raise hood
Pull
Engage support rod
Pull up
Driver seat
Open
Lift up support rod
2013Rav4EV.indd 8 12/3/12 11:36 PM

OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
9
Motor coolant reservoir
Heater coolant reservoir
Traction battery coolant reservoir
Windshield and back window washer fluid tank
NOTE: Regularly scheduled maintenance will help extend the life of your
vehicle and maintain performance. Please refer to the “Warranty
Maintenance Guide.”
Motor maintenance
2013Rav4EV.indd 9 12/3/12 11:36 PM

10
ELECTRIC VEHICLE SYSTEM
Starting the EV System
The RAV4 EV uses electricity in a rechargeable traction battery to power the
electric motor. The driving range is extended by using regenerative braking to
store electricity in the traction battery. This technology is clean and has a low
impact on the environment by not emitting exhaust such as CO2or NOXduring
operation.
Tips for reducing battery consumption
-Keep the EV System indicator needle within the ECO area.
-Drive in normal mode.
-When possible, avoid driving on steep inclines.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of Air Conditioning and heating; the seat heater may also be used to
supplement heating.
-Maintain recommended tire pressure and avoid carrying unnecessary luggage.
-Utilize the Pre-climate function to warm or cool cabin before driving.
Electric Vehicle System Range Map screen
The driving area possible on the current charge level can be displayed as a
reference, as can charge stations in the surrounding area.
Refer to the Owner’s Manual for more details.
(1) Depress the brake pedal, and
press the “POWER” switch
while in Park.
(2) After a few seconds the
“READY” light comes on and a
beep sounds.
Charge station
Range circle
Reachable destination guidance
Current position
Zoom out button
Display round trip driving range
Display one-way driving range
Zoom in button
Climate setting
2013Rav4EV.indd 10 12/3/12 11:37 PM

OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
11
The RAV4 EV uses electricity in a rechargeable traction battery to power the
electric motor. The driving range is extended by using regenerative braking to
store electricity in the traction battery. This technology is clean and has a low
impact on the environment by not emitting exhaust such as CO2or NOXduring
operation.
-Keep the EV System indicator needle within the ECO area.
-Drive in normal mode.
-When possible, avoid driving on steep inclines.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of Air Conditioning and heating; the seat heater may also be used to
supplement heating.
-Maintain recommended tire pressure and avoid carrying unnecessary luggage.
-Utilize the Pre-climate function to warm or cool cabin before driving.
Range Map screen
The driving area possible on the current charge level can be displayed as a
reference, as can charge stations in the surrounding area.
Refer to the Owner’s Manual for more details.
(1) Depress the brake pedal, and
press the “POWER” switch
while in Park.
(2) After a few seconds the
“READY” light comes on and a
beep sounds.
(1) Press “HOME” button.
(2) Touch “EV” followed
by “Range Map” on the
screen to display the
range map screen.
Charge station
Range circle
Reachable destination guidance
Current position
Zoom out button
Display round trip driving range
Display one-way driving range
Zoom in button
Climate setting
2013Rav4EV.indd 11 12/3/12 11:37 PM

12
ELECTRIC VEHICLE SYSTEM

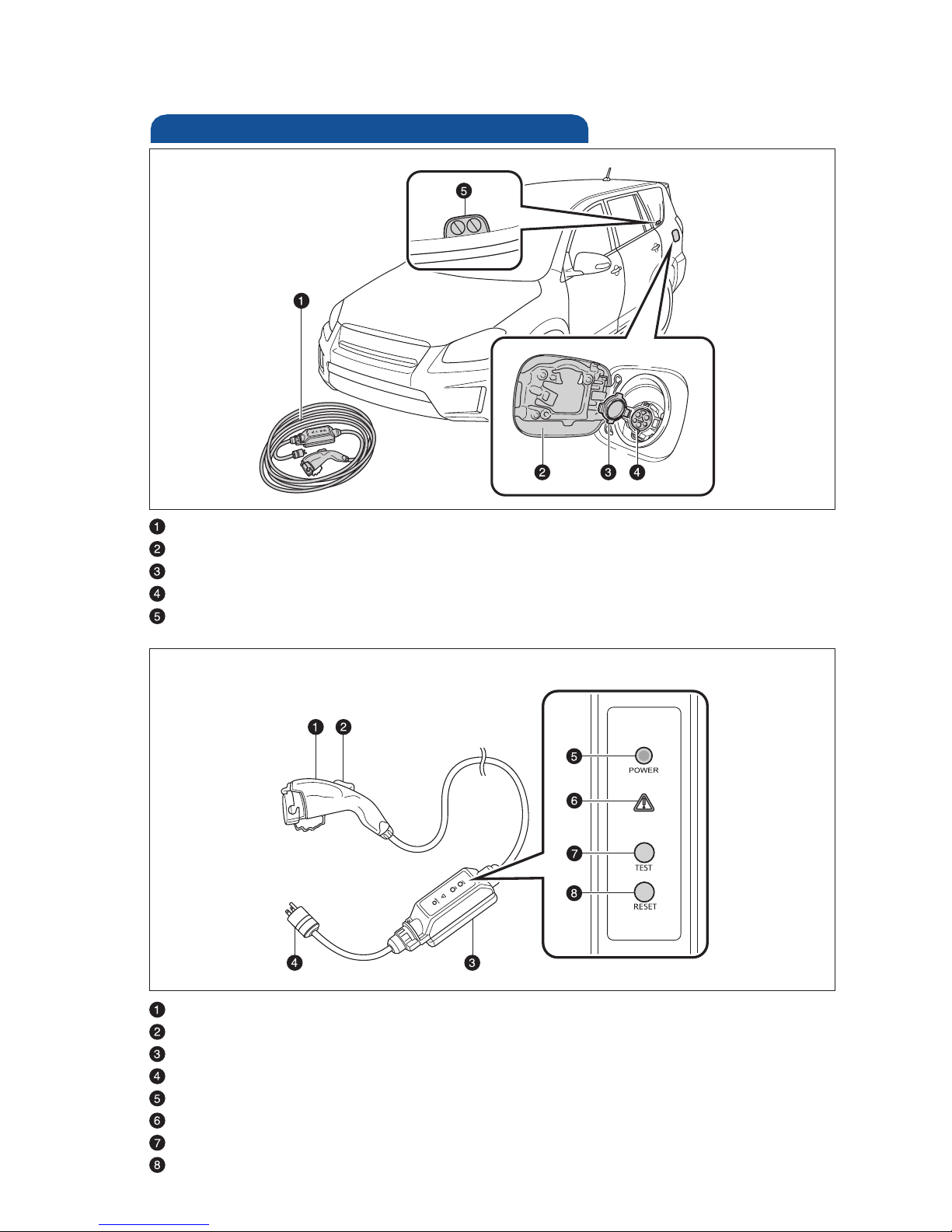

Charging cable
Charging port door
Charging port cap
Charging port
Charging indicator
Charging equipment Charging-Power sources
A Level 1 charging cable is provided with your RAV4 EV. However, a Level 2 (240V)
charging station is strongly recommended. Level 2 charging offers a faster charge
time than AC 120V charging. Please contact your Authorized Toyota RAV4 EV
Dealer for more information on obtaining a Level 2 charging station for your home.
-Connect your Level 1 charging cable to an AC 120V electrical receptacle (NEMA
5-15R or NEMA 5-20R) with a Ground-Fault Circuit-Interrupter (GFCI) and an over
current circuit breaker in the service panel.
-Toyota recommends using a dedicated receptacle with a single socket. If the
receptacle has two sockets, do not plug any other item into the other socket.
-For public charging, this vehicle may only be charged at stations that are SAE
J1772 compliant. Use your navigation system to search for nearby public charging
stations.
-When charging outdoors, be sure to connect to a rain tight electrical receptacle
that is appropriate for outdoor use.
NOTE: Do not attempt to use a damaged or loose electrical receptacle to
charge your vehicle.
See the Owner’s Manual for important precautionary information.
Charging connector
Latch release button
CCID (Charging Circuit Interrupting Device)
Plug
Power indicator
Error warning indicator
Test button
Reset button
The charging cable included with the vehicle is designed to be connected only
to an AC 120V power source.
2013Rav4EV.indd 12 12/3/12 11:37 PM

OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
13
Charging cable
Charging port door
Charging port cap
Charging port
Charging indicator
Charging-Power sources
A Level 1 charging cable is provided with your RAV4 EV. However, a Level 2 (240V)
charging station is strongly recommended. Level 2 charging offers a faster charge
time than AC 120V charging. Please contact your Authorized Toyota RAV4 EV
Dealer for more information on obtaining a Level 2 charging station for your home.
-Connect your Level 1 charging cable to an AC 120V electrical receptacle (NEMA
5-15R or NEMA 5-20R) with a Ground-Fault Circuit-Interrupter (GFCI) and an over
current circuit breaker in the service panel.
-Toyota recommends using a dedicated receptacle with a single socket. If the
receptacle has two sockets, do not plug any other item into the other socket.
-For public charging, this vehicle may only be charged at stations that are SAE
J1772 compliant. Use your navigation system to search for nearby public charging
stations.
-When charging outdoors, be sure to connect to a rain tight electrical receptacle
that is appropriate for outdoor use.
NOTE: Do not attempt to use a damaged or loose electrical receptacle to
charge your vehicle.
Do not connect the charging
cable to a multi-outlet adapter,
multi-plugs, or conversion plug.
Do not connect the charging cable
to an extension cable. The cable
may overheat and does not contain
a Ground-Fault Circuit-Interrupter
(GFCI).
Do not connect to a power strip.
See the Owner’s Manual for important precautionary information.
Charging connector
Latch release button
CCID (Charging Circuit Interrupting Device)
Plug
Power indicator
Error warning indicator
Test button
Reset button
The charging cable included with the vehicle is designed to be connected only
to an AC 120V power source.
2013Rav4EV.indd 13 12/3/12 11:37 PM

14
ELECTRIC VEHICLE SYSTEM
Charging cable-Plugging in

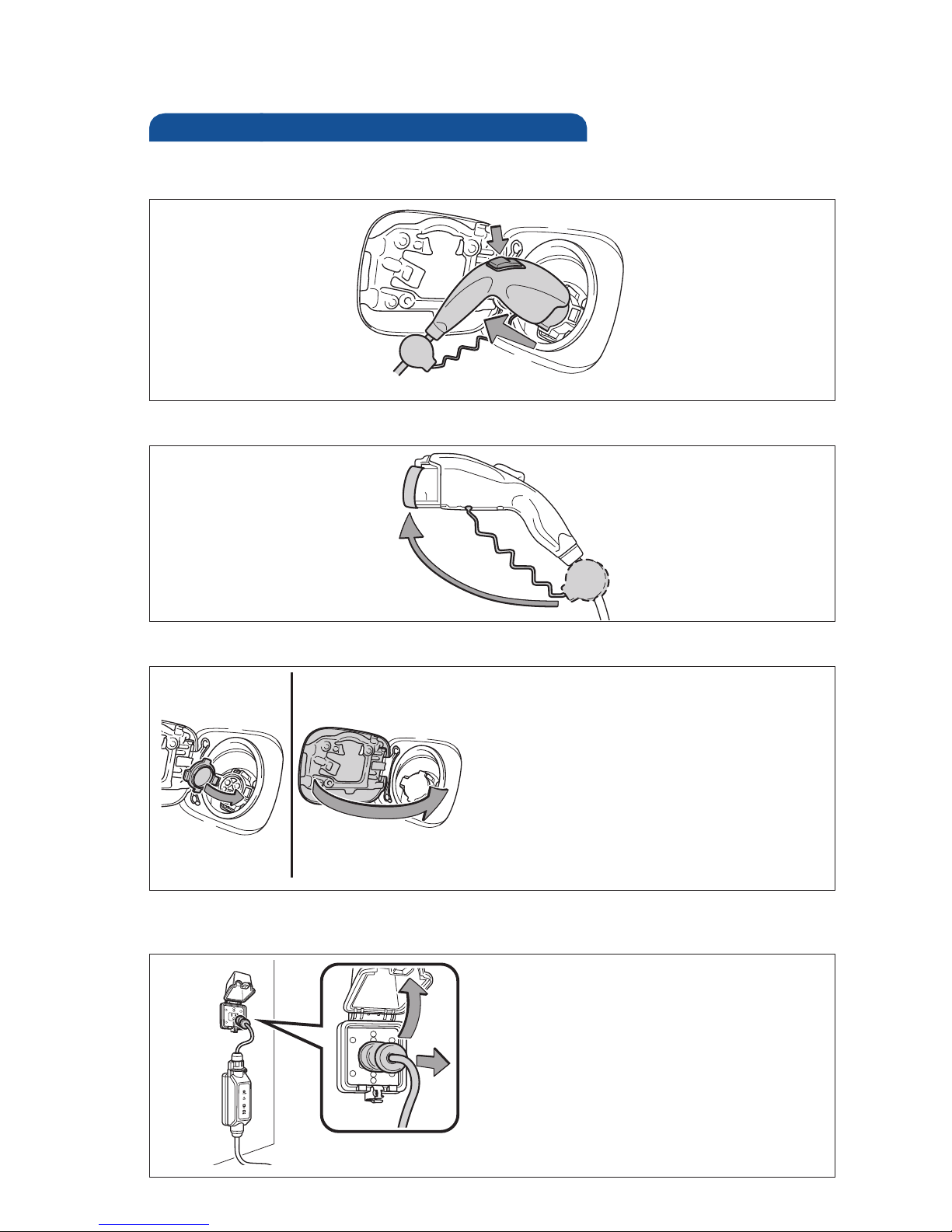

Step 1 Plug the charging cable into the electrical receptacle of the external
power source.
- Ensure that the standards of the
electrical receptacle and the
charging cable’s plug match.
- Check that the power indicator
of the CCID (Charging Circuit
Interrupting Device) is illuminated.
- Hanging the CCID on a hook is
recommended to reduce the strain
on the electrical receptacle and
charging cable plug.
- When charging outdoors, use a
“while-in-use” cover.
Step 2 Press the test button on the CCID to check that the electrical leakage
detection function operates properly.
- If the error warning indicator
illuminates when test button is
pressed, the function is operating
correctly.
- After the test is completed, press
reset button to turn off the error
warning. Charging cannot occur
while error warning is illuminated.
- If the error warning indicator does
not come on when test button is
pressed, the function may not be
operating correctly. Stop charging
immediately and contact your
Toyota dealer.
Step 3 Pull up the charging port door lever.
Step 4 Open the charging port cap by releasing the clip.
Step 5 Remove the charging connector cap. Affix the cap to the cable.
“While-in-use”
cover
2013Rav4EV.indd 14 12/3/12 11:37 PM

OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
15
Step 1 Plug the charging cable into the electrical receptacle of the external
power source.
- Ensure that the standards of the
electrical receptacle and the
charging cable’s plug match.
- Check that the power indicator
of the CCID (Charging Circuit
Interrupting Device) is illuminated.
- Hanging the CCID on a hook is
recommended to reduce the strain
on the electrical receptacle and
charging cable plug.
- When charging outdoors, use a
“while-in-use” cover.
Step 2 Press the test button on the CCID to check that the electrical leakage
detection function operates properly.
- If the error warning indicator
illuminates when test button is
pressed, the function is operating
correctly.
- After the test is completed, press
reset button to turn off the error
warning. Charging cannot occur
while error warning is illuminated.
- If the error warning indicator does
not come on when test button is
pressed, the function may not be
operating correctly. Stop charging
immediately and contact your
Toyota dealer.
Step 3 Pull up the charging port door lever.
Step 4 Open the charging port cap by releasing the clip.
Step 5 Remove the charging connector cap. Affix the cap to the cable.
Push to
open
2013Rav4EV.indd 15 12/3/12 11:37 PM

16
ELECTRIC VEHICLE SYSTEM

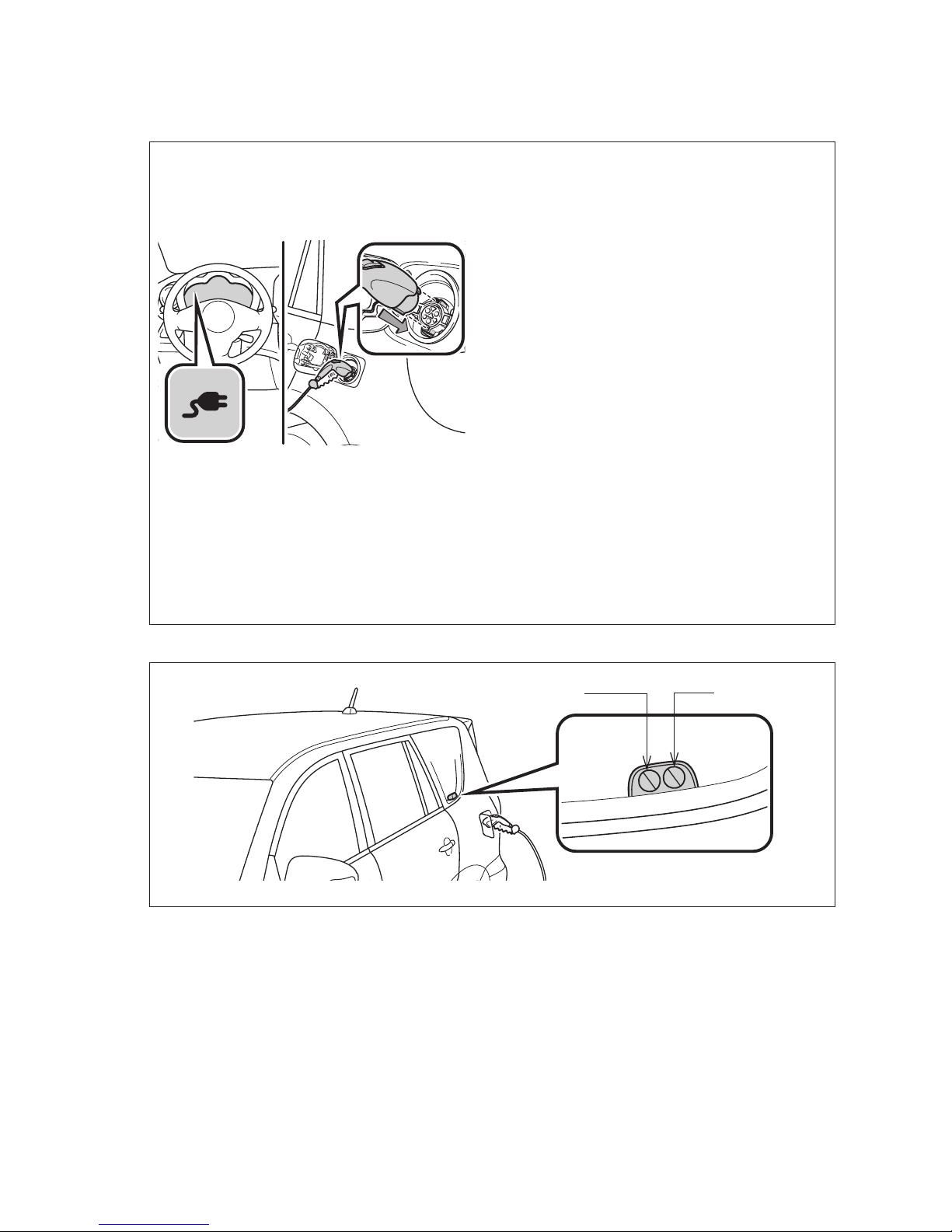

Step 6 Insert the charging cable connector into the charging port.
- Do not press the latch release button
when inserting the connector.
- Align with the guide position shown
on underside of the charging
connector, and push it in straight
and firmly until it clicks. Confirm
connector is securely locked.
- The plug-in indicator on the meter
illuminates in green if correctly
plugged in. Incorrect plug-in results
in a yellow plug-in indicator.
- If no schedule is set, or the charge
immediately function is selected,
charging will begin by simply
plugging in the charging cable.
- If EV System is on when the vehicle
is plugged in, the READY indicator
will turn off and a message will show
in the Multi-Information Display.
Step 7 Check the status of the charging indicator.
Light
AL
ight B
The charging indicator consists of two lights that display charging status by
illuminating, flashing and turning off as follows:
The indicator lights will not flash or turn on if the charging cable is not
connected properly. During charging, current charging status and the estimated
time until charge completion can be checked on the Multi-Information Display or
navigation display.
Charging status Charging indicator
Light A Light B
Charging cable is connected to
vehicle and the charging and/or
Pre-climate schedule is set
Lights A and B flash on and off alternatively
for 10 minutes (after 10 minutes, lights
remain off until charging starts).
Charge level is less than 49% Flashes Off
Charge level is between 50% and
less than 99% Illuminates Flashes
Charging is complete Both lights A and B illuminate for 10 minutes
(after 10 minutes, both lights turn off).
Malfunction occurred during
charging
Both lights A and B quickly flash
simultaneously for 10 seconds (after 10
seconds both lights turn off).
2013Rav4EV.indd 16 12/3/12 11:37 PM

OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
17
Step 6 Insert the charging cable connector into the charging port.
- Do not press the latch release button
when inserting the connector.
- Align with the guide position shown
on underside of the charging
connector, and push it in straight
and firmly until it clicks. Confirm
connector is securely locked.
- The plug-in indicator on the meter
illuminates in green if correctly
plugged in. Incorrect plug-in results
in a yellow plug-in indicator.
- If no schedule is set, or the charge
immediately function is selected,
charging will begin by simply
plugging in the charging cable.
- If EV System is on when the vehicle
is plugged in, the READY indicator
will turn off and a message will show
in the Multi-Information Display.
Step 7 Check the status of the charging indicator.
Light ALight B
The charging indicator consists of two lights that display charging status by
illuminating, flashing and turning off as follows:
The indicator lights will not flash or turn on if the charging cable is not
connected properly. During charging, current charging status and the estimated
time until charge completion can be checked on the Multi-Information Display or
navigation display.
Charging status Charging indicator
Light A Light B
Charging cable is connected to
vehicle and the charging and/or
Pre-climate schedule is set
Lights A and B flash on and off alternatively
for 10 minutes (after 10 minutes, lights
remain off until charging starts).
Charge level is less than 49% Flashes Off
Charge level is between 50% and
less than 99% Illuminates Flashes
Charging is complete Both lights A and B illuminate for 10 minutes
(after 10 minutes, both lights turn off).
Malfunction occurred during
charging
Both lights A and B quickly flash
simultaneously for 10 seconds (after 10
seconds both lights turn off).
2013Rav4EV.indd 17 12/3/12 11:37 PM

18
Charging cable-Unplugging
Step 1 Pull the charging connector toward you while pressing the latch release
button.
Step 2 Attach the charging connector cap.
ELECTRIC VEHICLE SYSTEM
Firmly push the charging port cap
and charging port door, and check
that they are securely locked.
Step 3 Close the charging port cap, and then close the charging port door.
- Hold the body of the plug while
removing.
- Make sure to put the cable away
immediately after disconnecting.
- When leaving the plug inserted, check
the plug and connector once a month
for accumulation of dirt or dust.
Step 4 Remove the plug from the electrical receptacle when the charging
equipment will not be used for a long period of time.
Depending on the charge settings, the vehicle may not start charging just by
plugging in the charging cable. Use the navigation screen to set the charging and
Pre-climate/remote climate control schedules. Before either function starts, it is
recommended that:
-Parking brake is securely set with shift position in “P”
-All windows and doors are closed
-Engine hood is securely closed
-All lights are turned off
When the EV System is turned off, the screen changes to the charging and
Pre-climate settings screen. If no operations are performed for approximately 30
seconds, the screen turns off.
Next charge start schedule
Battery charge amount
Charge complete schedule
Charge immediately button
Next departure schedule
Departure schedule Edit button
Extended charge mode setting button
By My Departure schedule setting
Charge and Pre-climate schedule setting screen
Charging
2013Rav4EV.indd 18 12/3/12 11:38 PM
