OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 6. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 – 1

’02 Tacoma U (L/O 0109)
22002 MY TACOMA_U (OM35786U)

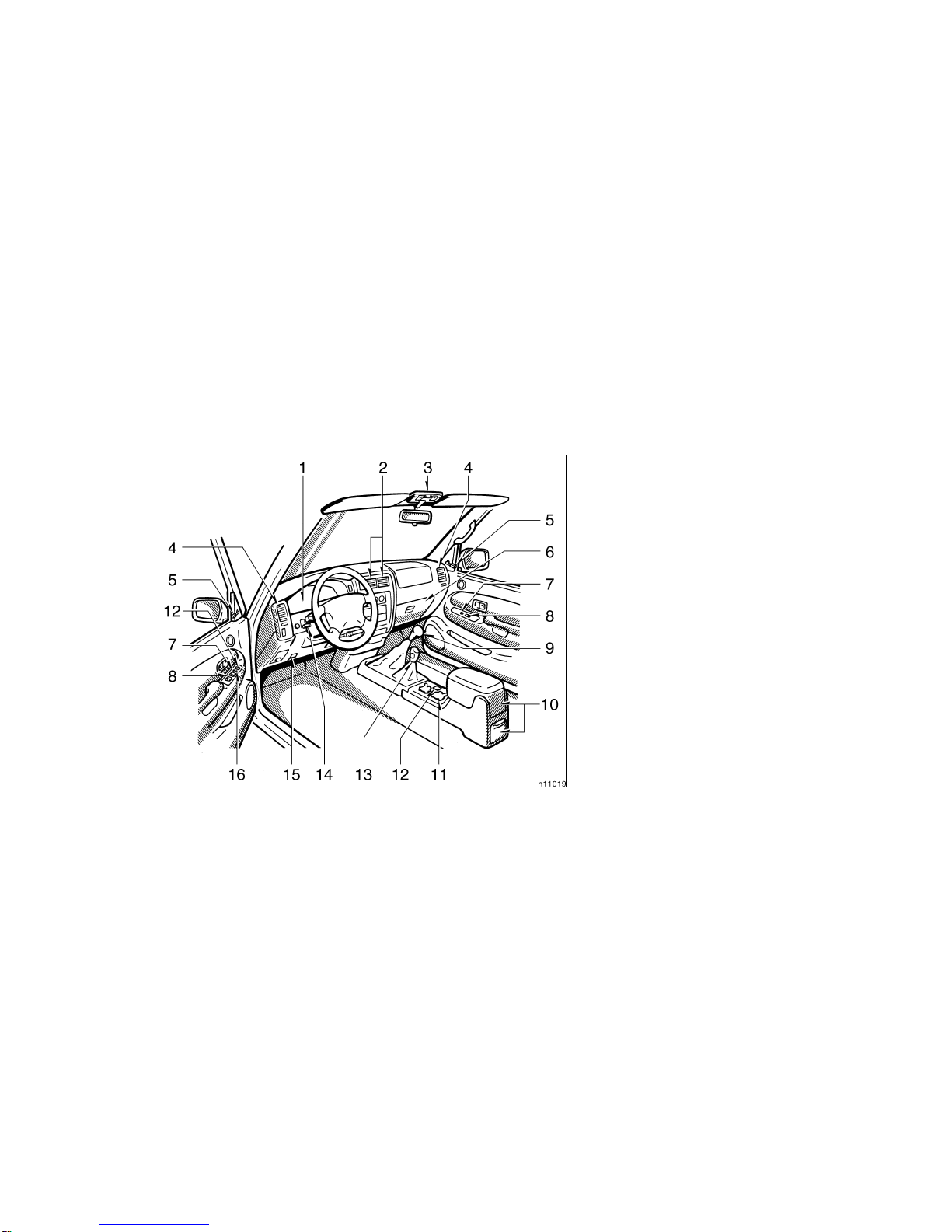

1. Instrument cluster
2. Center vents
3. Personal lights or interior light
4. Side vents
5. Rear view mirror remote control levers
6. Glove box
7. Power door lock switches
8. Power window switches
9. Manual transmission gear shift lever or
automatic transmission selector lever
10. Rear console box
11. Cup holder
12. Power rear view mirror control switches
13. Front drive control lever
14. Tilt steering lock release lever
15. Hood lock release lever
16. Window lock switch
Instrument panel overview

’02 Tacoma U (L/O 0109)
3
2002 MY TACOMA_U (OM35786U)

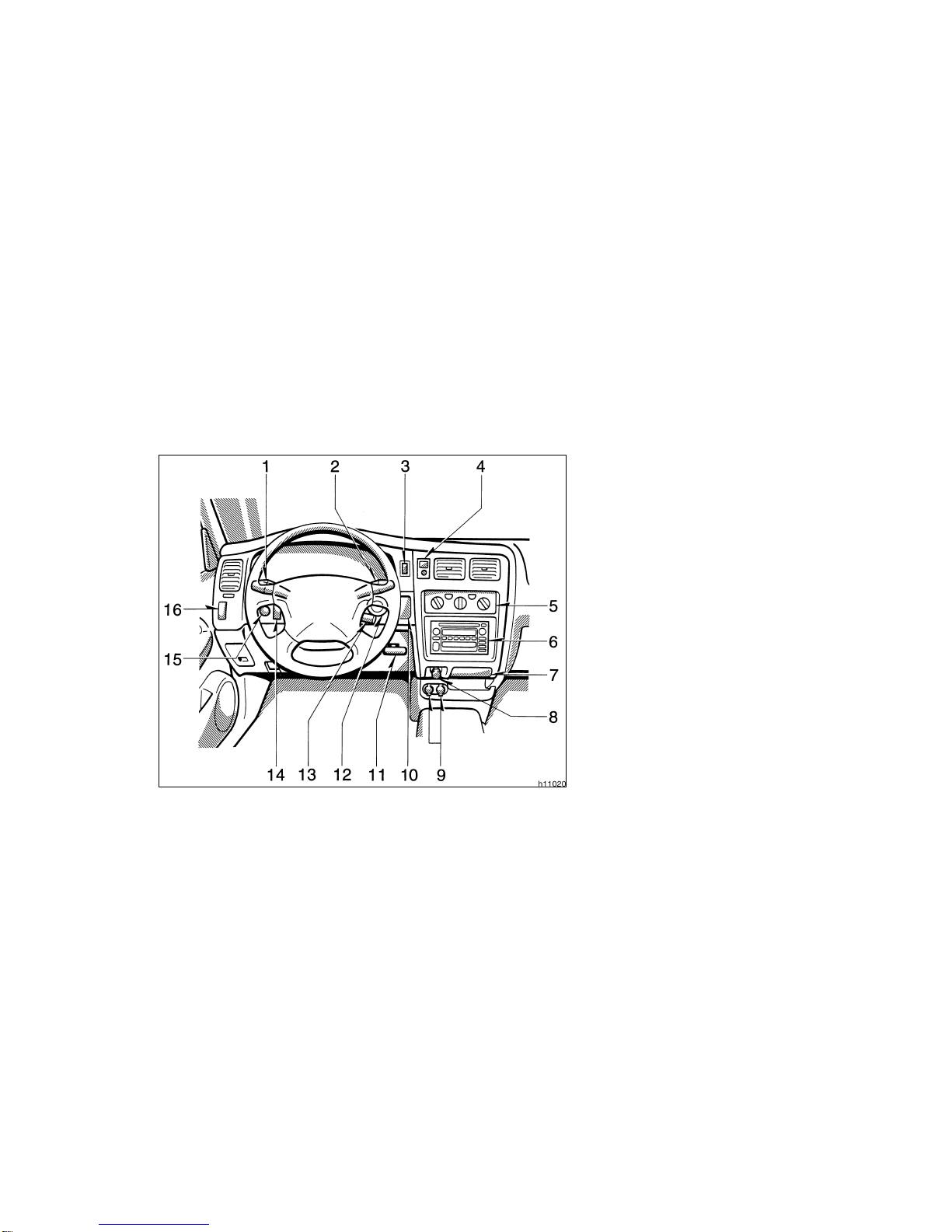

1. Headlight and turn signal switch
2. Wiper and washer switches
3. Emergency flasher switch
4. Passenger airbag manual on–off switch
5. Air conditioning controls
6. Car audio
7. Ashtray
8. Cigarette lighter
9. Power outlets
10. Clock
11. Parking brake lever
12. Ignition switch
13. Cruise control switch
14. Rear differential lock switch
15. Instrument panel light control knob
16. Clutch start cancel switch (manual
transmission) or driving pattern selector
button (automatic transmission)

’02 Tacoma U (L/O 0109)
42002 MY TACOMA_U (OM35786U)

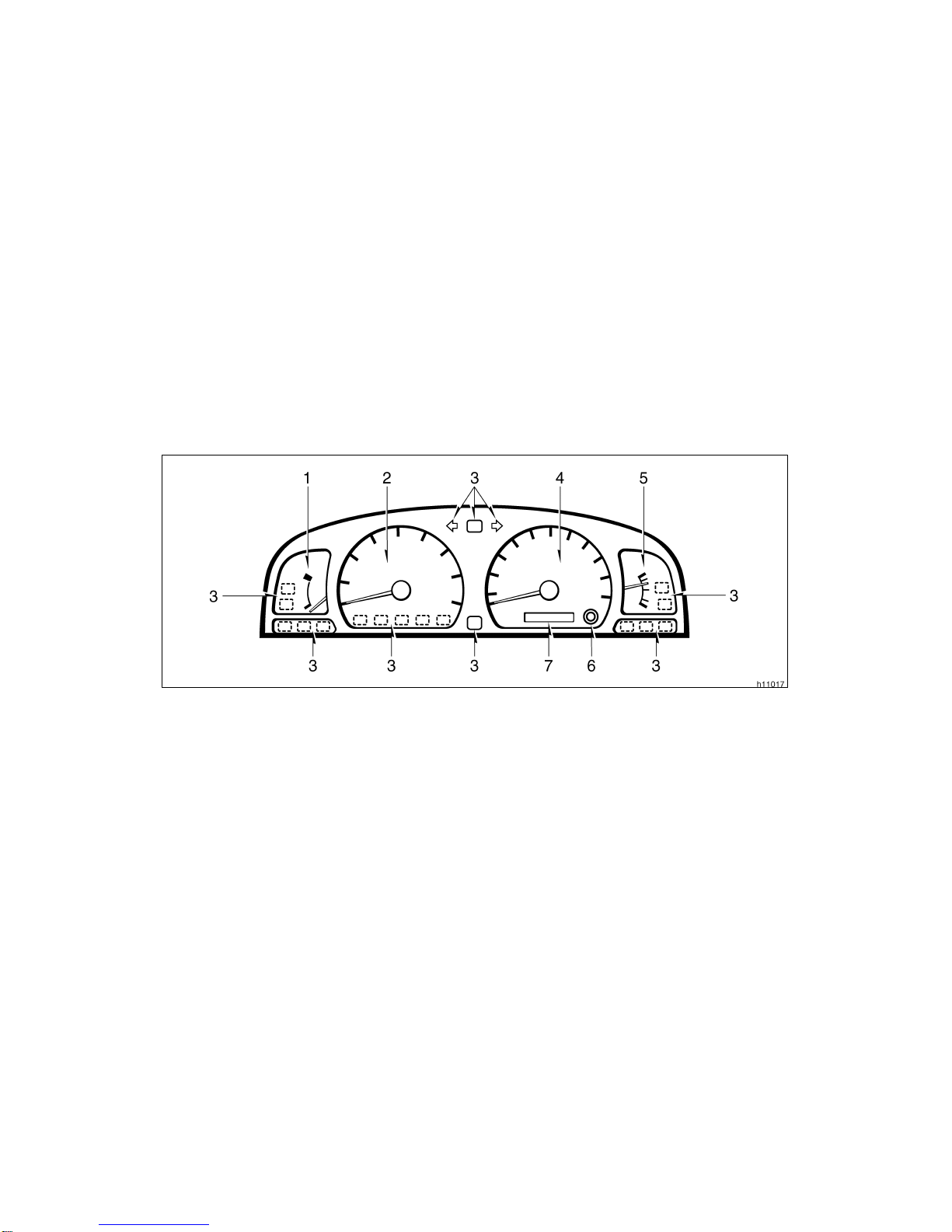

1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights
4. Speedometer
5. Fuel gauge
6. Trip meter reset knob
7. Odometer and two trip meters
Instrument cluster overview
With tachometer

’02 Tacoma U (L/O 0109)
5
2002 MY TACOMA_U (OM35786U)
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Speedometer
4. Odometer 5. Fuel gauge
Without tachometer

’02 Tacoma U (L/O 0109)
62002 MY TACOMA_U (OM35786U)

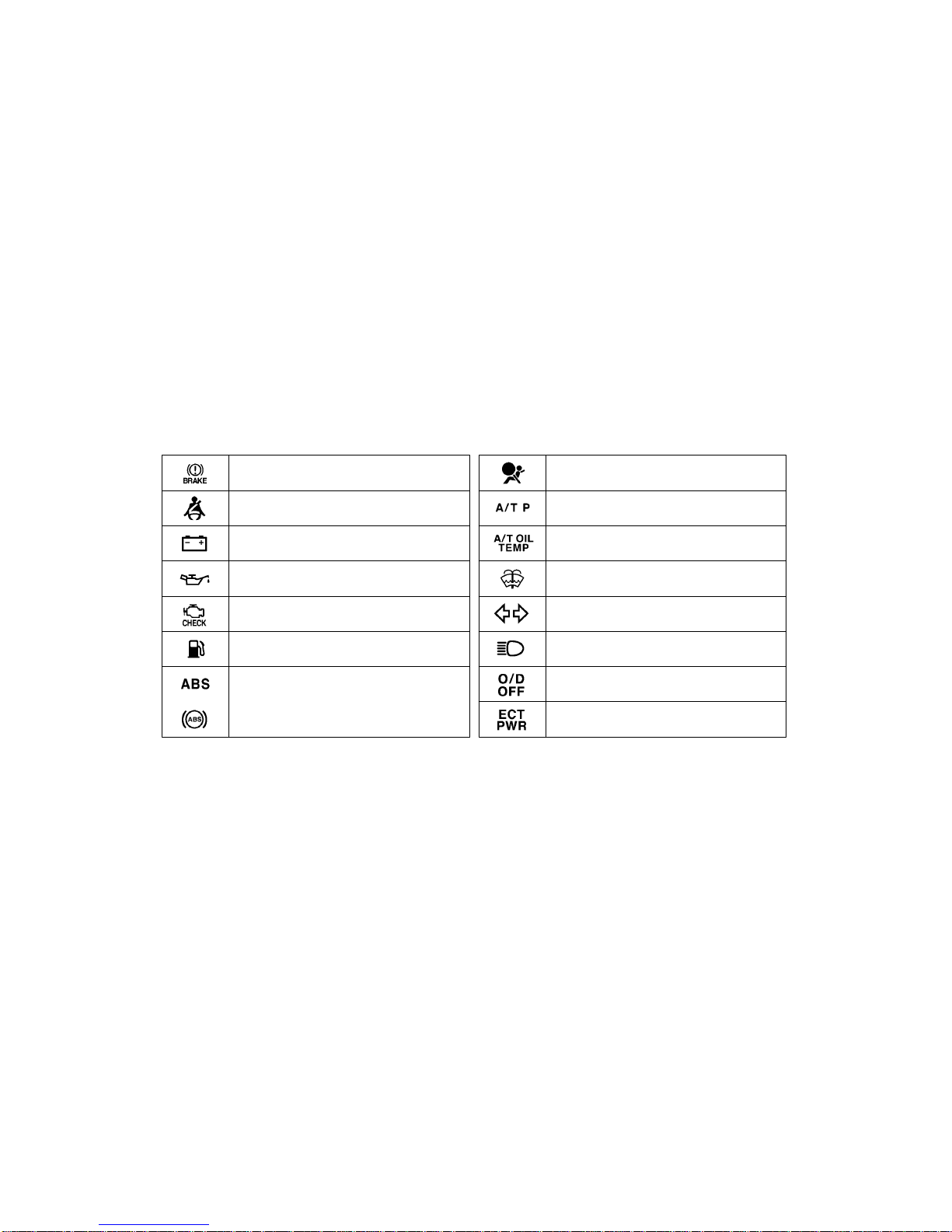

Seat belt reminder light∗1
Low engine oil pressure warning light∗1
Low fuel level warning light∗1
Brake system warning light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Anti–lock brake system warning light∗1
SRS warning light∗1
or
Automatic transmission fluid temperature warning
light∗1
Unengaged “Park” warning light∗1
Low windshield washer fluid level warning
light∗1
Headlight high beam indicator light
Overdrive–off indicator light
Turn signal indicator lights
Driving pattern (POWER mode) indicator light
Indicator symbols on the instrument panel

’02 Tacoma U (L/O 0109)
7
2002 MY TACOMA_U (OM35786U)
∗1: For details, see “Service reminder indicators and warning
buzzers” in Section 1–5.
∗2: If this light flashes, see “Cruise control” in Section 1–6.
Cruise control indicator light∗2
Rear differential lock indicator light
Four–wheel drive indicator light

’02 Tacoma U (L/O 0109)
82002 MY TACOMA_U (OM35786U)

’02 Tacoma U (L/O 0109)
9
2002 MY TACOMA_U (OM35786U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quarter windows 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tailgate 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detachable moon roof 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detachable sun shade 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 – 2

’02 Tacoma U (L/O 0109)
10 2002 MY TACOMA_U (OM35786U)
This key works in every lock.
Since the doors can be locked without a
key, you should always carry a spare key
in case you accidentally lock your key
inside the vehicle.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the door simulta-
neously.
Keys Side doors

’02 Tacoma U (L/O 0109)
11
2002 MY TACOMA_U (OM35786U)
LOCKING AND UNLOCKING WITH
INSIDE LOCK BUTTON
Move the lock button.
To lock: Push the button downward.
To unlock: Pull the button upward.
Closing the door with the lock button
pushed in will also lock the door. Be care-
ful not to lock your keys in the vehicle.
Vehicles with power door lock system—
The doors cannot be locked if you leave
the key in the ignition switch.
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
All the doors lock or unlock simultaneous-
ly.
All the doors cannot be unlocked with the
power door lock switch by the following
cases:
Either front door is locked by the key.
Either front door is closed with the
inside door lock button pushed in.

’02 Tacoma U (L/O 0109)
12 2002 MY TACOMA_U (OM35786U)
REAR DOOR CHILD–PROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.

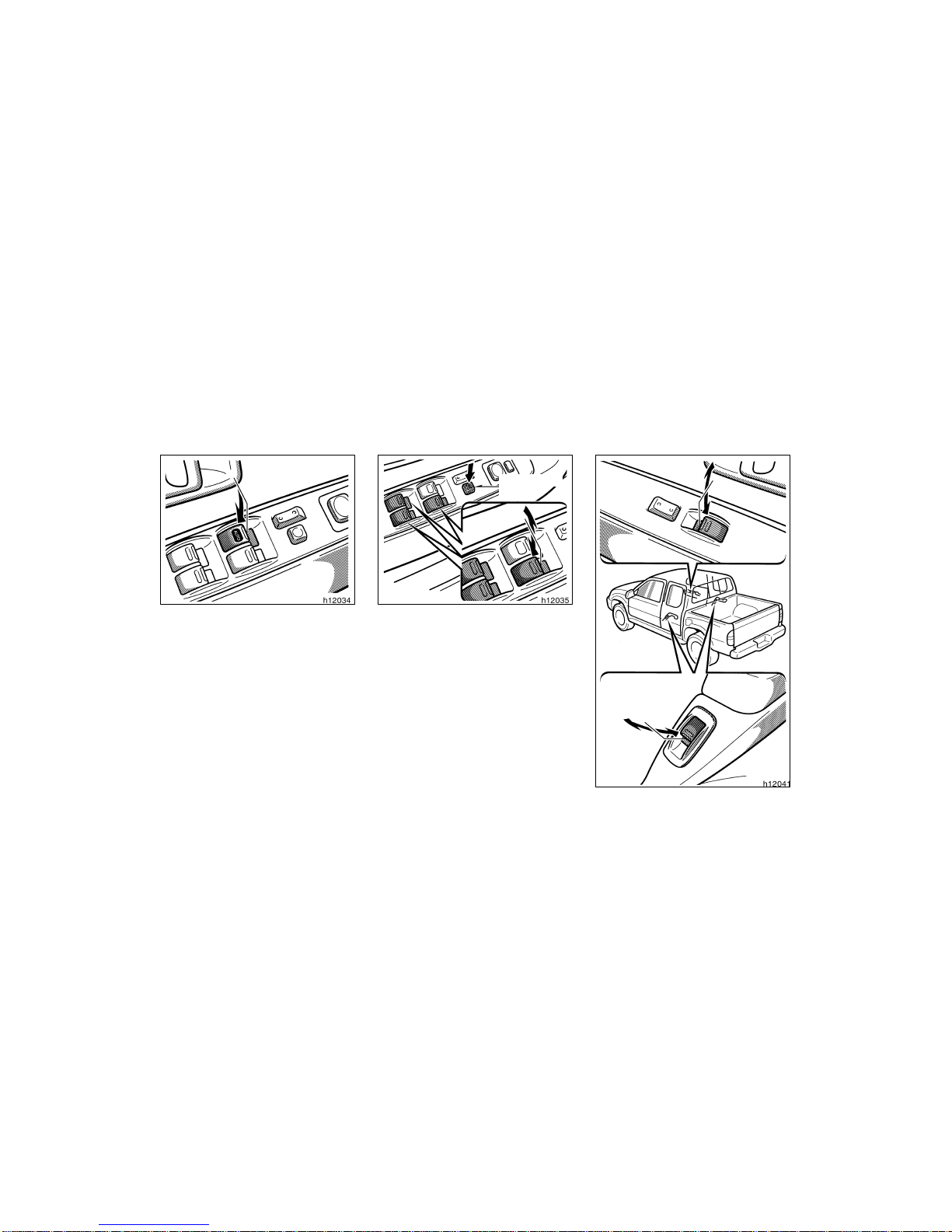

The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
Power windows

’02 Tacoma U (L/O 0109)
13
2002 MY TACOMA_U (OM35786U)
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger’s
door or the switches on the driver’s
door that control each passenger’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver’s door, the passengers’ windows
cannot be operated.

’02 Tacoma U (L/O 0109)
14 2002 MY TACOMA_U (OM35786U)
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, make
sure that he/she operates the win-
dows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can be involved in
serious accidents.

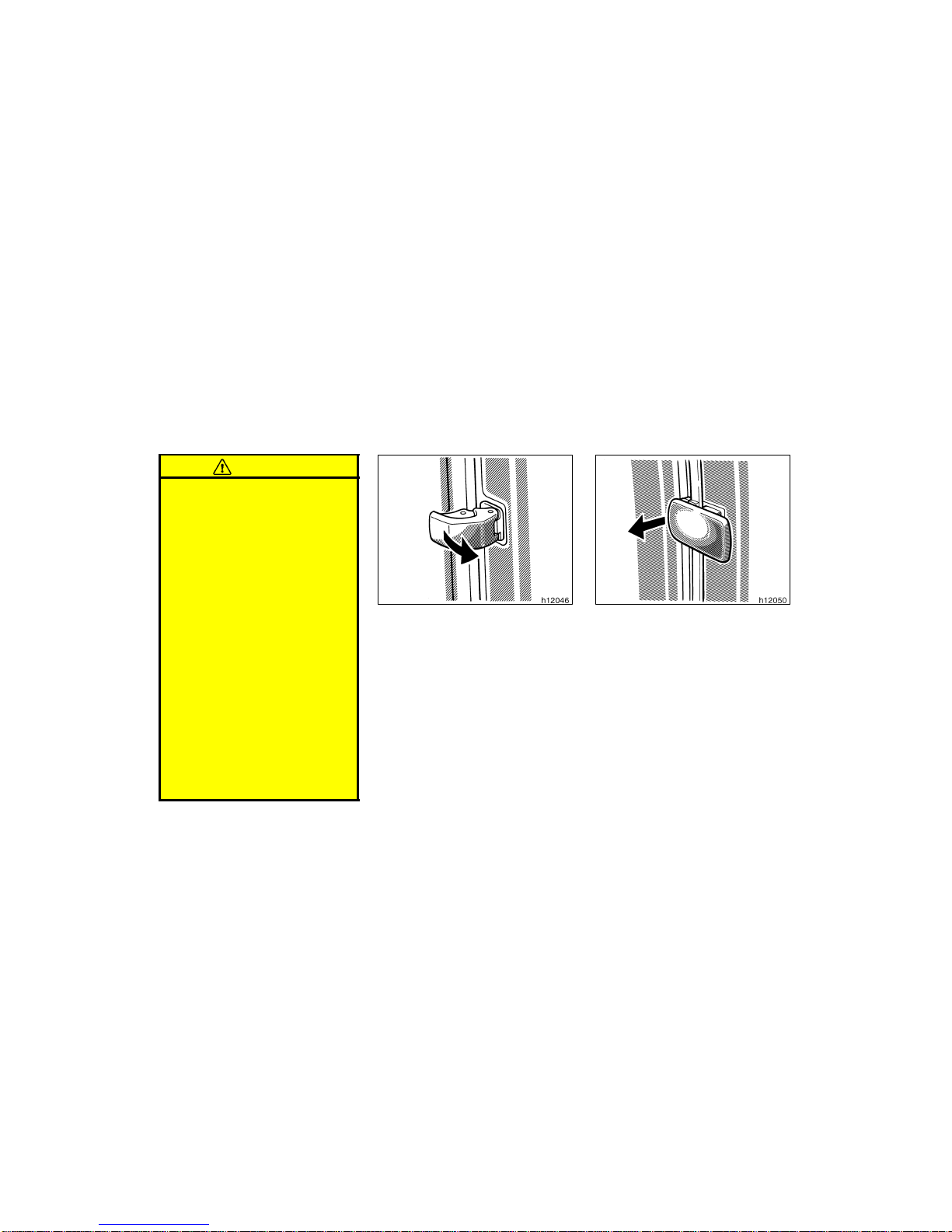

To open the quarter window, pull the
latch handle toward you and swing it
fully out.
When closing the window, make sure it is
completely closed.
To unlock the rear window, pull the
latch handle toward you.
When closing the window, make sure it is
completely closed.
Quarter windows
(Xtra–cab models) Rear window

’02 Tacoma U (L/O 0109)
15
2002 MY TACOMA_U (OM35786U)

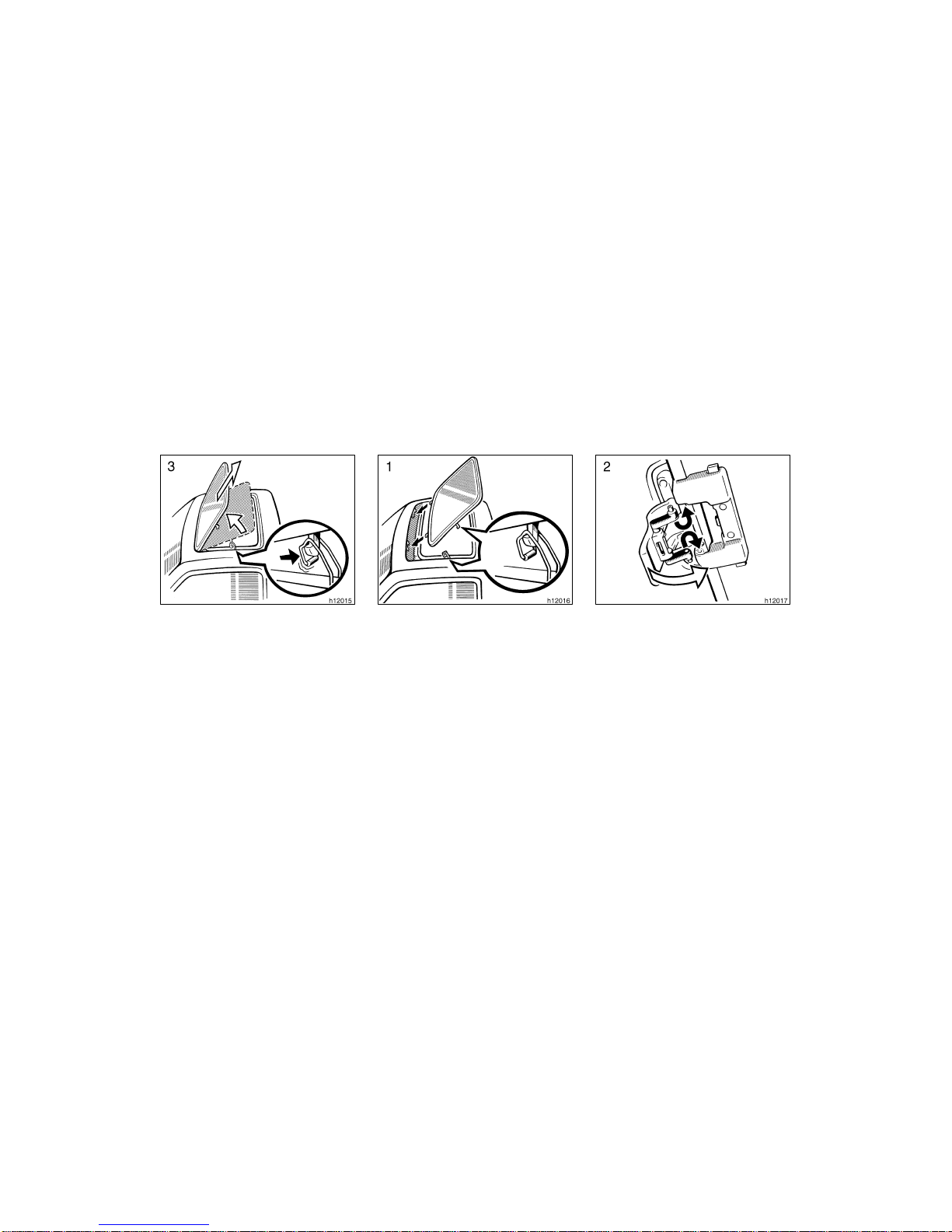

To open the tailgate, pull the handle up.
The support cables will hold the tailgate
horizontal.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.
After closing the tailgate, try pulling it to-
ward you to make sure it is securely
locked.
NOTICE
Avoid driving with the tailgate open.
To lower the tailgate fully, release the
support brackets from the lugs as
shown.
NOTICE
 Lower the tailgate gently when it is
unhooked.
 Make sure the tailgate is securely
caught by the support brackets be-
fore closing the tailgate.

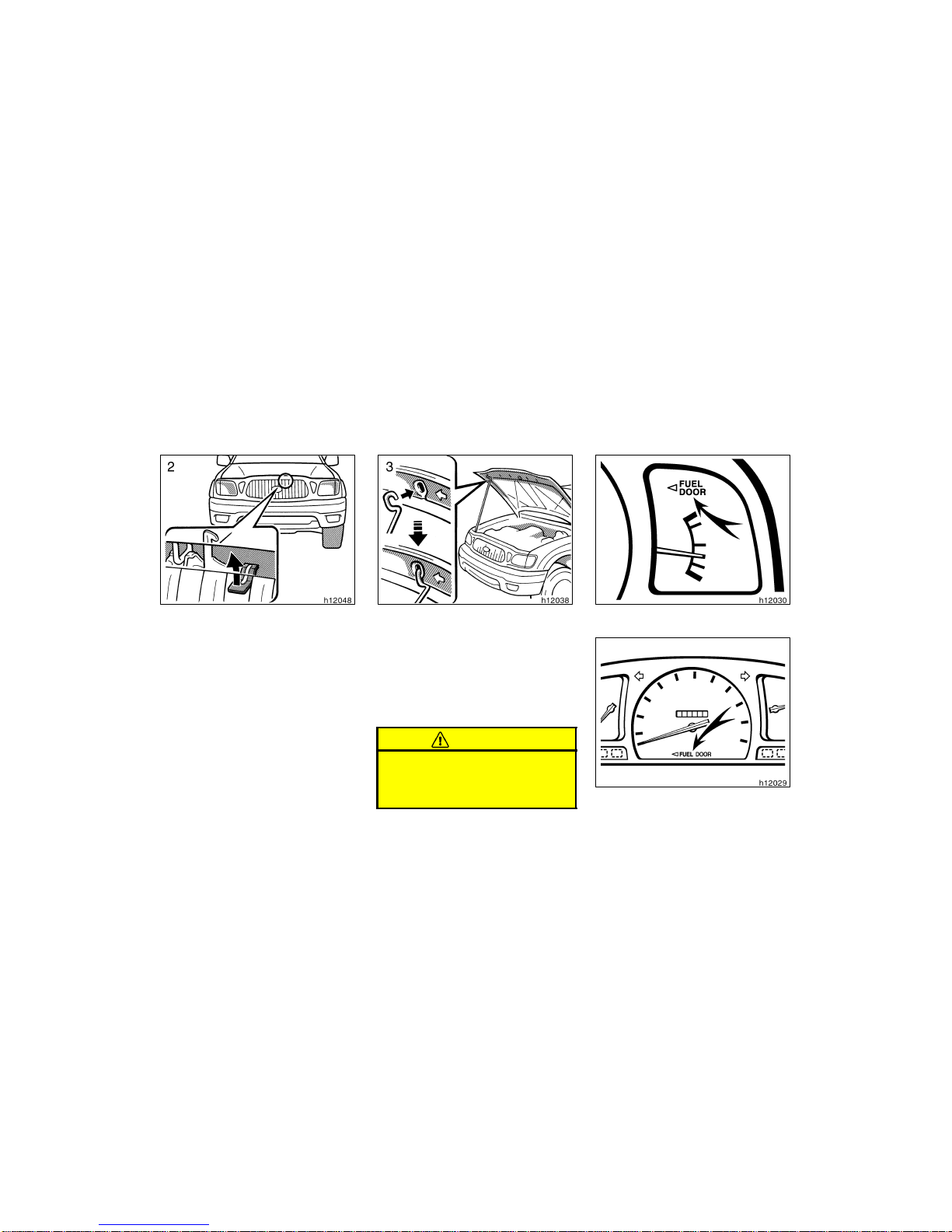

To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is securely closed and locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
Tailgate Hood

’02 Tacoma U (L/O 0109)
16 2002 MY TACOMA_U (OM35786U)
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
With tachometer
Without tachometer
Fuel tank cap

’02 Tacoma U (L/O 0109)
17
2002 MY TACOMA_U (OM35786U)
This indicates that the fuel filler door
is on the left side of your vehicle.
Type A
Type B
1. Type A—
To open the fuel filler door, pull the
door toward out as shown.
Type B—
To open the fuel filler door, insert
the key and turn it counterclockwise.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Do not fill a fuel container on a
plastic truck bed liner, a rubber
truck bed mat, or any other insulat-
ing material. A static electricity
charge could cause a spark and fire
hazard. The proper procedure is to
place an approved fuel container on
the ground away from the truck for
filling.

’02 Tacoma U (L/O 0109)
18 2002 MY TACOMA_U (OM35786U)
Type A
Type B
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger (type A) or hook
it on the inside of the fuel filler door
(type B).
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Never sit on top of the vehicle
around the roof opening.
Never attempt to remove the moon
roof panel while driving. Otherwise,
the panel may become a hazard by
falling into or flying off the vehicle.
After installing the moon roof pan-
el, make sure they are firmly se-
cured by pushing up on the under-
side of the panel.
Never put your hands between the
moon roof panel and the surround-
ing roof.
Detachable moon roof—
—Moon roof precautions

’02 Tacoma U (L/O 0109)
19
2002 MY TACOMA_U (OM35786U)
To tilt up the moon roof, first pull down
on the handle while pushing in one of
the lock buttons. Then push up the
moon roof until it locks.
After tilting up the moon roof, make sure
the handle is securely in place.
When closing the moon roof, slowly pull
down the handle while supporting the roof
with your hand. Close and lock the moon
roof by pushing the handle. Be sure to
use your palm to push the handle. After
closing the moon roof, make sure it is
securely locked.
1. Pull the handle down while pushing
in one of the lock buttons. 2. Push in the retaining spring arms as shown and push up the moon roof.
—Tilting up and closing —Removing

’02 Tacoma U (L/O 0109)
20 2002 MY TACOMA_U (OM35786U)
3. Push back the auxiliary catch to re-
lease it from the hook. Then lift the
moon roof panel and pull it out.
1. Insert the flat hinges of the moon
roof panel into the cutouts on the
body. Then slowly lower it while
holding the roof with your hands.
Make sure both flat hinges are inserted
into the cutouts.
2. Press in the retaining spring arms
and insert them into the holes. Then
push the handle up with the palm of
your hand and lock the roof.
—Installing
