TRACE ELLIOT V-TYPE V8 User manual

TRACE ELLIOT
SERVICE MANUAL NO. SM00080
ISSUE 1
Date: July 13th,2000
Product Code : T0136
Model No : V8
Technical File No : TE00080
Issued by:
Trace Elliot Limited.
Blackwater Trading Estate
The Causeway, Maldon
Essex CM4 4GG.

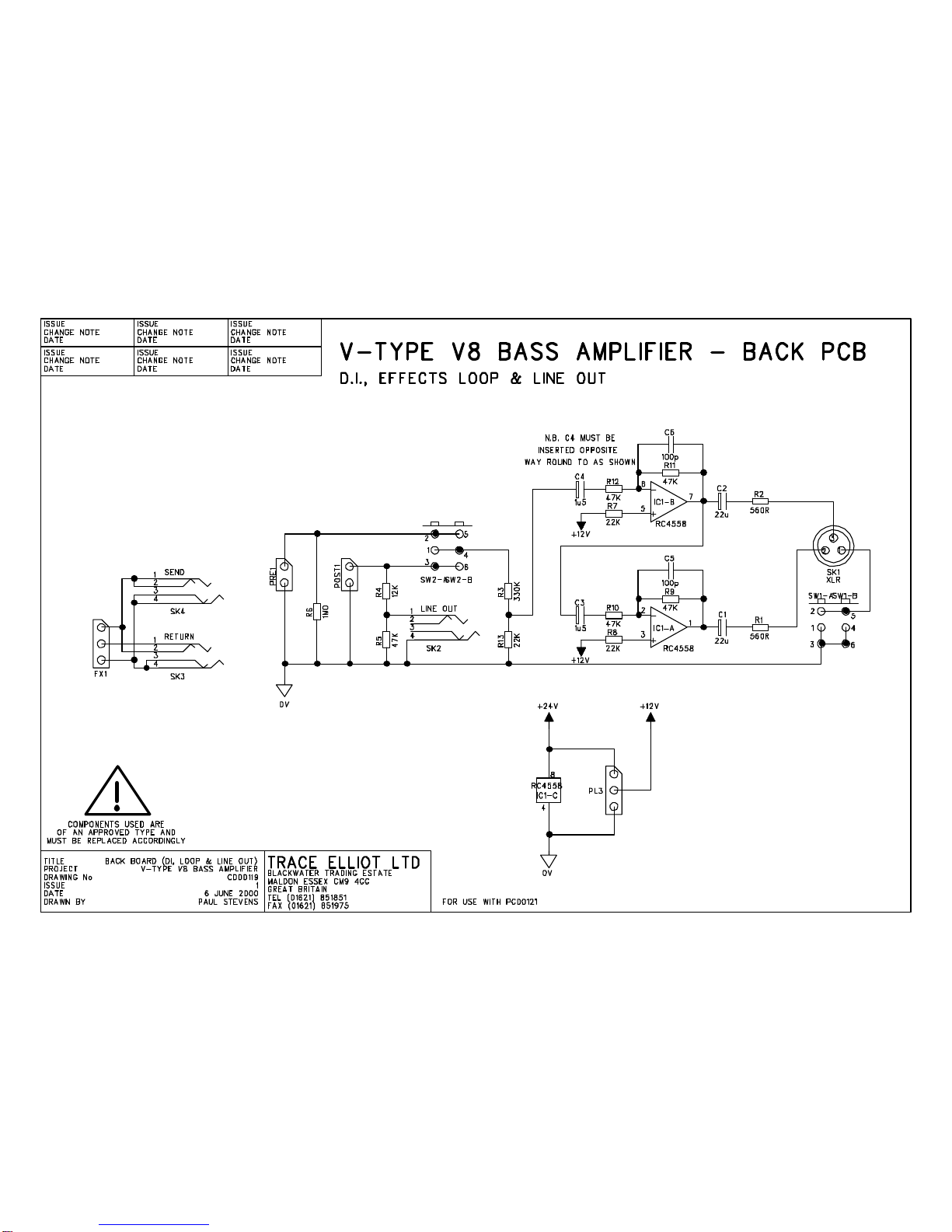

cd0119x1.sch-1 - Tue Jul 11 17:20:27 2000

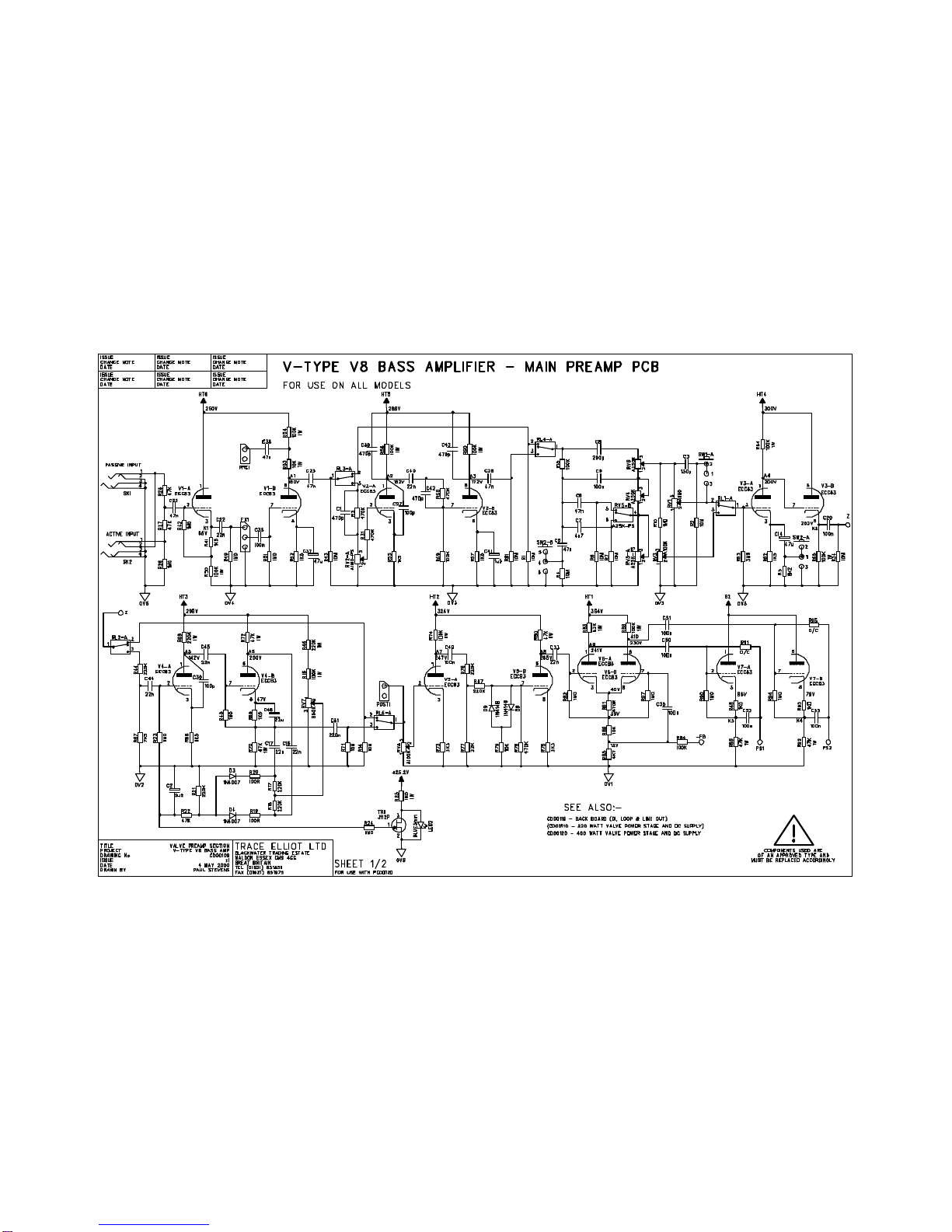

cd0120x1.sch-1 - Tue Jul 11 17:21:56 2000

C12-PCB-PC00121x2
PARTS LIST FOR V-TYPE V8 BACK BOARD
ISSUE 2 5/5/00 PS
Description Part Code Qty Where Used
PCB PC000121 issue B 1
RESISTORS
560R 1W 72-RM560R 2R1 R2
12K 1/4W 72-RM12K 1R4
22K 1/4W 72-RM22K 2R7 R8 R13
47K 1/4W 72-RM47K 5R5 R9 R10 R11 R12
330K 1/4W 72-RM330K 1R3
1M0 1/4W 72-RM1M 1R6
CAPACITORS
100p 100V axial 72-C100P-100VCA 2C5 C6
1u5 35V tant 72-C1.5-35VT 2C3 C4 (Insert C4 opposite
way round to normal)
22u 63V elect rad 72-C22-63VER 2C1 C2
SEMICONDUCTORS
RC4558 72-IC-RC4558P 1IC1
CONNECTORS
3 way 0.1” 72-HEAD-3W-21FX1
SOCKETS
¼” Mono Jack SKT 72-SKT-JCKBNBG 3SK2 SK3 SK4
XLR Plug Neutrik 73-XLR-PCB-M-N1SK1
SWITCH 73-SWT-F2UEE 2SW1 SW2

1
C12-PCB-PC00123xC
PARTS LIST FOR V8 400W VALVE POWER BOARD
ISSUE C 2/3/00 PS
Description Part Code Qty Where Used
PCB PC000123 issue 1 1
RESISTORS
1R0 1/4W 72-RM1R 1R53
2R2 1W 72-RM2R2-1WATT 2R54 R55
10R 1/4W 72-RM10R 1R59
47R 1/4W 72-RM47R 1R43
100R 1/4W 72-RM100R 1R50
680R 1/4W 72-RM680R 1R1
1K0 1/4W 72-RM1K 2R48 R49
1K5 1/4W 72-RM1K5 8R14 R17 R20 R23 R35
R36 R37 R38
3K3 1/4W 72-RM3K3 1R2
10K 1/4W 72-RM10K 2R33 R34
10K 1W 72-RM10K-1WATT 5R44 R45 R46 R47 R58
15K 1/4W 72-RM15K 1R51
22K 1/4W 72-RM22K 3R3 R41 R42
27K 1/4W 72-RM27K 1R52
47K 1/4W 72-RM47K 4R4 R5 R6 R7
47K 1W 72-RM47K-1WATT 2R8 R11
100K 1/4W 72-RM100K 3R9 R10 R12
220K 1W 72-RM220K-1WATT 3R39 R40 R56
10R 4W 72-RWW10R-4W 8R13 R16 R19 R22 R25
R27 R29 R31
2K2 4W 72-RWW2K2-4W 9R15 R18 R21 R24 R26
R28 R30 R32 R57
Insert wire wound resistors away from
surface of PCB, with formed leads
PCB MOUNT FUSE 72-FUS-125MA-F1FS5
DIODES
15V ZENER 72-D-BZX55C15V 1Z1
GP02-40 72-D-GP02-40 2D6 D7
1N4002 72-D-IN4002 4D14 D15 D18 D19
1N4007 72-D-IN4007 5D1 D9 D11 D13 D17
1N5408 72-D-IN5408 4D8 D10 D12 D16
CAPACITORS
100n 100V axial 72-C100N-100VCA 2C3 C4
330n 50V axial 72-C330N-50VCA 1C30
100p 1KV ceramic 72-C100P-1KVCD 2C5 C25
10n 400V poly box 72-C10N-400VP 4C9 C19 C27 C28
22u 160V elect radial 72-C22-100VER 2C1 C2
47u 63V elect radial 72-C47-63VER 4C16 C17 C24 C32
1000u 35V elect radial 72-C1000-35VER 2C22 C23

2
2200u 35V elect radial 72-C2200-35VER 4C14 C15 C33 C34
22u 450V elect radial 72-C22-450VER 5C11 C12 C13 C20 C21
220u 400V elect radial 72-CAP-220400V2 2C10 C29
470u 400V elect radial 72-CAP-470400V 2C8 C26 (PHILIPS 157 46471)
SEMICONDUCTORS
2N3904 72-T2N3904 3TR1 TR4 TR5
2N3906 72-T2N3906 2TR2 TR3
BD647 72-TBD647 1TR6 (see below for heat sink)
3mm RED LED 72-LED-RED-3MM 4D2 D3 D4 D5 (Bottom of PCB)
CONNECTORS
3 way 0.1” 72-HEAD-3W-22PL3 PL4
3 way 0.2” 72-HEAD-3W-31FAN1
10 way 0.1” 72-HEAD-10W 2PL1 PL2
SOCKETS
¼” MONO 72-SKT-JCKBNBG 1SK2
¼” STEREO 72-SKT-JCKBBBG 1SK3
XLR FEMALE PCB 73-XLR-PCB-F-N1SK1 (301-190 VDC)
SWITCHES 73-SWT-SLIDER-DP 2SW1 SW2
POTENTIOMETERS 72-PRESET-47K-V2RV1 RV2
FUSE HOLDERS
PCB panel access 72-FUS-HLD-PCB 4FS1 FS2 FS3 FS4
32mm PCB fuse clip 72-FUS-HLD-PDB-22FS6 FS7
Small PCB fuse clip 72-FUS-HLD-PCB-42FS8 (check insertion)
CRIMP CONNECTORS 72-CRIMP-PCB-TAB 22 TX1-17 STBY1-4 EARTH
BIAS TEST POINTS 73-TERM-SCREW-M3 3BIAS0 BIAS1 BIAS2
0V TEST POINT PIN 73-TERM-PIN 1TP0
HEATER WIRING C00-LEAD-V8-HTR2H1-H20
OCTAL VALVE BASES 73-VAL-SOCKET-28V1-V8
TO220 HEATSINK G13-HS-TO220-14H 1TR6
M3 SCREW 71-SCR-M3X12PPB 1Part of heat sink assembly
M3 WASHER 71-WAS-M3INTSP 1“
M3 WASHER 71-WAS-M3ABLK 1“
M3 NUT 71-NUT-M3ZINC 1“
INSULATING KIT 72-MOS-PAD-TO220 1“
Heat sink compound Between TR6, heat sink & chassis

1
C12-PCB-V8-PREAMP
PARTS LIST FOR V8 PREAMP
ISSUE 1 4/5/00 PS
Description Part Code Qty Where Used
PCB PC00120 issue 1 1
*** = formerly obsolete (Part to be used when old part is used up)
A.I. MACHINE
100R 1/4W 72-RM100R 2R19 R20
220R 1W 72-RM220R-1WATT 5R11 R13 R30 R33 R36
470R 1/4W 72-RM470R 1R81
470R 1W 72-RM470R-1WATT 5R9 R12 R29 R32 R35
1K0 1/4W 72-RM1K 2R48 R93
1K0 1W 72-RM1K-1WATT 1R25
1K5 1/2W 72-RM1K5-.5W*** 7R41 R52 R55 R57 R62 R66 R69
(72-RM1K5)
3K3 1/4W 72-RM3K3 2R73 R75
4K7 1/4W 72-RM4K7 1R85
7K5 1/4W 72-RM7K5 1R67
8K2 1/4W 72-RM8K2 1R5
10K 1/4W 72-RM10K 3R8 R79 R86
10K 1W 72-RM10K-1WATT 1R53
22K 1/4W 72-RM22K 1R77
47K 1/4W 72-RM47K 3R22 R27 R28
47K 1W 72-RM47K-1WATT 6R38 R70 R72 R80 R89 R92
82K 1W 72-RM82K-1WATT 1R83
100K 1/4W 72-RM100K 3R15 R59 R84 R96
100K 1W 72-RM100K-1WATT 9R16 R50 R54 R56 R60 R64 R65
R74 R88
220K 1/4W 72-RM220K 6R17 R18 R21 R44 R47 R76
220K 1W 72-RM220K-1WATT 4R39 R40 R46 R68
470K 1/4W 72-RM470K 5R3 R31 R58 R78 R97
1M0 1/4W 72-RM1M 13 R10 R23 R24 R26 R42 R45 R49
R51 R82 R87 R90 R94 R98
3M9 1/4W 72-RM3M9 1R63
10M 1/4W 72-RM10M 10 R1 R2 R4 R6 R7 R14 R34
R43 R61 R71
47n 100V axial 72-C47N-100VCA 2C23 C48
100n 100V axial 72-C100N-100VCA 2C35 C36
1N4148 72-D-IN4148 7D1 D2 D5 D6 D7 D8 D9
1N4007 72-D-IN4007 3D3 D4 D10
NOT FITTED R91 R95

2
2nd STAGE
82R 4W 72-RWW82R-4W 1R37
100p 1KV ceramic 72-C100P-1KVCD 2C27 C30
150p 630V poly 72-C150P-630VPS 1C3
200p 630V poly 72-C200P-630VPA 1C8
470p 630V poly 72-C470P-630VPA 4C1 C39 C42 C43 NEW PART
4n7 400V poly box 72-C4N7-400VP 1C7
22n 400V poly box 72-C22N-400VP 8C16 C17 C22 C33 C40 C44 C45
C47
47n 400V poly box 72-C47N-400VP2 5C5 C6 C25 C28 C38
100n 400V poly box 72-C100N-400VP 7C9 C20 C49 C50 C51 C52 C53
220n 250V poly box 72-C220N-250VP 1C31
1u5 35V tant 72-C1.5-35VT 1C41
2u2 63V elect rad 72-C2.2-63VER 1C2
15u 63V elect axl 72-C15-40VEA*** 13 C4 C12 C13 C15 C18 C19 C21
C24 C26 C29 C32 C34 C46
(72-C22-
63VER)
47u 63V elect rad 72-C47-63VER 2C14 C37
22u 450V axial 72-C22-450VEA 1C11
SEMICONDUCTORS
J112 FET (selected) 72-FET-J-112P 1TR1
Blue 3mm LED 72-LED-BLU-3MM 1LED2
Red 3mm LED 72-LED-RED-3MM 1LED1
CONNECTORS
3 way 0.1” 72-HEAD-3W 1HTR1
10 way 0.1” 72-HEAD-10W 2PL1 PL2
¼” Mono Jack SKT 72-SKT-JCKBNBG 2SK1 SK2
SWITCH 73-SWT-F2UEE 3SW1 SW2 SW3
POTENTIOMETERS
1M0 Log 73-POT-A1M 1RV1
1M0 Log Pull Switch 73-POT-A1M-PS 1RV2
100K Log 73-POT-A100K 2RV3 RV8
250K Log 73-POT-A250K 2RV4 RV6
25K Log Pull Switch 73-POT-A25K-PS 1RV5
50K Lin 73-POT-B50K 1RV7
RELAY Omron G5V-1 73-RELAY-5V-SPCO 5RL1 RL2 RL3 RL4 RL5
B9A PCB base gold 73-VAL-SOCKET-G8V1 –V8 (on underside of PCB)
2 track modifications

1
V-TYPE V8 TEST PROCEDURE
ISSUE A PS 2/3/2000
Initial Checks
1) Check the polarity of all electrolytic capacitors and diodes on power board.
2) Install all fuses and valves (see accompanying sheet).
3) Set all rotary controls to midway position, all push switches out. (front and rear)
Set to FULL POWER and turn both BIAS ADJUST pots fully clockwise.
Set rear panel mains switch to OFF and front panel toggle to STANDBY.
Connect unit to (4Ω) load station. Connect mains socket to variac set at minimum.
4) Switch unit to standby mode. Gradually turn up the variac to the appropriate voltage.
Green lamp and front and green mains switch will light up.
Voltage Tests
5) Check following Test Points (TP):-(all DC TP’s are w.r.t. TP0 0V)
TP1/TP2 6.3vac ±0.6vac
TP3 24V ±1V
TP4 12V ±0.5V
TP5 -60V ±3V
TP6 -60V ±3V
6) Turn variac to minimum. Switch fromSTANDBY to ON, return variac to correct voltage.
7) Set bias as follows:-
Insert black DMM probe (-) into 0V hole, red (+) into V1 on rear panel.
Slowly turn left hand ADJUST control to give a reading of 0.300V ±0.03V.
Insert black probe into V2, carefully rotate the right hand ADJUST to give 0mV ±0.01V.
Repeat above procedure as appropriate until settings are correct.
(The setting of the two ADJUST pots interact)
8) Check biasing of other valves, if necessary adjust bias again to bring all valves within the
0.270 –0.330V range.
V1 -TP15 V3 -TP17 V5 -TP19 V7 -TP21
V2 -TP16 V4 -TP18 V6 -TP20 V8 -TP22
9) Check the following Test Points:-
TP7 (CT) 690V ±15V
TP8 (G2) 360V ±15V
TP9 (HT1) 330V ±15V
TP10 (HT2) 295V ±15V
TP11 (HT3) 270V ±12V
TP12 (HT4) 270V ±12V
TP13 (HT5) 240V ±10V
TP14 (HT6) 225V ±10V

2
Sine wave tests
10) Insert 1Khz, -20dBu (77mVrms) sine wave into the PASSIVE INPUT.
Turn up GAIN I fully then adjust MASTER until the output starts to clip.
Check the power is >400W (40vrms @ 4ΩΩ)and the EM84 display valve is fully lit.
Using screwdriver handle gently tap each valve and check for microphony and instability.
11) Switch to HALF POWER mode. (on rear panel)
Check there is a reduction in output power (~25vrms @ 4ΩΩ). Return to FULL POWER.
12) Turn GAIN Iback to half way. Insert sig. gen. lead into ACTIVE INPUT
and then back into
PASSIVE. Check that when in ACTIVE the output level approximately halves.
13) Press BRIGHT, signal should increase slightly.
14) Pull out GAIN II. Check signal on scope is as shown:-
Adjust GAIN II & LEVEL controls to check smooth operation.
Return to half way.
15) Push DEEP. Signal should increase slightly. Push out again.
16) Turn TREBLE, MIDDLE & BASS to minimum.
Turn BASS to maximum, check signal on scope:-
Return to minimum.
17) Turn MIDDLE to maximum, check signal on scope:-
Return to minimum.
18) Turn TREBLE to maximum, check signal on scope:-
Return controls back to half way.
Push in GAIN II.Signal should be clean again.
19) Switch on COMPRESSOR, signal should increase slighlty.
Turn up LEVEL, the blue LED should be lit just before full.
Turn off COMPRESSOR, blue LED should fade out.
Rear Panel
20) Check that none of the rear LED’s are lit.
Using a screwdriver remove each fuse, one at a time. Check each LED lights up.
21) Check correct functionality of 2 way foot switch socket.
Tip should switch from GAIN I to GAIN II, ring switches COMPRESSOR on/off.
22) Check there is an output at the correct level from the following sockets:-
DI OUT –(POST/GROUND) ~20mV p/p
DI OUT –(PRE/GROUND) ~350mV p/p
LINE OUT ~1.2V p/p
SEND ~200mV p/p
23) Turn MASTER control to minimum and switch unit to STANDBY.
Connect output to appropriate speaker cabinet and bass guitar
Aurally test main features of each channel and check for any excessive hum or noise.
24) Connect to load & sig. gen., set up for full power and soak test for approx. 30 minutes.
End of test.
