Trace elliot Elf User manual

Trace Elliot® Elf Combo

Bass Instrument Ampliers

Owner’s Manual

FCC Compliancy Statement

This device complies with Part 15 of the FCC rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, that may cause undesired operation.

Warning: Changes or modications to the equipment not approved by Peavey Electronics

Corp. can void the user’s authority to use the equipment.

Note - This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o󰀨 and on, the

user is encouraged to try and correct the interference by one or more of the following

measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit di󰀨erent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-3(B)/NMB/3(B)

Trace Elliot • Hwy. 5022 Hwy. 493 North • Meridian, MS 39305

Tel: (601) 486-2255 • Fax: (601) 486-1156 • www.traceelliot.us

Congratulations on your purchase of a Trace Elliot product. Our experience in design and quality of

manufacturing will ensure that you will be able to rely on this product to deliver the solid professional sound

you deserve, whether in the studio or on stage.

e Trace Elliot Elf combos packs all of the 200W of crystal-clear bass tone you would expect from our

ampliers in a miniscule package, that can easily t into a pocket! is amp sounds clean and rened, but if

you push it, it will overdrive naturally, for a smooth and musical sound. Trace Elliot is known for designing

amps that sound loud for their power ratings, and the ELF is certainly no exception!

FEATURES:

•Extremely portable 1.60 lb (0.73Kg)

•Dimensions: W = 6.75” (17.1 cm) D = 4.10” (10.4 cm) H= 1.35” (3.4cm)

•200W continuous into 4 ohms / 130W continuous into 8 ohms

•Wide range input gain control with signal level indicator

•3-band rotary equalizer that emulates the response of classic Trace Elliot multi-band graphic EQ filters

•Ultra-high preamp input impedance ( >10meg ohms) for maximum sensitivity when using passive pickups

•Post EQ balanced XLR DI output with ground lift for sending classic Trace Elliot tone to a mixing console or recording device

•1/4” (6.35mm) headphone output for quiet practice

Caution: Please look over this guide and read any caution or warning statements found within. Following

these warnings is crucial to your personal safety and the safety of your Trace Elliot product.

TRACE ELLIOT AMPLIFICATION

ENGLISH

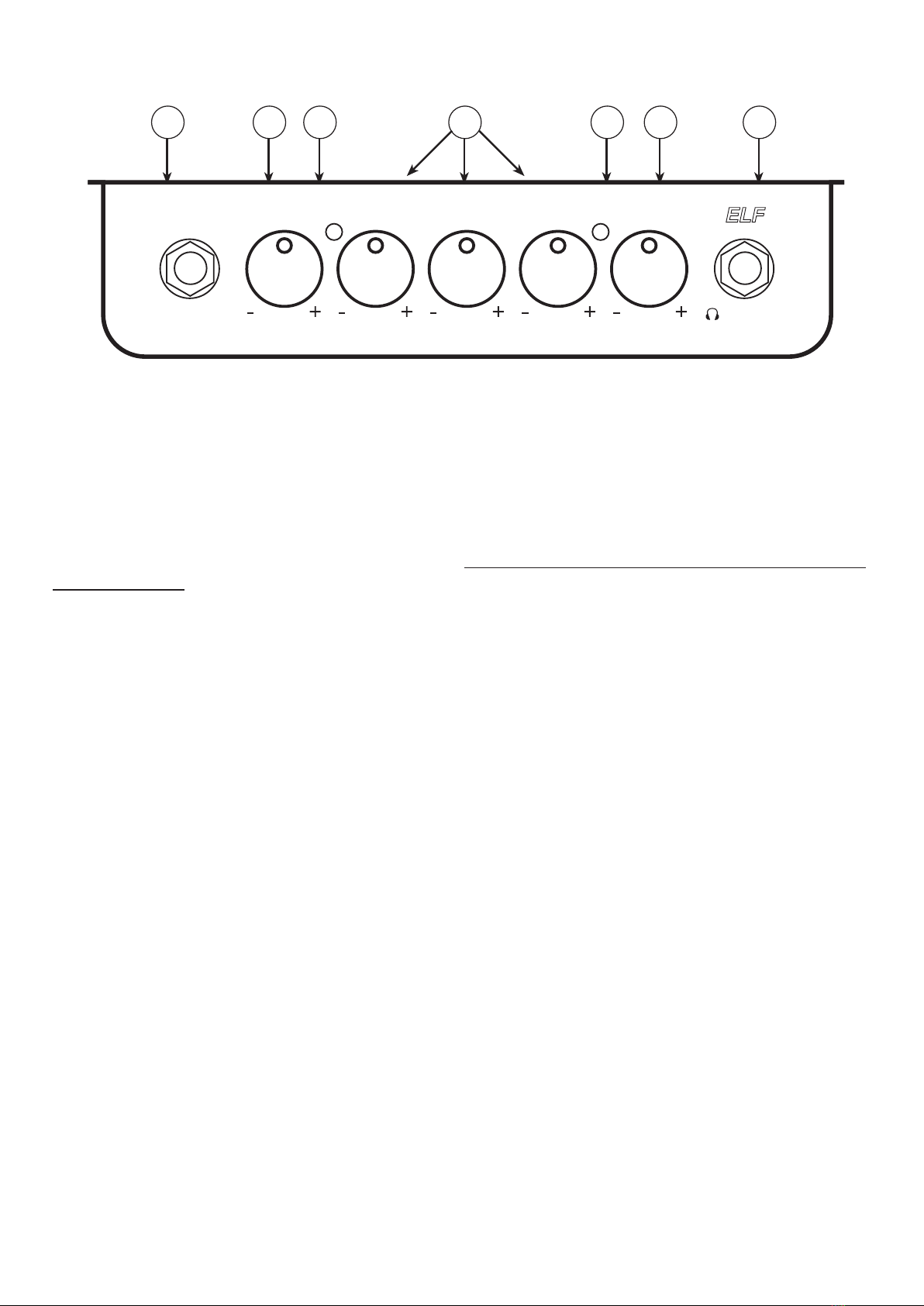

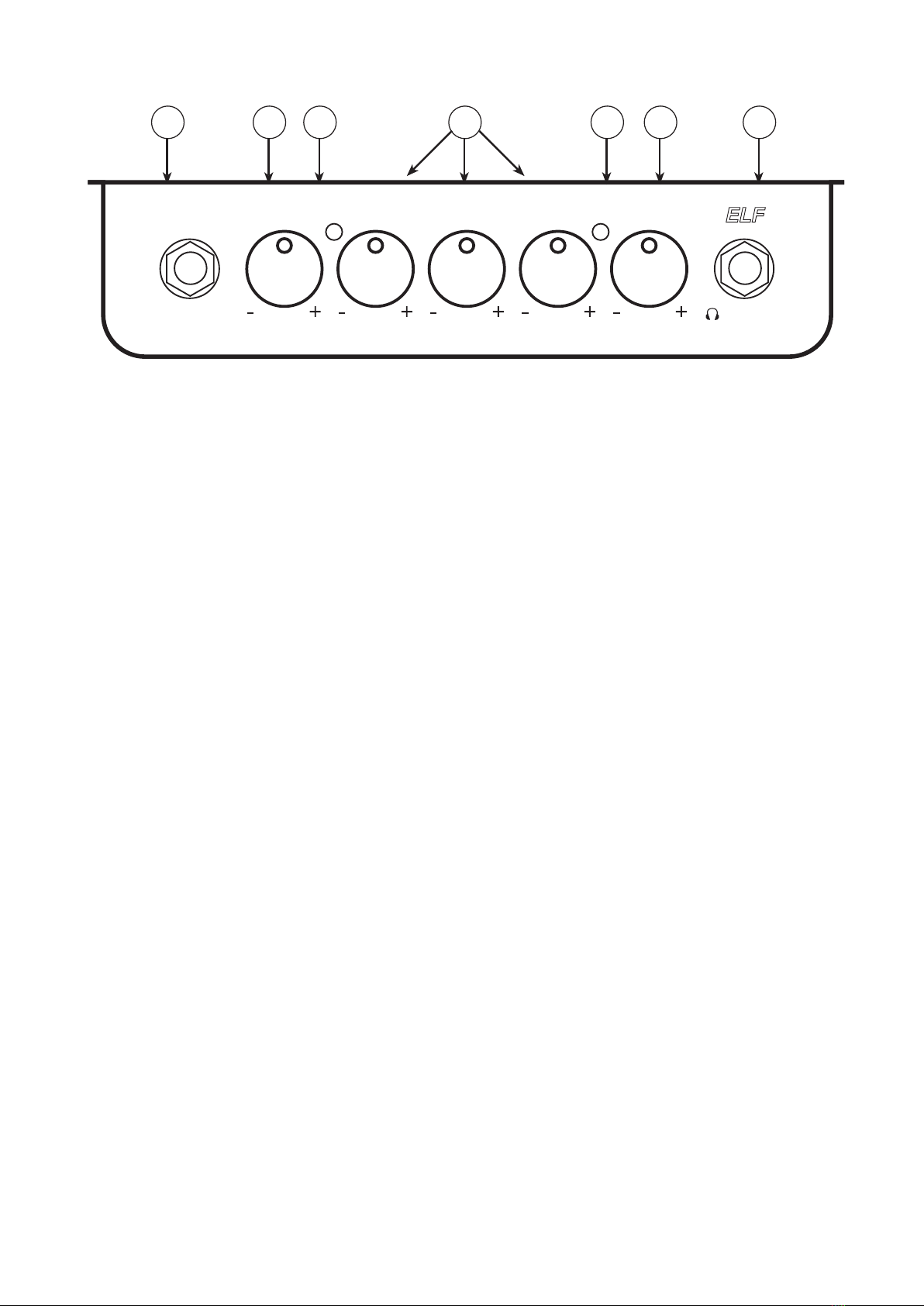

INPUT GAIN BASS MID TREBLE VOLUME ELF

/ LINE OUT

1 2 3 4 5 6 7

(1) INPUT socket

is is to connect the 1/4” jack lead from your instrument. Alternatively, if any eect units are being used

before the amplier then the output from the last unit is connected here.

Experience has shown us that not all 1/4” jack plugs are made equal, therefore, we recommend the use of only

high quality 1/4” jack leads for best sonic performance and reliable connection.

(2) GAIN rotary control

is is to set the gain of the input stage of the amplier. e setting of this control is the single most important

on the whole unit. ere are three regions of operation of the control, which can be visually conrmed by the

activity of the signal LED.

(3) SIGNAL LED

When the LED is green, the instrument signal is passing through the preamp without any compression. When

the LED begins to ash red, more and more compression is occuring in the preamp as the GAIN control is

advanced. e compressor also tracks changes made to the EQ; therefore, an increase in an EQ setting will

require a decrease in the GAIN setting to maintain the same amount of compression.

When the GAIN control is at maximum clockwise rotation, a musically useful overdrive distortion

circuit is engaged. Reduce the VOLUME accordingly when using this setting.

(4) BASS, MID, and TREBLE EQ

is section is an active tone control. Adjusting these knobs clockwise from the center (0) position will amplify

the low, mid, or high frequency content. Adjusting counterclockwise from the center (0) position will attenuate

the low, mid, or high frequency content.

(5) Power Indicator

Green LED that indicates the amp is powered on.

(6) VOLUME rotary control

This sets the signal level sent to the power output stage and the Speaker Output. It should be set at “0” when

switching on the amplier and turned up to the desired playing volume slowly to avoid any sudden level

changes that could damage your hearing. When maximum power is detected, a limiter circuit is engaged,

preventing excessive power amplier clipping.

(7) Headphone Jack

This 1/4” stereo jack is for player monitoring. For silent practice, simply disconnect the speaker output and

listen through the headphones.

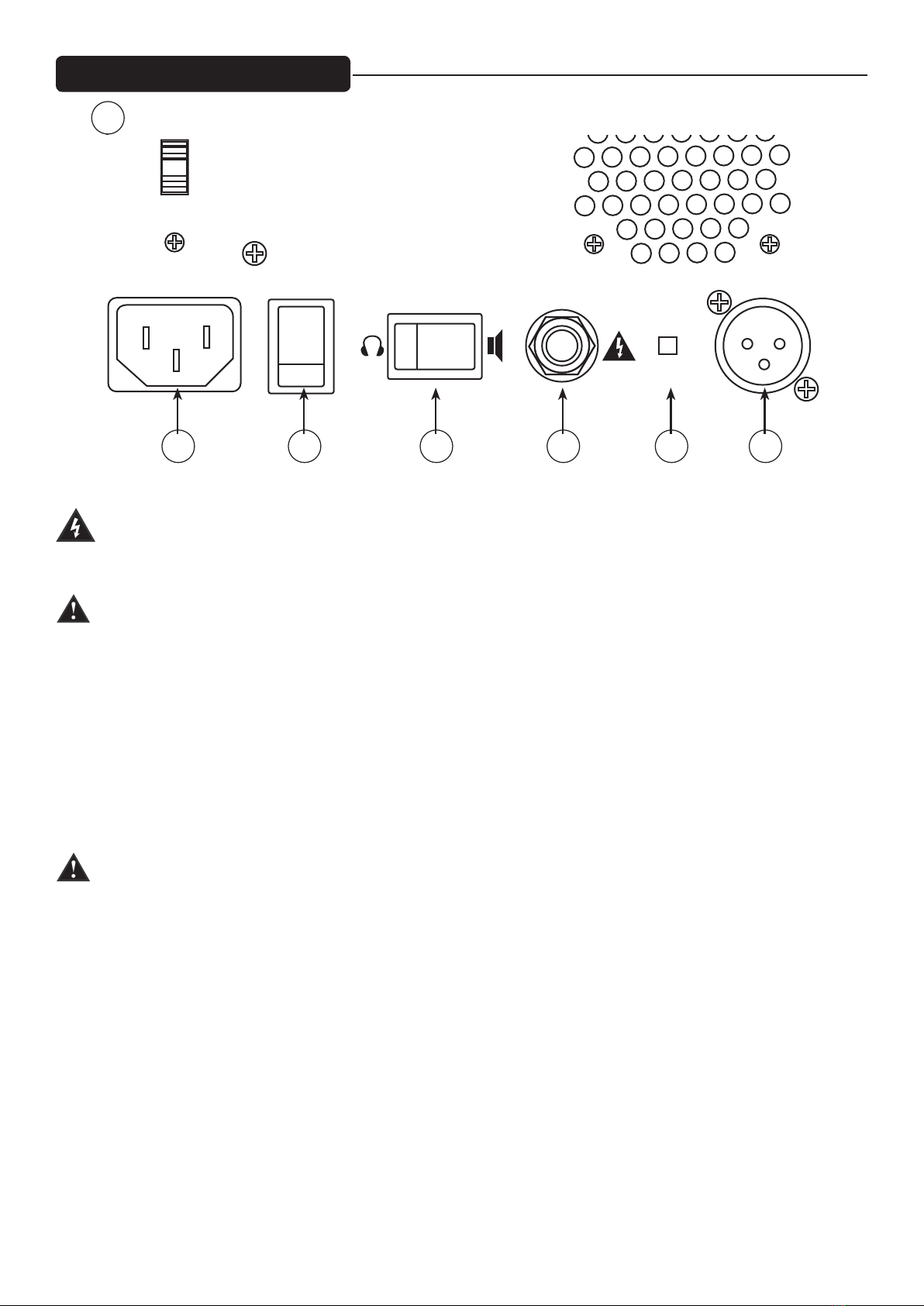

Rear Panel

(8) AC POWER INLET

is is the receptacle for an IEC line cord, which provides AC power to the unit. Connect the line cord to

this connector to provide power to the unit. Damage to the equipment may result if improper line voltage

is used. (See line voltage marking on unit).

Never break o the ground pin on any equipment. It is provided for your safety. If the outlet used does not

have a ground pin, a suitable grounding adapter should be used and the third wire should be grounded

properly. To prevent risk of shock or re hazard, always make sure that the amplier and all associated

equipment is properly grounded.

(9) ON-OFF SWITCH

is rocker switch supplies AC power to the amplier when switched to the ON position. e ON position is

with the right side of the switch pushed “in” or nearly ush with the rear panel.

(10) LINE VOLTAGE SELECT SWITCH

is selector switch allows the amplier to be operated at dierent line voltages. Please be sure this switch

is set to the proper voltage for your area before connecting the amplier to a power source or turning the

amplier on for the rst time. NEVER CHANGE THE POSITION OF THIS SWITCH WHILE THE

AMPLIFIER IS TURNED ON.

(11) Speaker/headphone switch

(12) SPEAKER OUTPUT

is ¼” mono jack is provided for connection of an external speaker cabinet. Minimum load impedance is 4

Ohms.

Please note that this a BRIDGED amplier output, meaning the sleeve of the 1/4” jack is driven by an amplier.

Neither the tip nor sleeve of the speaker plug should ever contact ground, or damage could occur! Also, please

use only cabinets built with professional-quality bass guitar musical instrument loudspeakers.

Be aware that the protection circuitry within the ELF will detect overexcursion events caused by inferior

speakers and guitar speakers, which are not meant for bass. e protection circuits will react to these events

by momentarily interrupting the sound. If you experience interruptions, it means the speaker is exceeding

maximum excursion. As an option, reduce the volume. If this happens repeatedly, ultimately you must change

to a professional bass cabinet with adequate suspension and excursion for bass.

SPEAKER

OUTPUT

SELECT EARTH

LIFT

DIRECT OUT

POWER

CLASS 2 WIRING

8OHM MIN. LOAD / 200W RMS

DESIGNED IN

THE UK and U.S.A.

MADE IN CHINA

A PRODUCT OF TRACE ELLIOT

5022 HWY 493

MERIDIAN, MS 39305 USA

50/60HZ

30 WATTS

220-240 VAC

100-120 VAC

CONSUMO DE ENERGIA 30WH

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.

OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,

INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

CAUTION: DO NOT BLOCK VENTILATION.

Attention: Ne bloquez pas la ventilation

CAN-ICES-3(B)/NMB-3(B)

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

THIS APPARATUS SHOULD NOT BE EXPOSED TO RAIN OR MOISTURE

AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT

BE PLACED ON THIS APPARATUS

CAUTION

AVIS: DANS LE BUT DE REDUIRE LES RISQUES D’INCENDIE OU DE

DECHARGE ELECTRIQUE, CET APPAREIL NE DOIT PAS ETRE EXPOSE

A LA PLUIE OU A L’HUMIDITE ET AUCUN OBJET REMPLI DE LIQUIDE,

TEL QU’UN VAS, NE DOIT ETRE POSE SUR CELUI-CI

AVIS: RISQUE DE CHOC

ELECTRIQUE-NE PAS OUVRIR

--Apparatets stikprop skal tilsluttes en stikkontakt med jord,

som giver forbindelse til stikproppens jord. (For Denmark Only)

--Laite on liitettävä suojamaadoituskoskettimilla varustettuun

pistorasiaan. (For Finland Only)

--Apparatet måtilkoples jordet stikkontakt. (For Norway Only)

--Apparaten skall anslutas till jordat uttag. (For Sweden Only)

CAUTION: BRIDGED SPEAKER OUTPUT.

SPEAKER NEGATIVE IS LIVE AND

MUST BE ISOLATED FROM CHASSIS.

DO NOT TOUCH ¼” JACK PLUG

WHILE AMPLIFIER IS OPERATING.

PRUDENCE: PRODUCTION DE SPEAKER

CONSTRUITE UN PONT. LE SPEAKER NEGATIF

EST VIVANT ET DOIT SOYEZ ISOLES DES CHASSIS.

NE TOUCHEZ PAS ¼” LA PRISE DE COURANT

DE CRIC PENDANT QUE L’AMPLIFICATEUR OPERA.

1x8 COMBO

8 9 11 12 13 14

(13) DI GROUND LIFT switch

Pressing this switch in will disconnect the ground connection from pin 1 on the DI output XLR socket(s).

Usually this should be le in the out position however there may be certain situations when connecting from

the DI socket(s) to another device that a hum is produced due to a ground loop. If this happens then pressing

the GND LIFT switch in should eliminate the problem.

(14) DI OUT XLR

is is a low impedance balanced output for connecting direct to a stage box or mixer for live or studio use. It

gives the engineer a strong, clean signal without any overspill from other instruments. e XLR socket is wired

as normal: pin 1 = Ground, pin 2 = Signal +, pin 3 = Signal –

Note: is DI OUT XLR is congured “Post EQ”.

Specifications

Mains Voltage:

100-120 vac - 50/60Hz - T3.15AL/250V

230 vac - 50/60Hz - T1.6AL/250V

Power Consumption:

Typical = 30W

Maximum = 240W

SMPS:

ermal protection

Over-current protection

Power Amplier:

Protection:

Clip limiting

ermal

Over-current / Short-circuit

DC output

Minimum Load:

4 Ω

example--

1 - 4 Ω cabinet / 2 - 8 Ω cabinets

Power Output (1% THD):

130W - 8 Ω - Internal 8 ohm speaker

200W - 4 Ω - With external 8 ohm cab

Noise:

-62.5 dBu

Pre Amplier:

Nominal Input Sensitivity:

All controls @12:00 = -6.44dBu (369mV)

Input Impedance:

>10 meg Ω

EQ:

3 - band rotary type with proprietary TE lters

Low center = 80 Hz

Mid center = 400 Hz

High center = 4.2 KHz

DI XLR Balanced Output:

PIN 1 = GND, PIN 2 = sig+, PIN 3 = sig-

Post EQ

1 KΩ output impedance

w/GND li switch

noise oor = -104.3dBu

noise oor w/sig (nom.) = -88dBu

Weight:

(1x8) 18.7 lb (8.5 Kg)

(1x10) 18.5 lb (8.4 Kg)

(1x12) 31.4 lb (14.5 Kg)

(1x12 Ext.) 28.1 lb (12.85 Kg)

Dimensions (H x W x D):

1x8:

11” (27.94cm) x 10.25” (26.035cm) x 13.37” (33.95cm)

1x10

12.75” (32.38cm) x 12” (30.48cm) x 14” (35.56cm)

1x12

15” (38.1cm) x 14” (35.56cm) x 16.5” (41.91cm)

Warranty registration and information for U.S. customers available online at

www.traceelliot.com/warranty

or use the QR tag below

Features and specications are subject to change without notice.

Trace Elliot • Hwy. 5022 Hwy. 493 North • Meridian, MS 39305

Trace Elliot® Elf Combo
