Tracking The World GAT-Pro User manual

GAT-Pro
Asset Tracking Device
USER MANUAL
TrackingTheWorld.com

GAT-Pro User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-GAT-Pro-UM002 - 2 -
Document Title
GAT-Pro User Manual
Version
1.02
Date
2013-6-5
Status
Release
Document Control ID
TTW-GAT-Pro-UM001
General Notes
TrackingTheWorld offers this information as a service to its customers, to support application and
engineering efforts that use the products designed by TrackingTheWorld. The information provided is
based upon requirements specifically provided to TrackingTheWorld by the customers.
TrackingTheWorld has not undertaken any independent search for additional relevant information,
including any information that may be in the customer’s possession. Furthermore, system validation
of this product designed by TrackingTheWorld within a larger electronic system remains the
responsibility of the customer or the customer’s system integrator. All specifications supplied herein
are subject to change.
Copyright
This document contains proprietary technical information which is the property of
TrackingTheWorld. copying of this document and giving it to others and the using or
communication of the contents thereof, are forbidden without express authority. Offenders are
liable to the payment of damages. All rights reserved in the event of grant of a patent or the
registration of a utility model or design. All specification supplied herein are subject to change
without notice at any time.
Copyright © TrackingTheWorld 2017

GAT-Pro User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-GAT-Pro-UM002 - 3 -
Contents
Contents........................................................................................................................................................ 3
1. Introduction............................................................................................................................................... 7
1.1. Reference........................................................................................................................................... 7
1.2. Terms and Abbreviations................................................................................................................... 7
2. Product Overview ..................................................................................................................................... 8
2.1. Check Parts List .................................................................................................................................. 8
2.2. Parts List............................................................................................................................................. 9
2.3. Interface Definition............................................................................................................................ 9
3. Getting Started........................................................................................................................................11
3.1. Opening the Case............................................................................................................................. 11
3.2. Closing the Case ...............................................................................................................................11
3.3. Installing a SIM Card ........................................................................................................................ 12
3.4. Installing the Internal Backup Battery ............................................................................................. 12
3.5. Power On the Device .......................................................................................................................13
3.6. Direction of GAT-PRO Placement..................................................................................................... 13
3.7. Device Status LED.............................................................................................................................14

GAT-Pro User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-GAT-Pro-UM002 - 4 -
Table Index
Table 1. GAT-PRO Protocol Reference .............................................................................................................................7
Table 2. Terms and Abbreviations .....................................................................................................................................7
Table 3. Parts List..............................................................................................................................................................9
Table 4. Description of 8 PIN Connections ..................................................................................................................... 10
Table 5. Definition of Device status and LED ................................................................................................................. 14

GAT-Pro User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-GAT-Pro-UM002 - 5 -
Figure Index
Figure 1. Appearance of GAT-PRO.....................................................................................................................................8
Figure 2. The 8 PIN connector on the GAT-PRO................................................................................................................9
Figure 3. Opening the Case............................................................................................................................................... 11
Figure 4. Closing the Case ................................................................................................................................................ 11
Figure 5. SIM Card Installation......................................................................................................................................... 12
Figure 6. Backup Battery Installation................................................................................................................................ 12
Figure 7. GAT-PRO Status LED ....................................................................................................................................... 13
Figure 8. Direction of GAT-PRO Placement ..................................................................................................................... 13

GAT-Pro User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-GAT-Pro-UM002 - 6 -
Revision History
Revision
Date
Author
Description of change
1.00
2012-6-11
Cid Xu
Initial
1.01
2013-6-3
Tony.Pei
Add the direction of GAT-PRO placement
1.02
2016-12-
17
Hazard
Zhang
Update pictures for new design

GAT-Pro User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-GAT-Pro-UM002 - 7 -
1. Introduction
GAT-PRO is a powerful GPS tracker designed for fixed asset tracking applications.GAT-PRO work
with two CR123A lithium-batterys.GAT-PRO wakes up every 1-40hours and sends the info and then
return to deepsleep.GAT-PRO can standby 1000days. With built-in motion sensor, GAT-PRO can also
detect the motion of asset all the time and give a warning message. Based integrated @track protocol,
the GAT-PRO can communicate with a backend server through the GPRS/GSM network to transfer
reports of emergency, geo-fence boundary crossings, low battery or scheduled GPS position along
with many other useful functions. System Integrators can easily setup their tracking systems based on
the full-featured @Track protocol.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
1.1. Reference
Table 1.GAT-PRO Protocol Reference
SN
Document name
Remark
[1]
GAT-PRO @SMS & @Track Interface Protocol
The @SMS & @Track protocol
interface between GAT-PRO and
backend server.
1.2. Terms and Abbreviations
Table 2.Terms and Abbreviations
Abbreviation
Description
AGND
Analog Ground
AIN
Analog Input
DIN
Digital Input
DOUT
Digital Output
GND
Ground
MIC
Microphone
RXD
Receive Data
TXD
Transmit Data
SPKN
Speaker Negative
SPKP
Speaker Positive

GAT-Pro User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-GAT-Pro-UM002 - 8 -
2. Product Overview
2.1. Check Parts List
Before starting, check all the following items have been included with your GAT-PRO. If anything is
missing, please contact your supplier.
Figure 1. Appearance of GAT-PRO
GAT-Pro

GAT-Pro User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-GAT-Pro-UM002 - 9 -
2.2. Parts List
Table 3.Parts List
Name
GAT-PRO Locator
80*58*26.8 mm
GAT-PRO Data Cable (Optional)
GAT-PRO MCU Download Kit (Optional)
2.3. Interface Definition
The GAT-PRO has an 8 PIN interface connector. It contains the connections for power, RS232, MCU
Interface, etc. The sequence and definition of the 8PIN connector are shown in following figure:
Figure 2. The 8 PIN connector on the GAT-PRO

GAT-Pro User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-GAT-Pro-UM002 - 10 -
Table 4.Description of 8 PIN Connections
Index
Description
Comment
1
VDD_5V
External DC power input, 5V
2
NC
Not connected
3
BB_RXD
BB UART RXD
4
BB_TXD
BB UART TXD
5
MCU_RESET
MCU CHIP RESET SIGNAL
6
BKGD
MCU CHIP BKGD SIGNAL
7
VDD_MCU_2V8
MCU POWER INPUT，2.8V
8
GND
Power and digital ground

GAT-Pro User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-GAT-Pro-UM002 - 11 -
3. Getting Started

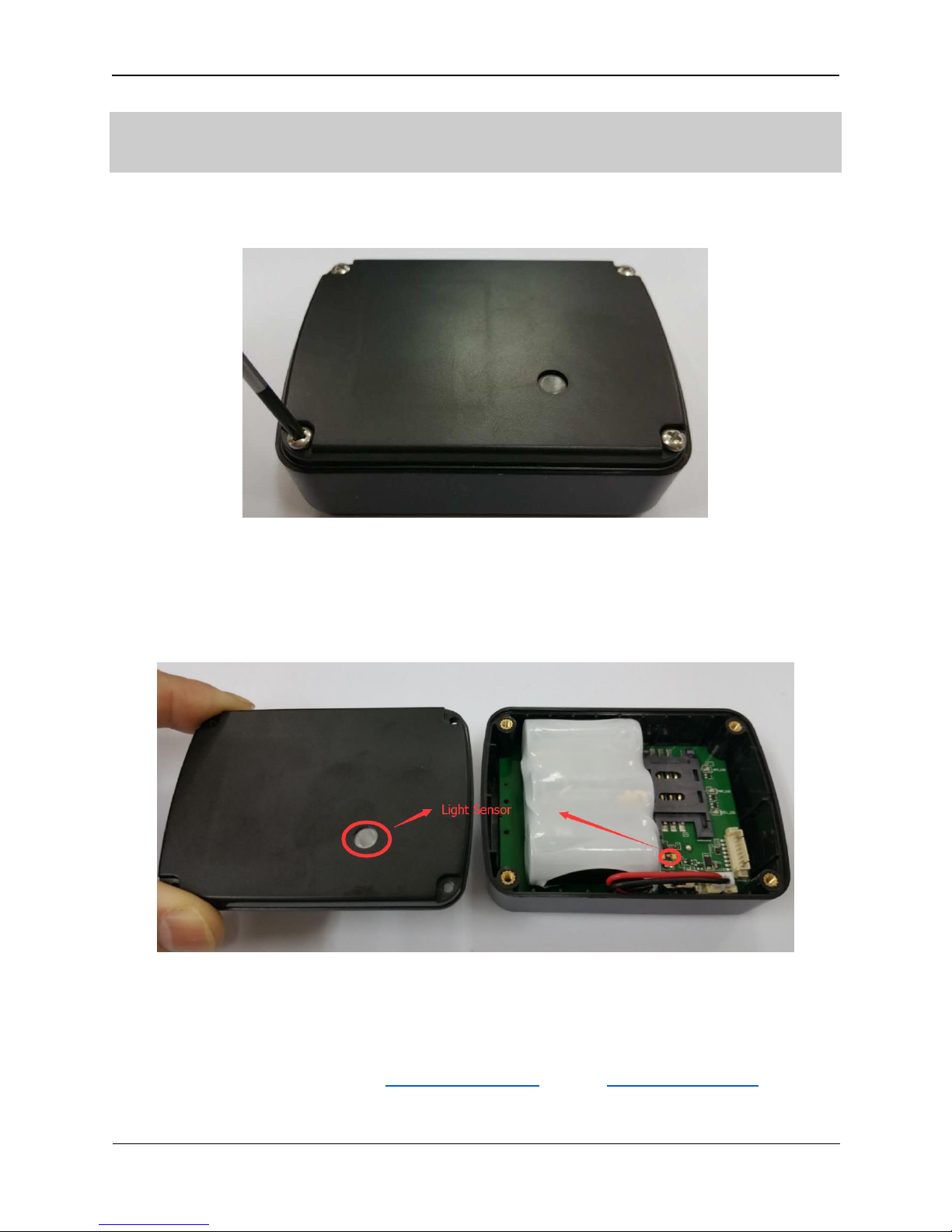

3.1. Opening the Case
Figure 3. Opening the Case
Use the Screwdriver to remove the screws, and then open the case.
3.2. Closing the Case
Figure 4. Closing the Case
Place the cover in the correct position and then tighten the screws with a Screwdriver.

GAT-Pro User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-GAT-Pro-UM002 - 12 -
3.3. Installing a SIM Card
Open the case and ensure the unit is not powered (unplug the internal battery). Slide the holder right
to open the SIM card. Insert the SIM card into the holder as shown below with the gold-colour contact
area facing down taking care to align the cut mark. Close the SIM card holder. Close the case.
Figure 5. SIM Card Installation
3.4. Installing the Internal Backup Battery
Figure 6. Backup Battery Installation
NOTE: Make sure the battery is switched OFF before installation.

GAT-Pro User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-GAT-Pro-UM002 - 13 -
3.5. Power On the Device
After inserted the Battery, GAT-PRO will power on automatically, the Status LED will start work, detail
description in the next section.
Figure 7. GAT-PRO Status LED
3.6. Direction of GAT-PRO Placement
The side with label should point towards sky to ensure there is good GPS signal can be received.
Figure 8. Direction of GAT-PRO Placement
Blue GPS
Red PWR
Green GSM
GAT-Pro

GAT-Pro User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-GAT-Pro-UM002 - 14 -
3.7. Device Status LED
Table 5. Definition of Device status and LED
LED
Device status
LED status
GSM
(Green)
Device is searching GSM network.
Fast flashing
(Note1)
Device has registered to GSM network.
Slow flashing
(Note2)
SIM card needs pin code to unlock.
ON
GPS
(Blue)
GPS chip is powered off.
OFF
GPS sends no data or data format error.
Slow flashing
GPS chip is searching GPS info.
Fast flashing
GPS chip has gotten GPS info.
ON
PWR
(Red)
Battery voltage is lower than 0%.
OFF
Battery voltage is below 10%.
Slow flashing
Battery voltage is more than 10%.
ON
1 - Fast flashing is about 60ms ON/ 780ms OFF
2 - Slow flashing is about 60ms ON/ 1940ms OFF
Note:
1. In Battery mode, all LEDs are only enabled at the first 5 minutes after power on the device, and then will be
shut down all the time.
