Tracking The World AVL-50 4G User manual

AVL-50 4G
Vehicle Tracking
Device
USER MANUAL
TrackingThe
AVL-50

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 2 -
Document Title
AVL-50 4G User Manual
Version
2.01
Date
2018-04-02
Status
Released
Document Control ID
TTW-AVL504G-UM002
General Notes
TrackingTheWorld offers this information as a service to its customers, to support application and
engineering efforts that use the products designed by TrackingTheWorld. The information provided is
based upon requirements specifically provided to TrackingTheWorld by the customers.
TrackingTheWorld has not undertaken any independent search for additional relevant information,
including any information that may be in the customer’s possession. Furthermore, system validation
of this product designed by TrackingTheWorld within a larger electronic system remains the
responsibility of the customer or the customer’s system integrator. All specifications supplied herein
are subject to change.
Copyright
This document contains proprietary technical information which is the property of
TrackingTheWorld, copying of this document and giving it to others and the using or
communication of the contents thereof, are forbidden without express authority. Offenders are
liable to the payment of damages. All rights reserved in the event of grant of a patent or the
registration of a utility model or design. All specification supplied herein are subject to change
without notice at any time.
Copyright © TrackingTheWorld 2018
WARNING: The device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) The device may not cause harmful interference.
(2) The device must accept any interference received, including interference that may cause undesired
operation.
Change or modification not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC RF Exposure Statement:
The normal use condition for the product is at least 20cm away from the body of the user, so the user
must keep a distance of at least 20cm from the product.

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 3 -

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 4 -
Contents
1 Introduction ...............................................................................................................................................8
1.1. Reference...........................................................................................................................................8
1.2. Terms and Abbreviations...................................................................................................................8
2 Product Overview ......................................................................................................................................9
2.1. Check Part List..................................................................................... Error! Bookmark not defined.
2.2. Parts List.............................................................................................. Error! Bookmark not defined.
2.3. Interface Definition............................................................................................................................9
2.4. AVL50 4G User Cable Color..............................................................................................................10
3 .Getting Started........................................................................................................................................14
3.1. Opening the Case................................................................................ Error! Bookmark not defined.
3.2. Closing the Case.................................................................................. Error! Bookmark not defined.
3.3. Installing a SIM Card ........................................................................... Error! Bookmark not defined.
3.4. Installing the Internal Backup Battery ................................................ Error! Bookmark not defined.
3.5. Switch ON the Backup Battery............................................................ Error! Bookmark not defined.
3.6. Power Connection............................................................................... Error! Bookmark not defined.
3.7. Ignition Detection ............................................................................... Error! Bookmark not defined.
3.8. Digital Inputs....................................................................................... Error! Bookmark not defined.
3.9. Digital Outputs.................................................................................... Error! Bookmark not defined.
3.10. Device Status LED.............................................................................. Error! Bookmark not defined.
3.11. Motion Sensor direction ................................................................... Error! Bookmark not defined.

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 5 -
Table Index
Table 1. AVL50 4G Protocol Reference .............................................................................................8
Table 2. Terms and Abbreviations.......................................................................................................8
Table 3. Part List............................................................................... Error! Bookmark not defined.
Table 4. Description of 6 PIN Connections ......................................................................................10
Table 5. AVL50 4G User Cable Colour definition............................................................................10
Table 6. Electrical Characteristics of Ignition Detection .................. Error! Bookmark not defined.
Table 7. Electrical Characteristics of the digital inputs .................... Error! Bookmark not defined.
Table 8. Electrical Characteristics of Digital Outputs....................... Error! Bookmark not defined.
Table 9. Definition of Device status and LED.................................. Error! Bookmark not defined.

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 6 -
Figure Index
Figure 1. Appearance of AVL50 4G.....................................................................................................9
Figure 2. The 6 PIN connector on the AVL50 4G................................................................................9
Figure 3. Opening the Case ................................................................ Error! Bookmark not defined.
Figure 4. Closing the Case.................................................................. Error! Bookmark not defined.
Figure 5. SIM Card Installation.......................................................... Error! Bookmark not defined.
Figure 6. Backup Battery Installation.................................................................................................15
Figure 7. Switch and ON/OFF position.............................................. Error! Bookmark not defined.
Figure 8. Typical Power Connection .................................................. Error! Bookmark not defined.
Figure 9. Typical Ignition Detection................................................... Error! Bookmark not defined.
Figure 10. Typical Digital Input Connection.................................... Error! Bookmark not defined.
Figure 11. Digital Output Internal Drive Circuit.............................. Error! Bookmark not defined.
Figure 12. Typical Connection with Relay....................................... Error! Bookmark not defined.
Figure 13. Typical Connection with LED ........................................ Error! Bookmark not defined.
Figure 14. AVL50 4G LED on the Case........................................... Error! Bookmark not defined.
Figure 15. Motion sensor direction .................................................. Error! Bookmark not defined.

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [email protected] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 7 -
Revision History
Revision
Date
Author
Description of change
1.00
2017-11-18
Jake.su
Initial Version
2.00
2017-11-30
Jake.su
Revision Version
2.01
2018-04-02
Louis Wang
Add positive trigger in Section2.6

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [e-mail] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 8 -
1Introduction
The AVL50 4G is a powerful CAT-M1, CAT-NB1, LTE GPS locator designed for a wide variety of
vehicle tracking applications. They have multiple I/O interfaces that can be used for monitoring or
controlling external devices. The built-in GPS receiver has superior sensitivity and fast initial
positioning. Their multiband LTE Cat-M1 and Cat-NB1 allow the AVL-50 4G Series’ location to be
monitored in real time or periodically tracked by a backend server and mobile devices. System
integration is straightforward as complete documentation is provided for the full featured @Track
protocol. The @Track protocol supports a wide variety of reports including emergency alarm, geo-
fence boundary crossings, as well as external power supply monitoring and position reports.
Table 1. AVL50 4G Protocol Reference
SN
Document name
Remark
[1]
AVL50 4G @Track Air Interface Protocol
The air protocol interface between
AVL50 4G and backend server.
Table 2. Terms and Abbreviations
Abbreviation
Description
RXD
Receive Data
TXD
Transmit Data
VIN
External DC Power Input
IGN
Ignition
OUT1/IN1
Output 1/Input 1
OUT2
Output 2
GND
Ground
1.1. Reference
1.2. Terms and Abbreviations

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [e-mail] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 9 -
2Product Overview
Before starting, check all the following items have been included with your AVL50 4G. If anything is
missing, please contact your supplier.
Figure 1. Appearance of AVL50 4G
The AVL50 4G has a 7 PIN interface connector. It contains the connections for power, and I/O. The
sequence and description of the connector are shown in the following figure::
Figure 2. The 7 PIN connector on the AVL50 4G
2.1. Appearance
2.2. Interface Definition

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [e-mail] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 10 -
Table 3. Description of 6 PIN Connections
Index
Description
Comment
1
RXD
UART RXD; TTL
2
TXD
UART TXD; TTL
3
VIN
External DC power input, 8-32V
4
IGN
Ignition input, positive trigger
5
OUT1/IN1
Digital output/input; Open drain,150mA max
6
OUT2
Open drain, 150mA max
7
GND
GND
AVL50 4G has two status LEDs; CELL LED (Green color) and GPS LED (Red color)
Table 4. AVL50 4G LED Description
CELL
Device is searching for CELL network.
Fast flashing
SIM card needs PIN code to be unlocked.
ON
Device has registered to CELL network.
Slow flashing
GPS
GPS is asleep.
OFF
GPS is fixed.
ON
Device is searching for GPS.
Fast flashing
Note:
1. Fast flashing intervals are about 500ms ON/1sec OFF.
2. Slow flashing intervals are about 500ms ON/15sec OFF.
VIN (PIN3)/GND (PIN7) are the power input pins. The input voltage range for this device is from 8V to
32V. The device is designed to be installed in vehicles that operate on 12V/24V systems without the
need for external transformers.
Figure 3. Typical Power Connection
2.3. AVL50 4G LED Description
2.4. Power Connection

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [e-mail] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 11 -
IGN (Pin4) is used for ignition detection. It is recommended to connect this pin to the “RUN” position
of the vehicle ignition switch as shown below.
An alternative to connect to the ignition switch is to find a non-permanent power source that is only
available when the vehicle is running. For example, the power source for the FM radio.
IGN signal can be configured to transmit information to the backend server when ignition is on and
enter power saving mode when ignition is off
Table 5. AVL50 4G Electrical Characteristics of Ignition Detection
Logical State
Electrical Characteristics
Active
5.0V to 32V
Inactive
0V to 3V or Open loop
Figure 4. Typical Power Connection
OUT1/IN1 (PIN5) is a digital Output/Input on AVL50 4G. It is of open drain type and the maximum
drain current is 150mA. The OUT1/IN1 (PIN5) can be used either as a digital output or a (positive and
negative trigger) digital input
Figure 5. Digital Output Internal Drive Circuit
2.5. Ignition Detection
2.6. Digital Output/Input Connection

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [e-mail] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 12 -
Table 6. Electrical Characteristics of Digital Output
Logical State
Electrical Characteristics
Enable
<1.5V @150mA
Disable
Open drain

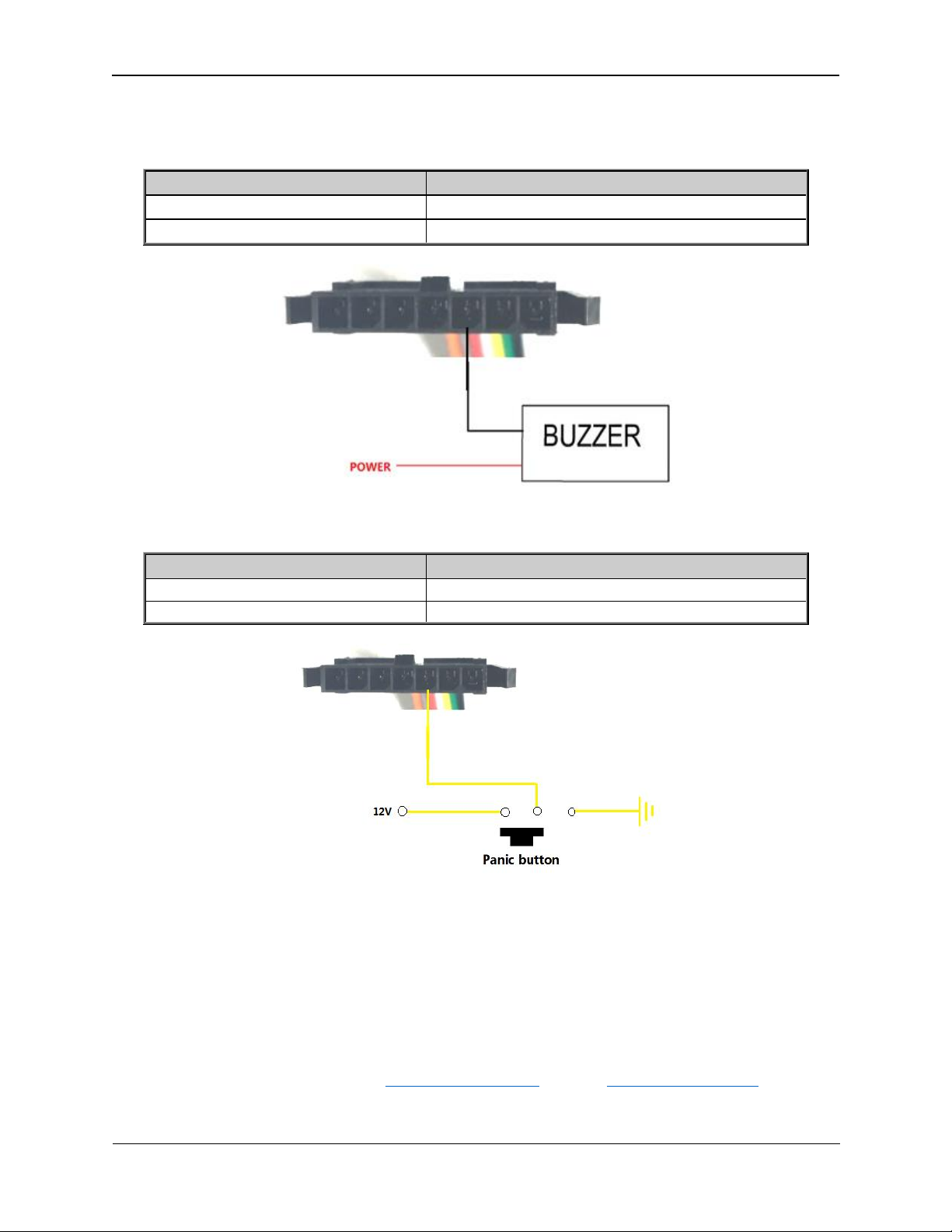

Figure 6. Typical Connection with a Buzzer as Digital Output
Table 7. Electrical Characteristics of Digital Input
Logical State
Electrical Characteristics
Active
0V to 0.8V
Inactive
Open loop
Figure 7. Typical Digital Input Connection
There is a digital output (PIN6) on AVL50 4G. It is of open drain type and the maximum drain current
is 150mA
2.7. Digital Output/Input Connection

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [e-mail] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 13 -
Figure 8. Digital Output Internal Drive Circuit
Table 8. Electrical Characteristics of Digital Output
Logical State
Electrical Characteristics
Enable
<1.5V @150mA
Disable
Open drain
Figure 9. Typical Connection with a Relay

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [e-mail] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 14 -
3.Getting Started
Table 9. Parts List
Name
AVL50 4G Locator
90mm*55mm*13mm
Extension Harness
Table 10. AVL50 4G User Cable Color Definition
Definition
Color
PIN No.
Cable
RXD
Orange
1
TXD
Gray
2
VIN
Red
3
IGN
White
4
OUT1/IN1
Yellow
5
OUT2
Green
6
GND
Black
7
3.1. Parts List
3.2. AVL50 4G Device Cable Interface

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [e-mail] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 15 -
Follow the direction on the case and push to open the SIM card cover.
Figure 10. Open the SIM card cover
Figure 11. Backup Battery Installation
Align and push to close the SIM card cover.
3.3. Open the SIM Card Cover
3.4. Close the SIM card cover

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [e-mail] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 16 -
Install the SIM card into the holder when power is off as shown blow. Take care to align the cut mark,
and then close the case.
Figure 12. SIM Card Installation
To use the AVL50 4G backup battery, the switch must be at the ON position. The switch and the
ON/OFF position are shown as below.
Figure 13. Switch ON/OFF Position
Note:
1. The switch must be at the “OFF” position when the AVL50 4G is being shipped on an aircraft.
2. When the switch is at the “OFF” position, the battery cannot be charged or discharged and cannot
be turned on.
3.5. Install a SIM Card
3.6. Switch on the Backup Battery

AVL-50 4G User Manual
For More Information: Please contact TrackingTheWorld, 1633 Bayshore Highway, Suite 390, Burlingame, CA. 94010, USA
Phone: [phone] –Email: [e-mail] –Website: www.trackingtheworld.com
Copyright © TrackingTheWorld. All rights reserved. Information in this publication supersedes that in all previously published material. Specification and price
change privileges reserved. All trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
TTW-AVL504G-UM002 - 17 -
4.Troubleshooting and Safety Info
Problem
Possible Reason
Solution
After AVL50 4G is turned on,
the CELL LED always flashes
quickly.
AVL50 4G isn’t registered to
the ISP.
Please register the AVL50 4G
again and make sure the device
gets the correct MDN.
The signal is too weak, and
AVL50 4G can’t be
registered to the network.
Please move AVL50 4G into places
with good LTE coverage.
Messages can’t be reported
to the backend server by
LTE.
The IP address or port of the
backend server is wrong.
Make sure the IP address for the
backend server is an identified
address on the Internet.
AVL50 4G cannot power off
no matter the device is in
charge or not.
Unable to power off AVL50
4G if charger is connected.
Disconnect charger and try again.
AVL50 4G can’t get
successful GPS fixing.
The GPS signal is weak.
Please move AVL50 4G to a place
with open sky.
It is better to let the top surface
(which comes with LED indicator)
face the sky.
4.2. Safety Info
•Do not disassemble the device by yourself.
•Do not put the device in over heated too humid place and avoid exposure to direct sunlight. Too
high temperature will damage the device or even causes battery explosion.
•Do not use AVL50 4G on the airplane or near medical equipment.
4.1. Troubleshooting
