ASSEMBLY INSTRUCTIONS
ITEM# D-DNC492PST
Warning
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should
always be followed to reduce the risk of personal injury and damage to the product. Please read all instructions
before assembly and use.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
Important: For technical assistance on assembly or replacement parts, please call Sunjoy Industries at 1(866) 578-6569
from 8:00 AM EST to 8:00 PM PST. You may email to [e-mail] or visit
www.sunjoyonline.com to place your order or fax your parts replacement order form (which is included in the
packaging) together with your purchase receipt to 1 [phone] for assistance.

Production Number: XXXXXXXX Made In China 2/ 6
PARTS LIST
Label
Part Number
Description
QTY
A
DNC0492XXX01
Front foot
2
B
DNC0492XXX02
Back foot
2
C
DNC0492XXX03
Back support bar
1
D
DNC0492XXX04
Side support bar
2
E
DNC0492XXX05
Top beam
1
F
DNC0492XXX06
Seat
1
G
DNC0492XXX07
Chair back
1
H1
DNC0492XXX08
Right armrest
1
H2
DNC0492XXX09
Left armrest
1
I1
DNC0492XXX10
Swing bar 1
2
I2
DNC0492XXX11
Swing bar 2
2
J
DNC0492XXX12
Top side support bar
2
K
DNC0492XXX13
Canopy
1
L
DNC0492XXX14
Top connect bar
2
M
DNC0492XXX15
Seat cushion
1
N
DNC0492XXX16
Back cushion
1
O
DNC0492XXX17
Pillow
2
HARDWARE PACK
Label
Part Number
Description
QTY
AA
GM061W
M6 plastic cap
17
BB
PAM08085C
Bolt M8*85
4
SS
PAM06075C
Bolt M6*75
4
RR
PAM06080C
Bolt M6*80
2
CC
VD06C
M6 flat washer
23
DD
XM06SC
M6 nut
6
EE
PAM06048C
Bolt M6*48
11
HH
GM081W
M8 plastic cap
4
KK
VD08C
M8 flat washer
8
LL
XM08SC
M8 nut
4
FF
GG010718D
Hook
2
GG
DNC0492XXX18
Adjustable bolt
2
II
A04D
Hex key M6
1
OO
A05D
Hex key M8
1
JJ
W1310D
Wrench M6/M8
1

Production Number: XXXXXXXX Made In China 3/ 6
ASSEMBLY STEPS
Step 1:
Insert Top beam (E) into Front foot (A),
as Fig.1. Fix Front foot (A) & Back foot
(B) and Top beam (E) & Back foot (B)
by using bolt (BB), washer (KK) and
nut (LL), then cover Plastic cap (HH),
as Fig.2. Connect Back foot (B) and
Back support bar (C) by using bolt (SS),
washer (CC) and nut (DD), then cover
Plastic cap (AA), as Fig.3.
Step 2:
Connect Side support bar (D), Back foot
(B) and Back support bar (C) by using
bolt (RR), washer (CC) and nut (DD),
then cover Plastic cap (AA), as Fig.4.
Connect another end of Side support bar
(D) and Front foot (A) by using bolt (SS),
washer (CC) and nut (DD), then cover
Plastic cap (AA), as Fig.5.
Step 3:
Connect Seat (F) and Chair back (G) by using bolt
(EE) and washer (CC), then cover Plastic cap (AA).

Production Number: XXXXXXXX Made In China 4/ 6
Step 4:
Connect Right armrest (H1), Seat (F) and Chair back
(G) by using bolt (EE) and washer (CC), then cover
Plastic cap (AA). Assemble Left armrest (H2) in
same way.
Step 6:
Hang Swing bar (I1 & I2) to Top beam (E)
by Hook (FF).
Step 5:
Hang Swing bar (I1 & I2) to Right
armrest (H1) and Left armrest (H2).

Production Number: XXXXXXXX Made In China 5/ 6
Step 7:
Connect Top side support bar (J) to Top beam
(E) by Adjust bolt (GG), do not tighten the
bolt.
Step 8:
Insert Top connect bar (L) into Canopy (K).
Step 9:
Insert Top side support bar (J) to Top connect
bar (L), and then tighten the Adjust bolt (GG).

Production Number: XXXXXXXX Made In China 6/ 6
Care & Maintenance:
Before using, clean the product completely with a soft dry towel.
When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse
thoroughly and dry completely. Do not use strong detergent or abrasive cleaners.
Steel components of garden accessories and furniture are treated with rust inhibiting paint. However, due to the
nature of steel, surface oxidation (rusting) will occur if this protective coating is scratched.
To minimize this condition, it is recommended that care be taken when assembling and handling the product, in
order to prevent the paint from being scratched.
Limited Warranty: The item is warranted to be free from defects in material or workmanship for a period of twelve
(12) months. However, we do not reimburse for transportation or delivery costs, nor compensate the individual or any
outside party for assembling or disassembling the product. This limited warranty is extended to the original purchaser
and applies to defects in materials and workmanship of your item, provided the item is maintained with care and used
only for personal residential purposes.
Exclusions
Items used for commercial, contract, or other non-residential purposes, or items damaged due to acts of nature,
vandalism, misuse, or improper assembly are not covered. Corrosion or rusting of hardware is not covered. Proof of
purchase (dated register receipt) is required for warranty claims. Warranty is to the original purchaser and is
non-transferable. Any replacement of warranted items will be in the original style and color or a similar style and color
if the original is unavailable or has been discontinued. As some states do not allow exclusions or limitations on an
implied warranty, the above exclusions and limitations may not apply. This warranty gives you specific rights, and you
may also have other rights, which vary from state to state.

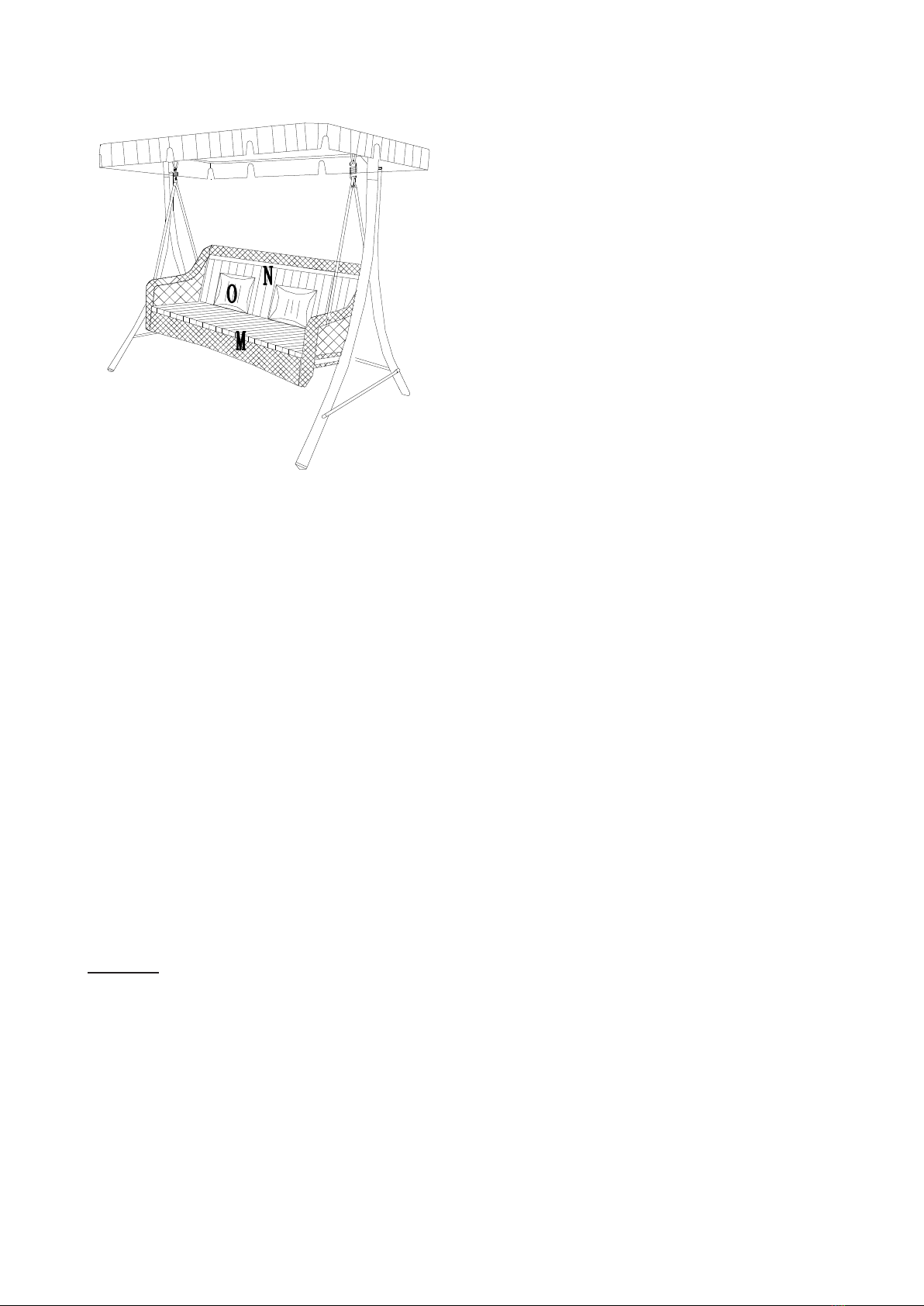

Step 10:
Stretch the canopy to fit. Place Seat cushion (M),
Back cushion (N) and Pillow (O) on the seat.
Now your Swing is ready for use, ENJOY it.
