Gallery provides the inspiration.
8
The Gallery Collection is a complete “storage system solution.” In fact,
your possibilities are truly infinite when considering the options below.
1. Determine how many cabinets and how much storage you’d like.
Would you prefer one model over a pedestal sink, or do you want to create
a custom storage and design statement with multiple cabinets? All of our
models can be either recessed or surface mounted, and with our Gangable
Attachment Kit you can seamlessly install as many cabinets in a row as
you wish. See photo on page 9.
2. Select your Gallery cabinet style: Keep in mind factors such as…
which materials and colors you’d prefer (stainless steel or painted white
cabinets), do you want internal cabinet mirrors, and would you prefer
170 degree hinges (allowing you to truly utilize the back of the door for
viewing)? Answering these questions will help drive your selection.
3. Determine how deep your walls are and the storage space you
need. Now you can decide on all of your dimensions. 25" or 35" tall?
4" or 6" deep? Consider 6" deep Gallery Deluxe models for unbelievable,
yet hidden storage space—especially in powder rooms over a pedestal sink.
4" and 6" deep cabinets can be recessed or surface mounted, while 6"
cabinets have the option of being semi-recess mounted in a standard wall.

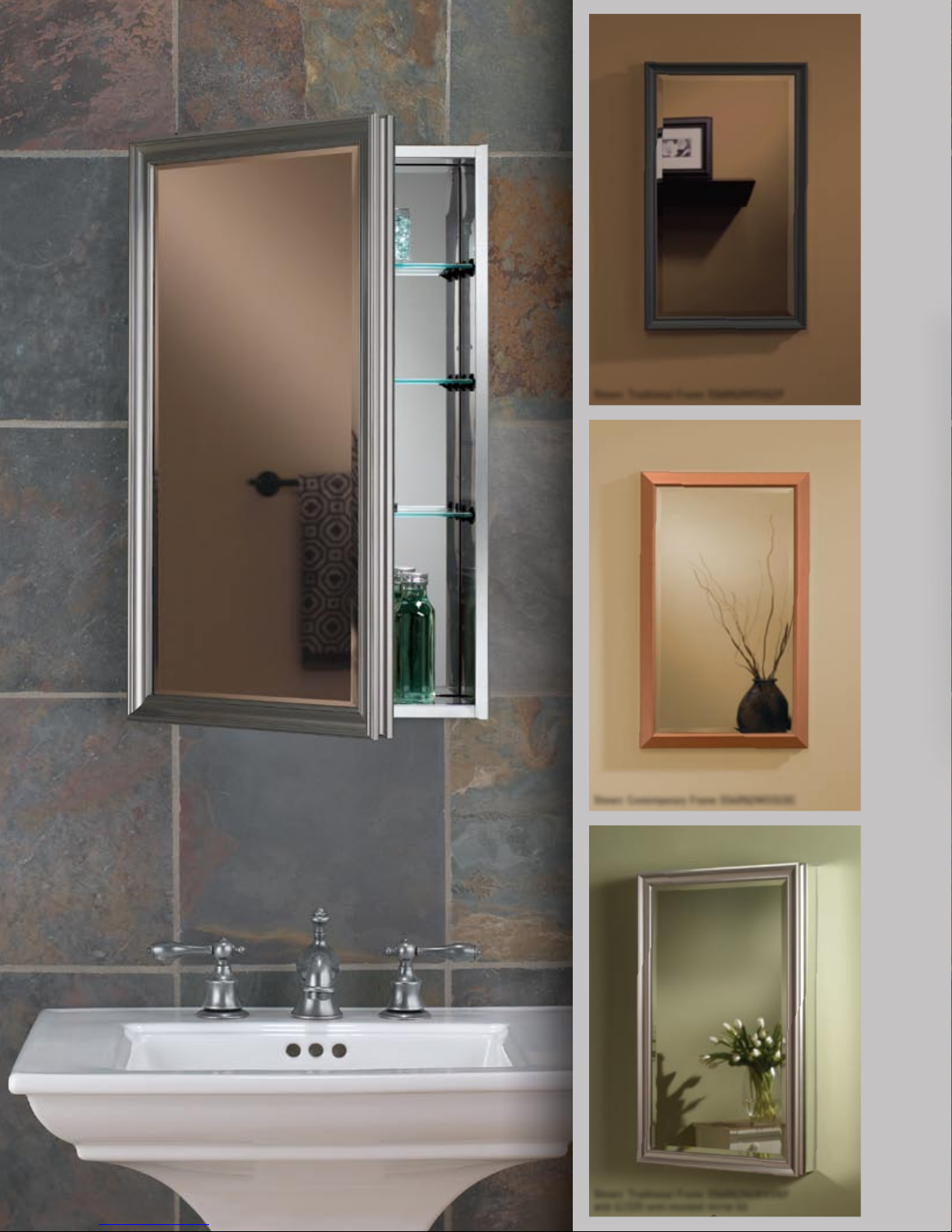

4. To frame or not to frame… now it really gets interesting. If you
prefer a modern or minimalistic style, install a Gallery unit with no frame
at all—either recessed into the wall or with one of our Surface Mount
Side Mirror kits. Or choose one of our beautiful recessed or surface mount
pre-stained hardwood frames, which are fully assembled and stained
out-of-the-box (like a picture frame) for easy installation and perfect-fit
mitered corners.

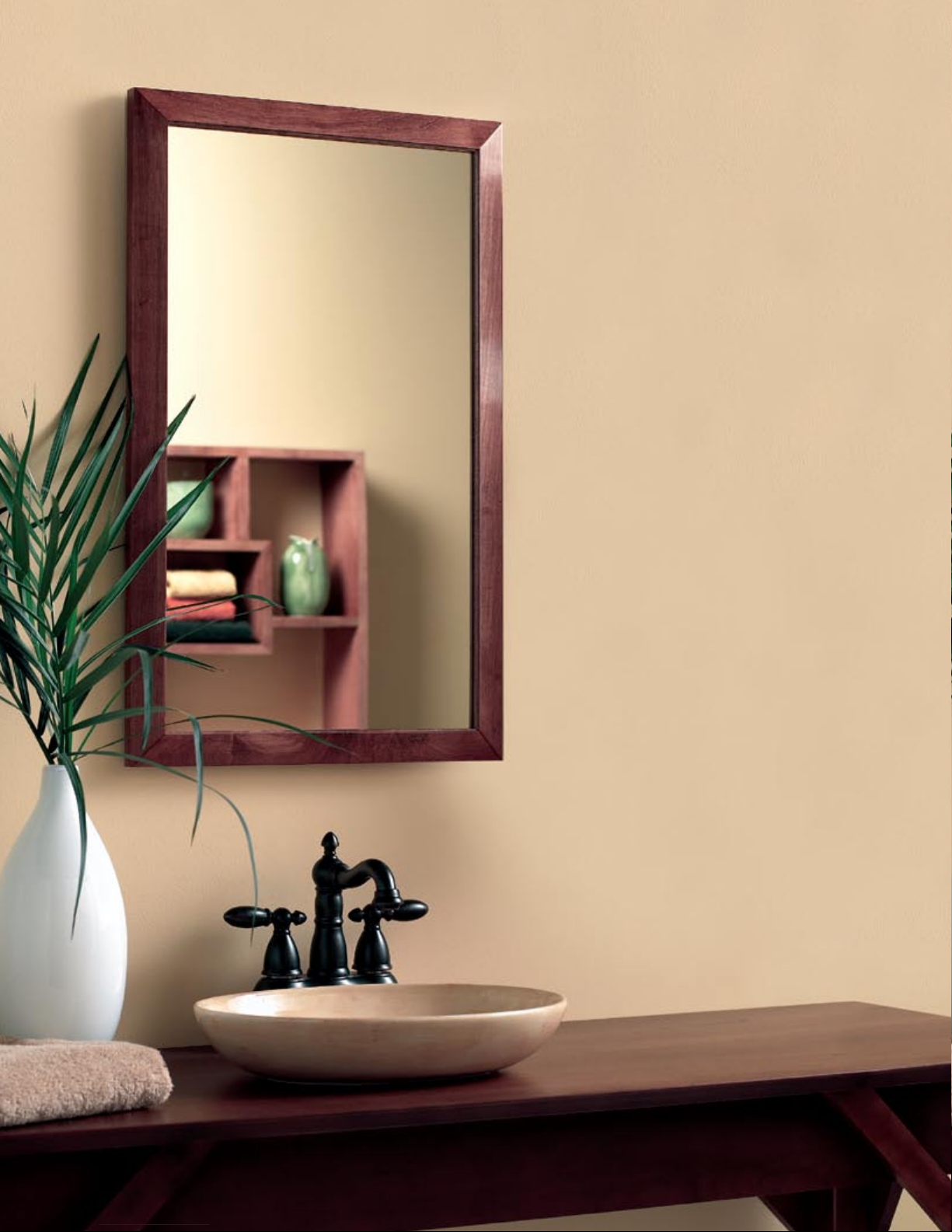

5. Still not satisfied with your options? No problem. Poplar and
Cherry hardwood frames are available unfinished allowing you to custom-
stain or paint to match your cabinetry. Or you or your professional
carpenter can create your own frame mouldings that perfectly match your
home’s woodwork and cabinetry.
Gallery Deluxe Bath Cabinets Recessed or Surface Mount*
Model
Number
Former
Jensen no.
Style
Name
Cabinet
Body Shelves
Overall Size Wall Opening
w h w h d
72SS244D G1200P24SSGU Deluxe Stainless Steel 415 25 141
⁄424 4
72SS344D G1200P34SSGU Deluxe Stainless Steel 515 35 141
⁄434 4
72SS246D G1206P24SSGU Deluxe Stainless Steel 415 25 141
⁄424 6
72SS346D G1206P34SSGU Deluxe Stainless Steel 515 35 141
⁄434 6
72WH244D G1200P24WHGU Deluxe White Steel 415 25 141
⁄424 4
72WH344D G1200P34WHGU Deluxe White Steel 515 35 141
⁄434 4
72WH246D G1206P24WHGU Deluxe White Steel 415 25 141
⁄424 6
72WH346D G1206P34WHGU Deluxe White Steel 515 35 141
⁄434 6
* Only models with a 4" depth can be surface mounted and require either a Surface Mount Side
Mirror Kit for frameless installations, or a Recessed or Surface Mount frame. See below.
Recessed Frames (for single cabinet only)
Model
Number
Former
Jensen no.
Style
Name
Overall Size
w h
74WH24 G140024WH Gloss White 213⁄8313⁄8
74WH34 G140034WH Gloss White 213⁄8413⁄8
74UP24 G140024UWH Unfinished Poplar 213⁄8313⁄8
74UP34 G140034UWH Unfinished Poplar 213⁄8413⁄8
74CY24 G140024CY Dark Cherry 213⁄8313⁄8
74CY34 G140034CY Dark Cherry 213⁄8413⁄8
74UC24 G140024UCY Unfinished Cherry 213⁄8313⁄8
74UC34 G140034UCY Unfinished Cherry 213⁄8413⁄8
Surface Mount Frames (for single cabinet only)
Model
Number
Former
Jensen no.
Style
Name
Overall Size
w h
75WH24 G145024WH Gloss White 213⁄8313⁄8
75WH34 G145034WH Gloss White 213⁄8413⁄8
75UP24 G145024UWH Unfinished Poplar 213⁄8313⁄8
75UP34 G145034UWH Unfinished Poplar 213⁄8413⁄8
75CY24 G145024CY Dark Cherry 213⁄8313⁄8
75CY34 G145034CY Dark Cherry 213⁄8413⁄8
75UC24 G145024UCY Unfinished Cherry 213⁄8313⁄8
75UC34 G145034UCY Unfinished Cherry 213⁄8413⁄8
Note: All measurements are in inches.
Semi-recessed Side Mirror Kits (for 6" cabinet depths only)
G1530 (for cabinets with a 24" wall opening height)
G1540 (for cabinets with a 34" wall opening height)
Horizontal Gang Attachment Kit
Previous Jensen number: G1520
76GK* (for 24", 29" and 34" wall openings)
Example 1: Recess three cabinets in a row (3 cabinets - 1) = 2 Horizontal Gang Attachment Kits.
Example 2: Surface mount four cabinets in a row (4 cabinets - 1) = 3 Horizontal Gang
Attachment Kits, plus 4 Surface Mount Side Mirror Kits.
Vertical Gang Attachment Kit
G1525* (for 24", 29" and 34" wall openings)
Example 1: Recess two cabinets in a column (2 cabinets - 1) = 1 Vertical Gang Attachment Kit.
Example 2: Surface mount two cabinets in a column (2 cabinets - 1) = 1 Vertical Gang
Attachment Kit, plus 2 Surface Mount Side Mirror Kits.
*To determine the quantity of Gang Kits needed, subtract 1 from the number of cabinets to
be ganged. When ganging and surface mounting cabinets, 1 Surface Mount Side Mirror Kit is
required for each cabinet.
Surface Mount Side Mirror* Kits (for 4" cabinet depths only)
Model
Number
Former
Jensen no.
760024 G150024 (for cabinets with a 24" wall opening height)
760030 G152430 (for cabinets with a 29" wall opening height—see page 7 for
product details)
760034 G150034 (for cabinets with a 34" wall opening height)
Recessed
Frame Profiles
Surface Mount
43⁄4
4
31⁄2
31⁄2
11⁄2
If you previously ordered Gallery Collection from Jensen:
The Jensen number you used to order is now cross referenced on the charts
to the right. Use the NuTone model number to order the cabinet, frame
and accessories needed for your installation. If you have questions, contact
NuTone customer support at 800-325-8351.
