Traxon Vb rgbw User manual

Media Pixel Ribbon DMX

INSTALLATION GUIDE

V0.3

Cover:

Media Pixel Ribbon DMX Outdoor VB

Media Pixel Ribbon DMX Outdoor HB

Media Pixel Ribbon DMX Outdoor Flat

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 06/21 V0.3 2 of 13

CONTENT

For your own safety and that of the product, please read this installation guide

carefully before beginning setup and installation.

SAFETY AND OPERATION 3

1. INTRODUCTION 4

2. INSTALLATION 9

3. SYSTEM CONFIGURATION 18

4. CARE AND MAINTENANCE 20

5. TECHNICAL SPECIFICATION 21

6. TROUBLESHOOTING 22

7. WARRANTY STATEMENT 22

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 06/21 V0.3 3 of 13

SAFETY AND OPERATION

1. CAUTION - Unplug the power supply from the mains power before connecting any

cables as this can damage the products.

2. CAUTION - Avoid looking directly into the LED light source at close range for your own

safety.

3. Persons installing this product should make sure:

a. The installation complies with all applicable codes, state and local laws,

ordinances, standards and safety regulations.

b. The installation environment is carefully studied and suitable surge protection

measure(s) is taken.

c. He or she is qualiﬁed for the handling of electrical equipment.

4. Do not attempt to install or use the product until installation instructions and safety labels

are fully understood. This product is designed for indoor and outdoor use.

5. Ensure product operates within the speciﬁed temperature range. (Refer to 5. TECHNICAL

SPECIFICATION for more details.)

6. Do not attempt to open the product. Not user serviceable.

7. Do not use the product if any part of it, or the power cables are damaged.

8. Only use product for speciﬁed voltage, do not exceed. (Refer to 5. TECHNICAL

SPECIFICATION for more details.)

9. Always maintain connection to ensure waterprooﬁng.

10. If the product has been subjected to drastic temperature variances, for example,

following transportation, do not connect the ﬁxture until it has reached room temperature,

as moisture condensation may cause electric shock and product damages.

11. When installing the products and system power supplies, please ensure they will not

be exposed to moisture and extreme heat (and direct sunlight for outdoor products).

Besides, keep a clean operating environment for the ﬁxtures and system power supplies.

12. Please study this Installation Guide thoroughly and check the latest Technical

Speciﬁcation Sheets available from the Traxon website www.traxontechnologies.com

before setup.

13. Any non-compliance of the Installation Guide will void the Traxon warranty.

Please read through Safety and Operation before start of the installation.

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 06/21 V0.3 4 of 13

1. INTRODUCTION

1.1 General

The Traxon Media Pixel Ribbon DMX family are flexible LED strips which can be controlled

directly using DMX 512. The Media Pixel Ribbon provides flexibility to fit on any curved

surface. Featuring a 16.7mm LED Pitch with a 100mm Pixel pitch. The Media Pixel Ribbon

can be customized for number of pixels, ribbon length, and mounting options.

Features:

• DMX512 control

• Outdoor applications

• Suitable for curve lighting and freeform applications

• Two versions with orthogonal bending directions

• Outdoor IP67

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 06/21 V0.3 5 of 13

1.2 Dimensions

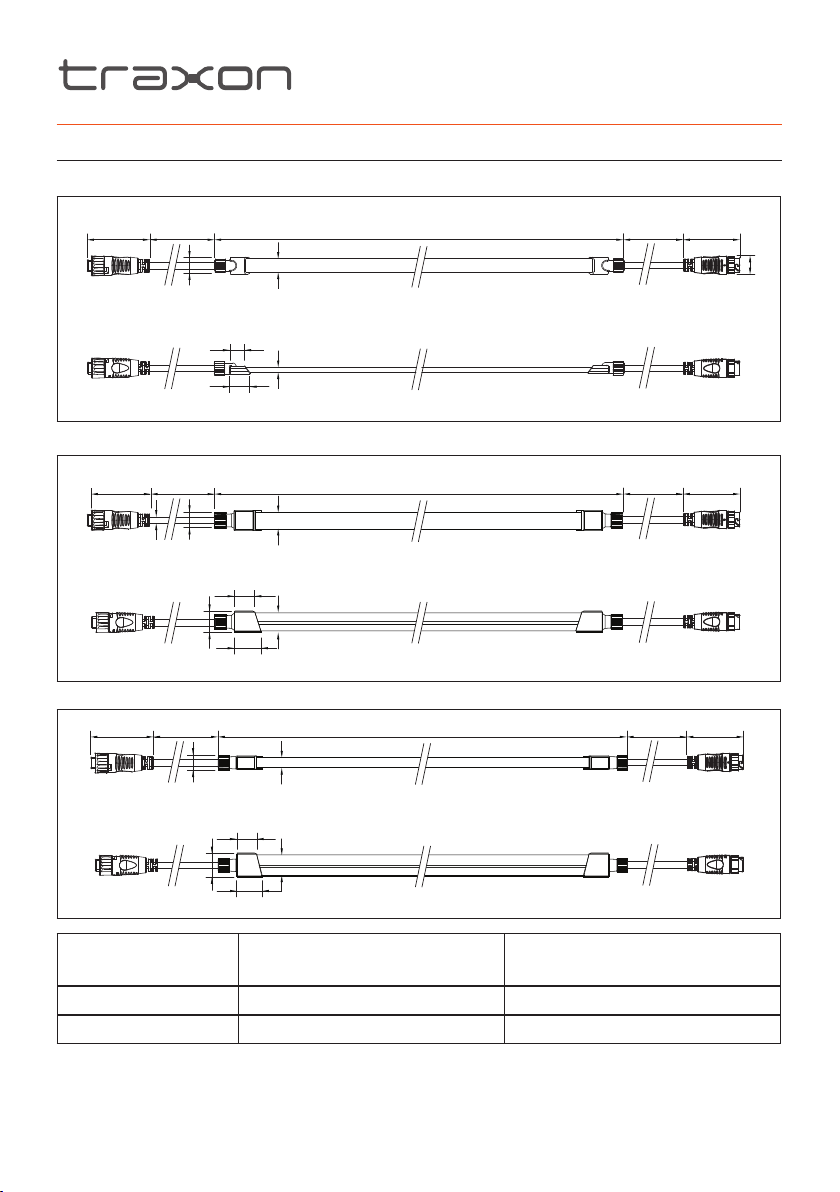

FIG.1: Media Pixel Ribbon DMX Outdoor Flat

59mm 300mm 10m, 8m

17.2mm 14.2mm

5mm

20mm

15mm

56mm

19mm

300mm

FIG.2: Media Pixel Ribbon DMX Outdoor VB

59mm 300mm L

18.2mm 15mm

16mm

24mm

19mm

19.2mm

56mm300mm

FIG.3: Media Pixel Ribbon DMX Outdoor HB

59mm 300mm L

13.2mm 10mm

20mm

24mm

19mm

23.2mm

56mm300mm

Model Max. Ribbon length with

single power feed

Actual product length with

endcap at 2-ends, L

RGB+W & RGB 8000 mm 8000 + 20 mm

DW & W 10000 mm 10000 + 20 mm

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 06/21 V0.3 6 of 13

2. INSTALLATION

2.1 Points To Consider

Plan your installation before mounting any luminaires. The following should be considered for

a successful installation.

• Weather conditions and ambient temperature of installation site.

• Appropriate cable lengths

• Adequate space for better heat dissipation (150mm apart) of LED Engines

• Check Mounting Guide to plan for mounting details.

• The length of the Media Pixel Ribbon DMX and appropriate DMX Controllers and LED

Engines.

• Controller to be used to control the Media Pixel Ribbon DMX.

2.2 Pre-Installation Checks

2.2.1 Installation Checklist

1. Prepare cables and all necessary accessories.

2. Perform functional check of the Media Pixel Ribbon DMX.

3. Ensure the DATA OUT connector on the Media Pixel Ribbon DMX are covered by the

Waterproof End Cap after testing. Keep Waterproof End Caps safe for reuse.

4. Ensure all pre-installation checks laid out below have been followed.

5. Mount the Media Pixel Ribbon DMX. If the installation is to be left uncompleted overnight,

place all non-connected Media Pixel Ribbon DMX, Connection Cables, DMX Controller

and LED Engines in an indoor environment.

Ensure all the Media Pixel Ribbon DMX, Connection Cables, DMX Controller and LED Engines

are initially stored in a dry area to guarantee the complete sealing of the system from water

before installation.

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 06/21 V0.3 7 of 13

2.2.2 Requirements Of Cable Bending And Twisting

Media Pixel Ribbon DMX Outdoor Flat and VB can only be bent among the vertical axis.

Media Pixel Ribbon DMX Outdoor HB can only be bent among the horizontal axis

Please take EXTRA precautions before bending Media Pixel Ribbon DMX and Connection

Cables. They must be only bent in the direction speciﬁed. The Minimum Bending Radius

150mm and the Non-Bendable Length of 20mm near the connector end or near the cable

overmold MUST be adhered to.

Do not twist the Media Pixel Ribbon DMX in anyway.

NOTE: Water ingress incurred due to excess cable bending/twisting will not be under

warranty by Traxon Technologies.

FIG.4: Minimum Cable Bending and Non-Bendable Length Requirement (Flat and VB)

≥20mm

≥150mm

FIG.5: Minimum Cable Bending and Non-Bendable Length Requirement (HB)

≥20mm

≥150mm

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 06/21 V0.3 8 of 13

2.2.3 Cut-and-Seal of the Media Pixel Ribbon

Media Pixel Ribbon DMX Outdoor can be cut every 100mm (cutting pitch).

It is recommended to use the PX RIBBON CUTTING TOOL (AM412950055) for proper

cutting.

For Ribbon Flat, look for the copper bridge every 100mm, which are the designated cutting

positions.

For VB / HB, the cutting position can be revealed from the window of the silicone body.

Cutting should only be done on the copper bridge position as indicated. Cutting outside the

position shall void the warranty.

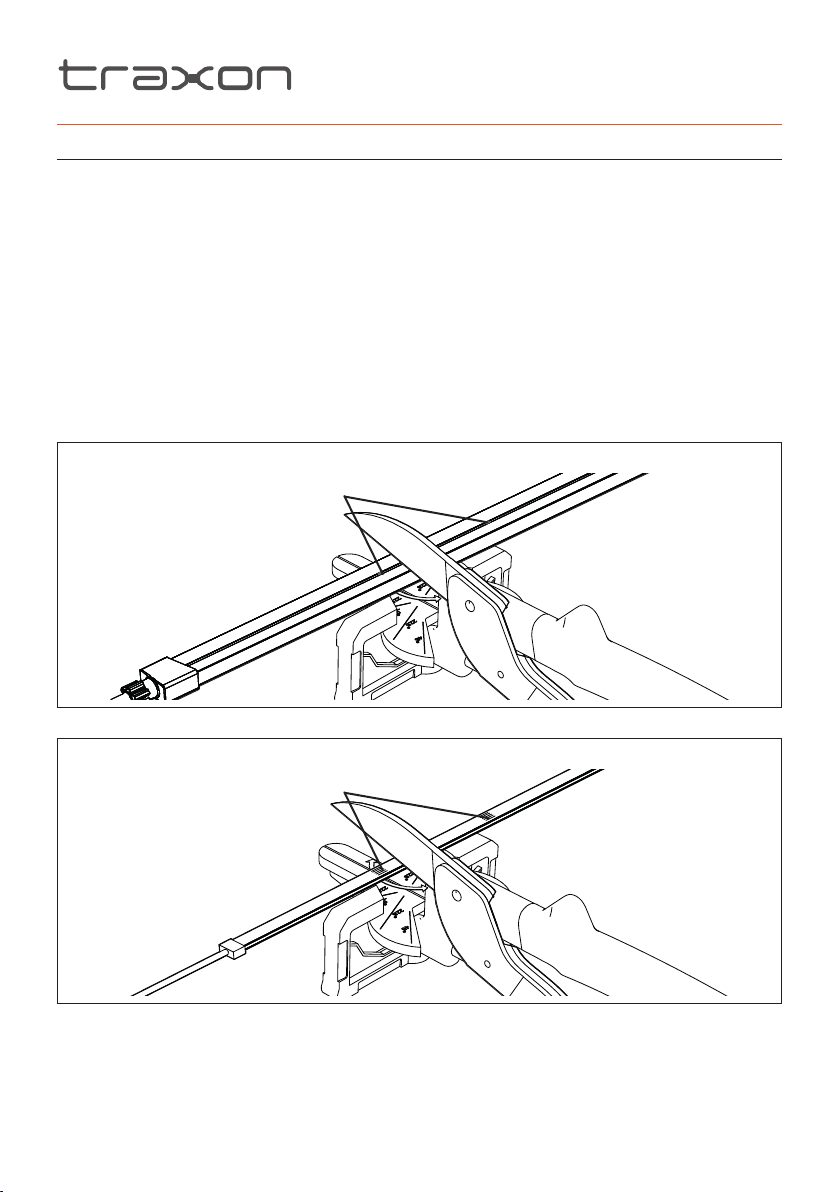

FIG.6: Ribbon Cutting for VB / HB

cutting positions

FIG.7: Ribbon Cutting for Flat

cutting positions

After cutting, the Cut End of the LED Strip should be covered with the End Cap, and sealed

with RTV Silicone.

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 06/21 V0.3 9 of 13

Item Code Description

AM412960055 PX RIBBON SEALING GLUE 100ML

AM412970055 PX RIBBON VB FIELDCUT ENDCAP 20PC

AM412980055 PX RIBBON HB FIELDCUT ENDCAP 20PC

AM412990055 PX RIBBON FLAT FIELDCUT ENDCAP 20PC

For VB / HB:

• Place the Ribbon VB / HB on the cutting tool, with the window of the body facing upward.

For Flat:

• Place the Ribbon Flat on the cutting tool, the LED should face upward.

• Avoid contact of the silicone body with the cutter edge when the cutting position is not in

place to avoid damage of silicone body.

• The Ribbon should be placed perpendicular to the cutting edge to make sure the cut

surface is not tilted.

• The cut surface should be ﬂush and smooth.

FIG.8: LED Strip Sealing

RTV

• After cutting, the Field-Cut End Cap should be used with the RTV PX Ribbon

Sealing Glue applied on the cut end.

• The sealing should be done at least 1-2 days at room condition (temperature

25degC & relative humidity 55%) before on-site installation to allow complete

curing of silicone.

Procedure

• Fill the End Cap with Sealing Glue completely.

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 06/21 V0.3 10 of 13

• Insert the Ribbon into the bottom of the End Cap.

• Clean excess silicone glue from the Ribbon.

• Let dry for at least 1 hour before any movement. Complete curing of silicone

should be expect for at least 24 hours.

2.3 On-Site Installation

• DO NOT attempt installation in wet or severe weather conditions.

• DO NOT leave and expose any Media Pixel Ribbon DMX, Pixel Distributor

or LED Engine unconnected under wet/raining or snowing environment.

• DO NOT pull on cable of Media Pixel Ribbon DMX. IP failure induced by

stressed/damaged cables during or after installation will not be under

warranty by Traxon Technologies.

• ALWAYS keep the cables and the ribbon body protected from sharp

objects and ensure no damage is generated.

• Failure to keep Media Pixel Ribbon DMX within the operating temperature

range of -20°C to +50°C, and storage temperature range of –40°C to

+70°C will void the product’s warranty.

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 06/21 V0.3 11 of 13

3. CARE AND MAINTENANCE

Traxon™ products are of superior design and quality and should be treated with care. The

recommendations below will help fulﬁll any warranty obligations and gain good use and

longevity from the products.

• Do not attempt or use the product(s) until you read and understand the installation

instructions. Failure to adhere to these instructions could result in serious injury or property

damage.

• Do not use product(s) if cables are damaged.

• Do not connect cables and connectors when wet or in wet area. Moisture on bare

connectors can cause electric shock and damage to product(s).

• Do not use product(s) in extreme heat environment. Ensure there is sufﬁcient airﬂow and

use cool air circulation if required.

• Do not drop, knock, or shake product(s). Rough handling can damage the electronics and

void the warranty.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean products.

Wipe with a damp cloth on housings and a dry cloth on electronics to remove dirt or dust.

• Do not attempt to service or repair the product(s) unless done by an authorized service

personnel. Contact your local Traxon ofﬁce or distributor for details.

• If the product is not working as speciﬁed, please contact your nearest authorized service

center or Traxon Technologies ofﬁce for assistance.

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 06/21 V0.3 12 of 13

4. TECHNICAL SPECIFICATION

Vertical Bend (VB) Horizontal Bend (HB)

Model RGBW RGB DW WRGBW RGB DW W

Light Source High intensity SMT RGB and White LEDs

Color Range 16.7 Million additive RGB colors

Beam Angle 120°

Power Input 24V DC

Power Consumption per m 14.4W 11W 9.6W 9.6W 14.4W 11W 9.6W 9.6W

Weight (per roll) 2.6kg 2.1kg 2.6kg 2.1kg 2.6kg 2.1kg 2.6kg 2.1kg

Operating Temperature –20°C to +50°C

Storage Temperature –40°C to +70°C

Flat

Model RGBW RGB DW W

Light Source High intensity SMT RGB and

White LEDs

Color Range 16.7 Million additive RGB colors

Beam Angle 120°

Power Input 24V DC

Power Consumption per m 14.4W 11W 9.6W 9.6W

Weight (per roll) 1.1kg 0.9kg 1.1kg 0.9kg

Operating Temperature –20°C to +50°C

Storage Temperature –40°C to +70°C

As with all electronic devices, LED output degrades over time - a term called lumen depreciation. This

also explains why it is nearly impossible to expect photometric performances of two LED products with

different service life spans to be the same. The rate of LED degradation is a complex function of many

factors such as operating efﬁciency, duration of continuous operation, and operating conditions (e.g.

ambient temperature).

Because LEDs are semiconductor devices, their performances are subject to inherent variability commonly found

in semiconductor industry. To improve consistency in performance across the same product, LED manufacturers

“sort” LEDs into bins according to different preset parameters, such as forward driving voltage, illumination,

etc. Whereas binning is a sorting function, it is not a correction process. Inherent variability in the manufacturing

process always results in different binning distributions according to different production lots. Traxon uses

automatically binned LEDs on its products, thereby minimizing output variations within the model range.

Please check for the latest updates and changes on the Traxon website.

www.traxontechnologies.com

5. TROUBLESHOOTING

CAUTION: Ensure power supply is OFF when disconnecting / connecting

cables.

Problem Cause Possible Solutions

Product does

NOT light up

after installation

Incorrect power

connection

• Check Mains Power

• Check power supply leads and wire

connections

• Ensure output wires are connected with

proper polarity

Shadowing Light source covered • Check for cables, wires or unwanted

debris covering LED light source

Modules are

dim

Excess products

connected

• Ensure the power supplies are not

overloaded due to an excess of products

connected

Flickering Incorrect power input/

Excess products

connected

• Ensure the input voltage is correct

• Ensure the power supplies are not

overloaded due to an excess of products

connected

If problems persist or the product is not working as speciﬁed, please contact your nearest

authorized service center or Traxon Technologies ofﬁce for assistance.

6. WARRANTY STATEMENT

Traxon Technologies warrants its Products against material or workmanship defects for a

period of ﬁve (5) years from date of purchase, provided that the purchased items are used

under the conditions stated in this user manual.

Please refer www.traxontechnologies.com for all warranty terms and conditions.

This manual suits for next models

Table of contents

Other Traxon Outdoor Light manuals

Traxon

Traxon Allegro Linear 2.1 AC RGB User manual

Popular Outdoor Light manuals by other brands

SLV Elektronik

SLV Elektronik 229463 instruction manual

JONATHAN Y

JONATHAN Y JYL2021A manual

STEINEL

STEINEL L 690 S manual

Essentials

Essentials ANTLER Instruction leaflet

DW Windsor

DW Windsor Focus Lighting NYX BOLLARD 1000 instructions

IKEA

IKEA RANARP manual

Govee

Govee H6055 user manual

ABBA

ABBA STB18 installation guide

Quoizel

Quoizel TF6150MBK installation guide

iGuzzini

iGuzzini LIGHT-UP Instructions for installing

GLUCKSTEIN ELEMENTS

GLUCKSTEIN ELEMENTS 39655-HBCLED Use and care guide

JONATHAN Y

JONATHAN Y JYL5042A quick start guide

Article

Article PERFORATE Assembly instructions

EKVIP

EKVIP 023789 operating instructions

Ballard Designs

Ballard Designs Sloan Wood Ball LL290 Assembly instructions

GE PM 16 instructions

Conrad

Conrad GX53 operating instructions

WE-EF

WE-EF RMC320 LED Installation and maintenance instructions

Traxon VB RGBW User manual

Popular Outdoor Light manuals by other brands
