Traxon Allegro linear 2.1 ac rgb User manual

Allegro Linear 2.1 AC

INSTALLATION GUIDE

V1.1

Cover:

Allegro Linear 2.1 AC RGB

Allegro Linear 2.1 AC RGBW

Allegro Linear 2.1 AC DW

Allegro Linear 2.1 AC SW (DMX)

Installation Guide 07/23 V1.1 2 of 19

Installation Guide 07/23 V1.1 3 of 19

CONTENT

SAFETY AND OPERATION 3

1. INTRODUCTION 4

2. INSTALLATION 8

3. SYSTEM CONFIGURATION 13

4. CARE AND MAINTENANCE 15

5. TECHNICAL SPECIFICATION 16

6. TROUBLESHOOTING 18

7. WARRANTY STATEMENT 18

Installation Guide 07/23 V1.1 2 of 19

Installation Guide 07/23 V1.1 3 of 19

SAFETY AND OPERATION

1. CAUTION - Unplug the power supply from the mains power before connecting any

cables as this can damage the products.

2. CAUTION - Avoid looking directly into the LED light source at close range for your own

safety.

3. Persons installing this product should make sure:

a. The installation complies with all applicable codes, state and local laws, ordinances,

standards and safety regulations.

b. The installation environment is carefully studied and suitable surge protection

measure(s) is taken.

c. He or she is qualiﬁed for the handling of electrical equipment.

4. Do not attempt to install or use the product until installation instructions and safety labels

are fully understood. This product is designed for indoor and outdoor use.

5. Ensure product operates within the speciﬁed temperature range. (Refer to 5. TECHNICAL

SPECIFICATION for more details.)

6. Do not attempt to open the product. Not user serviceable.

7. Do not use the product if any part of it, or the power cables are damaged.

8. Only use product for speciﬁed voltage, do not exceed. (Refer to 5. TECHNICAL

SPECIFICATION for more details.)

9. Always maintain connection to ensure waterprooﬁng.

10. If the product has been subjected to drastic temperature variances, for example,

following transportation, do not connect the ﬁxture until it has reached room temperature,

as moisture condensation may cause electric shock and product damages.

11. When installing the products and system power supplies, please ensure they will not

be exposed to moisture and extreme heat (and direct sunlight for outdoor products).

Besides, keep a clean operating environment for the ﬁxtures and system power supplies.

12. Please study this Installation Guide thoroughly and check the latest Technical

Speciﬁcation Sheets available from the Traxon website www.traxontechnologies.com

before setup.

13. Any non-compliance of the Installation Guide will void the Traxon warranty.

Please read through Safety and Operation before start of the installation.

Installation Guide 07/23 V1.1 4 of 19

Installation Guide 07/23 V1.1 5 of 19

1. INTRODUCTION

1.1 General

The Allegro Linear 2.1 AC series is a slim proﬁle, AC line powered high brightness luminaire.

The series is controllable via DMX512, and is available in four lengths. The luminaire can be

simply daisy-chained to form long runs.

Model Power Consumption (W) Length (mm)

Allegro Linear 2.1 AC 300 15 320

Allegro Linear 2.1 AC 600 28 615

Allegro Linear 2.1 AC 900 41 915

Allegro Linear 2.1 AC 1200 55 1215

Features:

• Outdoor applications

• Protection Class IP66

• Suitable for coastal environments

• Impact rating IK07

• Salt spray test compliant to ASTM B117-16

• Vibration compliant to 3G ANSI C136.31

• Input voltage: 220-240V AC

• Integrated mounting feet with ±90° adjustment on beam aiming

• DMX512

• Remote Device Management (RDM)

• CE, cETLus

• DynaMood®: BinOne · BoostOne · AddressOne

Installation Guide 07/23 V1.1 4 of 19

Installation Guide 07/23 V1.1 5 of 19

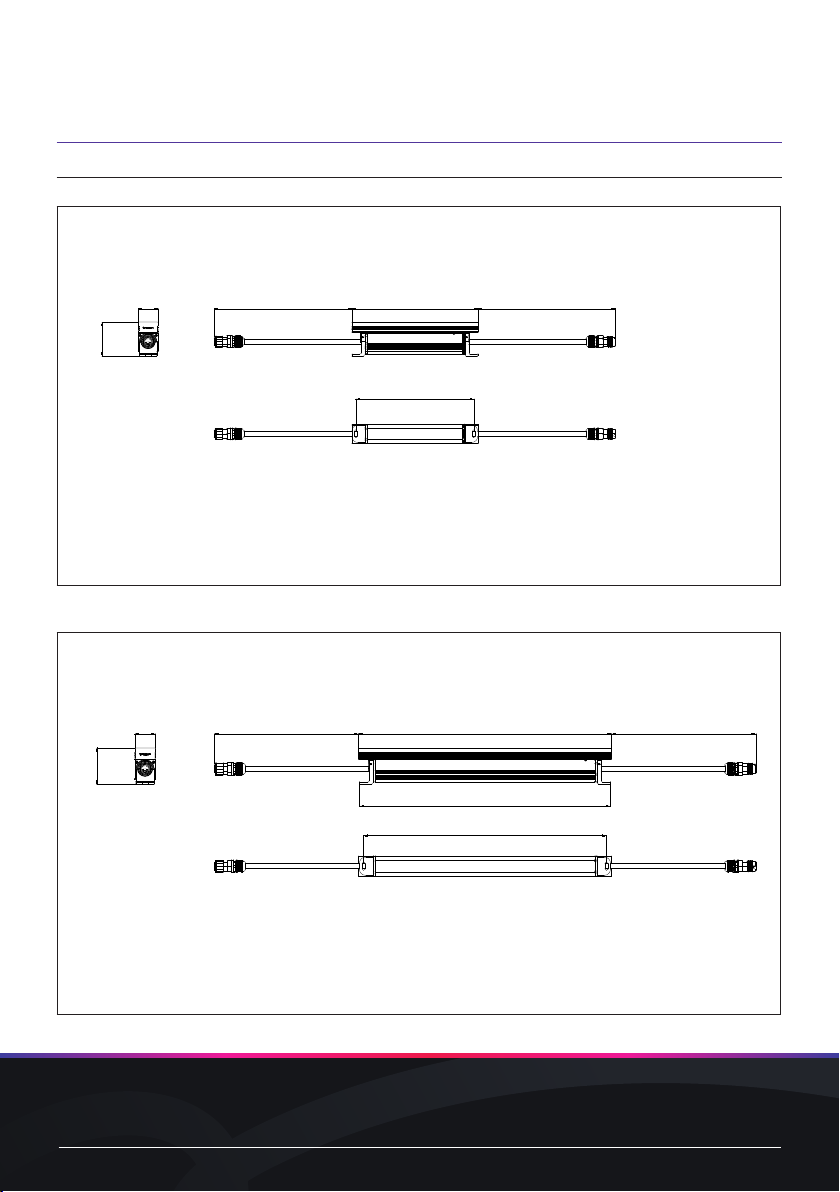

1.2 Dimensions

FIG.1: Allegro Linear 2.1 AC 300

320mm/12.6"

350mm/13.8" 350mm/13.8"

50mm/1.97"

300mm/11.8"

87mm/3.4"

FIG.2: Allegro Linear 2.1 AC 600

615mm/24.2"

590mm/23.2"

50mm/1.97"

87mm/3.4"

350mm/13.8" 350mm/13.8"

610mm/24"

Installation Guide 07/23 V1.1 6 of 19

Installation Guide 07/23 V1.1 7 of 19

FIG.3: Allegro Linear 2.1 AC 900

915mm/36"10mm/0.4" 10mm/0.4"

649mm/25.6"

625mm/24.6"

50mm/1.97"

87mm/3.4"

FIG.4: Allegro Linear 2.1 AC 1200

1215mm/47.8"

1039mm/40.9"

1015mm/40"

50mm/1.97"

87mm/3.4"

10mm/0.4" 10mm/0.4"

Installation Guide 07/23 V1.1 6 of 19

Installation Guide 07/23 V1.1 7 of 19

1.3 Packing Contents

FIG.5: Packing Contents

1 x Allegro Linear AC

Installation Guide 07/23 V1.1 8 of 19

Installation Guide 07/23 V1.1 9 of 19

2. INSTALLATION

2.1 Points To Consider

Plan your installation before mounting any Allegro Linear 2.1 AC. The following

should be considered for a successful installation:

• Weather conditions and ambient temperature of installation site.

• Installation distances and appropriate cable lengths. Please consult your local Traxon™

ofﬁce or authorized agent for necessary aid.

• The number of Allegro Linear 2.1 AC and appropriate power sources.

• Distance between each Allegro Linear 2.1 AC for thermal expansion.

• Proper surge protection.

2.1.1 Installation Checklist

1. Prepare cables and all necessary accessories.

2. Perform functional check of Allegro Linear 2.1 AC. Take care not to damage cables/

connectors during pre-installation checks.

3. Ensure all pre-installation checks laid out below have been followed.

4. Mount the Allegro Linear 2.1 AC on-site. If the installation is to be left uncompleted

overnight, place all non-connected LED Engines and Allegro Linear 2.1 AC in an indoor

environment.

Ensure all the Interconnection Cables, Allegro Linear 2.1 AC and power

sources are initially stored in a dry area to guarantee the complete sealing of

the system from water before installation.

Installation Guide 07/23 V1.1 8 of 19

Installation Guide 07/23 V1.1 9 of 19

2.2 Pre-Installation Checks

2.2.1 Sequence For Cable And Connector Preparation

1. Trim Cable.

2. Plan for any possible bending of cables.

3. Fix cable ends with connectors.

4. Complete sealing of connectors by tightening screw nut with spanner/wrench.

5. Unplug Dust Caps/Waterproof End Caps and keep safe for reuse.

6. Connect luminaries with power sources and data injector boxes with connection cables

in the daisy-chain manner described in the wiring diagram.

7. Open Short Test should be performed to ensure cable wires are connected correctly. Re-

crimping of wires should be done if any failures occur.

8. Perform functional check on all Allegro Linear 2.1 AC.

9. Report any functional defect found to your nearest Traxon Technologies ofﬁce. DO NOT

attempt to install an Allegro Linear 2.1 AC with functional defects on-site.

2.2.2 Cable Bending

Cable must NOT be bent below the Minimum Bending Radius (4 x Cable Diameter) as

speciﬁed by cable manufacturer and the Non-Bendable Length of 5cm near the connector

end MUST be adhered to.

Bending radius (for conductors):

Note the minimum bending radius for

conductors > 1.5mm2.

Pull forces on the contact points can be

avoided by proceeding as follows:

a – Bend the wire as required

(Minimum Bending Radius)

≥4D

(Non-Bendable Length)

5mm/0.2"

FIG.6: Cable Bending

Avoid vertical placement of the connectors.

If vertical installation is unavoidable:

• Add silicon glue on the surface of cable

gland.

• Layout the cable to have drip loop to

allow water run off the wire.

Silicone Glue Silicone Glue

FIG.7: Connector vertical installation warning

Installation Guide 07/23 V1.1 10 of 19

Installation Guide 07/23 V1.1 11 of 19

2.3 On-Site Installation

• DO NOT attempt installation in wet or severe weather conditions.

• DO NOT leave and expose any Allegro Linear 2.1 AC or power sources

unconnected under wet/raining or snowing environment.

• IP failure induced by stressed/damaged cables during or after installation

will not be under warranty by Traxon Technologies.

• ALWAYS keep the cables protected from sharp objects and ensure no

damage is generated on the cable.

• Failure to keep Allegro Linear 2.1 AC within the operating temperature

range of –30°C to +50°C (–22°F to +122°F) and storage temperature

range of –40°C to +70°C (–40°F to +158°F) will void the product’s

warranty.

1. Do not leave and expose Allegro Linear 2.1 AC without Dust Cap plugged under wet/

raining or snowing environment as the Allegro Linear 2.1 AC is not IP66 compliant unless

properly connected. Make sure there is a minimum spacing of 5mm/0.2” between Allegro

Linear 2.1 AC for thermal expansion.

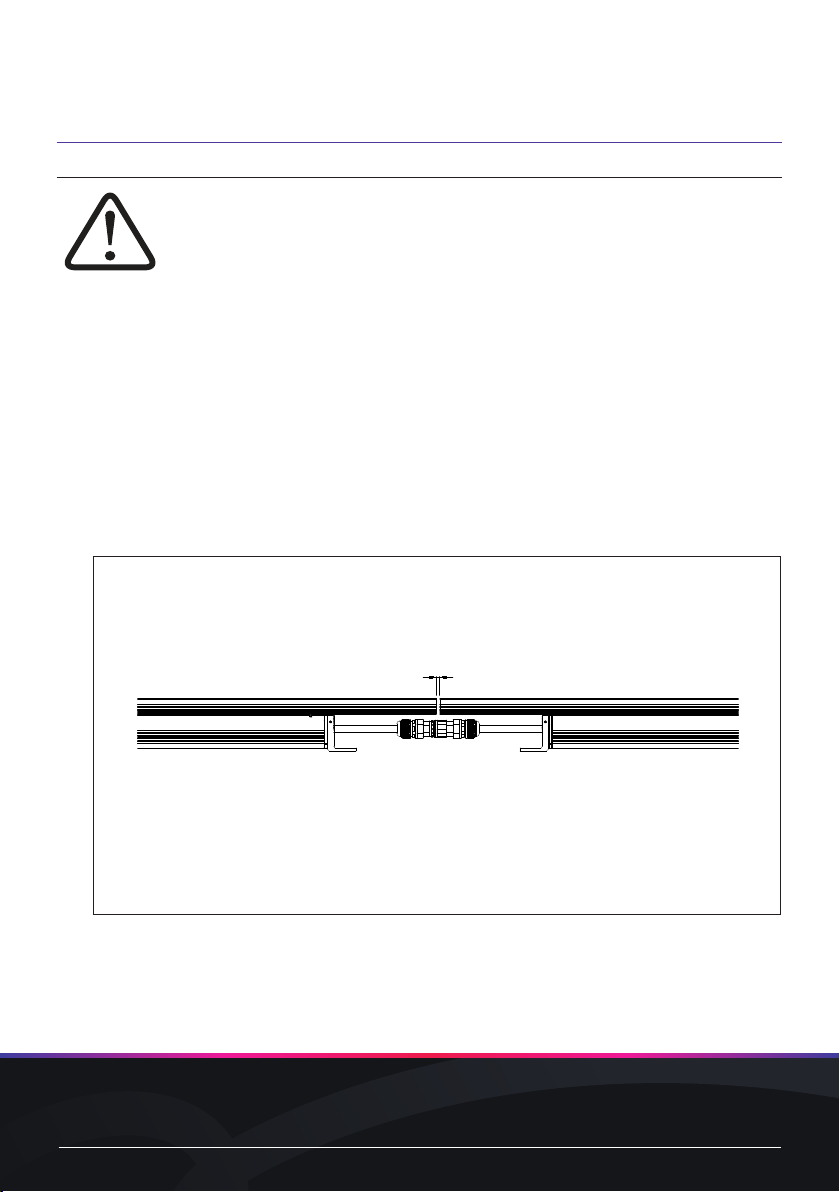

FIG.8: Min. clearance between fixtures

Min.5mm/0.2"

Installation Guide 07/23 V1.1 10 of 19

Installation Guide 07/23 V1.1 11 of 19

2. Rotate ﬁxture to gain access to mounting holes.

FIG.9: Mounting

6mm screw (x2)

(not included)

Mounting

Bracket

3. Fix screws to mounting brackets.

4. Tilt the Allegro Linear 2.1 AC head to the desired angle.

FIG.10: Locking fixture position

5. Then tighten lock screws with provided Hex Key in clockwise direction.

6. Unplug the Dust Caps/Waterproof End Caps and keep them in a container for reuse.

Installation Guide 07/23 V1.1 12 of 19

Installation Guide 07/23 V1.1 13 of 19

7. Fully connect all the Allegro Linear 2.1 AC with connection cables one after the other. Do

not work on the other unit’s connections until the ﬁrst unit under installation is properly

connected.

FIG.11: Interconnecting fixtures

CLICK!

8. Please use end cap for ﬁnal ﬁxture in connection chain.

FIG.12: Install the end cap

Installation Guide 07/23 V1.1 12 of 19

Installation Guide 07/23 V1.1 13 of 19

3. SYSTEM CONFIGURATION

FIG.13: System Diagram for CC

Fixtures with Chogori Connector (CC)- use with TX Injector (CC) only

TX INJECTOR CC (Note*)

PP.AC.100001 (AM374890055)

AL END CAP W/TERM (CC)

PP.AC.600000 (AM380550055)

3M TX-INJ POWER INPUT CABLE

CE: PP.A2.303000 (AM374840055)

ETL: PP.A1.303000 (AM374840155)

AL INTERCONNECTION CABLE CC

(1m, 2m, 3m, 10m options)

With Chogori F and M connectors

assembled

………….

TX-INJECTOR RJ45 FIELD INSTALL CONNECTOR (1 PAIR)

PP.AC.40000 (AM380560055)

Use provided end cap for final Data Injector in chain

POWER IN

DATA IN

TO FIXTURE

DATA OUT

Note*:

TX INJECTOR

AL LINEAR 2.1 CC

Chogori F connector

(same as on

interconnection cable)

Chogori M connector

(same as on

interconnection cable)

DMX In

Mains AC 120-277V (ETL)

Mains AC 220-240V (CE)

Fixture Voltage Max. number of fixtures

120-127V ETL 29

277V ETL 32

4ft

Fixture daisy chain per Data Injector:

Max. number of fixtures is based on minimal interconnection lengths between Data

Injector-to-Fixture and Fixture-to-Fixture.

Actual number of fixtures is dependent on cable interconnection lengths. Number of

fixtures will reduce if longer cable lengths are used. Please consult regional sales office to

confirm maximums.

120-127V ETL 48

277V ETL 108

1ft

Fixture Voltage Max. number of fixtures

220-240V CE 42

220-240V CE 32

900

1200

Fixture daisy chain per Data Injector:

Max. number of fixtures is based on minimal interconnection lengths between Data

Injector-to-Fixture and Fixture-to-Fixture.

Actual number of fixtures is dependent on cable interconnection lengths. Number of

fixtures will reduce if longer cable lengths are used. Please consult regional sales office to

confirm maximums.

220-240V CE 64

600

220-240V CE 108

300

Installation Guide 07/23 V1.1 14 of 19

Installation Guide 07/23 V1.1 15 of 19

FIG.14: System Diagram for WC

Fixtures with Wieland Connector (WC) – use with Quattro Data Injector:

QUATTRO DATA INJECTOR (Note*)

XB.AC.400000 (AB389160055)

5-PIN CONNNECTOR SOCKET

END CAP IP66

XB.AC.2304000 (AA508870335)

Note**: Wieland end cap does not come with

termination resistor, need to set the last fixture in

the daisy chain in RDM as “last fixture”

3-PIN FIELD INSTALLABLE

AC CONNECTOR

XB.AC.4006000 (for CE 10-14mm)

XB.AC.3106000 (for US 6-10mm)

Wieland M connector: 5-PIN FIELD INSTALLABLE AC CONNECTOR PLUG IP66 (M)

(XB.AC.2302000)

Wieland F connector: 5-PIN FIELD INSTALLABLE AC CONNECTOR SOCKET IP66 (F)

(XB.AC.2303000)

………….

RJ45 MALE

CONNNECTOR

HOUSING IP67

DE.AC.010000

(AA556100155)

Use provided end cap for final Data Injector in chain

POWER IN

DATA IN

TO FIXTURE

DATA OUT

Note*:

QUATTRO DATA INJECTOR

AL LINEAR 2.1 WC

Wieland F connectorWieland M connector

DMX In

Mains AC 120-277V (ETL)

Mains AC 220-240V (CE)

Fixture Voltage Max. number of fixtures

120-127V ETL 29

277V ETL 32

4ft

Fixture daisy chain per Data Injector:

Max. number of fixtures is based on minimal interconnection lengths between Data

Injector-to-Fixture and Fixture-to-Fixture.

Actual number of fixtures is dependent on cable interconnection lengths. Number of

fixtures will reduce if longer cable lengths are used. Please consult regional sales office to

confirm maximums.

120-127V ETL 48

277V ETL 108

1ft

Fixture Voltage Max. number of fixtures

220-240V CE 42

220-240V CE 32

900

1200

Fixture daisy chain per Data Injector:

Max. number of fixtures is based on minimal interconnection lengths between Data

Injector-to-Fixture and Fixture-to-Fixture.

Actual number of fixtures is dependent on cable interconnection lengths. Number of

fixtures will reduce if longer cable lengths are used. Please consult regional sales office to

confirm maximums.

220-240V CE 64

600

220-240V CE 108

300

Installation Guide 07/23 V1.1 14 of 19

Installation Guide 07/23 V1.1 15 of 19

4. CARE AND MAINTENANCE

• Traxon™ products are of superior design and quality and should be treated with care. The

recommendations below will help fulﬁll any warranty obligations and gain good use and

longevity from the products.

• Do not attempt or use the product(s) until you read and understand the installation

instructions. Failure to adhere to these instructions could result in serious injury or property

damage.

• Do not use product(s) if cables are damaged.

• Do not connect cables and connectors when wet or in wet area. Moisture on bare

connectors can cause electric shock and damage to product(s).

• Do not use product(s) in extreme heat environment. Ensure there is sufﬁcient airﬂow and

use cool air circulation if required.

• Do not drop, knock, or shake product(s). Rough handling can damage the electronics and

void the warranty.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean products.

Wipe with a damp cloth on housings and a dry cloth on electronics to remove dirt or dust.

• Do not attempt to service or repair the product(s) unless done by an authorized service

personnel. Contact your local Traxon ofﬁce or distributor for details.

• If the product is not working as speciﬁed, please contact your nearest authorized service

center or Traxon Technologies ofﬁce for assistance.

Installation Guide 07/23 V1.1 16 of 19

Installation Guide 07/23 V1.1 17 of 19

5. TECHNICAL SPECIFICATION

RGBW

300 600 900 1200

Light Source Osram Oslon, separate LEDs

Color Range RGBW (White CCT: 3000K standard)

Beam Angle 10°, 40°, 60° × 10°, 60° × 30°

Power Input 220-240V AC

Power Consumption 15W 28W 41W 55W

Weight 1.8kg / 3.97lb 3.06kg/4.03lb 3.6kg/7.93lb 5.02kg/11.07lb

Operating Temperature −30°C to +50°C / −22°F to +122°F (−20°C / −4°F starting)

Storage Temperature −40°C to +70°C / −40°F to +158°F

RGB

300 600 900 1200

Light Source Osram Oslon, separate LEDs

Color Range RGB

Beam Angle 10°, 40°, 60° × 10°, 60° × 30°

Power Input 220-240V AC

Power Consumption 15W 28W 41W 55W

Weight 1.8kg / 3.97lb 3.06kg/4.03lb 3.6kg/7.93lb 5.02kg/11.07lb

Operating Temperature −30°C to +50°C / −22°F to +122°F (−20°C / −4°F starting)

Storage Temperature −40°C to +70°C / −40°F to +158°F

Installation Guide 07/23 V1.1 16 of 19

Installation Guide 07/23 V1.1 17 of 19

300 600 900 1200

Light Source Osram Oslon, separate LEDs

Color Range Dynamic White (2700K-5700K)

Beam Angle 10°, 40°, 60° × 10°, 60° × 30°

Power Input 220-240V AC

Power Consumption 15W 28W 41W 55W

Weight 1.8kg / 3.97lb 3.06kg/4.03lb 3.6kg/7.93lb 5.02kg/11.07lb

Operating Temperature −30°C to +50°C / −22°F to +122°F (−20°C / −4°F starting)

Storage Temperature −40°C to +70°C / −40°F to +158°F

300 600 900 1200

Light Source Osram Oslon, separate LEDs

Color Range 2700K, 3000K, 4000K, 5700K

Beam Angle 10°, 40°, 60° × 10°, 60° × 30°

Power Input 220-240V AC

Power Consumption 15W 28W 41W 55W

Weight 1.8kg / 3.97lb 3.06kg/4.03lb 3.6kg/7.93lb 5.02kg/11.07lb

Operating Temperature −30°C to +50°C / −22°F to +122°F (−20°C / −4°F starting)

Storage Temperature −40°C to +70°C / −40°F to +158°F

As with all electronic devices, LED output degrades over time - a term called lumen

depreciation. This also explains why it is nearly impossible to expect photometric

performances of two LED products with different service life spans to be the same. The

rate of LED degradation is a complex function of many factors such as operating efﬁciency,

duration of continuous operation, and operating conditions (e.g. ambient temperature).

Because LEDs are semiconductor devices, their performances are subject to inherent

variability commonly found in semiconductor industry. To improve consistency in

performance across the same product, LED manufacturers “sort” LEDs into bins according

to different preset parameters, such as forward driving voltage, illumination, etc. Whereas

binning is a sorting function, it is not a correction process. Inherent variability in the

manufacturing process always results in different binning distributions according to different

production lots. Traxon uses automatically binned LEDs on its products, thereby minimizing

output variations within the model range.

Installation Guide 07/23 V1.1 18 of 19

6. TROUBLESHOOTING

Caution: Ensure power supply is OFF when disconnecting / connecting

cables.

Problem Cause Possible Solutions

Product does

NOT light up

after installation

Incorrect power

connection

• Check Mains Power

• Check power supply leads and wire

connections

• Ensure output wires are connected with

proper polarity

Shadowing Light source covered • Check for cables, wires or unwanted

debris covering LED light source

Modules are

dim

Excess products

connected

• Ensure the power supplies are not

overloaded due to an excess of products

connected

Flickering Incorrect power input/

Excess products

connected

• Ensure the input voltage is correct

• Ensure the power supplies are not

overloaded due to an excess of products

connected

If problems persist or the product is not working as speciﬁed, please contact your nearest

authorized service center or Traxon Technologies ofﬁce for assistance.

7. WARRANTY STATEMENT

Traxon Technologies warrants its Products against material or workmanship defects from date

of purchase, provided that the purchased items are used under the conditions stated in this

user manual.

Please refer www.traxon-ecue.com for all warranty terms and conditions.

Please check for the latest updates and changes on the Traxon website.

www.traxon-ecue.com

Installation Guide 07/23 V1.1 18 of 19

This manual suits for next models

Table of contents

Other Traxon Outdoor Light manuals

Traxon

Traxon VB RGBW User manual

Popular Outdoor Light manuals by other brands

SLV Elektronik

SLV Elektronik 229463 instruction manual

JONATHAN Y

JONATHAN Y JYL2021A manual

STEINEL

STEINEL L 690 S manual

Essentials

Essentials ANTLER Instruction leaflet

DW Windsor

DW Windsor Focus Lighting NYX BOLLARD 1000 instructions

IKEA

IKEA RANARP manual

Govee

Govee H6055 user manual

ABBA

ABBA STB18 installation guide

Quoizel

Quoizel TF6150MBK installation guide

iGuzzini

iGuzzini LIGHT-UP Instructions for installing

GLUCKSTEIN ELEMENTS

GLUCKSTEIN ELEMENTS 39655-HBCLED Use and care guide

JONATHAN Y

JONATHAN Y JYL5042A quick start guide

Article

Article PERFORATE Assembly instructions

EKVIP

EKVIP 023789 operating instructions

Ballard Designs

Ballard Designs Sloan Wood Ball LL290 Assembly instructions

GE PM 16 instructions

Conrad

Conrad GX53 operating instructions

WE-EF

WE-EF RMC320 LED Installation and maintenance instructions

Traxon Allegro Linear 2.1 AC RGB User manual

Popular Outdoor Light manuals by other brands
