Trejon OPTIMAL 2452H Specification sheet

Note! Read the instructions before use.
TREJON AB
Företagsvägen 9
SE-911 35 VÄNNÄSBY
SWEDEN
Tel: + 46 (0)935 39 900
Fax: + 46 (0)935 39 919
Instructions for Use
and Maintenance
Hydraulic driven
Snow blower 2452H
Edition: 14-02

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
2
2
Breddningsving
en monteras
på insidan av
maskinen

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
3
3
Breddningsving
en monteras
på insidan av
maskinen
TABLE OF CONTENTS
1Introduction....................................................................................................7
1.1 Foreword ...................................................................................................7
1.2 Description.................................................................................................7
1.3 Working stages..........................................................................................7
1.4 Detailed description...................................................................................8
1.5 Technical data...........................................................................................9
2Safety instructions ......................................................................................10
2.1 Safety precautions...................................................................................10
2.2 Explanation of the symbols......................................................................13
3Operating the machine................................................................................15
3.1 Assembly.................................................................................................15
3.2 Attaching machine to the tractor..............................................................15
3.3 Before starting up....................................................................................18
3.4 Adjustments.............................................................................................18
3.5 Operating the machine............................................................................20
4Service and maintenance ...........................................................................22
4.1 General information.................................................................................22
4.2 Maintenance schedule.............................................................................23
4.3 Before the snowy season........................................................................23
4.4 After the snowy season...........................................................................23
4.5 Gear box oil check and change...............................................................23
4.6 Dismounting / mounting of hydraulic motor .............................................25
5Troubleshooting..........................................................................................27
6Spare parts...................................................................................................28
EC-Certificate of Conformity ............................................................................30

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
4
4
Breddningsving
en monteras
på insidan av
maskinen
SAFETY SYMBOLS
Note! This warning symbol is used throughout this instruction manual to call attention to safety
precautions that you, your employees or any other people that may come near the implement
must read and understand. Failure to follow these instructions may result in serious injury or
even death.
This symbol means:
WARNING!
CAUTION!
YOUR SAFETY IS
ENDANGERED!
A word of advice
Pay special attention to the words WARNING! CAUTION! and NOTE! in the safety instructions.
The words have been chosen from of the following:
WARNING! This safety sign is used to identify potential hazards that can lead to serious injury
or even death. These hazards include situations that may occur when the safety equipment
and/or the safety shields are removed. Signal words can also be used to alert about dangerous
use.
CAUTION! Failure to observe this warning sign could result in light personal injuries. The sign is
also used to indicate that the disregarding of these instructions may cause damage to the
implement.

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
5
5
Breddningsving
en monteras
på insidan av
maskinen
Dear Customer,
You have made a good choice. We congratulate you to your selection of an OPTIMAL product
that offers quality and performance with reliable service.
By reading the manual and following its recommendations you will ensure the long and effective
use of the equipment.
We have produced this manual for you to get a good understanding of the functioning of the
machine and what safety and maintenance instructions to follow when working with it.
If any question should arise when using the machine or when reading this manual, you are
welcome to contact us for further information.
TREJON AB
Företagsvägen 9
SE-911 35 Vännäsby
Sweden
Tel: + 46 (0)935 399 00
Fax: + 46 (0)935 399 19,
Fax repair parts: [phone]
Email: [email protected]
Website: www.trejonindustries.se

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
6
6
Breddningsving
en monteras
på insidan av
maskinen
Honoured retailer,
in order for the guarantee to be valid and to forfill all legal requirements, we ask you to fill out
the guarantee form together with the customer and register at trejon.se
The guarantee is valid from the day the equipment is handed over to the customer.
Delivery checklist:
Check for damages caused in transporting. Inform the transporting company.
Check that all packing material has been taken away. Dispose packing material in an
environmentally friendly way
Check that the machine is lubricated, see section “Service and maintenance”.
Check that all screws are properly tightened, see section “Service and
maintenance”.
Check that all guards and safety shields are properly fastened.
Check the oil level in the gearbox. See section “Service and maintenance”.
Check the oil level in the gearbox. Approximatley 50mm from bottom of gearbox.
Check chain tension, see section “Service and maintenance”
Make a funtion test.
Having gone through and explained to the customer, with the help of the manual, the
startup, use and maintenance of the equipment and it’s accessories.
Fill out the guarantee form with the customer and register at trejon.se
Instruction manual given to the customer.
Enter the serialnumber of the machine and
hydraulic motor to the right.
S/N:
S/N:

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
7
7
Breddningsving
en monteras
på insidan av
maskinen
1 Introduction
1.1 Foreword
Thank you for choosing this OPTIMAL machine. We have concentrated our efforts in order to
develop a sturdy machine that will operate trouble-free for many years. The working life of the
machine, however, depends not only on us but also on you. We have compiled this instruction
manual in order to facilitate the use of the implement and describe proper maintenance
procedures. Read these instructions carefully. Contact the retailer from whom you purchased
the machine whenever you want to order repair parts or need any other assistance. When you
are ordering repair parts, make sure that you know the right model, type and serial number. See
the identification plate on the chassis.
1.2 Description
The equipment is designed to clear snow from level ground such as roads and parking lots. The
snow blower is to be mounted on the tractor’s loader or a similar attachment frame. The
machine is designed to be driven by tractors existing hydraulic system, assumed that it can
deliver the right flow. Oil flow and working pressure at tractors hydraulic system is the factors
that decide which effect the hydraulic motor will deliver. TREJON deliver snow blower with a
hydraulic motor that will suit the figures about tractors hydraulic system given at order of new
machine.
The snow blower works best if it is mounted on a tractor that supplies recommended oil flow
regardless speed of vehicle. Therefore tractors with hydrostatic transmission, is especially
suited for work with hydraulic driven snow blowers.
For operation of the hydraulic motor of the snow blower, the tractor need following hydraulic
connections:
A hydraulic outlet that can deliver recommended flow to the snow blower.
A hydraulic outlet with open (pressure less) oil return directly to the tractor’s oil tank.
A hydraulic outlet with open (pressure less) case drain oil return (max. 3,6 Bars back
pressure) directly to the tractor’s oil tank.
Remaining functions needs:
A double acting hydraulic outlet is needed for turning of ejector tube.
If the machine is equipped with hydraulic flap regulator, one more double acting outlet is
needed.
1.3 Working stages
The equipment works in three stages:
1. Break-up and feeding in with self-cleaning feed screws with cutting action.
2. Transport to the ejecting rotor.
3. The ejecting rotor will powerfully throw out the snow through the ejector tube. The
ejector tube is adjustable as to the direction and the distance of the thrown snow.

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
8
8
Breddningsving
en monteras
på insidan av
maskinen
1.4 Detailed description
1
Frame
2
Ejector tube (long or short tube)
3
Twin flap
4
Discharge rotor
5
Auger
6
Flap control
7
Turntable gear
8
Reversible wearing edge
9
Gearbox
10
Tool box with holder for additional shear bolts
11
Hydraulic motor, axial pistol type
12
Open able shields, break coupling auger
13
Connection for leak-oil lead, 2 pcs
14
Connection flange for pressure and return, flange in accordance with SAE 6000
4.
1.
3.
2.
5.
6.
7.
12.
9.
8.
11.
10.
13.
14.
9.

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
9
9
Breddningsving
en monteras
på insidan av
maskinen
1.5 Technical data
Specifikationer / Modell
2452 H
Working width, mm
2430
Frame height, mm
960
Cutting screws, quantity
2
Cutting screws, mm
1 x 440 + 1 x 340
Discharge rotor, mm
800
Gearbox drive, type
Hydraulic
Hydraulic motor, type
Axial piston
Working pressure, max. Bars
According to engine specification
Rotation of discharger, type
Hydraulic
Chute flap regulation, type
Mechanical
Weight, base unit, kg
1100
Due to continuous product development, any data is subject to change without prior notice.

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
10
10
Breddningsving
en monteras
på insidan av
maskinen
2 Safety instructions
2.1 Safety precautions
Read operator’s manual. All drivers of the machine must read and understand all the contents
of this operator’s manual, so there is no doubt about management before using the equipment
for the first time. If any hesitation, ask your Trejon dealer about advise. It is forbidden to use the
equipment if user don’t know the risk factors at handling, and don’t know how to act in an
emergency situation.
Read, observe and understand meaning of all safety-, use-, warning- and position- symbols at
machine and in user manual.
Safety is the primary concern in the design and manufacture of our products. Unfortunately our
efforts to provide safe equipment can be wiped out by a single careless act of an operator.
In addition to the design and configuration of equipment, hazard control and accident prevention
are dependent upon the awareness, concern, prudence and proper training of personnel
involved in the operation, transport, maintenance and storage of equipment.
Allow only properly trained personnel to operate the equipment.
The machine is intended only for outdoor use.
Management. Learn how to operate the machine and how to use the controls properly before
operating the machine.
Connect the machine. Attach the machine correctly; don’t stand behind the tractor during
installation. Ensure machine is properly mounted, adjusted and in good operating condition.
Failure to ensure a secure coupling of the implement to the tractor can cause injury and
damage to the implement or tractor.
Secure the working area. Unauthorized persons, particularly children, are not allowed near the
machine while it is running or is being repaired. Before backing up, look behind carefully.
Pay attention to the injury and damage that can be caused by material thrown by machine
during operating, therefore clear area of stones, branches or other debris that might be thrown,
causing injury or damage. Take care never to aim the snow outlet towards people, animals or
buildings.
The rotating parts of this machine have been designed and tested for rugged use. However,
they could fail upon impact with heavy, solid objects such as steel guard rails and concrete
abutments. Such impact could cause the broken objects to be thrown outward at very high
velocities. To reduce the possibility of property damage, serious injury, or even death, never
allow the cutting blades to contact such obstacles.
Machines protective equipment. Do not operate the machine if not all safety guards and
shields for moving parts are in place and in good condition.
Ensure that all safety and operating signs are in good condition.
Additional safety and operating decals are available at no extra charge. Please specify model
and serial number when ordering.
Moving parts. Keep hands, feet, hair and clothing away from moving parts of the machine.
Let the machine work by it self, don’t try to help the machine with hands and fingers.

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
11
11
Breddningsving
en monteras
på insidan av
maskinen
Lifting and lowering machine. Be careful when lifting or lowering the machine.
Stability. The machine should not be mounted on a tractor with insufficient front shaft /back
shaft weight when the tractor becomes unstable and difficult to operate. When using a unit, a
minimum 20% of tractor and equipment weight must be on tractor front wheels. Without this
weight, tractor could tip over, causing personal injury or death. The weight may be attained with
a front end loader, front wheel weights, and ballast in tires or front tractor weights, read the
tractor’s instructions manual for more information.
In extremely uneven terrain rear wheel weights, front tractor weights, and/or tire ballast should
be used to improve stability.
Operating machine. Be careful and reduce the speed when working on uneven surfaces.
Watch for holes, roots, rocks or other hidden objects. Do not drive near the edge of a gully,
ditch or stream bank. When mowing over uneven terrain, observe the type of terrain and
develop a safe mowing pattern.
When driving in slopes:
Operate the machine up and down steep slopes, not across slopes, to prevent the tractor from
tipping. Avoid sudden stops and starts, slow down before changing directions on a slope. Pass
diagonally through sharp dips and avoid sharp drops to prevent hanging up the tractor and
machine. If tractor overturns, hold tight to steering wheel.
Operating in darkness. When working in the dark hours, make sure there is sufficient lighting
in the working area.
Driver. Do not operate the equipment when you are tired, sick or when using medication.
Only properly trained people with driver’s license is allowed to operate this machine.
Do not allow riders on the machine or tractor at any time. There is no safe place for riders.
Personal protective equipment. Personal protection equipment including hard hat, safety
glasses, safety shoes, and gloves are recommended during assembly, installation, adjustment,
maintaining and/or repairing the implement. Avoid loose fitting clothing which can become
entangled. Wear sturdy, tough-soled work shoes and protective equipment for eyes, hands,
ears and head.
Safety cabin. Operate the machine only with a tractor equipped with an approved Roll-Over-
Protective-System (ROPS). Keep doors at tractors cabin closed during operating, serious injury
or even death could result from falling off the tractor.
Daily maintenance. Inspect the entire machine periodically. Look for loose fasteners, worn or
broken parts, and leaky or loose fittings. Periodically tighten all bolts, nuts and screws and
check that all cotter pins are properly installed to ensure unit is in a safe condition.
No wrappings or foreign objects are around the machine.
Frequently check mower blades. They should be sharp, free of nicks and cracks and securely
fastened.

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
12
12
Breddningsving
en monteras
på insidan av
maskinen
Safety during maintenance and repairing. Apply hand brake and place the machine on a
hard level surface when maintaining or adjusting it. Always stop the tractor, set brake, shut off
the tractor engine, remove the ignition key, and allow machines moving parts to come to a
complete stop before dismounting tractor. Ensure that all moving parts have stopped completely
before making adjustments, servicing or cleaning the machine. If the machine has been raised
for cleaning, maintenance, inspection or repairs, it is imperative that you prevent it from sinking
or falling down by placing supports under the machine. Never work under equipment unless it is
blocked securely. Keep service area clean and dry. After servicing, be sure all tools, parts and
service equipment are removed. Clean the machine thoroughly before repairs or storage. Be
sure to thoroughly wash the machine without using excessive pressure especially on the moving
parts, bearings and electric components. After cleaning, carefully dry the machine and lubricate
it and perform a short test drive.
Vibrations. Do not use the machine if it is vibrating or shaking. Stop and investigate the cause.
Change any damaged parts.
Emergency stop. Know how to stop the tractor and machine quickly in case of an emergency.
After striking an obstacle, shut the tractor down and thoroughly inspect for damage before
restarting.
Hydraulic hoses. The machine’s hydraulic hoses contain oil under high pressure. Never
touch the hoses or other hydraulic components while there is still pressure in the system. In
case of leakage, oil under high pressure can penetrate the skin and cause serious injuries. If
accident happen, contact doctor.
Check the condition of the hydraulic hoses every day. Worn or leaking hoses must be replaced
immediately with new hoses that meet the manufacturer’s technical requirements.
The hydraulic motor and the hoses become hot during work; there is a risk for burn injury.
Never loosen the hoses while the oil is still hot. Wait until it cools down. When changing tractor,
check length of hydraulic hoses, if to long or short, they can easily be damaged.
The hydraulic motor and the hoses become hot during work; there is a risk for burn injury.
Never loosen the hoses while the oil is still hot. Wait until it cools down.
Welding. Protect bearings, electronic and hydraulic components before any welding is done.
Place earth connection close to the place for welding.
Fire danger. If any component gets over heated, stop machine and check reason. There is an
increased risk of fire when working in dry areas.
Spare parts. Use only original repair parts
Where replacement parts are necessary for periodic maintenance and servicing, genuine
replacement parts must be used to restore your equipment to original specifications. The
company will not claim responsibility for use of unapproved parts and/or accessories and other
damages as a result of their use.
Unauthorized modifications to the machine may impair the function and/or safety of the machine
and reduce its life. If equipment has been altered in any way from original design, the
manufacturer does not accept any liability for injury or warranty.

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
13
13
Breddningsving
en monteras
på insidan av
maskinen
2.2 Explanation of the symbols
The warning symbol must always be recognizable. If the warning symbols are missing from your
equipment or if they are damaged, replace them at once.
The signs to the right have the following meaning:
Warning!
Decal 1: Read the instruction manual carefully
and make yourself familiar with the machine before
using it.
Warning!
Decal 2: Keep hands and feet away from any
moving
parts. Keep away from the PTO while
the engine is running.
Failure to follow these instructions can result in
serious injury or even death.
Warning!
Decal 3: Objects such as stones and lumps of ice
can be discharged while the machine is running.
Keep away from the machine when it is running.
The operator should have a good view of the area
where snow is discharged. Avoid operating the
machine in the presence of people and animals or
in built-up areas.

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
14
14
Breddningsving
en monteras
på insidan av
maskinen

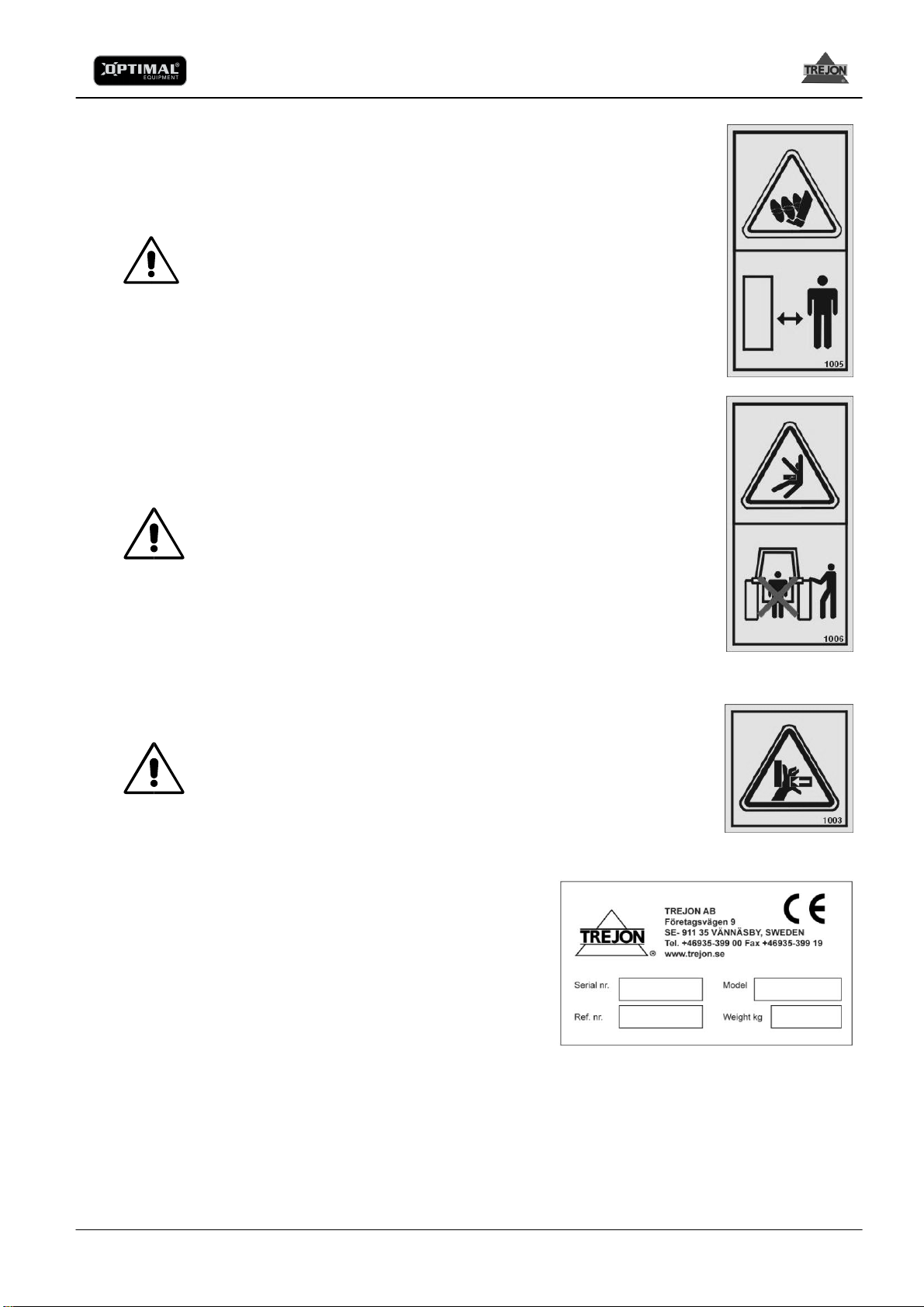

Warning!
Decal 4: Keep body parts away from the feeding
wings when the machine is running. In case of
stoppage,
apply hand brake, turn off the engine, place the
fling on the ground and disconnect the power unit.
Warning!
Decal 5: Crush hazard. Never stand between
machine and tractor during mounting. Always apply
hand brake before leaving the tractor’s cab in order
to mount / dismount the implement.
Warning !
Decal 6: Crushing hazard! When the ejector tube is
lowered the engine of the tractor and the PTO must
be switched off. Never use your arms or your legs
to clear the ejector tube.
Decal 7: This is the plate with the CE-sign.
On it you will find the machine’s serial
number, its weight and model.

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
15
15
Breddningsving
en monteras
på insidan av
maskinen
3 Operating the machine
3.1 Assembly
Caution!
No persons is allowed to be in danger area during lifting
Be carefully when cutting bands and wire because they can be very tensed. They can
also be very sharp.
Following steps will be performed during the assembling:
Take away all packing and wrapping material, and discard it in an environmentally friendly way.
Assemble the ejector pipe and tighten the bolts.
Connection frame is bolted to the equipment.
Check that all protective devices are undamaged and correctly attached to the equipment.
Before operating the machine, tasks in section 3.3 –“Before starting up” must be cleared.
3.2 Attaching machine to the tractor
Warning!
Crushing hazard! When connecting, never stand between the tractor and the equipment
as long as the tractor is moving. Always immobilize the tractor when leaving the cabin
for any coupling/decoupling work.
The machine should not be mounted on a tractor with insufficient front shaft weight,
when the tractor becomes unstable and difficult to operate. If necessary use attained
ballast weights, read the tractor’s instructions manual for more information.
Attach the machine at a hard level surface.
Attach machine to tractors connection frame.
Turn of tractor’s engine and apply the hand brake.
The machine is delivered without hoses to the hydraulic motor. Fit the hydraulic hoses to the
tractor with regard to lengths and suitable quick couplings. Connect the leak-oil line and return
directly to the tank with as little return pressure as possible (max. 3,6Bar backpressure).

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
16
16
Breddningsving
en monteras
på insidan av
maskinen
Connections on the hydraulic motor
The snow blower’s motor is available in different sizes in order to fit the tractor’s hydraulic power
(flow and working pressure). The type of the motor can be found on the type plate of the motor.
Hydraulic motor SCM 47-64 SAE C
Pressure and return: Flange in accordance with SAE J518-3/4” 6000 psi. Mounts with 8 pcs
screws: 3/8 UNC 2B x 51mm.
Leak-oil (case drain): The motor has two plugged outlets. Lower: Thread 7/8”-14 UNF Upper:
Thread 9/16-18UNF (max. 3,6-bars back pressure).
Hydraulic motor SCM 84-108 SAE C
Pressure and return: Flange in accordance with SAE J518-1” 6000 psi. Mounts with
8 pcs screws: 7/16-14 UNC 2B x 51mm.
Leak-oil (case drain): The motor has two plugged outlets. Lower: Thread 7/8”-14 UNF Upper:
Thread 9/16-18UNF (max. 3,6-bars back pressure).

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
17
17
Breddningsving
en monteras
på insidan av
maskinen
Example of components that convey pressure through the hydraulic hose to the contact flange
SAE 6000.
Pressure nipple –SAE 6000, 2 pcs
required per machine
Half-flange –SAE 6000, 4 pcs required per
machine
O-ring –SAE 6000, 2 pcs required per
machine
Mounted on the hydraulic motor contact
flange.
Port. B Pressure:
Oil to the hydraulic motor port B is supplied through available outlet on the tractor that delivers
the recommended oil flow and pressure. The oil flow from the outlet must be controllable from
the tractor cab. Adjust the length of the hose and mount suitable quick couplings on the tractor
as well as couplings for SAE 6000 on the hydraulic motor.
Port A Return:
Oil from the hydraulic motor port B is led back to the tractor's tank via an open outlet (low back-
pressure). Adjust the length of the hose and mount suitable quick couplings on the tractor and
couplings for SAE 6000 on the hydraulic motor.
Leak-oil (case drain) line:
Oil is brought to the hydraulic motor housing during operation in order to lubricate and cool the
hydraulic motor bearings. This oil must be led back to the tractor’s tank through a separate line.
If the leak-oil lead is not connected to a pressure less (max. 3,6 Bars back-pressure) return line
the shaft seal is going to breakdown on the hydraulic motor.
The motor has two plugged outlets for connection for leak-oil line. Side view of the motor with
the contact flange directed downwards: Lower, thread 7/8”-14 UNF upper: Thread 9/16-18UNF.
Fill the motor with hydraulic oil up to 50%. Mount appropriate adapter to the plugged
outlets at the top of the motor (consider mounting direction),
After that connect the leak-oil line which go directly to the tractor's tank. Adjust the length of the
hose and install suitable quick couplings on the tractor.

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
18
18
Breddningsving
en monteras
på insidan av
maskinen
Attach hydraulic hoses for ejecting pipe control to double acting outlets at tractor. Clean the
connections carefully before attaching. Before using the equipment, test the operation of the
ejector pipe control.
Check that machine can work freely from tractor in all predictable situations.
3.3 Before starting up
Warning!
The hydraulic hoses on the machine contain oil under high pressure. Never touch the
hoses or other hydraulic components while there is still pressure in the system. Relieve
the pressure on the system first. In case of leakage oil under high pressure can
penetrate the skin and cause serious injuries.
Ensure that nobody is close to the equipment when performing the trial run.
Before starting up, following items must be checked.
Check the screws and bolts at the machine and tighten if necessary. See table with
recommended torque settings in section “Service and maintenance”.
Check that all protective devices are undamaged and correctly attached to the equipment.
Lubricate the machine (see section ”Service and maintenance”).
Check the oil level in the gearbox (see section “Service and maintenance”). The gearbox is filled
with oil SAE 80W/90 API GL4/GL5, Industrial gear oil ISO VG 220.
Adjust height of scraper steel with support pads, and machine tilt with top link (see section
“Adjustments”)
Check that no objects have wrapped themselves around moving parts.
Test the machine. Activate the oil flow to the snow blower while the tractor’s engine is at
idle speed, and then move into high gear until you reach recommended oil flow. Ensure
that the snow blower rotates in the right direction and that there are no oil leakages. Perform
the above procedure in reverse order when you want to turn off the snow blower; 1. Change to
idle speed, 2. Stop the oil flow to the machine.
3.4 Adjustments
Warning!
No work is allowed unless the equipment is safely secured (don’t completely rely on
tractors 3-point connection).
Be careful when undoing the pierced rod of flap control, crushing hazard!
At any time when performing repairs and maintenance, the engine must be switched off
and the machine completely stopped mowing. Withdraw the ignition key from the switch.

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
19
19
Breddningsving
en monteras
på insidan av
maskinen

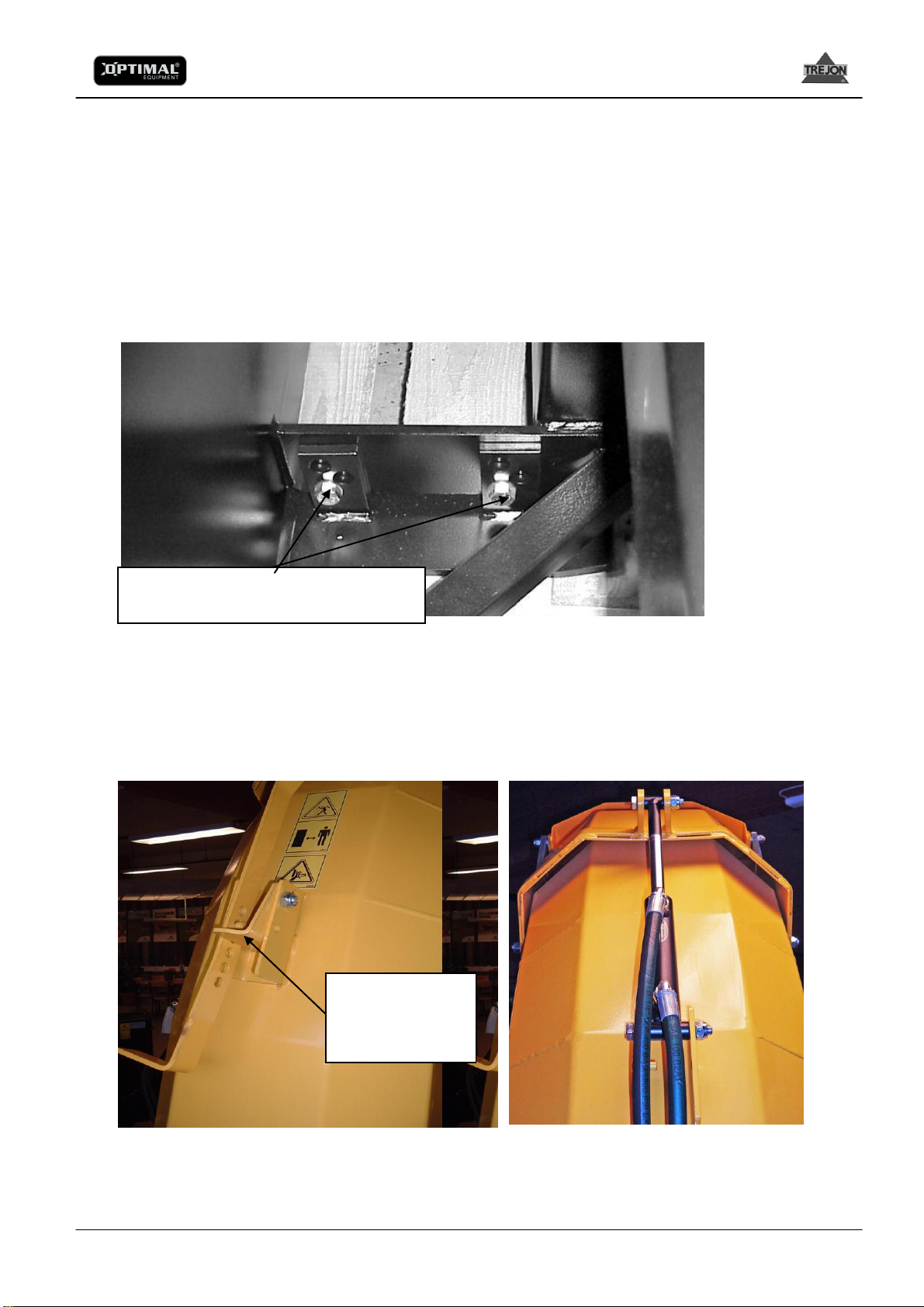

Support pads
The height of the equipment is adjusted with two supporting pads located at the back. The
angle of the equipment is adjusted by the tilt function of the tractor’s loader. This determines the
how well the equipment follows the variations in the surface. If the equipment is angled forward,
it is easier for it to cut through packed snow and ice. A suitable basic adjustment when the
machine rest on the support pads, is that the wearing edge of the scraper steel is 10mm above
ground. Aim at keeping the machine levelled during work.
The supporting pads are to be adjusted as the wearing edge is being worn down. The
supporting pads are adjusted by undoing the mounting screws, and mount them in other holes.
Ejector tube
The equipment comes fitted with a hydraulically turntable ejector tube as standard. At the end of
the tube is a flap that regulates the distance the snow is thrown. Turn up the handle that locks
the pierced rod, move the rod to the desired position and lock it again.
A hydraulically (or electrically) operated flap is available as an option. This is suitable for those
that need to change the placing of the ejected snow while operating the equipment.
Mechanical flap control (Standard) Hydraulic flap control (Option)
Locking handle
for mechanical
flap control.
Fixing bolts for supporting pads. Can
be adjusted for various heights.

Instructions for Use and Maintenance 2452H (1402)
trejonindustries.se
20
20
Breddningsving
en monteras
på insidan av
maskinen
The ejector tube has two mounting holes. These will enable you to regulate the distance the
ejected snow is thrown.
The height of the equipment is adjusted with two supporting pads located at the back. The
angle of the equipment is adjusted with the top-link. This determines the how well the
equipment follows the variations in the surface. If the equipment is angled forward, it is easier
for it to cut through packed snow and ice.
The supporting pads are to be adjusted as the wearing edge is being worn down. The
supporting pads are adjusted by undoing the mounting screws and move the pads. When the
pads are worn out they have to be replaced by new ones.
3.5 Operating the machine
Warning!
Operator must have a good view over the working area and the area where the ejected
snow lands. Heavy items in the snow, such as stones etc., can be propelled much further
than the snow itself.
Before leaving tractors cabin ensure that all moving parts have come to a complete stop.
Caution!
The shear bolt is No guarantee for machine not being damaged at impact with heavy,
solid objects.
To avoid damages on machine, lift snow blower before going backwards with the
equipment.
A doubled driving speed, make the stress at the equipment four times higher. Damages
on snow blower caused by impact with heavy, solid objects isn’t covered by the
warranty.
The temperature of the hydraulic oil must not exceed 75 degrees during operation of the
implement.
Optional mounting holes for the ejector
tube.
